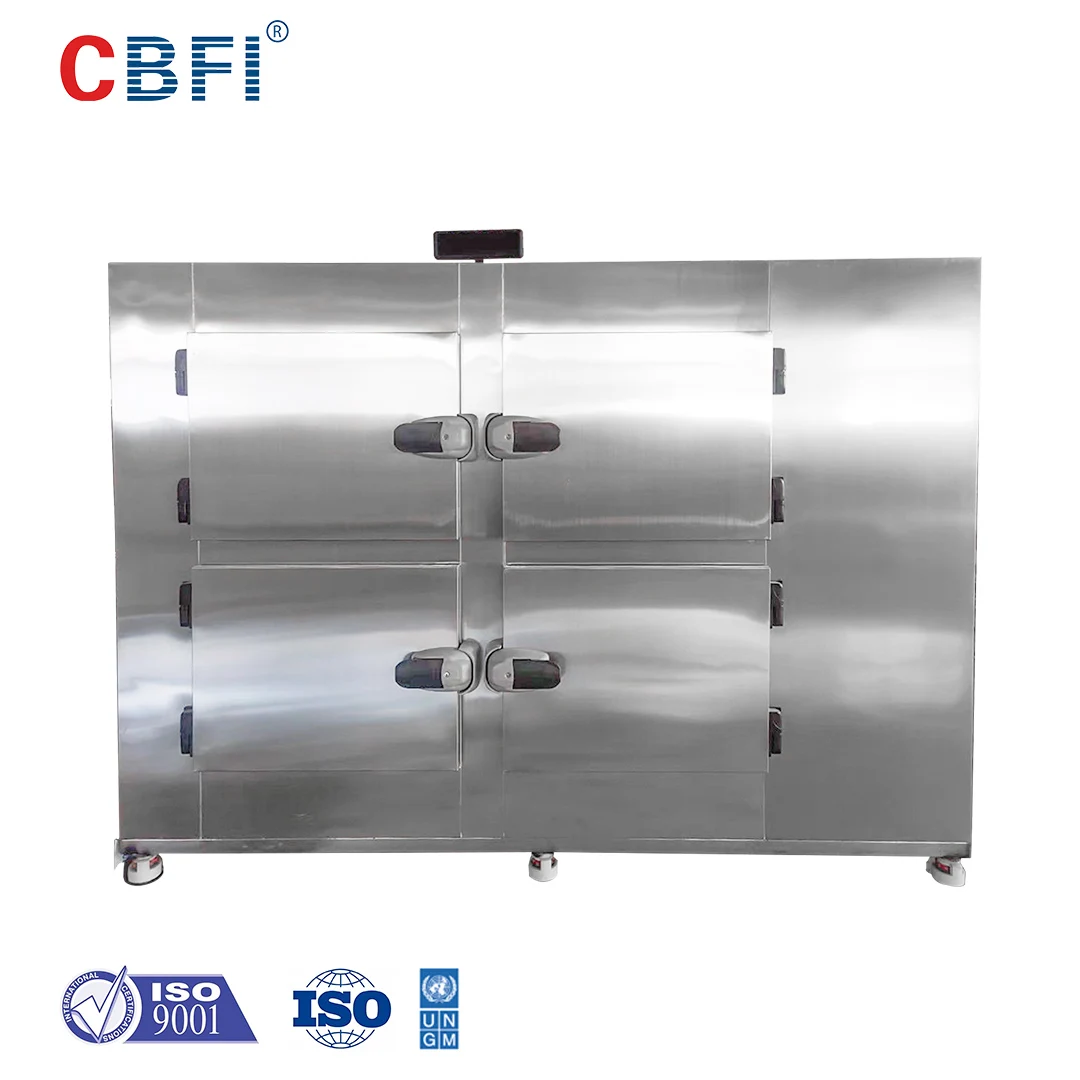

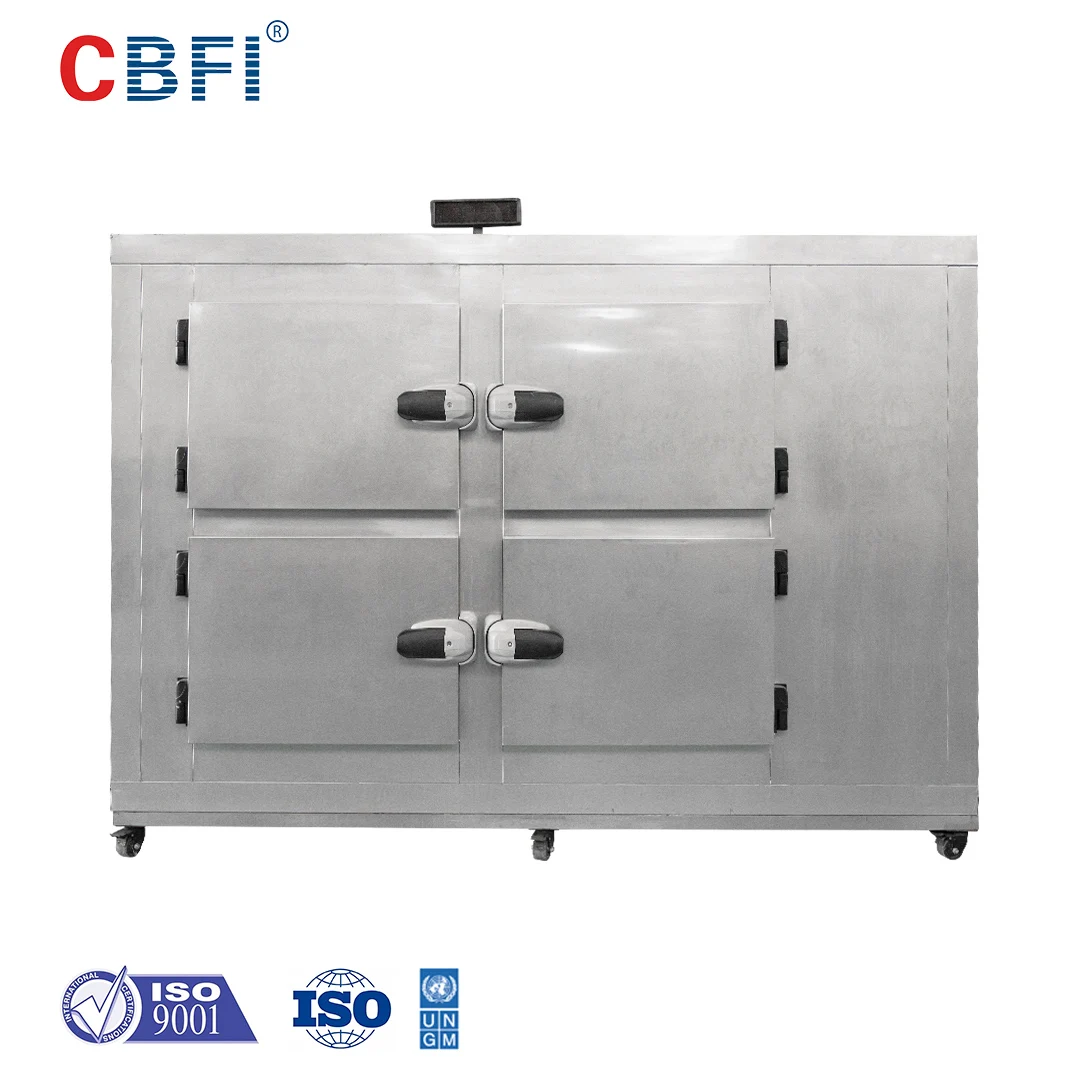

IQF Strawberry Food Quick Potato Freezing Machine Manufacture Shock Cryogenic Cabinet Industry Blast Freezer For Fruit Vegetable
- Category: >>>
- Supplier: Guangzhou Icesource Co. Ltd.
Share on (1600501470344):
Product Overview
Description
Project Description

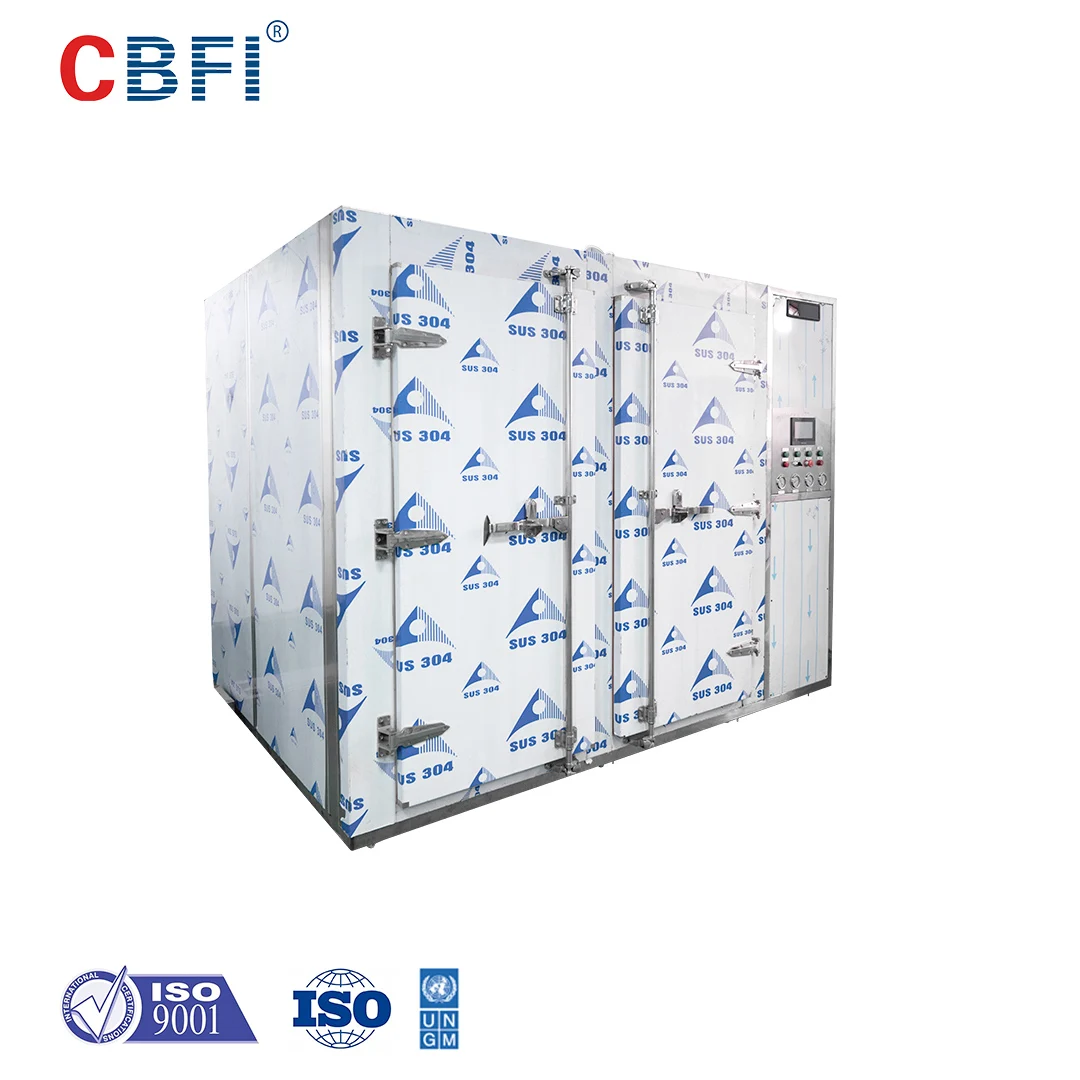

Cold sheet type quick freezer/cold front type quick freezer
The ultra-low temperature quick-freezer is mainly used for rapid cooling and freezing of food, and can quickly lock food nutrients. Maintaining the freshness and quality of food has a significant effect. Compared with conventional cold storage, our ultra-low temperature quick freezer has the characteristics of faster freezing, more energy saving and easy operation.
1) The compressor and refrigeration accessories of the unit use well-known brands to ensure the efficient and reliable operation of the unit. 2) The unit is equipped with a variety of protection devices to ensure safe use.
3) The operating system of the unit adopts programmable and remote monitoring electronic control, with excellent performance, safety and reliability, and simple operation.
4) The unit completes the system pipeline assembly and the installation and debugging of the electrical control circuit in the factory, and the installation on site is simple and convenient.
5) The unit and the cabinet are integrated, with compact structure and ultra-low noise.
Product Features
Structural features and working principle
2.1 Unit structure The unit consists of five systems: refrigeration system, cooling water system, air duct system, evaporator end
and electric air system. 2.1.1 Refrigeration system The refrigeration system of the ultra-low temperature quick freezer is
composed of a high temperature level refrigeration system and a low temperature level refrigeration system. The heat exchange tube
Using high-efficiency tubes, the heat exchange capacity is better. The condenser has compact structure, small footprint and high
heat transfer coefficient. Detachable structure for easy maintenance and cleaning. The evaporator adopts the copper tube aluminum
fin evaporator designed by the company (or aluminum plate), high-efficiency copper tube is used, and the heat exchange effect is
good. Expansion valve, filter drier, sight glass, Expansion tank, regenerator and other accessories, all adopt Internationally
renowned brand products can ensure the efficient and reliable operation of the system. 2.1.2 Electrical system The unit adopts
programmable controller to automatically complete the operation and protection functions of the unit. Our company's unit selection
The programmable controller has the advantages of small size, light weight, high reliability, large storage capacity and many
control points. Coupled with the unique analog input expansion module of the controller, the control accuracy of the system is
greatly improved. According to According to user requirements, the programmable controller can be equipped with a dedicated
communication interface, so as to realize the remote control and centralized real-time control of the unit. control, so that the
unit can flexibly cooperate with the building automatic control system to realize multi-directional automatic intelligent control.
2.1.3 Cooling water system The water system consists of condenser, cooling tower, circulating water pump, stop valve, check valve,
filter and pipeline.
and electric air system. 2.1.1 Refrigeration system The refrigeration system of the ultra-low temperature quick freezer is
composed of a high temperature level refrigeration system and a low temperature level refrigeration system. The heat exchange tube
Using high-efficiency tubes, the heat exchange capacity is better. The condenser has compact structure, small footprint and high
heat transfer coefficient. Detachable structure for easy maintenance and cleaning. The evaporator adopts the copper tube aluminum
fin evaporator designed by the company (or aluminum plate), high-efficiency copper tube is used, and the heat exchange effect is
good. Expansion valve, filter drier, sight glass, Expansion tank, regenerator and other accessories, all adopt Internationally
renowned brand products can ensure the efficient and reliable operation of the system. 2.1.2 Electrical system The unit adopts
programmable controller to automatically complete the operation and protection functions of the unit. Our company's unit selection
The programmable controller has the advantages of small size, light weight, high reliability, large storage capacity and many
control points. Coupled with the unique analog input expansion module of the controller, the control accuracy of the system is
greatly improved. According to According to user requirements, the programmable controller can be equipped with a dedicated
communication interface, so as to realize the remote control and centralized real-time control of the unit. control, so that the
unit can flexibly cooperate with the building automatic control system to realize multi-directional automatic intelligent control.
2.1.3 Cooling water system The water system consists of condenser, cooling tower, circulating water pump, stop valve, check valve,
filter and pipeline.
Nominal cooling conditions: supply air temperature -54°C, return air temperature -50°C; cooling water inlet temperature 30°C, outlet water temperature 35°C. The applicable ambient temperature range of this unit is: 5℃±1℃～43℃±1℃, and the cooling water inlet temperature range: 10～35℃
Product Configurations
Cold Room Units
Wall-mounted Intelligent
Cold Room Unit
This unit is installed on the wall of the cold room. We provide wall panel with window for the installation. Thus, it is easy to install. There is no need for welding.
Separated Cold Room Unit
The air cooler is seperated from the other parts of the unit. The connection is using copper connector, like the one in air conditioner. So the installation is as easy as installing an air conditioner.
Pressure Monitoring
Good quality pressure gauge is used for pressure monitoring. And pressure protector is used to avoid pressure damage.
Bitzer Screw Compressor
Cold Room Unit
Bitzer screw compressor can be used at various temperatures, has stronger environmental adaptability. It is more energy efficient when it achieves the same cooling capacity. Its price is even higher.
Copeland Paralleled Cold Room Unit
Copeland is from US, the quality is also good. The paralleled system is able to operate when one of the compressors is not working. This allows the cold storage running without goods loss.
Bitzer Paralleled
Cold Room Unit
This unit combines the good quality of Bitzer and stable operation of paralleled system. It is high efficient, stable and
reliable.
reliable.
BITZER Strategic Cooperation Certificate
2020
2021
2022
Cold Room Panel
There are three kinds of surface material for chosen, stainless steel, aluminium plate and color steel. The characters of the
three plates are different. Our design engineer provide different solutions for different requirements. The thickness of the plate could be customized. We also provide normal standard.
three plates are different. Our design engineer provide different solutions for different requirements. The thickness of the plate could be customized. We also provide normal standard.
Cold Room Door
Door Type:Hinged door / modified door / sliding door / full buried door(return door) / fast rolling door / free door / industrial upgrading door
Cold Room Peoject
------------------------------Foreign Cold Storage Cases-------------------------------
Philippine Cold Storage
Vietnamese Fish and Shrimp Cold Storage
Lebanon Cold Storage
American Comprehensive Cold Storage
Tajikistan Cold Storage
Zambia Cold Storage
------------------------------Domestic Cold Storage Cases-----------------------------
GuangZhou Cold Chain Project
Phase 1:The size of the distribution warehouse is 16800㎡*8.5m, with a total of 1.
Phase 2:Distribution warehouse area 11000㎡*9.7m.
This project characteristics:Energy saving;Safety;High degree of automation;The function of the automatic monitoring system
Pan-Asian Cold Chain Project
This case park has a storage capacity of 70,000 tons, including 40,000 tons of low-temperature freezer storage, 20,000 tons of fresh-keeping cold storage, 10,000 tons of constant-temperature fresh-keeping storage, and 10,000 square meters of dry goods storage.Zhengzhong Cold Chain-Ammonia Three-dimensional Cold Storage
Construction year: 2015
Project Type: Logistics warehousing
Project capacity: 56,000 tons of cold storage
Project function: freezing/refrigeration
Temperature control requirements: -30℃~10℃
Project Type: Logistics warehousing
Project capacity: 56,000 tons of cold storage
Project function: freezing/refrigeration
Temperature control requirements: -30℃~10℃
Guangzhou Qiandama Agricultural Products Co., Ltd. mainly operates fresh supermarket chains, and now has more than 1,200 supermarket chains.
5000 Tons of Food Storage Cold Room Case
-23°C--18°C Food Storage Cold Storage(cold storage, chicken and other raw materials)
The project is the largest real snow and ice site in the city, which is located in Jiangmen, Guangdong. Cold rooms is more and more popular in the world.
More Project Cases>>www.icesourcegroup.com
Made in China Website>> icemakerchina.en.made-in-china.com
Our Services
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation
manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready.
Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual
installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
Guarantee Period: During 12 months after selling, maintenance and parts free of charge
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation
manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready.
Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual
installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
Guarantee Period: During 12 months after selling, maintenance and parts free of charge
