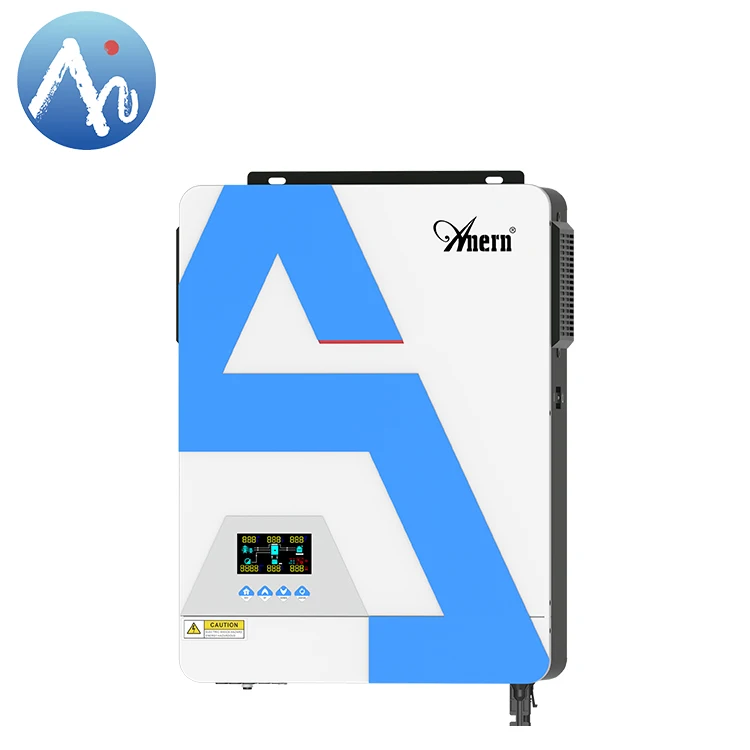

Anern 3kw 4.2kw off grid solar power inverter 24v 5kw solar inverter 48v 6.2kw
- Category: >>>
- Supplier: Shenzhen Anern Optoelectronics Co. Ltd.
Share on (1600501483767):

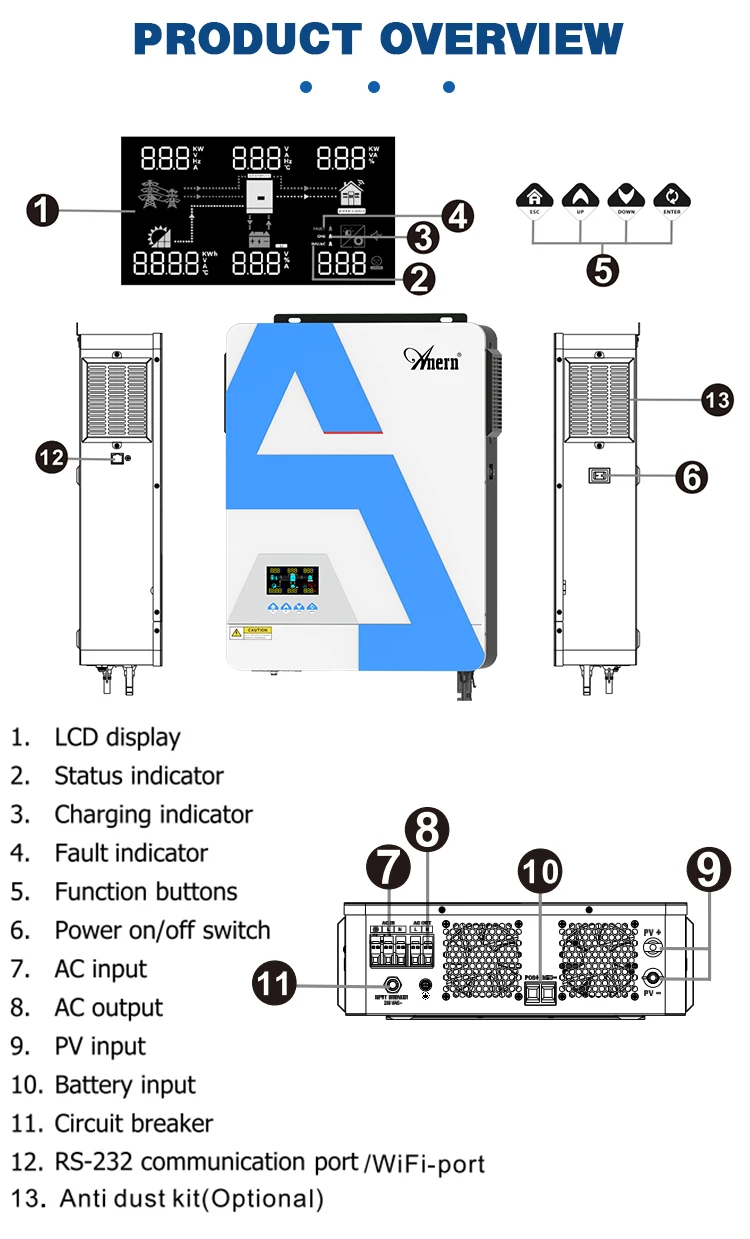

Product Overview
Description
Recommend Products
Products Description
The AN-SCI02 Pro series all in one solar system is the perfect go-to solution for off-grid,backup power for homes,small business, and it also delivers a value added,easy to install system that provides efficient power globally for every need.\t\t
Key Features:\t\t\t
1.Integrated MPPT charge controller;
2.Wide input voltage range;
3.Compatible with variety of lithium or lead-acid battery;
4.Widely used for home and commercial use;
5.Optional WIFI remote monitoring;
Product Specification:
Key Features:\t\t\t
1.Integrated MPPT charge controller;
2.Wide input voltage range;
3.Compatible with variety of lithium or lead-acid battery;
4.Widely used for home and commercial use;
5.Optional WIFI remote monitoring;
Product Specification:
Model | SCI02-RM-3600 | SCI02-RM-4200 | SCI02-RM-6200 | |||
RATED POWER | 3600W | 4200W | 6200W | |||
INPUT | ||||||
Voltage | 230 VAC | 230 VAC | ||||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) | 170-280 VAC (For Personal Computers) | ||||
90-280 VAC (For Home Appliances) | 90-280 VAC (For Home Appliances) | |||||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | 50 Hz/60 Hz (Auto sensing) | ||||
OUTPUT | ||||||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | 230VAC ± 5% | ||||
Surge Power | 7200VA | 8400VA | 12400VA | |||
Efficiency (Peak) PV to INV. | 97% | 97% | ||||
Efficiency (Peak) Battery to INV. | 94% | 94% | ||||
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | ||||
Waveform | Pure sine wave | Pure sine wave | ||||
PHYSICAL | ||||||
Dimension, D x W x H (mm) | 100 x 300 x 444 | 100 x 300 x 444 | ||||
Net Weight (kgs) | 10 | 10.5 | 11 | |||
Communication interface | WIFI | WIFI | ||||
Details Images

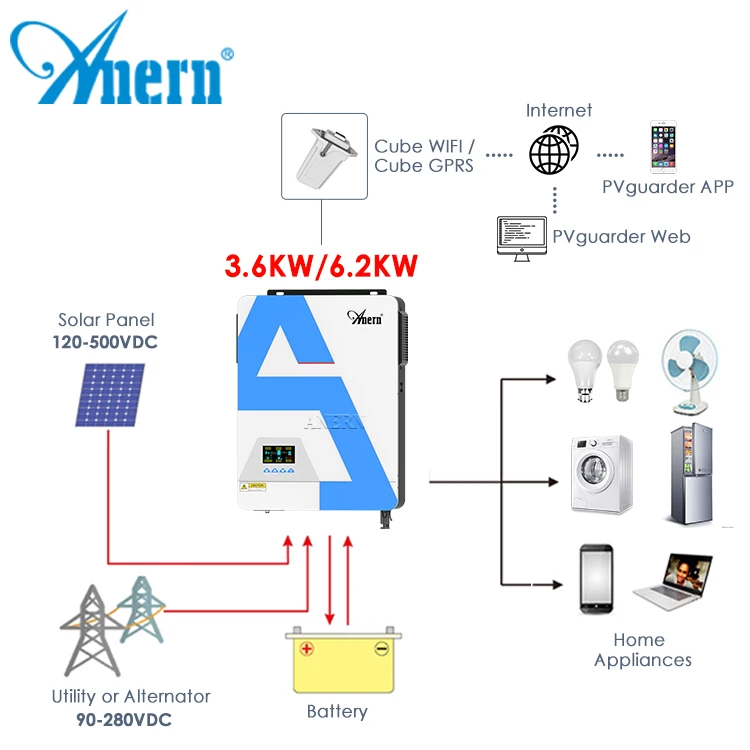

Application
Certifications

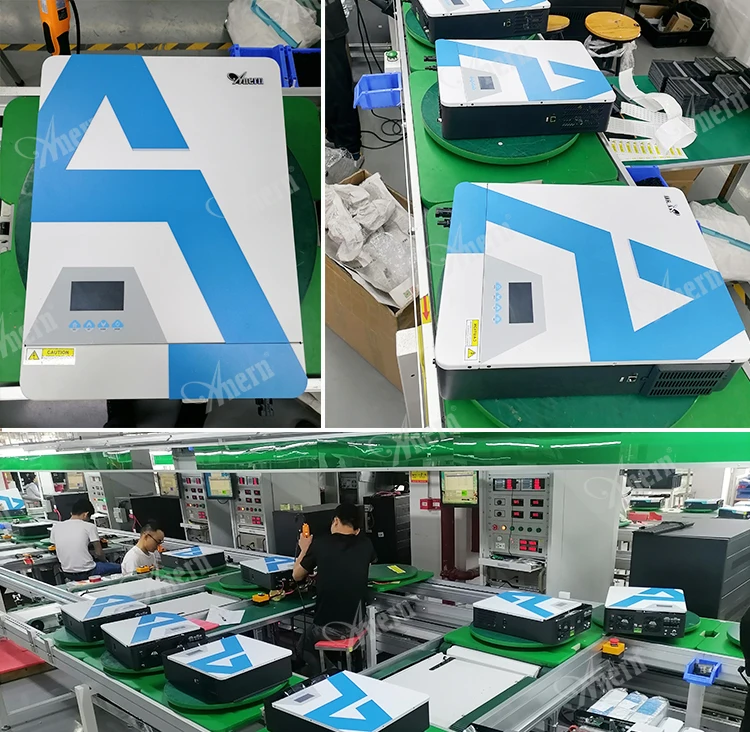

Anern Factory
