Shampoo and hair conditioner linear servo piston filling machine
- Category: >>>
- Supplier: Changzhou Huituo Technology Co. Ltd.
Share on (1600501484893):
Product Overview
Description
Overview

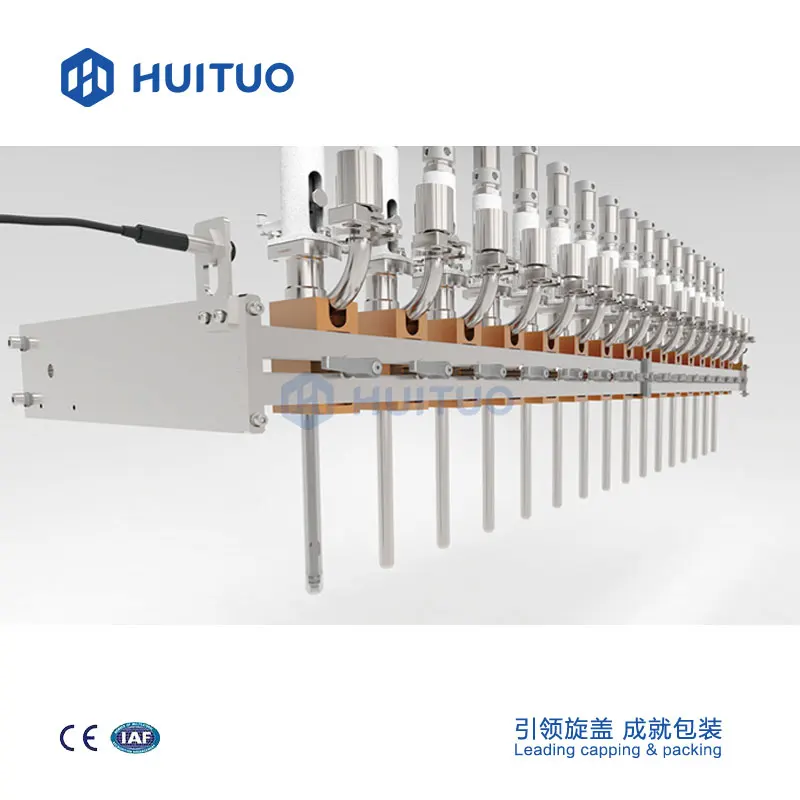

-6-head linear filling machine (it can be customized based on specific requirements)
-Full servo, each filling head controlled by one servo motor(optional)

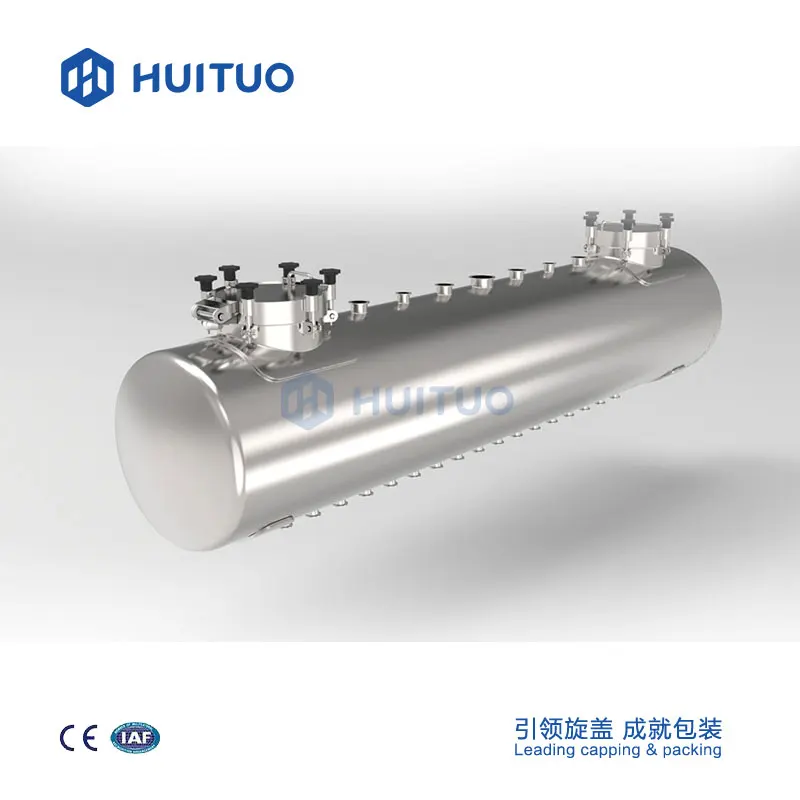

-Cylinder or vertical tank
-Liquid suitable: Shampoo, hair conditioner, liquid soap, detergent and so on.
-Bottles suitable: cylinder, flat and irregular shapes
-Easy changeover
Main technical parameters
No. | Item | Description |
1 | Applicable bottle | Based on requirement |
2 | Filling accuracy | ±0.3% |
3 | Dimensions | 1600mm*1400mm*26800mm |
4 | Weight | 2500kg |
5 | Filling heads | 2-24, customized based on requirements |
6 | Speed | 70bpm based on 10-head |
7 | Air source | 0.5Mpa-0.6Mpa clean and stable air source |
8 | Power | 220V-360v, 50-60HZ(Based on requirements) |
9 | Running noise | 80dB(A) |
10 | Machine material | Frame: carbon steel, stainless steel frame; Contact with material: 316L stainless steel; Filling head: 316L stainless steel; Material pipe: sanitary grade steel hose; Connected and fixed mechanical parts: SUS304 stainless steel; control valve: 316L stainless steel; Screen door: stainless steel edging, plexiglass |
Suitable products
