Durable Low Price Multi purpose Lathe Mill Mini Lathe Metal Cnc Lathe
- Category: >>>
- Supplier: Jiangsu Yishou Machinery Technongy Co. Ltd.
Share on (1600501487803):
Product Overview
Description
Product Description
Product introduction.

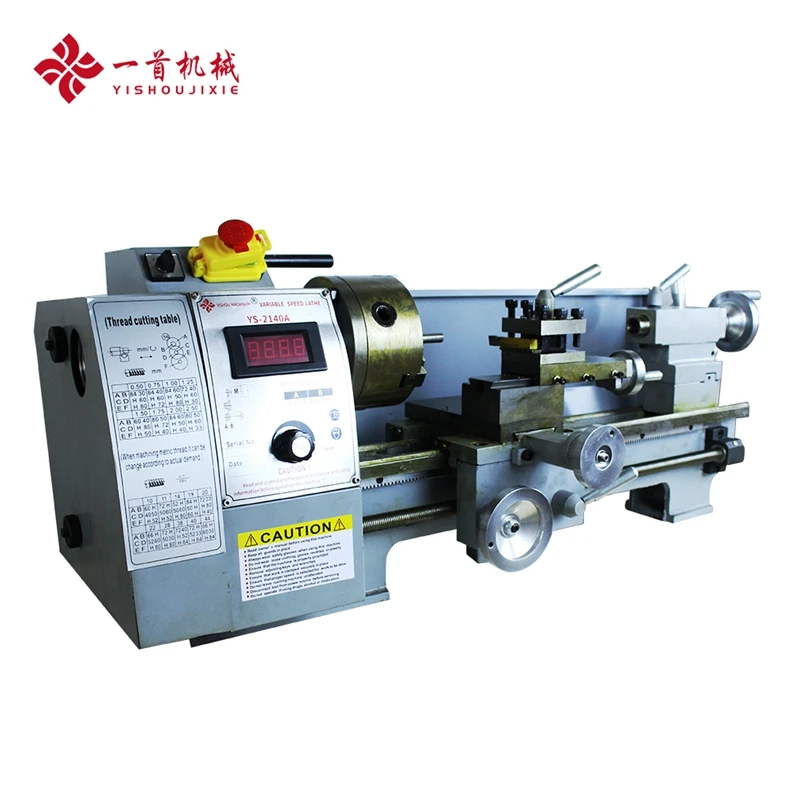

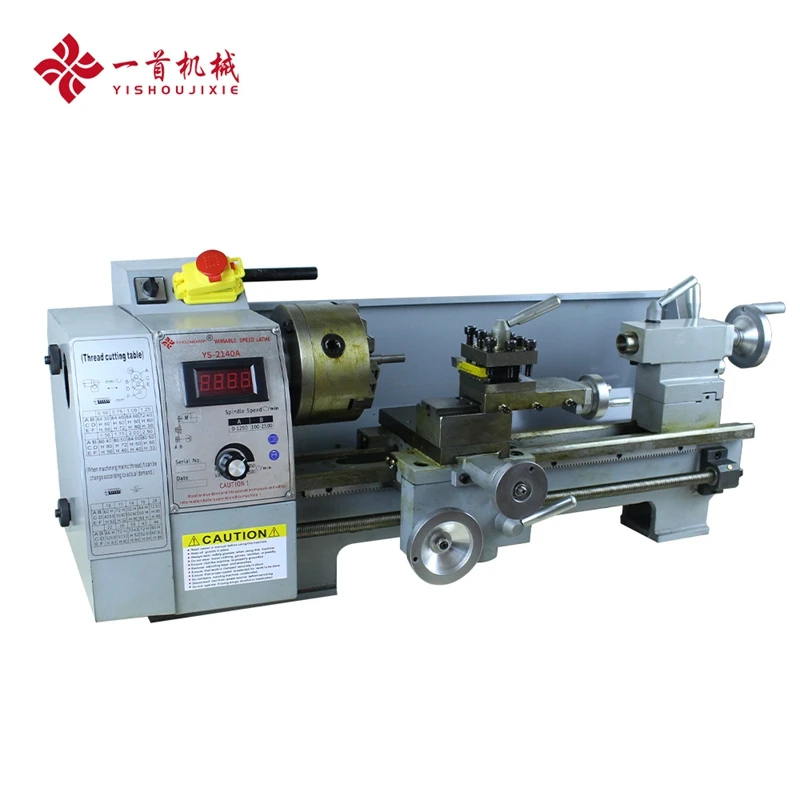

This precision mini lathe is designed to perform various types of metal turning.
With 18 threads,automatic feed and a chuck guard with micro switch .
This mini lathe is ideal for use in labs, workshops,engineering and educational settings.
By adjusting the speed switch can control the spindle speed 0 to 3000RPM.
Automatic feeding,infinitely variable,professional tool post.
1100w strong power,600mm processing distance,DIY processing of metal,wood.
With 18 threads,automatic feed and a chuck guard with micro switch .
This mini lathe is ideal for use in labs, workshops,engineering and educational settings.
By adjusting the speed switch can control the spindle speed 0 to 3000RPM.
Automatic feeding,infinitely variable,professional tool post.
1100w strong power,600mm processing distance,DIY processing of metal,wood.
Specification
Specifications | ||
Swing Over Bed | 210mm | |
Swing Over Cross Slide | 110mm | |
Distance Between Centers | 400mm | |
Width of Bed | 100mm | |
Hole Through Spindle | 38mm | |
Taper in Spindle Nose | MT5 | |
Number of Spindle Speeds | Variable | |
Range of Spindle Speeds | 0-1250RPM / 100-2500RPM | |
Number of Imperial Threads | 10 | |
Range of Imperial Threads | 10~44 T.P.I. | |
Tool Post Type | 4-Way | |
Maximum Compound Slide Travel | 55mm | |
Maximum Cross Slide Travel | 75mm | |
Maximum Carriage Travel | 276mm | |
Tailstock Spindle Travel | 60mm | |
Taper in Tailstock Spindle | MT2 | |
Main Motor | Brush Motor,750W,110V/220V | |
Product Size | 875mm*340mm*345mm | |
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Package Content | ||
3 x Hexagon Key Wrenches， | 1 x 3-Chuck Jaws, | |
5 x Inner Hexagon Key Wrenches, | 2 x handles, | |
1 x Slotted Screwdriver, | 6 x Metal Gears, | |
1 x Straight Screwdriver, | 1 x Oil Can, | |
1 x Chuck Wrench, | 1 x Dead Center. | |
Details Images
Stepless speed regulation knob
Stepless speed regulation is realized by adjusting the knob
More accurate adjustment through digital display
More accurate adjustment through digital display

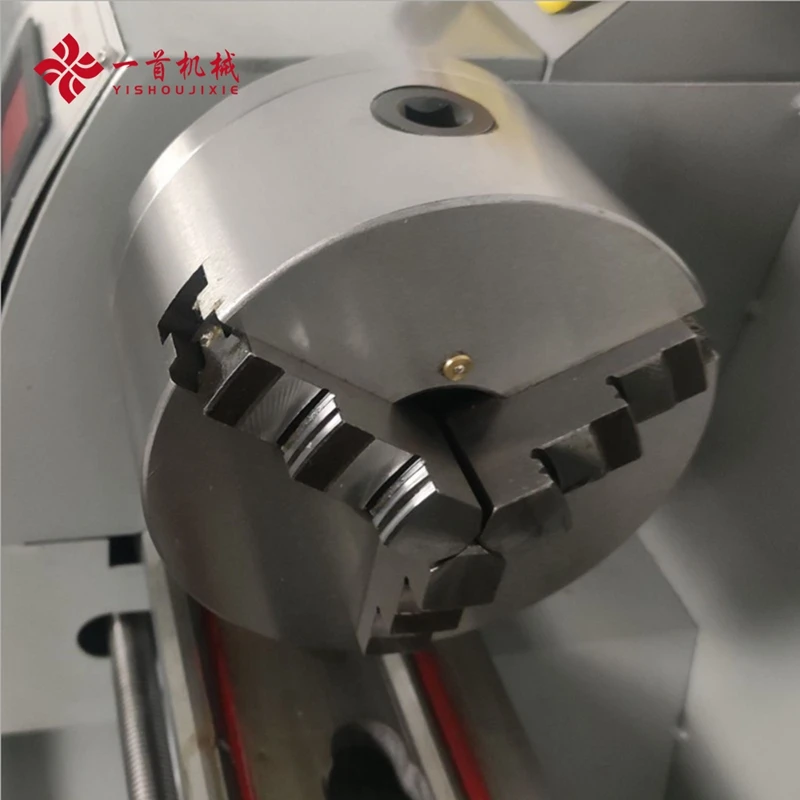

High precision three jaw chuck
High precision machined chuck, whether square material or round materials can be clamped firmly
Four way tool holder
The machine uses a four-way rotating tool holder, which can be installed with four common turning tools at the same time. Open the latch and rotate easily to change the tool

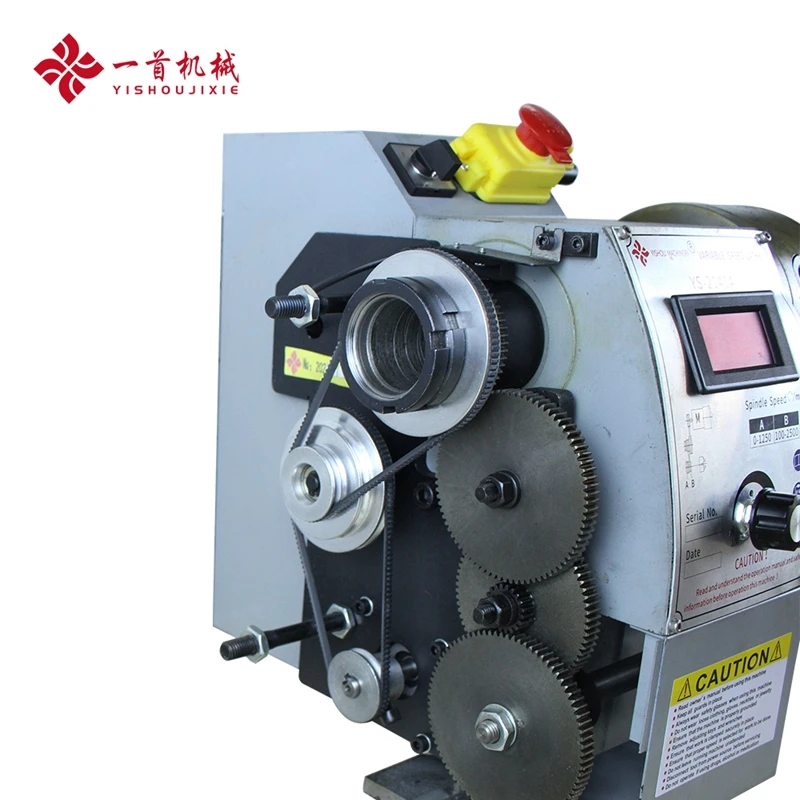

Metal gear drive
Good wear resistance and long service life
Variable speed operation is convenient
Variable speed operation is convenient
Accurate scale
Accurate scales are marked at the positions of large support plate, small support plate, bed saddle, tailstock and moving handle, which makes the operation more convenient and accurate
High quality pure copper motor
100% pure copper motor, plus high-quality
Copper sheet and copper wire ensure the reliability of the motor
Strong power
Copper sheet and copper wire ensure the reliability of the motor
Strong power
