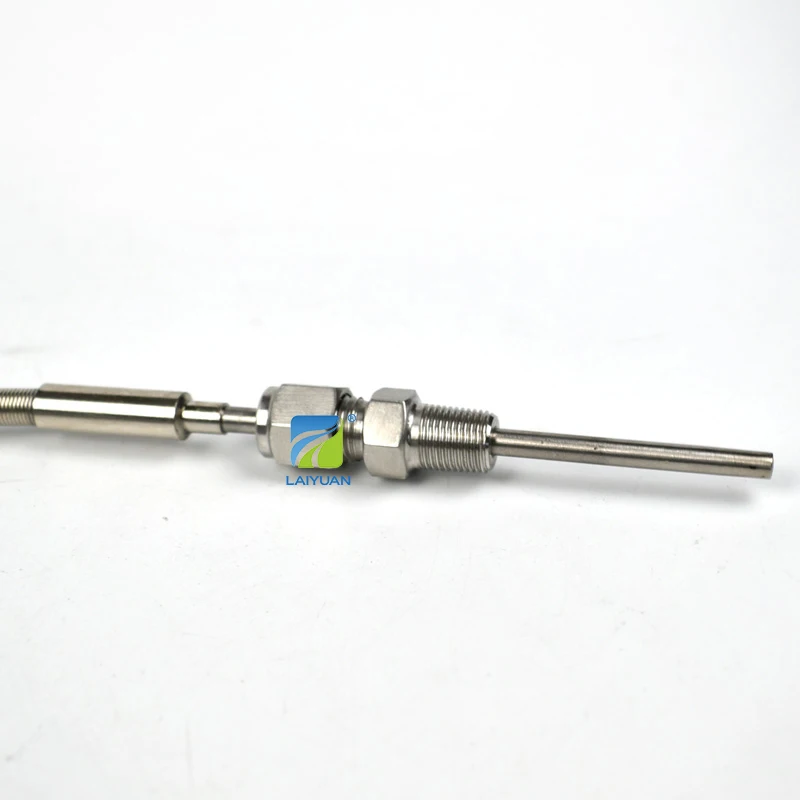

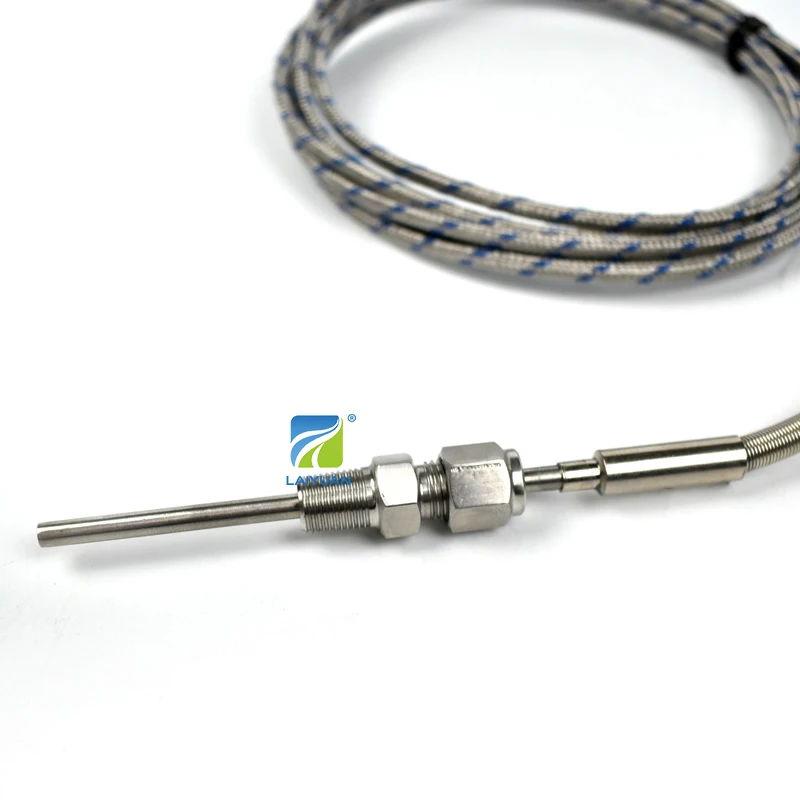

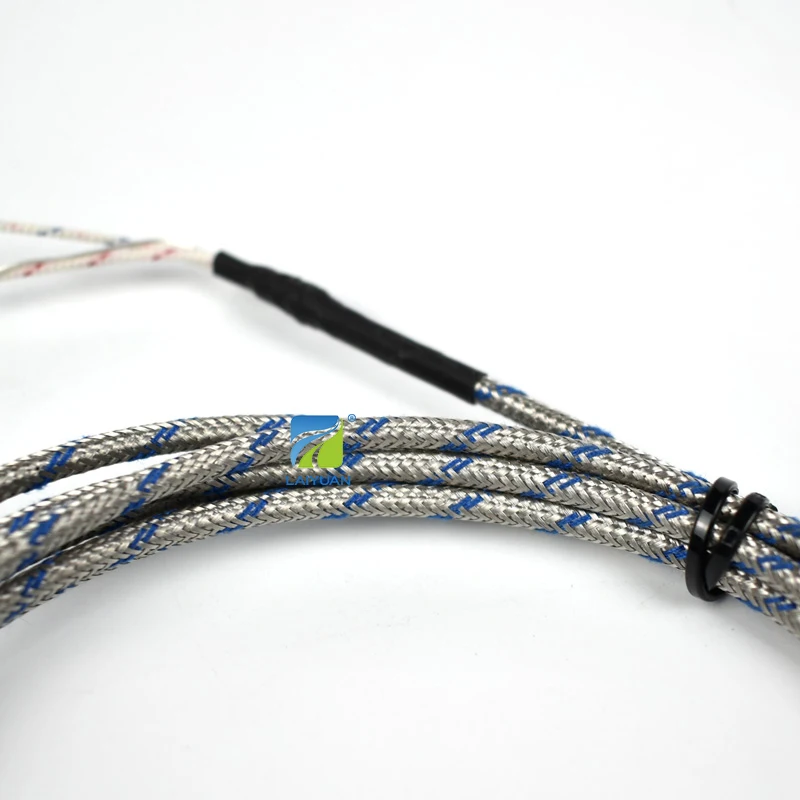

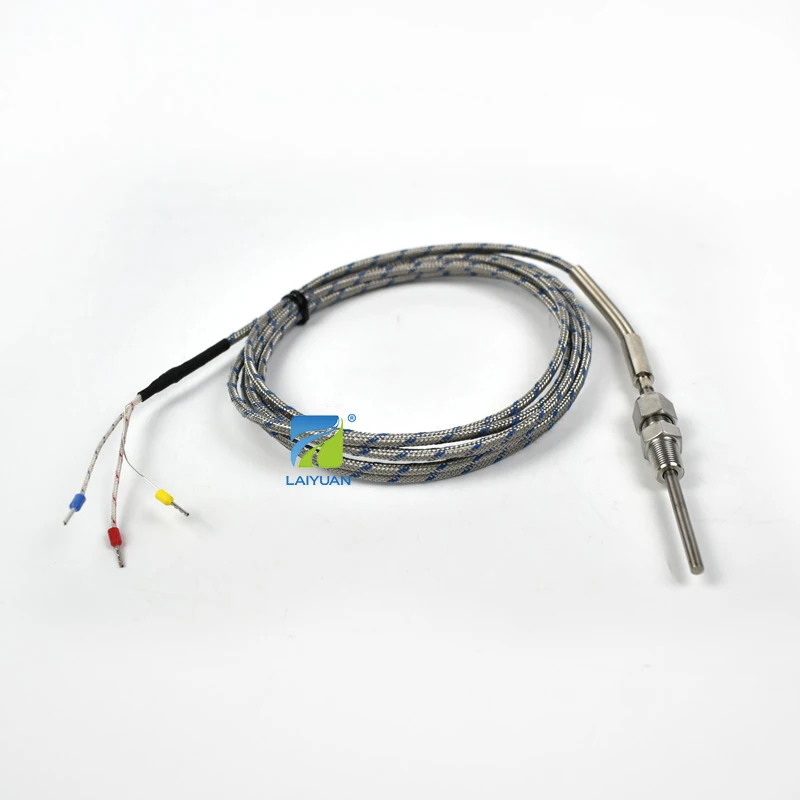

Laiyuan Industrial Gas Oven 4*80mm Threaded K Type Thermocouple
- Category: >>>
- Supplier: Yancheng Laiyuan Electric Equipment Co. Ltd.
Share on (1600501504470):
Product Overview
Description
Product Pramameters
A thermocouple consists of two conductors of different materials (usually metal alloys) that produce a voltage in the vicinity of the point where the two conductors are in contact. The voltage produced is dependent on, but not necessarily proportional to,the difference of temperature of the junction to other parts of those conductors.Thermocouples are a widely used type of temperature sensor for measurement and control and can also be used to convert a temperature gradient into electricity.
ANSI/ASTM | Symbol Single | Generic Names | Magnetic Yes/No | Environment (Bare Wire) |
J | JPJN | Iron Constantan，Nominal Compostition：55% Cu,45%Ni | Y/N | Reduing Vacuum,InertLimited use in oxidizing at high temperatures. Not recommended for new temps. |
K | KPKN | Chromel，NominalComposition：90% Ni,10%Cr Alumel,Nominal Composition：95%Ni,2%Si,2%Mg | N/Y | Clean Oxidizing and inertLimited use in Vacuum or reducing |
T | TPTN | Cooper Constantan，Nominal Composition：55%Cu,45%Ni | N/N | Mild Oxidizing ,ReducingVacuum or inert,good where moisture is present |
N | NPNN | Nicrosil，NominalComposition:84.6%Ni,14.2%Cr,1.4%Si Nisil，Nominal Composition：95.5%Ni,4.4%Si,1%Mg | N/N | Clean Oxidizing and inertLimited use in Vacuum or reducing |
E | EPEN | Nicrosil，NominalComposition:90%Ni,10%Cr Alumel,Nominal Composition:95%Ni,2%Si,2%Mg | N/N | Clean Oxidizing and inertLimited use in Vacuum or reducing |
Wire Color Codes
Type | Code | Temp. Graduation | Long Term Use Temp. | Short Term Use Temp. |
NiCrSi-NiSi | WRM | N | 0-1000 °C | 0-1100 °C |
NiCr-NiSi | WRN | K | 0-900 °C | 0-1000 °C |
NiCr-CuNi | WRE | E | 0-600 °C | 0-700 °C |
Fe-CuNi | WRF | J | 0-500 °C | 0-600 °C |
Cu-CuNi | WRC | T | 0-300 °C | 0-400 °C |
Features
1, Fast response time;
2, High accuracy;
3, Good fire resistance;
4, High pressure resistant;
5, Strong vibration resistance
6，Flexible，easy to use in small space
Code | Type | Features |
1 | Exposed junction | 1.Rapid response 2.Suitable to measure the temperature of gas,such as engine exhaust 3.Poor mechanical strength in contrast with other measuring structures |
2 | Grounded type | 1.Rapid response 2.Suitable in cases without interference |
3 | Insulated type | 1.It responds more slowly than that of the case-connected type 2.Long service life 3.Resistant to electric interference |
4 | Insulated-isolated type | 1.The signal interference between two couples can be avoided 2.ther Characters is similar to the insulated type |
Product Installation
Type | Admissable error class | ||||
Class l | Class ll | Class P | |||
K | ±1.5C±0.004ltl | ±2.5C ±0.0075ltl | / | ||
N | |||||
E | |||||
J | |||||
T | ±0.5C±0.004ltl | ±1C±0.004ltl | / | ||
