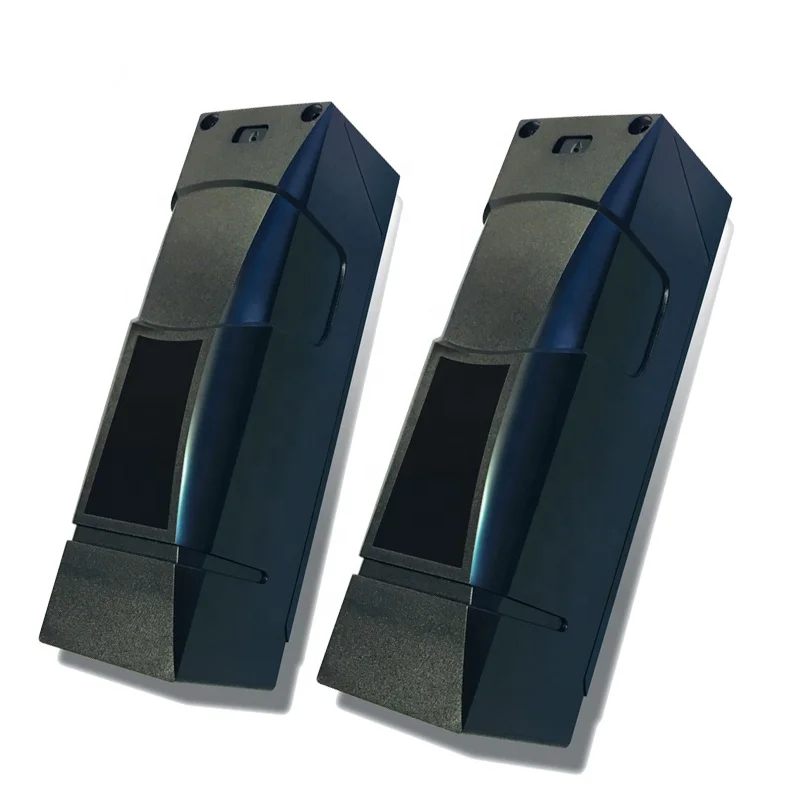

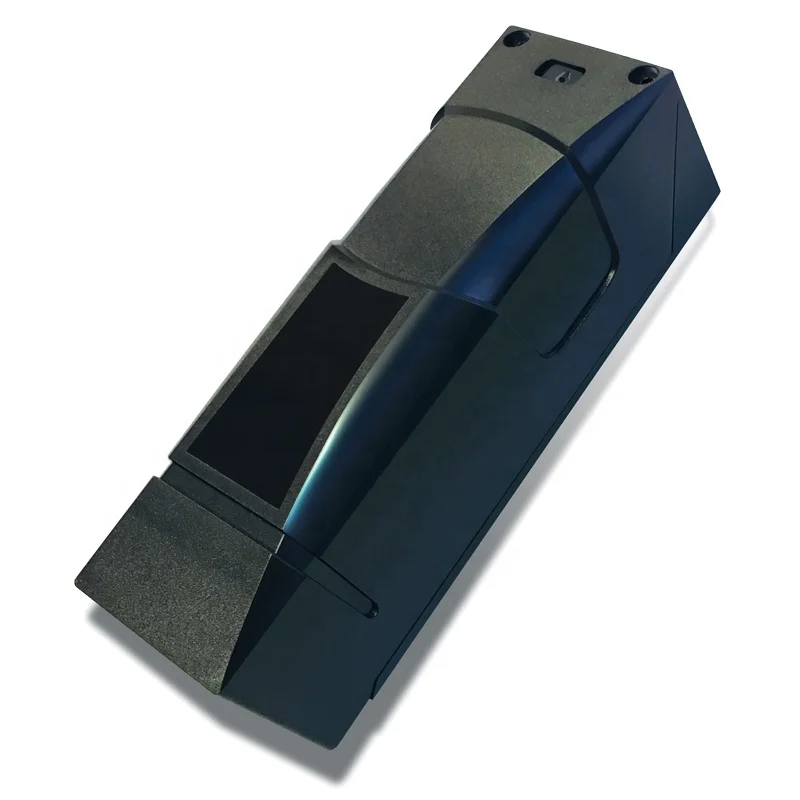

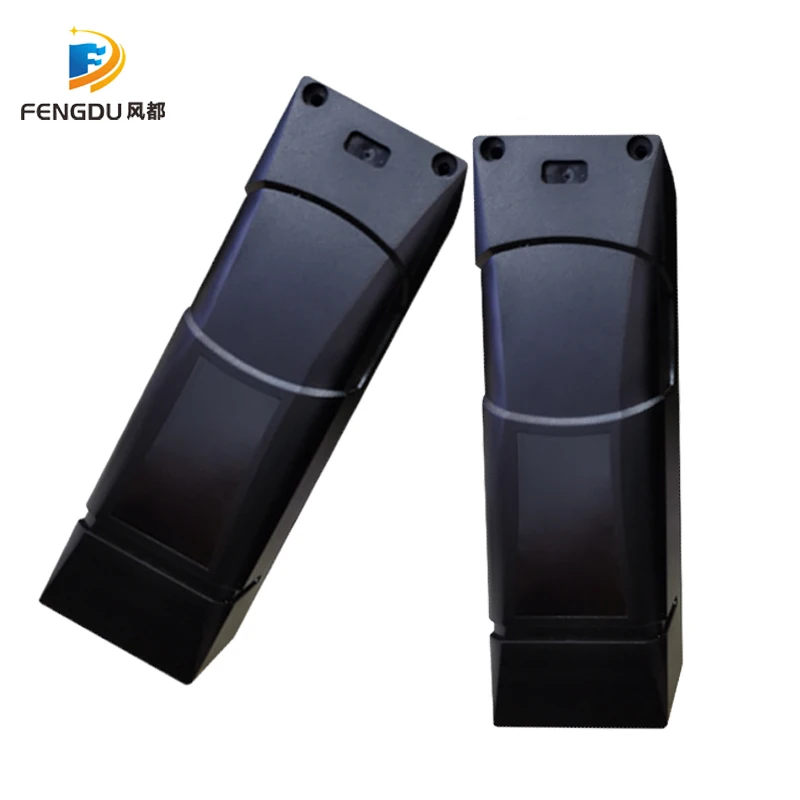

Sliding Gate Safety Detector 12V 24V AC/DC Infrared Barrier Alarm For Opener Single Beam Sensor Motion Sensor Photocell Gate
- Category: >>>
- Supplier: Shenzhen Fengdu Technology Co. Ltd.
Share on (1600501515746):
Product Overview
Description
Sliding Gate Safety Detector 12V 24V AC/DC Infrared Barrier Alarm For Opener Single Beam Sensor Motion Sensor Photocell Gate

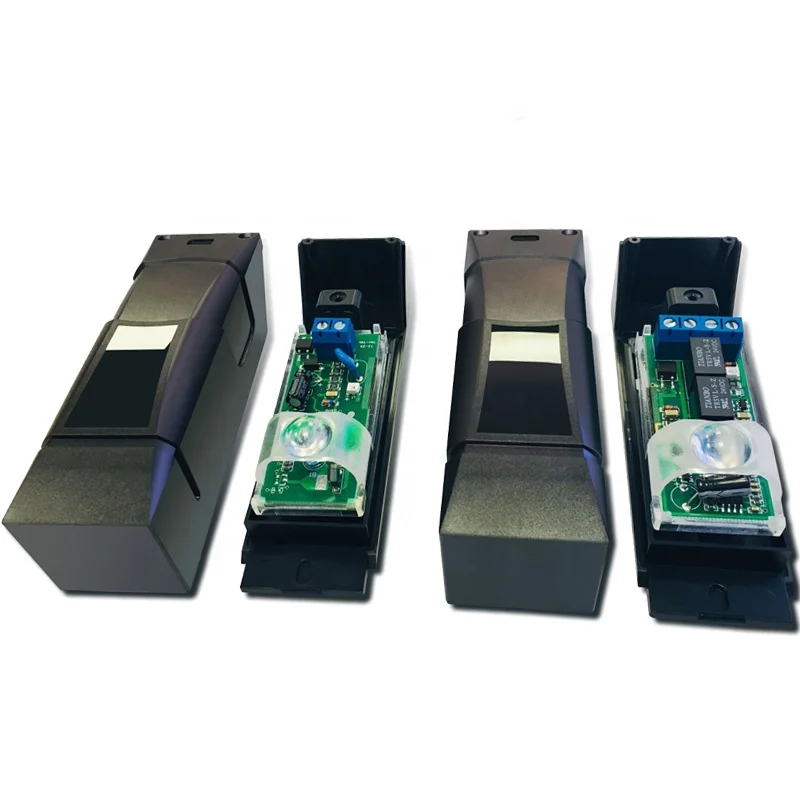

The photocells are designed to detect obstacles in auto- matic door and gate installations, preventing collision with the door /gate. They are made up of an infrared transmitter module (TX) and receiver module (RX). If a person or object interrupts the beam of light emitted by transmitter (TX) (or the beam does not reach the receiver due to failure or loss of setting), the receiver (RX) enables the corresponding relay and informs the installation control unit.
Product Description
Product Name | Automatic Gate Motion Sensor Photocell |
Material | ABS |
Function | use for automatic door/gate door security |
Power Supply | 12V AC/DC or 24V AC/DC. |
Consumption (at 24VDC) | TX: 20mA, RX: 25mA Wavelength: 940nm |
Infrared beam range | 30m maximum (9m in adverse conditions) |
Reaction time | about 110mS |
Contact us | Dear friends, if you have a large quantity, please contact us to quote you the best price. Thank you very much |
Technical parameters:
Rotate angle: 180
Infrared beam frequency: 1kHz
Infrared beam frequency: 1kHz
Operating temperature: -20°C / +60°C
IP protection: 44 Relay
IP protection: 44 Relay
contacts capacity: 1A at 24VDC
Distance:10-30m
(1) Install the receiver (RX) keep away from direct sunlight
(infrared radiation).
(2) Choose a location for the transmitter and receiver equipment.
The two modules should be as aligned as possible.
(3) The installation height of photocells will depend on the installation
(in general, we recommend installation at a height of less than
300mm from the ground and at a distance of less than 200mm
from the leaf of the gate).
(4) Connect the electrical power supply. When the receiver correctly
receives the beam sent by transmitter, the NC contact remains
closed and LED light off. When the beam is interrupted, the NC contact opens and LED light on.
Distance:10-30m
(1) Install the receiver (RX) keep away from direct sunlight
(infrared radiation).
(2) Choose a location for the transmitter and receiver equipment.
The two modules should be as aligned as possible.
(3) The installation height of photocells will depend on the installation
(in general, we recommend installation at a height of less than
300mm from the ground and at a distance of less than 200mm
from the leaf of the gate).
(4) Connect the electrical power supply. When the receiver correctly
receives the beam sent by transmitter, the NC contact remains
closed and LED light off. When the beam is interrupted, the NC contact opens and LED light on.
