LS236 plating thickness tester types portable car paint thickness meter portable coating thickness meter
- Category: >>>
- Supplier: Shenzhen Linshang Technology Co. Ltd.
Share on (1600501541013):
Product Overview
Description
Overview

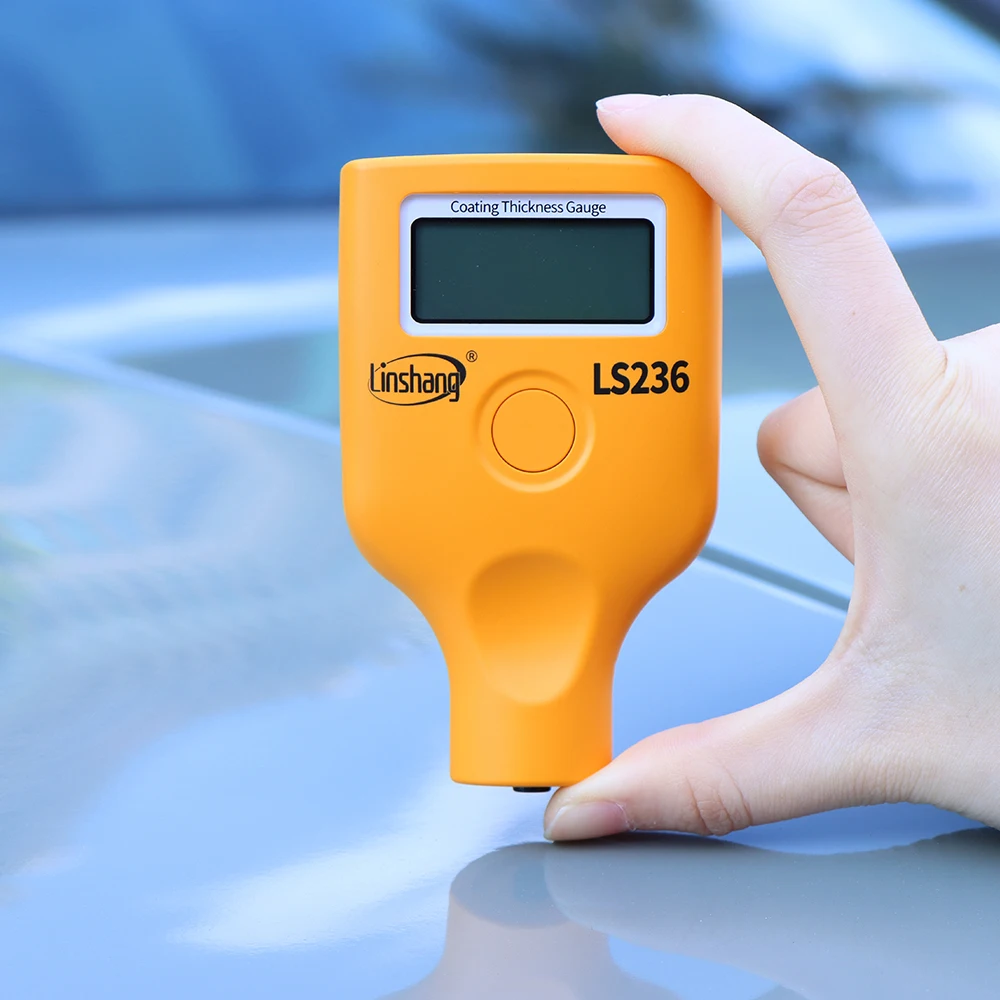

LS236 Car Paint Meter
LS236 paint film instrument is professionally used for automotive paint thickness inspection. It features the classic function of automatically identifying iron, aluminum body and plastic substrate. In addition, LS236 adopts new intelligent identification algorithm, which can detect accident cars refined with metallic putty, and can also automatically identify galvanized-iron high-grade anti-corrosion body. Equipped with high-definition LCD screen and ultra-low temperature LCD screen, it can be used normally in strong light and -40 °C temperature environment. The dual-screen design ensures that users can read quickly when measuring the car at any angle.
plating thickness tester typesportable car paint thickness meterportable coating thickness meter
Features
1. Various functions, practical and convenient
Automotive Paint meter has multiple functions and powerful performance which can quickly discover iron, aluminum, iron galvanized and non-metallic materials on.
Measure tests ferrous car body
Measure iron galvanized
Measure aluminum car body
Measure non-metal car body

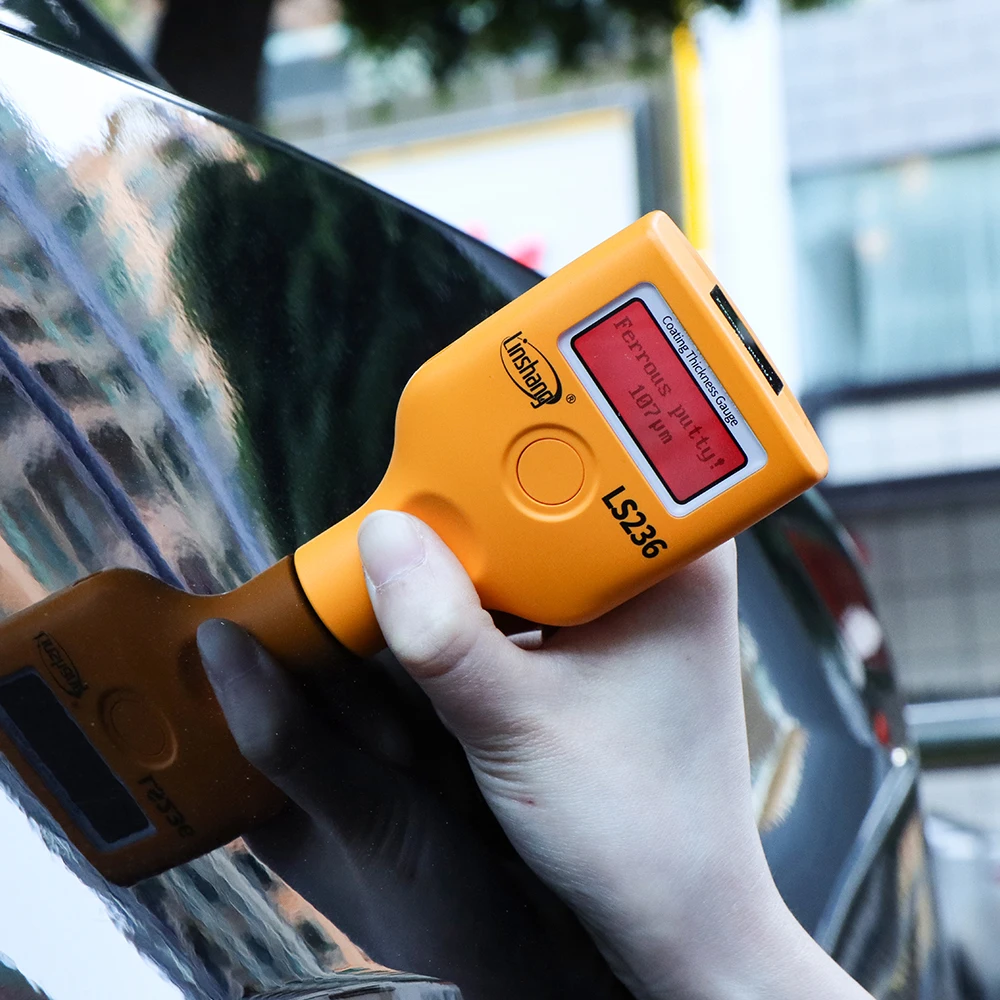

2. Detect the metallic putty quickly
If a car shell has been repaired with metallic putty, LS236 car paint meter can dig out it accompanied two buzzers in the
automatic measurement pattern (FE/NFE pattern) and red light is on.
automatic measurement pattern (FE/NFE pattern) and red light is on.

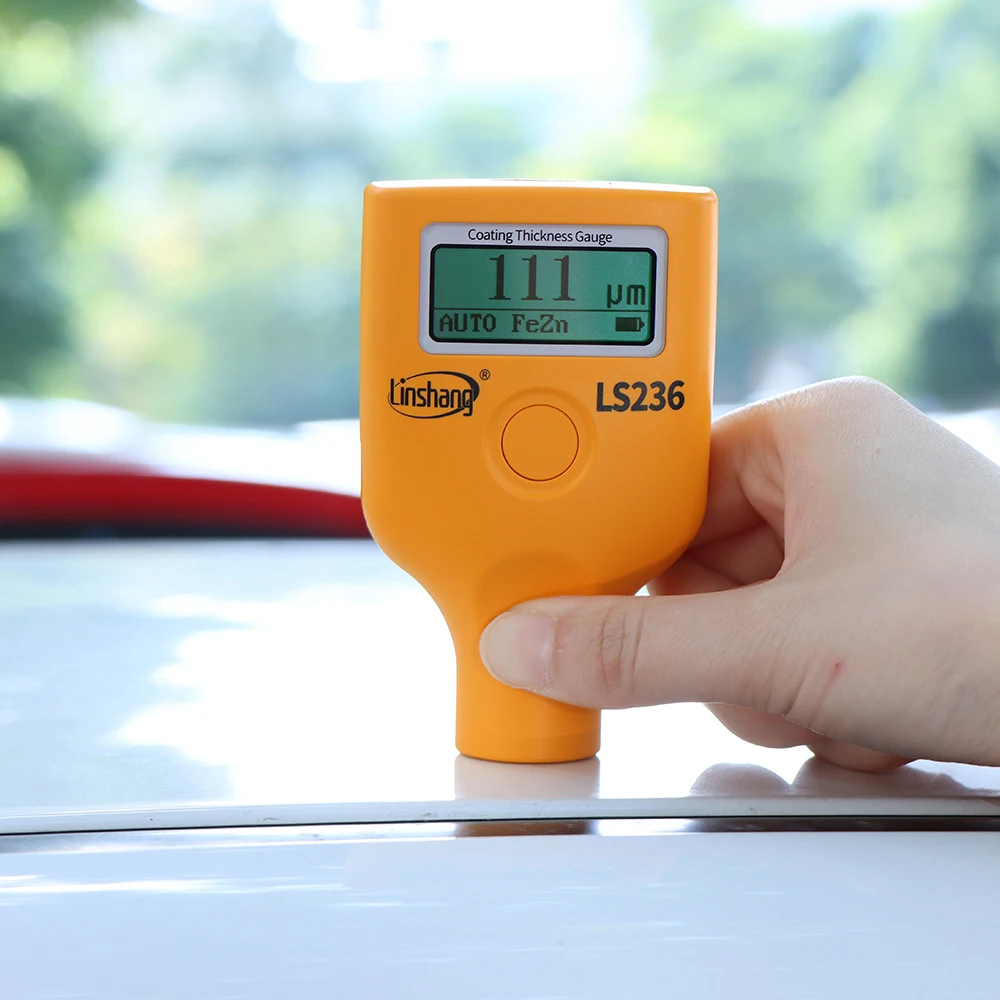

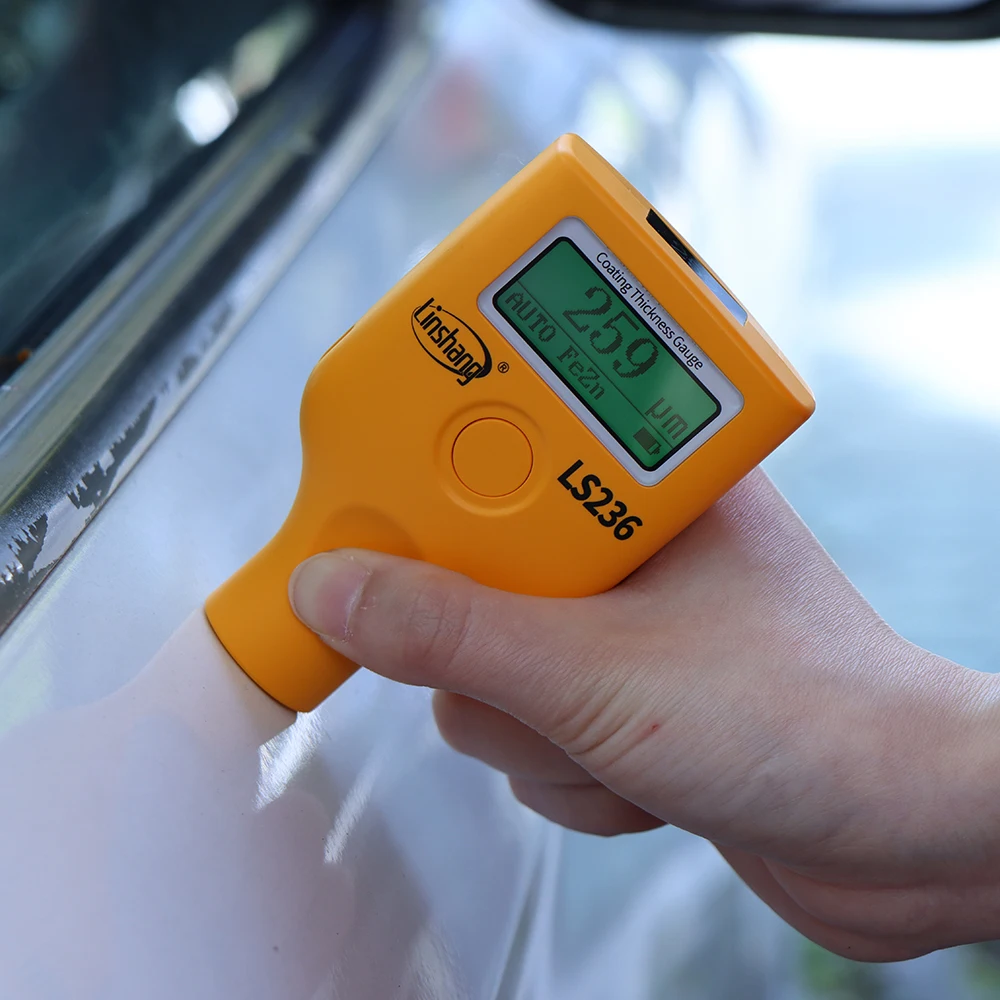

3. Motor vehicle body's material reminder with three backlights.
Red, green and white backlight indicates different material recognized by the car paint meter. Bright red represents metallic powder , iron galvanized is recognized as bright green, while others are bright white.
White indicates Fe/NFe body
Green indicates iron galvanized
Red indicates metallic putty
4. High-definition screen and low temperature resistance screen adapt to a variety of extreme environment
LS236 adopts a combination of high-definition screen and low temperature resistance screen to adapt to various extreme detection environments. High-definition LCD screen has no fear of strong light while OLED low temperature resistance screen can work well under -40℃ environment
plating thickness tester typesportable car paint thickness meterportable coating thickness meter
Paramenters
Probe tip | Ruby |
Measuring principle | Fe: Hall Effect / NFe: Eddy current |
Probe type | Built-in integrated probe |
Measuring rang | 0.0-2000μm |
Resolution | 0.1μm:(0μm-99.9μm) 1μm:(100μm-999μm) 0.01mm:(1.00mm-2.00mm) |
Accuracy | ≤±(3% reading+2μm) |
Unit | μm / mil |
Measuring interval | 0.5s |
Minimum measuring area | Ø = 25mm |
Minimum curvature | Convex:5mm / Concave:25mm |
Minimum substrate thickness | Fe:0.2mm / NFe:0.05mm |
Display | Front: 128×48 dot matrix LCD, top: 128×64 dot matrix OLED |
Language | Chinese, English, Русский, Türkçe |
Power supply | 2 pcs of 1.5V AAA alkaline battery |
Range of operation temperature | -40℃-50℃ |
Storage temperature range | -50℃-60℃ |
Host size | 101*60*24 mm |
weight | 80g |
Qualification and Standards
* GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
* GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
* DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
* JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
* GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
* DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
* JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
Recommend Products
Company Profile
Shenzhen Linshang Technology Co., Ltd. (www.linshangtech.com) was established on June 16, 2008. The company adheres to independent design, research and development, production and sales of various measuring instruments. Builds its own brand. "Linshang" trademark successfully in 2010, At present, company have obtained 17 national patents and national high-tech enterprise certificates.
At present, the company's instrument are mainly divided into four categories: solar film measurement, optical transmittance, ultraviolet measurement, gloss and coating thickness measurement. Products include: Solar Film Transmission Meter, Spectrum Transmission Meter, Light Transmittance Meter, UV Energy Meter, UV Light Meter, Glass Thickness Meter, Gloss meter, Coating thickness gauge, Vacuum coating online thickness monitor.
coating thickness gauge applicationcoating thickness gauge buycoating thickness gauge car

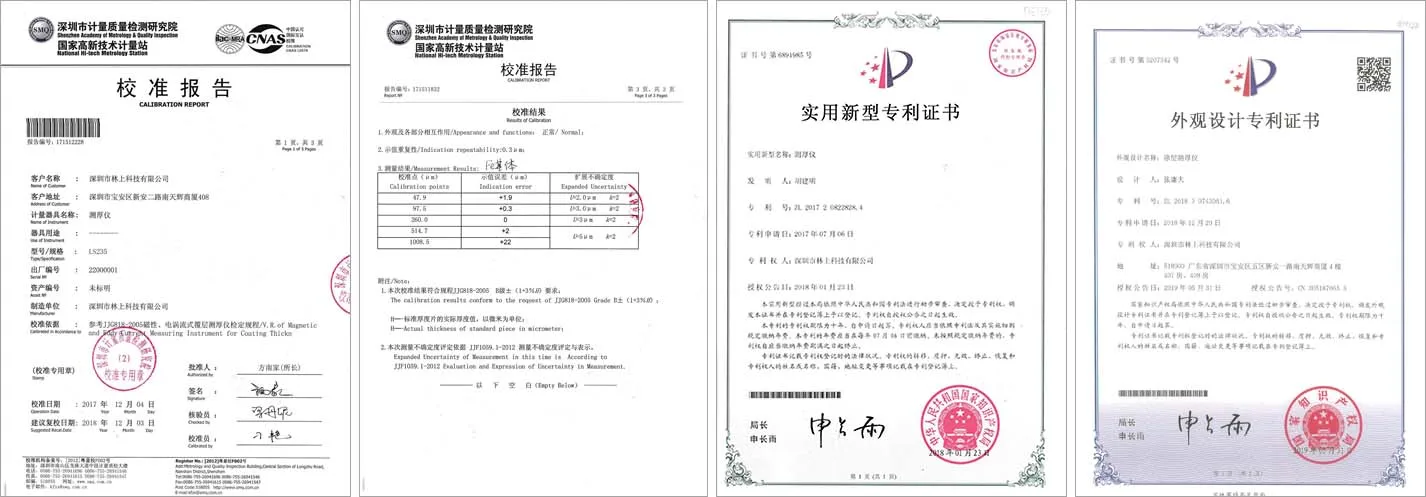

Trademark and Knowledge Product Management System
