Waste PET PSF Fiber polyester yarn pelletizing line /granulator machine
- Category: >>>
- Supplier: Greenwill Machinery (Zhangjiagang) Co. Ltd.
Share on (1600501551785):
Product Overview
Description
Products Description

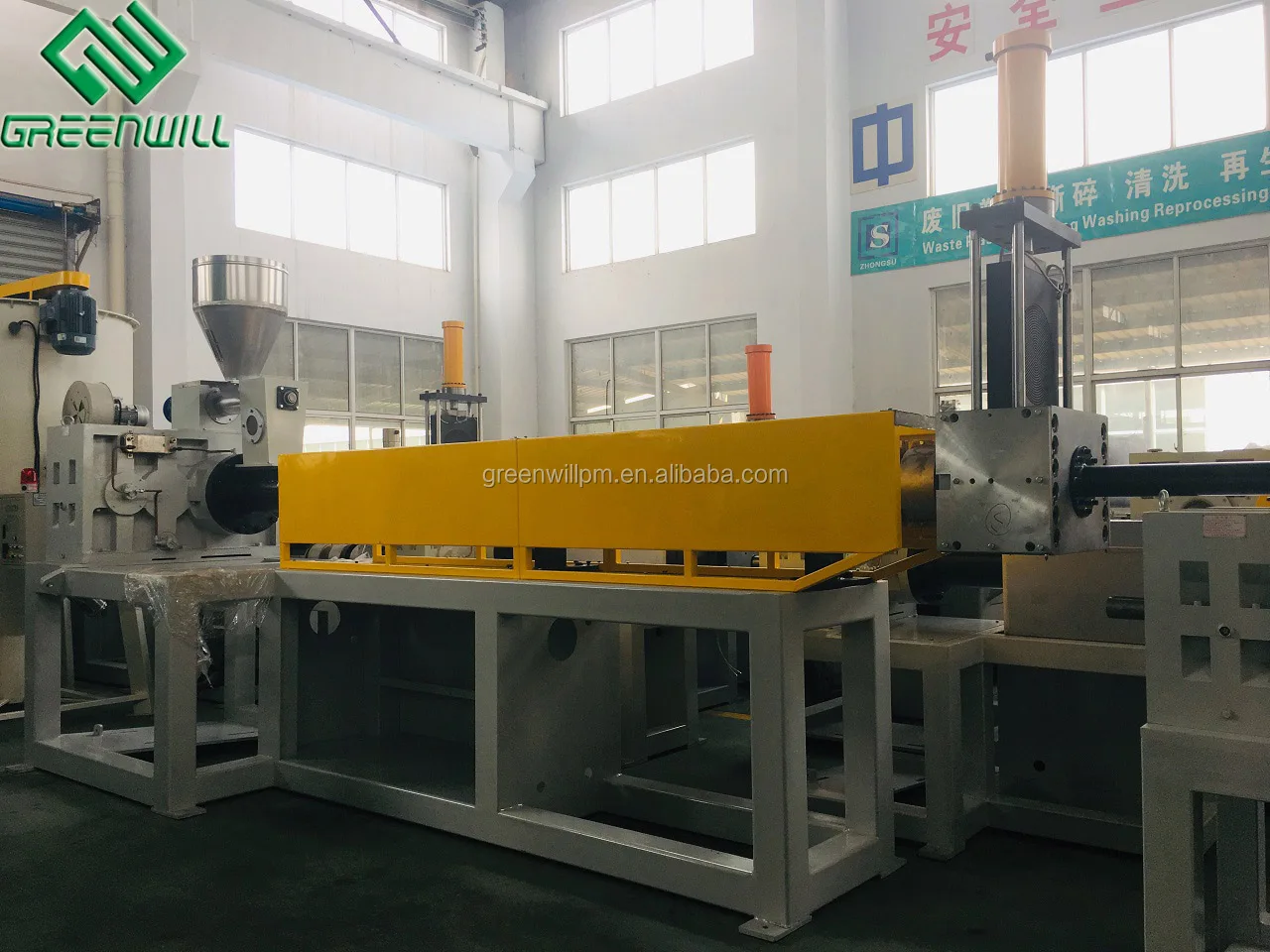

Plastic granules making machine pelletizing line
Main Introduction
Plastic granules making machine pelletizing line is used to recycle various kinds of plastic products and make into plastic granules to recover the plastic and suit for making products again.
We’re very professional manufacturer of plastic recycling machinery, and We have been working in this industry for over than 15 years, We have developed many different kinds of plastic granulators for different material, such like PP PE PVC PET PC ABS EPE EPS etc. And adopt different feeding ways for rigid flakes and for soft fluffy scraps. Output capacity will be from 100KG/H up to 800kg/H.
We'll suggest you with suitable machines according to your material, capacity and other requirements and also the most important is to meet your budget. After machine tested and been delivered to your factory. We can also arrange the engineer to your factory for machine assembling, debugging, and also training for your workers.
We’re very professional manufacturer of plastic recycling machinery, and We have been working in this industry for over than 15 years, We have developed many different kinds of plastic granulators for different material, such like PP PE PVC PET PC ABS EPE EPS etc. And adopt different feeding ways for rigid flakes and for soft fluffy scraps. Output capacity will be from 100KG/H up to 800kg/H.
We'll suggest you with suitable machines according to your material, capacity and other requirements and also the most important is to meet your budget. After machine tested and been delivered to your factory. We can also arrange the engineer to your factory for machine assembling, debugging, and also training for your workers.
Feeding way | conveyor belt, natural hopper, vertical force feeder, side force feeder, nip roller feeder |
Extruder type | single screw, one stage, two stage, and new designed tapered screw extruder for wet film scraps |
Cutting type | water ring cutting (die face hot cutting), strand noodle cutting, |
Cooling type | water cooling, wind cooling |
Product | plastic pellet,granule,resin |
Suitable material | HDPE, LDPE, LLDPE, PP, BOPP, EPS, PU, PC, PA, ABS, PS, PET, PVC, EVA |
Material shape | Films, Bags, Sheet, Net, Foam, Tapes, Raffia, Regrind, Flakes, Granules, Scraps, Chipes, Edge trimmed |
Process flow of plastic granulating machine:
Conveyor→ feeding device→ Mother Extruder→ Die-head and High speed Net exchanging system→ Baby extruder→ Die-head and High speed Net exchanging system→extrusion mould→pelletizing cutting machine → water tank → dewatering machine→vibrating sieve→ Air Blower → Storage hopper
Main Machine Parameter
Model | Screw dia (mm) | L/D | Screw speed (rpm) | Power of main motor (kw) | Output (kg/h) |
GWP 90 | 90 | 33:1 | 20- 150 | 75- 90 | 200- 300 |
GWP 120 | 120 | 33:1 | 20- 150 | 110- 132 | 300- 400 |
GWP 150 | 150 | 33:1 | 20- 150 | 160- 200 | 400- 500 |
GWP 180 | 180 | 33:1 | 20- 150 | 250- 315 | 600- 800 |
Machine Details

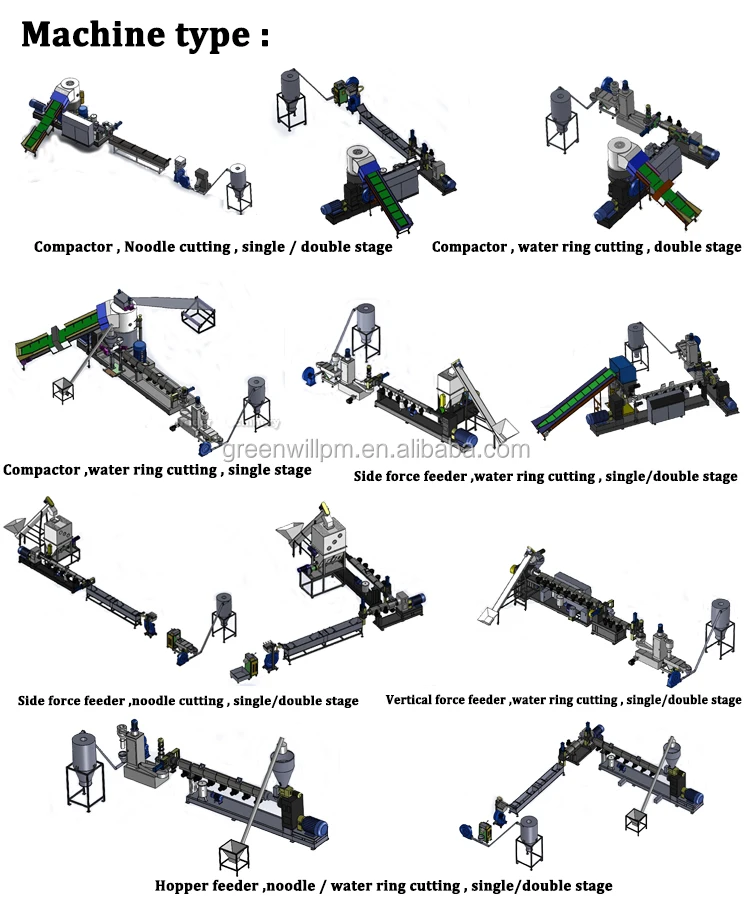

We can provide differnet kinds of plastic pelletizing machine for differnet plastic in different type
Compactor type plastic pelletizing machine
Suitable for big part plastic film and bags, compactor can be used as a crusher and agglomerator. Special machine base design can guarantee the machine capacity and long life use.
Wet film pelletizing machine

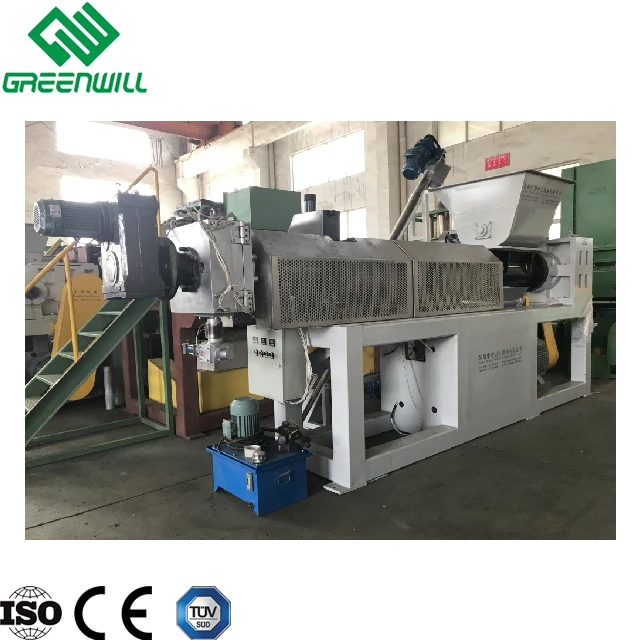

Suitable for Wet film pelletizing, patented design, energy saving design, force feeder increase the capacity, barrel with water drain holes, work together with Plastic Squeezer can save a lot of electricity cost
Rigid plastic pelletizing machine
Suitable for hard plastic pelletizing, such like HDPE/PP/ABS/PS/PET flakes pelletizing, it is an idea machine for household and injection moulding waste recycling.

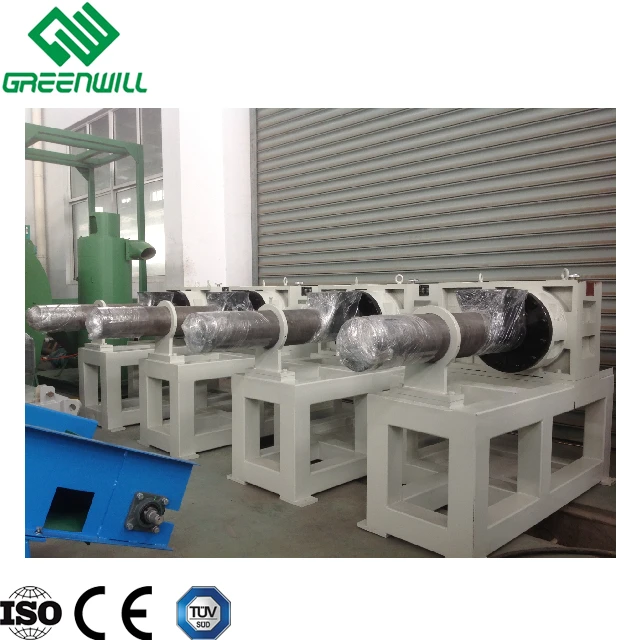

Main extruder machine
Diameter and Motor power is based on customer requirements.
Frequency converter/Inverter: ABB
Motor: Siemens Beide/ Wan' Nan brand
Material of screw and barrel : 38CrMoAl, nitriding treatment
With degassing section , can add vacuum pump depended on customer.
Transmission system adopts German’s technology. Three bearings horizontal design, NSK bearing, oiled lubrication，imported seal. The machine of transmission system adopts spring pin for overload protection and overflow protection, and the electric elements adopt overflow protection
Automatic hydraulic Screen changer
Changing time: less than 2 seconds
Material: 40Cr
Can do round or square shape based on customer choice.
Filter diameter or square size based on customer choice.
We also have other kind of screen changer such like no mesh screen changer or other kind based on customer choice.
Hydraulic oil station
Usually 2.2KW oil station control the filter screen changing.
We have automatic pressure detection function and when pressure too high, the warning light will flash and alarm to notice worker to change the screen.

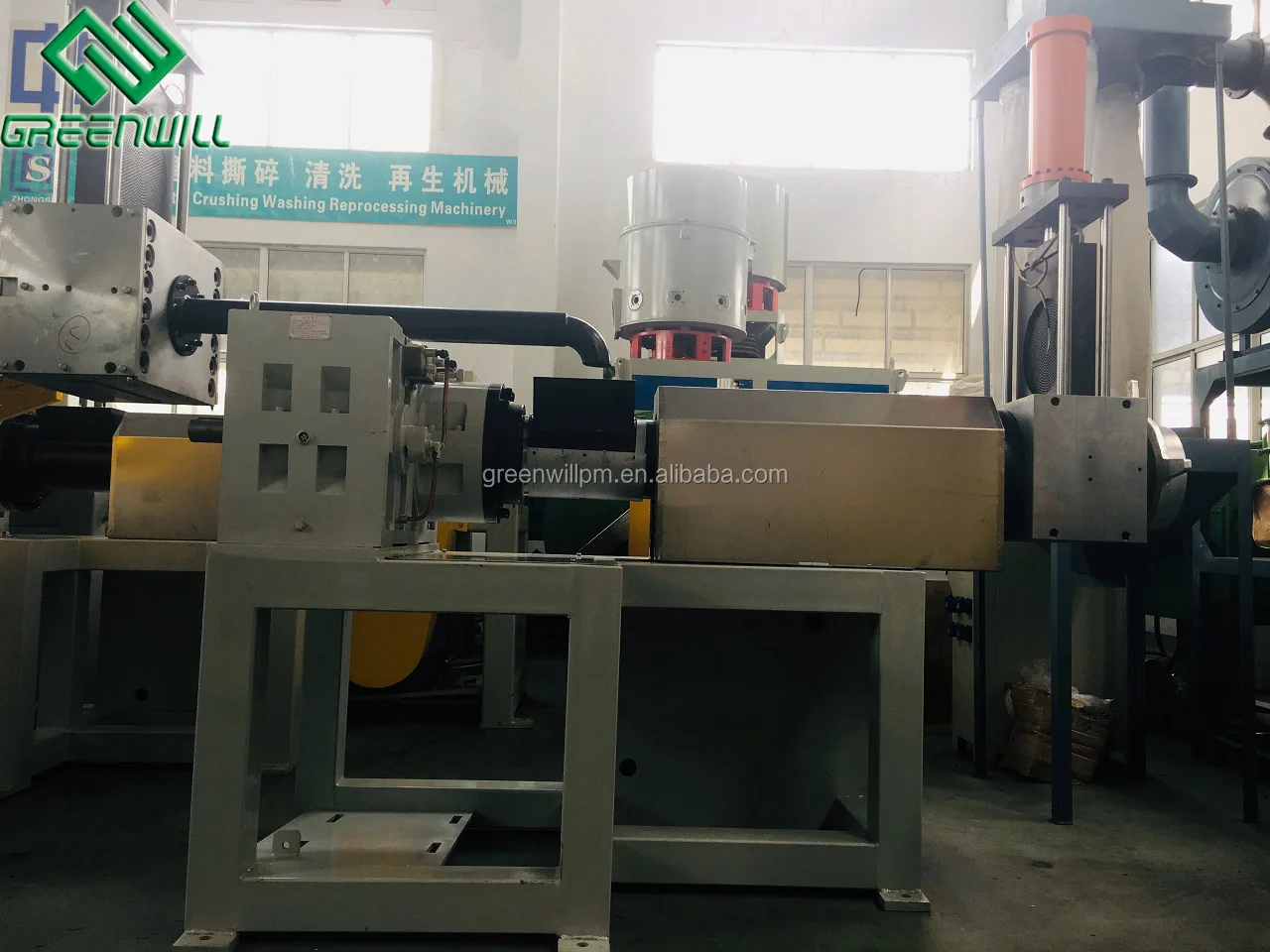

Second stage Baby extruder machine
For better degassing Plasticize and filter effect, will also improve the final granules quality and the output capacity.
Inverter control for motor running.
Good quality electrical components.
Water ring cutting method
This is the labor saving cutting way, no flow breaking, granules shape good, can be suitable for PP and PE.
Can do vertical and horizontal water ring

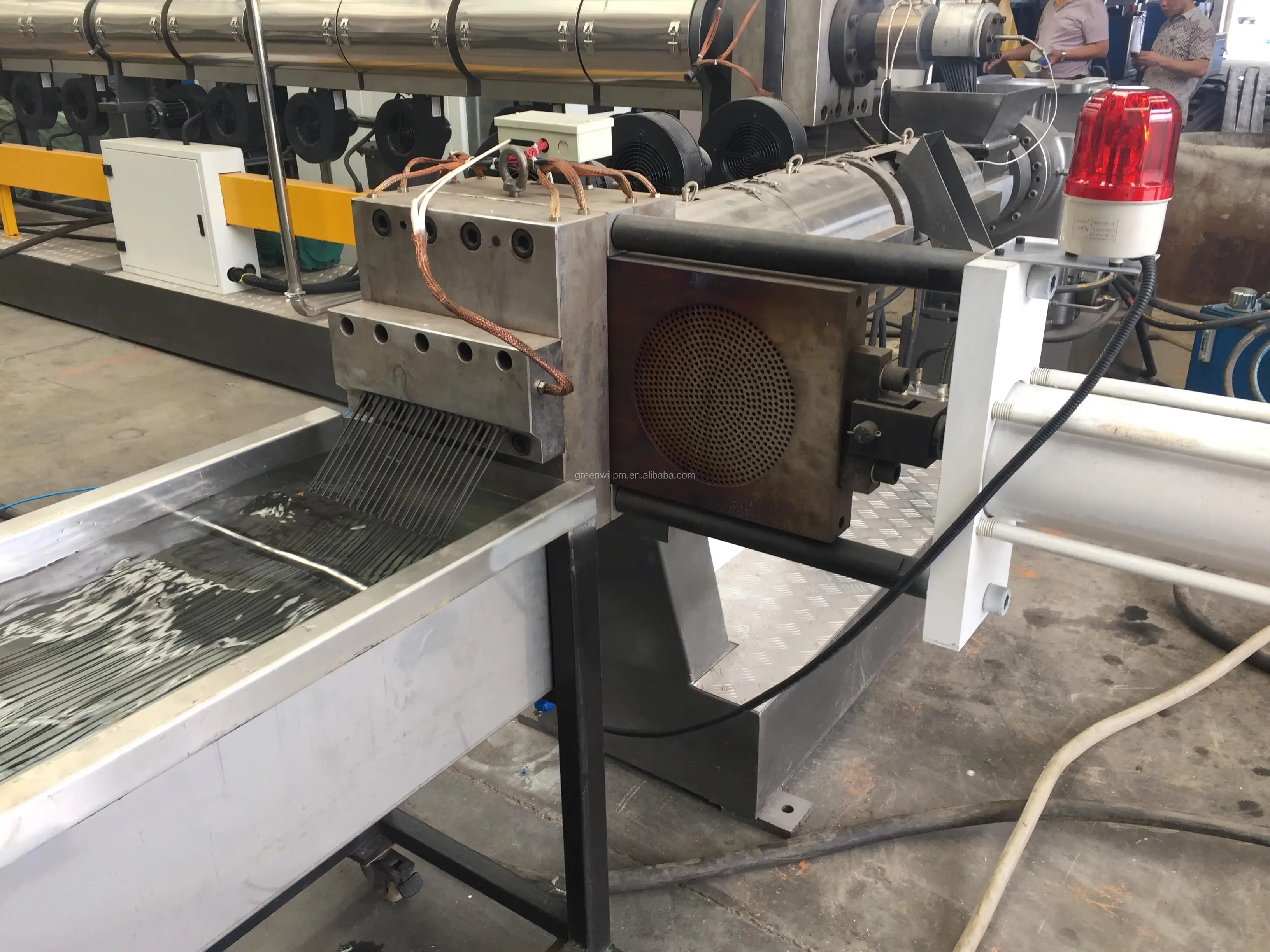

Strand cutting way
This is the normal cutting method, can be suitable for most kinds of plastic material.
Water ring extrusion mould
Die face hot cutting
Strand cutting extrusion mould
This is the normal cutting method, can be suitable for most kinds of plastic material.

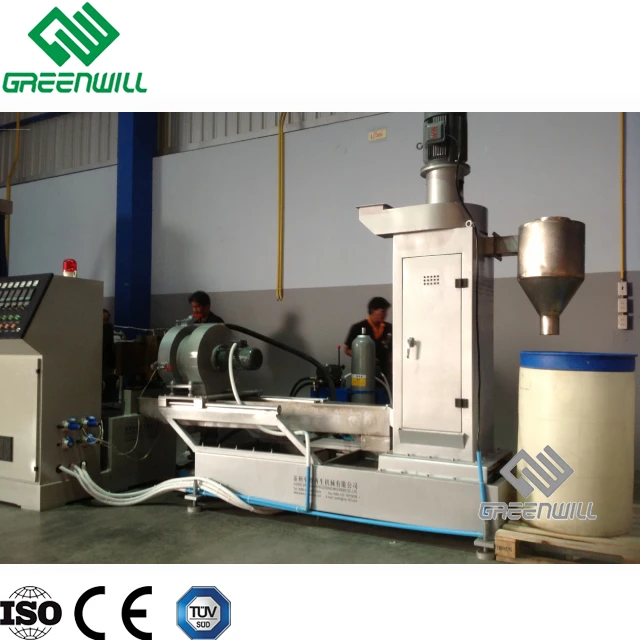

Water ring cutting water trough and centrifugal dewatering machine
Stainless steel material with Air blower drying for the granules
High speed centrifugal rotating to dewatering for granules.
Strand cutting water cooling tank and air dryer
Plastic hot strands will be cooled by the water tank and dried by the strong air blowing.
Water ring cutting pelletizing part
2 pcs of SKD-11 blades, die face cutting
Inverter motor contro cutting speed
Strand/noodle cutting pelletizing machine
Material of rotary blades :high-quality alloy steel
Speed controlled is adjustable by inverter

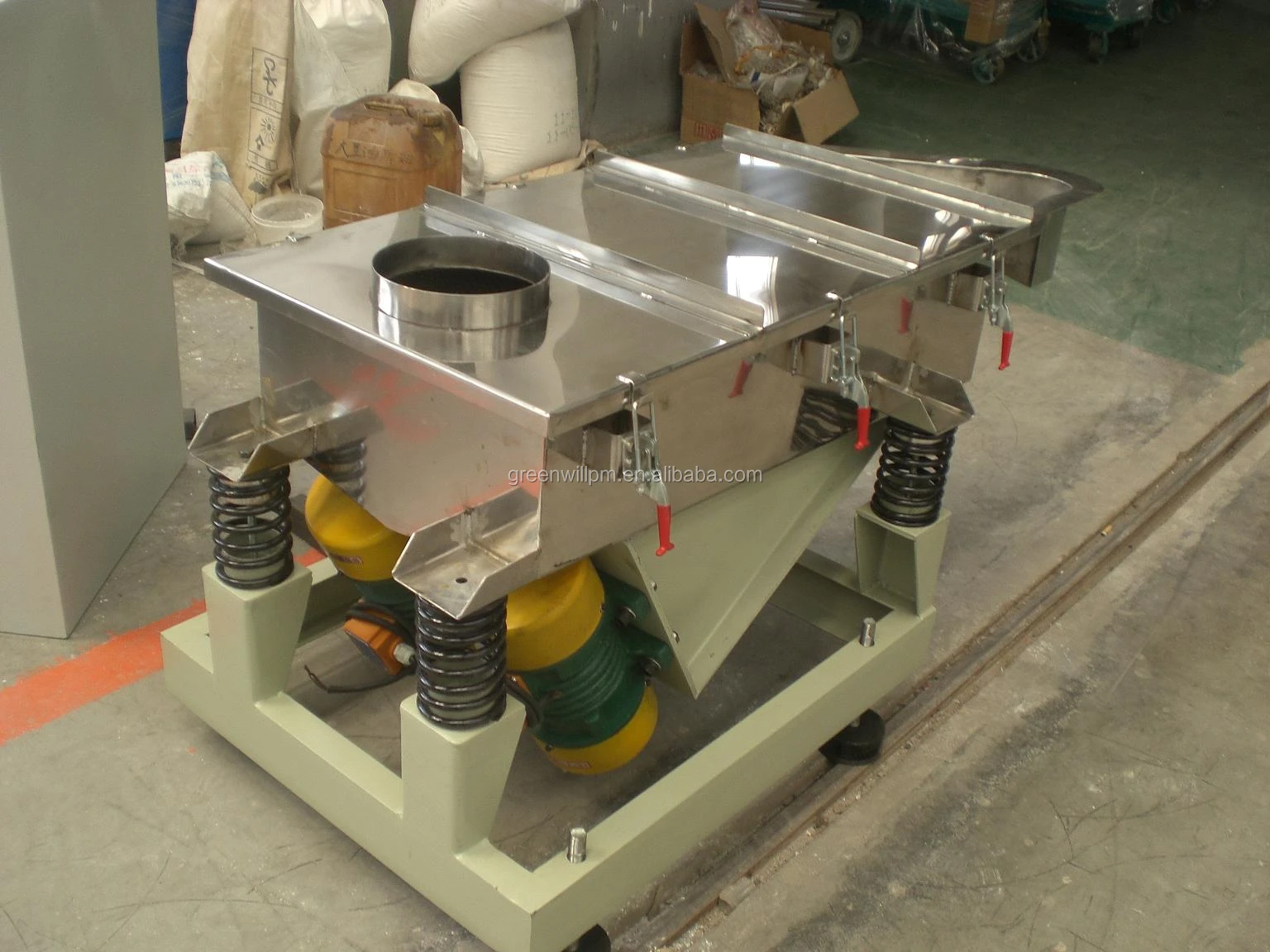

Vibrating Sieve
This machine is to separate the irregular size granules and collect the good granules. This is an optional machine.
Related Products

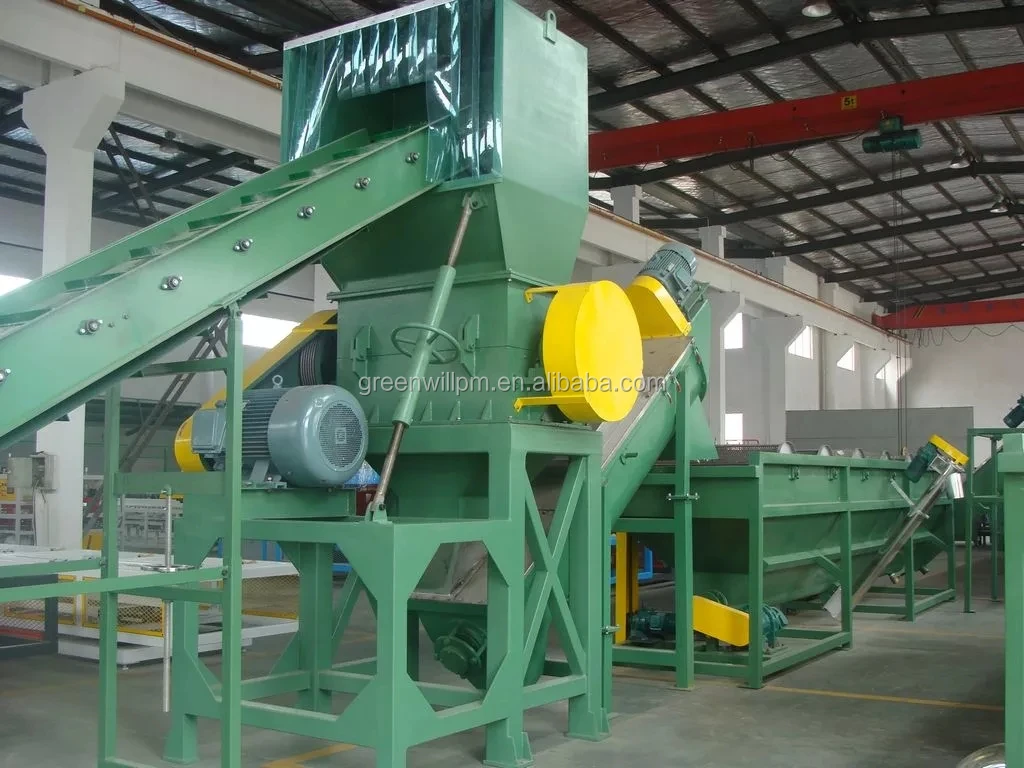

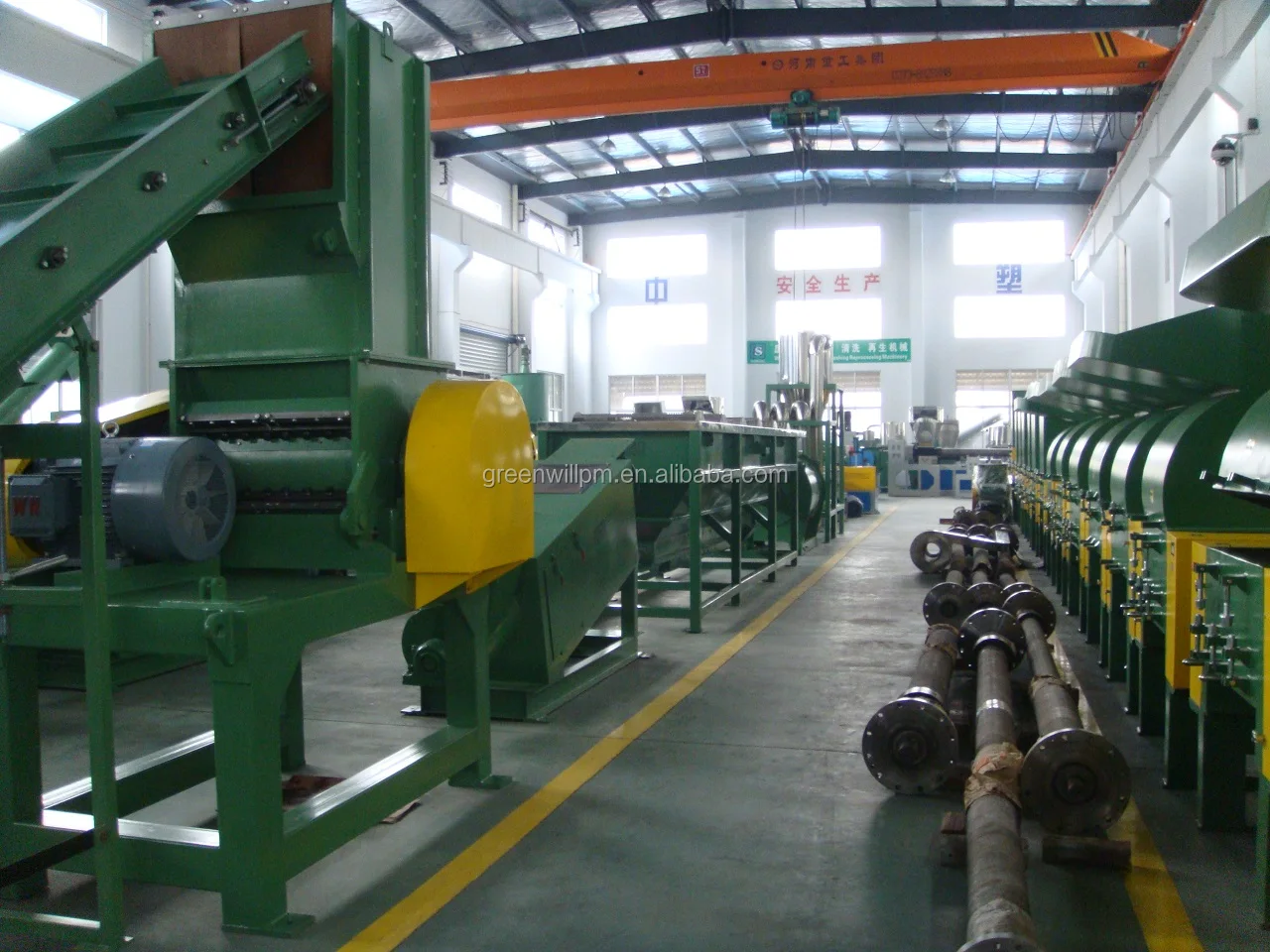

1. Plastic recycling washing line
For dirty plastic waste must break the waste product and wash clean firstly, then make sure the size can be feeded into the plastic pelletizing machine

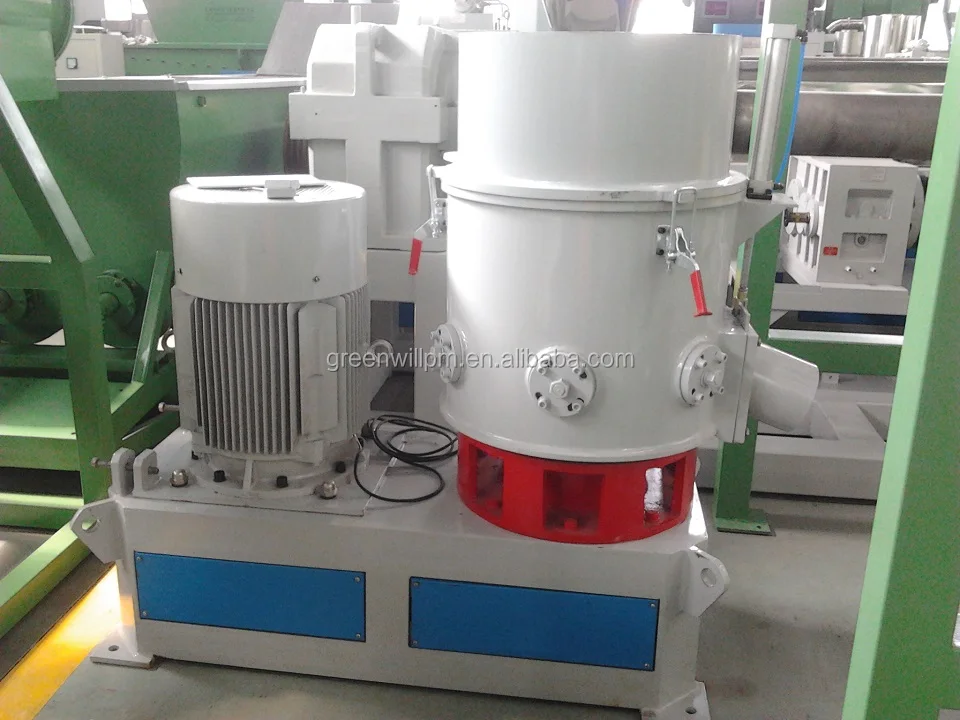

2. Plastic agglomerator machine
333
Preshrink the plastic film/bags/fiber etc. and increase the pelletizing capacity.

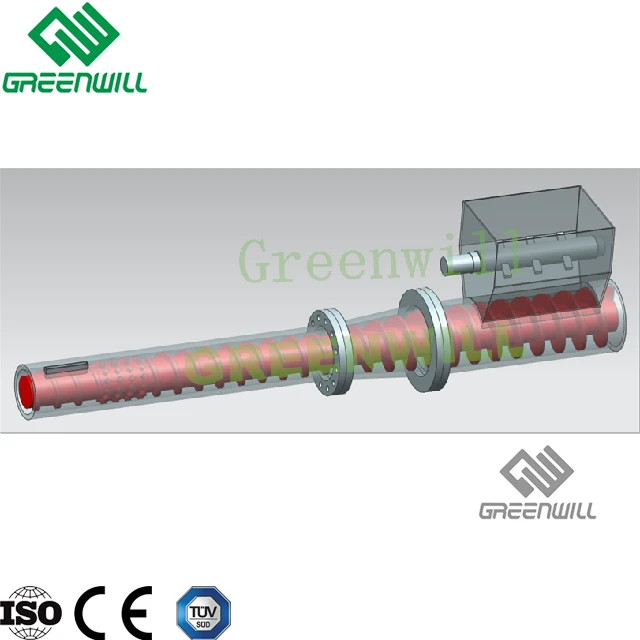

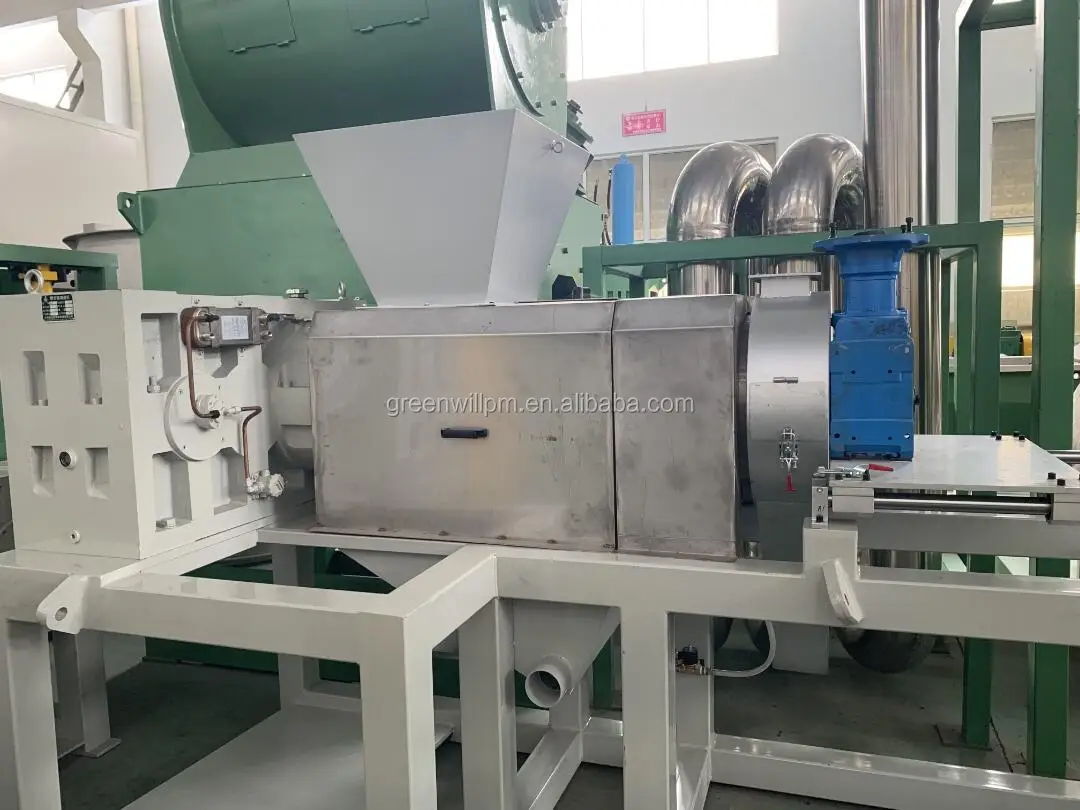

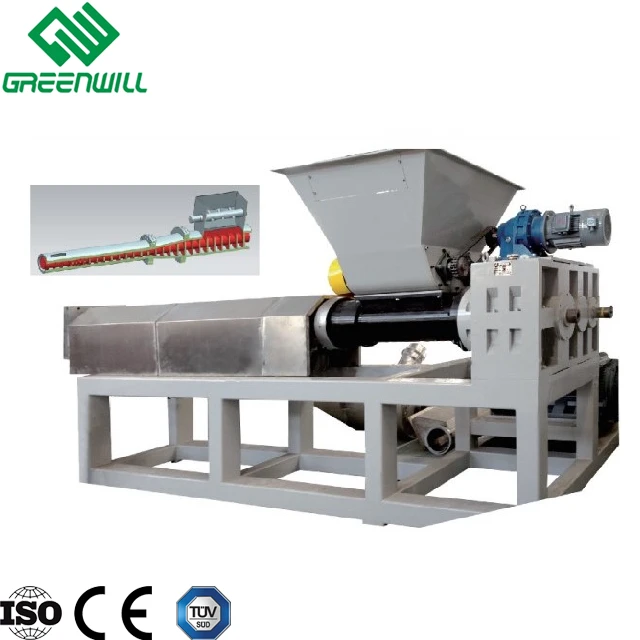

3. Plastic squeezer machine
333
For fast dewatering purpose and semi-plasticized, can feed into plastic pelletizing machine more convenient and increase the pelletizing machine capacity.
333
Company Profile
Professional manufacturer of plastic recycling & extrusion machine

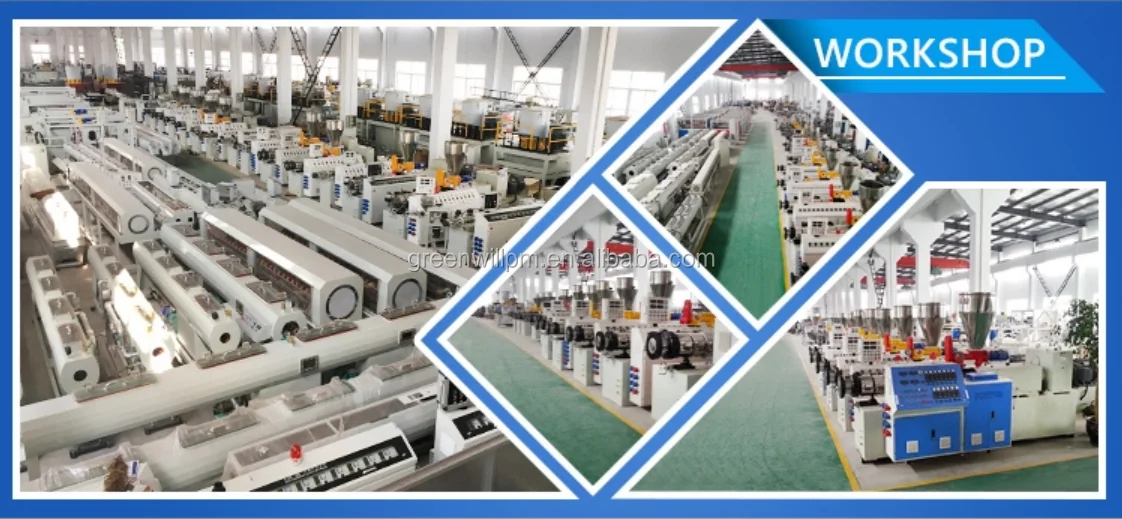

1 / Standardized workshop of total 15,000 square meters.
2 / The equipment will be tested and run before leaving the factory, to ensure the smooth working ofeach part, and neumatic, electrical and mechnical stability.
3 / Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
2 / The equipment will be tested and run before leaving the factory, to ensure the smooth working ofeach part, and neumatic, electrical and mechnical stability.
3 / Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
Certifications
Greenwill can issue various kinds of certificates for customer
International certification, National Certificate of equipment verification, and more than 20 invention patents are done by Greenwill
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
Packing and Shipping
Container Loaded in our factory directly
When Shipping the machine, we will on-site inspect every machine and spare part to make sure no missing no mistake.
Every machine will be fully fastened
To make sure that machines won't hit each other and no damage during the shipping stage.
Electronic components will be properly placed in the cardboard box, and important parts such like mould will be placed in the wooden box
Machin will be wrapped in film
Seaworthy packing with film wrapping for each main machine part.
Shipping methods
Big heavy machine parts will be shipped by Sea Vessel in FCL or LCL
Small spare parts will be shipped by courier or Airline
Small spare parts will be shipped by courier or Airline
