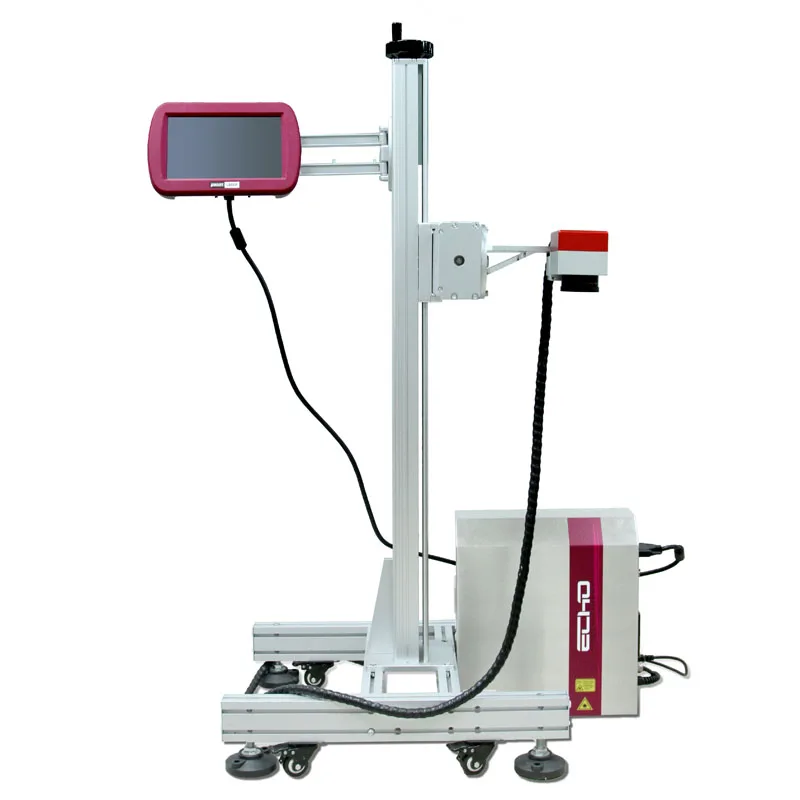

20W Flying Optical Fiber Metal/Steel /Aluminum/Hdpe Pipe Printing Qr Code Laser Marking Machine
- Category: >>>
- Supplier: Wenzhou Echo Machinery Co. Ltd.
Share on (1600501573362):
Product Overview
Description
Led Bulb Logo Expiry Date Laser Printing Machine Laser Date Printer is a kind of special online laser printer for automatic production line.The conveyor belt is optional.
2. Advantages
Compared to traditional inkjet printer ,laser printer is low material consumption,no pollution,no noise,energy saving and environmental protection,simple operation,stable performance,long lifetime,low maintenance cost.Laser printing machine for led bulb logo is available in flying marking in the production line for big quantity the same products.
3.Application
Laser printing machine for led bulb logo can be widely used in food and beverage,leather, tabacco,pharmaceutable,package,building materials, lighting,accessories, cosmetics,plastic, electronics,kitchen&bathroom hardware,shells of cell phone and watches,medical apparatus and instruments ,tubular product,cable, Date,Metal,Led Bulb Logo and other industres.
Product Model | SES200A | SES300A |
Laser Type | Tunable Pulsed Fiber Laser, λ=1064mm, Mean Time Between Failure 50000 Hours | |
Laser Energy | 30W | |
Marking Features | ||
Characters Per Second | 700* | 900* |
Production Line Speed | 120m/min | 180m/min |
Number Of Printable Rows | Unrestricted | |
Character Height | 0.8mm~Maximum Marking Range | |
Typeface | 26 Fonts, Multi - Language Support, Support User - Defined Fonts | |
Machine Readable Code | Bar Code, QR Code | |
Logo/Symbol | BMP/DXF/HPGL/JPEG | |
Graphic Elements | Points, Lines, Arcs, Rectangles, Polygons, Ellipses, Circles | |
Variable | Serial Number, Text, Date, Time, Counter, Shift Code | |
Print Range | 50×50mm,70×70mm,110×110mm,140×140mm,175×175mm,210×210mm | |
Focal Length | 63mm,100mm,163mm,210mm,254mm,330mm | |
Operating Functions | 10.1-Inch WYSIWYG Color Touch Screen,QWERTY or AZERTY Virtual Keyboards, Fast Icon Wizard Operation, Online Help, Multi - Language Support, Support Ethernet remote PC operation and networking. | |
Material | Stainless Steel Construction + Anodized Alumina | |
Input/Output | ||
Product Testing Input | NPN/PNP/24V - Detector | |
Product Speed Detection | Synchronizer Or Synchronization Signal | |
Signal Input | Start, Stop | |
Signal Output | Running Status Indication, Machine Remote Control | |
Communication Interface | RS-232, Ethernet (10/100Mbit), USB Port | |
Facilities Conditions |
| |
Power Supply Requirements | 220V AC,47-63Hz,500A | |
Cooling System | Air Cooling | |
Operating Environment | -6-45℃, 10%-92%RH, No Condensation | |
Closure And Safety Standards | IP55, IP65 is Optional | |
Options | Infrared Beam Positioning, Infrared Beam Focusing, Network And Remote Control Software (TCP/IP), USB Backup Storage Kit, Support Package, Smoke Absorption Purifier | |
