Automatic CNC Compression spring torsion spring machine Spring Rolls Coiling Maker Machine
- Category: >>>
- Supplier: Ningbo Bysen Machinery Co. Ltd.
Share on (1600501580522):
Product Overview
Description
Product Description

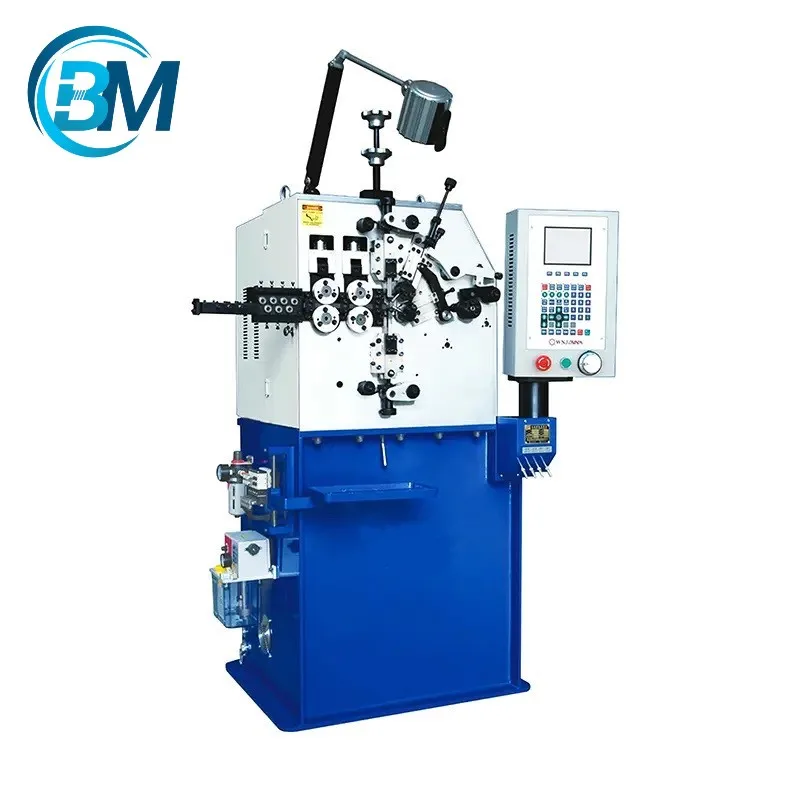

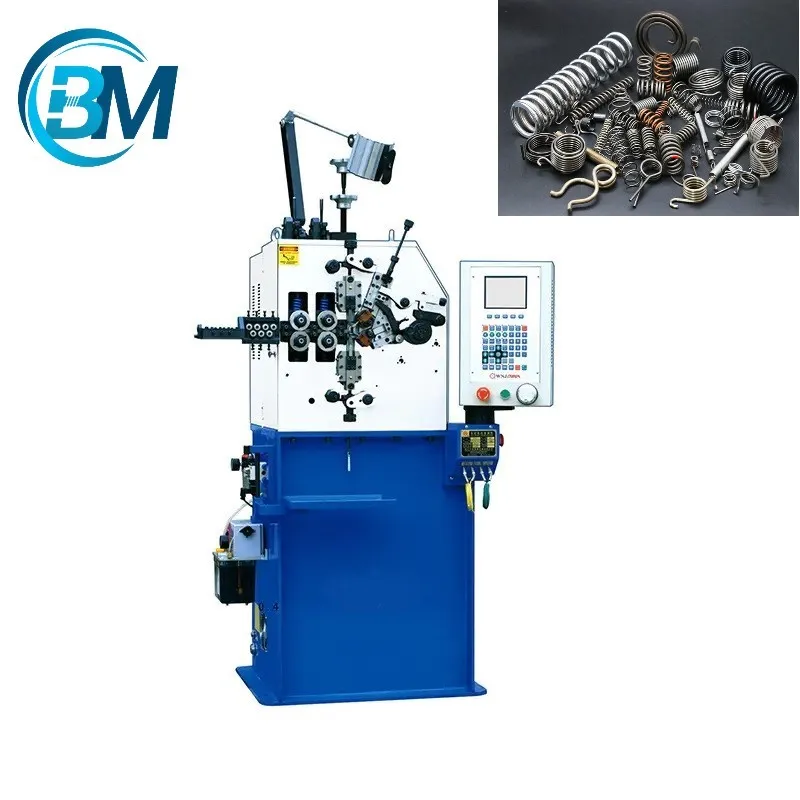

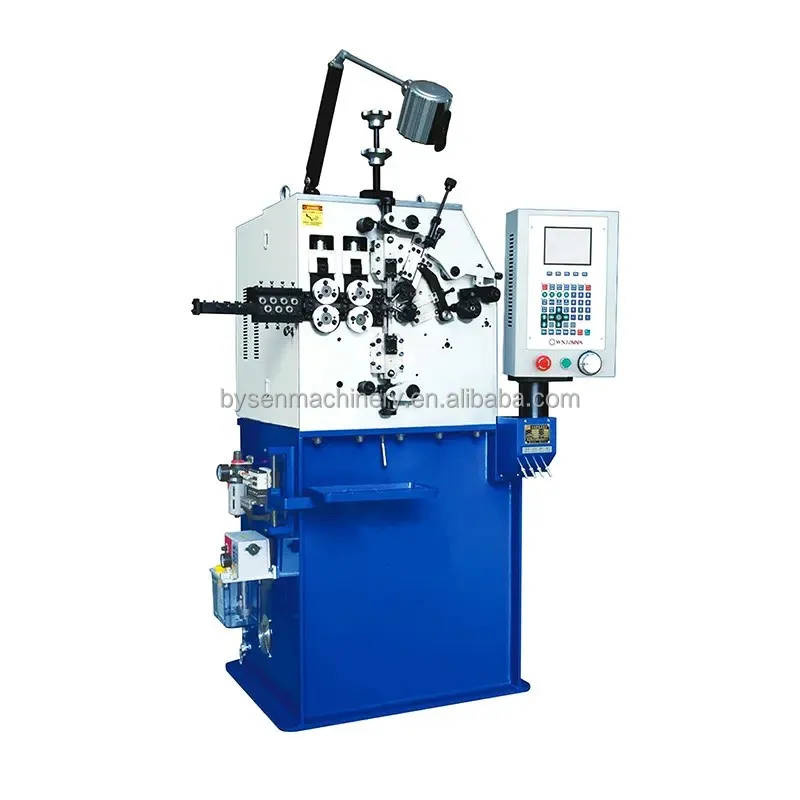

This machine adopts high-precision computer to control the wire feeding shaft and cam shaft, and the two-axis/three-axis can operate simultaneously or independently at high speed. The wire feeding shaft controls wire feeding, and the cam shaft drives the cam to control the outer diameter, pitch, cutter and forming. This machine is suitable for forming various springs, wire forming and other special-shaped springs.
Functions and features
1. Taiwan computer control system and servo motor;
2. English and Chinese interface, easy to operate.
3. Equipped with precision detection and tracking system, if there are unqualified products, it can automatically stop;
4. According to the working conditions on the fluorescent screen, the outer diameter and angle of the product can be corrected at any time;
5. The automatic lubrication and oil supply design of mechanical automatic parts ensures the long-term operation of the equipment;
6. The automatic shutdown design and automatic acceleration function of the wire rack when the wire is wireless, broken or tangled, making the production easier and more effective;
2. English and Chinese interface, easy to operate.
3. Equipped with precision detection and tracking system, if there are unqualified products, it can automatically stop;
4. According to the working conditions on the fluorescent screen, the outer diameter and angle of the product can be corrected at any time;
5. The automatic lubrication and oil supply design of mechanical automatic parts ensures the long-term operation of the equipment;
6. The automatic shutdown design and automatic acceleration function of the wire rack when the wire is wireless, broken or tangled, making the production easier and more effective;

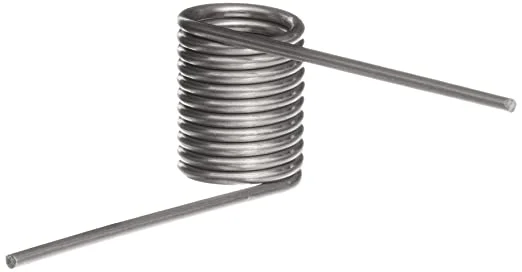

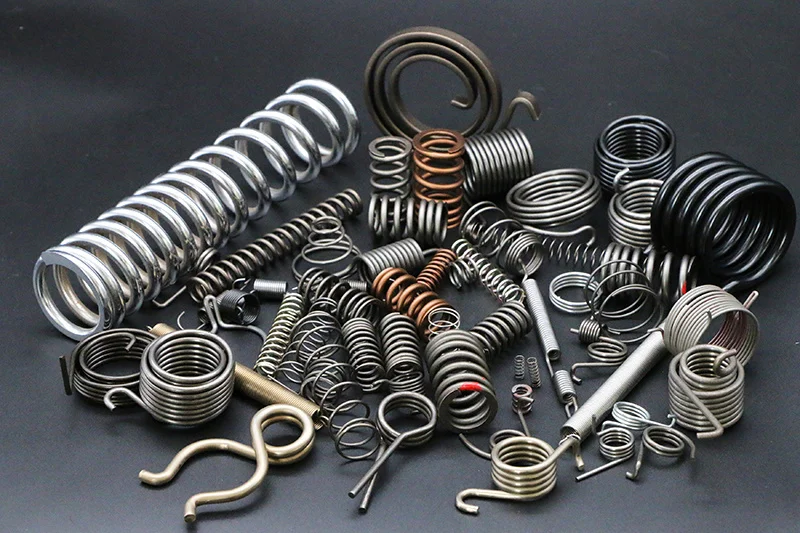

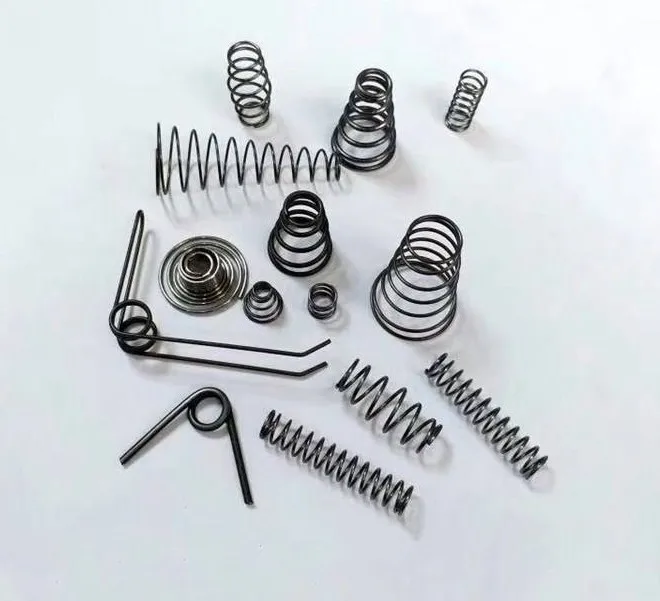

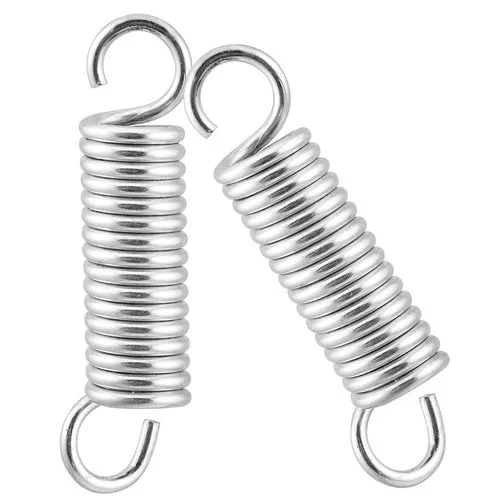

Products that made by the machine
Specification
Spring Machine Model | BM-208 | BM-312 | BM-316 | BM-320 | BM-335 |
Process wire diameter (mm ) | Φ0.15~ Φ0.8 | Φ0.2~Φ1.2 | Φ0.3-Φ1.6 | Φ0.5-Φ2 | Φ1.5-Φ3.5 |
Process outer diameter(mm) | Φ18 | Φ30 | Φ30 | Φ40 | Φ50 |
Feeding speed | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min |
wire feed command value (mm) | ±0.01~±9999.99 | ±0.01~±9999.99 | +0.01~±9999.99 | +0.01~±9999.99 | +0.01~±9999.99 |
Cam command value | ±0.1°~±359.9° | ±0.1°~±359.9° | ±0.1°~±359.9° | ±0.1°~±359.9° | ±0.1°~±359.9° |
Wire feeding servo motor (kw) | 1 | 1.5 | 1.5 | 2.7 | 5.5 |
Cam servo motor( kw) | 1 | 1.5 | 1.5 | 2.7 | 5.5 |
Approx weight (kg) | 350 | 400 | 450 | 570 | 1060 |
Dimension (LxWxH) | 760x630x1350mm | 950x600x1520mm | 1000x620x1600mm | 1040x800x1680mm | 1280x810x1850mm |
Company profile
About us
Founded in April 2003, Ningbo Bysen Machinery Co., Ltd. which is located in Lijiaqiao Industrial Park, Ningbo, convenient transportation.
Our company specializes in the production and selling of Cold Forging Machine, Nut Maker, Bolt Maker, Part Former, Wire Drawing Machine, Heading Machine, Thread Rolling Machine, Spring Washer machine, and other series fasteners equipment, we can design complete sets of programs for fasteners manufacturers and fasteners mold product development.
Our company specializes in the production and selling of Cold Forging Machine, Nut Maker, Bolt Maker, Part Former, Wire Drawing Machine, Heading Machine, Thread Rolling Machine, Spring Washer machine, and other series fasteners equipment, we can design complete sets of programs for fasteners manufacturers and fasteners mold product development.
Backed by rich experience and resources, we have earned trust from a great many clients abroad, we not only offer the machine but also the solutions and service.We have partners in India, Europe,Africa,America and Southeast Asia and are trusted by various hardware fastener manufacturers to become quality partners.
FAQ
Q1：What Should I Do if I Just Start a New Business?
A1: Contact us immediately, we provide free consultant pre-sales service. We can provide you: new-plant construction guidance, designing and manufacturing non-standard equipment, professional technical training and guidance on site.
Q2: Do You Only Manufacture Standard Machines?
A2:No, we not only design and manufacture standard machines, but also design and manufacture machines according to customers’ specifications, using top brand components. What’s more, some popular machines are in stock.
Q3: What is the Warranty?
A3:We provide 12-20 months free warranty, and free technical support for the whole life of any machine.
Q4: What Service Can You Provide Before Order?
A4:About the pre-sale service. We provide you professional answers of all your questions on our machines, such as technical parameter, price, payment terms, etc. If you want visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
A1: Contact us immediately, we provide free consultant pre-sales service. We can provide you: new-plant construction guidance, designing and manufacturing non-standard equipment, professional technical training and guidance on site.
Q2: Do You Only Manufacture Standard Machines?
A2:No, we not only design and manufacture standard machines, but also design and manufacture machines according to customers’ specifications, using top brand components. What’s more, some popular machines are in stock.
Q3: What is the Warranty?
A3:We provide 12-20 months free warranty, and free technical support for the whole life of any machine.
Q4: What Service Can You Provide Before Order?
A4:About the pre-sale service. We provide you professional answers of all your questions on our machines, such as technical parameter, price, payment terms, etc. If you want visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
For any questions about our equipment, please contact us!
Email: Sophie@bmfastener.com
Tel/WhatsApp: +86-18606605063
