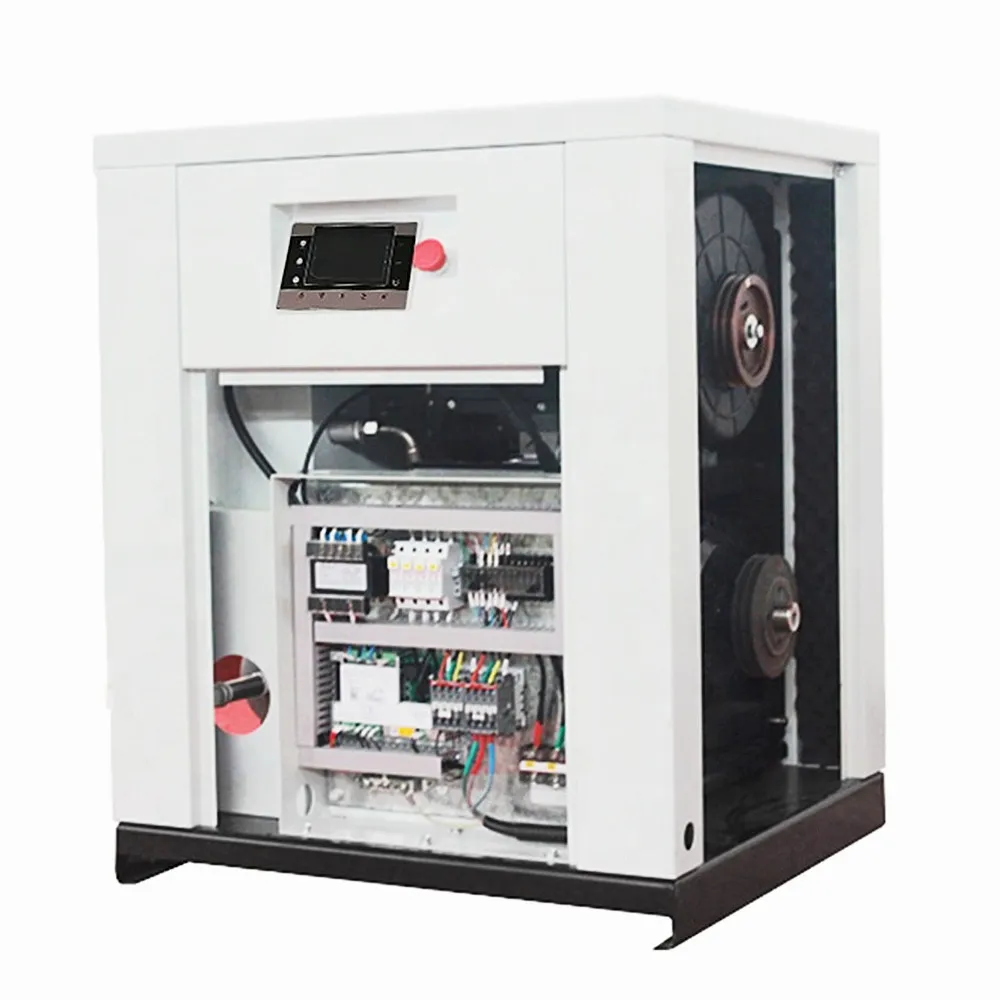

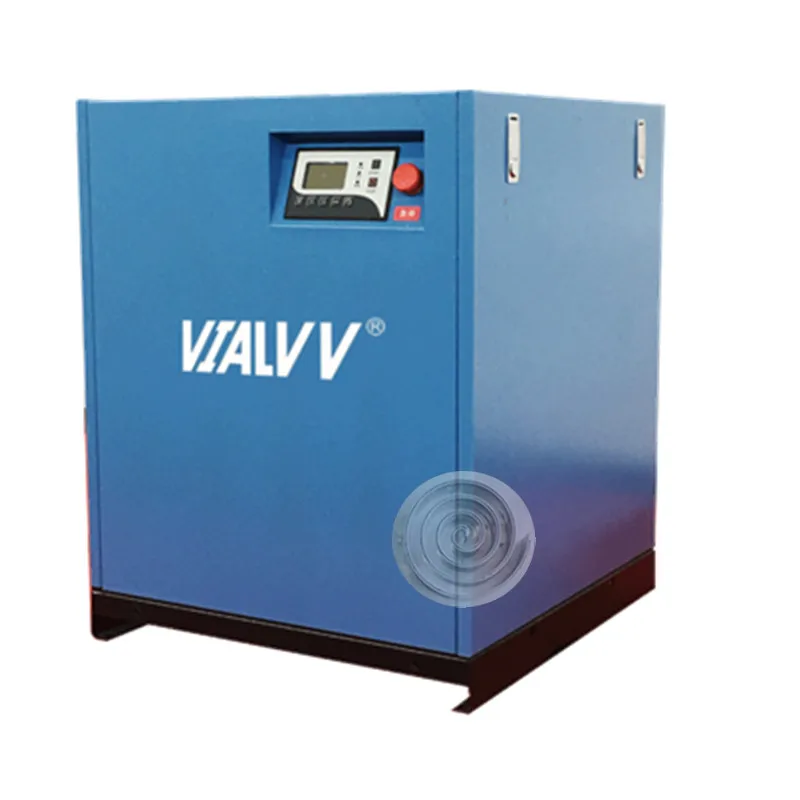

10HP Silent Medical Scroll Oil free Air Compressor Industrial Scroll Type 7.5KW Oilless Air Compressor Machines oilfree
10HP Silent Medical Scroll Oil-free Air Compressor Industrial Scroll Type 7.5KW Oilless Air Compressor Machines oilfree
10HP Silent Medical Scroll Oil-free Air Compressor Industrial Scroll Type 7.5KW Oilless Air Compressor Machines oilfree
10HP Silent Medical Scroll Oil-free Air Compressor Industrial Scroll Type 7.5KW Oilless Air Compressor Machines oilfree
10HP Silent Medical Scroll Oil-free Air Compressor Industrial Scroll Type 7.5KW Oilless Air Compressor Machines oilfree
10HP Silent Medical Scroll Oil-free Air Compressor Industrial Scroll Type 7.5KW Oilless Air Compressor Machines oilfree
10HP Silent Medical Scroll Oil-free Air Compressor Industrial Scroll Type 7.5KW Oilless Air Compressor Machines oilfree

10HP Silent Medical Scroll Oil free Air Compressor Industrial Scroll Type 7.5KW Oilless Air Compressor Machines oilfree

Share on (1600501588097):


Price:US$ 5’020.00 - US$ 5’650.00

Quantity:


Product Overview

Description

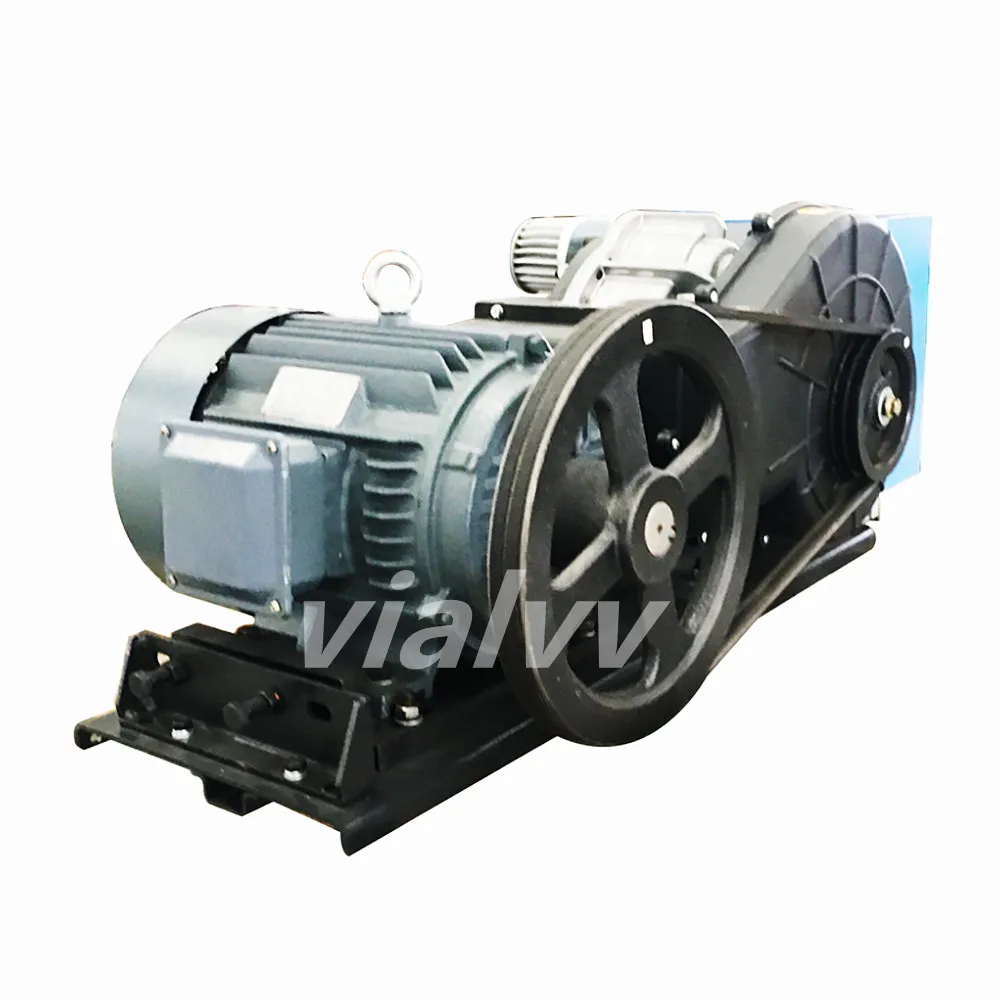

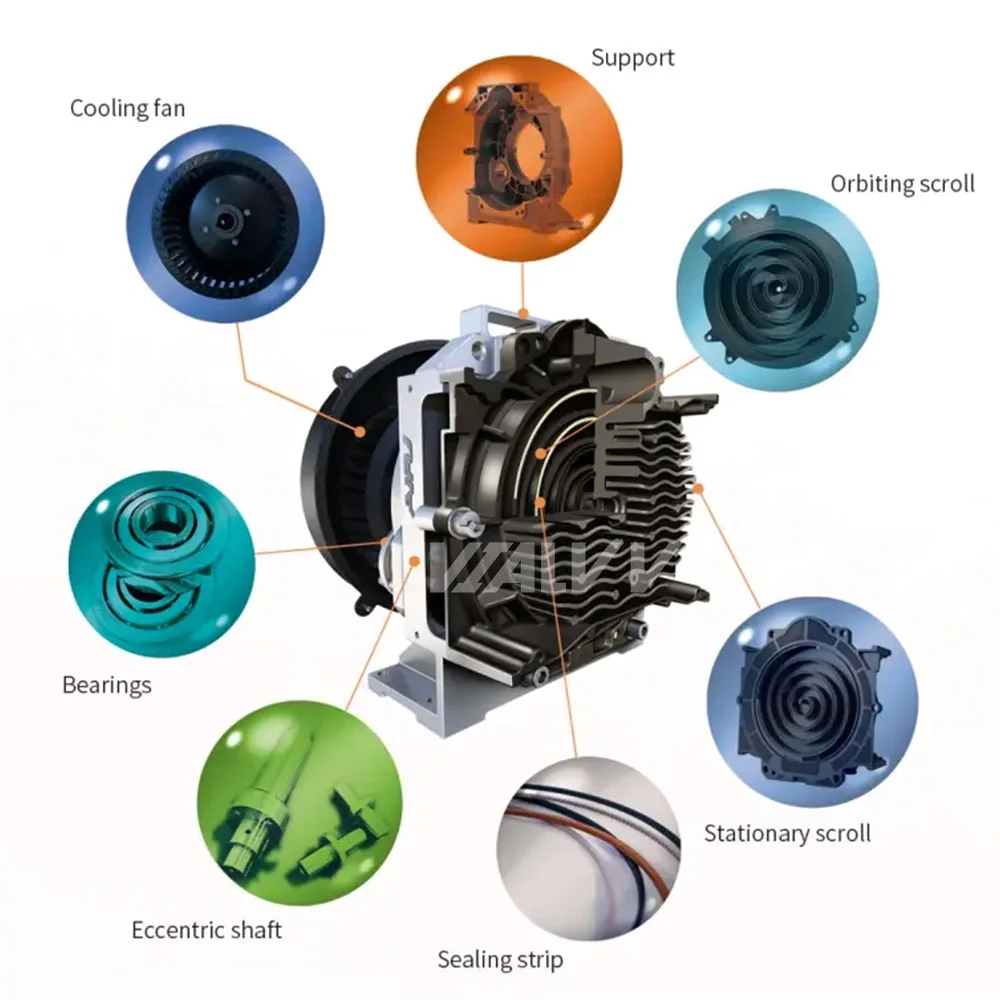

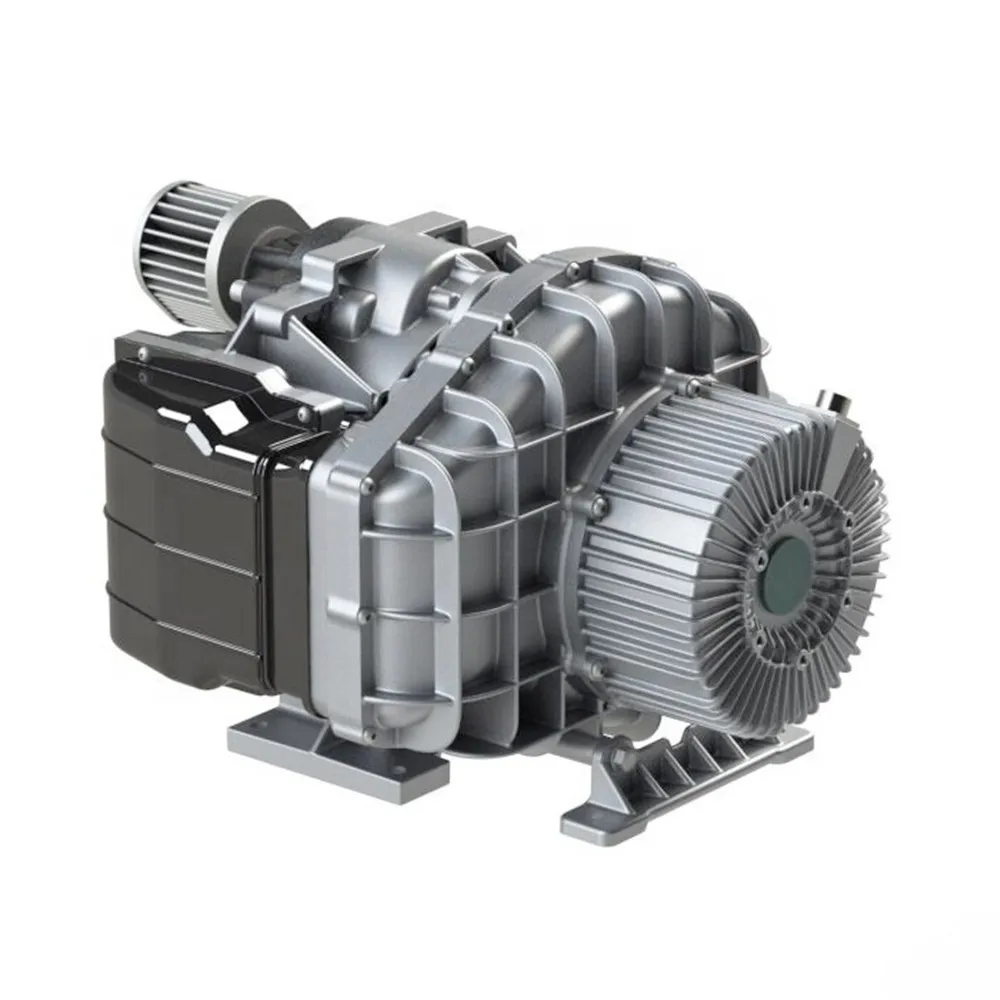

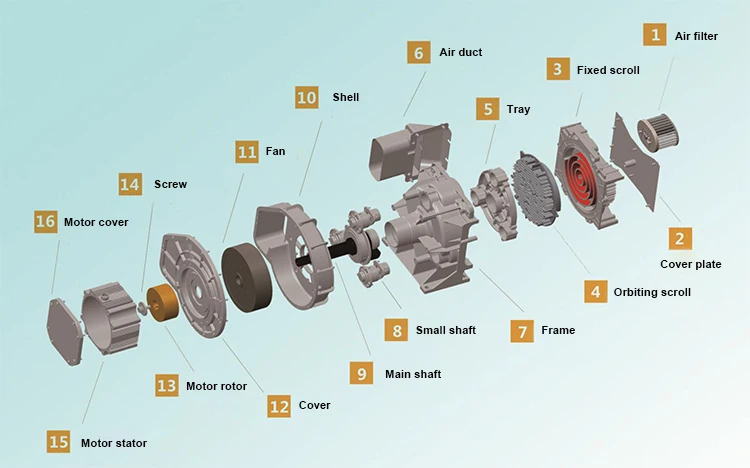

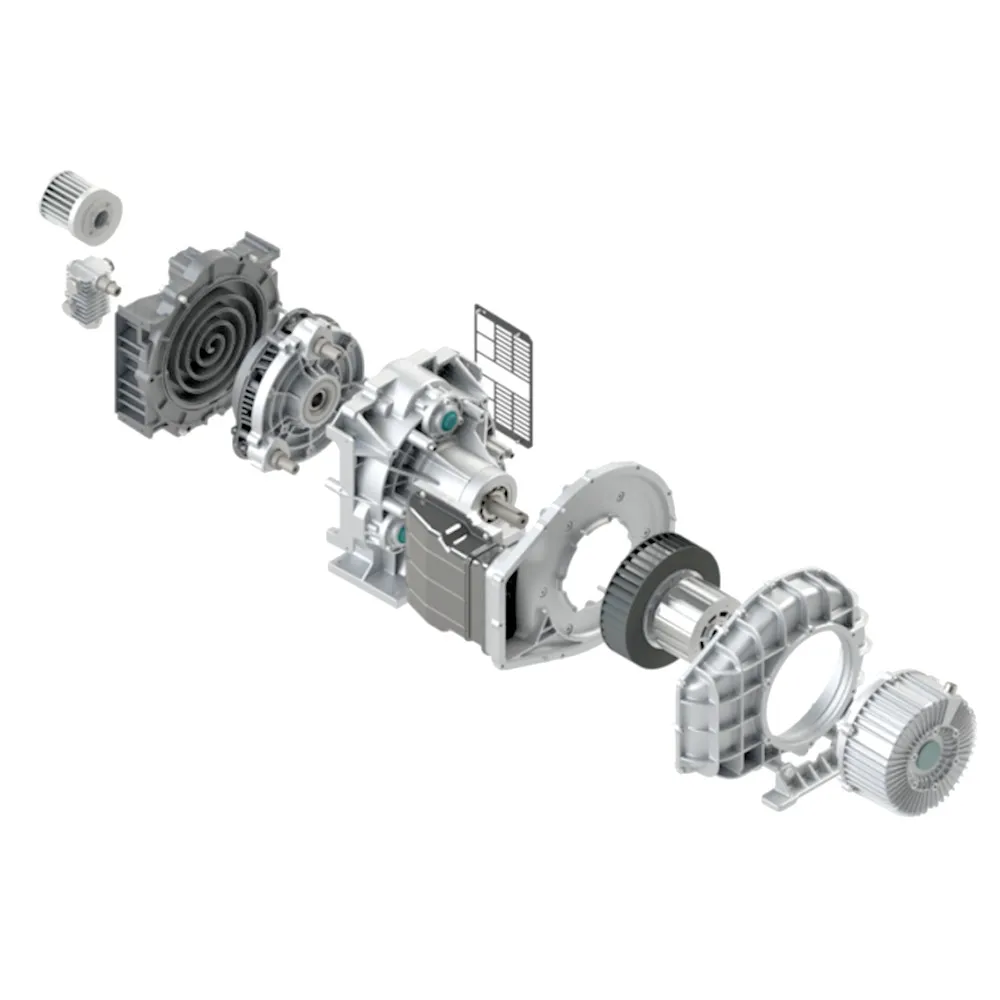

Air end


Oil-free scroll air compressor host

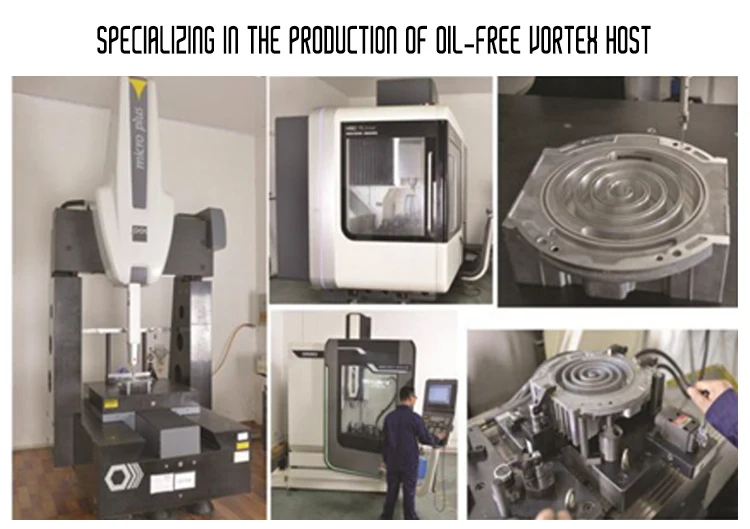

The original imported German DMG vortex processing machine, special equipment for vortex measurement, special equipment for eccentricity measurement, host test bench and complete machine test bench, etc., the stability of all aspects of packaging production and the consistency of various indicators


Model
HK-D04
HK-D06
Recommended Motor
KW
3-3.7
5.5
Max Pressure 0.8Mpa
Capacity
L/min
400
600
Max Pressure 1.0Mpa
Capacity
L/min
350
500
Dimensions(W*D*H)
mm
338*301*403
430*410*353
Weight
Kg
24
28



√.IE4 permanent magnet motor
√.Constant pressure and silence
√.Small footprint
√.Large size air end,low speed
sufficientair volume.
√.Six heavy-duty bearings
Morse taper connection.
√.Easy to install and maintain




REDUCE ENERGY CONSUMPTION
The oil-free scroll air compression main engine is the latest air compressor developed in recent years. Compared with the traditional air compressor, it has novel structure, small size, light weight, low noise, long service life and stable and continuous gas transmission. It is easy to operate, low maintenance cost and other excellent technical performance. It is praised as “no maintenance air compressor” and “new revolutionary air compressor” in the industry. It is the ideal model for air compressors below 50HP.

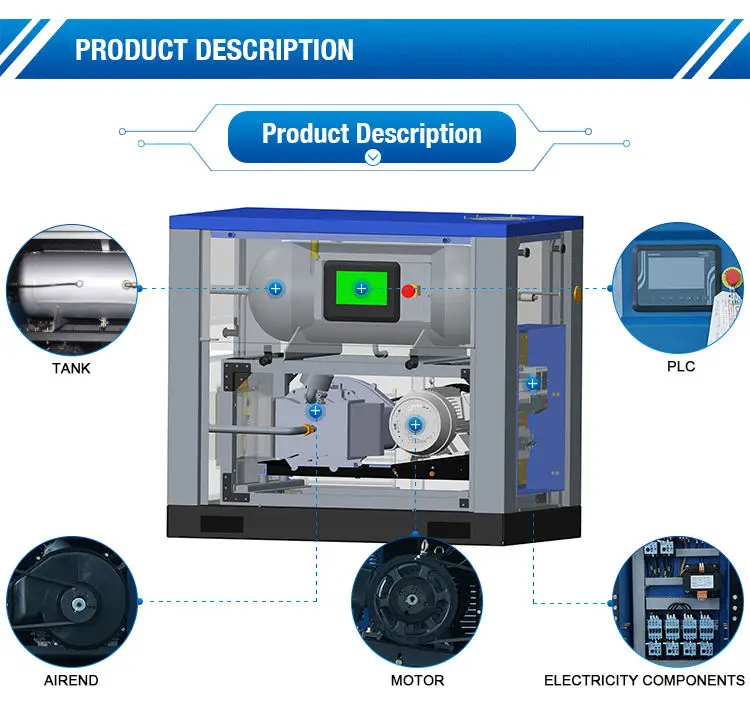

Products Description


Model
SD-07/0.8
Noise dB(A)
≤60土2
Power
7.5 KW/10 HP
Driven mode
Direct
Working Pressure

Air flow
8bar-0.8m3/min
Starting mode
Y/Δ or PM
Working Pressure
Air flow
10bar-0.6m3/min


Voltage

Frequency
220V/50HZ/1PH
Outlet size(inch)
1½
220V/60HZ/1PH

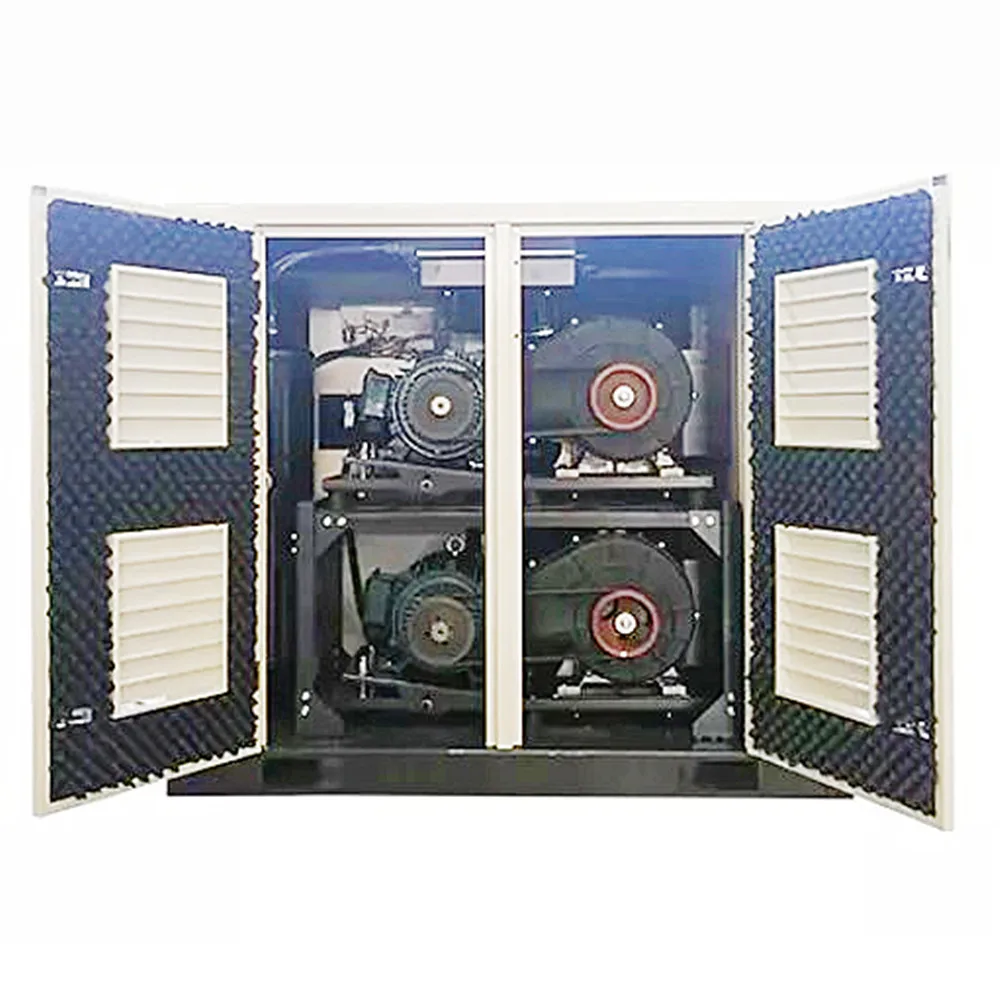

Scroll hosts(Pcs)
2*04
380V/50HZ/3PH
Air tank(L)
24
380V/60HZ/3PH
Size L*W*H(mm)
1400*700*1200
415V/50HZ/3PH
Weight(KG)
400
415V/60HZ/3PH






T：Scroll air compressor with 200L/300L tank.


Model
Pressure
bar
Air delivery m3/min
Power
kW
Noise
dB(A)
Length
mm
Width
mm
Height
 mm
Weight
kg
SD-04
8
0.40
3.7 ( 04x1 )
57± 2
760
690
820
200
SD-04-T
8
0.40
3.7 ( 04x1 )
57± 2
1400
780
1485
450
SD-07
8
0.83
7.5 ( 04x2 )
60± 2
1400
700
1200
350
SD-15
8
1.65
15 ( 04*4 )
62± 2
1400
700
1670
500
SD-18
8
2.08
18.5 (04x5)
65± 2
1540
1275
1815
800
SD-28
8
3.10
27.5 ( 04x5 )
65± 2
1540
1275
1815
950
SD-05
8
0.6
5.5 ( 06x1 )
55± 2
760
690
820
200
SD-05-T
8
0.6
5.5 ( 06x1 )
55± 2
1400
780
1485
400
SD-11
8
1.2
11 ( 06x2 )
60± 2
1400
700
1200
350
SD-16
8
1.8
16.5 ( 06x3 )
62± 2
1400
700
1670
500
SD-22
8
2.4
22 ( 06x4 )
65± 2
1400
1550
1200
800
SD-28
8
3.00
27.5 ( 06x5 )
65± 2
1400
1550
1670
1080
SD-33
8
3.6
33 ( 06x6 )
65± 2
1400
1550
1670
1200
SD-38
8
4.2
38.5( 06x7 )
65± 2
2320
1450
1740
1400
SD-44
8
4.8
44( 06x8 )
65± 2
2320
1450
1740
1520
SD-50
8
5.4
49.5( 06x6 )
65± 2
2320
1450
1740
1650
Oil-free scroll vacuum pump
Model
Maximum pressure
Air delivery m3/min
Power
kW
Noise
dB(A)
Length
mm
Width
mm
Height
mm
Weight
kg
HK-D04
9
0.5
1.5(04*1)
55± 2
760
690
820
200
HK-D06
9
0.66
2.2(06*1)
55± 2
760
690
820
200


Product Introduction










Online 24 hours
WhatsApp: +86-181-6701-6615
E-mail：
fionaxiang@apcomaircompressor.com

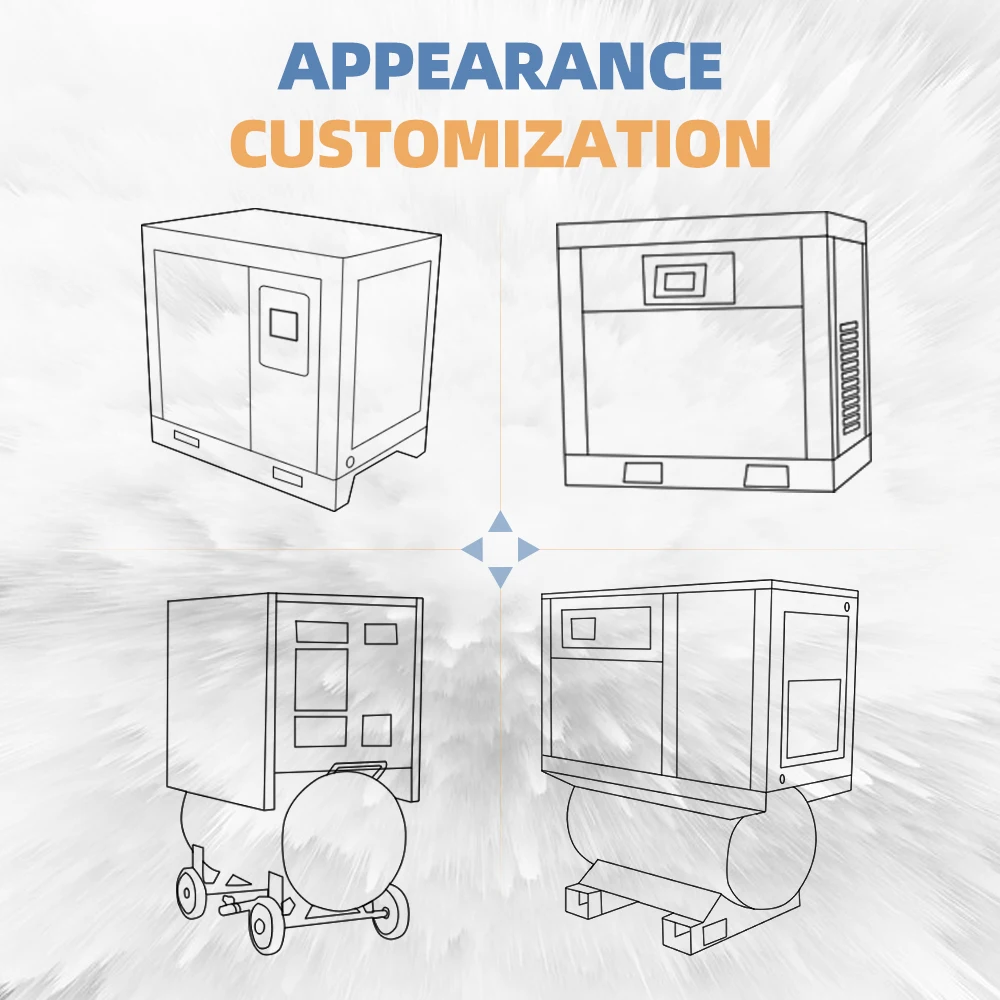

Customized Services




Factory Introduction

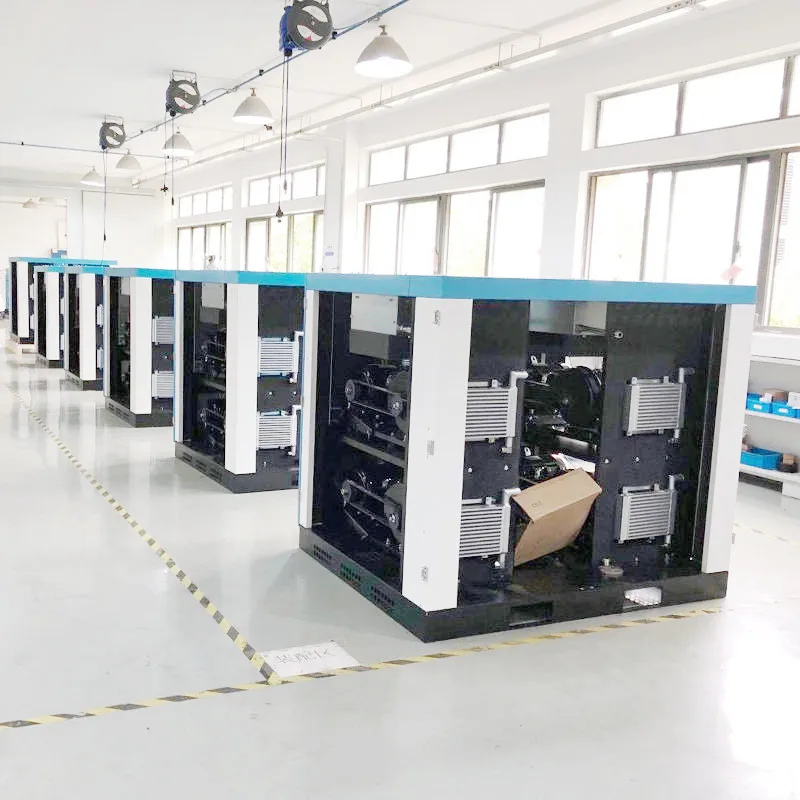

Production Equipment
