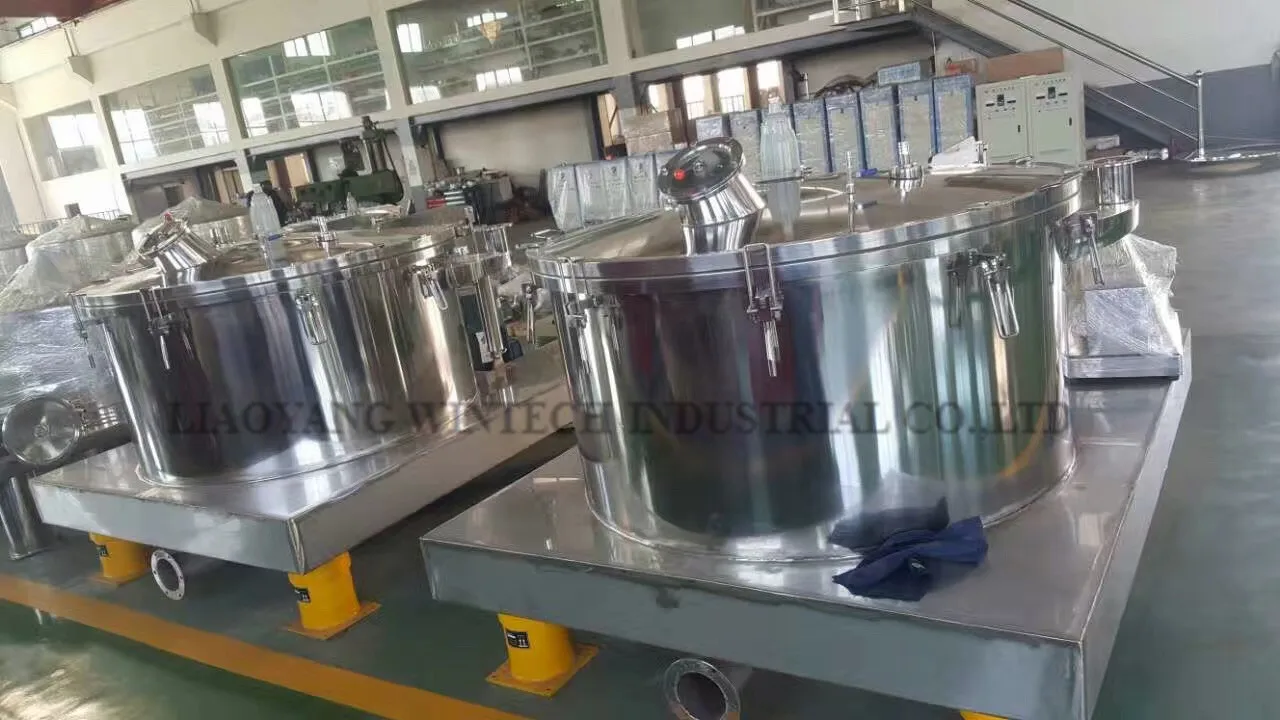

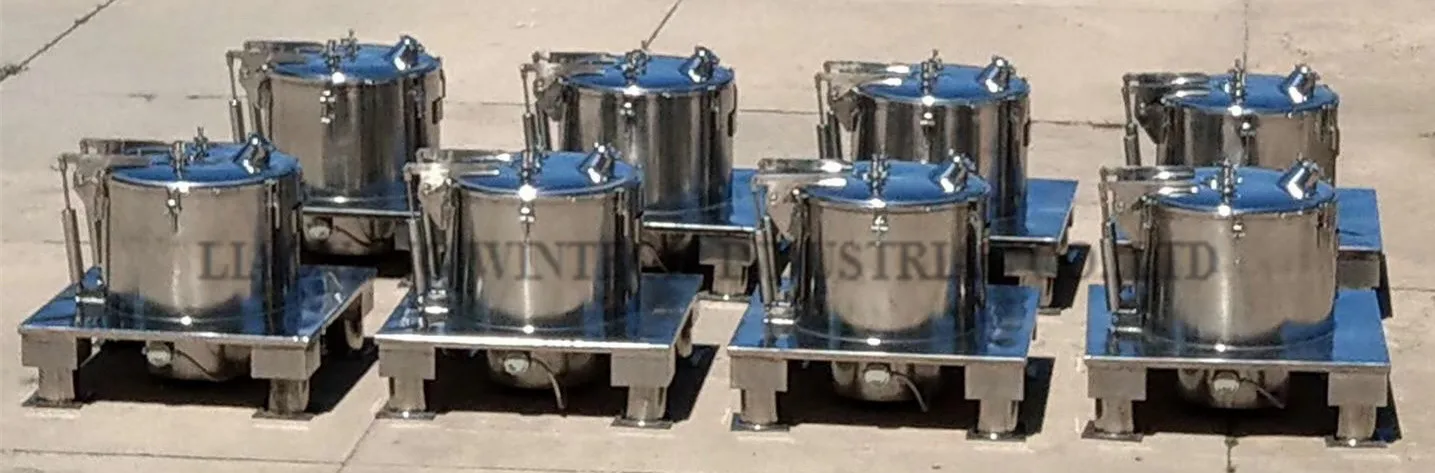

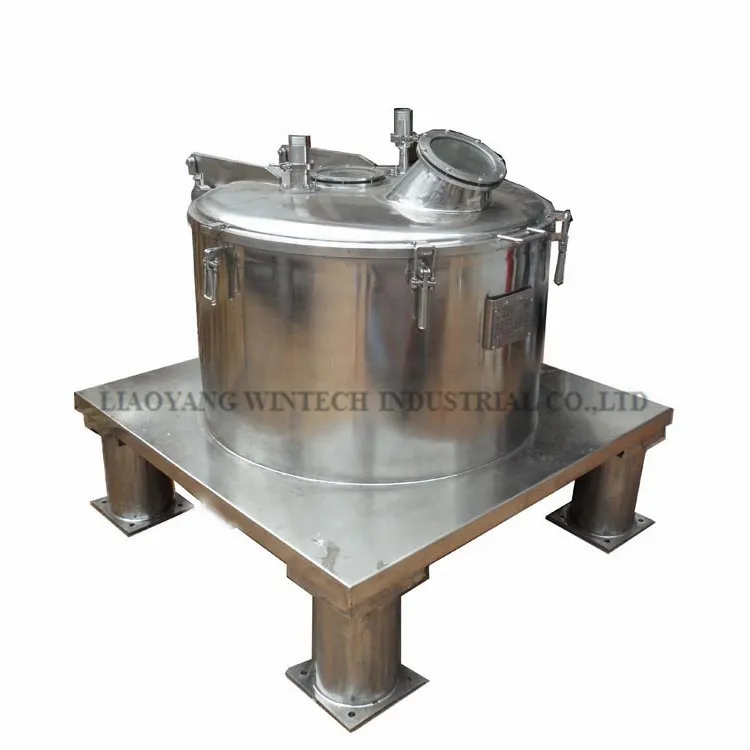

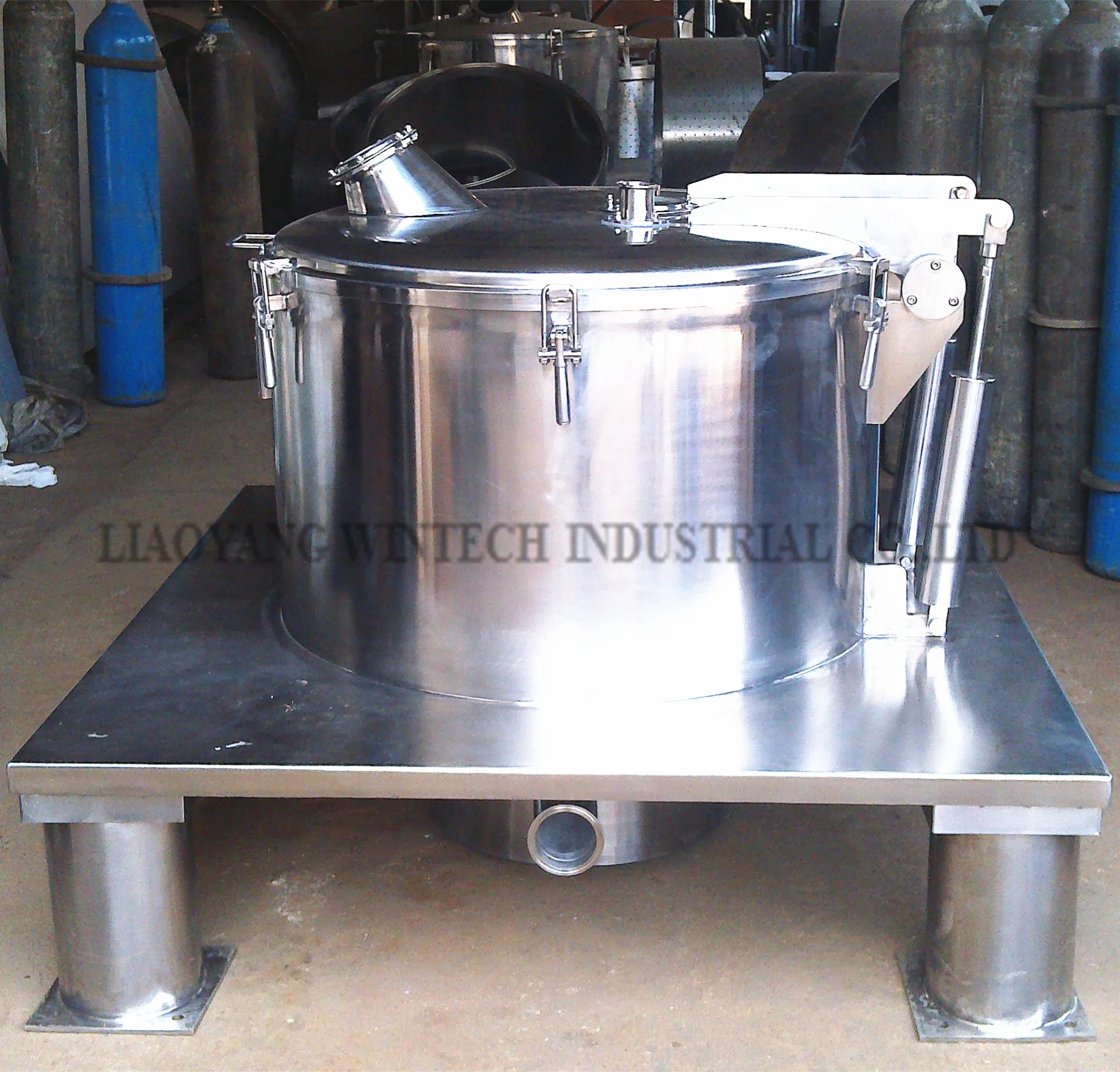

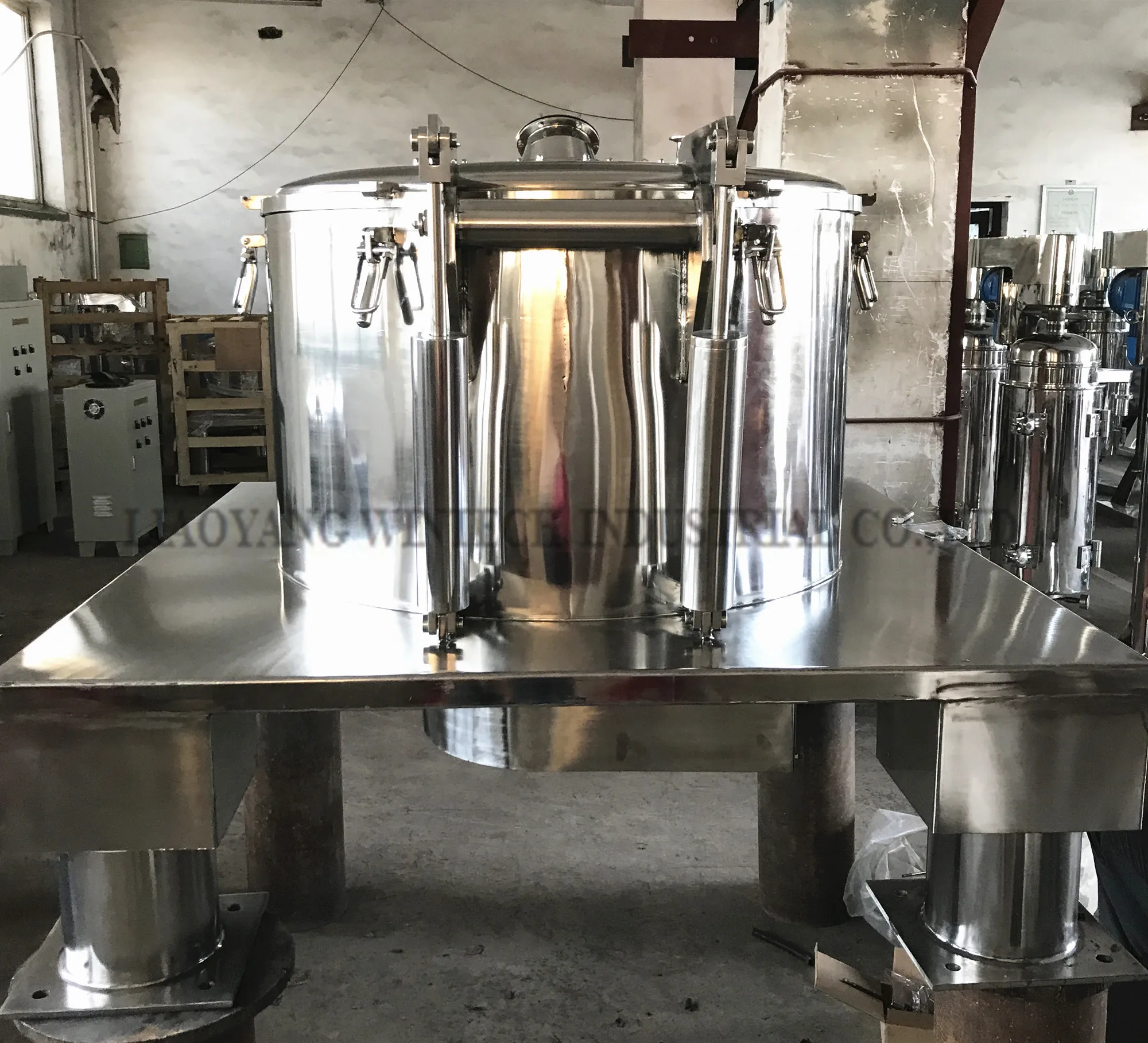

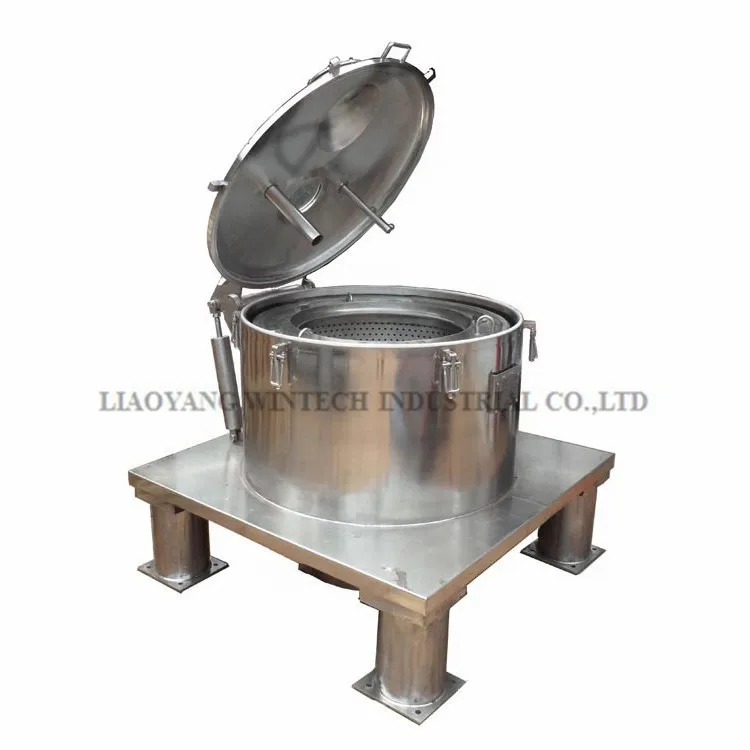

Factory direct supply sus304 top discharge flat plate soaking function filter centrifuge for garlic oil / corn paste honey

The plate filter centrifuge is a filter centrifuge operated intermittently by manual unloading.The machine has the advantages of simple structure, easy operation, strong adaptability, flexible filtering time according to material characteristics and separation requirements, fully washing of filter residue, and not easy to be destroyed by solid particles.Can be widely used in chemical, light industry, pharmaceutical, food, textile, machinery and other industries.

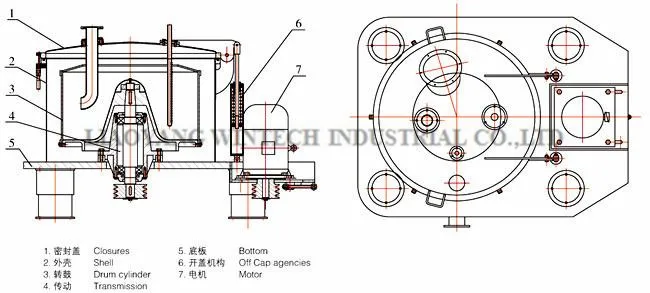

Right elevation

Front elevation

Left elevation

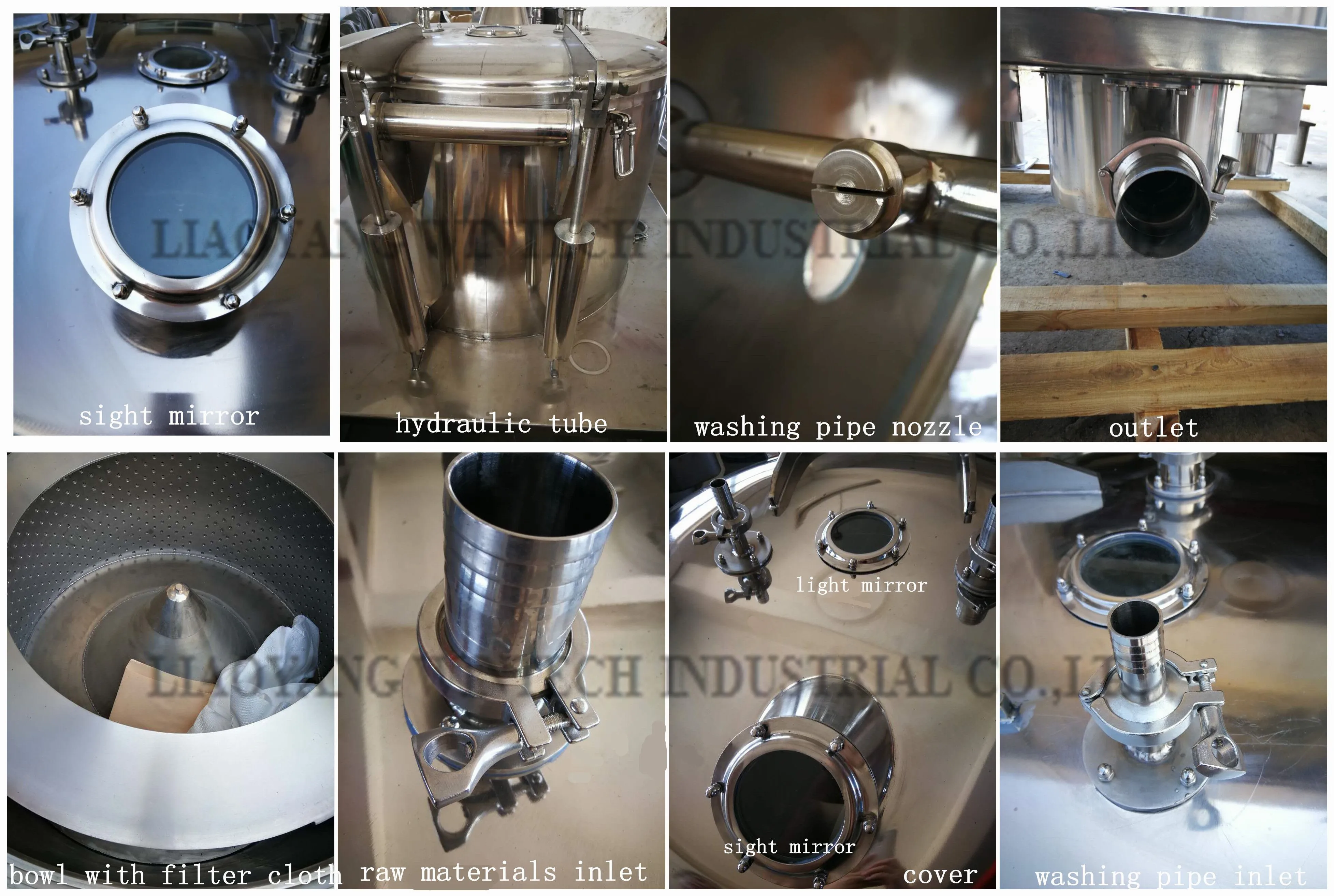

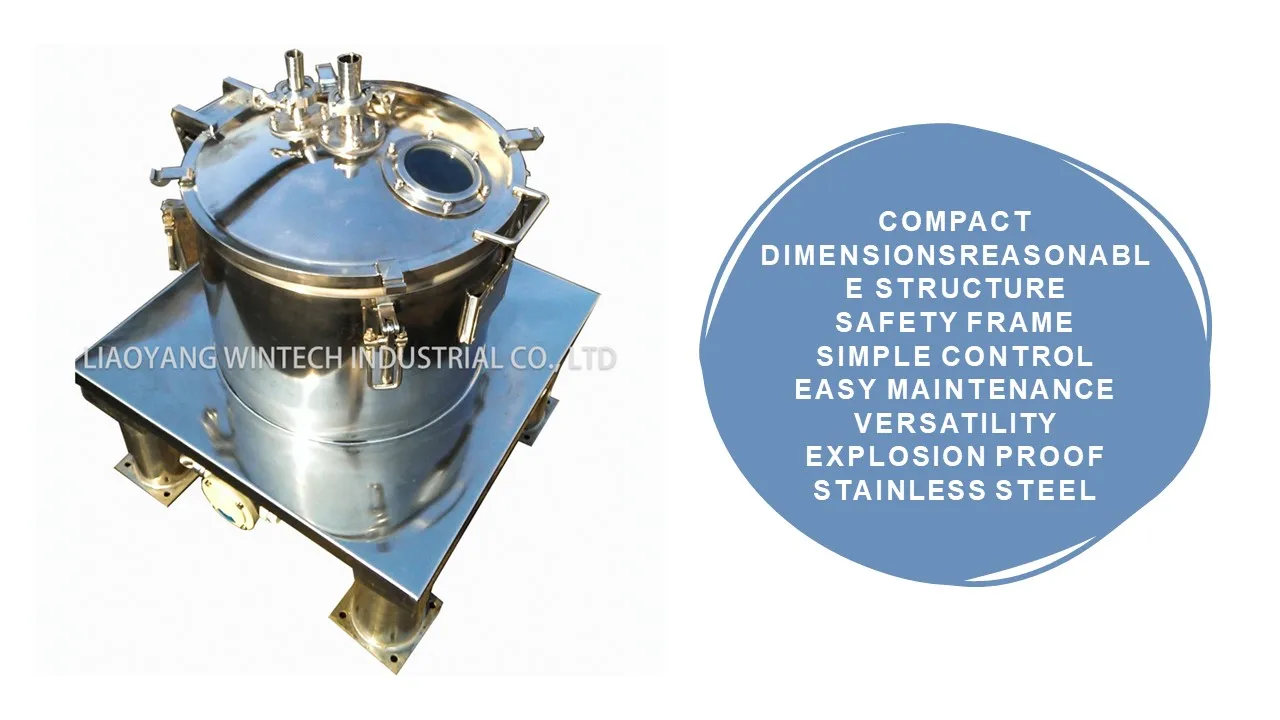

Reasonable structure design, simple geometric shapes which can eliminate the health corners effectively, structural parts smooth transition, the surface polished. External components, fasteners and the parts contacting material are made of stainless steel, the shell is clam shell type, which can thoroughly clean the inter-layer between shell and bowl.

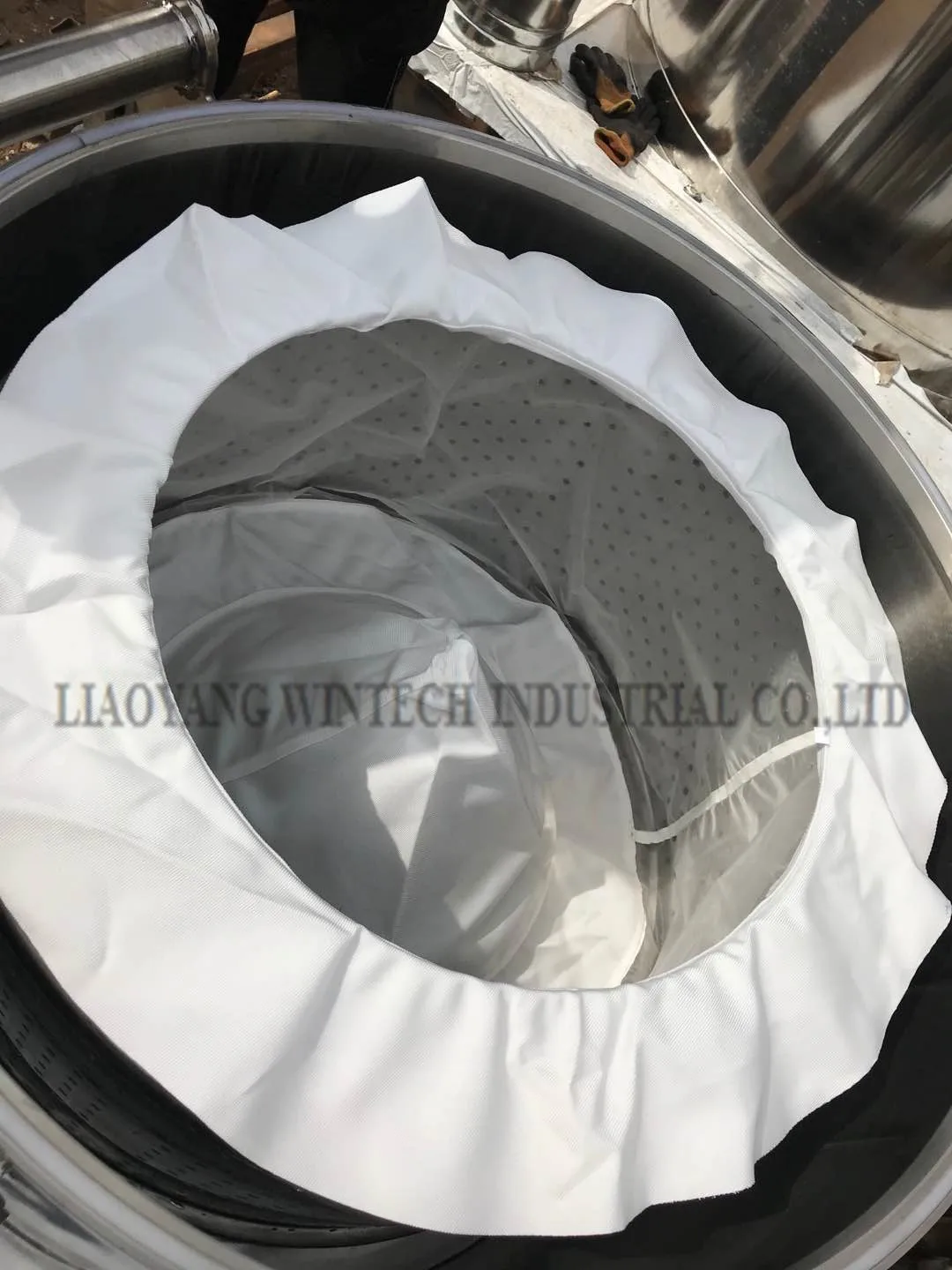

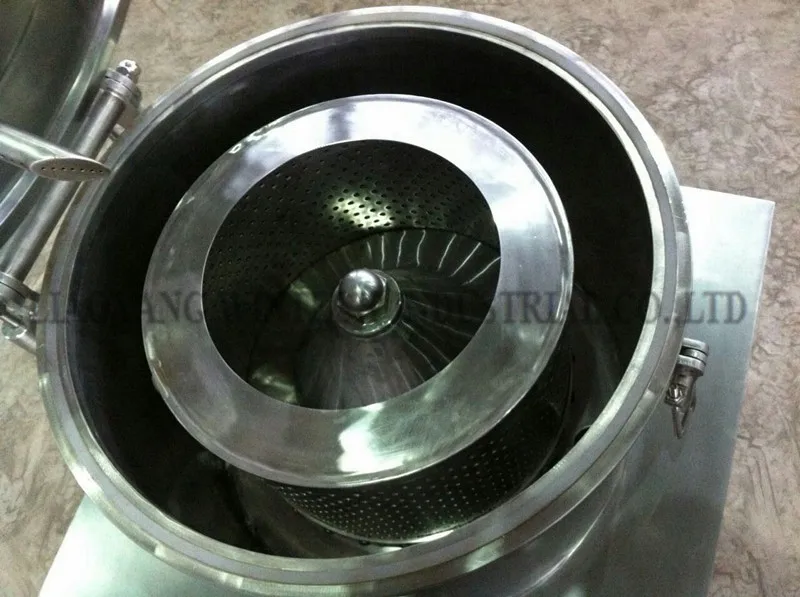

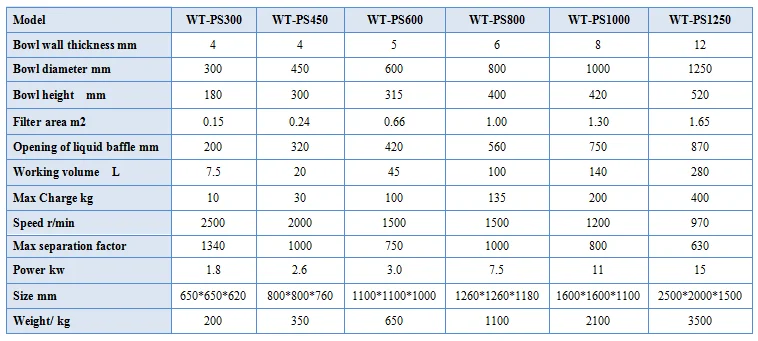

WT-PS Series Flat Direct filtration centrifuge’s bowl is based parts, direct-coupled motor drives the bowl rotate at high speed to form a centrifugal force field. Suspension liquid flow into the bowl from the top of the feeding tube, under the action of centrifugal force, threw to the drum wall, then into the inter-layer between shell and bowl through the filter holes in the bowl, next, threw into the liquid collection chamber at the bottom of machine, discharged by the drain pipe, and solid phase retained in the bowl, For washing, the washing water through the washing tube to wash, solid phase is discharged from the top by hand.

1.Chemical Industry: gypsum, thiamin, Glauber's salt, ferric sulfate,boric acid, borax, rubber additive, dye, and other chemical products.

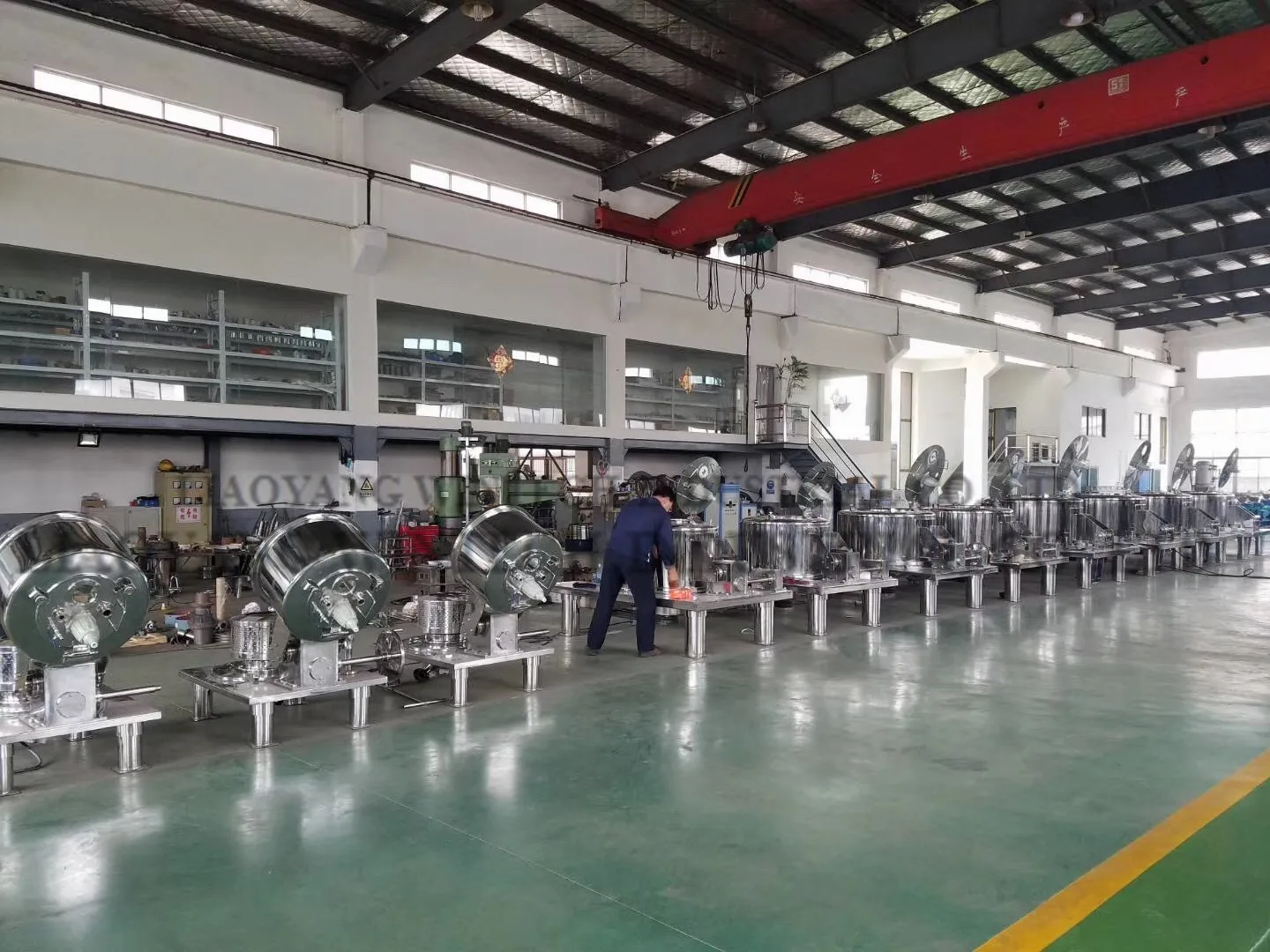

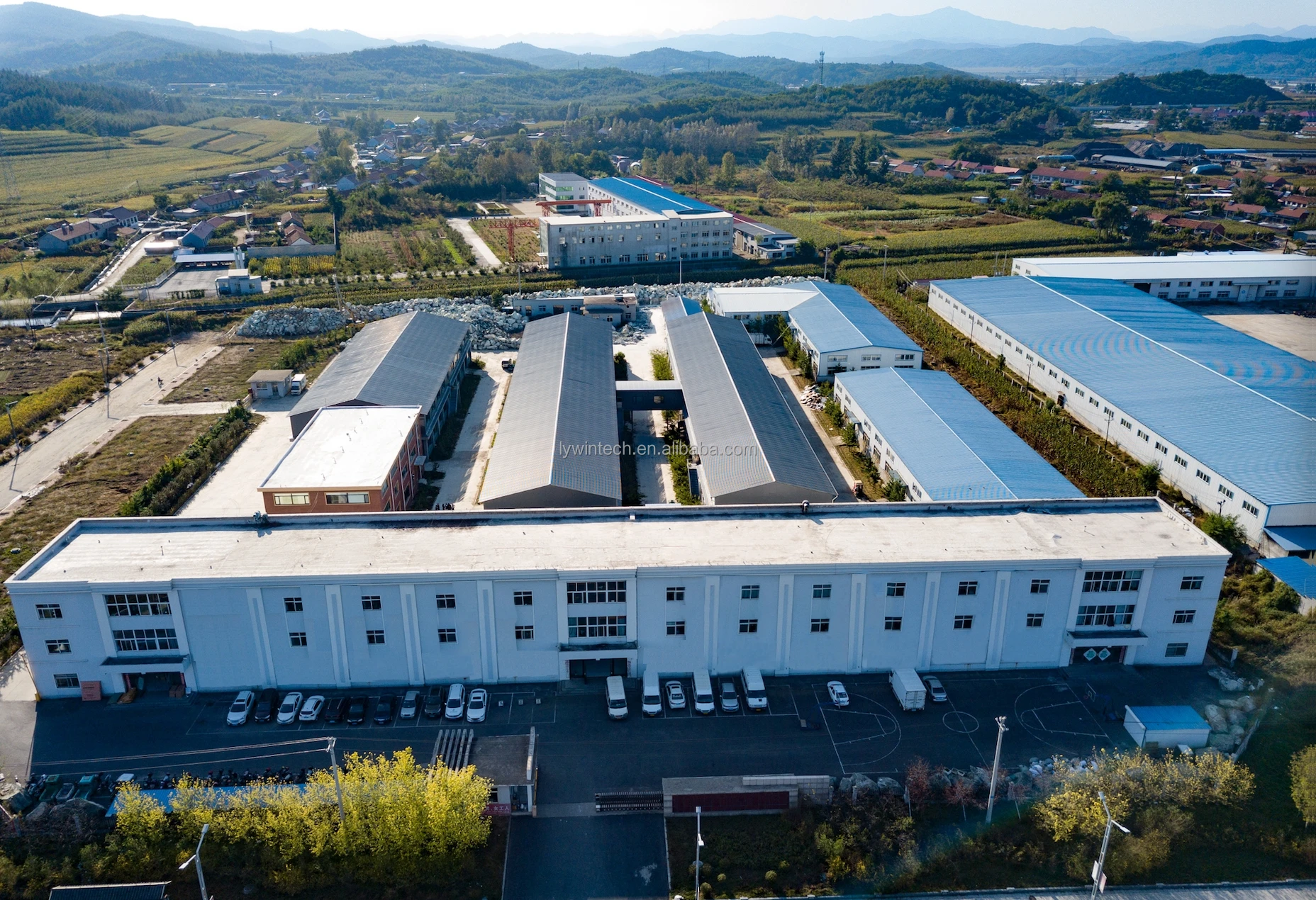

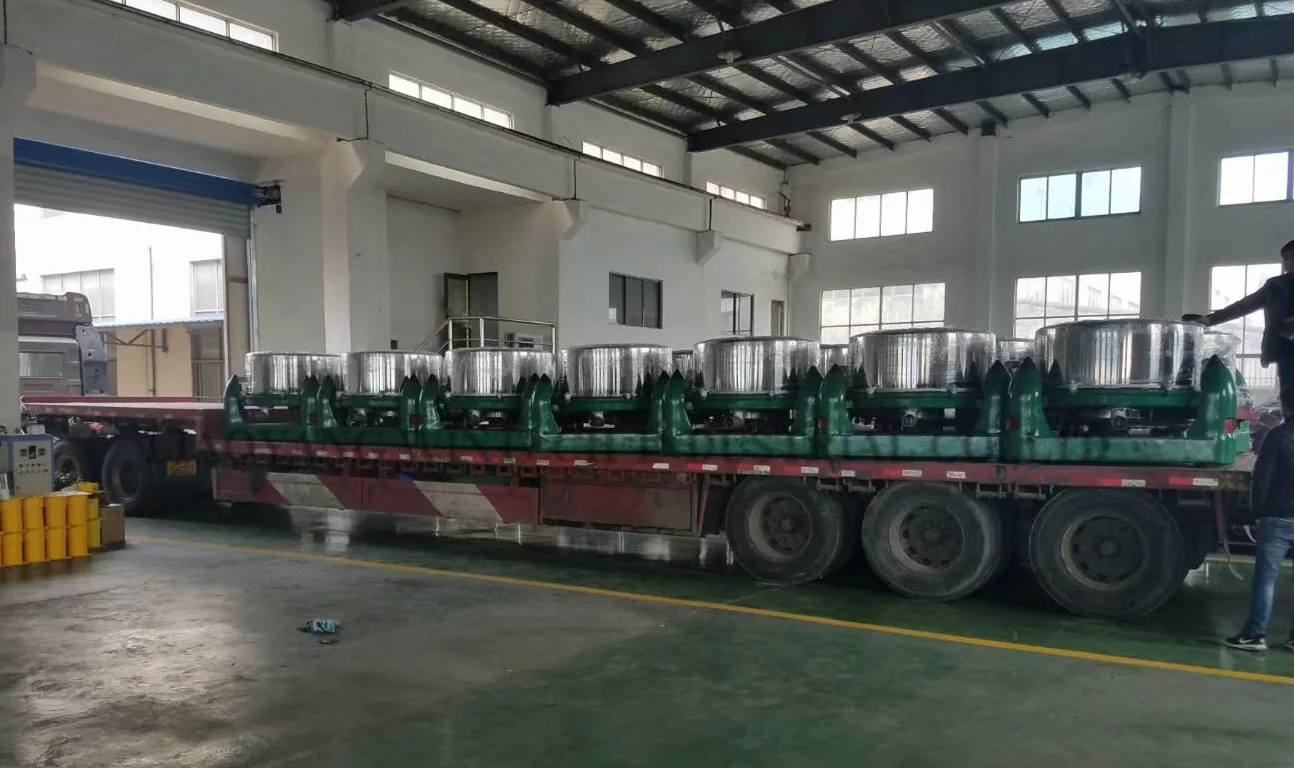

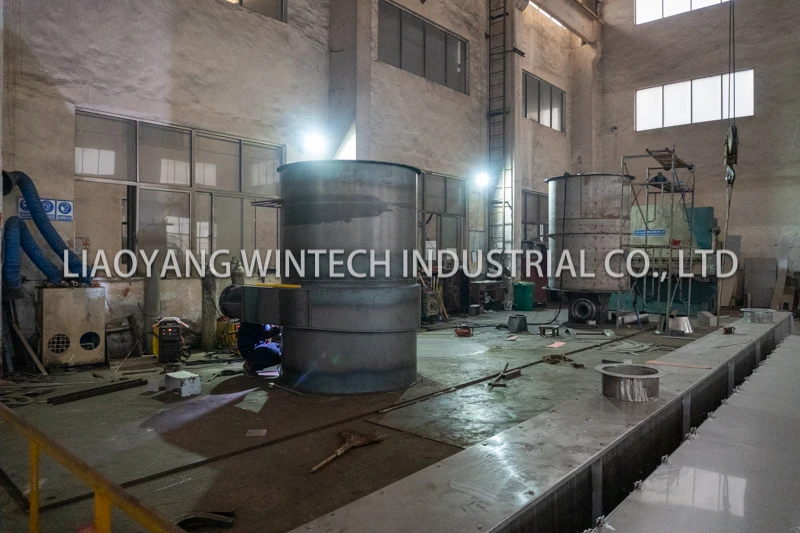

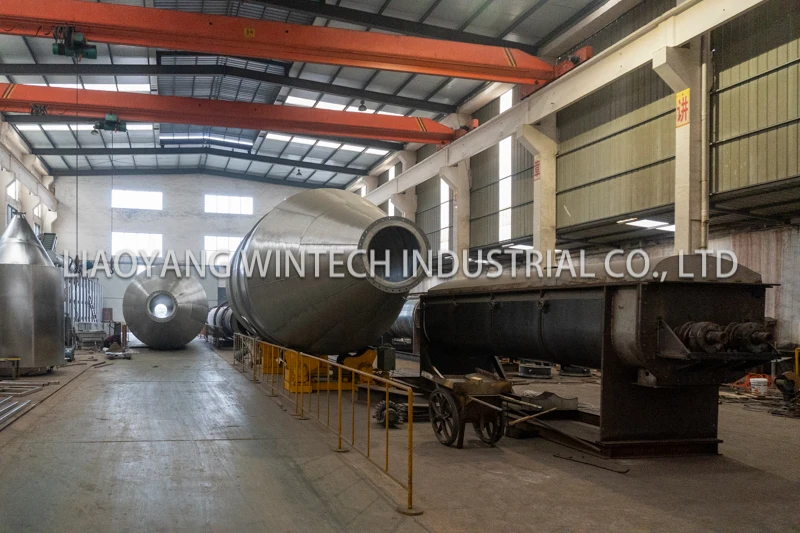

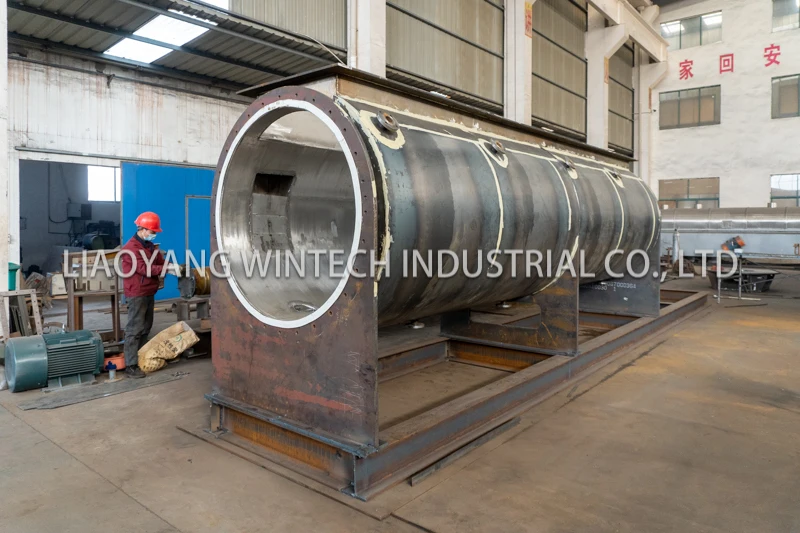

LIAOYANG WINTECH INDUSTRIAL CO.,LTD, takes Centrifugal Filter Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, and corresponding supporting equipment, eg. food line, pharmaceutical line, chemical line. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.

Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.

Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery.
