Factory USB 2.0 UVC Free Driver AI Algorithmic Binocular HDR WDR 2MP 3D Dual Lens Camera Module for Access Control System
Product Description

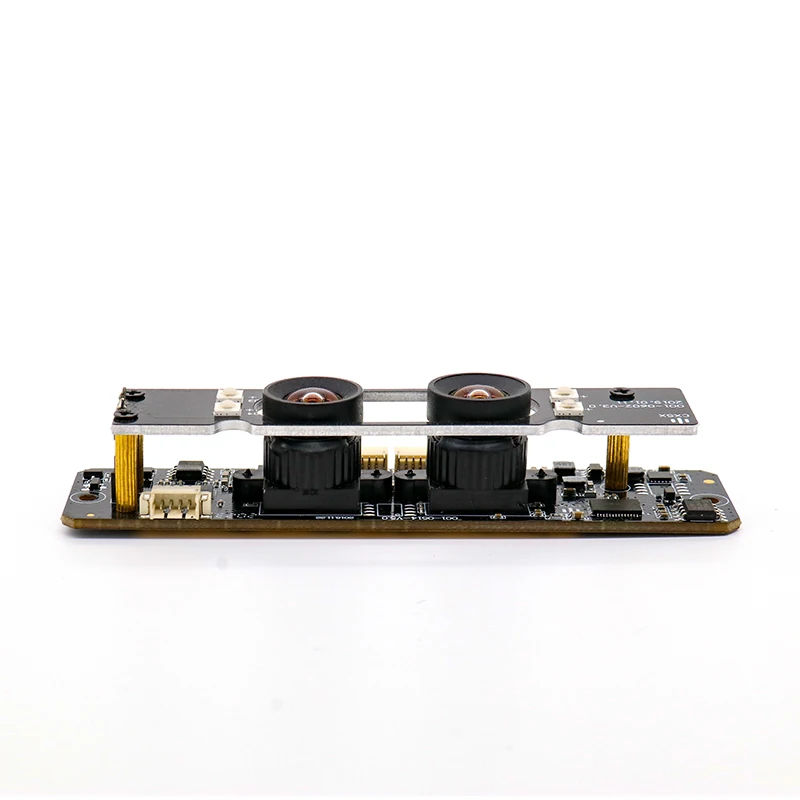

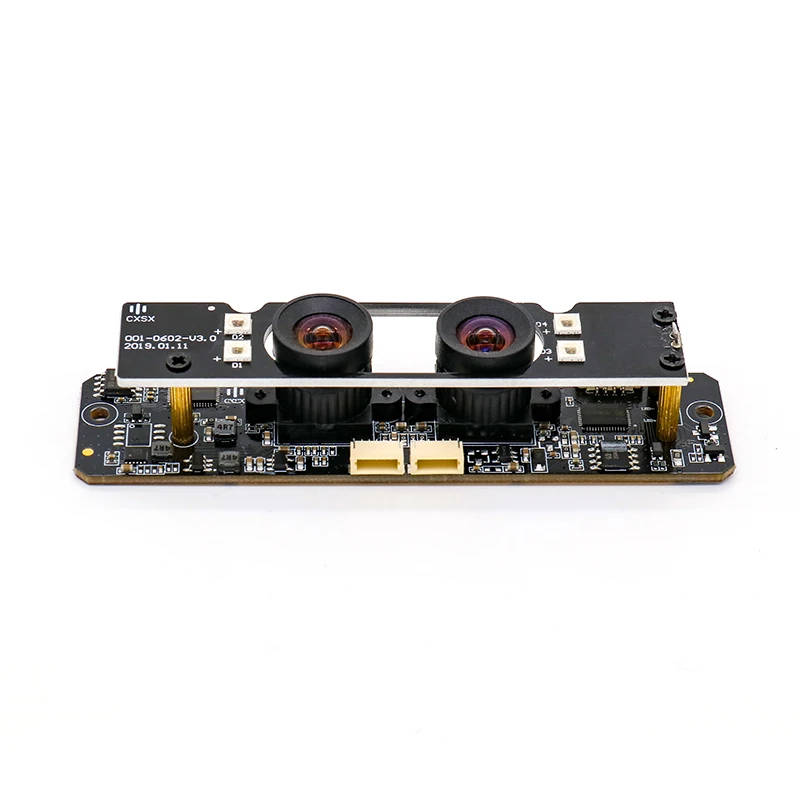

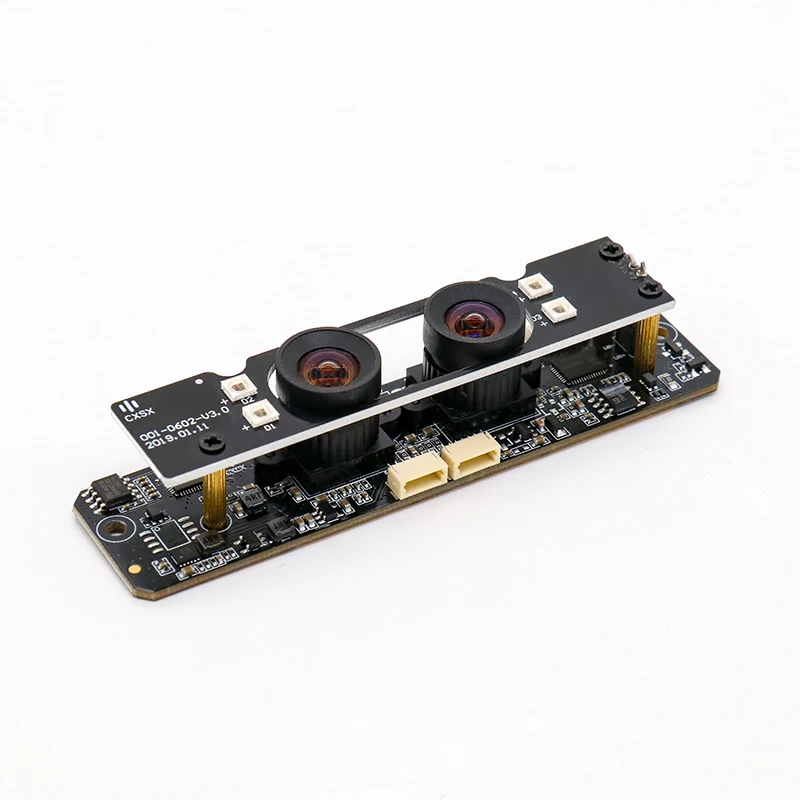

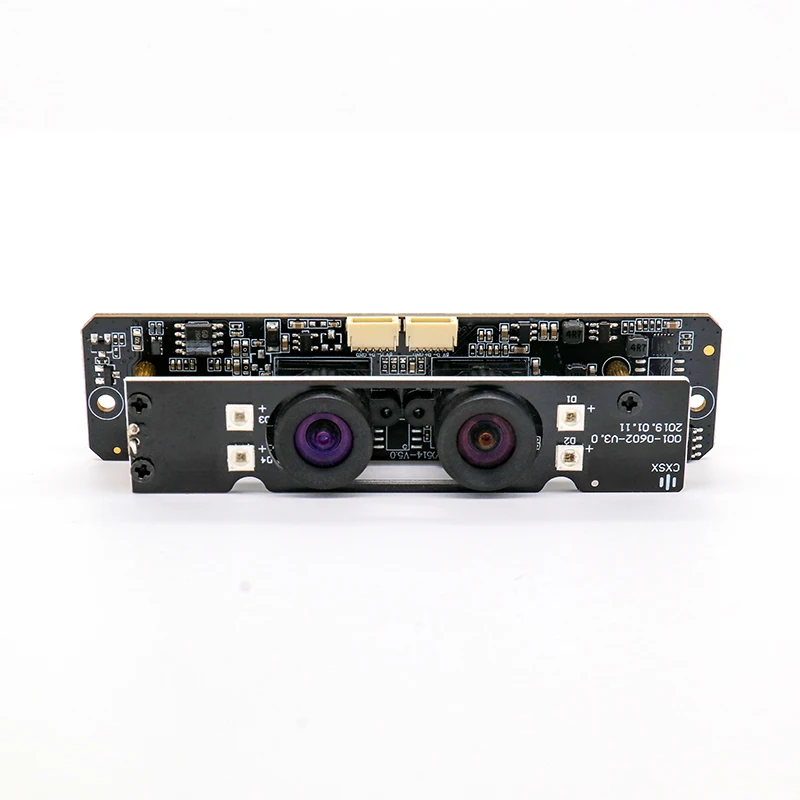

003-0514/002-0602 is a synchronized dual lens USB camera module, with 1/2,7" CMOS AR0230 & AR0230 image sensor, the max resolution is 1920*1080P @30fps. Wide dynamic rage could reach 96db.
Binocular dual lens camera can obtain depth range data without identifying the target, but the single lens camera must identifying the target first, that's why the dual lens cameras being used widely on some industrial like face recognition, intelligent traffic etc. Smaller error, and more accurate.
There are 2 DSP/CHIP and 2 USB cables, each chip controls its own sensor, so the 2 sensors work separately, you can choose to use one of AR0230 sensor only, or you can use them at the same time.
Specification
Sensor | AR0230& |
Sensor Size | 1/2.7" |
Resolution | 1920*1080P&1920*1080P |
Data Format | MJPG/YUY2 |
Field of View (FOV) | 95 degree (D) |
TTL | 15.29MM |
WDR | 96dB&69dB |
Working Current | MAX 500mA |
Dimension | 38mmx28mm |
Cable Length | 3.3ft (1M),1.5M, 1.8M, 2M etc.could be optioned |
Key Features
Synchronized dual lens camera module:
2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do.Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.Small outline 38*28mm for embedded application
Full HD 1080P Resolution:
The camera module adopt 1/2.7" AR0230 WDR color sensor. The max frame rate 1920*1080@ 30fps, full HD image.
WDR & Wide Angle Range Lens:
The camera's wide dynamic range is 96DB & 69DB, and the wide angle range is FOV D=95°
Best Universal Compatibility:
Dual lens camera module support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux with UVC.
2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do.Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.Small outline 38*28mm for embedded application
Full HD 1080P Resolution:
The camera module adopt 1/2.7" AR0230 WDR color sensor. The max frame rate 1920*1080@ 30fps, full HD image.
WDR & Wide Angle Range Lens:
The camera's wide dynamic range is 96DB & 69DB, and the wide angle range is FOV D=95°
Best Universal Compatibility:
Dual lens camera module support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux with UVC.
Related Product
Company Profile
Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products.

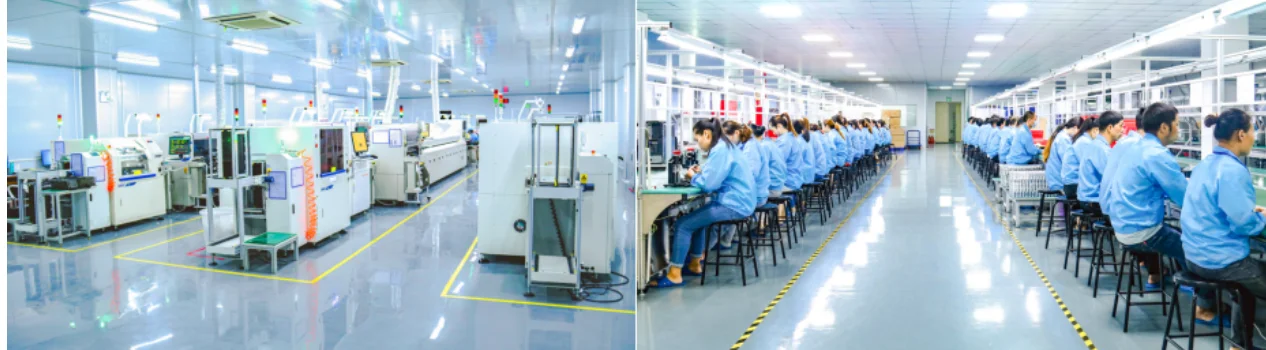

Hampo owned two buildings as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.
