BOPP film PP bags plastic compactor plastic granulator
- Category: >>>
- Supplier: Zhangjiagang Sevenstars Machinery Co. Ltd.
Share on (1600501608424):
Product Overview
Description

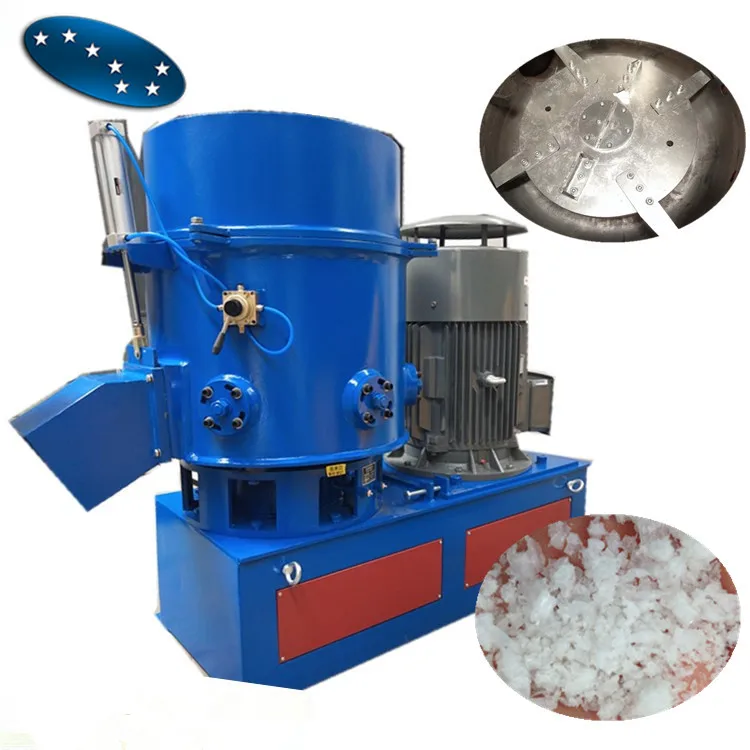

Recycling plastic agglomerator

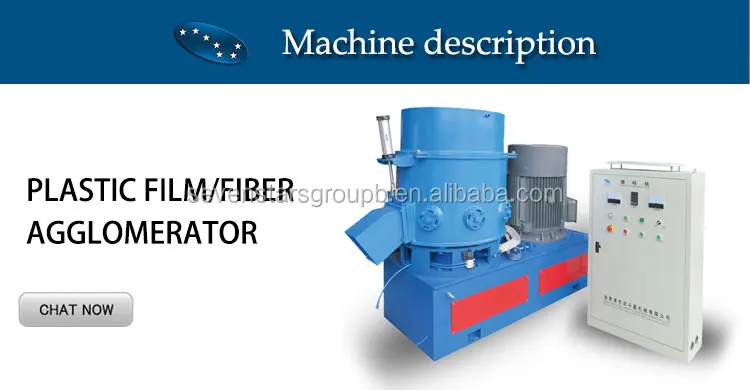

Machine description:
plastic agglomerator is mainly used for waste thermoplastic thin films, soft PVC,LDPE,HDPE,PS,PP,foam PS,PET fibers and other plastic material within 2mm thickness.
The particles can be used for extrusion or injection mould machine directly. It can also be further pelletizied for some special requirements.Working Principle:

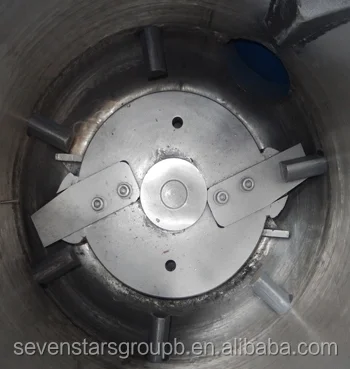

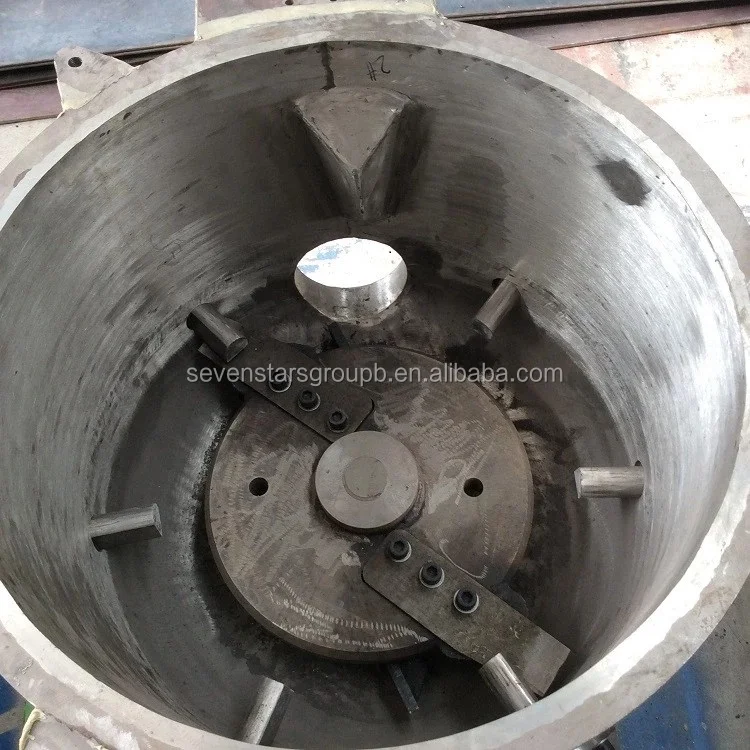

When the waste plastic is fed into the chamber of this machine, it will be cut into smaller chips due to the crushing function of the rotary and fixed knives. During the crushing process, the material soaks up lots of heat from the frictional movement between

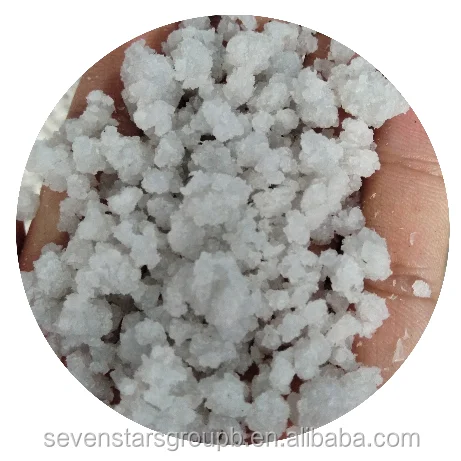

knives and the cylinder wall will come to semi-plasticizing state inside the cylinder. The particles will stick due to the function of plasticization. Before particles complete sticking, cold water sprayed beforehand will be evaporated off quickly, and the surface temperature of the particles drop down quickly, then eventually become the particles or granules. The particles are easy to recognize by different size and can also be colored by putting pigment inside the cylinder during the crushing process.
When the waste plastic is fed into the chamber of this machine, it will be cut into smaller chips due to the crushing function of the rotary and fixed knives. During the crushing process, the material soaks up lots of heat from the frictional movement between
knives and the cylinder wall will come to semi-plasticizing state inside the cylinder. The particles will stick due to the function of plasticization. Before particles complete sticking, cold water sprayed beforehand will be evaporated off quickly, and the surface temperature of the particles drop down quickly, then eventually become the particles or granules. The particles are easy to recognize by different size and can also be colored by putting pigment inside the cylinder during the crushing process.
Technical Data
Spec Model | GHX100 | GHX200 | GHX300 | GHX500 | GHX600 | GHX800 | |||||
Barrel Volume(L) | 100 | 200 | 300 | 500 | 600 | 800 | |||||
Effective volume(L) | 75 | 150 | 225 | 375 | 450 | 600 | |||||
Capacity(kg/h) | 100 | 150 | 200 | 300 | 400 | 550 | |||||
Material of barrel | Stainless steel | ||||||||||
Blade material | 9CrSi | ||||||||||

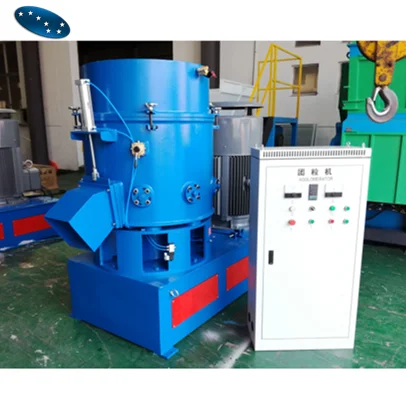

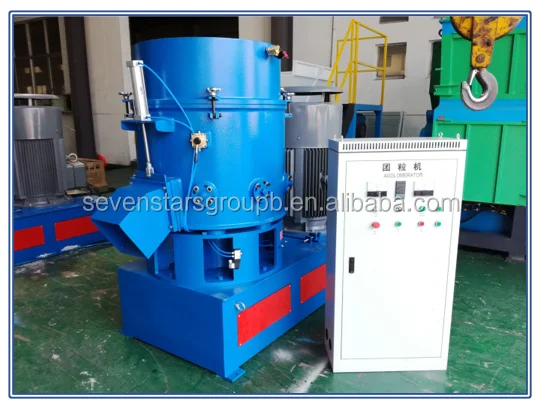

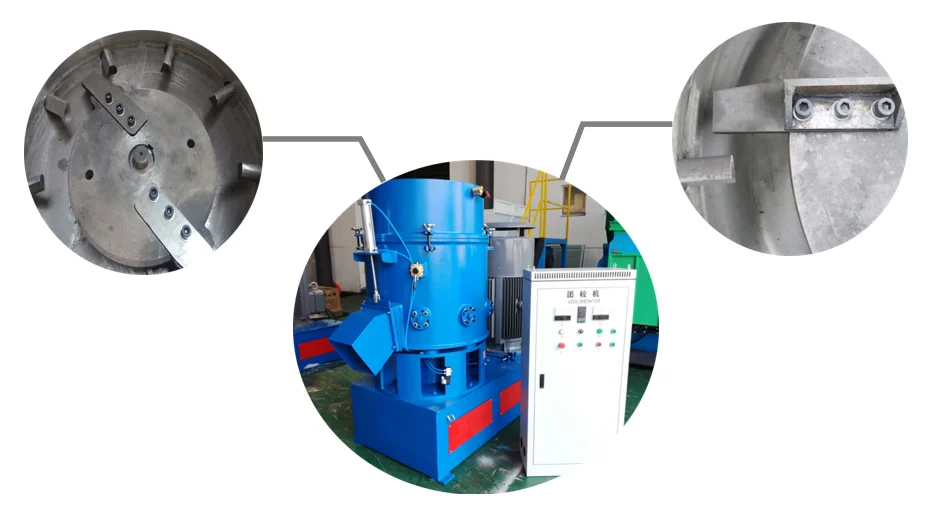

Machine Show

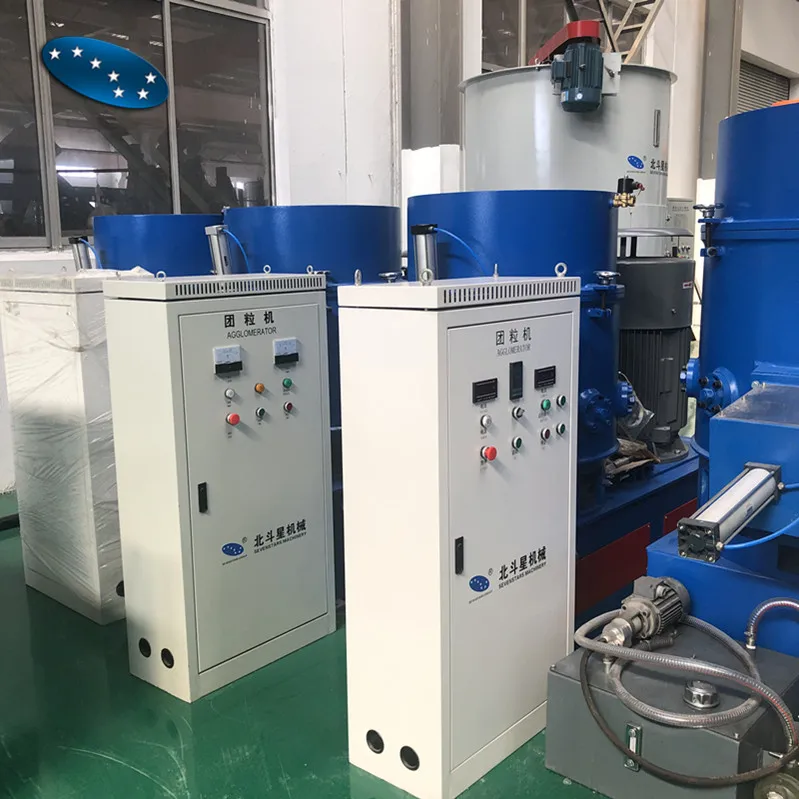

Feature:It process with spray water inside. Automatic controlled by temperature control and motor Amper,double checking, inside of
agglomerator with circle pipe to spray the water.

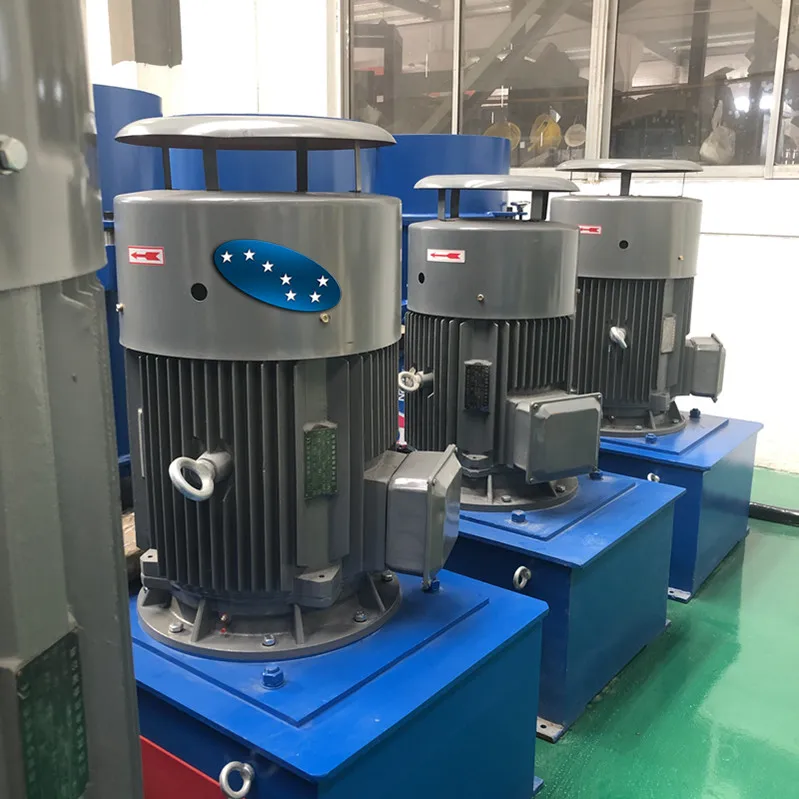

Main motor is soft starter.
agglomerator with circle pipe to spray the water.
Main motor is soft starter.

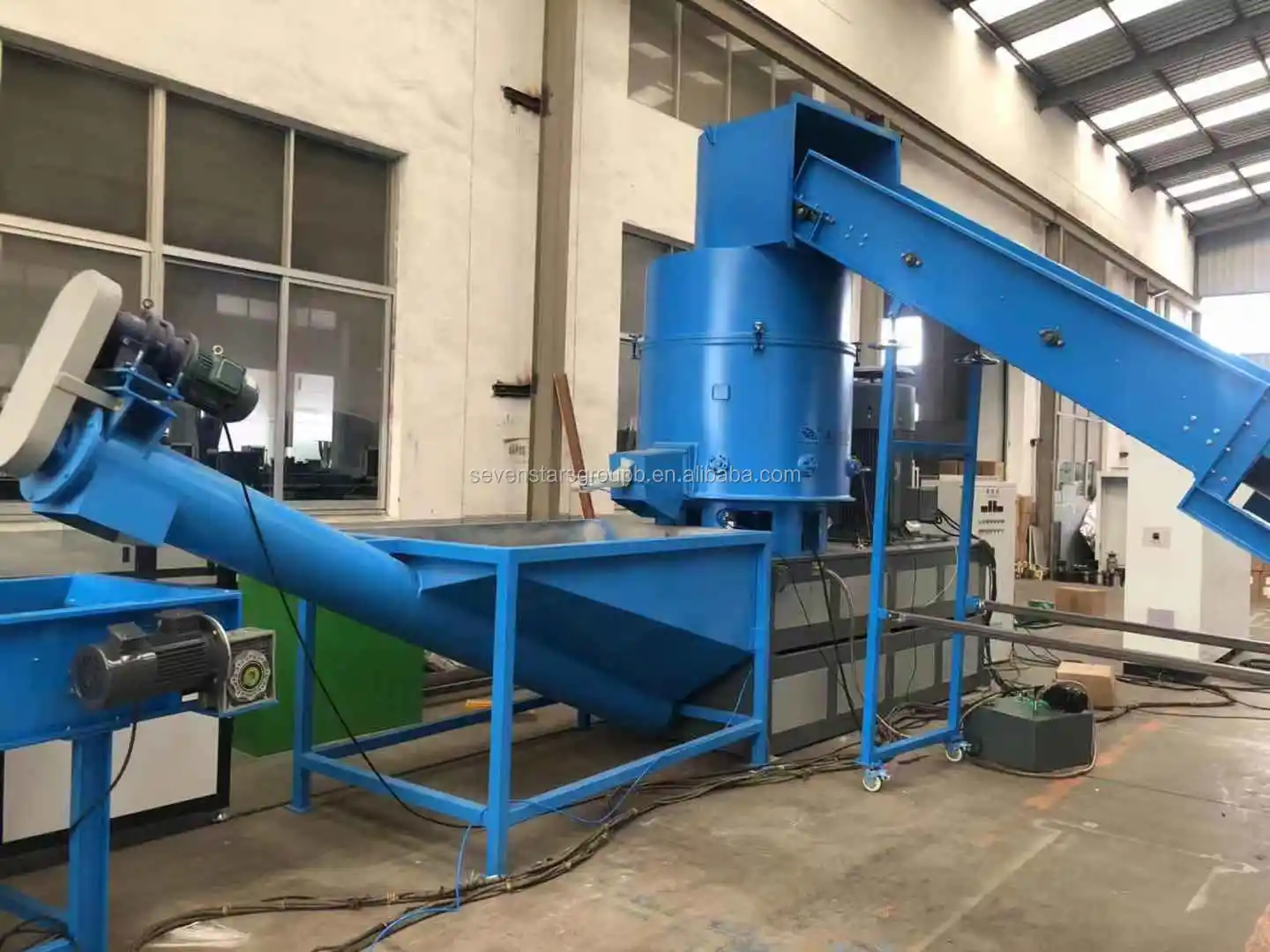

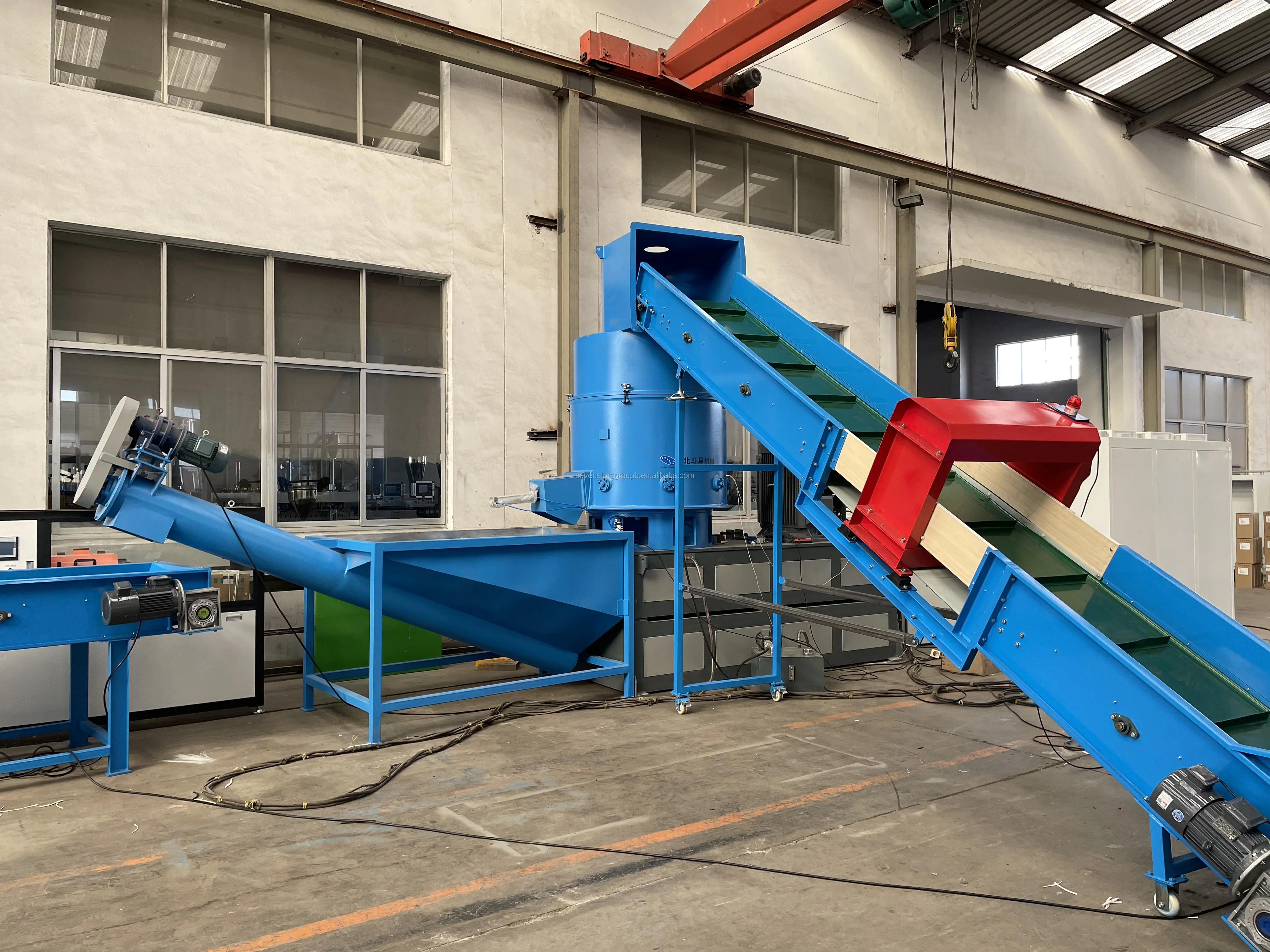

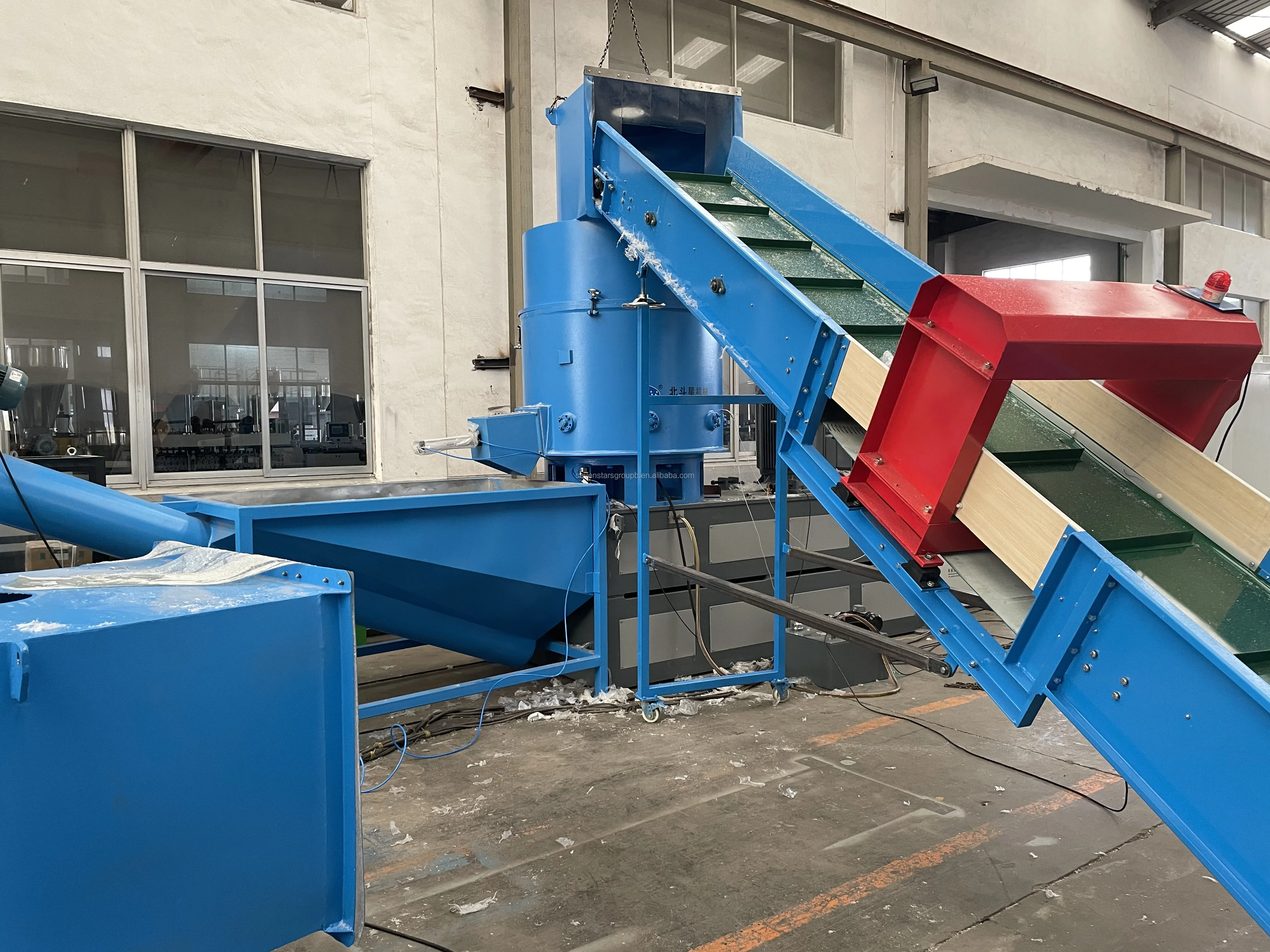

Belt conveyor
The high capacity model will equip with the belt conveyor.The width can be customized .
The speed can be controled by inverter.
The speed can be controled by inverter.
