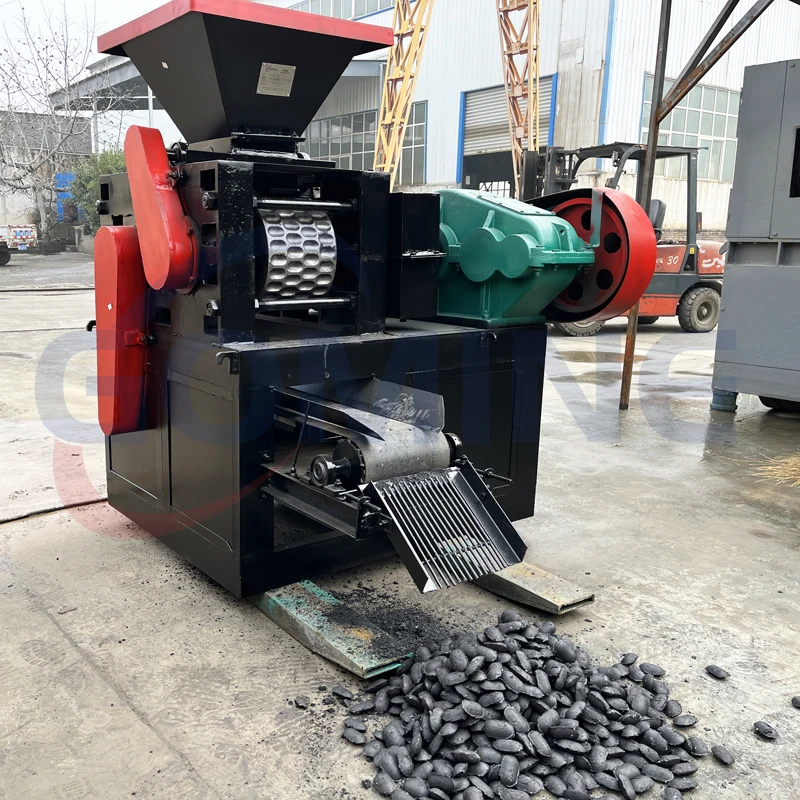

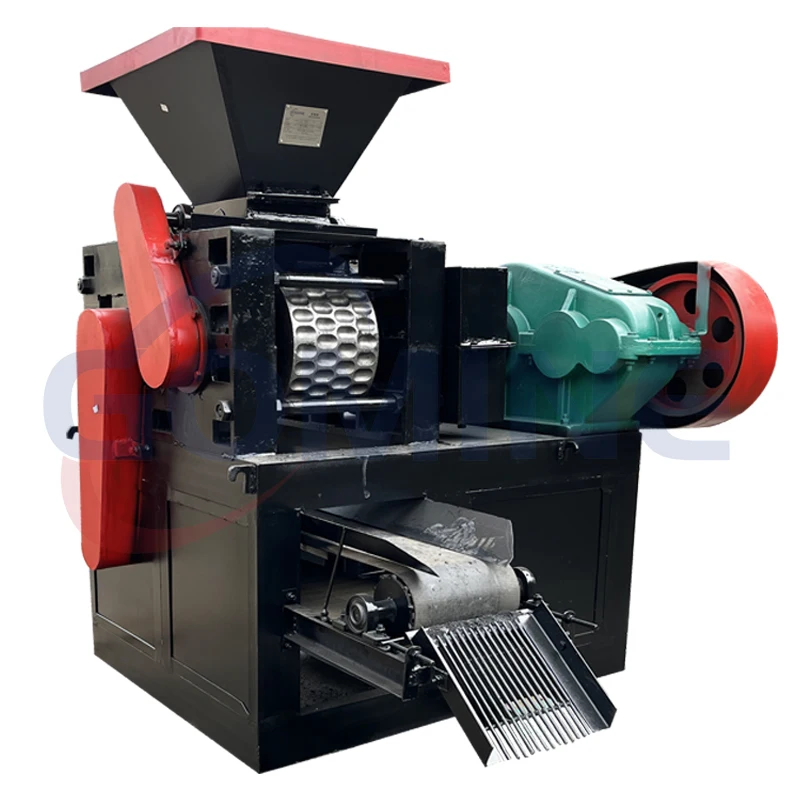

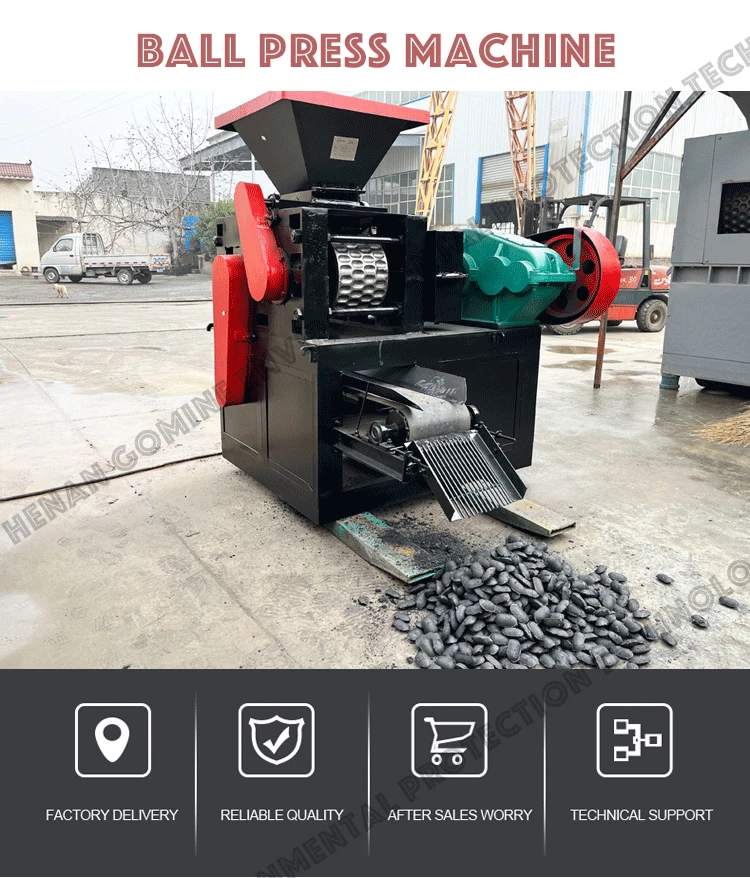

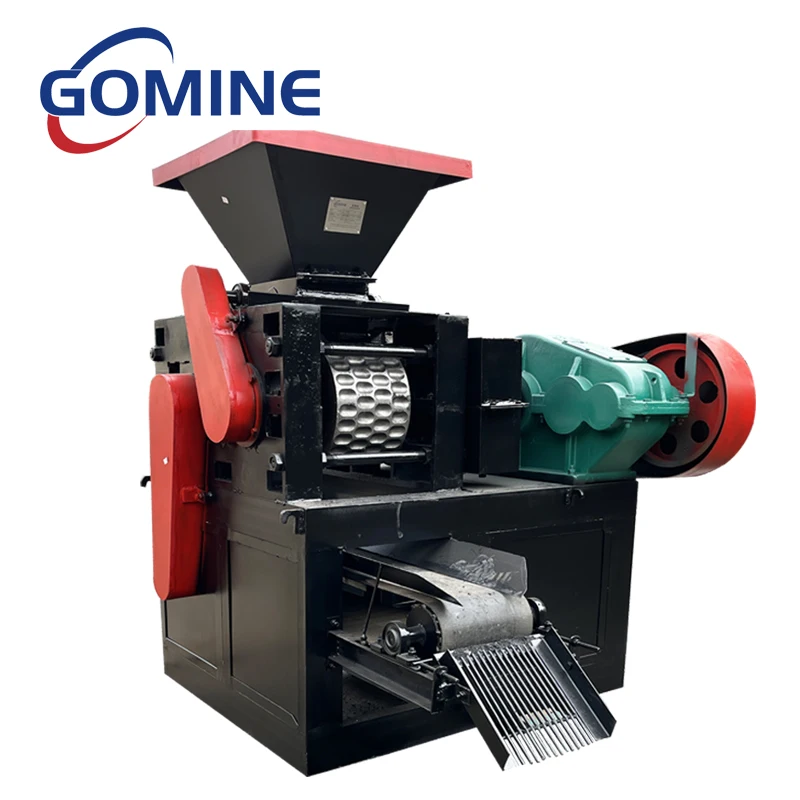

China factory Gomine coal ball briquette roller press granulator briquetting machine

Raw materials of Energy saving iron ore/lime powder briquette making machine ball press:

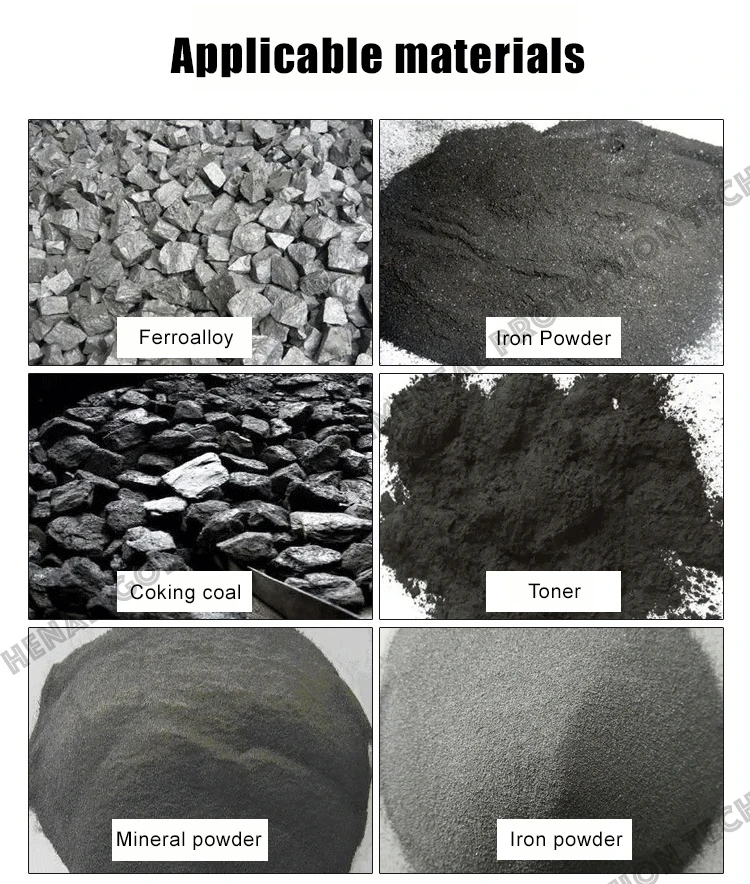

Energy saving iron ore/lime powder briquette making machine ball press is a widely used in many range, our machine can press briquettes from coal fines, anthracite coal, bituminous coal, subbituminous coal, coke fines, carbon powder, charcoal powder, carbon black, iron ore fines, mineral powder, metal dust, iron dust, mill scale, manganese ore fines, fluorite powder, gypsum powder, chemical salt, ferrosilicon powder, nickel alloy, blast furnace ash, converter dust, MgO, graphite, oil shale, potash fertilizer, urea fertilizer, sea sand powder etc.

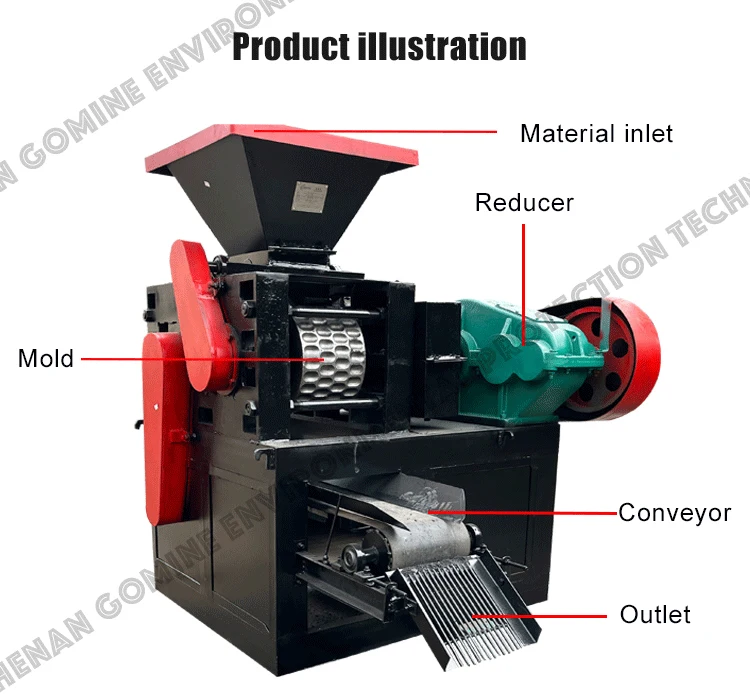

Iron ore/lime powder briquette making machine ball press is made up of three parts: feeding, driving and briquetting.
1. Feed section: To make sure materials enter double rollers evenly by feeding in ration. Driven by the electromagnetic speed regulating motor and after the belt wheel and worm reducer turn, the spiral feed device of briquette machines presses materials into the main feed port. As the constant matrix feature of the electromagnetic speed regulating motor, when the spiral feeder has the same pressing quantity with the inventory of the main body of the briquetting machine or briquettes machine, the feeding pressure will stay constant thus stabilizing the balling quality. If there is a large feed amount, the electricity of the feeding device will be overloaded and vice versa. Therefore, it's very important to operate the machine skillfully.
2. Driving section: The driving system consists of electromotor, triangle section, reducer, open gear and rollers. The briquetting machine runs relying on the cooperation of driving and driven shaft supported by the exposed gear. It is driven by the electromagnetic speed regulating motor; after the belt wheel and cylindrical gear reducer, the power is transferred to the pin coupling shaft. Hydraulic pressure device is installed on the back of the driven shaft block. The hydraulic protection device of briquette machine can make axial displacement of the piston as the hydraulic pump pushes the high pressure oil into the hydraulic tank. The front connecting end of the piston supports the bearing pedestal to meet the production requirement.

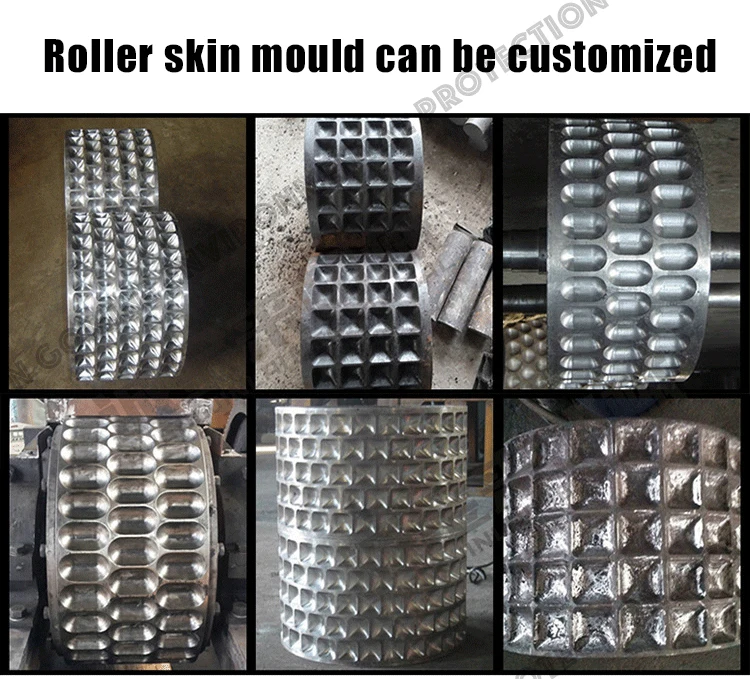

3. Briquetting section: Referring to the main body of the briquetting machine or briquette machine with the rollers as its core working part. When too many materials or metal blocks enter the space between the two compression rollers, the piston rod of the hydraulic cylinder gets so pressed that the pump will stop working and the energy accumulator will make buffer action facing pressure changing. Then the flood valve starts the oil return and the piston rod replacement will widen the space between the rollers thus forcing hard materials to pass the rollers. Finally, the whole pressure system of briquette machine or briquette press machine returns to normal condition so that the rollers won't be damaged.

Notice:

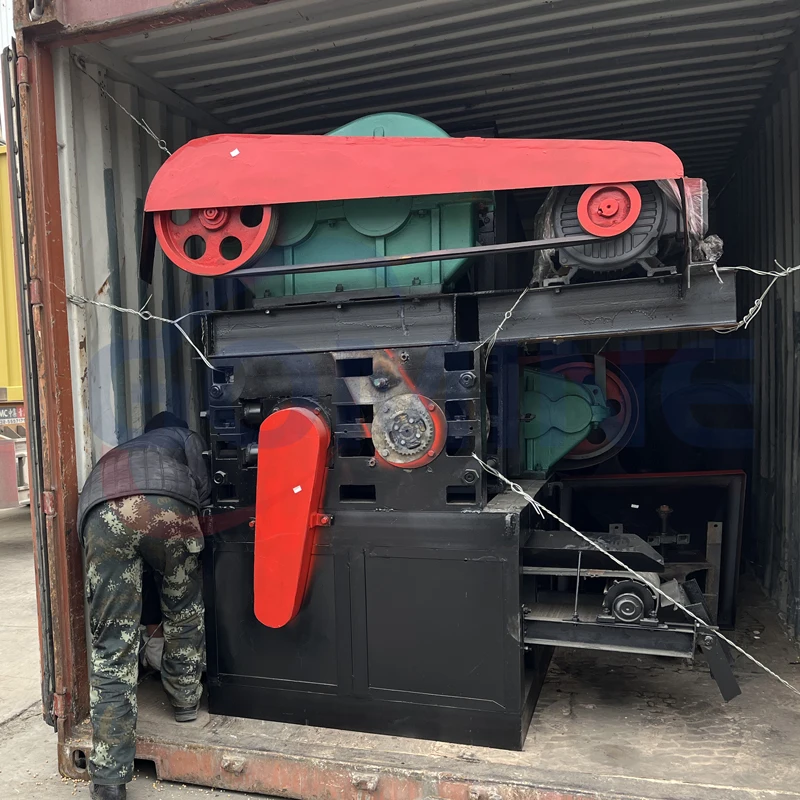

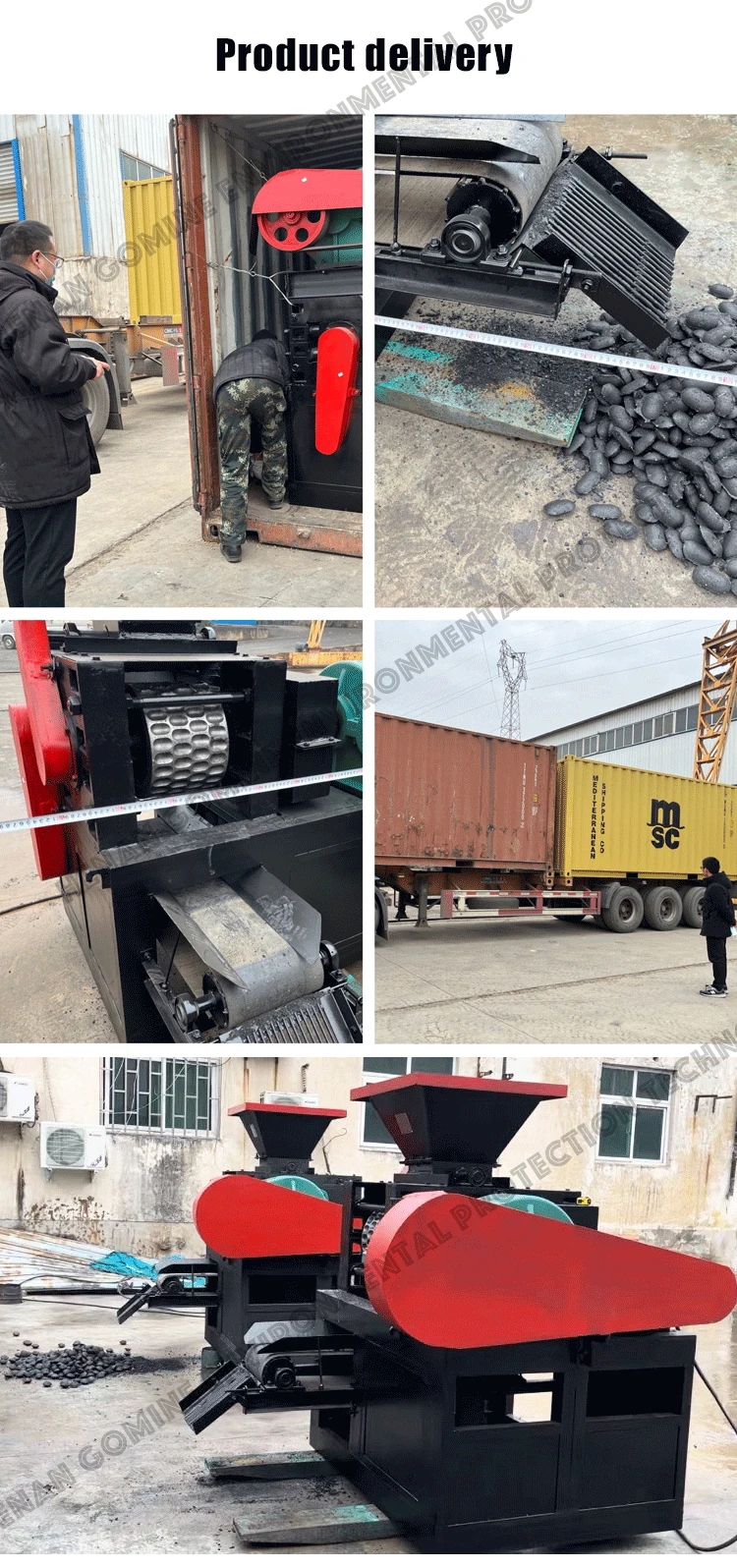

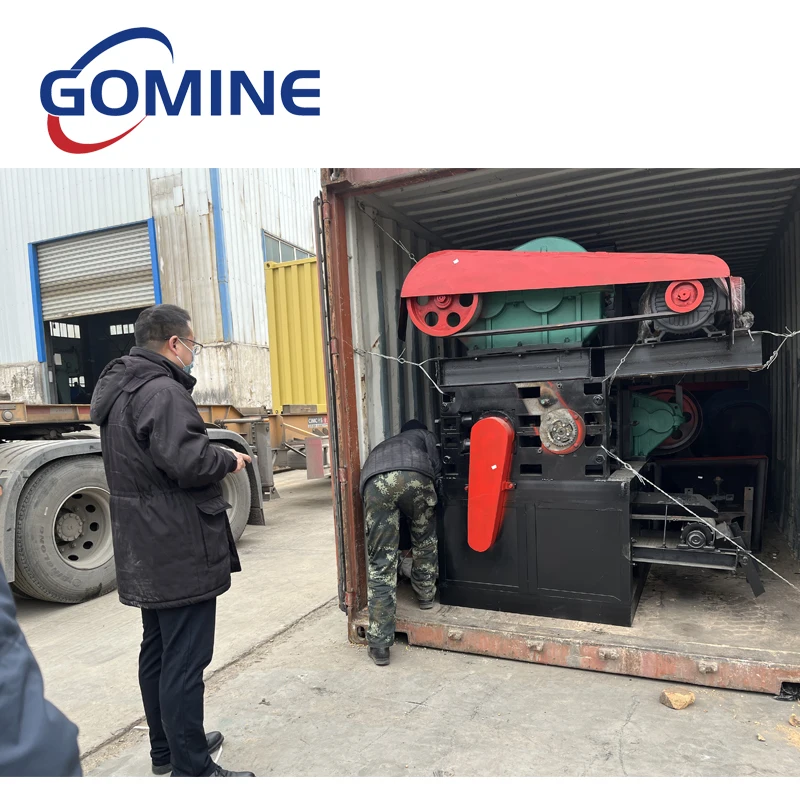

1.Big machines packed in nude or shipping in containers.
2. Spare parts packed in wooden case.
3. If you have any special requirement, we will pack as request.

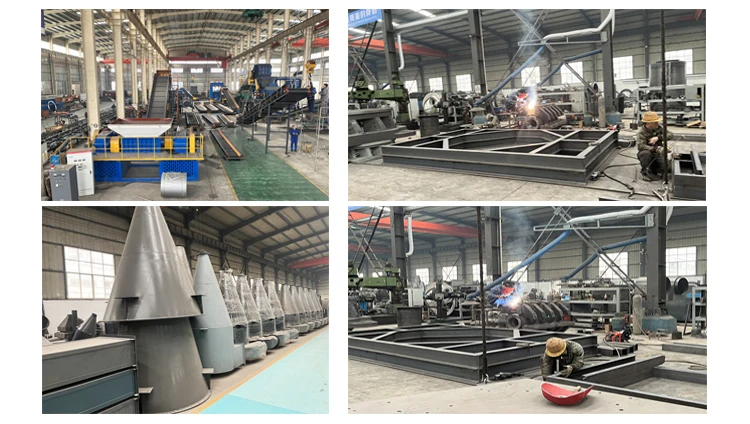

At present,it has production base of an area about 600,000 square meters. It has over 60sets of advanced machining lathes,advanced skill workers take up 36%, excellent produce technology, complete measuring equipment,complete quality controlled system.Relying on the strong comprehensive strength closely combined with the project user,enterprise users, partners to technical indicators,raw material rationality investment costs,product preferences to provide differentiated needs,refined quality to create a safe and reliable, intelligent environmental protection,value optimization of comprehensive solutions,products and services,business throughout the world more than 120 countries.

Pre-sale Service:

1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
4.Training periodically high qualified service technician.
5.Free CAD design: if you can provide the material, your aim capacity and your factory information, we can make a free CAD design for you.

After-sales Service:

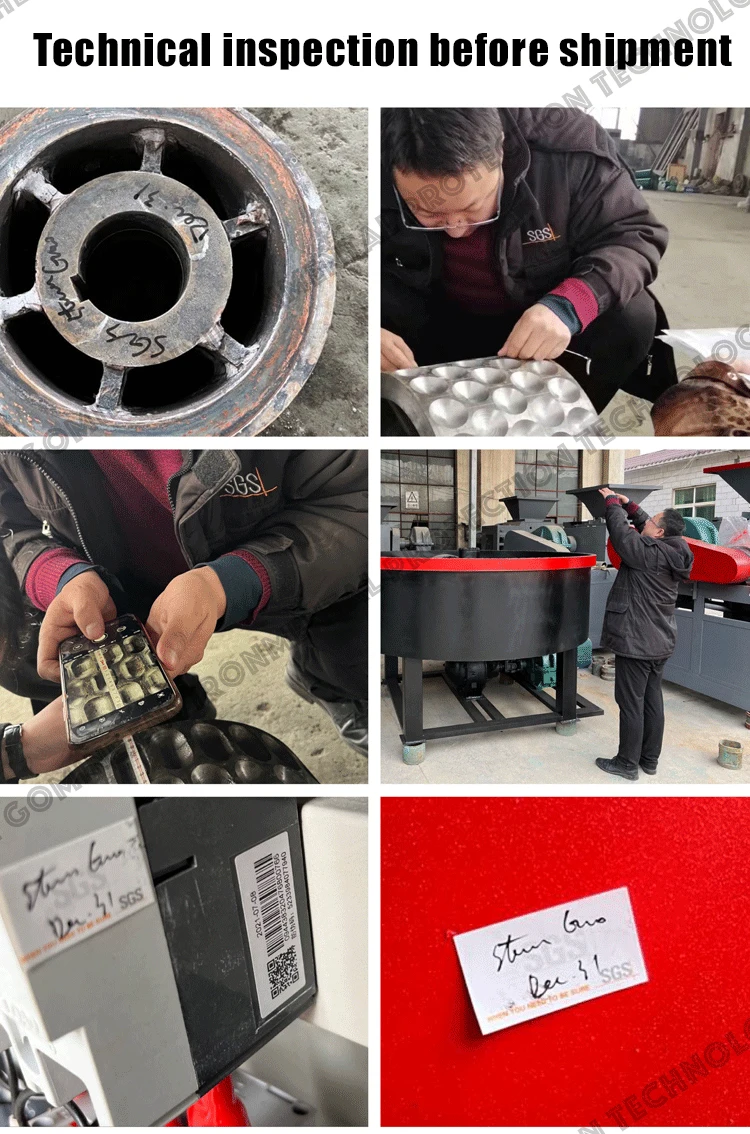

1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3.Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
5.Training the first-line operators on site;
6.Regularly visit clients to solve production problems Providing life-long maintenance service
7.Providing technical exchanging.

1.Why Choose Us?
(1)We are manufacturer with own factory for many years with CE Certification
(2) With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
(3)Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
2.What Is Our Service?
(1)According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
(2)You are welcome to visit our factory to test the roller press granulator briquetting machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
(3)We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
3.How Do You Ensure The Machine Quality?
You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. According to your time, you can pay a visit to our factory to test our machine.
4.How About The Motor?
We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
