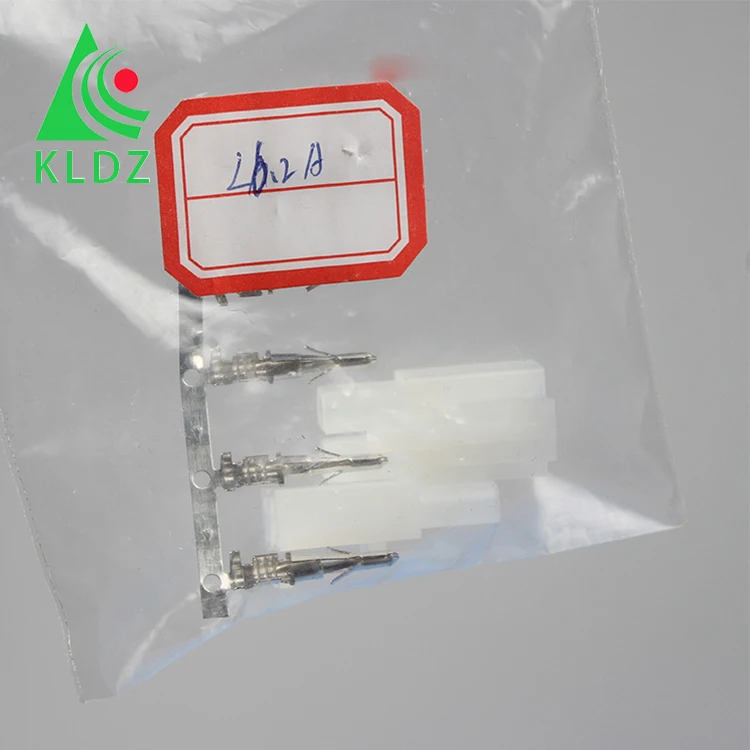

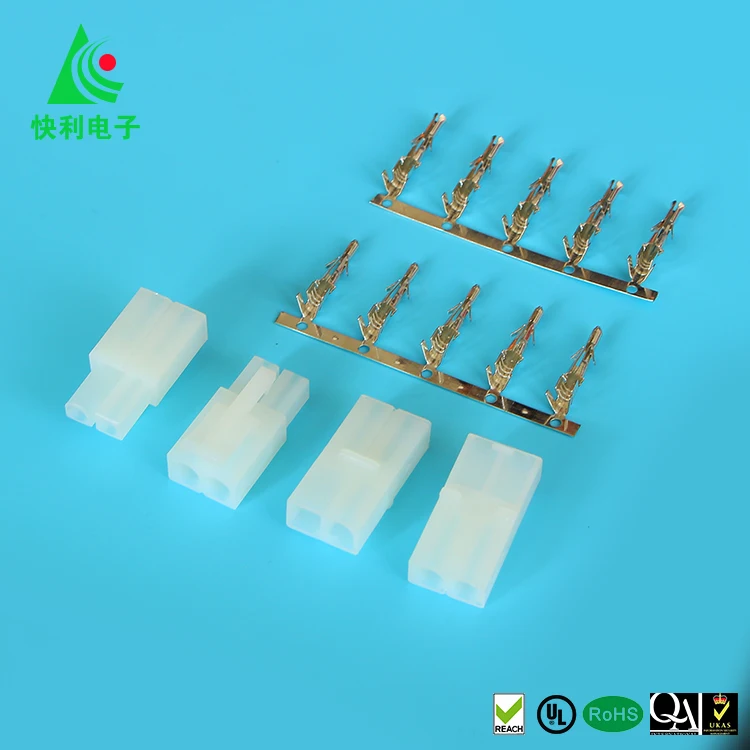

L6.2 molex 2 pin connector pcb socket connector with Premium factory price

Product Overview

Description





Rated current	Content
Series	L6.2 Series Pressure welding Bar Connector(6.2mm)
PLACE OF ORIGIN	ZHEJIANG,CHINA(MAINLAND)
PRODUCT NAME	L6.2 Series 6.2mm 2 pin wire to wire auto Connector and terminal
ROW	Single/double.triple row
POLES	2P
PITCH	6.2mm
MATERIAL	PA66 & Brass Tin
COLOR	White
FEATURES	Fire-proof, Flame retardancy
RATED VOLTAGE	250V AC,DC
RATED CURRENT	5A
CONTACT RESISTANCE	20mΩ MAX
INSULATION RESISTANCE	1000MΩ MIN
WITHSTAND VOLTAGE	1500V AC/min
WORKING TEMPERATURE	-25℃~85℃
APPLICABLE WIRES	AWG#24~#14

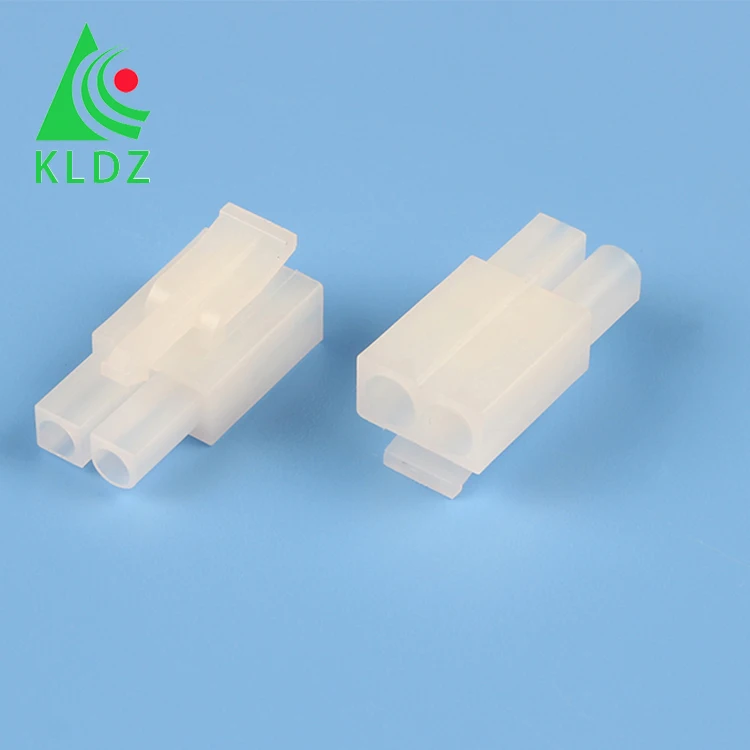

HOUSING

Part No.:L6.2-NY

Material: PA66 UL94V-0(2)



Part No.:L6.2-NA

Material: PA66 UL94V-0(2)

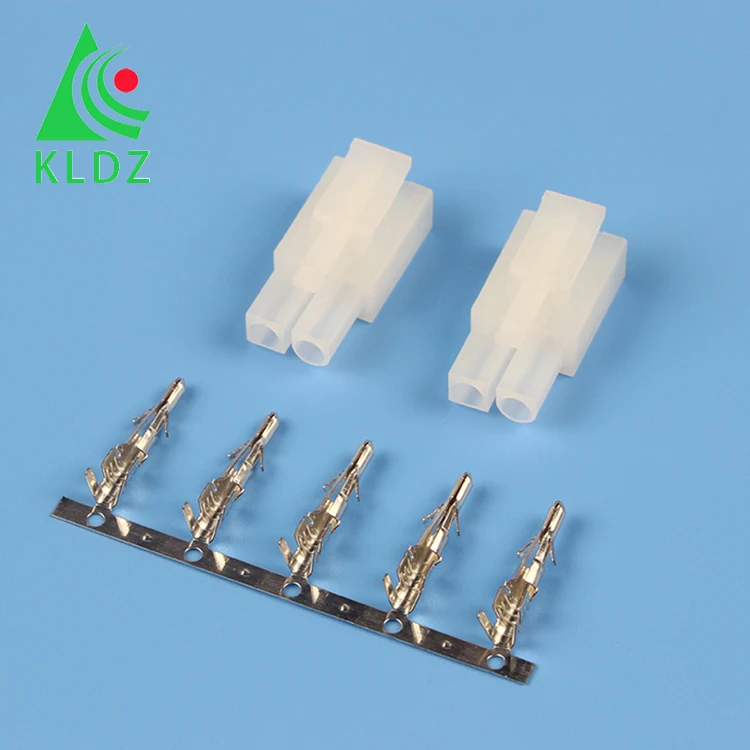

TERMINAL

Part No.: L6.2-A-TE

Material: Phos. Bronze,Tin Plated



Part No.: L6.2-Y-TE

Material: Phos. Bronze,Tin Plated
