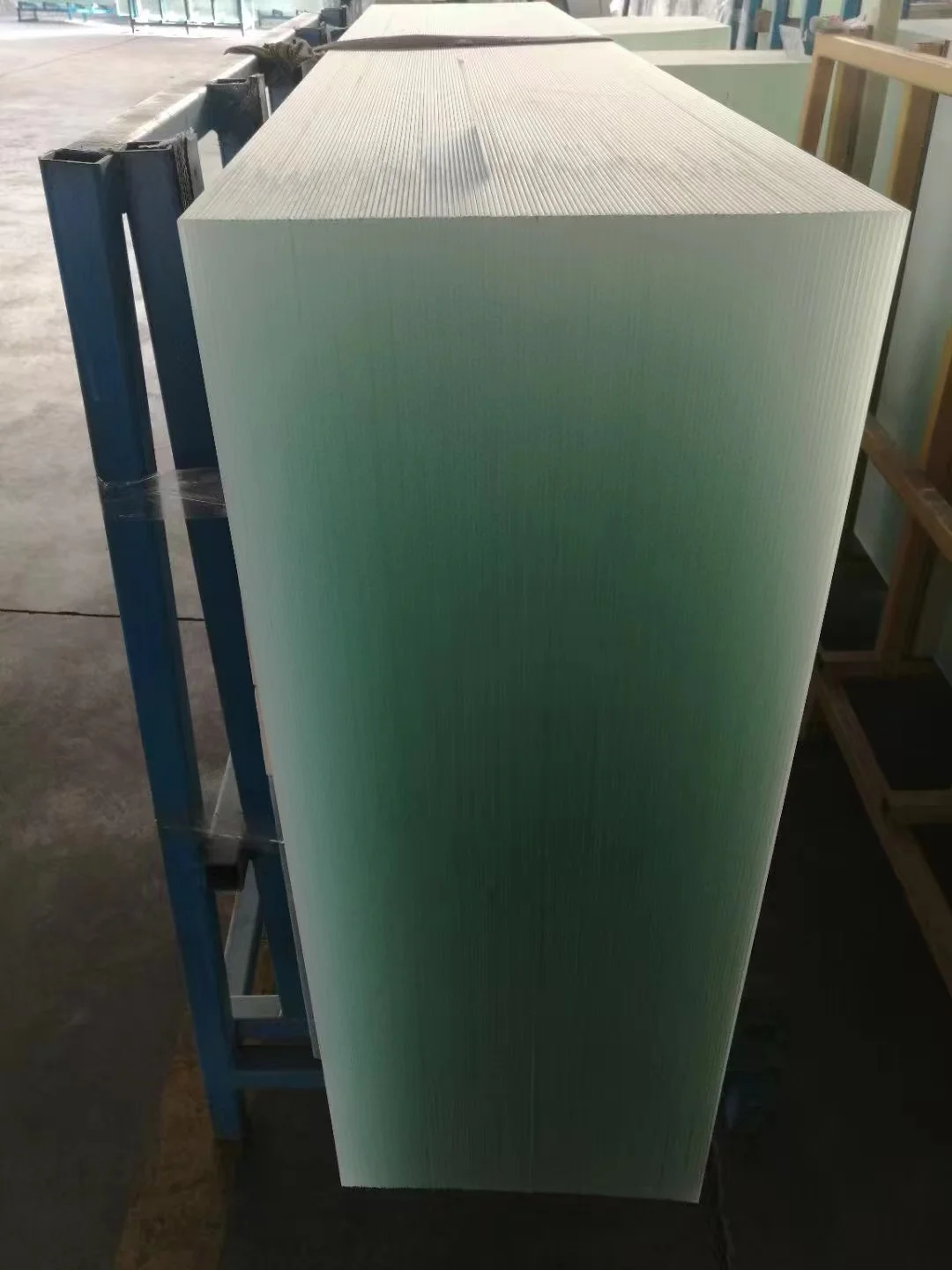

tempered laminated glass bulletproof glass
- Category: >>>
- Supplier: Shandong Sunshine Building Material Co. Ltd.
Share on (1600501668116):
Product Overview
Description
Product Description

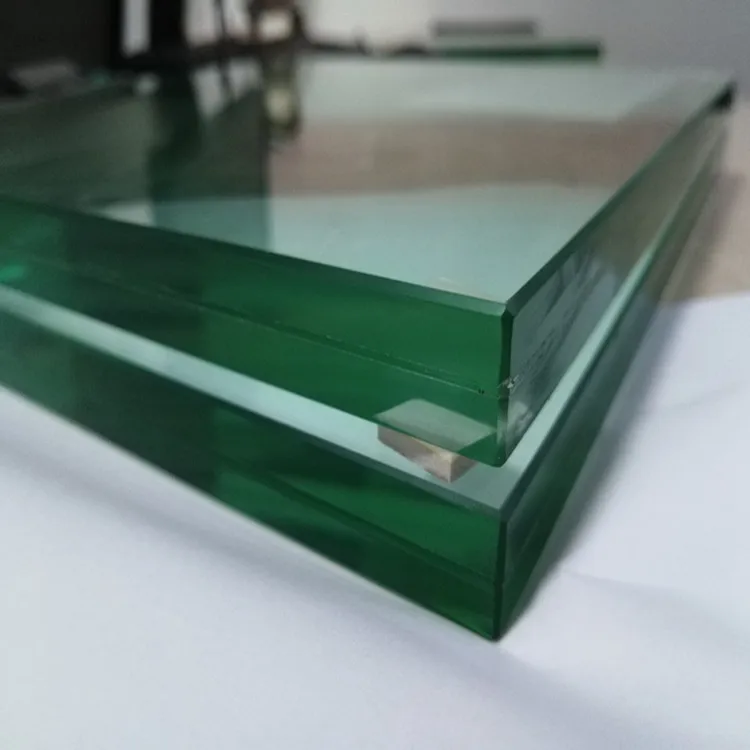

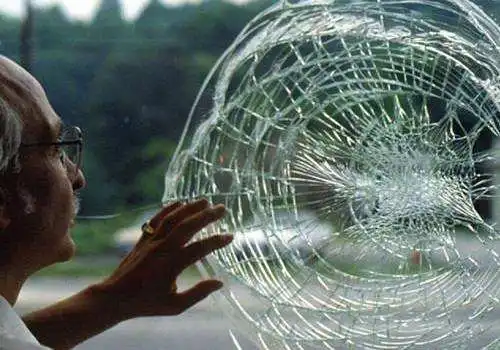

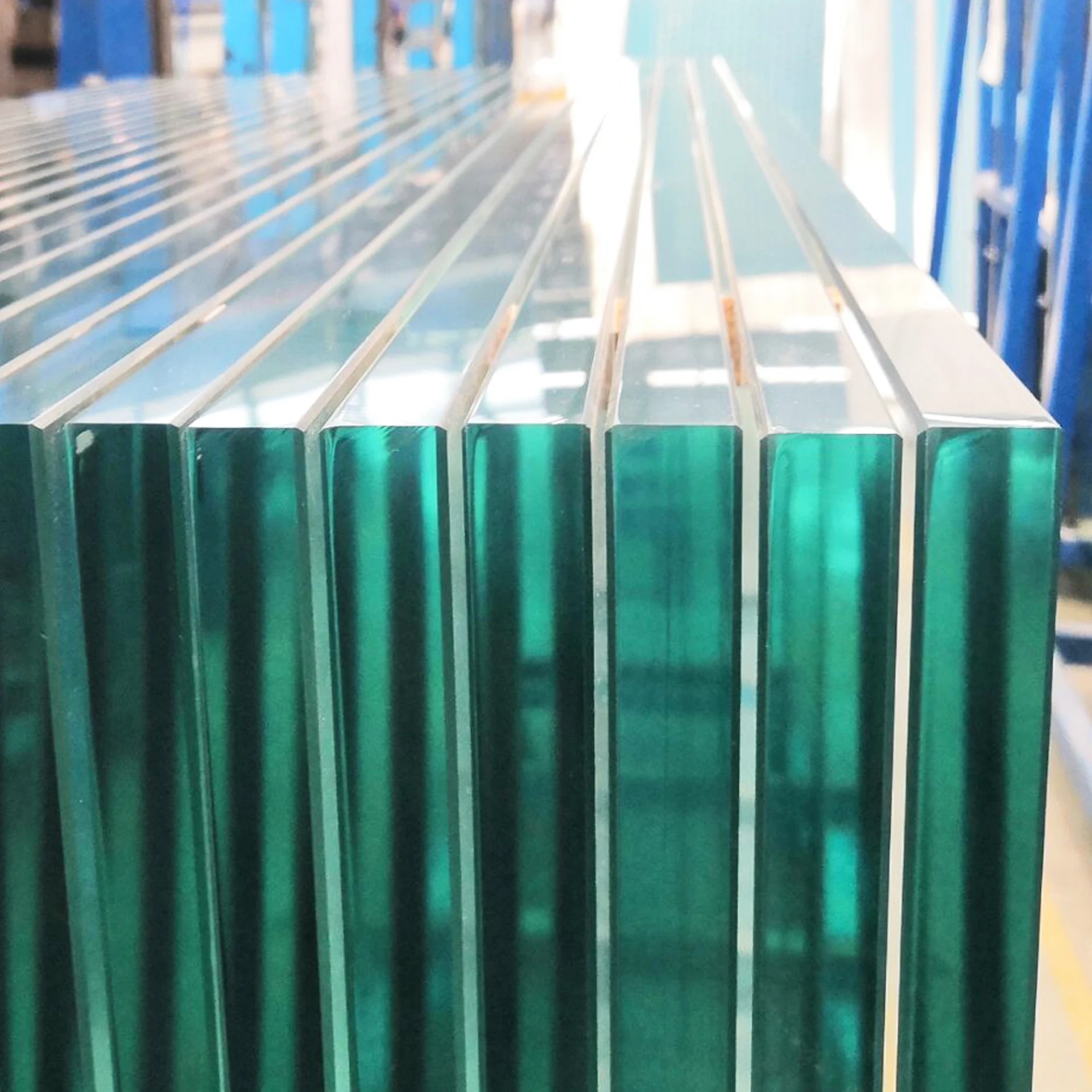

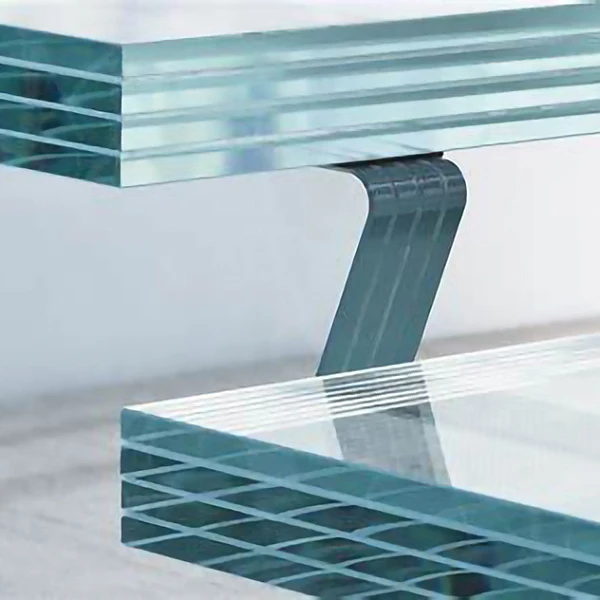

Laminated glass is made of two or more pieces of float glass, with one or more layers of PVB, through special high-temperature pre-pressing (or vacuuming) and high-temperature and high-pressure processes, so that the glass and the interlayer film are well bonded as a whole. Composite glass products. Because this bonding material has good impact resistance and bonding properties, when the glass is impacted and broken, due to the bonding effect of the PVB film sandwiched between the two ordinary glasses, it will not produce sharp cracks like ordinary glass after breaking. Fragments hurt people. At the same time, the sound insulation and sunlight control properties of its PVB interlayer film make it a new type of building material with energy saving and environmental protection functions.
The use of laminated glass can not only isolate the 1000~2000 Hz coincidence noise that can penetrate ordinary glass, but also it can block more than 99% of ultraviolet rays and absorb heat in the infrared spectrum.

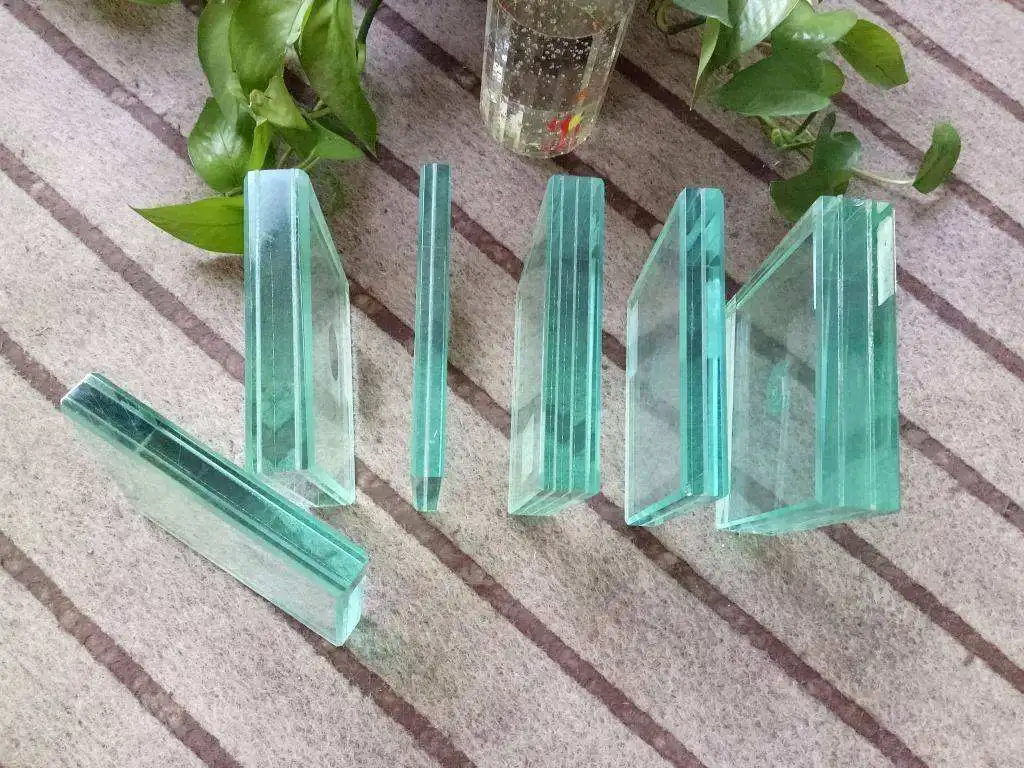

item | Laminated glass |
thickness | 6.38mm, 8.38mm, 8.76mm, 10.38mm, 10.76mm, 12.76mm ,17.52mm or customized. |
PVB thickness | 0.3mm, 0.38mm, 0.76mm, 1.14mm ,1.52mm etc |
PVB color | clear, milky white, green, blue, bronze ,grey, pink, red, yellow etc. |
size(mm*mm) | 1650*2140/2440, 1830*2440, 2000*2440, 2100*2440, 2140*3300, 2140*3660 etc. Max size； 3300*13000， 3660*2550 |
Self explosion rate | can achieve<3/1000(China standard: <1/1000) |
Certificate | CE, SGS, SGCC, BS6202,EN12150,GB15763.2 |
Delivery time | 7-15 days |
processing details

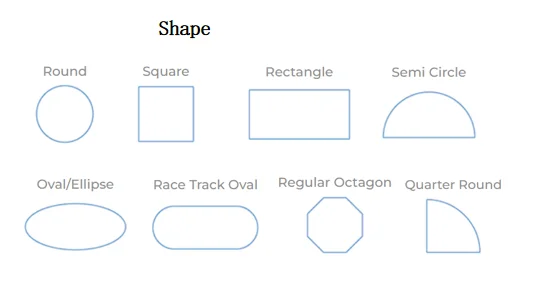

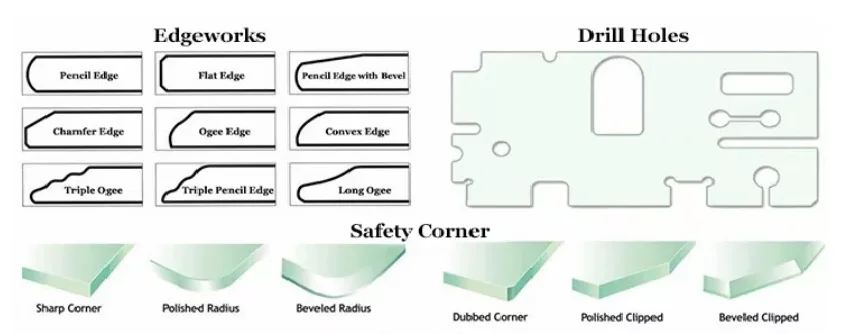

Shandong sunshine building material Co.,ltd provide quality customize and process service, we welcome to customize you size, color, shape etc, flat and curved shape are all available. The max size we can produce is 3300mmx12000mm, minimum radius we can do is 400mm and maximum arc length is 5000mm. Process service such as edgeworks, drill hole, safety corner ect process can customize according customers requirement.

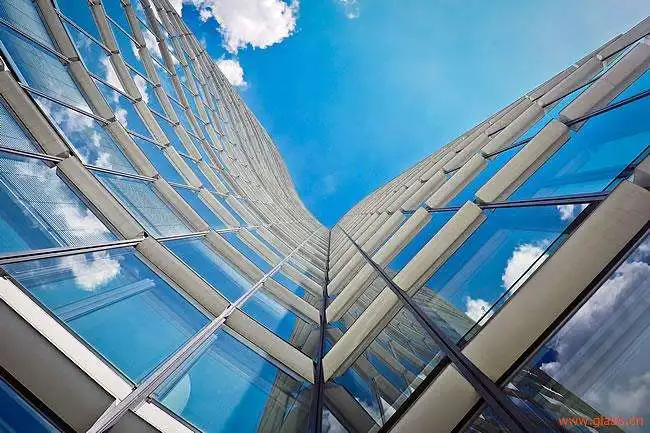

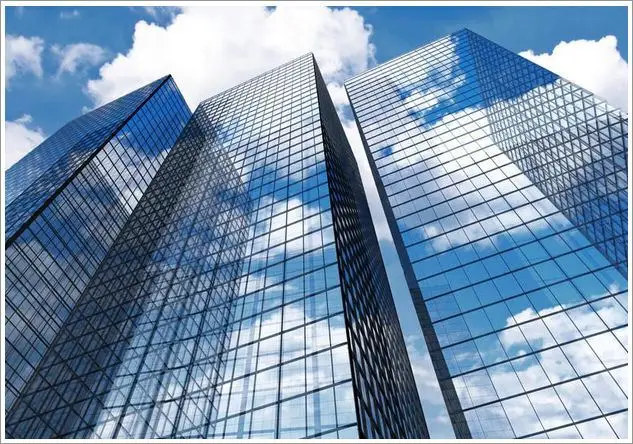

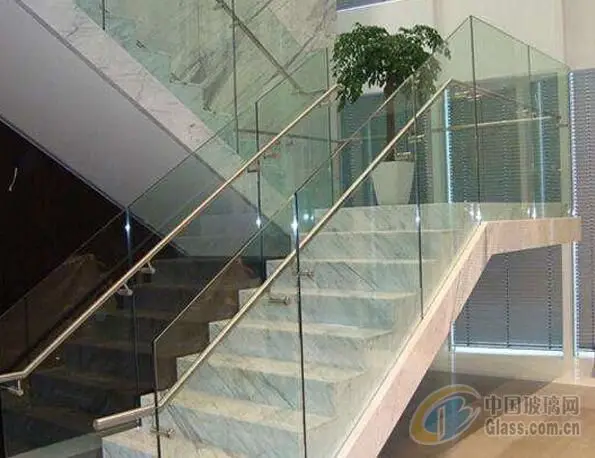

Product application scenarios
Production process and workshop

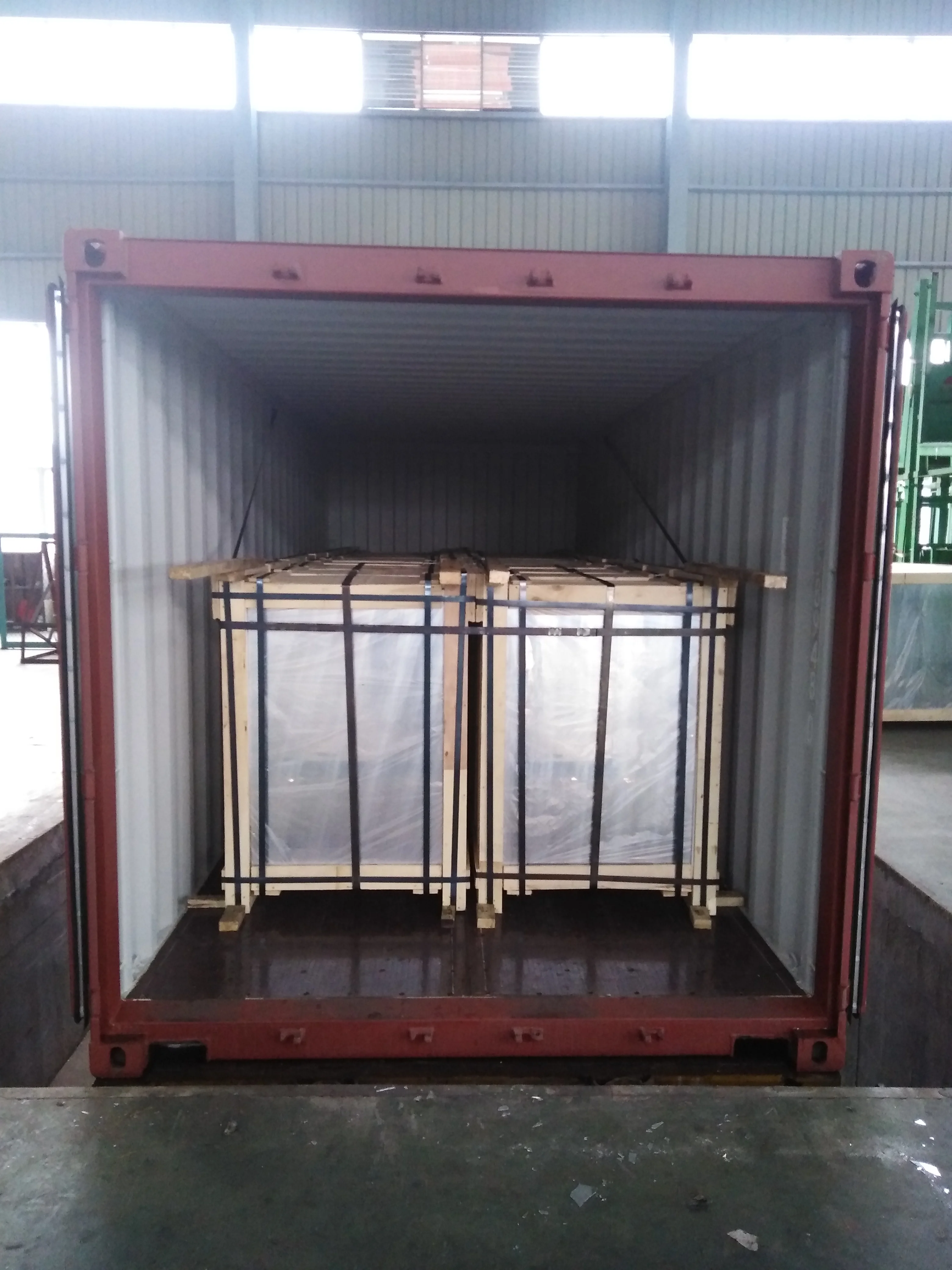

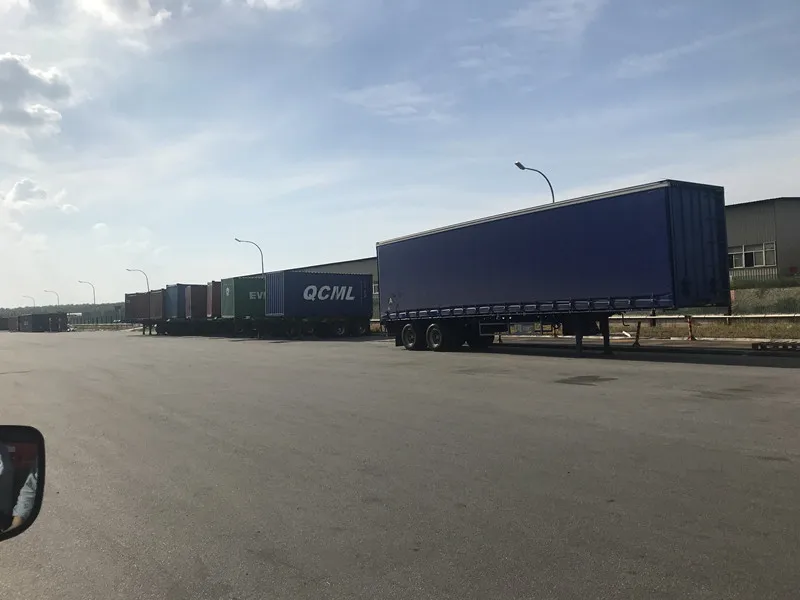

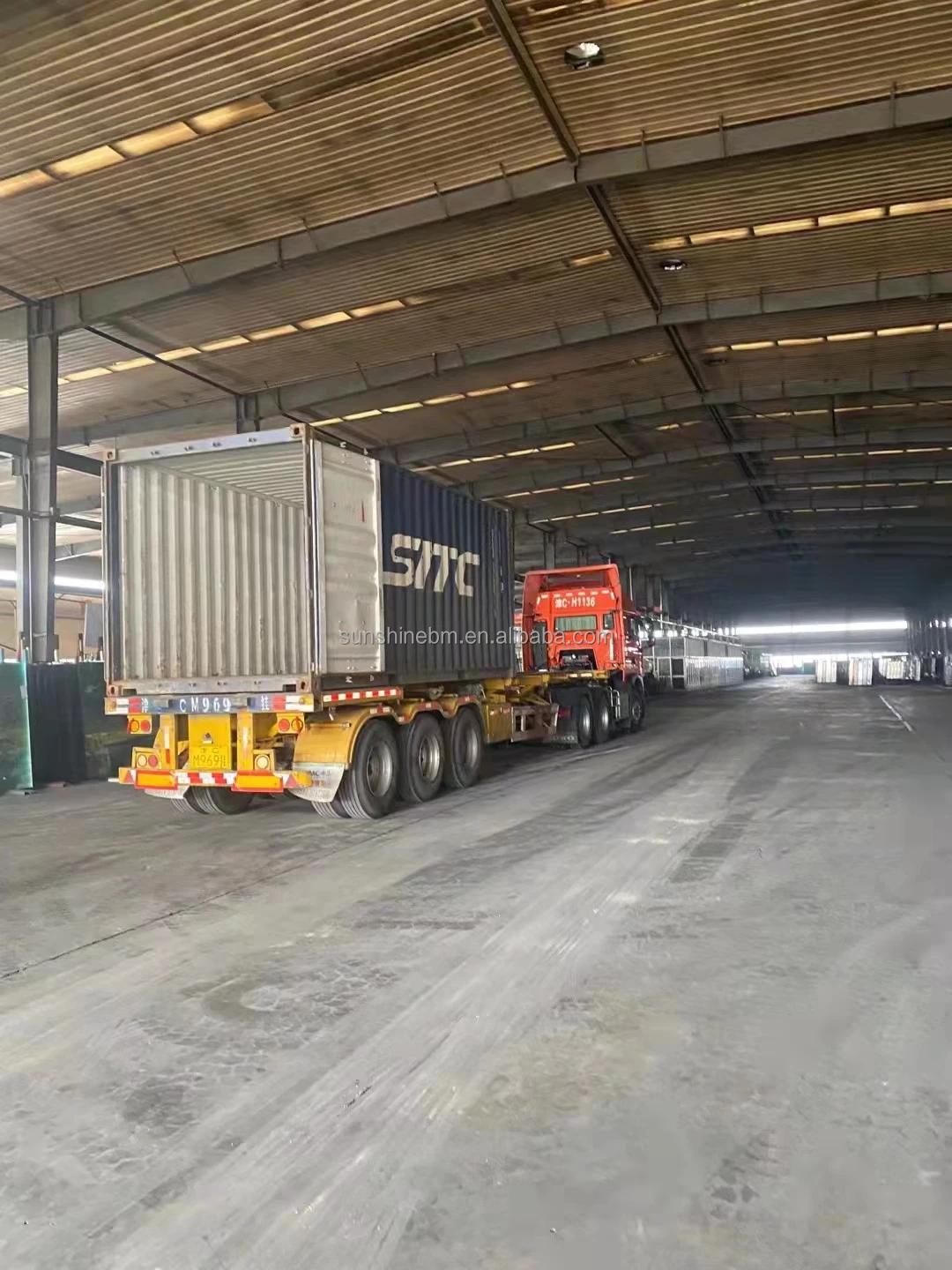

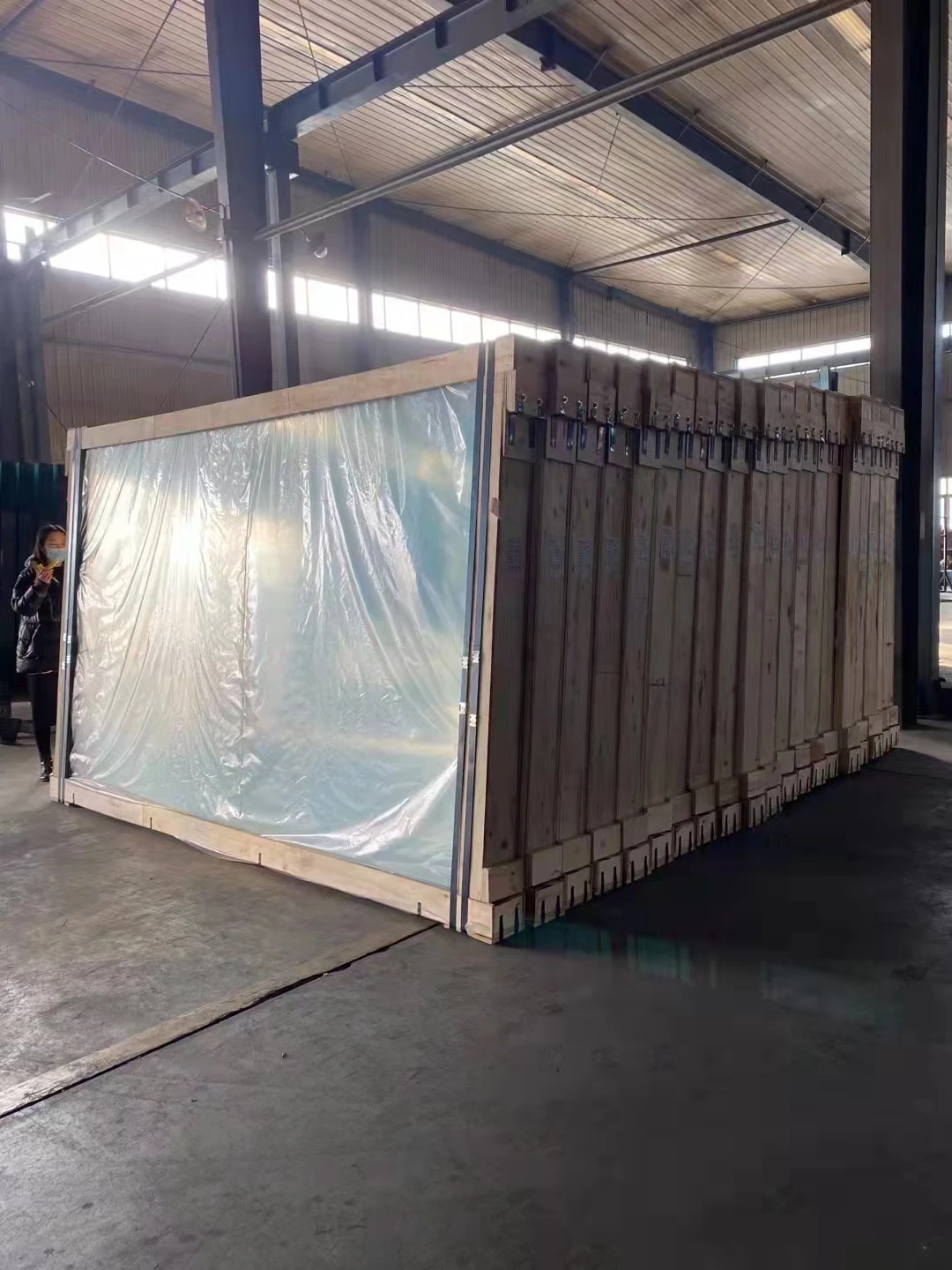

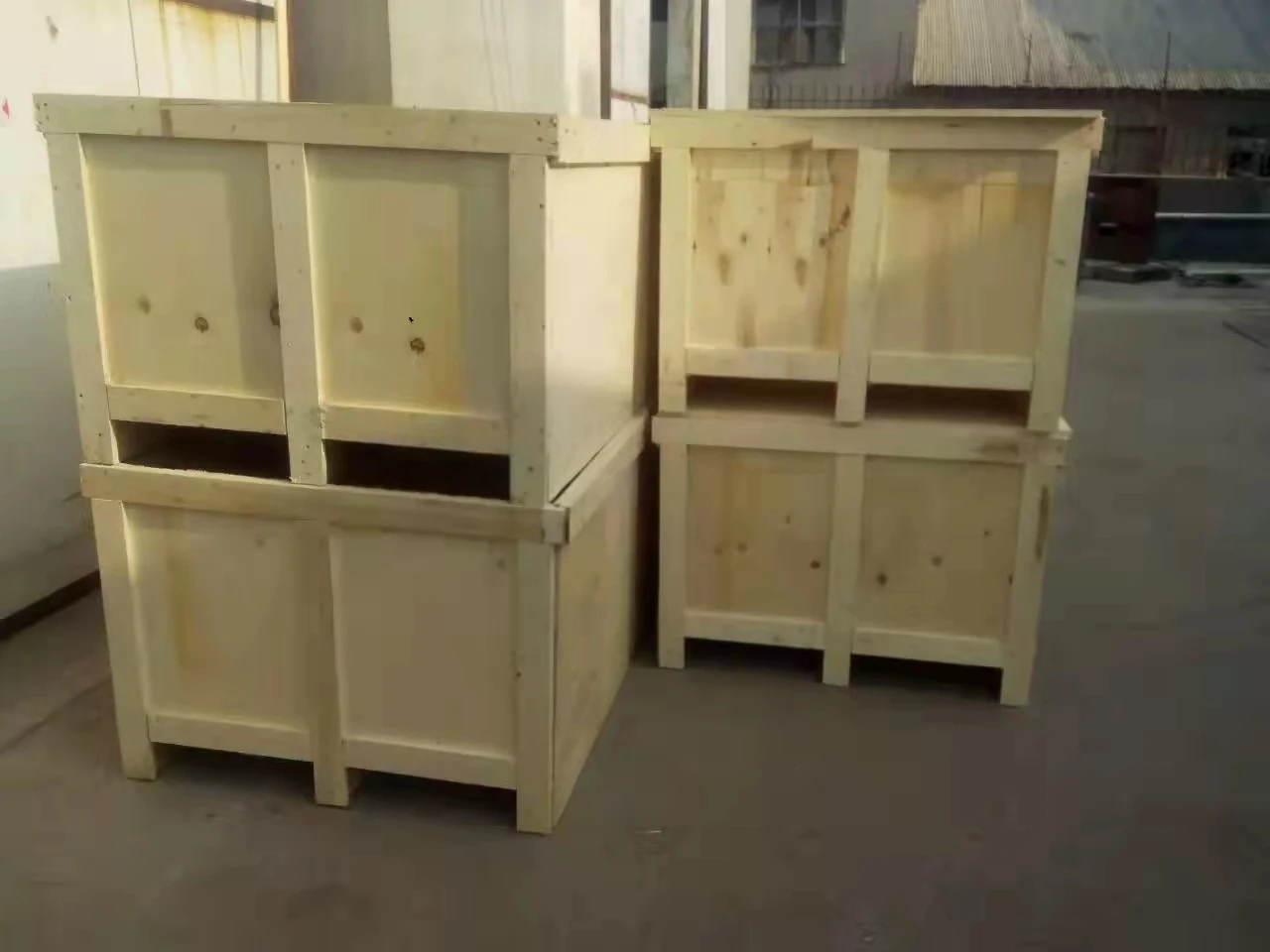

Packing & Delivery
Why Choose Us
1. We are one of the biggest glass factory in China with over 25 year glass production experience, have advanced production machines and experienced technicians.
2. Process by used grade A building glass materials, without any bubble, scratch, spot etc defects.
3. Each step of our processing meet ISO, CE, SGCC etc standard.
4. Provide 10 years warranty, any quality problem can refund or replace glass.
5. 100% inspection after production to make sure each sheet of glass are all in good condition.
6. Use high quality newest seaworthy wooden crates to pack.
7. Powerful transportation system and fast shipping time, we have long-term cooperation relationship with MAS, NYK, COSCO etc well-known shipping companies.
8. Professional sales and technical team, provide 24-hour service, meet any specific requirements.
