Product Overview

Description

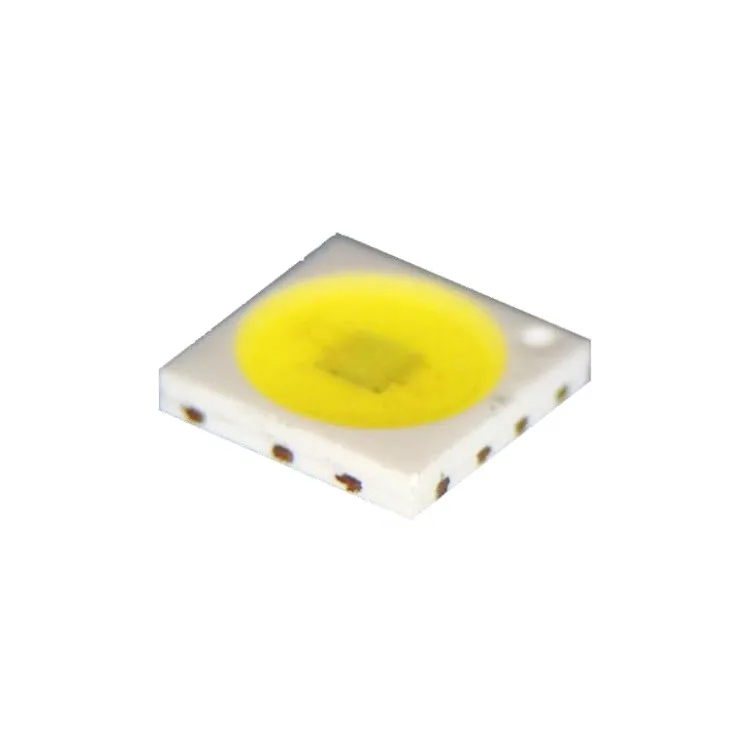

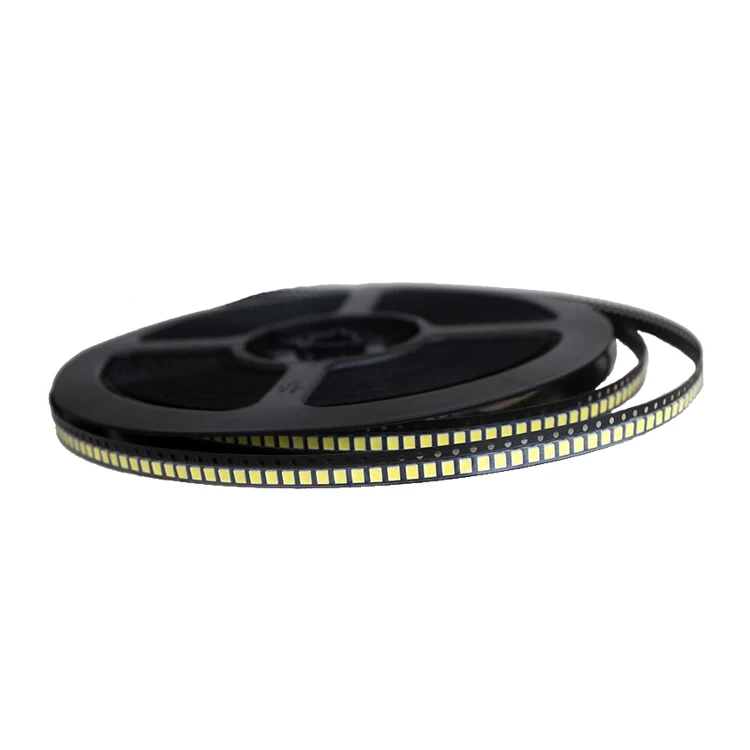

Cool White Led Smd 3030 Led Yellow 3 Volt 5700-6500K SMD LED 3030




Applications


1, Automotive
2, Data Communication
3, Surveillance
4, Facial Recognition


Maximum Rating (Ta=25℃)


Parameter
Symbol
Min.
Typical
Max.
Unit
DC forward current
IF


150
mA
Pulse forward current
IPF*2


240
mA
Reverse voltage
VR


5
V
Reverse current
IR


10
uA
Junction temperature3
TJ


125
℃
Operating temperature range
TOP
-40

105
℃
Storage temperature range
TSTG
-40

105
℃
Soldering temperature
TSD


260
℃
Thermal resistance junction/ solder point
RTHJ-S

10

℃/W
Notes:
1, For other ambient, limited setting of current will be depended on de-rating curves.
2, Duty 1/10, pulse width 0.1ms.
3, When drive on maximum current , Tj must be kept below 150℃


Typical Product Characteristics (Ta=25℃)


Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Forward Voltage
VF
2.8
-
3.6
V
IF= 150mA
Luminous Flux
Φ
60
-
80
LM
IF= 150mA
Color Temperature
CCT
5700
-
6500
-
IF= 150mA
View Angle
2θ1/2
-
120
-
Deg
IF= 150mA
Notes:
1, Tolerance: Forward Voltage: ±0.05V, Luminous Flux: ±7%Φ, View Angle: ±10deg, Color Rendering Index: ±2.
2, This is standard testing.

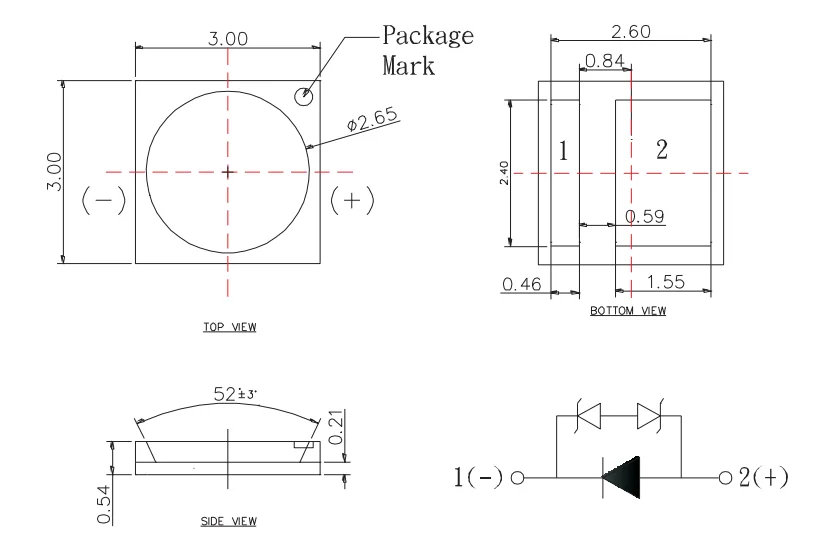

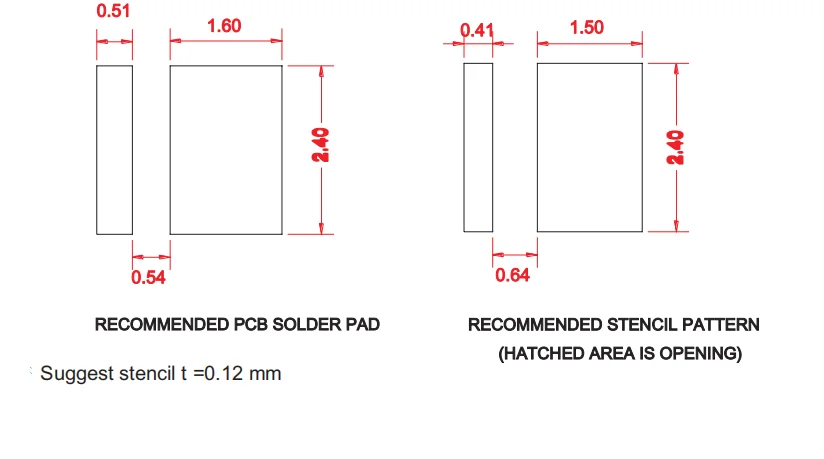

Dimensional Drawing


Notes:
1, All dimensions are in millimeters.
2, Tolerance is ±0.13mm unless otherwise noted.
3, Specifications are subject to change without notice.








Our Advantages








FAQ




Q:How about the quality of the leds?
A:Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide since the year 2010.

Q:Do you offer Custom-made ?
A:Yes , we offer this , but we will charge cost for the custom-made samples .

Q:Can I get free sample?
A:Yes, we can offer free sample for you to check before orderas long as you afford the express freight.

Q:What’s the lead time?
A:Samples delivery out in 3-7 working days.Lead time of mass production needs to negotiate, it depends on quantity.

Q:How about the payment terms?
A:Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment). Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
