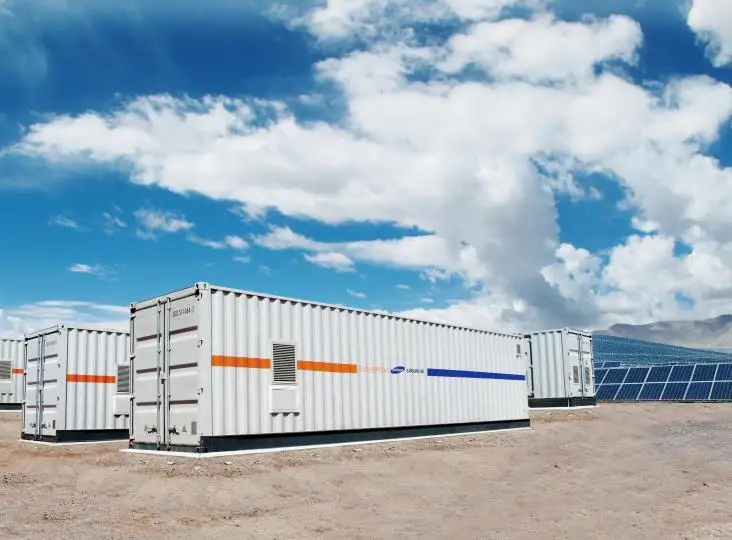

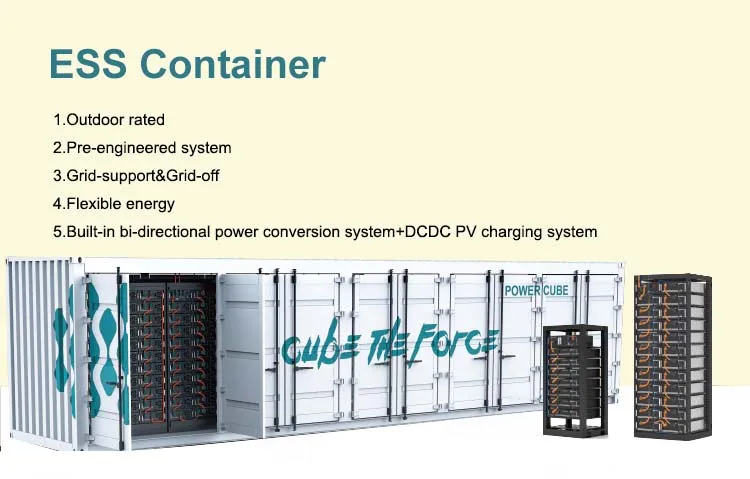

Battery Energy Storage System Container 300kW 500kW 800kW Customized 1MWh 5MWh Storage System Container For Industry
- Category: >>>
- Supplier: Lovsun Solar Energy Co.Ltd
Share on (1600501706468):
Product Overview
Description
Product Description

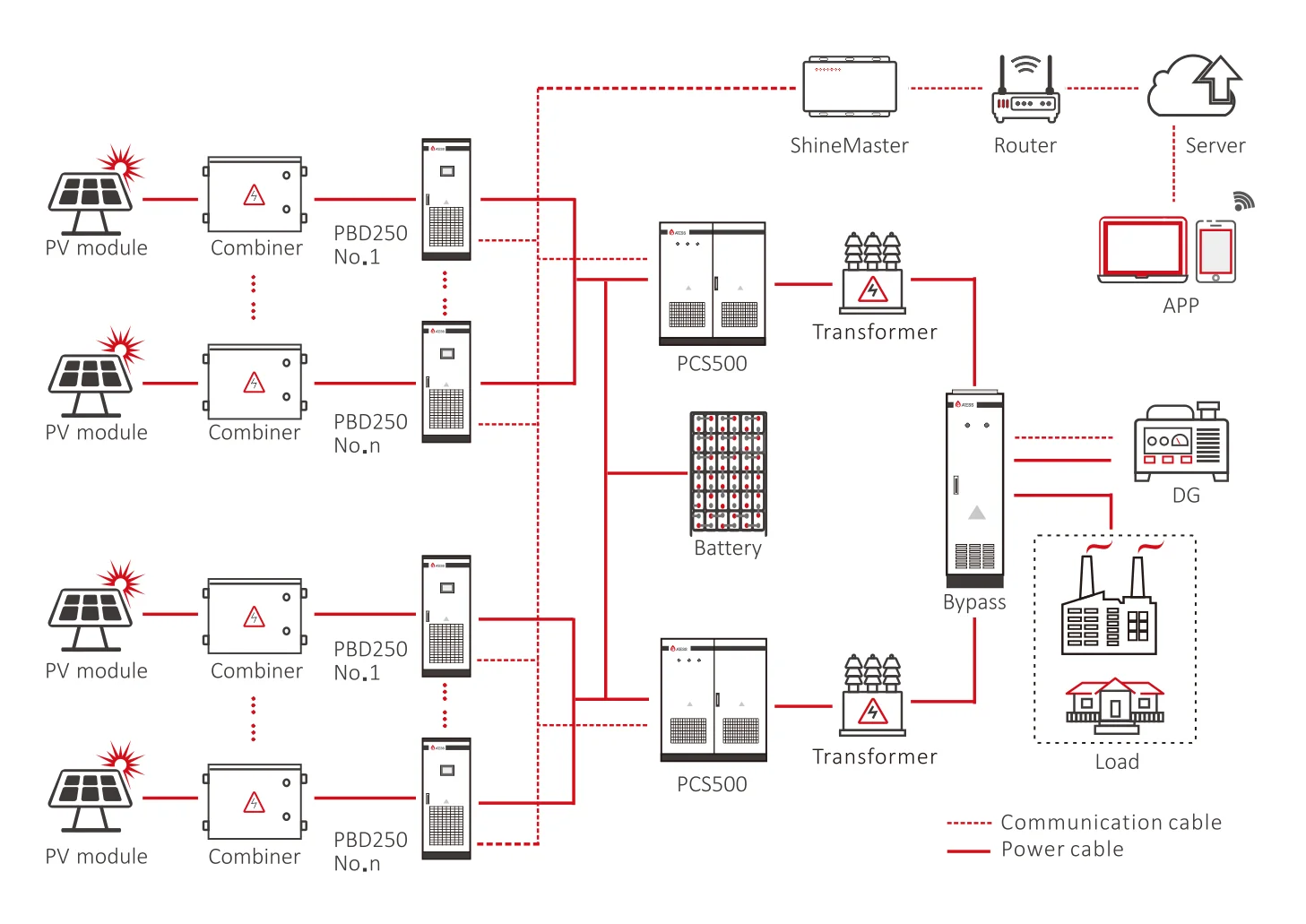

System Block Diagram
Components Included

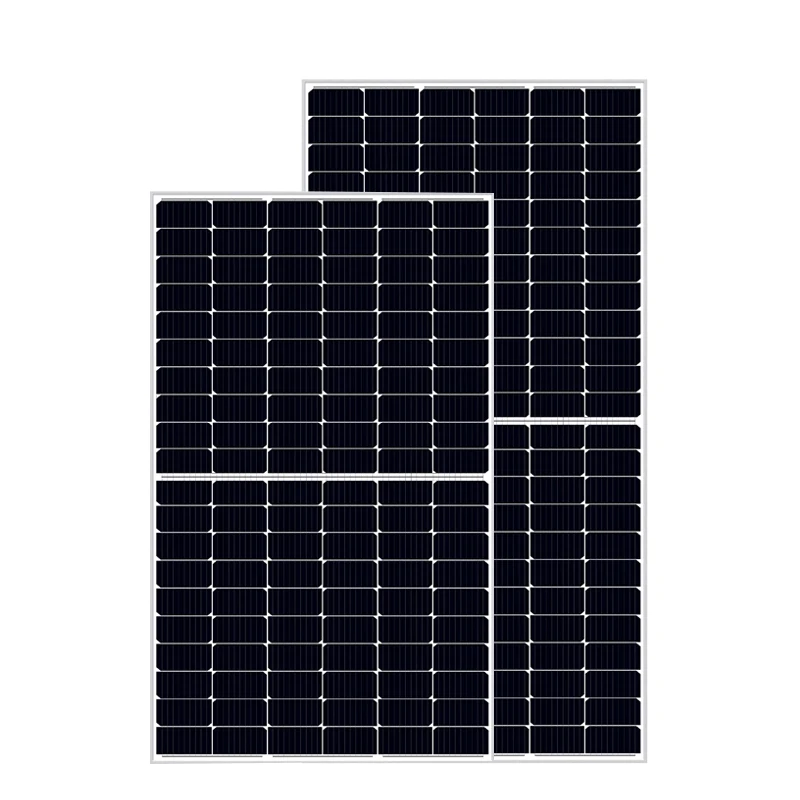

Half Cut Solar Panel
*Highest conversion efficiency of 21.5%
*0~+5W positive power tolerance
*PID Protection
*Higher performance under low light.
*MBB cell technology.
*Maximum system voltage:1500V
*Junction box:IP68
*Junction box:IP68
*Frame:Aluminum alloy
*Cell amount:72*2pcs
Application level:Class A
*12Years product warranty,25 Years power output guarantee.

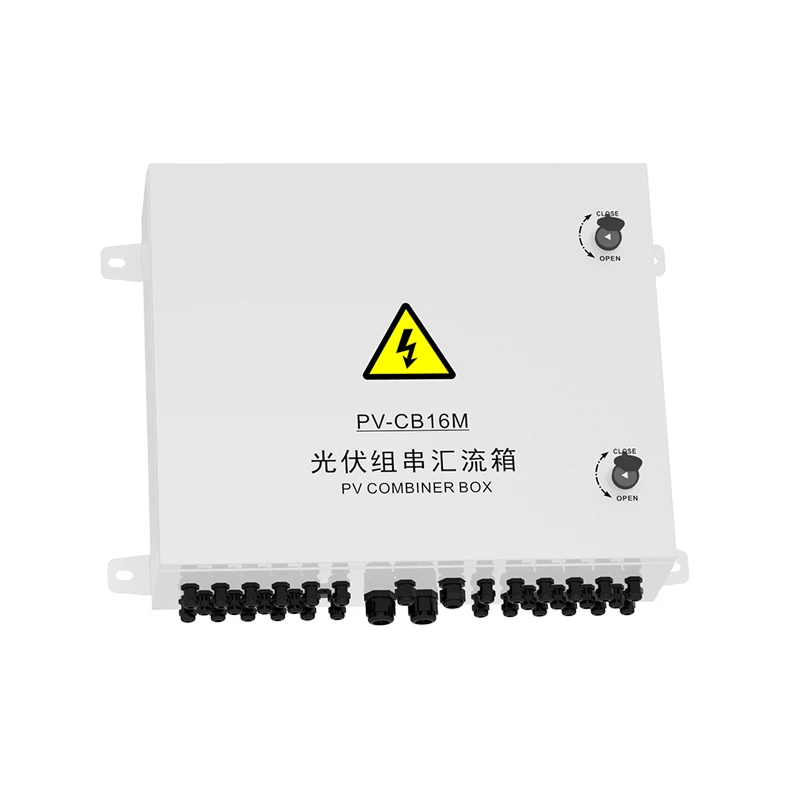

PV Combiner Box
*Lightning protection
*Optional string monitoring function
*IP65 environment compatibility
*Flexible design, 8,16 inputs optional
*RS485 communication interface
*Input fuse for over current protection
*PV combiner box is an accessory for multiple PV string connection, it is with smart controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD
*PV combiner box is an accessory for multiple PV string connection, it is with smart controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD

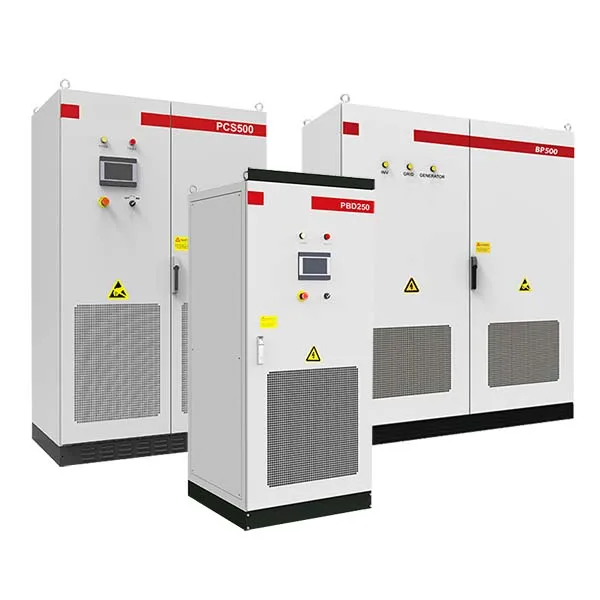

PBD/PCS/Bypass
*PBD250:Solar Charge Controller
*PCS50/100/250/500/630:
Bi-directional battery inverter
*Bypass50/100/250/500:
bypass cabinet is designed to be used together with bidirectional battery inverter and PV inverter to realize seamless transfer between on and off grid mode automatically.

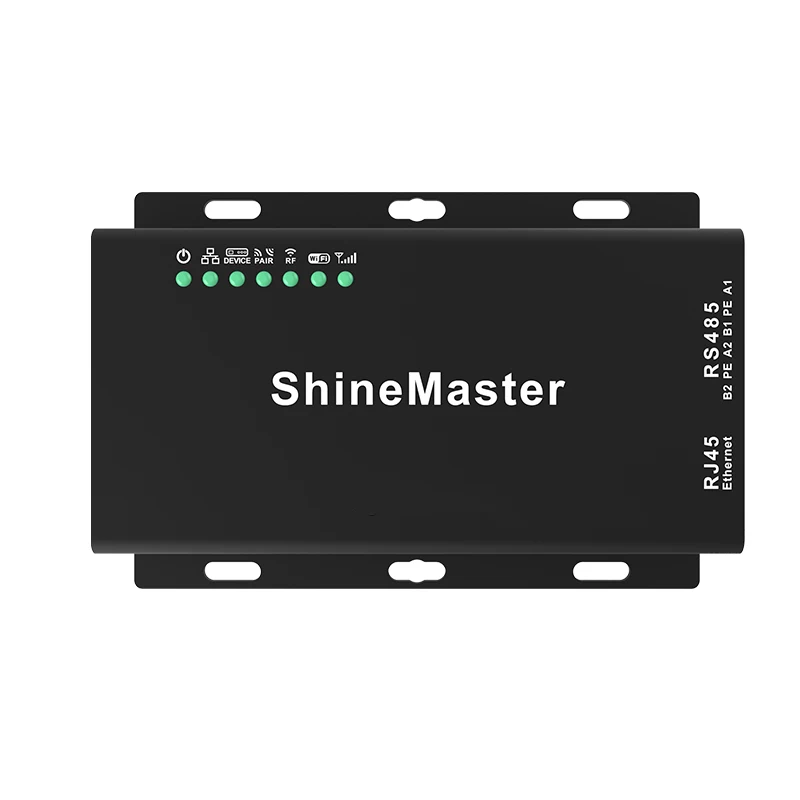

ShineMaster Monitoring
*Up to 32 inverters connection
*Multi-function and high performance
*Local webserver for easy configuration
*Support external sensor to realize zero-export function.
*Local webserver for easy configuration
*Support external sensor to realize zero-export function.
*Datalogger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with the server via internet
*Easy installation and maintenance

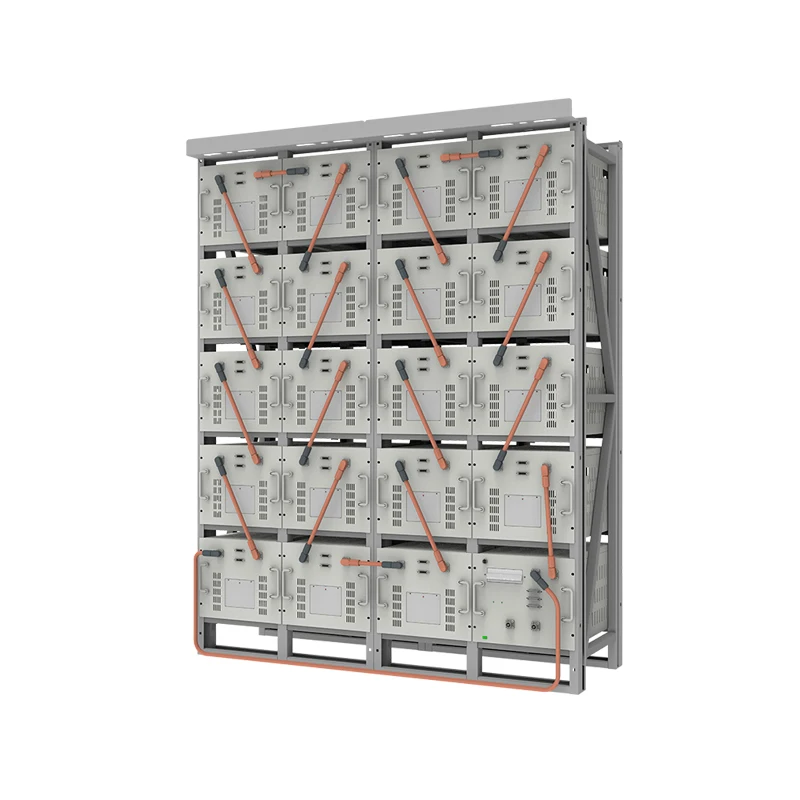

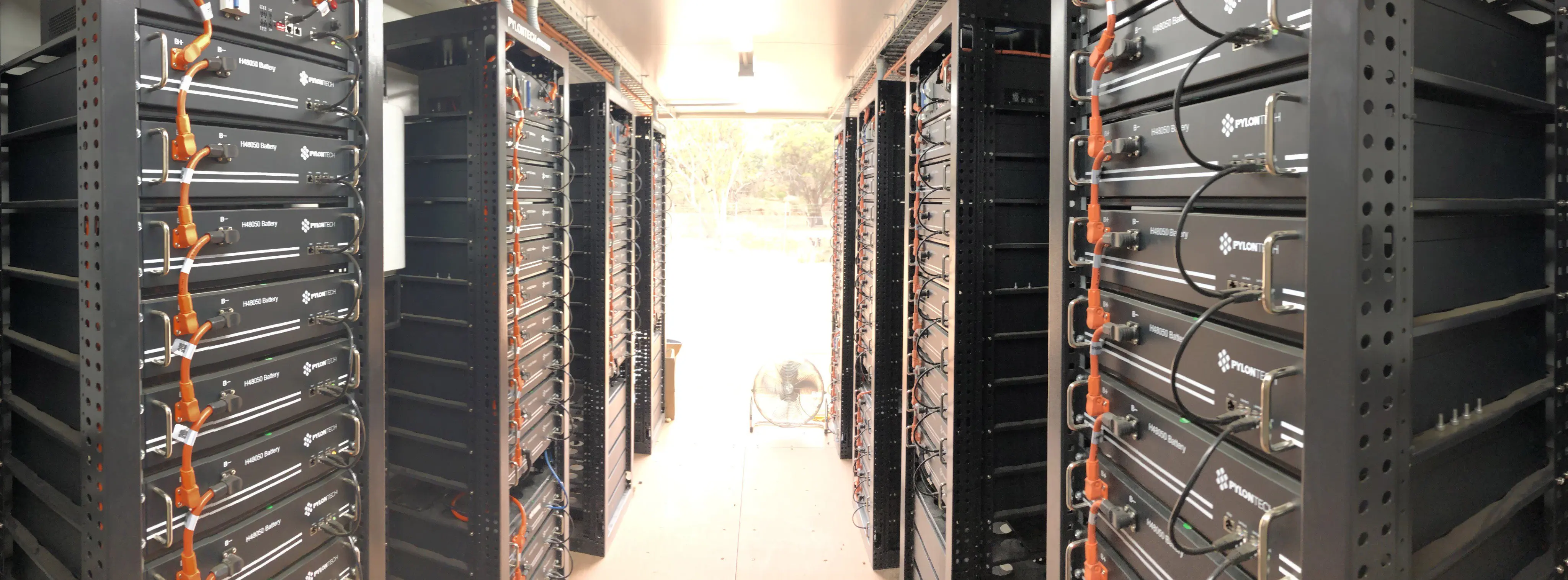

*LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg
*Self-developed 3-level BMS, complex protection, safe and reliable
*Long cycle life, 6000 cycles
*Outdoor battery cabinet with IP54 protection level, indoor battery rack with IP20 protection level,inbuild lithium-ion battery and BMS.
*Outdoor battery cabinet with IP54 protection level, indoor battery rack with IP20 protection level,inbuild lithium-ion battery and BMS.
*Standard 5Years Warranty.

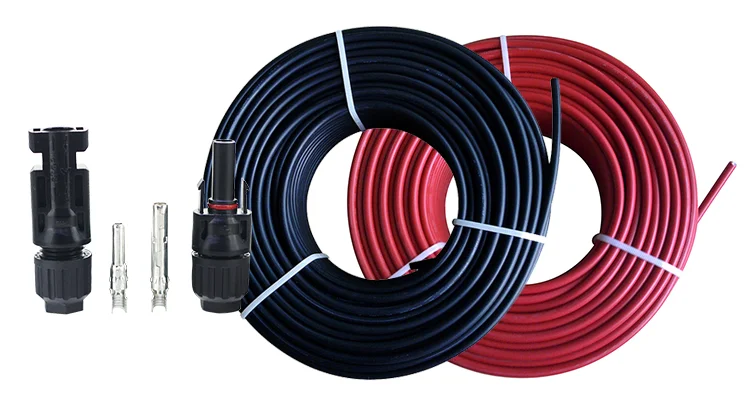

Solar Accessories
*Black/Red color 4/6/10 mm2 PV cable
*Universal compatible PV connectors
*With CE TUV certificate
*15Years Warranty

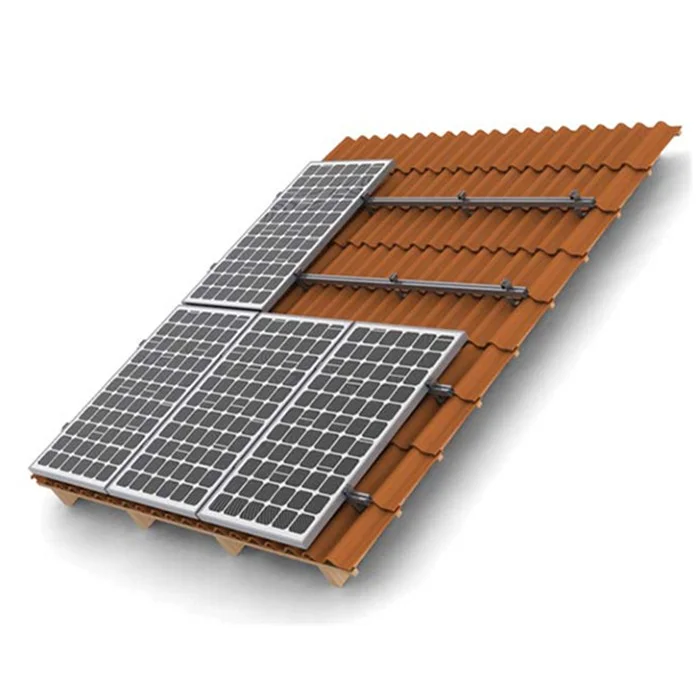

PV Mounting System
*Customized for roof&ground etc.
*Adjustable angle from 0~65 degree
*Adjustable angle from 0~65 degree
*Compatible with all type solar panel
*Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Moount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Moount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25Years Warranty
Micro-grid 250-5000KW/KWH Complete ESS Container Configuration | ||||||
System Model | LS250KW/KWH-ESS | LS500KW/KWH-ESS | LS1MW/MWH-ESS | |||
Half Cut 550W Solar Panel | 480pieces | 960pieces | 1920pieces | |||
PV Combiner Box | 5pieces 8 input 1output | 10pieces 8 input 1output | 20pieces 8 input 1output | |||
Solar Charge Controller | 1Piece PBD250 | 2Piece PBD250 | 4Pieces PBD250 | |||
Bi-directional Battery Inverter | 1piece PCS 250 | 1piece PCS 500 | 2pieces PCS 500 | |||
Bypass cabinet | 1piece Bypass 250 | 1piece Bypass 500 | 1piece Bypass 1000 | |||
LFP Battery Bank | 250KWH | 500KWH | 1MWH | |||
PV Cables | 4000m | 8000m | 12000m | |||
MC4 Connector | 240pairs | 480pairs | 960pairs | |||
Mounting System | Customized based on your installation site | |||||

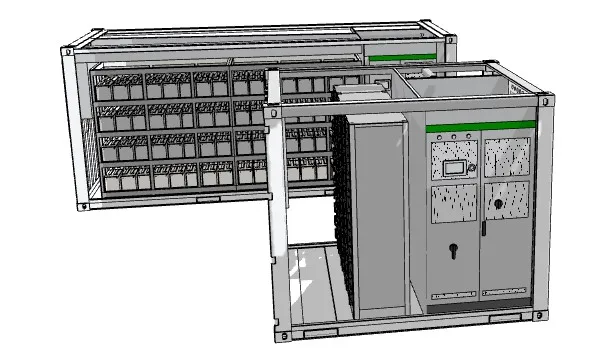

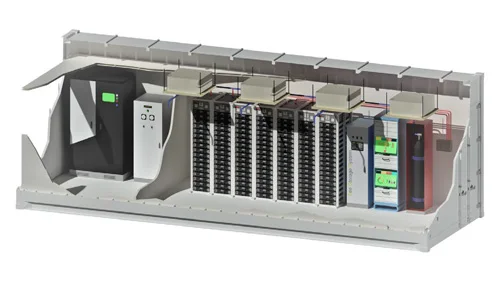

Container Size | 10/20/40ft | |||||
System Model | LS2MW/MWH-ESS | LS3MW/MWH-ESS | LS5MW/MWH-ESS | ||
Half Cut 550W Solar Panel | 3840pieces | 5760pieces | 9600pieces | ||
PV Combiner Box | 40pieces 8 input 1output | 60pieces 8 input 1output | 100pieces 8 input 1output | ||
Solar Charge Controller | 8Piece PBD250 | 12Piece PBD250 | 20Piece PBD250 | ||
Bi-directional Battery Inverter | 4pieces PCS 500 | 6pieces PCS 500 | 10pieces PCS 500 | ||
Bypass cabinet | 2pieces Bypass 1000 | 3pieces Bypass 1000 | 5pieces Bypass 1000 | ||
LFP Battery Bank | 2MWH | 3MWH | 5MWH | ||
PV Cables | 24000m | 36000m | 60000m | ||
MC4 Connector | 1920pairs | 2880pairs | 4800pairs | ||
Mounting System | Customized based on your installation site | ||||
Container Size | 10/20/40ft | ||||

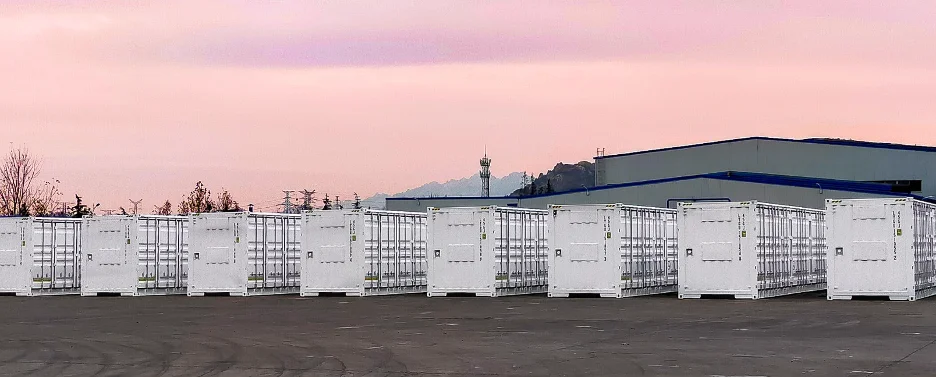

Packing&Shipping

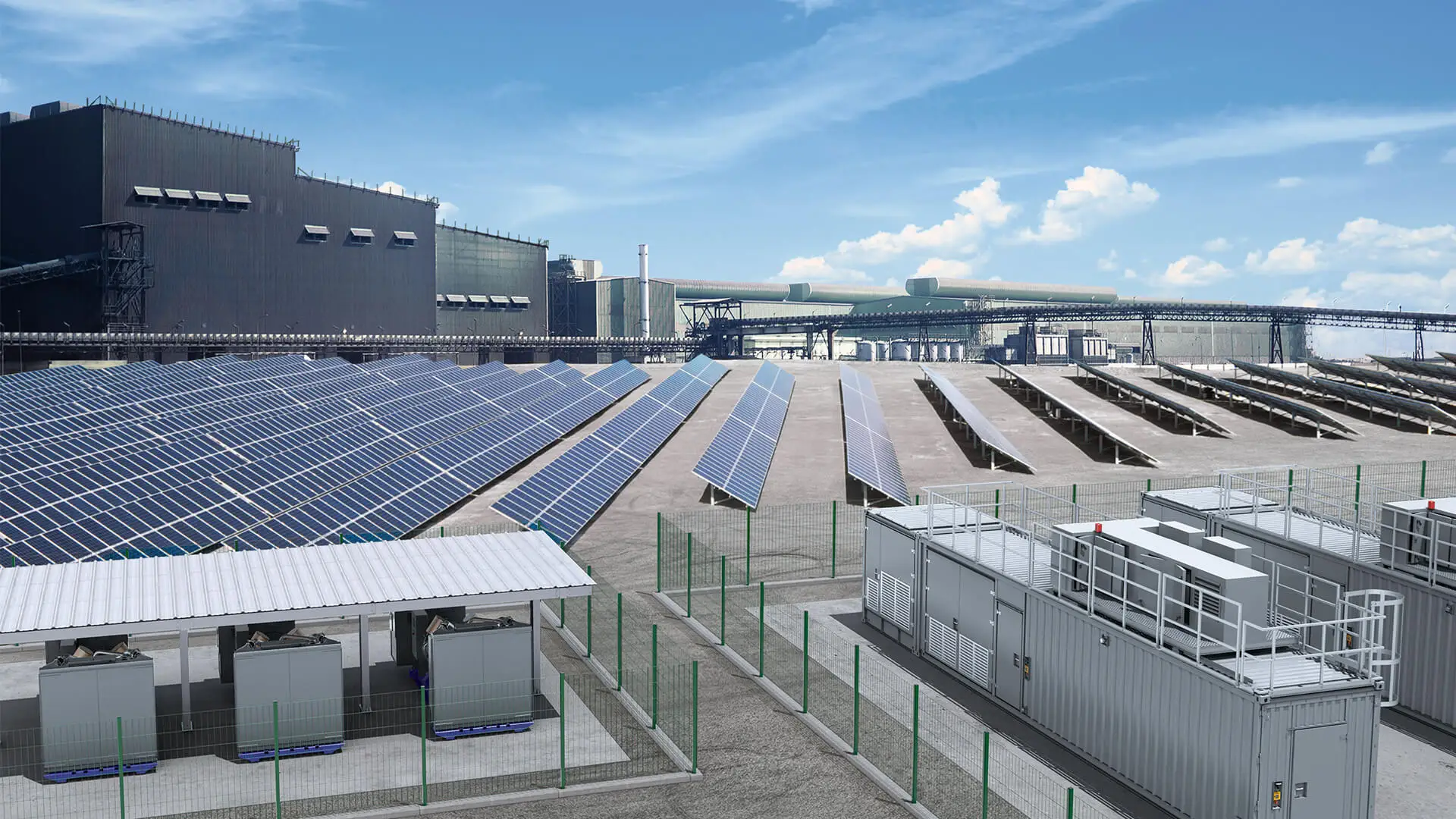

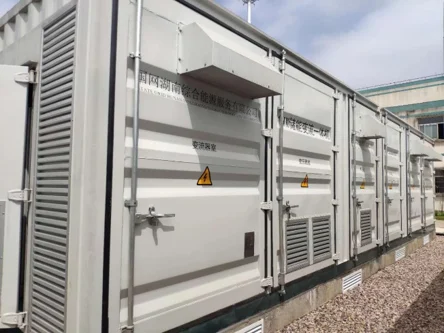

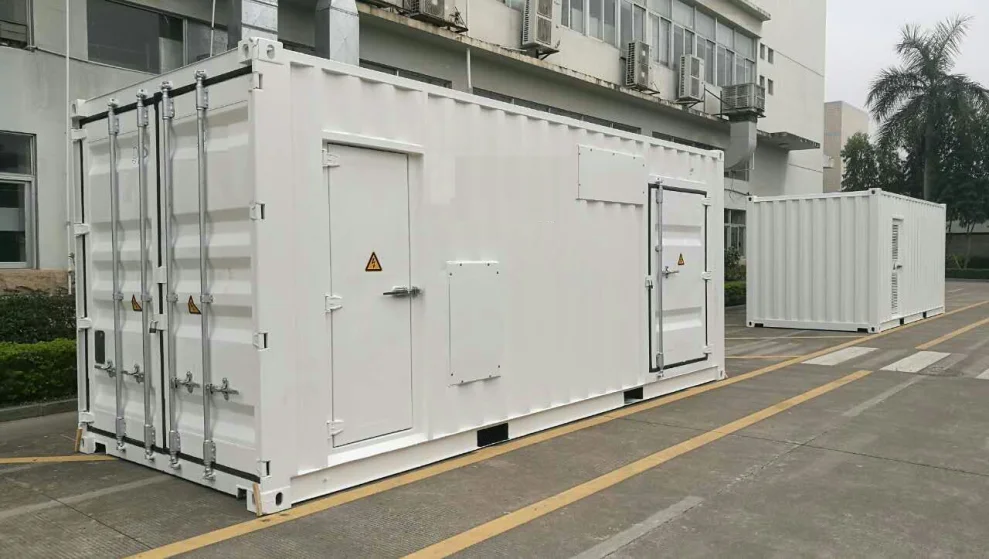

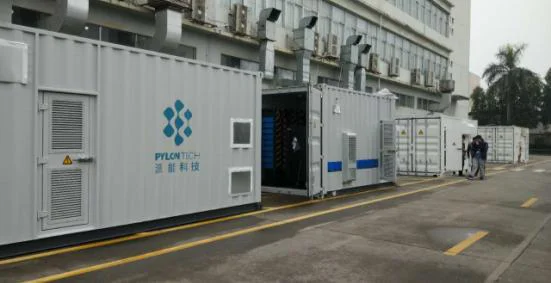

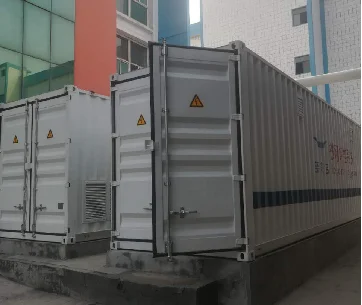

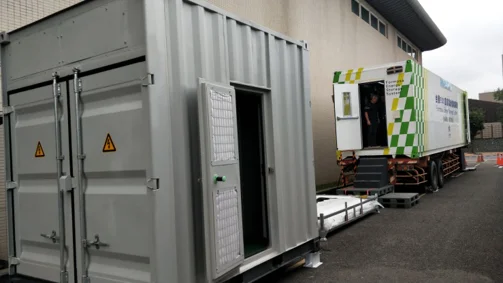

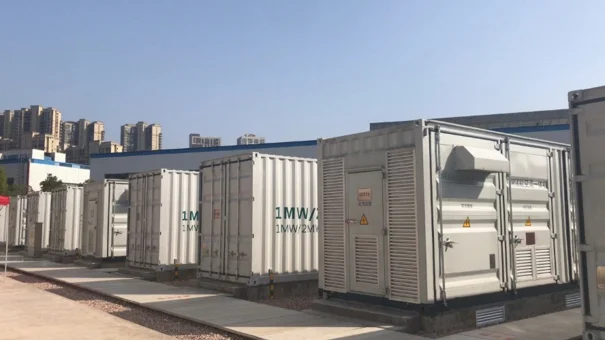

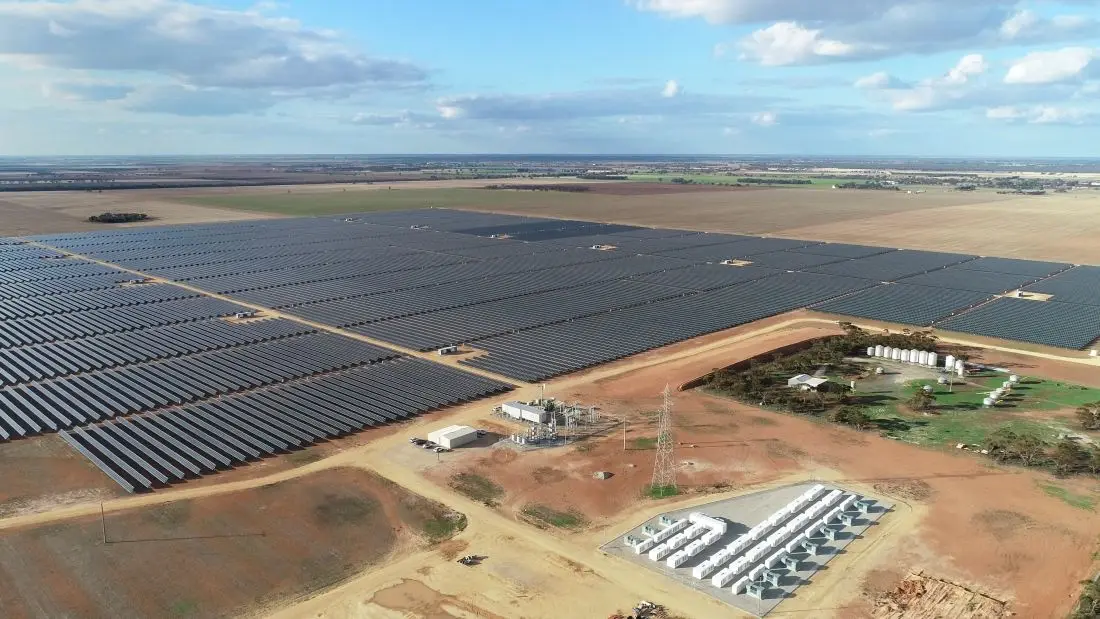

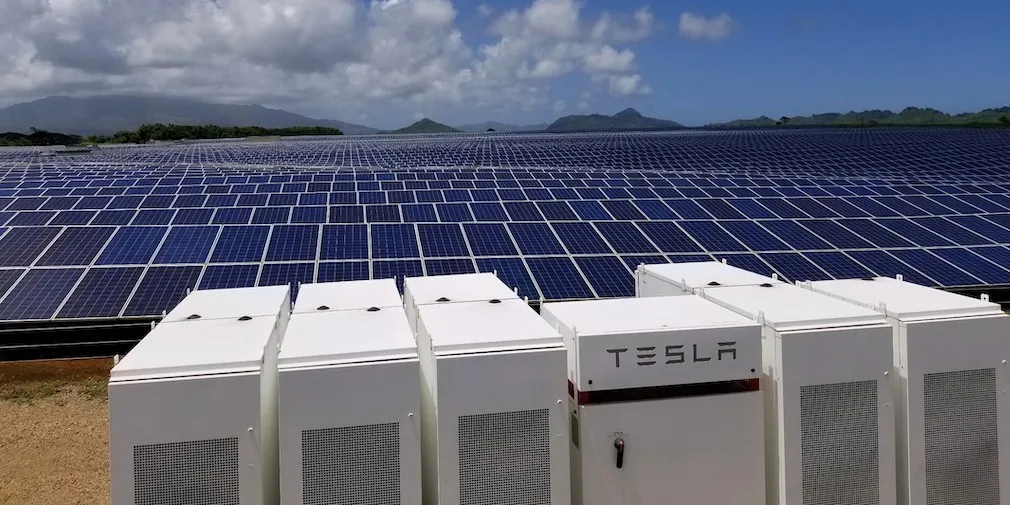

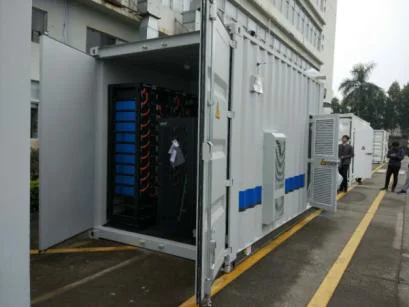

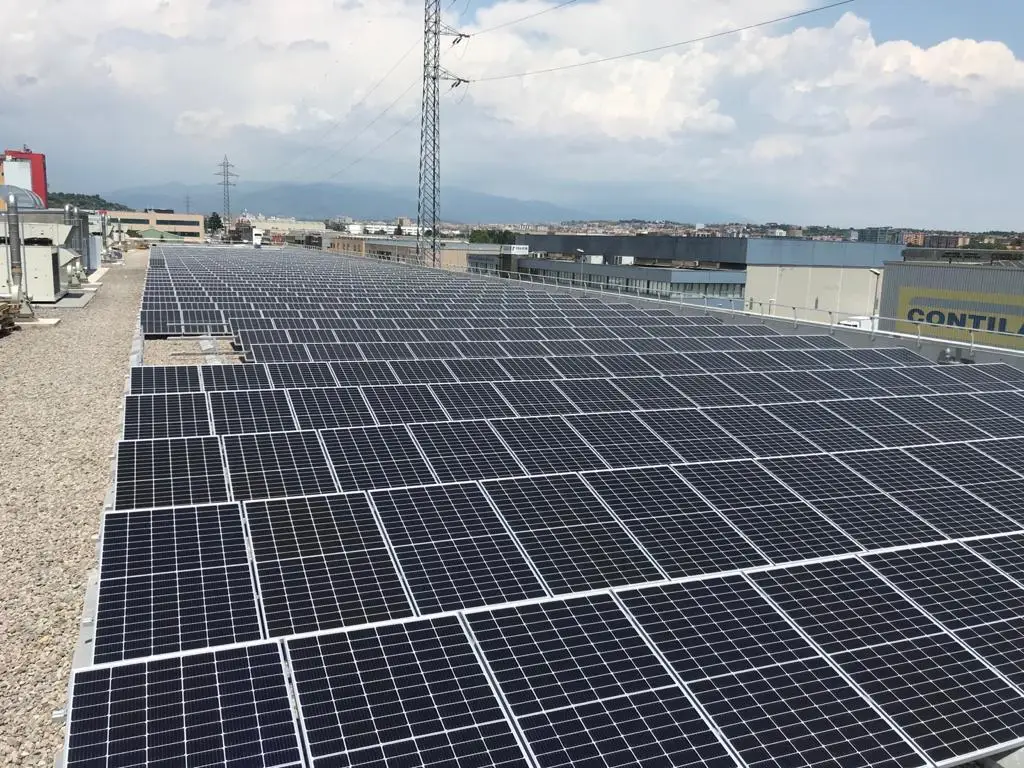

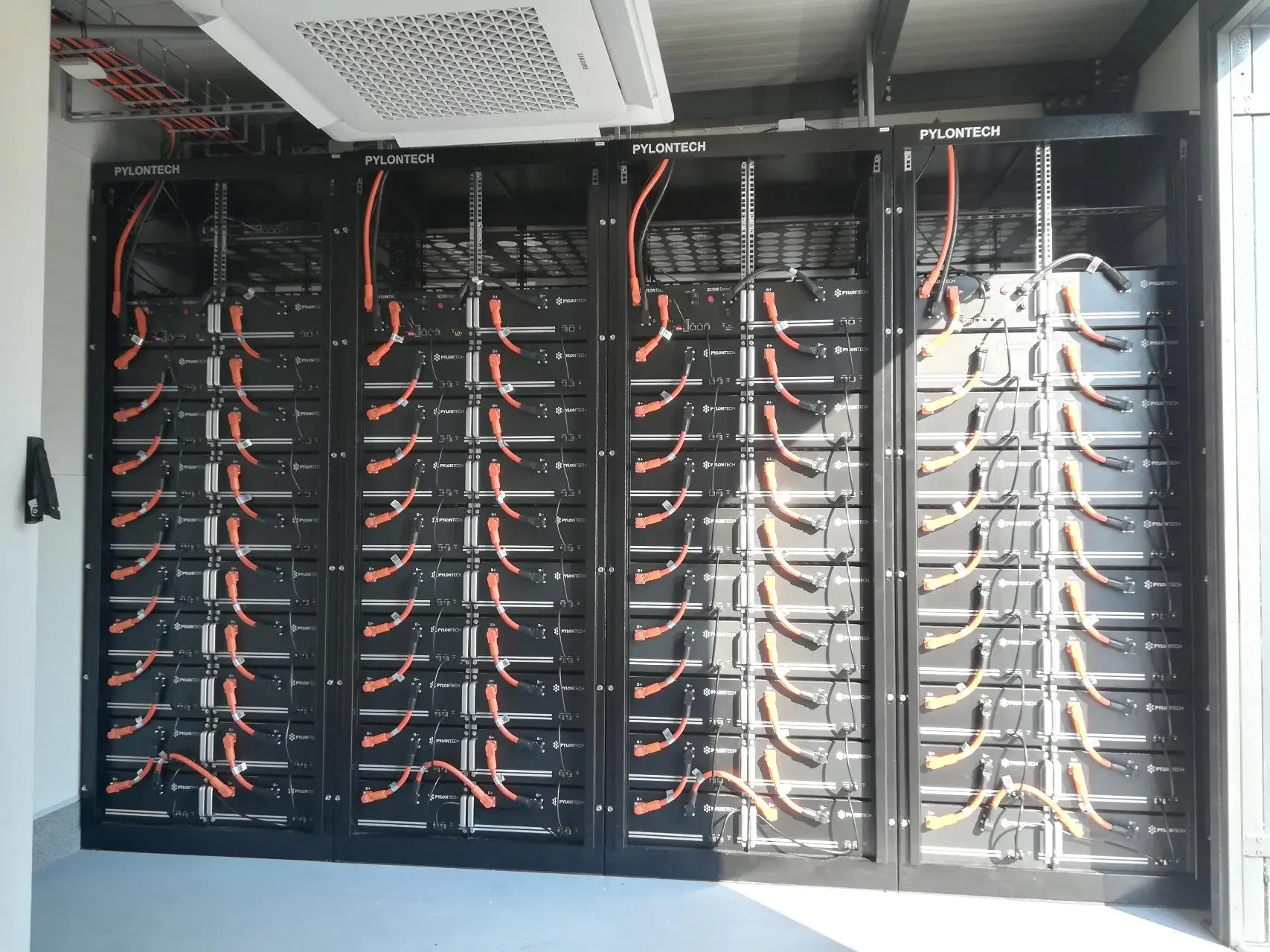

Our Projects
Payment Term
Payment Terms | T/T | EXW | 30% in advance for deposit payment, the balance payments will be paid before shipment. | ||||
FOB | |||||||
CFR/C&F | 30% in advance for deposit payment, the balance will be paid against copy of B/L | ||||||
CIF | |||||||
L/C | For the amount of one shipment above 50,000 usd, L/C at sight is acceptable. | ||||||
West Union | |||||||
Paypal | |||||||
Delivery Time | 7~25 days after receiving the payment or the deposit payment | ||||||
