ELP OV5640 5MP Auto Focus AF Mini usb camera with 100 degree no distortion lens White LED for Document Passport Barcode scanning
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (1600501742502):
Product Overview
Description
ELP OV5640 5MP Auto Focus AF Mini usb camera with 100 degree no distortion lens and white LED for Document Passport ID Card Barcode scanning
Features:

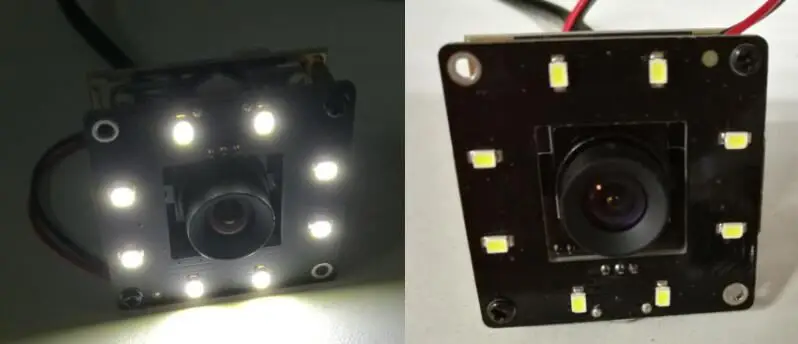

5MP 100 degree auto focus USB Camera with 10pcs white led
* 1/4” OV5640 CMOS sensor for high quality image
* With HD 100 degree no distortion lens
* MJPEG/YUY2 dual video format optional
* Mini size 38x38/32x32mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
Specification:
| Model | ELP-USB500W02M-AFC100BW |
| Sensor | OV5640 |
| Lens Size | 1/4 inches |
| Pixel Size | 1.4µm x1.4µm |
| image area | 3673.6µmx2738.4µm |
| Max. Resolution | 2592(H) X 1944(V) |
| Compression format | MJPEG / YUV2(YUYV) |
| Resolution & frame | 2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG 1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG 1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG 800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG |
| Camera Board Assembly technique | SMT (ROSH) |
| Focus | Auto |
| Resolution | 600LW/PH (Center) |
| S/N Ratio | 36dB |
| Dynamic Range | 68dB |
| Sensitivity | 600 mV/Lux-sec |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class(UVC) |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
| Lens Parameter | Size: 1/4, 100 degree Relative Illumination (Sensor): 70% IR Filter: 650±10nm |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Operating Voltage | DC5V |
| Power consumption | 150mW (VGA); 200mW (QSXGA) |
| Working current | active: 140 mA standby: 20 µA |
| Working temperature | -20~70℃ |
| Storage temperature | 0~65℃ |
| Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
| Cable | Standard 1M / 2M,3M,5M optional |
| Operating system request | Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/ Android 4.0 or above with UVC |
| Certificate | CE&FCC |

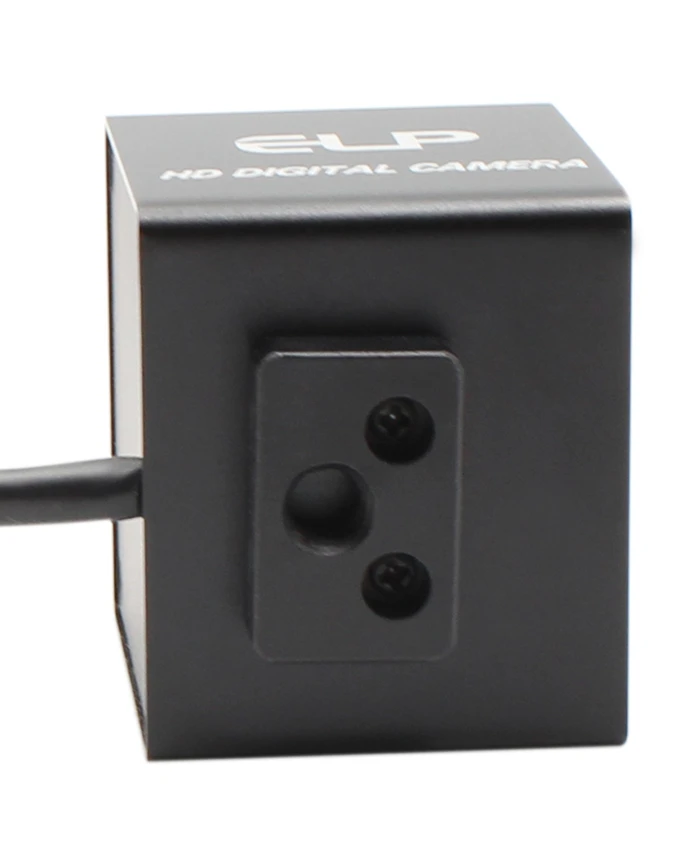

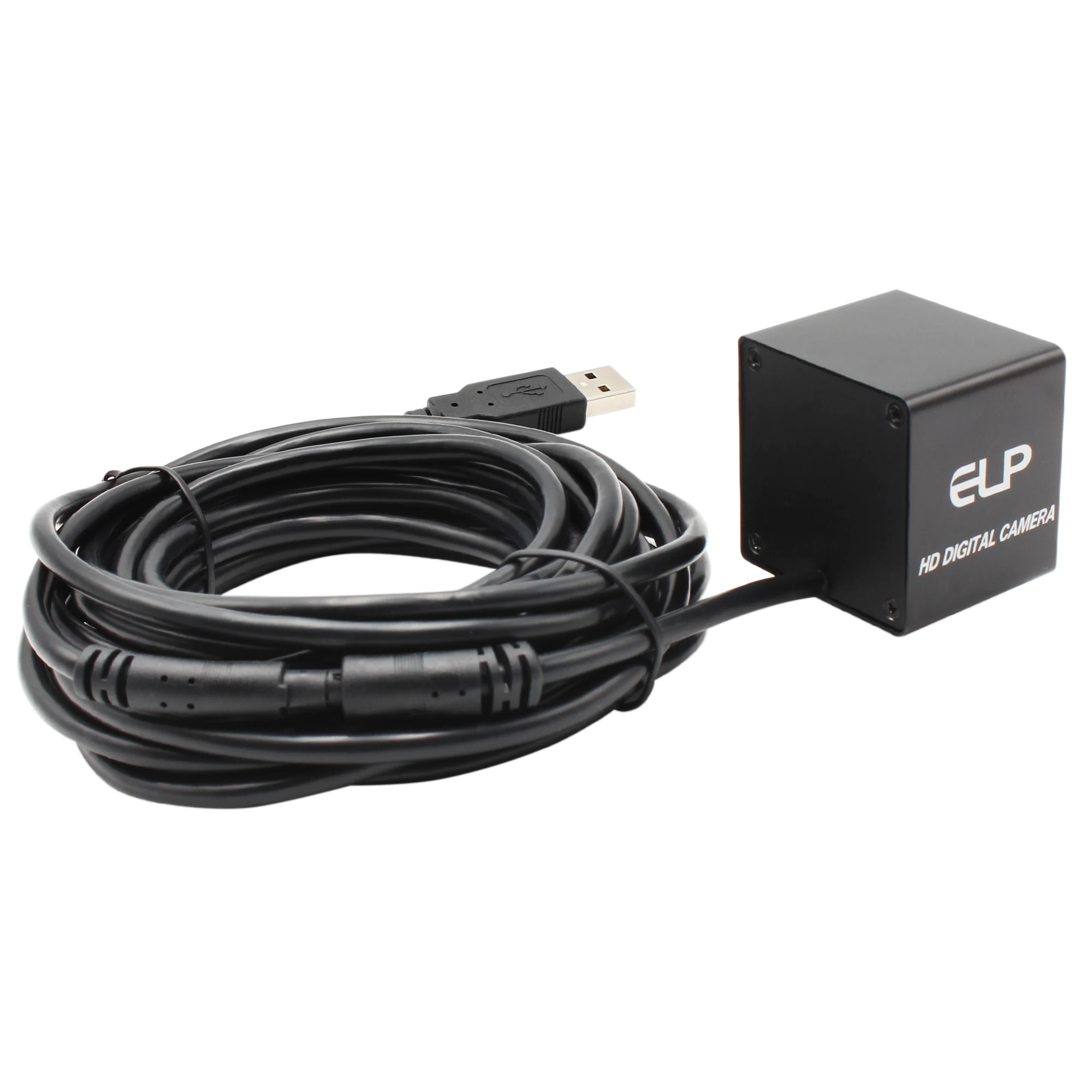

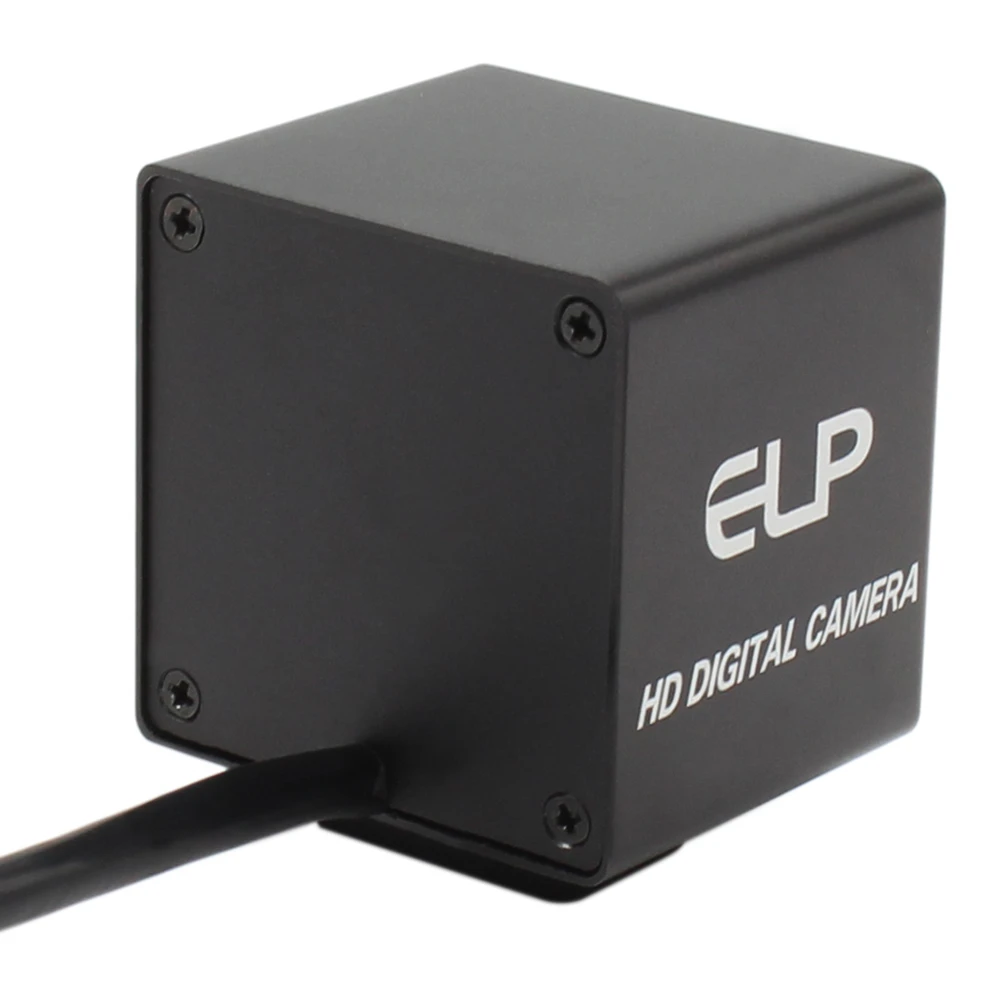

Pictures:
Sample picture:
Applications
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Company Information
Related USB Cameras
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
