Professional Herbal Extraction Tank Extraction And Concentration Tank Herb Extraction Tank
- Category: >>>
- Supplier: Wuxi Rockaway Machinery Co. Ltd.
Share on (1600501785796):
Product Overview
Description
Specification
Place of Origin | Zhejiang, China |
Brand Name | ZONBO |
Model Number | Extraction tank |
Application | Liquid |
Condition | New |
Warranty | 1 Year |
Dimension(L*W*H) | Customized |
Applicable Industries | Manufacturing Plant |
Weight (KG) | 1800 |
Core Components | Pump |
Product Description
Features:
SUS316L or SUS304
Accordance to GMP standard
20 years' experience make and install
Difference volume for choose
Provide you the whole production line for herbal extraction
SUS316L or SUS304
Accordance to GMP standard
20 years' experience make and install
Difference volume for choose
Provide you the whole production line for herbal extraction
Application:
Extraction tank is applied to water extraction, soaking extraction, reflux extraction, extracting aroma oil, recovery of organic solvent and etc, working under atmospheric pressure and micropressure, is efficient in performance and esay in operate.
The machine is complete with CIP cleaning system inside, meeting GMP standard.
Components:

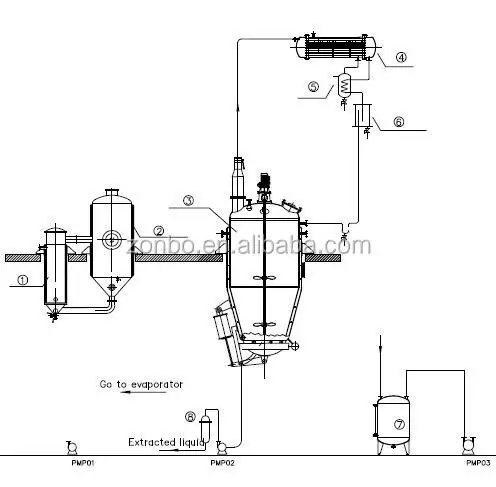

Extracting tank, defoaming device, condenser, cooler, filter, oil-water separator, delivery pump and etc.
The main body of the extracting tank consists of an inner cylinder, a jacket layer, a heat insulating layer, a branch ear, a pneumatic slag discharging gate, and a heat insulating layer of the extracting tank,and the aluminum silicate rock wool is used as the heat insulating material, the inner cylinder body is SUS304/316L. The tank is equipped with CIP cleaning ball, thermometer, explosion-proof sight lamp, quick opening feed gate, etc..
Characteristics:
1. The slag door structure adopts closed cylinder slag door,there are two cylinder pushing turn solid rotation aside, thread structure which make its multi wedge block drive the door lock up slag, slag door and tank flange platen close and seal well, with high safety factor.
2. Material discharge pipe adopts stainless steel pipe, liquid outlet joint is sealed reliably, avoiding the fatigue stress of the metal hose and affecting the frequent breakage and leakage.
3. Complying with (GMP) standard requirements.
Extraction tank is applied to water extraction, soaking extraction, reflux extraction, extracting aroma oil, recovery of organic solvent and etc, working under atmospheric pressure and micropressure, is efficient in performance and esay in operate.
The machine is complete with CIP cleaning system inside, meeting GMP standard.
Components:
Extracting tank, defoaming device, condenser, cooler, filter, oil-water separator, delivery pump and etc.
The main body of the extracting tank consists of an inner cylinder, a jacket layer, a heat insulating layer, a branch ear, a pneumatic slag discharging gate, and a heat insulating layer of the extracting tank,and the aluminum silicate rock wool is used as the heat insulating material, the inner cylinder body is SUS304/316L. The tank is equipped with CIP cleaning ball, thermometer, explosion-proof sight lamp, quick opening feed gate, etc..
Characteristics:
1. The slag door structure adopts closed cylinder slag door,there are two cylinder pushing turn solid rotation aside, thread structure which make its multi wedge block drive the door lock up slag, slag door and tank flange platen close and seal well, with high safety factor.
2. Material discharge pipe adopts stainless steel pipe, liquid outlet joint is sealed reliably, avoiding the fatigue stress of the metal hose and affecting the frequent breakage and leakage.
3. Complying with (GMP) standard requirements.
Model specification | TQ-1 | TQ-2 | TQ-3 | TQ-6 | TQ-8 | TQ-10 | |||||
Tank capacity(L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 | |||||
Inside design pressure | 0.09Mpa | ||||||||||
Jacket design pressure | 0.3Mpa | ||||||||||
Compressed air pressure | 0.6-0.7Mpa | ||||||||||
Feed inlet diameter(mm) | 400 | 400 | 400 | 500 | 500 | 500 | |||||
Heat area(m2) | 3 | 4.7 | 6.8 | 10 | 12 | 15 | |||||
Condensation area(m2) | 4 | 5.4 | 8 | 10 | 15 | 18 | |||||
Cooling area(m2) | 1 | 1 | 1 | 2.2 | 2.2 | 2.2 | |||||
Filter area(m2) | 0.25 | 0.25 | 0.25 | 0.3 | 0.3 | 0.36 | |||||
Steam consumption(t/h) | 285 | 346 | 570 | 718 | 903 | 1140 | |||||
Water consump[tion(t/h) | 2.1 | 2.5 | 4.2 | 4.5 | 6.7 | 8.3 | |||||
Slag door diameter(mm) | 600-1000 | 1000-1200 | 1400-1600 | ||||||||
Agitator speed(rpm) | 36 | ||||||||||
Agitator motor(kw) | 3 | 4 | 5.5 | 7.5 | 11 | 15 | |||||
Equipment weight(kg) | 1100 | 1900 | 2300 | 3800 | 4500 | 6800 | |||||
