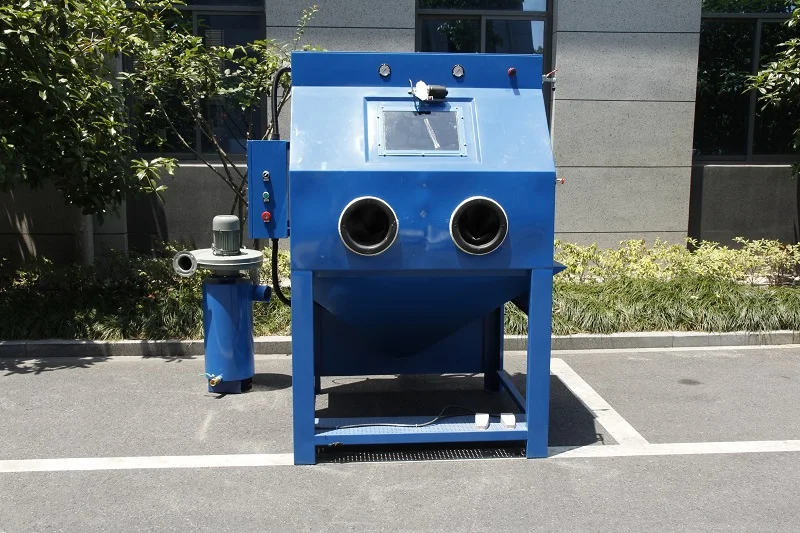

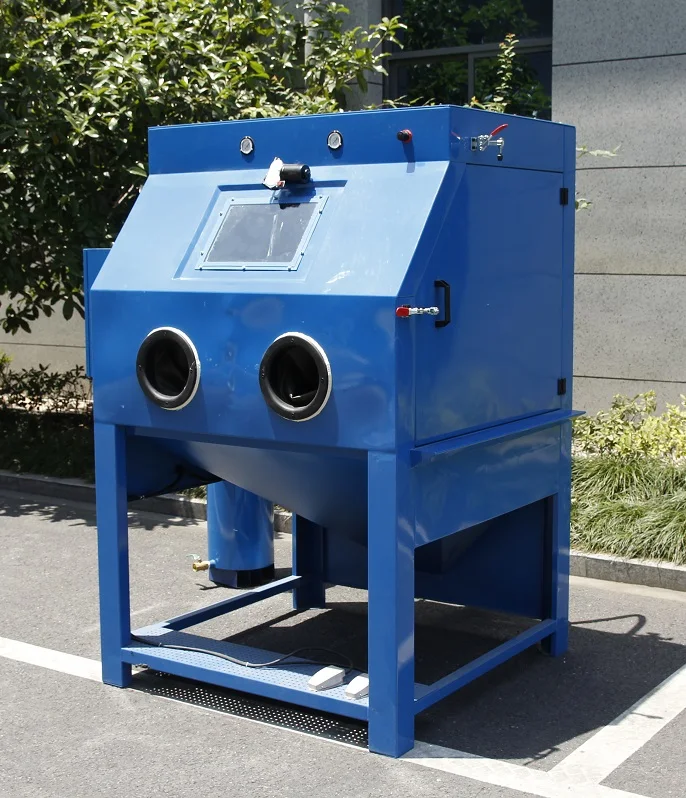

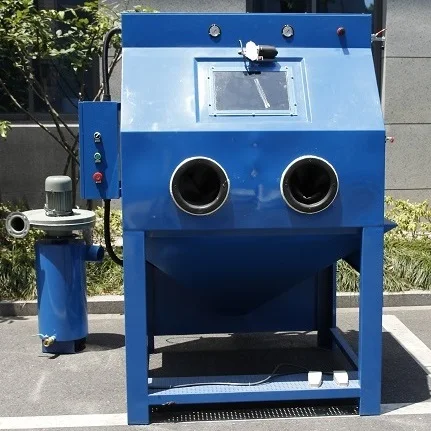

Wet blaster cabinet vapour blasting machine for car and motorcycle parts
Aqua blasting machine also known as vapor blasting, vapor honing or liquid blasting, water sandblaster machine uses water and abrasives for surface treatment, create a dust-free environment.
Water sandblaster effect is cleaner than ordinary blasting machines. It is rapidly becoming the first choice for applications requiring the highest quality of surface finish.
Detailed Images
Water Vapour Slurry Blasting Cabinet Features
1. Vapor sand blasting body is made of 3mm stainless steel plate with paint, which is stronger and more durable than ordinary carbon steel.
2. The inner wall of the blasting chamber is covered with rubber, in order to improve equipment life.
3. The vapor sand blasting machine is equipped with a perspective window for the observation the sand blasting working conditions during working.
4. The wet blasting gun with 8mm boron carbide nozzle is durable for long time use.
5. A specially designed pump that agitates water and media into a slurry, and deliver the slurry to the blast nozzle is via a
hoses located inside the machine.
4. The wet blasting gun with 8mm boron carbide nozzle is durable for long time use.
5. A specially designed pump that agitates water and media into a slurry, and deliver the slurry to the blast nozzle is via a
hoses located inside the machine.

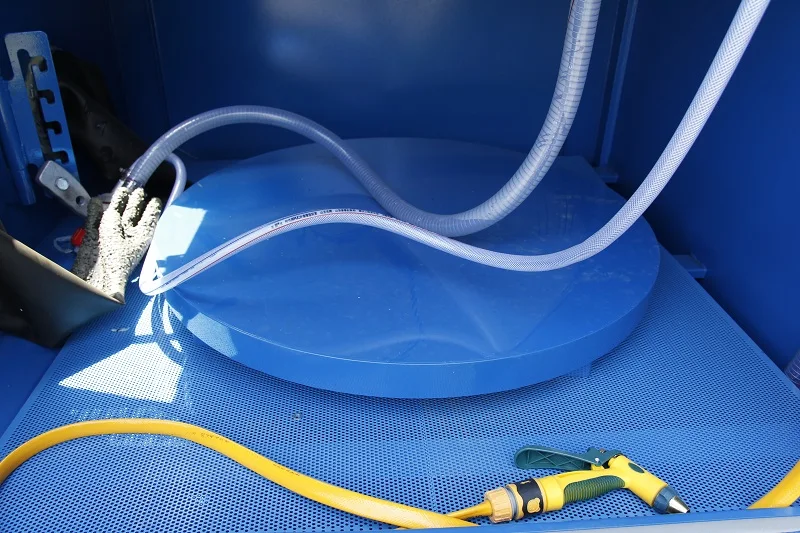

Turntable

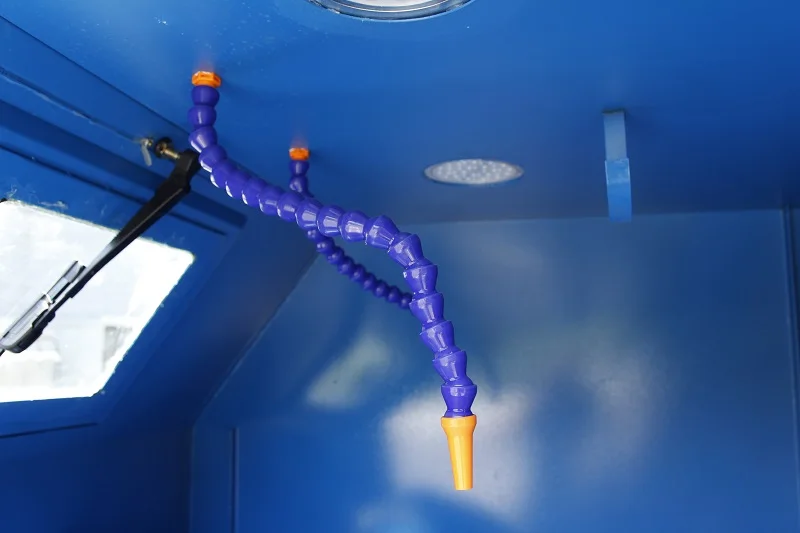

Blasting Gun
Windscreen Wiper
Pressure Regulating Valve

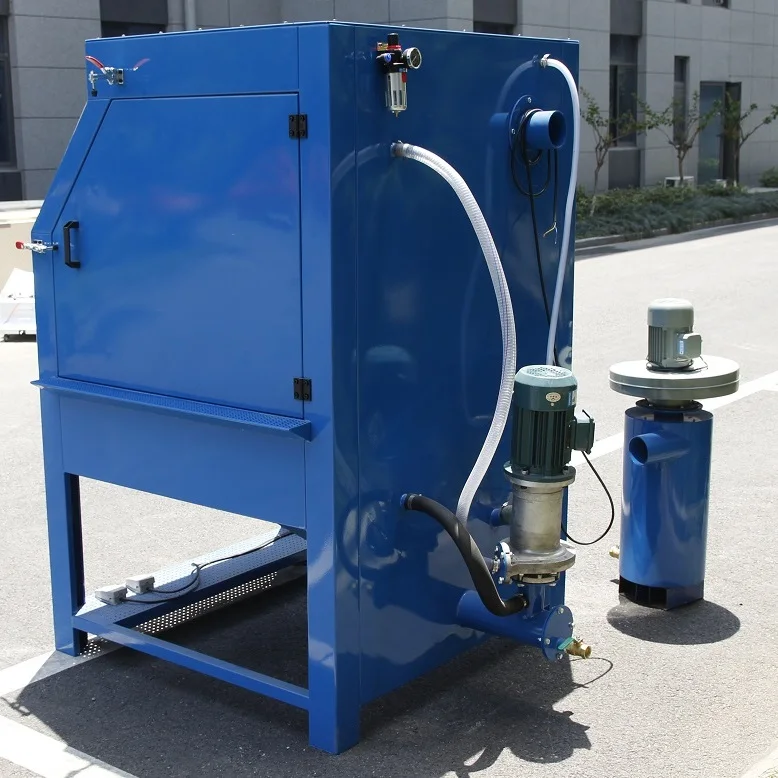

Slurry Pump
Foot Switch
Size Information
Model | KF-1212w |
Working area | 1200*1200*800mm |
Motor | 2.2Kw |
Air requirement | flow 0.5-1.1m^3/min |
Light | 2*18w saving lamps |
Blast Gun | 1 pc of wet blast gun with 1 boron cabide nozzle (8mm) |
Air consumption for 1 gun | 0.4-0.8Mbar |
Volume of abrasive & water | 25L |
Suitable abrasive | Glass beads(for aluminum, stainless steel) Brown Aluminum Oxide(stell or other)80#-320# |
Feed abrasive | 4-6kg |
Abrasive : Water | 1:3 |
Voltage | 380V/220V 3 phase (customized) |
Applications

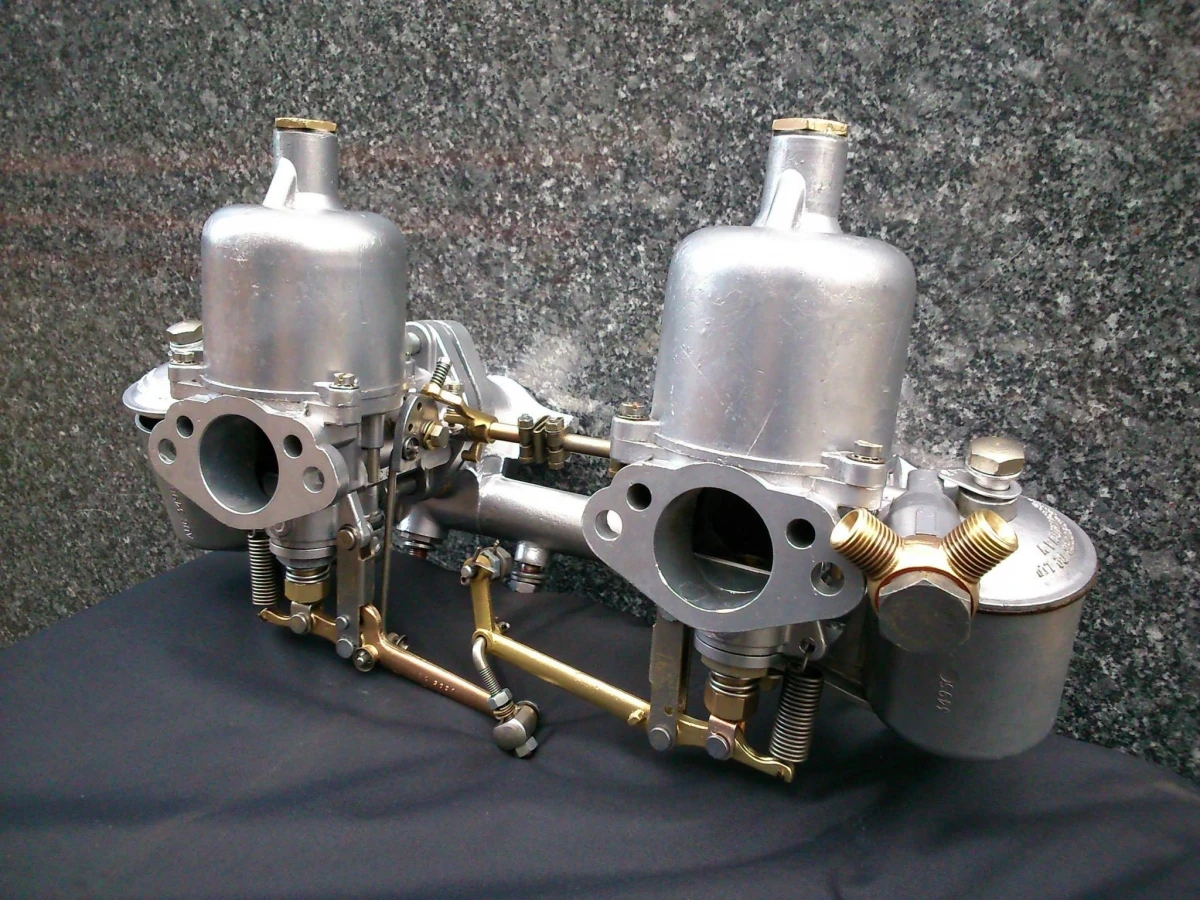

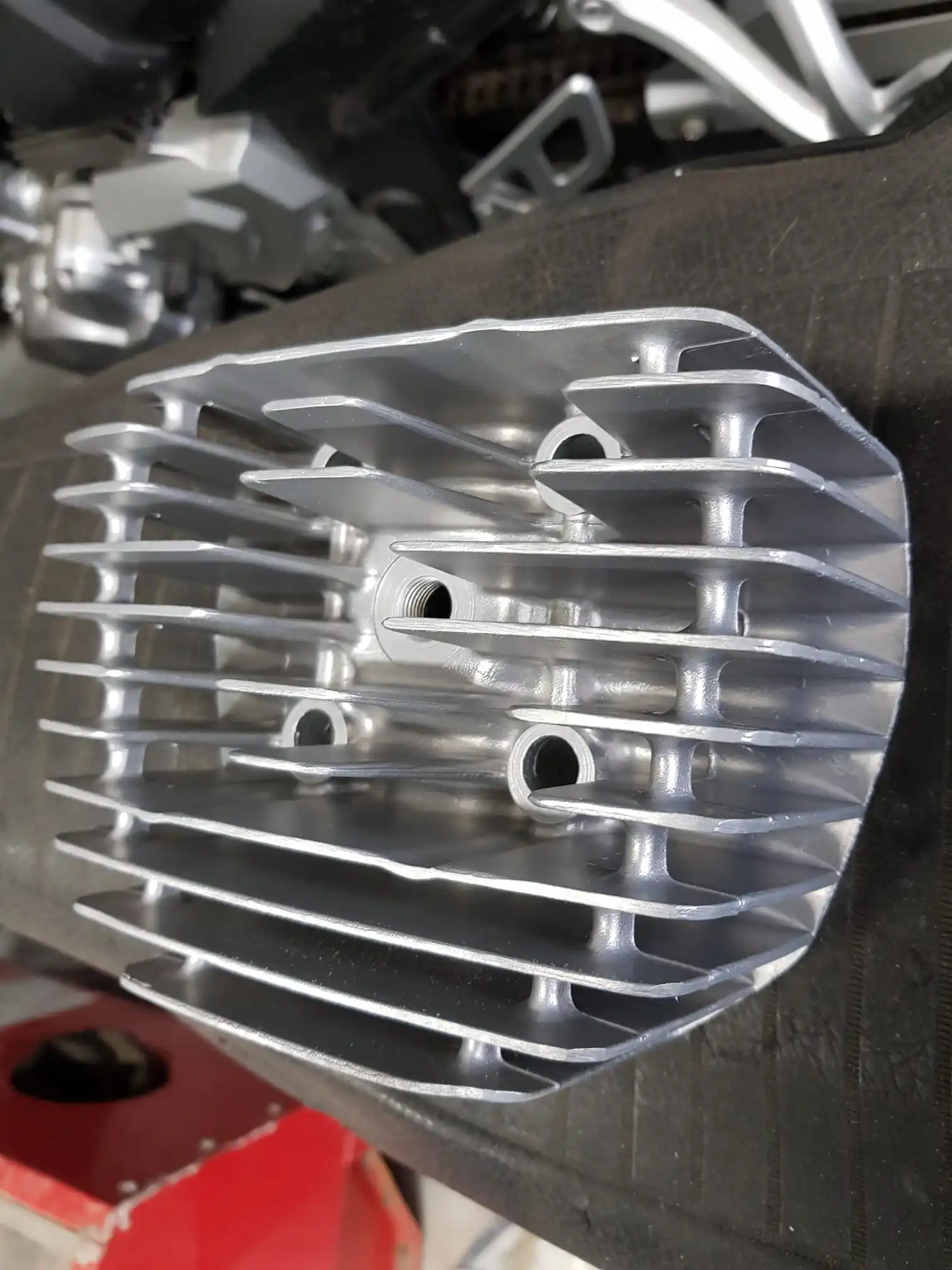

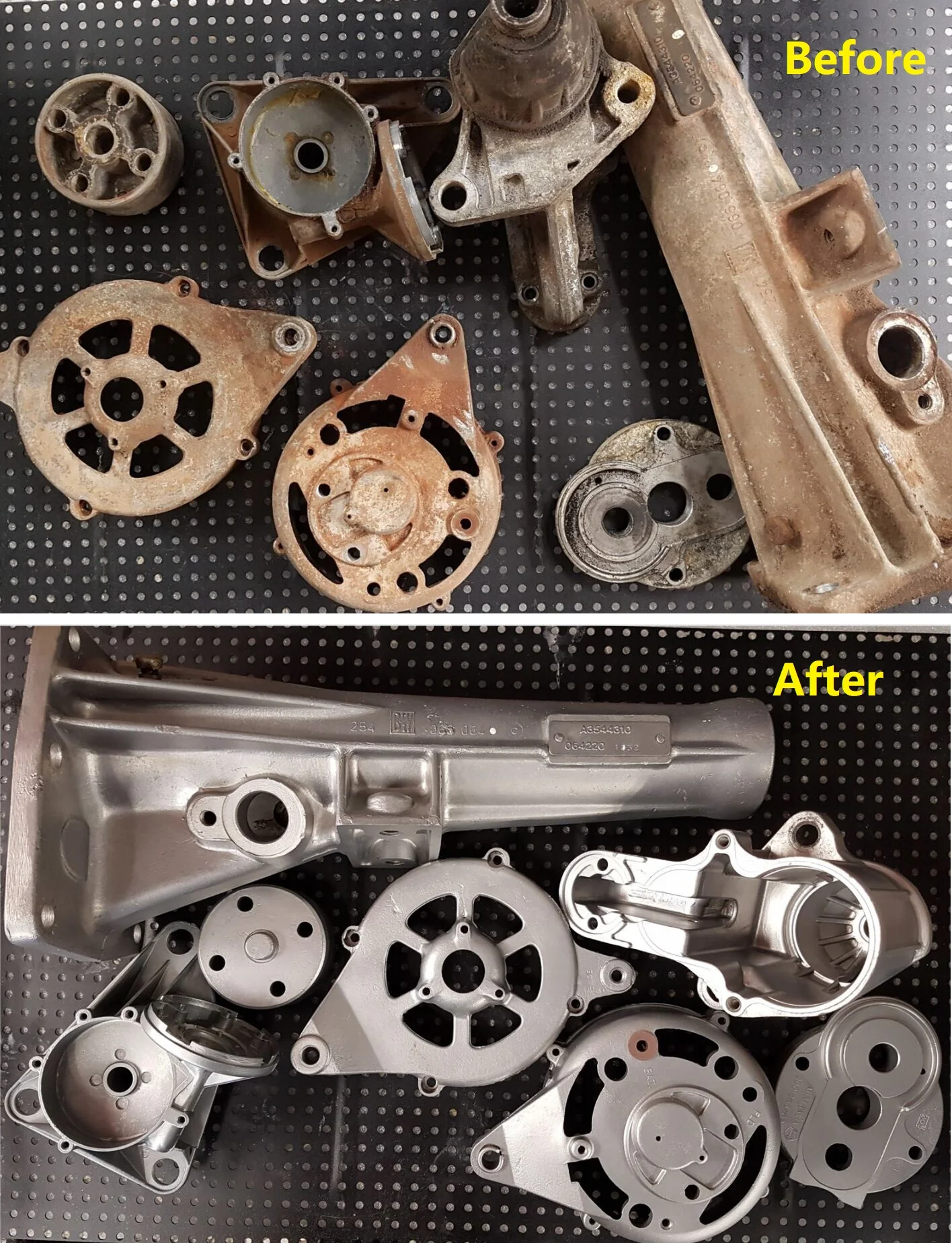

Vapor honing sandblasting machine used to clean the rough surface of metal, especially suitable for car and motorcycle parts.
Related Products
Wet sand blasting working size also can be customized according to the work-piece size .
Model Size | KF-9080w | KF-1010w | KF-1212w | KF-1610W-2A |
Working Cabinet Size | 900*800*800mm | 1000*1000*800mm | 1200*1200*800mm | 1600*1000*800mm |
Ourter Size | 1000*1200*2000mm | 1100*1500*2000mm | 1300*1700*2000mm | 1700*1500*2000mm |

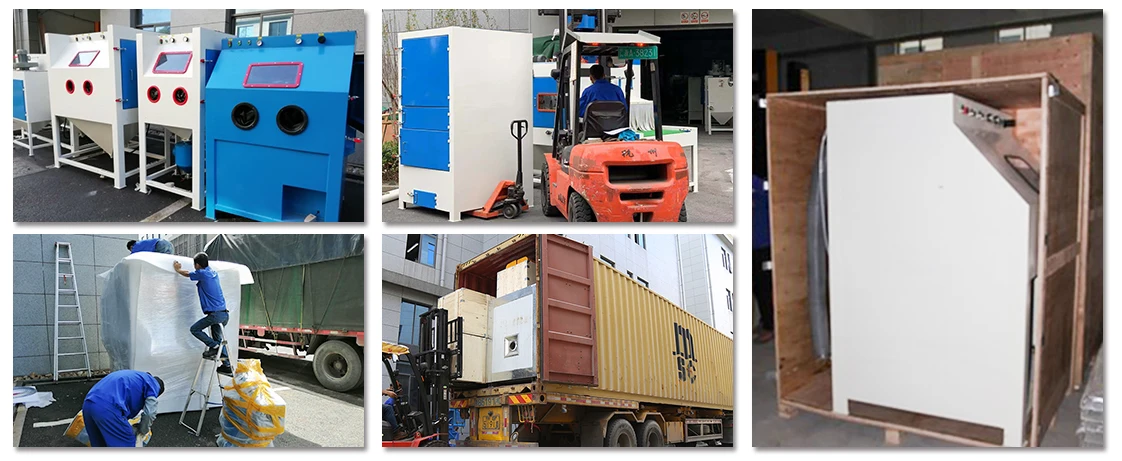

Product packaging
All sandblasting machines comply with international export standards and are available in wooden boxes and foam films.
