Product Overview
Description
SRC 90 Degree Turn Left or Turn Right Air Rotary Pneumatic Swing Clamp Cylinder Pneumatic Rotary Cylinder

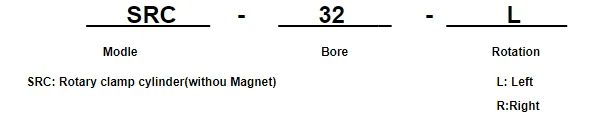

Ordering Code:
Specifications
Bore size | 25 | 32 | 40 | 50 | 63 | ||||
Acting type | Double acting | ||||||||
Fluid | Air(to be filtered by 40 µm filter element) | ||||||||
Operating pressure | 0.15~9.5MPa | ||||||||
Temperature °C | 0~60 | ||||||||
The use of speed | 30~500 | ||||||||
Rotary Stroke | 11 | 13 | 15 | ||||||
Under the pressure stroke | 11 | 13 | 15 | ||||||
Rotation Angle | 90℃ Customizable(0℃, 45℃, 60℃) | ||||||||
Rotation Direction | Turn left(from right to left)-L; turn right(from left to right)-R | ||||||||
Buffer Direction | Rubber gasket buffer | ||||||||
Lubrication | Free supply mode | ||||||||
Port size | M5×0.8 | M5×0.8 | |||||||

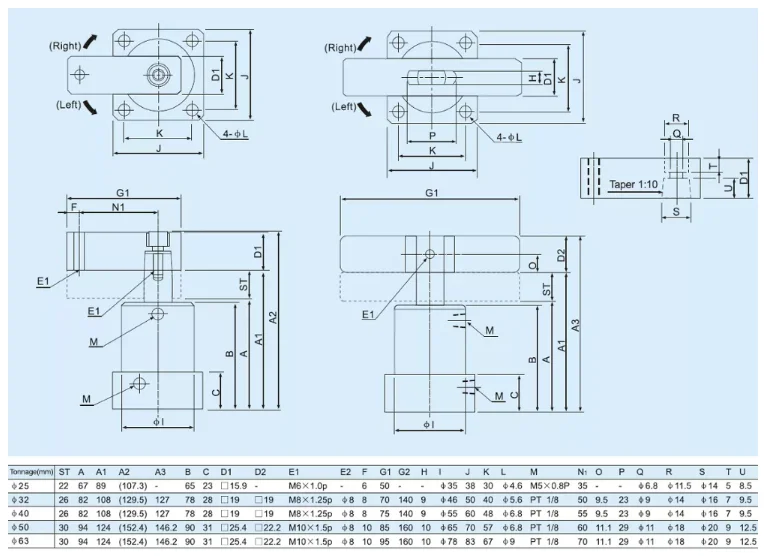

Dimensions
More products:
More type for you to choose
Other pneumatic part for you to choose
Main Products:
Why Choose Us:
FAQ:
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
