High Quality Smart Home Climat Control Panel HMI Mobile Tablet 10.1 inch IPS 800x1280 Portrait MIPI 40Pin IPS TFT LCD Display
- Category: >>>
- Supplier: Shenzhen Hct Electronics Co. Ltd.
Share on (1600501851181):
Product Overview
Description
Our Advantages
Factory Price / Low MOQ / 100% Quality Assurance
1) We are a professional designer and manufacturer of TFT LCD & Touch Screen.
2) We have flexible customization capabilities, especially good at custom high brightness sunlight readable screen, and touch screen customization of various sizes and functions.
3) We are good at the development of display modules in the industrial field and provide the total solution of TFT LCD with touch panel.
4) Our products can support long-term supply, products availability min.3 years. If EOL, compatible pin to pin model would be offered.
2) We have flexible customization capabilities, especially good at custom high brightness sunlight readable screen, and touch screen customization of various sizes and functions.
3) We are good at the development of display modules in the industrial field and provide the total solution of TFT LCD with touch panel.
4) Our products can support long-term supply, products availability min.3 years. If EOL, compatible pin to pin model would be offered.
Product Description
10.1 inch 800x1280 MIPI TFT LCD Display
MX-A101FM40-IX15
MX-A101FM40-IX15 is a standard 10.1 inch 800x1280 landscape TFT LCD with MIPI interface full view angle. It's optional with capacitive touch panel with controller, connector. This TFT LCD is easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM. Portrait mode (800x1280 pixels) and landscape mode ( 1280x800 pixels) are all available.
It can be used in any embedded systems, car moniter, mp4, gps, industrial device, security and smart home automation control equipment which requires display in high quality and colorful image.
It can be used in any embedded systems, car moniter, mp4, gps, industrial device, security and smart home automation control equipment which requires display in high quality and colorful image.
ITEM | STANDARD VALUES |
LCD Size | 10.1 inch |
Resolution | 800x1280 |
TFT Type | IPS |
Interface Type | MIPI |
Pin Number | 40 Pin |

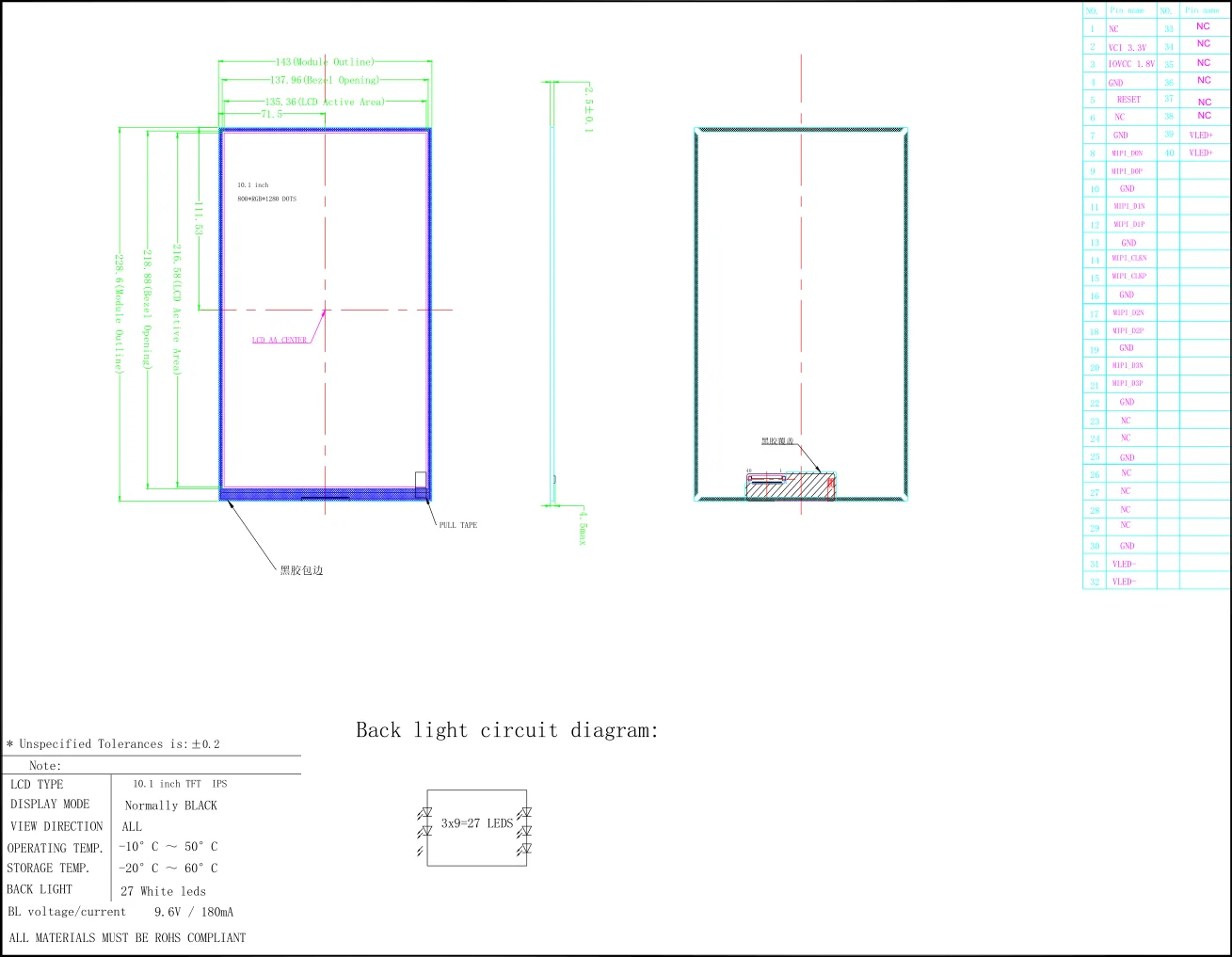

Outline Dimension | 143 × 228.6 × 2.5mm |
Active Area | 135.36 x 216.58mm |
Current for LED Backlight | 180mA |
Voltage for LED Backlight | 9.6v |
Luminance | 300 Nits |
Touch Screen | Without (Optional) |
LED Life Time | 30,000 hours |

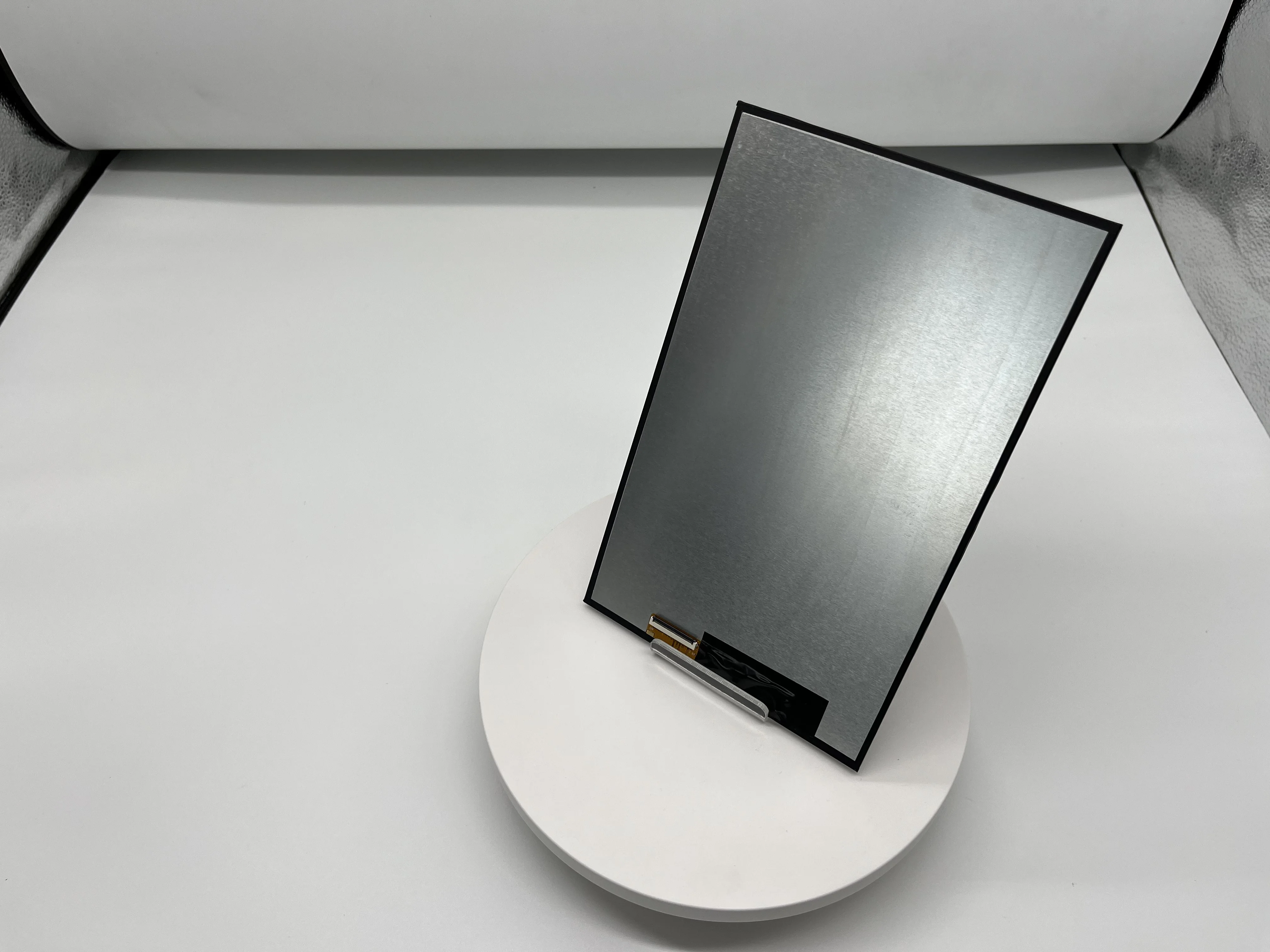

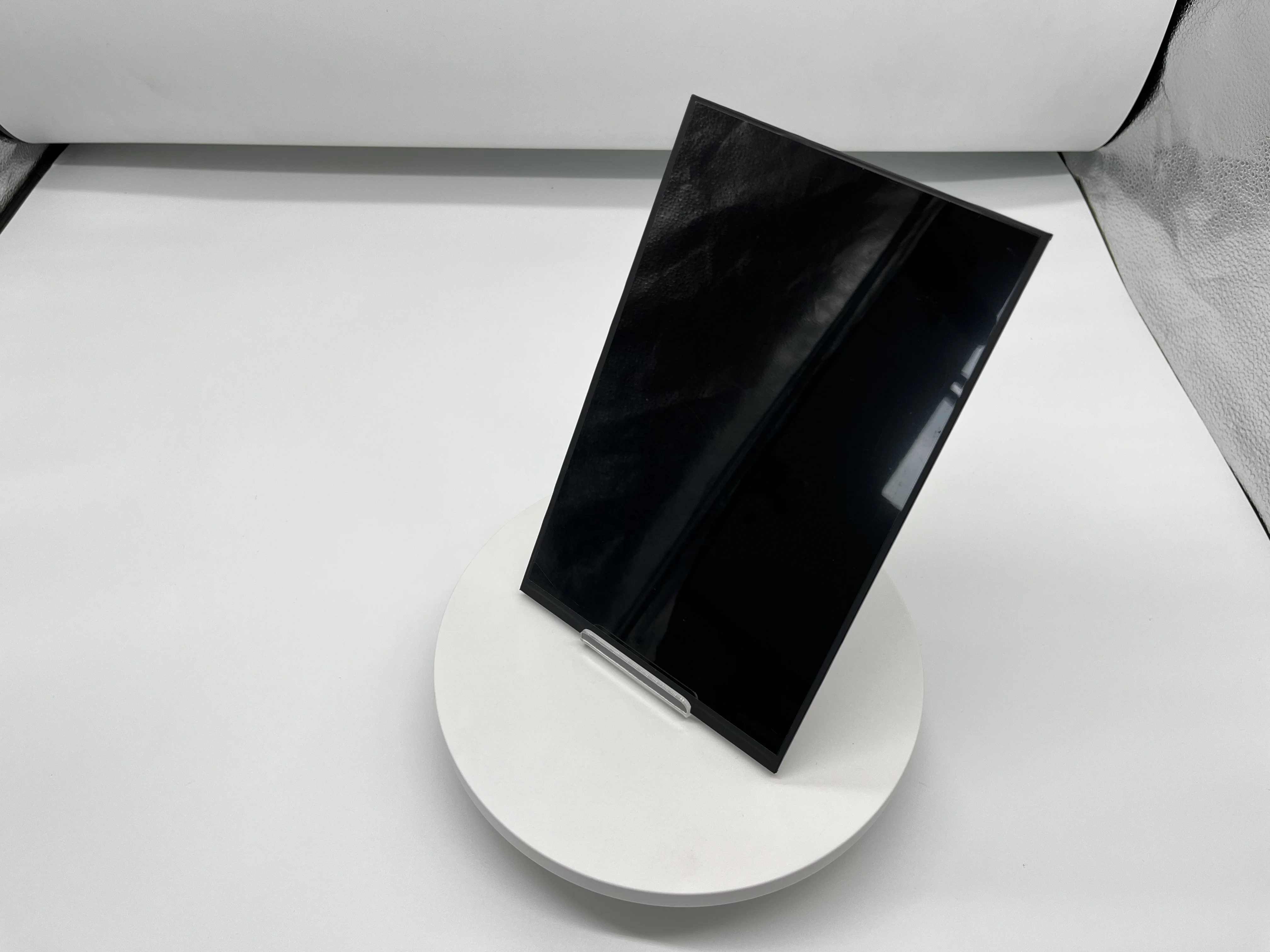

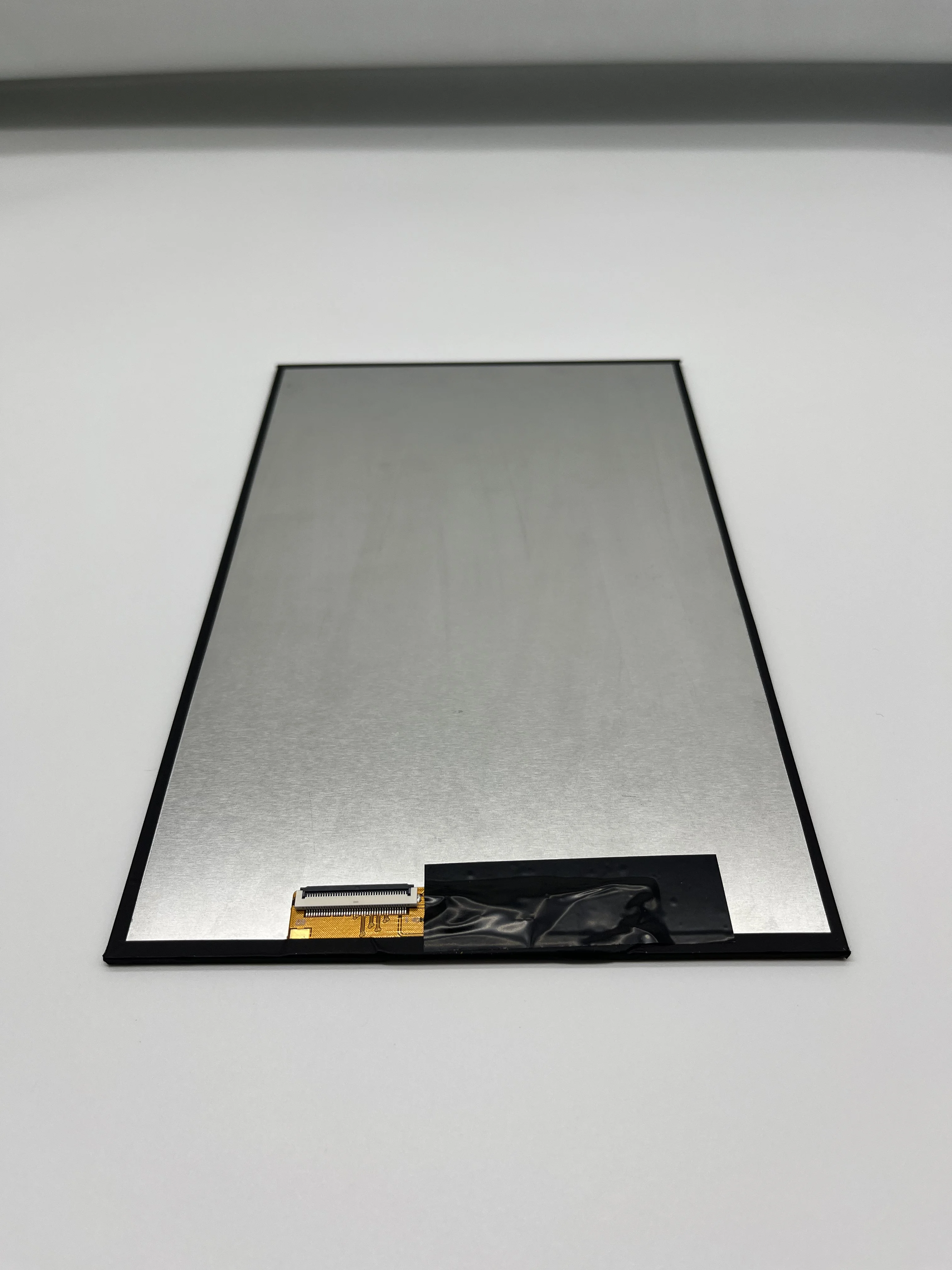

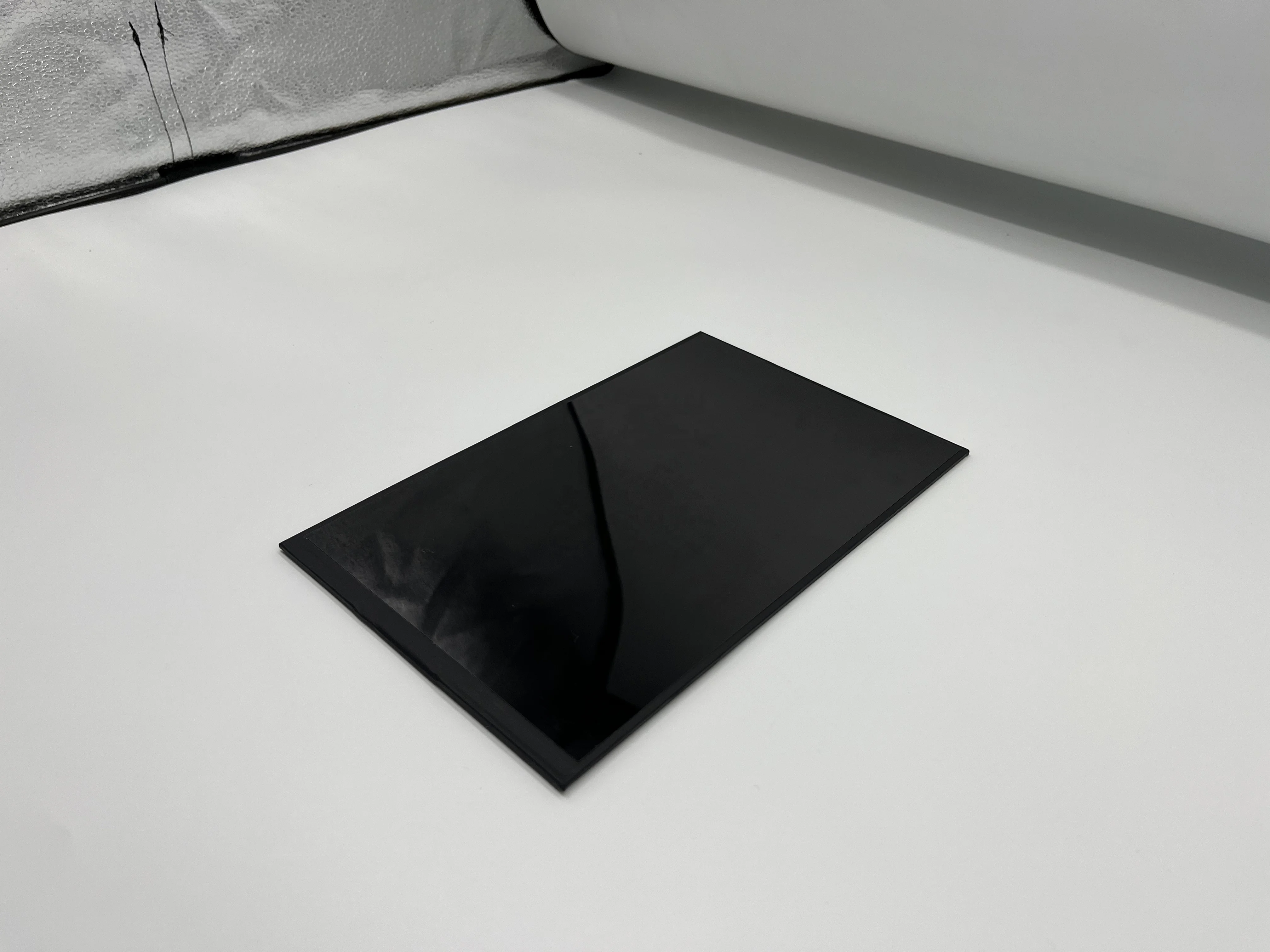

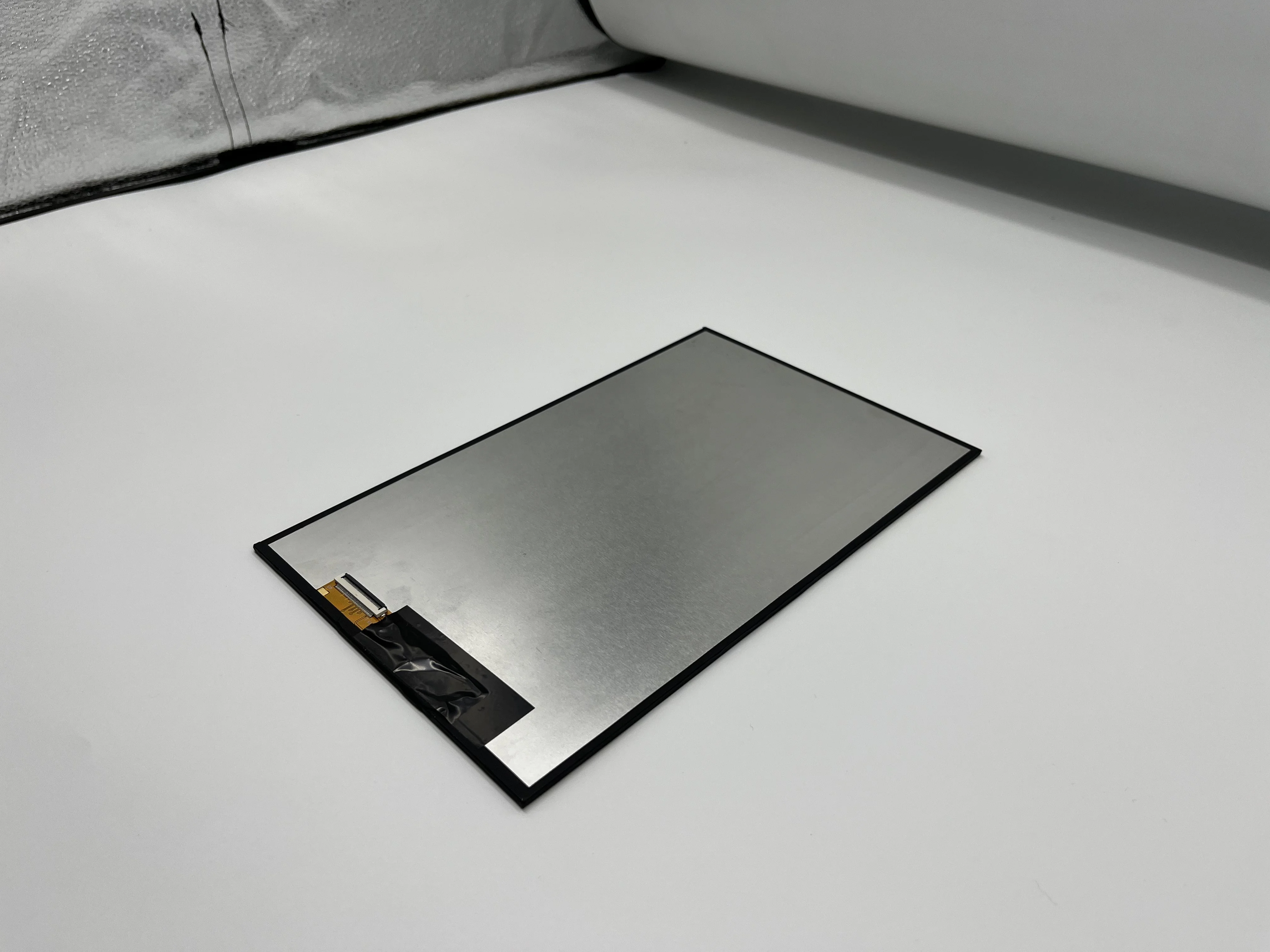

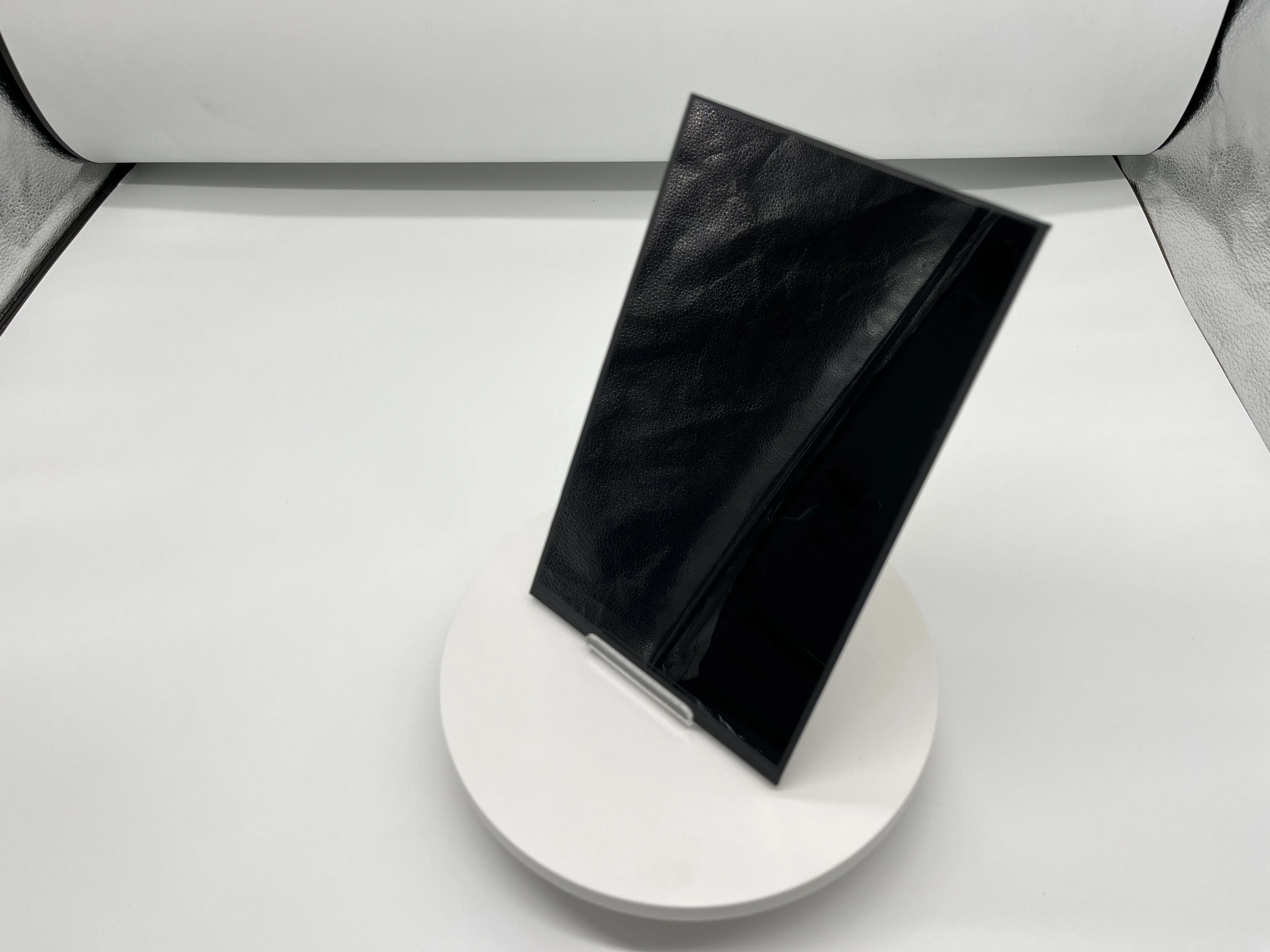

Details Images
Related Products
Size | Technology | Resolution | Interface | Brightness (Nits, Typ.) | O.D. (WxHxT, mm) | A.A. (WxHxT, mm) | LIFE TIME (Hr, Typ.) |
TN | 320x240 | RGB | 350 | 76.90x63.90x3.26 | 70.08x52.56 | 50,000 | |
TN | 480x272 | RGB | 500 | 105.5x67.2x3.0 | 95.04x53.86 | 50,000 | |
IPS | 800x480 | RGB | 1000 | 105.42x67.07x2.90 | 95.04x53.86 | 30,000 (Min.) | |
TN | 800x480 | RGB | 500 | 120.70x75.90x3.05 | 108.00x64.80 | 50,000 | |
IPS | 800x480 | RGB | 1000 | 120.70x75.90x3.05 | 108.00x64.80 | 50,000 | |
TN | 800x480 | RGB | 300 | 164.9x100.00x3.50 | 154.08x85.92 | 30,000 (Min.) | |
IPS | 1024x600 | LVDS | 1000 | 164.7x100.00x3.50 | 154.214x85.92 | 50,000 | |
TN | 800x600 | RGB | 550 | 183.0x141.0x5.6 | 162.0x121.5 | 50,000 | |
IPS | 800x1280 | MIPI | 280 | 114.6x184.1x2.60 | 107.64x172.22 | 30,000 | |
IPS | 1200x1920 | MIPI | 350 | 115.20x184.45x2.6 | 107.64x172.22 | 30,000 | |
TN | 800x480 | RGB | 250 | 210.7x126.4x3.5 | 198x117.7 | 50,000 | |
IPS | 1024x600 | LVDS | 1000 | 235x143x5.1 | 222.72x125.28 | 50,000 | |
IPS | 800x1280 | MIPI | 450 | 143x228.6x 2.5 | 216.58x135.36 | 50,000 | |
IPS | 1280x800 | LVDS | 400 | 228.2x148.95x2.6 | 216.96x135.6 | 30,000 (Min.) | |
IPS | 1024x768 | LVDS | 600 | 225x174.3x5.6 | 211.2x 158.4 | 50,000 | |
IPS | 1920x1080 | EDP | 400 | 263.4x157.82x 4.5 | 256.32x144.18 | 30,000 (Min.) | |
IPS | 1024x768 | LVDS | 600 | 260.5x 204x8.6 | 245.76x184.32 | 30,000 (Min.) | |
IPS | 1920x1080 | EDP | 300 | 300.26x177.39x2.4 | 293.76x165.24 | 30,000 (Min.) | |
IPS | 1024x768 | LVDS | 350 | 326.5x253.5x9.7 | 304.128x228.096 | 50,000 | |
IPS | 1920x1080 | EDP | 220 | 350.72x204.96x0.8 | 344.16x193.59 | 30,000 (Min.) | |
IPS | 1280x1024 | LVDS | 250 | 358.5x296.5x8.7 | 337.92x270.34 | 30,000 (Min.) | |
IPS | 1280x1024 | LVDS | 250 | 396.0x324.0x9.9 | 374.78x299.83 | 30,000 (Min.) |
Customized Solution
Company Profile
Shenzhen HCT Electronics Co., Ltd is a professional manufacturer and supplier of small and medium size TFT LCD display and touch screen. Our products are produced in around 7,000 square meters production area, including 5,000 square meters 100 level to 1000 level dust-free workshop. Our Company is an ISO9001 and ISO14001 certified manufacturer and qualified producer of TS16949. Our well trained 2100 employees are having rich experience in producing touch screen and TFT LCD display with 10 years' experience. Through modern management skills, by introducing constant updating newly automated technology and facilities into our production, contributing by our talented and innovative engineering human resources, HCT can meet your diversified needs.
Packing & Delivery
FAQ
Q1. What is your product range?
A1: We are 10 years of experience manufacturing TFT LCD and touch screen.
> 2.4" to 32" TFT LCD Module;> Bar type LCD screen up to 48 inch;
> High brightness LCD panel custom;
> Capacitive touch screen up to 55";
> 4 wire 5 wire resistive touch screen;
> One-step solution TFT LCD assemble with touch screen.
> High brightness LCD panel custom;
> Capacitive touch screen up to 55";
> 4 wire 5 wire resistive touch screen;
> One-step solution TFT LCD assemble with touch screen.
Q2: Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
> For the LCD display, backlight brightness and FPC cable can be customized;
> For the touch screen, we can custom the whole touch panel like the color, shape, cover thickness and so on according to the customer's requirement.
> NRE cost will be refunded after the total quantity reaches 1K pcs.
Q3. Which applications your products are mainly used for?
A3: Embedded system, Intercom system, Biometric, HMI, Smart home, Robot, Hand-held PDA, after market automotive and etc.
Q4. What's the delivery time?
A4: > For samples order, 2-3weeks;> For mass orders, 4-6weeks.
Q5. Do you provide free samples?
A5: For first time cooperation, samples will be charged, the amount will be returned at the mass order stage.
In regular cooperation, samples are free. Sellers keep the right for any change.
