260W/K Plate heat exchanger air cooling system for outdoor network electrical enclosure YXH 260 RF

Product Overview

Description

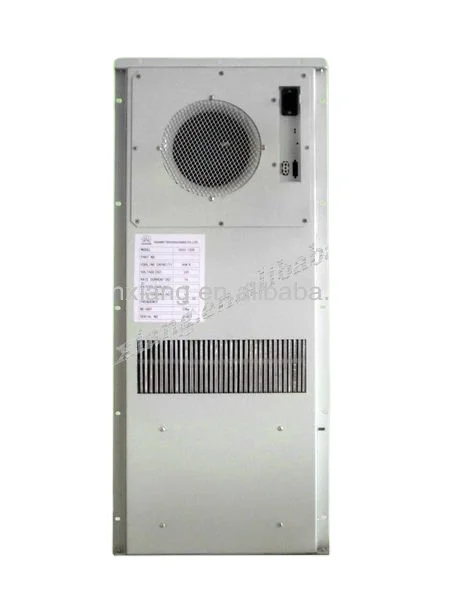

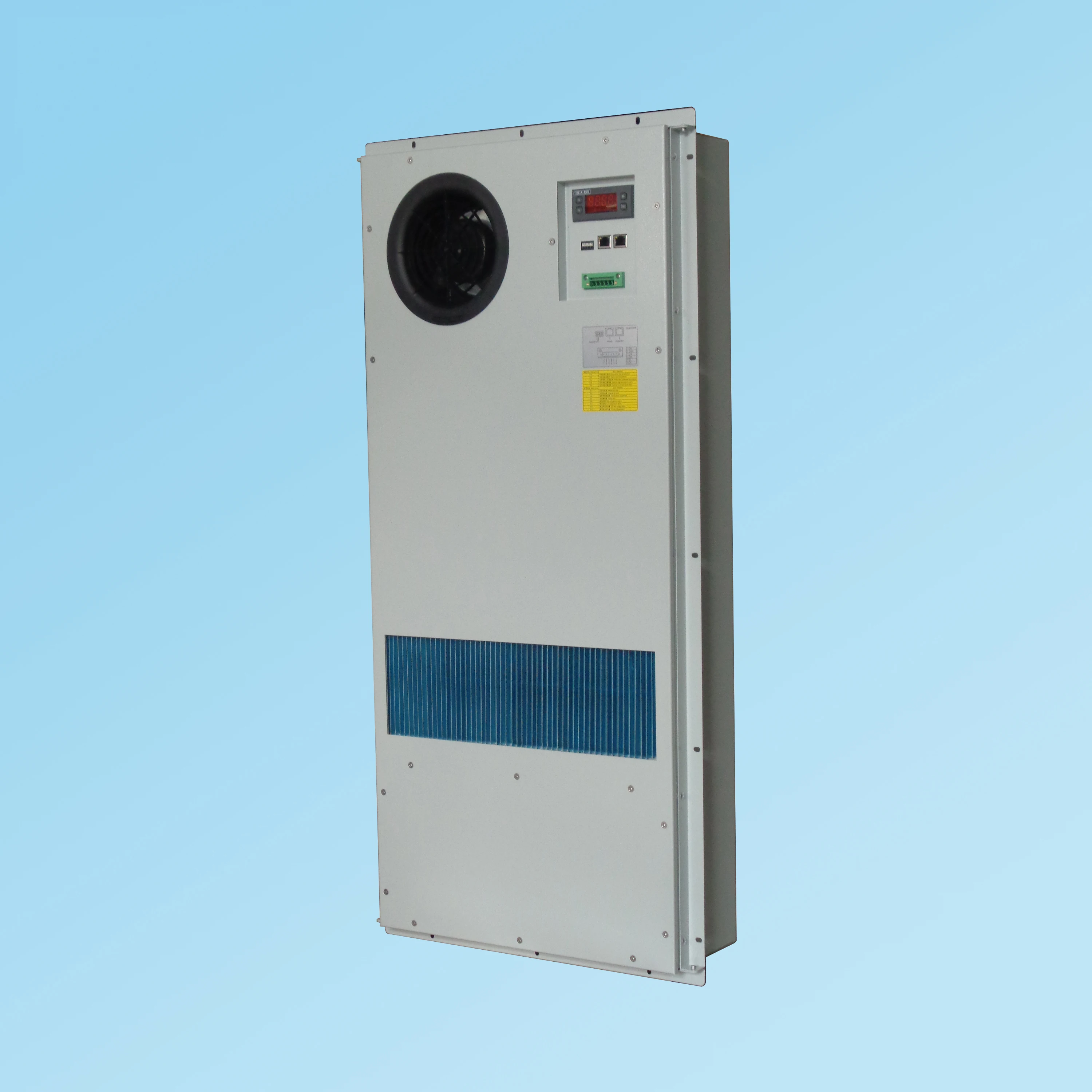

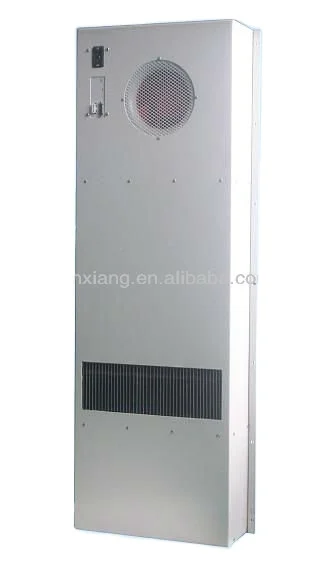

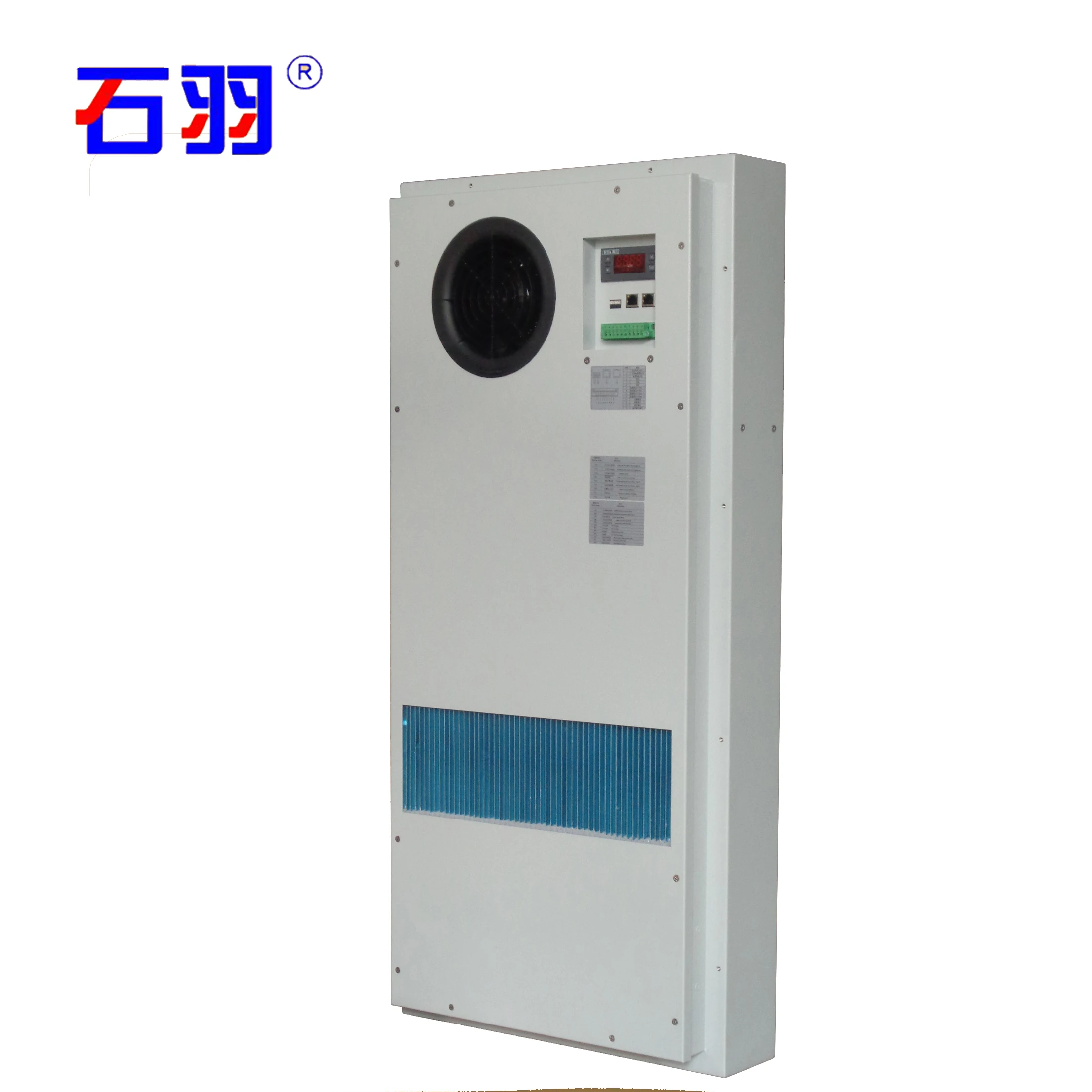

260W/K Heat exchanger cooling system for outdoor cabinet or battery enclosure YXH-260-RF

Description

The cabinet is made of aluminum sheet metal parts. The material is AlMg3  that is a corrosion resistant alloy of aluminum.

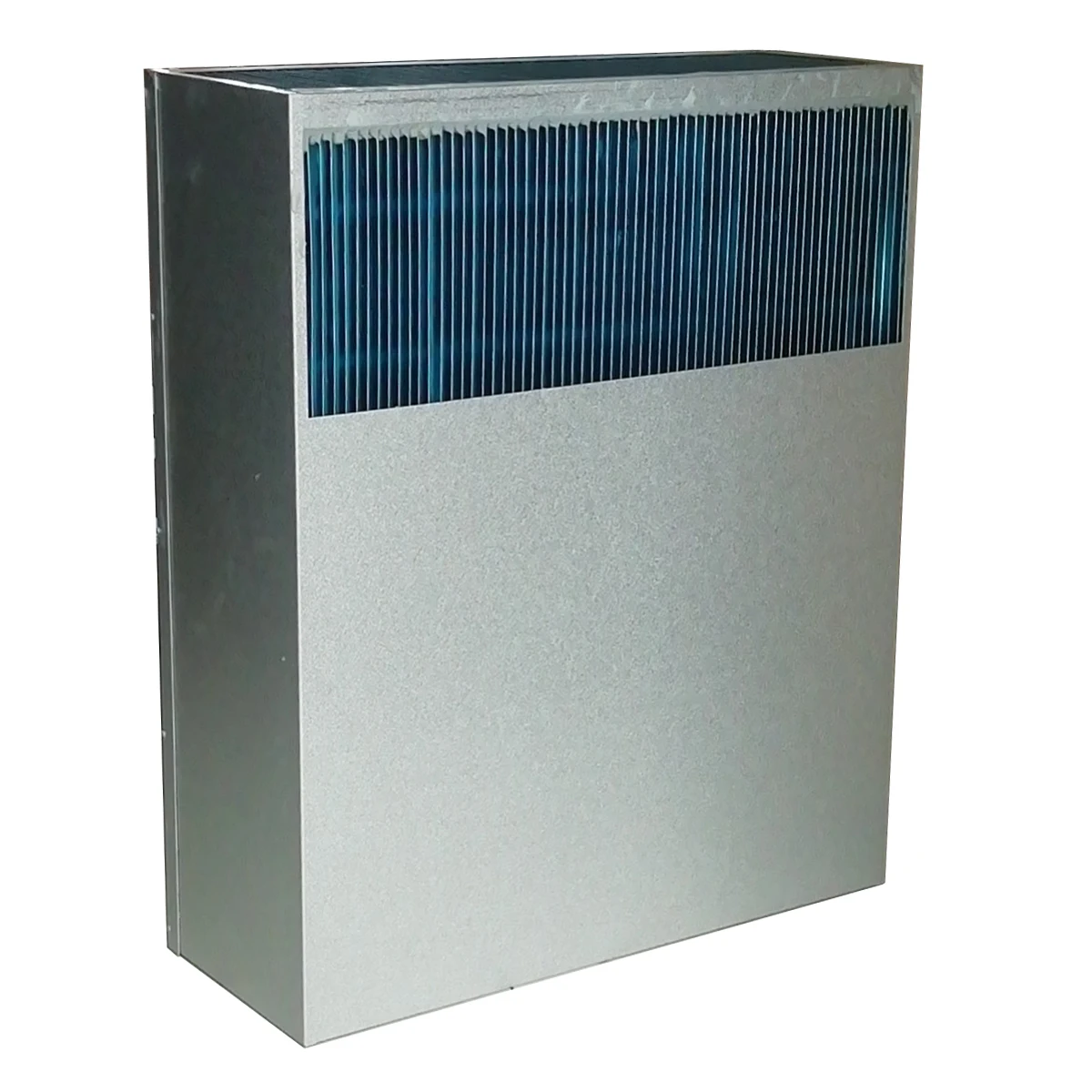

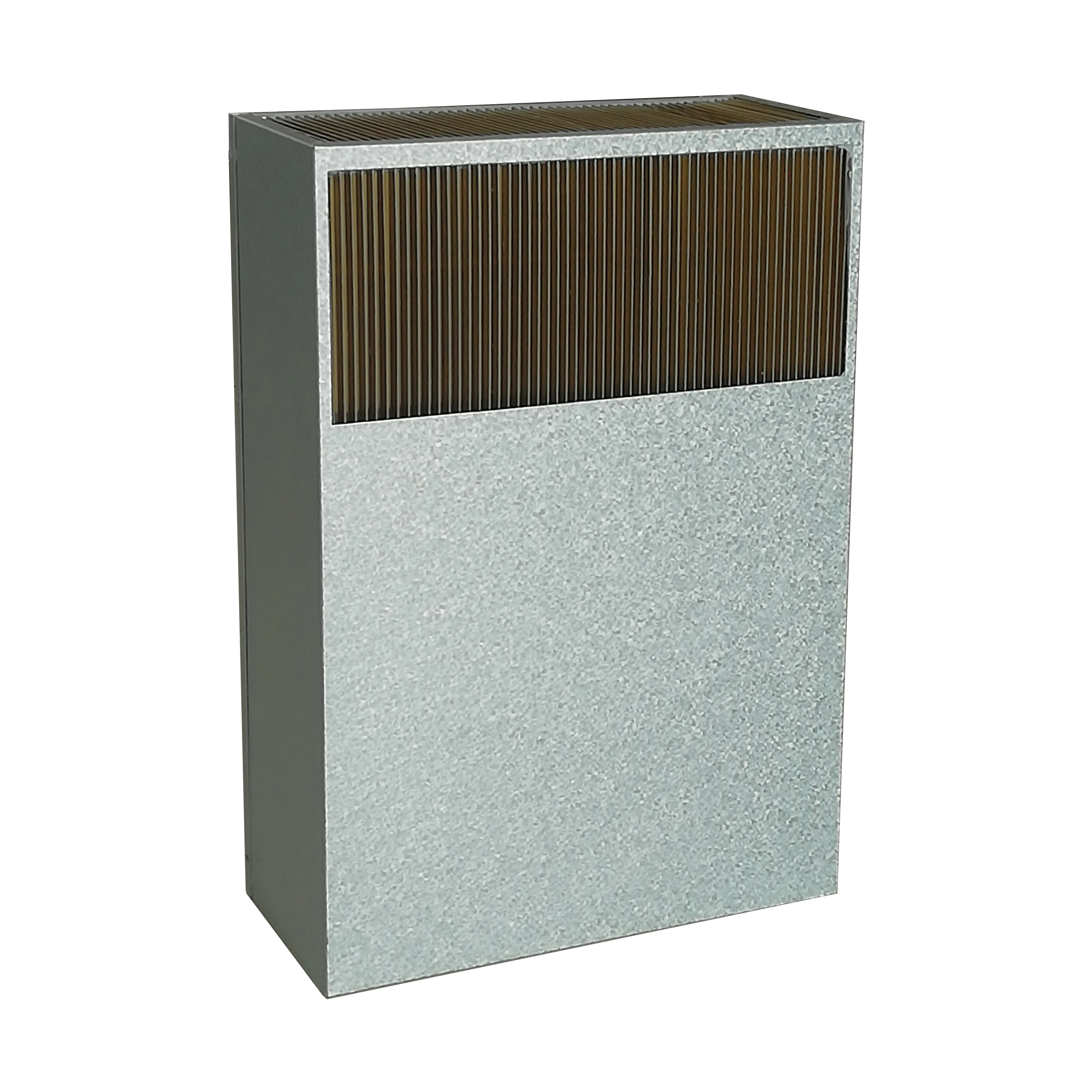

The heat exchanger core is using advanced patented technology design, it has good heat transfer performance and small wind resistance and using aluminum foil with special surface treatment as heat exchange medium.

Use aluminum foil with special surface treatment as heat exchange medium.

Specially designed heat exchange fin with the largest heat exchange surface.

Assembled with self-developed technology, ensuring tight internal and external circulation.

Make sure intelligent control of the entire heat exchanger unit, to realize real-time monitor and adjust rotating speed of the heat exchange fans and working conditions of the heater under different internal and external environment.



Features



(1)  Energy-efficient, intelligent control according to real temperature situation of internal and external circulation, reducing energy consumption to the greatest extent.

(2)  Environment-friendly, conforming to RoHS standard, low noise, no emission

(3)  High protection level IP55, for outdoor use (-40 ~65ºc, -40 – 155°F)

(4)  High air flow volume, make sure overall heat transfer inside the protected equipment

(5)  Simple and convenient installation

(6)  High reliability, maintenance free

(7)  Custom design

(8)  With multiple patent designs and technologies



Fans



The fans used are both 48VDC powered 225mm centrifugal fan. At full speed  they consume approx 180W total



Mounting

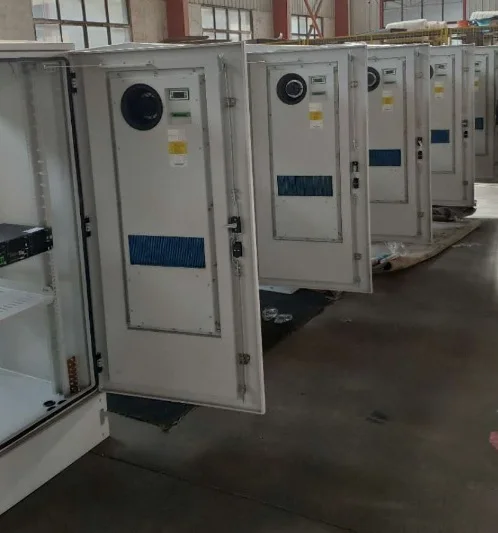

The heat exchanger unit is designed to be fixed to the inside of a cabinet.



Application
Communication, Electronics, wireless networks, mobile telecom base station, monitoring station, transmission equipment, communication equipment, computer, frequency converter, voltage transformer, switch equipment, automatic control equipment, high voltage control cabinet, cable TV equipment, machine tool power supply and control equipment, instrument laying rack/cabinet.



Technical parameter



Model	YXH-260-RF
Name	DC Cabinet Heat Exchanger
Mounting Method	Semi-embedded Mounting
Power Supply	-48VDC±20%
Rated Current	8.8A
Start-up Current	10.6A
Cooling Capacity	260W/K
Fans power Consumption	380W
Fans	4*R1G225
Internal Airflow	1600m3/h
Working temperature range	-40℃~+65℃
Max. Nolse Level	67dB(A)
Protect Level	IP55
Net Weight	55kg
Demension	1304*624*260mm(H*W*D)
CE&RoHS Compliant	Yes
Surface treatment	Outdoor type powder coating
Color	RAL7035
Heater (Optional)	300W

Heat exchangers is specific design temperature regulation for the request of outdoor sealed enclose cabinet and container in the base station.



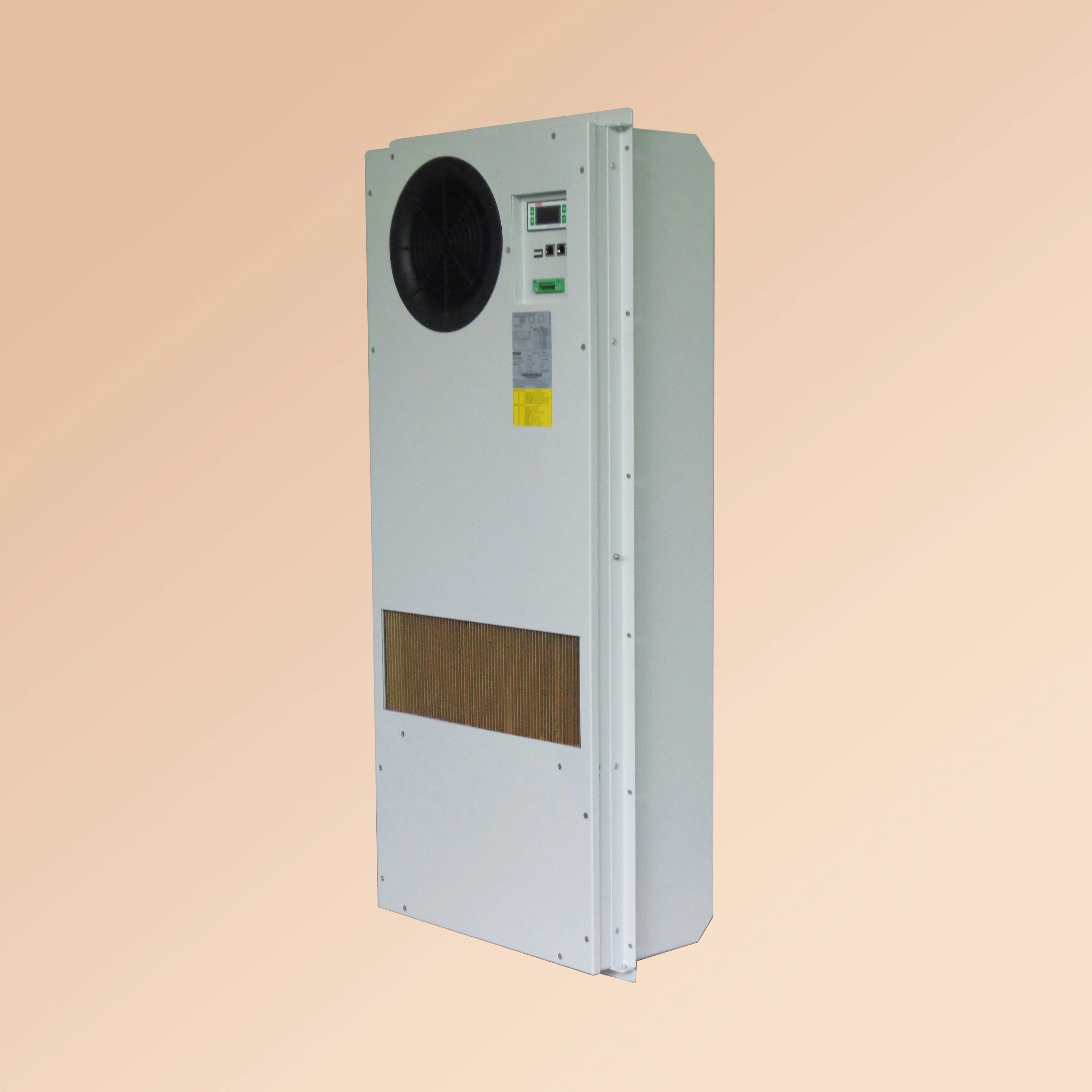

We have series of products:
15W/K,35W/K,60W/K,80W/K,90W/K,100W/K,120W/K,160W/K,180W/K, 190W/K 200W/K 220W/K,230W/K,250W/Kand so on,for AC or DC fans,use the counterflow aluminium epoxy coated cores.

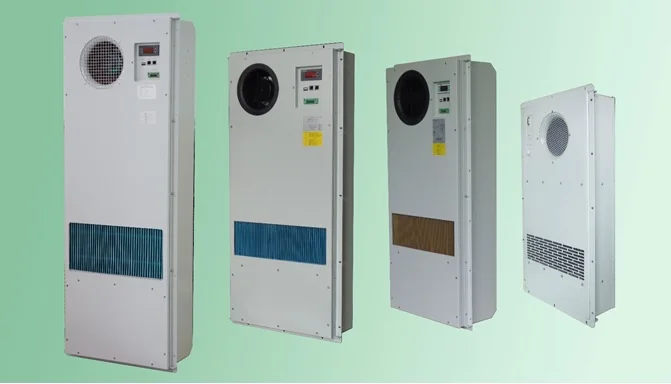

Product pictures







Related product picture



Certification and patent







General information

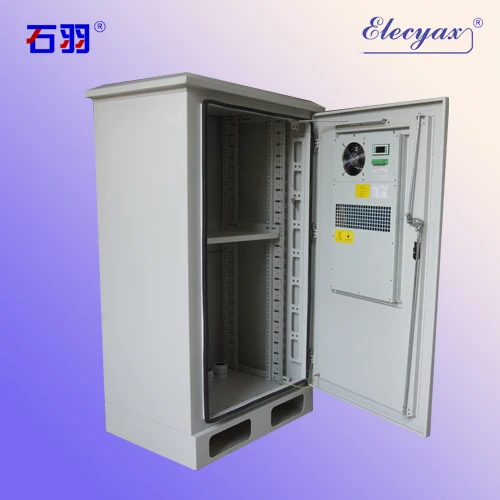

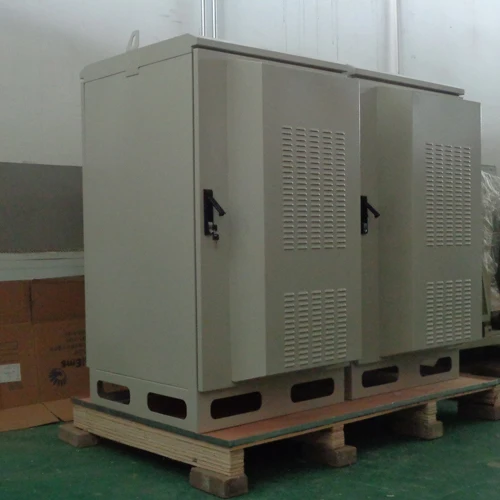

Application of Outdoor Telecommunication Cabinet
