Fluke 754 fast HART communication Documenting Process Calibrator HART with multiple masters burst mode multi drop configurations

Product Overview

Description

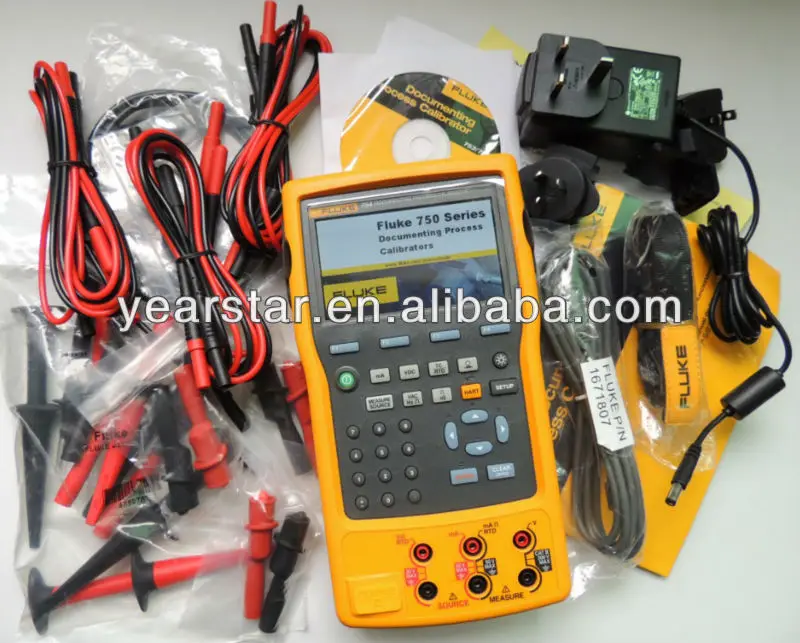

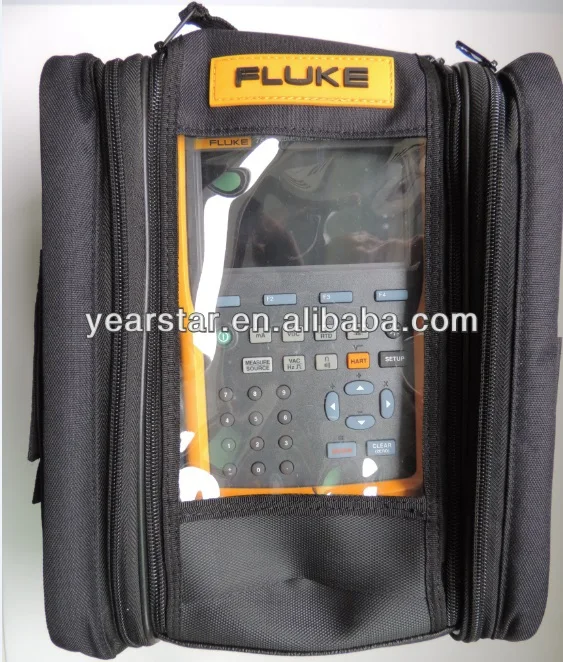

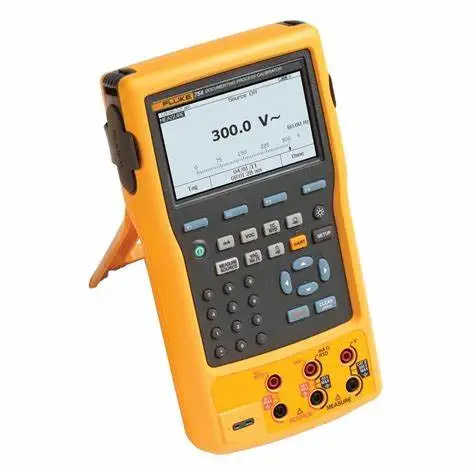

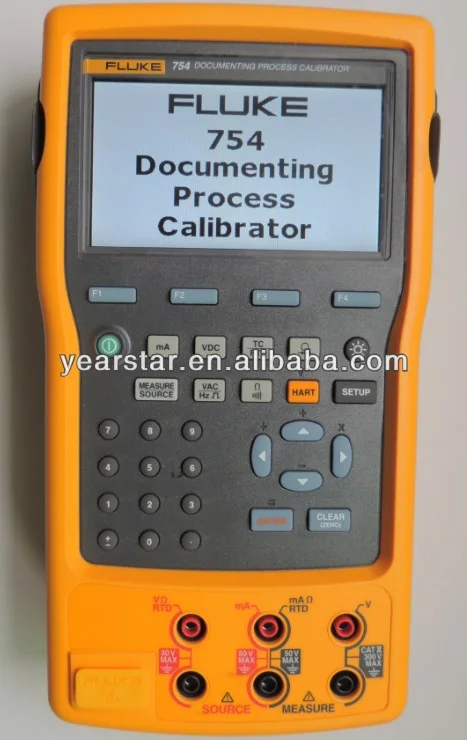

Fluke 754 Documenting Process Calibrator-HART:

The 754 is a power multifunction documenting calibrator that lets you download procedures, lists, and instructions created with software-or upload data for printing, archiving, and analysis. The 754 also features a powerful built in HART® interface capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.





• Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments


• Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters


• Power transmitters during test using loop supply with simultaneous mA measurement


• Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules


• Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results


• Holds up to a full week of downloaded procedures and calibration results.


• Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.


• Easy to use


• Three year warranty


• Bright white dual display. Read both sourced and measured parameters simultaneously.


• Multi lingual interface


• Rechargeable Li-Ion battery for 10 hour uninterrupted use. Includes gas gauge.


• Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.


• Delivered with DPC/Track Sample software.


• Compatible with many Asset Management software packages.

 HART Capabilities :



The 754 is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers the communication capabilities of the 375 HART communicator

• Requires no external box or second tool for everyday HART calibration and maintenance.


• Offers fast HART communication.


• Supports popular models of HART transmitters, with more devise-specific command support than any other HART field calibrator.


• Works with multiple masters, burst mode, and multi-drop configurations.


• Is easy to update as additional instruments are added and new HART versions are released.


• Interrogate to determine device type, manufacturer, model, tag.


• Reconfigure the sensor mapping of dual sensor temperature transmitters.


• Read HART PV function and smart transmitter digital output while measuring analog mA output.


• Read and write HART configuration functions to make field adjustments to PV range points, damping, and other top-level configuration settings.


• Re-label smart transmitters by reading and writing to the HART tag field.

Measurement Accuracy :

Voltage DC	1 Year 2 Years 100.000 mV 0.02%+0.005 mV 0.03%+0.005 mV 3.00000 V 0.02%+0.00005 V 0.03%+0.00005 V 30.0000 V 0.02%+0.0005 V 0.03%+0.0005 V 300.00 V 0.05%+0.05 V 0.07%+0.05 V
Voltage AC	Range 40 to 500 Hz Resolution 1 Year 2 Years 3.000 V 0.001 V 0.5%+0.002 V 1.0%+0.004 V 30.00 V 0.01 V 0.5%+0.02 V 1.0%+0.04 V 300.0 V 0.1 V 0.5%+0.2 V 1.0%+0.2 V
Current DC	1 Year 2 Years 30.000 mA 0.01% + 5 uA 0.015%+7 uA 110.00 mA 0.01% + 20 uA 0.015%+30 uA
Resistance	1 Year 2 Years 10.000 Ω 0.05% + 50 mΩ 0.07%+70 mΩ 100.00 Ω 0.05% + 50 mΩ 0.07%+70 mΩ 1.0000 kΩ 0.05% + 500 mΩ 0.07%+0.5 Ω 10.000 kΩ 0.1% + 10 Ω 0.15%+15 Ω
Frequency	Resolution Accuracy (2 Years) 1.00 to 110.00 Hz 0.01 Hz 0.05 Hz 110.1 to 1100.0 Hz 0.1 Hz 0.5 Hz 1.101 to 11.000 kHz 0.001 kHz 0.005 kHz 11.01 to 50.00 kHz 0.01 kHz 0.05 kHz



Source Accuracy
Voltage DC	1 Year 2 Years 100.000 mV 0.01%+0.005 mV 0.015%+0.005 mV 1.00000 V 0.01%+0.00005 V 0.015%+0.0005 V 15.0000 V 0.01%+0.0005 V 0.015%+0.0005 V
Current DC	1 Year 2 Years 22.000 mA (Source) 0.01%+ 0.003 mA 0.02%+ 0.003 mA Current Sink (Simulate) 0.02% + 0.007 mA 0.04% + 0.007 mA
Resistance	1 Year 2 Years 10.000 Ω 0.01% + 10 mΩ 0.015% + 15 mΩ 100.00 Ω 0.01% + 20 mΩ 0.015% + 30 mΩ 1.0000 kΩ 0.02% + 0.2 Ω 0.03% + 0.3 Ω 10.000 kΩ 0.02% + 3 Ω 0.03% + 5 Ω
Frequency	2 Years 0.1 to 10.99 Hz 0.01 Hz 0.01 to 10.99 Hz 0.01 Hz 11.00 to 109.99 Hz 0.1 Hz 110.0 to 1099.9 Hz 0.1 Hz 1.100 to 21.999 kHz 0.002 kHz 22.000 to 50.000 kHz 0.005 kHz



Technical Data
Data Log Functions	Measure functions: Voltage, current, resistance, frequency, temperature, pressure Reading rate: 1, 2, 5, 10, 20, 30, or 60 readings/minute Maximum record length: 8000 readings (7980 for 30 or 60 readings/minute)
Ramp Functions	Source functions: Voltage, current, resistance, frequency, temperature Rate: 4 steps/second Trip detect: Continuity or voltage (continuity detection not available when sourcing current)
Loop Power Function	Voltage: Selectable, 26 V Accuracy: 10%, 18 V minimum at 22 mA Maximum current: 25 mA, short circuit protected Maximum input voltage: 50 V DC
Step Functions	Source Functions Voltage, current, resistance, frequency, temperature Manual Step Selectable step, change with arrow buttons Autostep Fully programmable for function, start delay, stepvalue, time per step, repeat
