Сверхмощный центр под напряжением, стальной прецизионный токарный станок, центр под напряжением для токарных станков с ЧПУ, аксессуары для станков

Product Overview

Description

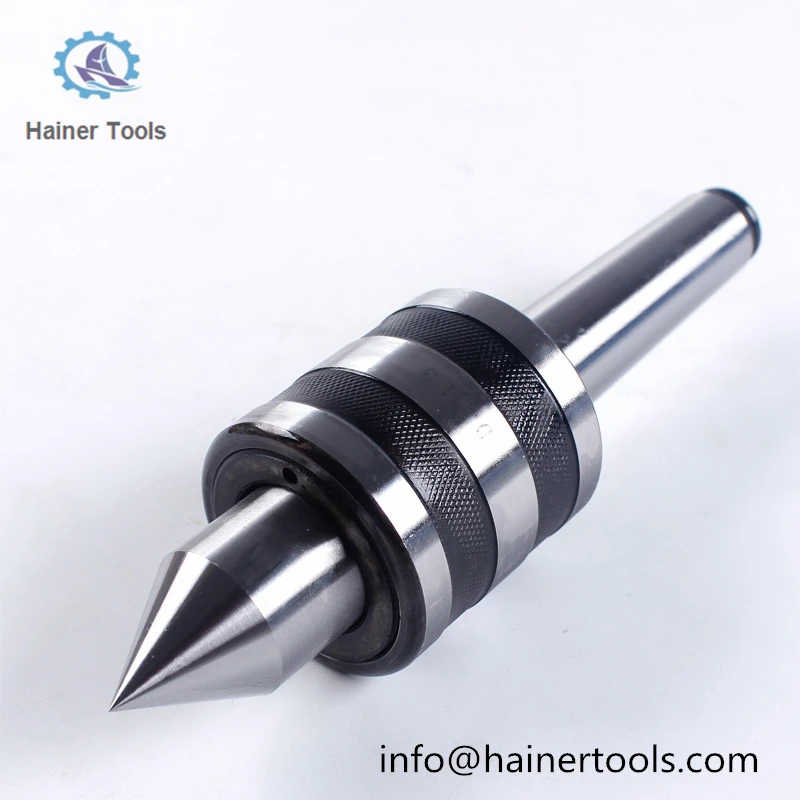

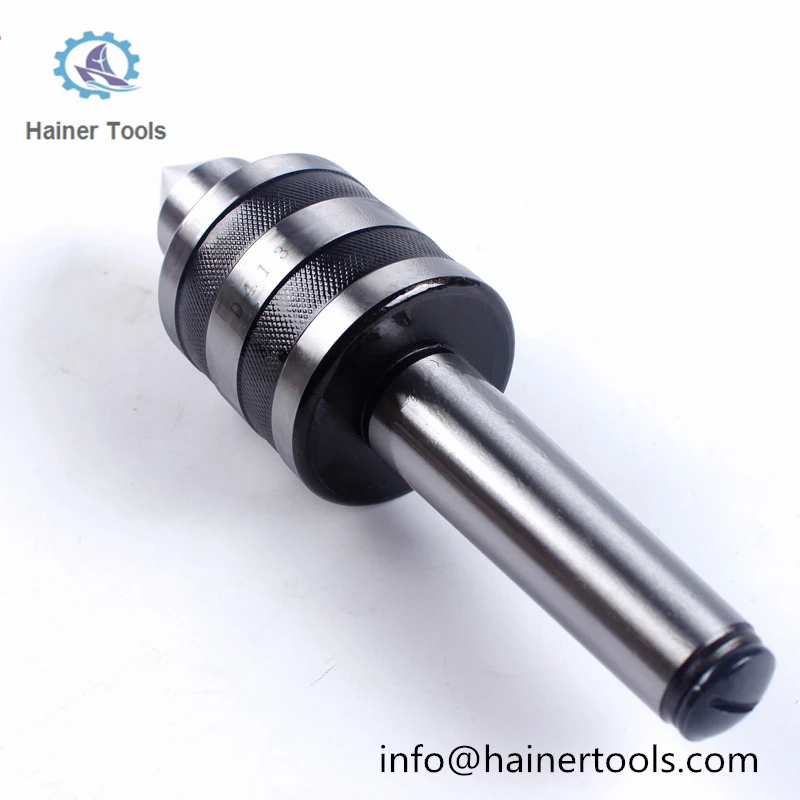

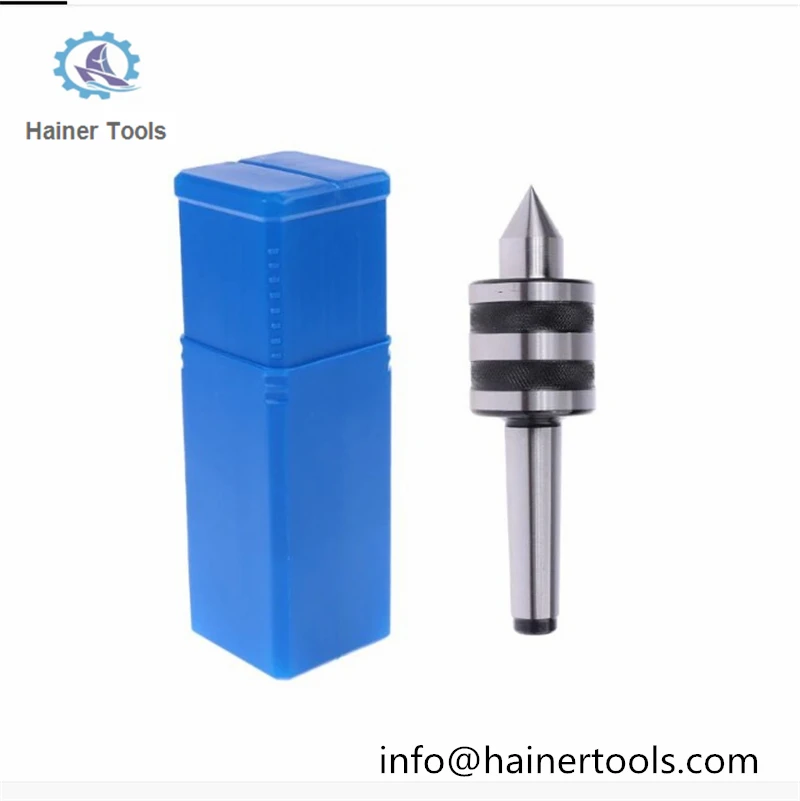

Heavy Duty Live Center Bearing Steel Precision Lathe Live Center for CNC Lathes Machine Accessories

Specifications:
Condition: 100% Brand New
Material: Bearing Steel
Type: MT2
Accuracy: 0.01mm
Quenching Hardness: 55-60HRC (Pointed part), 45-50HRC (Main part)

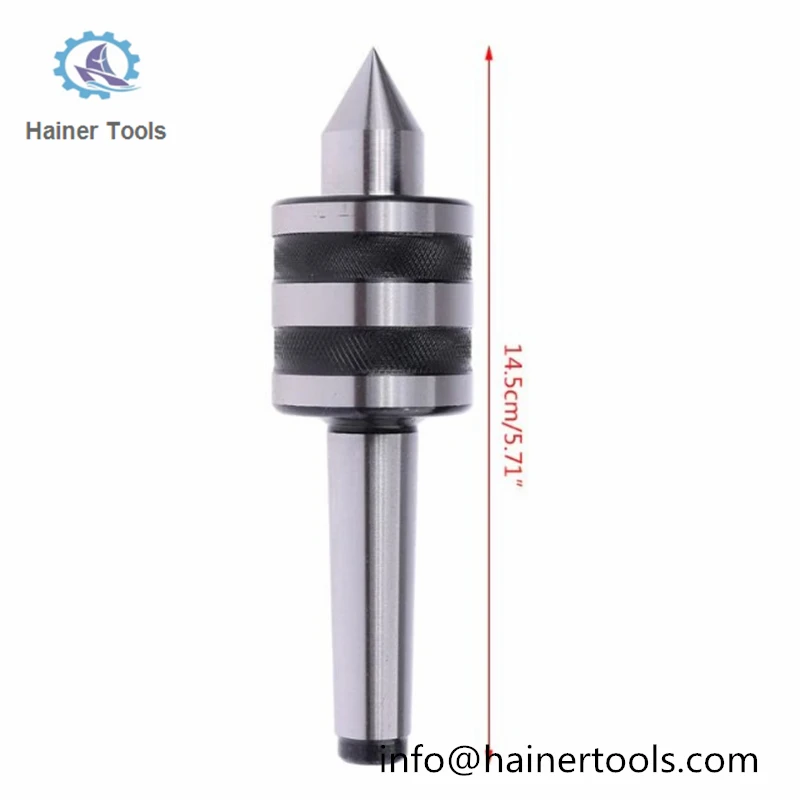

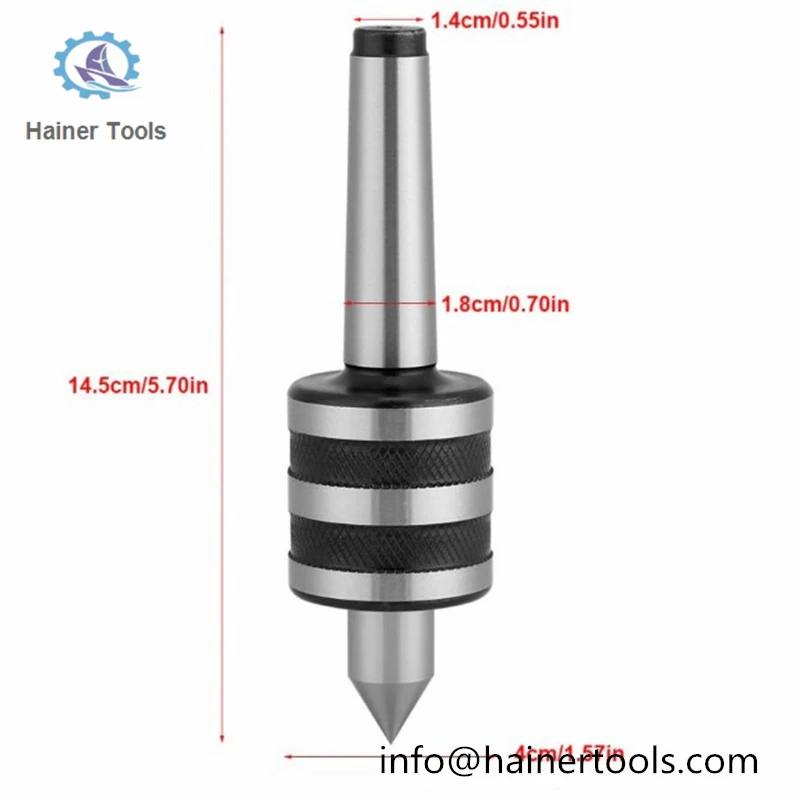

Length: approx. 14.5cm / 5.7inch
Largest Diam.: approx. 4cm / 1.6inch
Shank Diam.: approx. 1.4cm / 0.6inch

PRECISION LIGHT-LIVE CENTER
MS.NO.	L	D	L1	d	D1	Max Load	Max Speed	Accuracy
	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)	(rpm)	(mm)
MS1	115	34	20.3	18	12.065	320	5000	0.005
MS2	129.6	45	28.6	25	17.780	400	5000	0.006
MS3	161.7	52	32.5	28	23.825	800	4500	0.006
MS4	191.7	60	36.5	32	31.267	1250	3500	0.006
MS5	244.5	80	50.8	45	44.399	1500	3000	0.006
MS6	350.5	130	74.8	75	63.348	1800	2500	0.006
MS7	423.5	130	74.8	75	83.061	2200	2000	0.006



Features:

· The main body is made from 40CR steel, its quenching hardness is 45 to 50 HRC; the pointed part is made form high speed steel, quenching hardness is 55 to 60HRC.

· High quality bearing design, using high speed bearing for high accuracy.

· Dust proof seal preventing cutting dust enter into bearing thus prolong service time.

· Designed for lathe in medium speed and medium load environment.

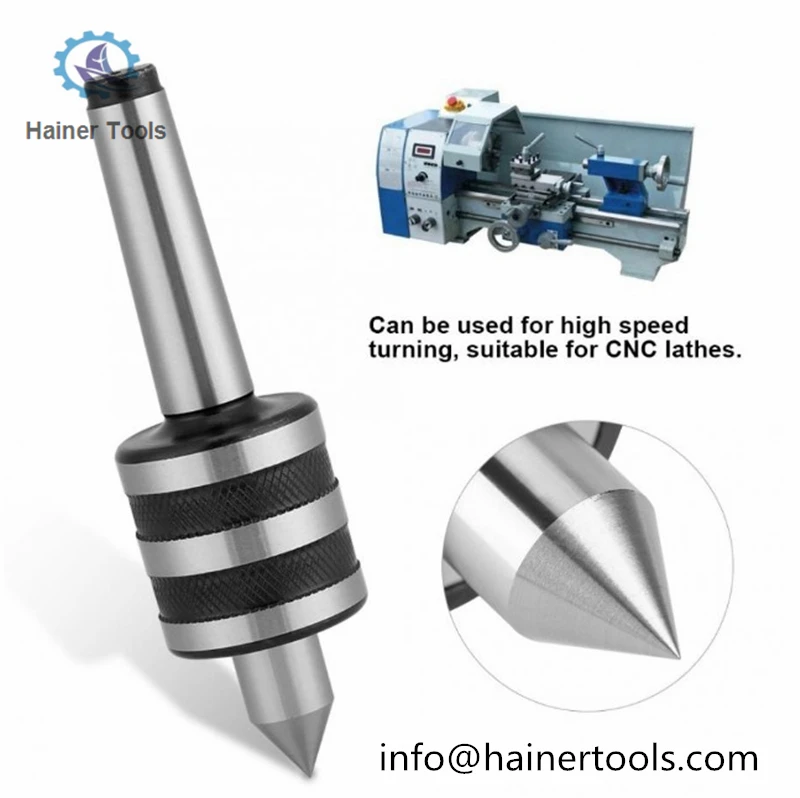

· Can be used for high speed turning, suitable for CNC lathes.



Made of premium steel material, the live center is of strong hardness, high precision and long durability. It is applicable to special lathe in the medium speed of the medium load processing.
