Wholesale 250 meters extend 16 Ports Full Gigabit layer 2 Managed Ethernet PoE Switch

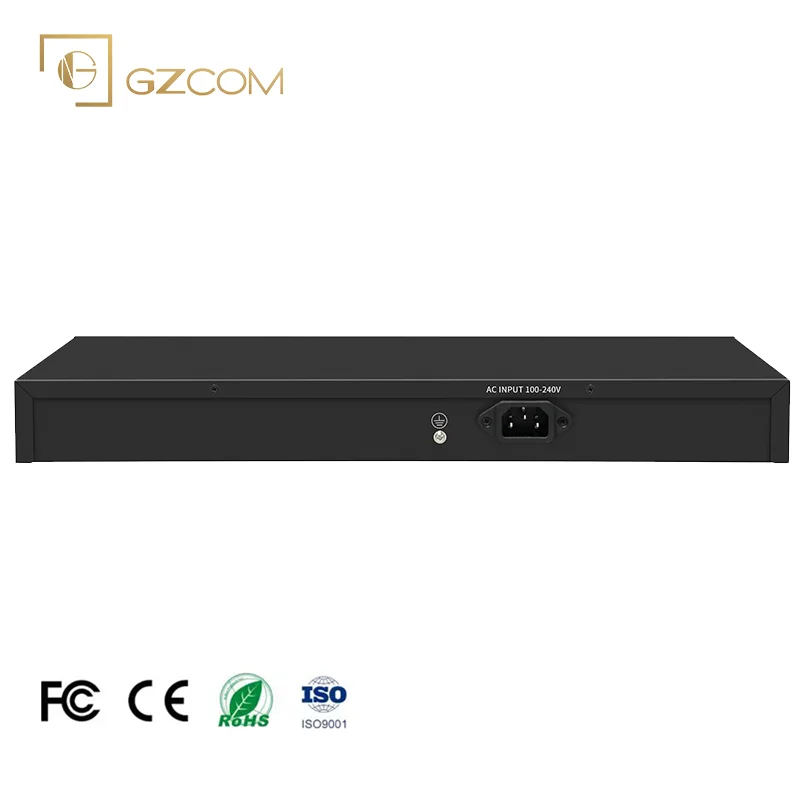

AC INPUT

AC100-240V，50/60Hz

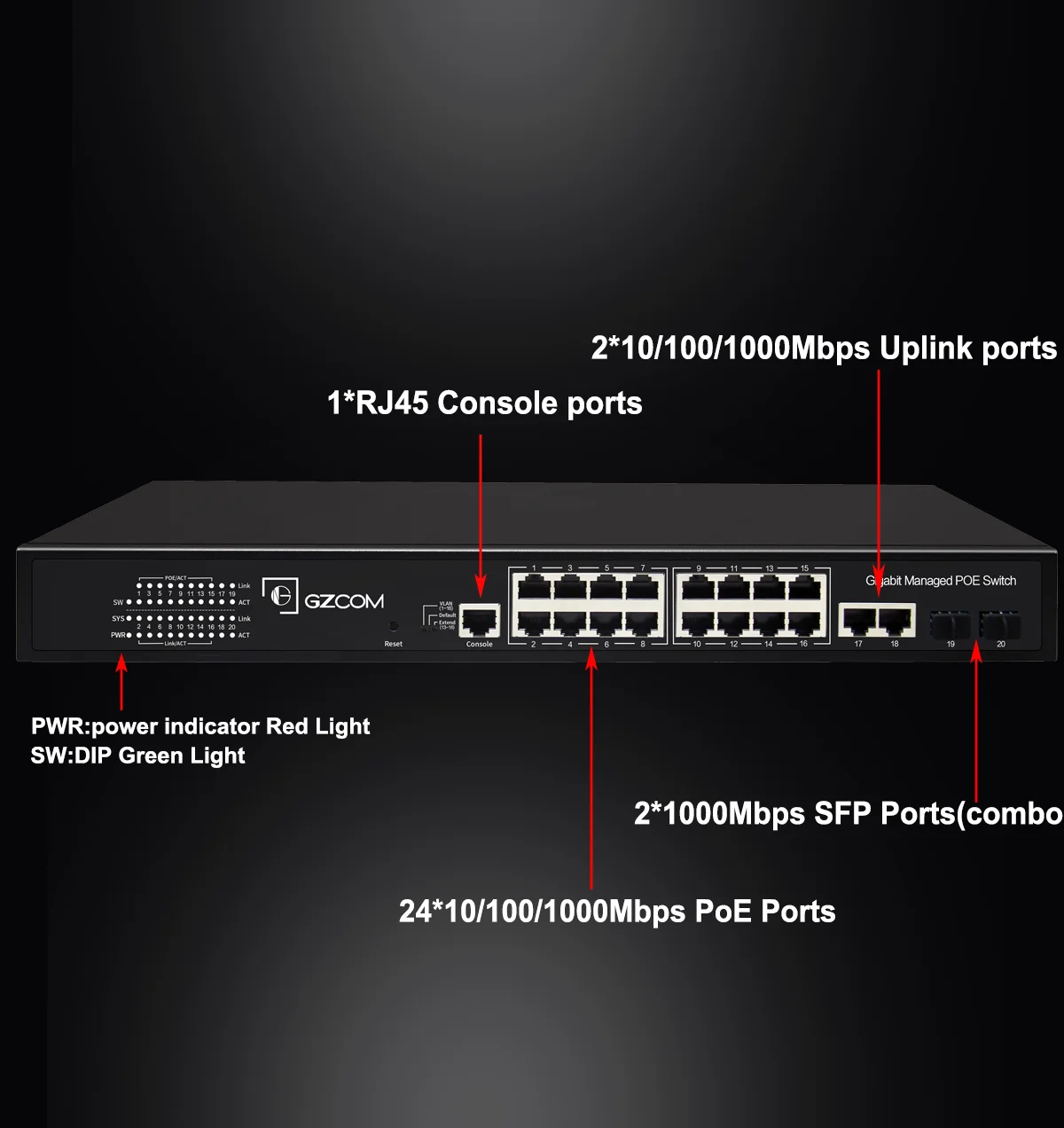

Ethernet Port

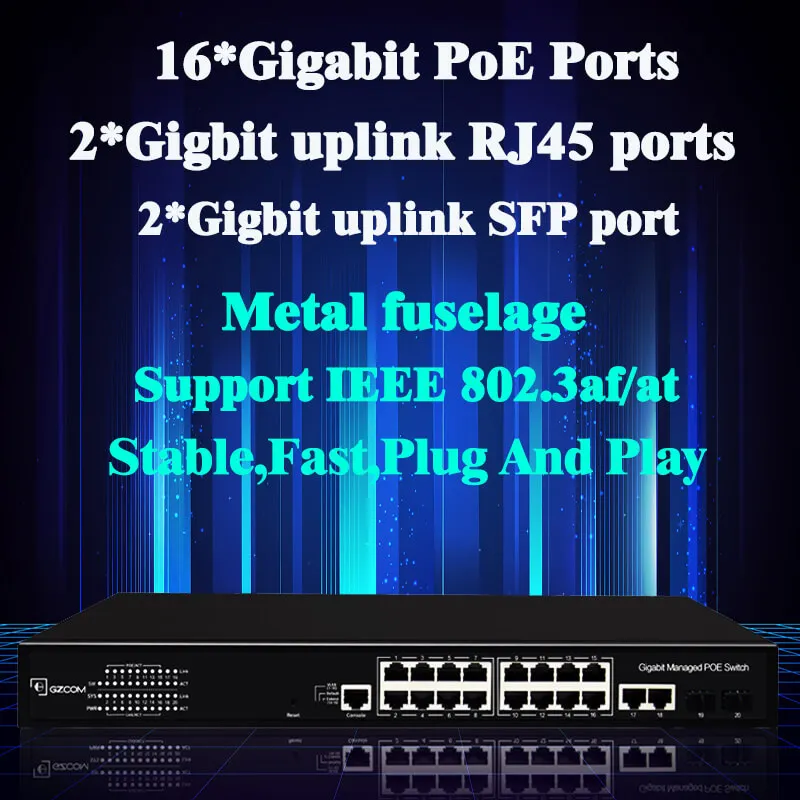

16 * 10/100/1000Mbps PoE Port
2* 10/100/1000Mbps Uplink Port
2* 1000Mbps SFP Port

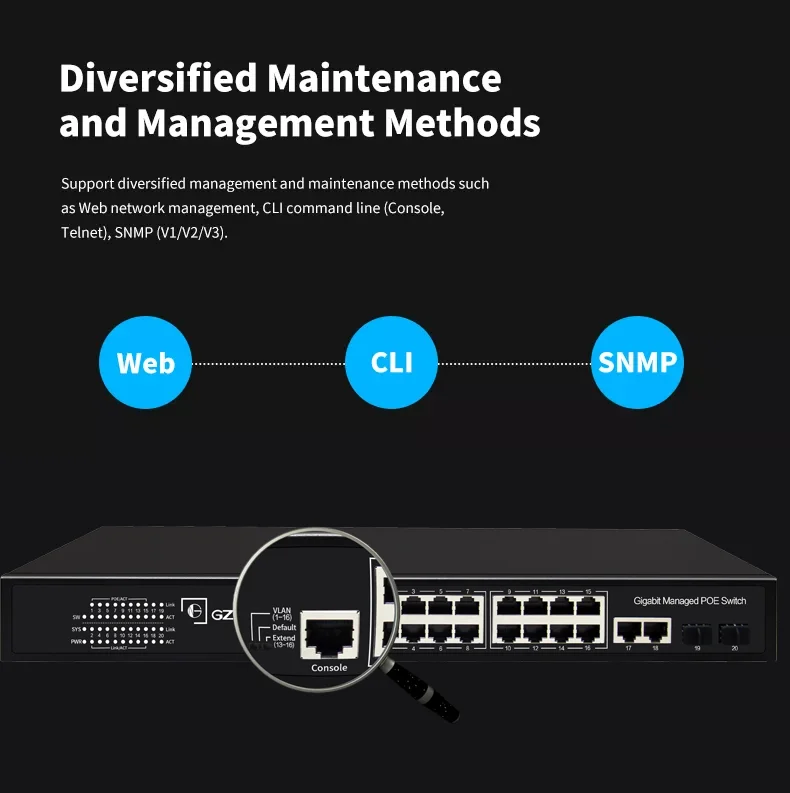

1 * RJ45 Console Port

Bandwidth

40Gbps

Packet Forwarding rate

29.76Mpps

DDR SDRAM

128MB

Flash Memory

16MB

Packet Buffer Memory

4M

MAC Address

8K

Jumbo frame

9.6Kbytes

VLANs

4096

Network Protocols

IEEE 802.3：Ethernet MAC Protocol
IEEE 802.3i：10BASE-T Ethernet
IEEE 802.3u：100BASE-TX Fast Ethernet
IEEE 802.3ab：1000BASE-T Gigabit Ethernet
IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ad：Standard method for performing link aggregation
IEEE 802.3x：Flow control
IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)
IEEE 802.1q：VLAN Bridge Operation
IEEE 802.1x：Client/Server Access Control and Authentication Protocol
IEEE 802.1d：STP
IEEE 802.1s：MSTP
IEEE 802.1w：RSTP

PoE protocol

IEEE802.3af （15.4 W）
IEEE802.3at （30 W）

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

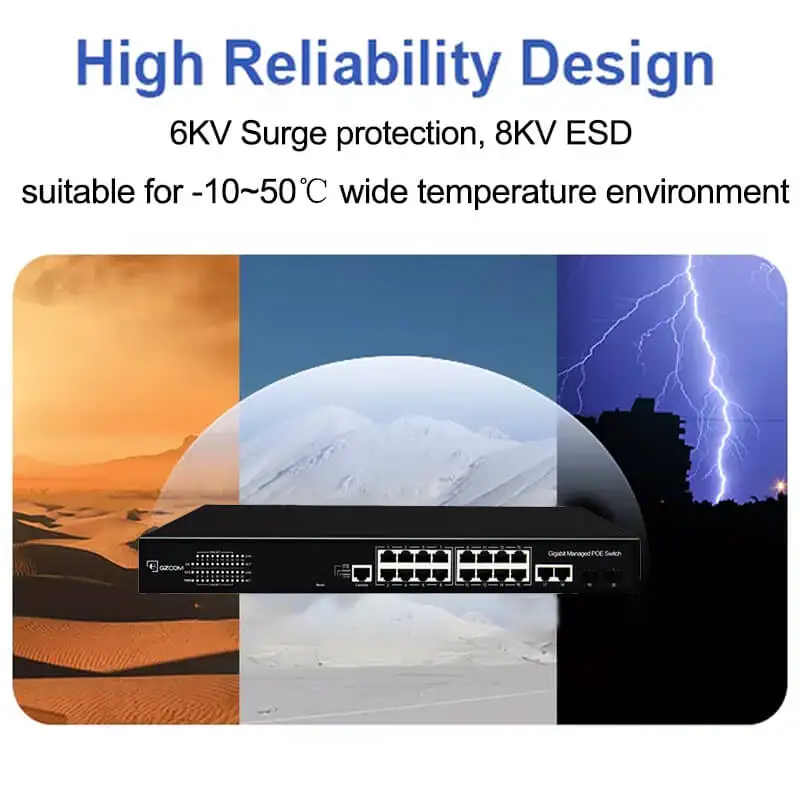

EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6

Network Media

10BASE-T: Cat3、4、5 or above UTP(≤100 M)
100BASE-TX: Cat5 or above UTP(≤100 M)
1000BASE-TX: Cat5 or above UTP(≤100 M)

Fiber Medium

Multi-mode Fiber: 50/125、62.5/125、100/140um
Single-mode Fiber: 8/125、8.7/125、9/125、10/125um

Safety Certificate

CE、FCC、RoHS

Environmental standards

Working Environment

Operating temperature: -20~50°C
Storage temperature: -40~85°C
Operating Humidity: 10%~90%, No condensation
Storage Humidity: 5%~90%, No condensation
Working height: Up to 10,000 feet
Storage height: Up to 10,000 feet

Indicator

PWR, SYS, SW, PoE/ACT, Link/ACT

PWR（Power Indicator）

Lighting：Powered
Un-Light：No Power

SYS（System Indicator）

Flashing: System Start-up
Lighting: System Running

SW（DIP Indicator）

Lighting: VLAN
Un-Light: Default
Flashing: Extend

PoE/ACT

Lighting：PoE on
Un-Light：PoE off

Link/ACT

Lighting: Link connection
Flashing: Data transmission
Un-Light: Link disconnect

DIP Function

VLAN、Default、Extend、Reset

VLAN

1-16 ports are isolated from each other, and the PoE Watchdog function is open (hardware takes precedence over software)

Default

All ports can communicate with each other, PoE Watchdog is closed

Extend

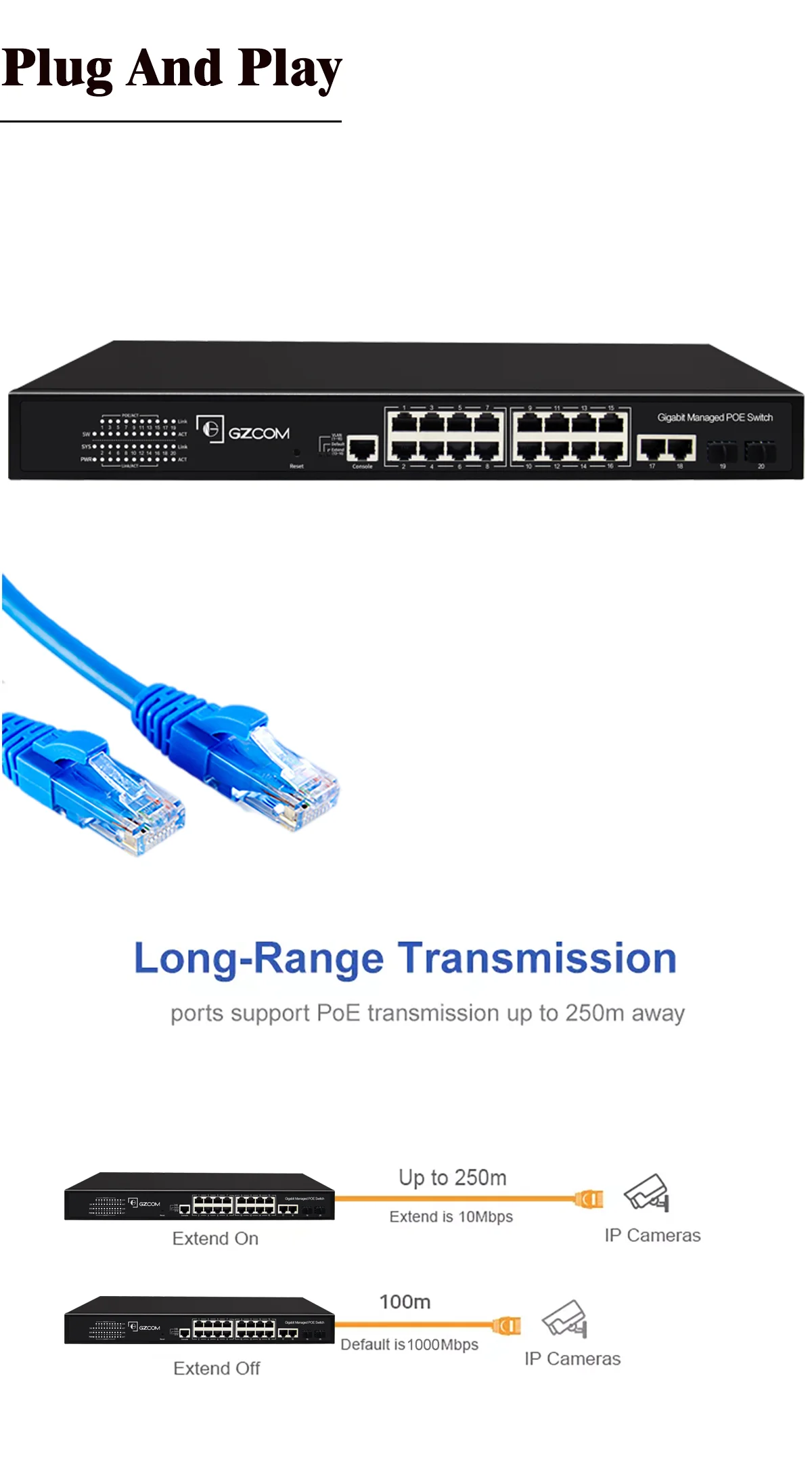

13-16 Port: Supports 250m link extension at a rate of 10M, other ports normal, PoE Watchdog open (hardware takes precedence over
software)

Reset

Short press restart, long press 5 seconds to restore factory Settings

Product Information

Product Dimensions: 440*205*44mm
Package Dimensions: 500*275*85mm
Product N.W: 2.7KG
Product G.W: 3.2KG

Packing Information

Carton Dimensions: 520*445*300mm
Packing Qantity: 5PCS
Packing weight: 17KG

Voltage

Input Voltage: AC100-240V/50-60Hz
Power supply: 52V5.76A

Packing list

1. Ethernet switch: 1 Set
2. Instruction manual: 1 PCS
3. Certificate, warranty card: 1 PCS
4. Power cord: 1PCS
5. Serial cable: 1PCS
6. Rack ear: 1 Pairs
7. Operation manual CD: 1 PCS
