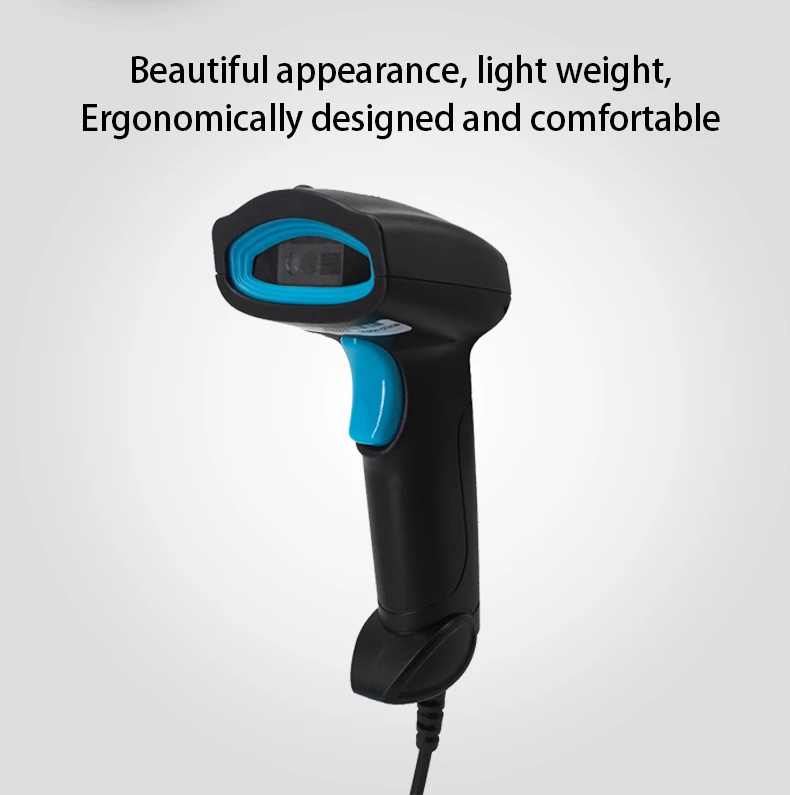

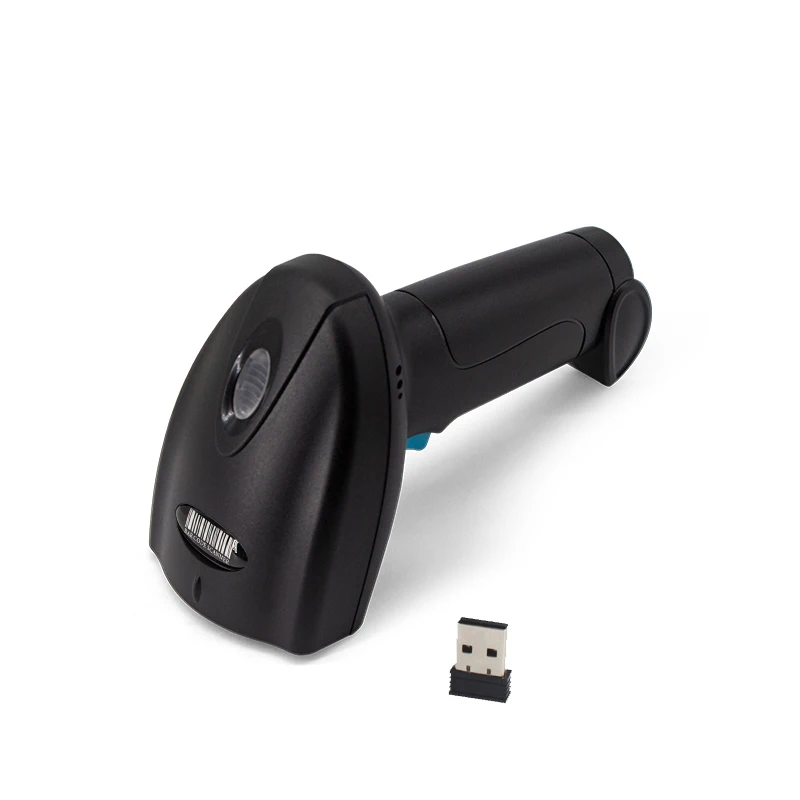

CQH5601BG for warehousing logistics express handheld barcode reader wireless blue tooth barcode scanner
- Category: Scanners >>>
- Supplier: Shenzhen,Changxi,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
CQH5601BG Specifications | ||||
The input voltage | DC 5V±5% | |||
Power. | 1.60 watts (working);0.40 watts (standby). | |||
Current. | 120-200 mAh (working); 10-20 mAh (standby)5 plus/-10% VDC s 130-350 mA | |||
Resolution. | 752 × 480 pixels | |||
Scan angle | ± 60 degrees, ± 40 degrees, ± 42 degrees (left, right, back, round). | |||
Battery capacity | 2000mA | |||
Transmission distance | 50-80 m | |||

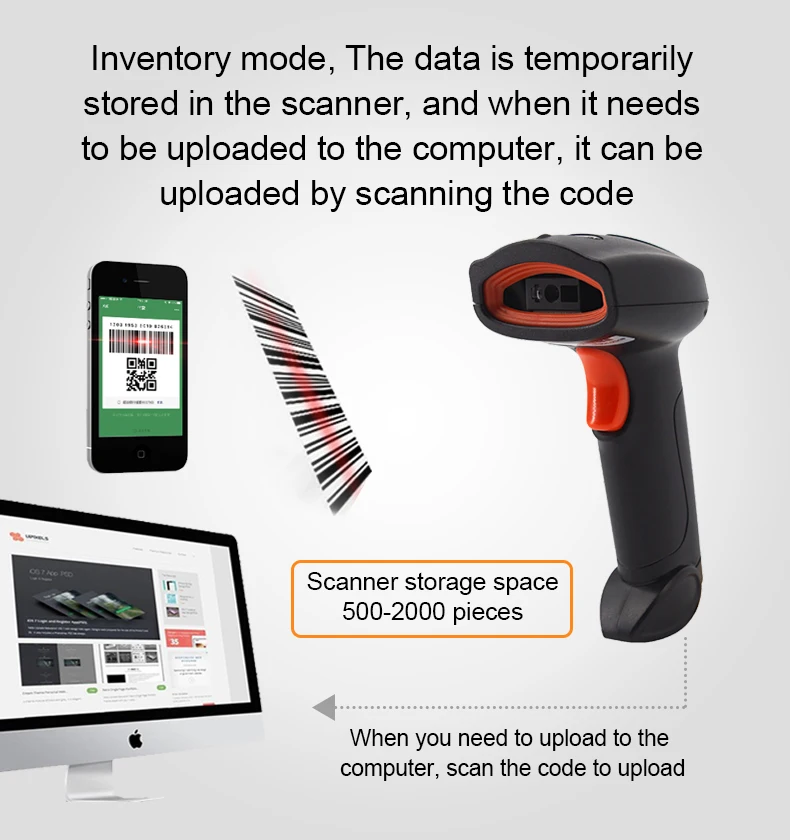

Wireless storage capacities | 5000-20000 pcs | |||
Wireless standby | 30 days | |||
Wireless continuous work | 72 hours | |||
Decoded Capability | 1D: UPC-A, UPC-E1, UPC-E0, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar (formerly RSS) variants | |||
2D: PDF417, MicroPDF417, QR code, DataMatrix | ||||

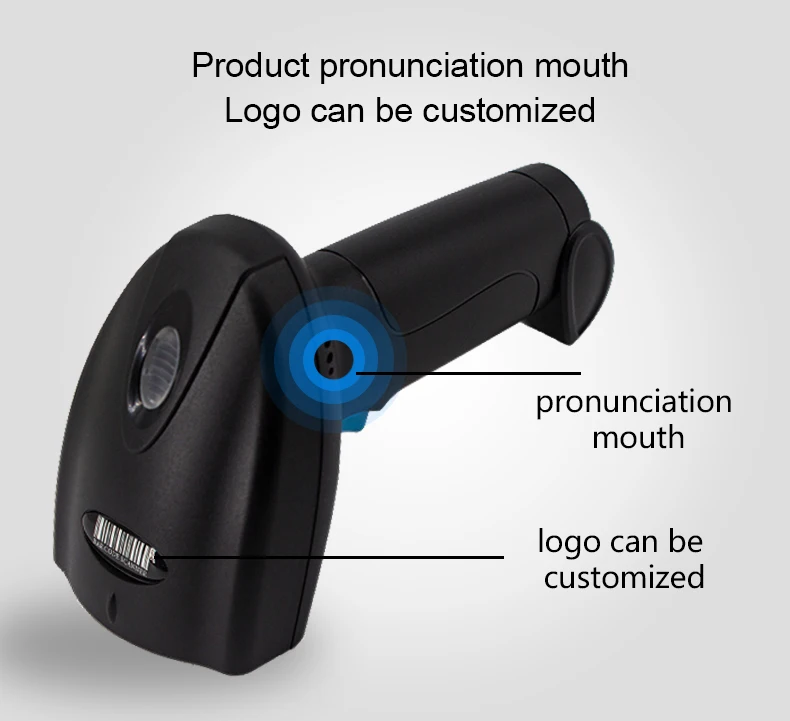

prompt | Buzzer, LED | |||

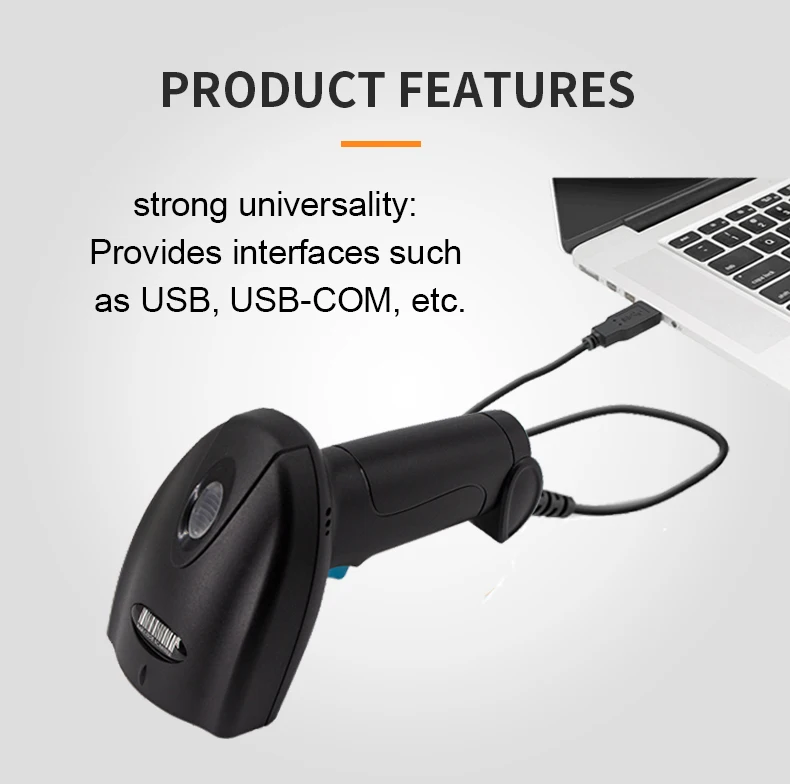

Interface system | RS-232 serial port; USB keyboard; USB virtual serial port, Blue tooth | |||
Trigger mode | Manual. | |||
physical dimensions | 90mmL×66mmW×160mmH | |||
Weight. | 128g (without cable). | |||
Cable standard | Straight line,1.5 meters | |||
The type of interface | Printer USB | |||
Shell material | PC+ABS | |||
Temperature | 0 ~ 50 °C (working); -40°C ~ 60°C (storage) | |||
Humidity | 5% to 95% (no condensation). | |||
Setting up | Manual (scan to set barcodes in turn) | |||
Resolution | 3.5mil (high density series),1mil s 0.0254mm | |||
Depth of Scan Field | 3.5mil: Code128(9 characters). | 15mm— 35mm | ||
5mil: Code39(20 characters). | 33mm— 77mm | |||
13mil: UPC (12 characters). | 17mm—150mm | |||
20mil: Code39(5 characters). | 55mm—195mm | |||
6.7 mil:PDF417(20 characters). | 25mm— 90mm | |||
10mil: DM (20 characters). | 15mm-115mm | |||
20mil: QR (20 characters). | 9mm—175mm | |||

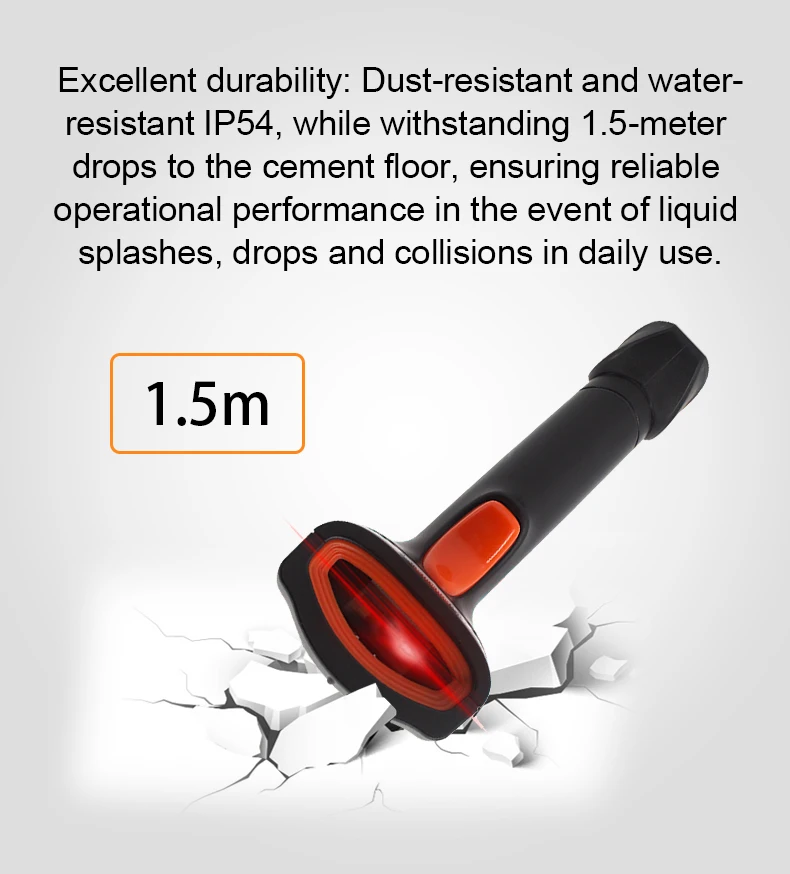

Level of security | EMC Electromagnetic Compatibility: EN55022, EN55024 Electrical safety: EN60950-1 Waterproof and dust-proof seal rating: IP54 Seismic capacity: Impact of 5 or more 1.5 m drops to the cement floor | |||
FAQ
Q1: Can you provide OEM or ODM service?
A1:Yes.We accept OEM&ODM.We can print you own logo color box, user manual.
Q2: How long is the warranty time of barcode scanner?
A2: 12 months.
Q3: Can I get a sample from you?
A3: Yes.But you need to pay the sample fee.
Q4: What's the MOQ for your products?
A4: 1 piece.If you purchase large qty,you will get a better price.
Q5: What kind terms of payment can be accepted?
A5: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
A1:Yes.We accept OEM&ODM.We can print you own logo color box, user manual.
Q2: How long is the warranty time of barcode scanner?
A2: 12 months.
Q3: Can I get a sample from you?
A3: Yes.But you need to pay the sample fee.
Q4: What's the MOQ for your products?
A4: 1 piece.If you purchase large qty,you will get a better price.
Q5: What kind terms of payment can be accepted?
A5: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
