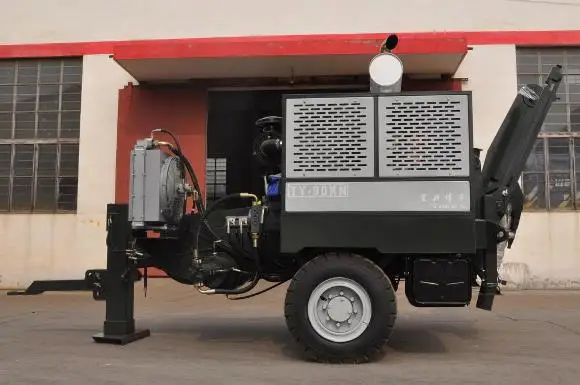

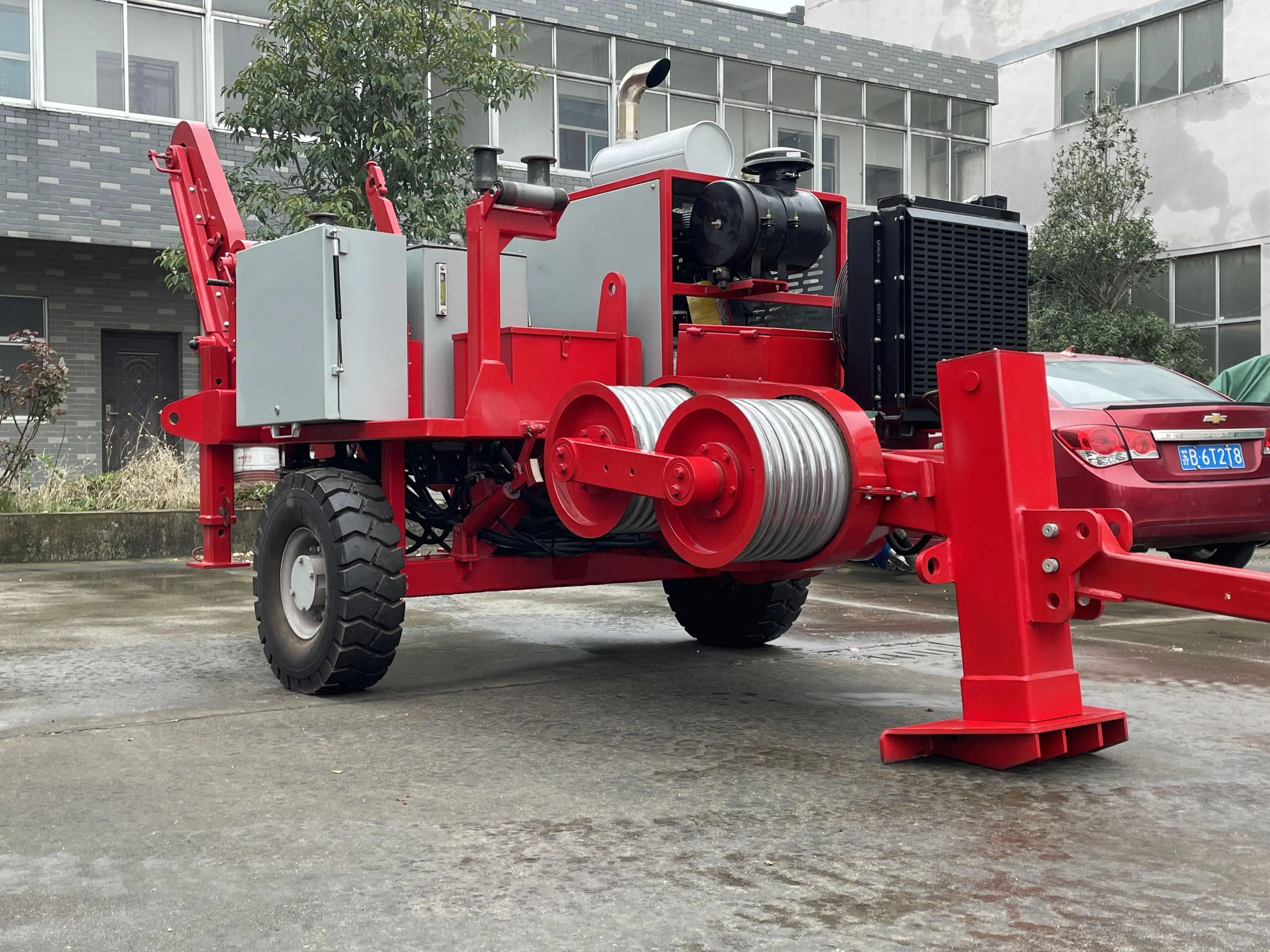

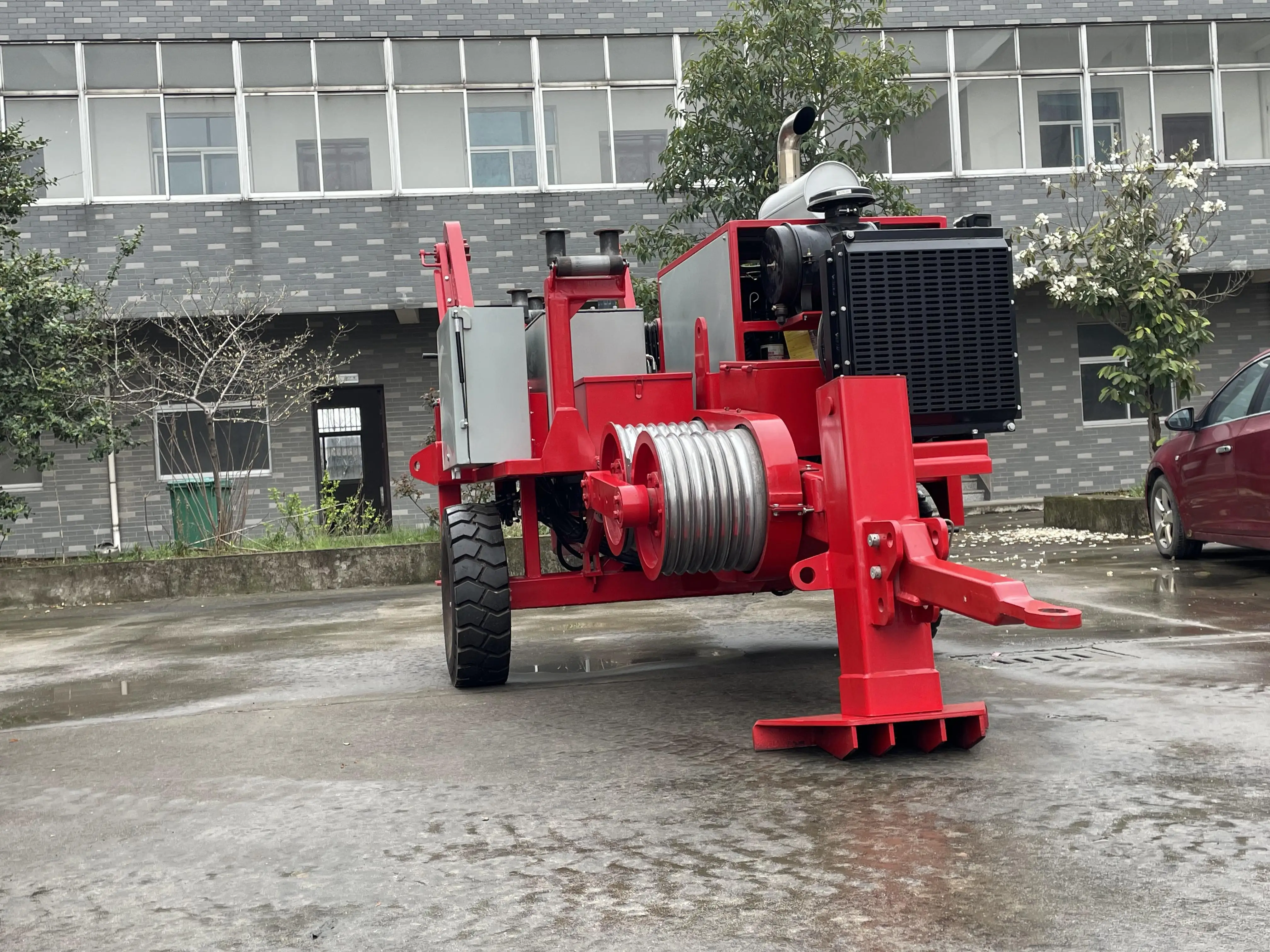

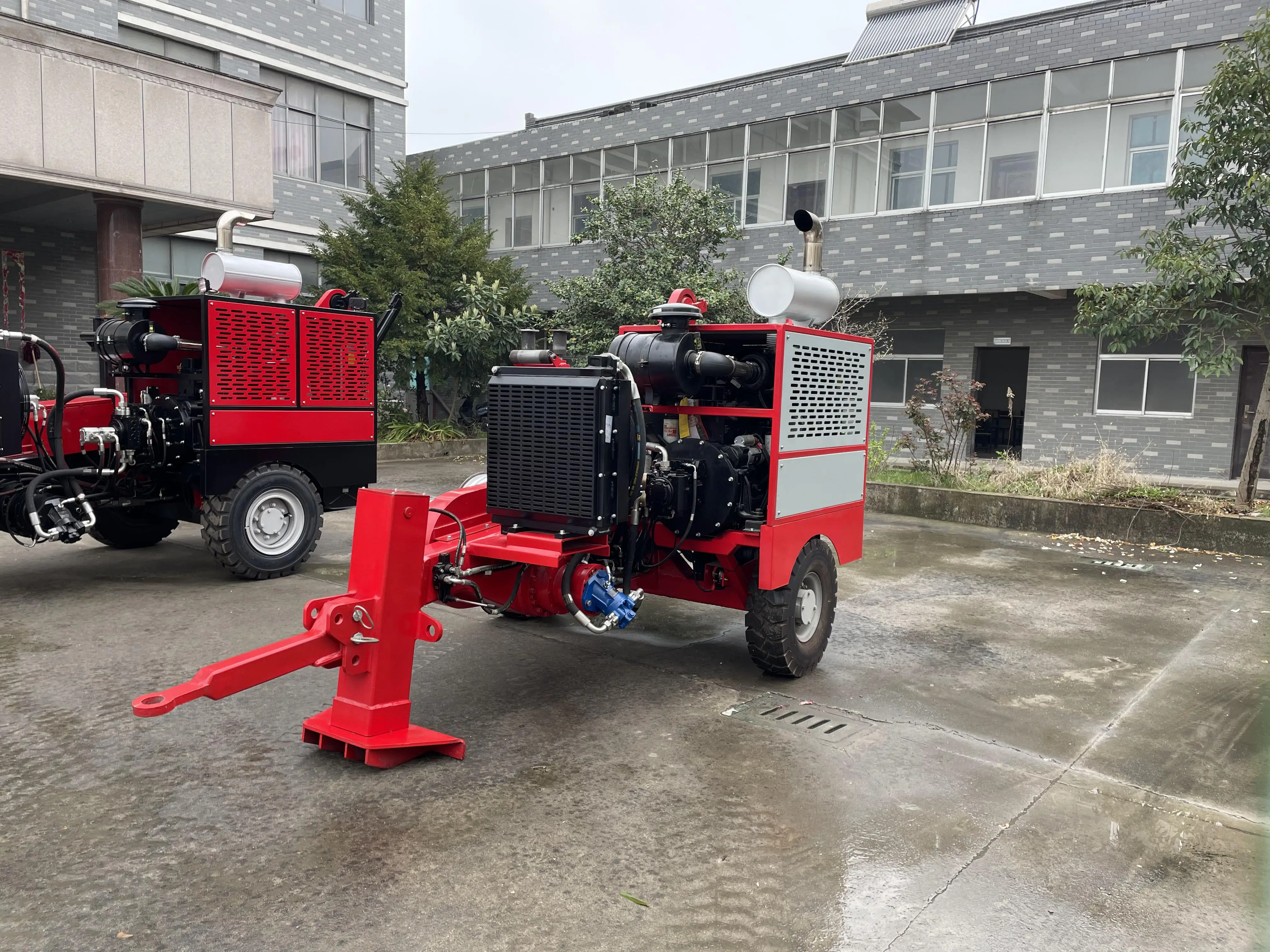

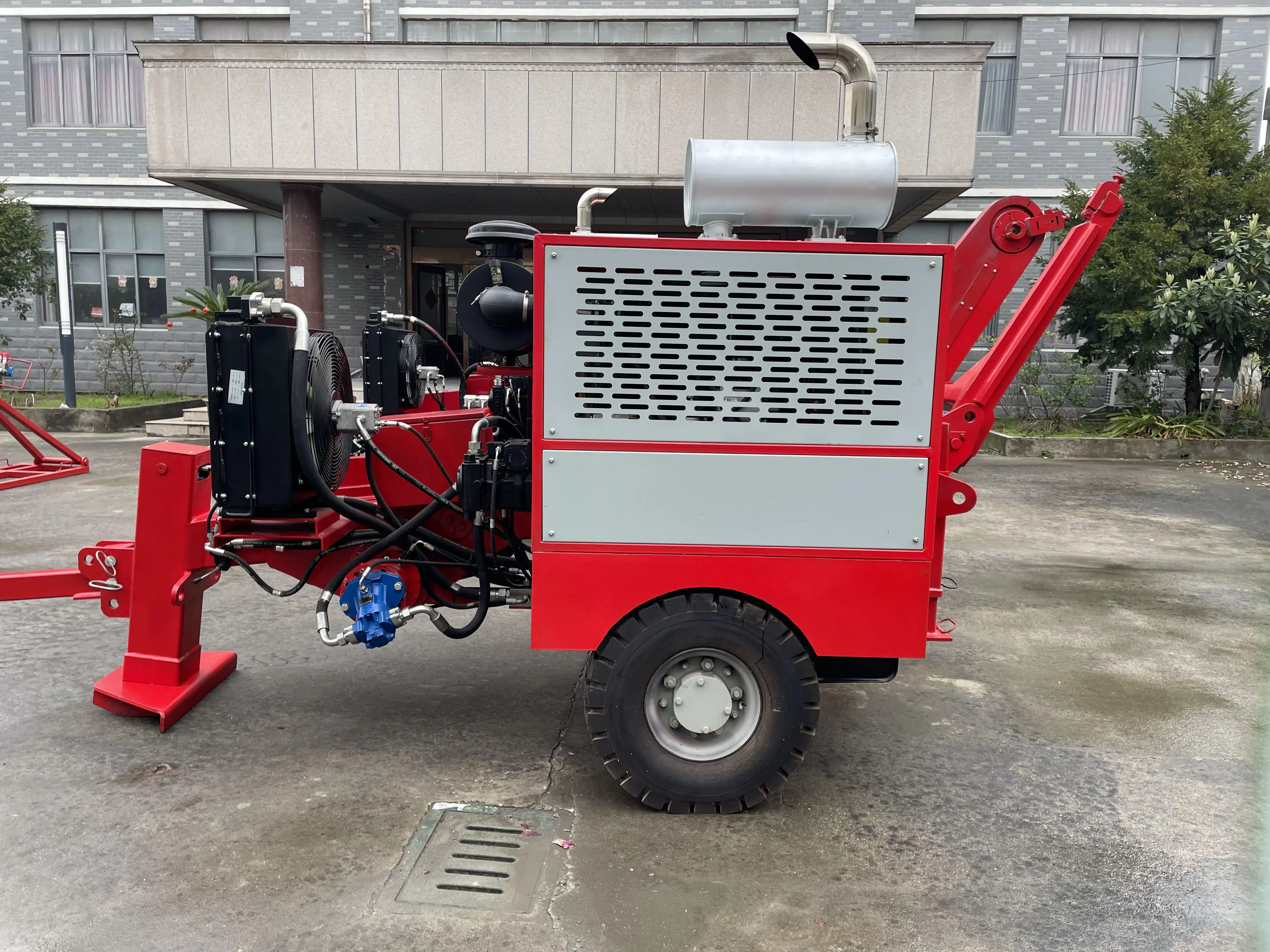

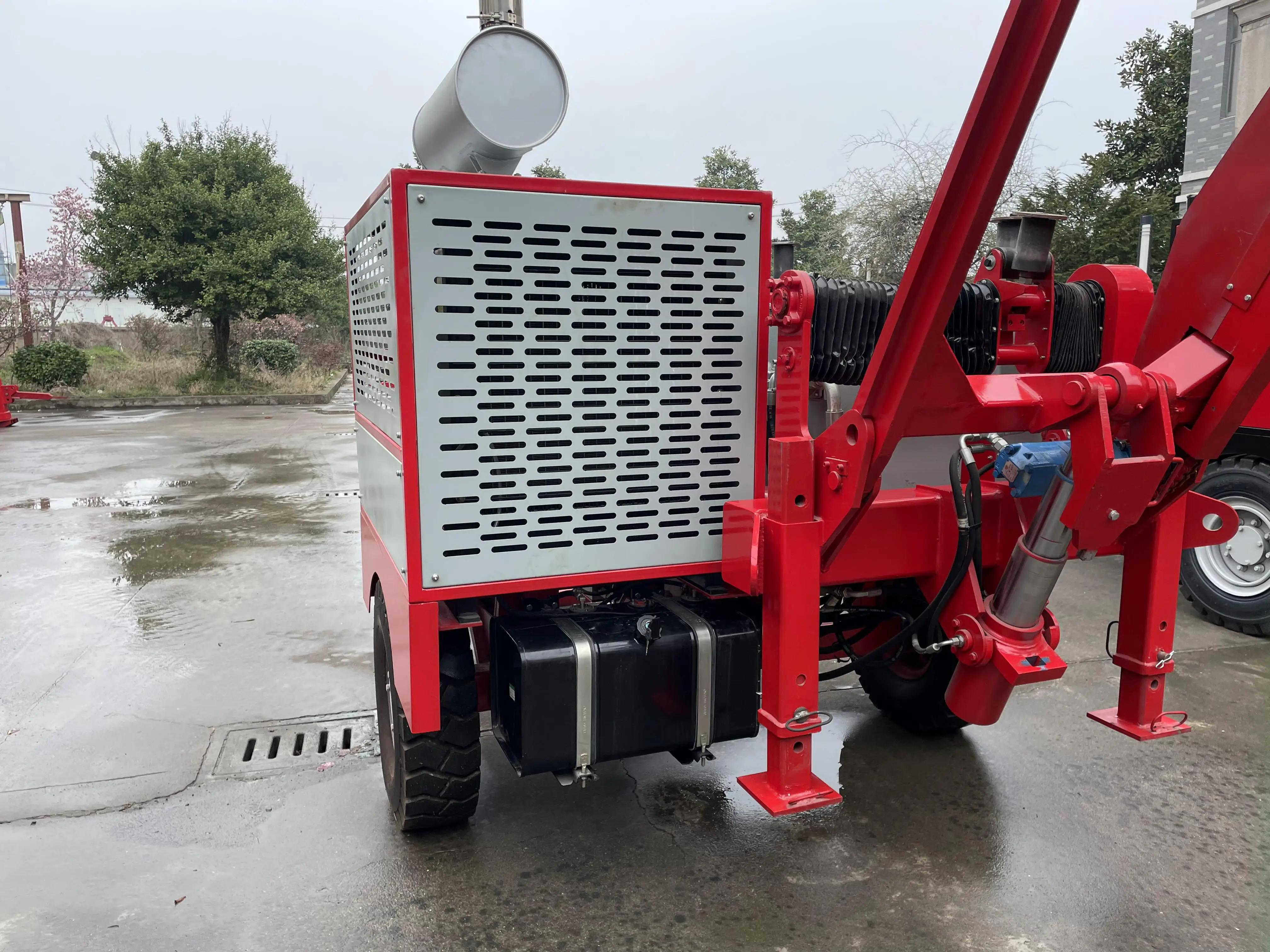

GS90 Electric Power Stringing Equipment Overhead Transmission Max Intermittent Pull 90kN Puller Hydraulic Puller
- Category: >>>
- Supplier: Jiangsu Milky Way Steel Poles Co. Ltd.
Share on (1600502392211):
Product Overview
Description
Product Description
The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains.
Configuration
Hydraulic dynamometers
Hydraulic oil cooling system
Digital speed and meter counter
Grounding connection point
Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
Hydraulic oil cooling system
Digital speed and meter counter
Grounding connection point
Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

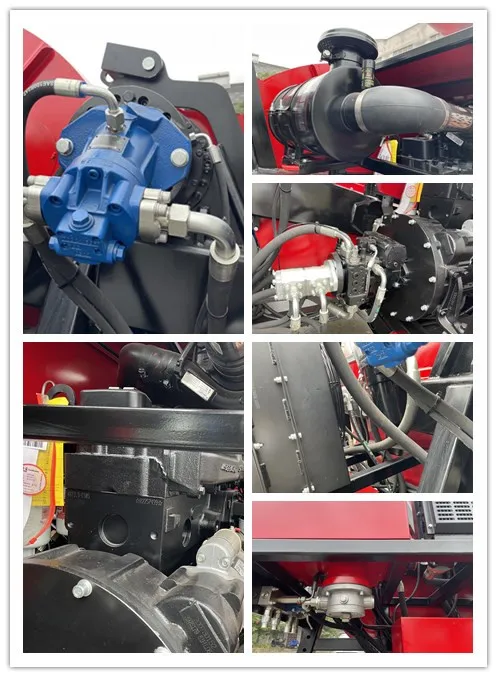

Engine: Cummins
Hydraulic pump: GermanRexroth/Dnish Danfoss
Main motor: German Rexroth/French Leduc
Speed reducer: German Rexrothn
Hydraulic meter: German WIKA
Operating handle: German Rexroth
Hydraulic pump: GermanRexroth/Dnish Danfoss
Main motor: German Rexroth/French Leduc
Speed reducer: German Rexrothn
Hydraulic meter: German WIKA
Operating handle: German Rexroth
Hydraulic Transmission
The machine can realize step less speed
The machine is provided with tension presetting system
The machine is provided with tension presetting system
Additional Devices
Lighting system for the trailer
Air brake system for the trailer (extra charge)
2 hydraulic conductor clamps for drum change operations (extra charge)
Swivel guide rope roller
Air brake system for the trailer (extra charge)
2 hydraulic conductor clamps for drum change operations (extra charge)
Swivel guide rope roller
Product Paramenters
Model | GS40 | GS60 | GS90 | GS120 | GS150 | GS180 | GS220 | GS280 | ||||||||
Max intermittent tension | KN | 40 | 60 | 90 | 120 | 150 | 180 | 220 | 280 | |||||||
Max continuous tension | KN | 30 | 50 | 5 | ||||||||||||
Speed at max tension | km/h | 2.5 | ||||||||||||||
Max speed | km/h | 5 | ||||||||||||||
Pull at max speed | KN | 20 | 25 | 40 | 50 | 60 | 75 | 90 | 120 | |||||||
Diesel | kw(hp) | 77(103) | 77(103) | 118(158) | 129(173) | 129(173) | 239(320) | 239(320) | 298(400) | |||||||
Cooling system | Water | 2.5 | 5 | 25 | 45 | 2.4 | 77(103) | Water | ||||||||
Electrical system | V | 24 | ||||||||||||||
Bull-wheel diamete | mm | 400 | 450 | 540 | 600 | 600 | 700 | 760 | 960 | |||||||
Groove number | 7 | 7 | 8 | 10 | 10 | 10 | 10 | 11 | ||||||||
Max rope diameter | mm | 16 | 18 | 21 | 24 | 24 | 27 | 30 | 38 | |||||||
Max diameter of rope reel | mm | 1200 | 1400 | 1400 | 1400 | 1600 | 1400 | 1600 | 1600 | |||||||
Total weight | mm | 3000 | 3500 | 4680 | 4800 | 5500 | 6800 | 6800 | 12800 | |||||||
Installation
After Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Reply your inquiry in 24 working hours.
* View our Factory.
* Reply your inquiry in 24 working hours.
* View our Factory.
After-Sales Service
* Training how to instal
* Provide the inspection report
* Provide the inspection report

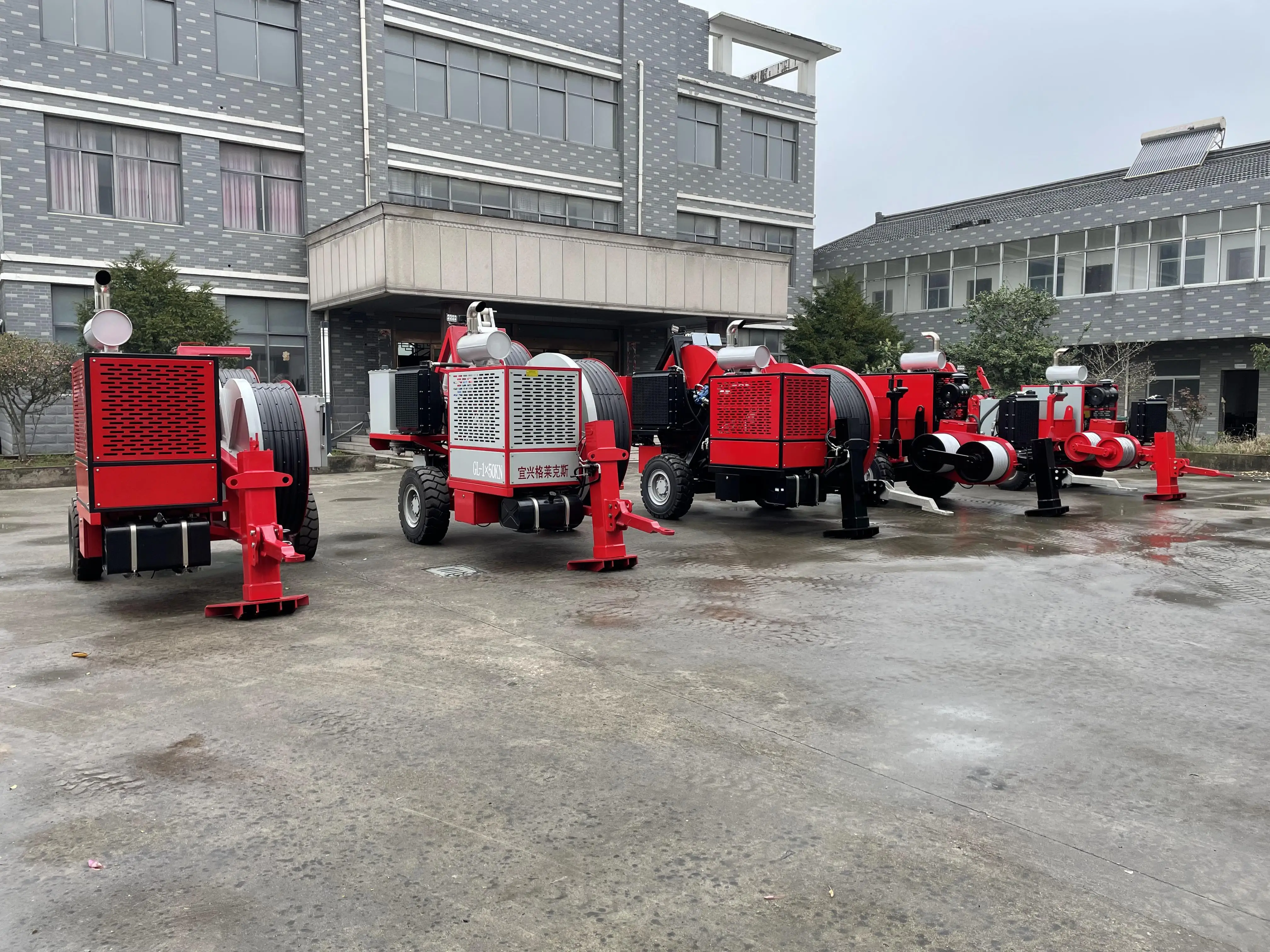

Project Images
