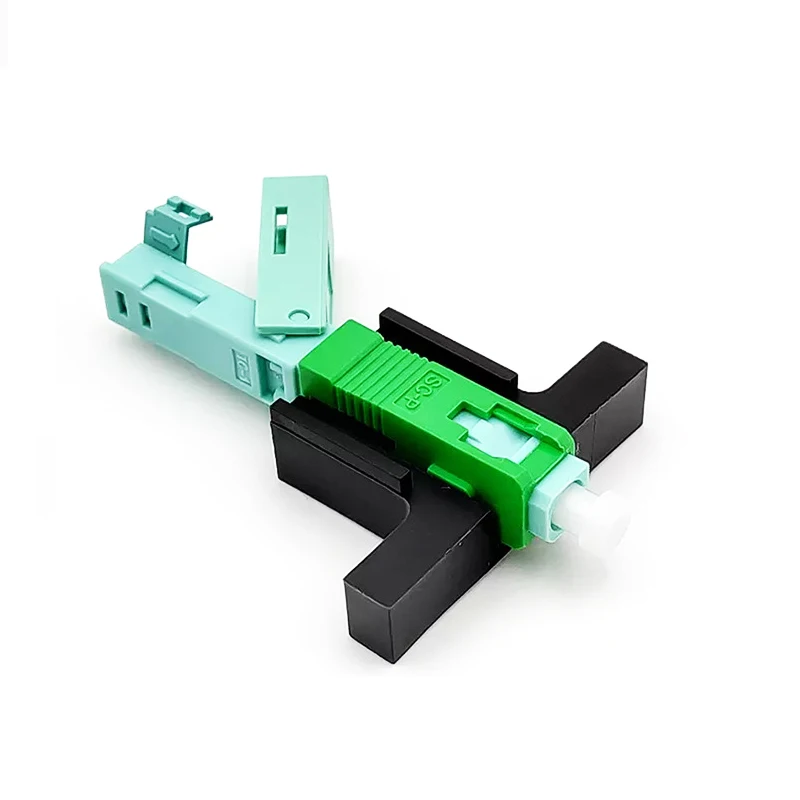

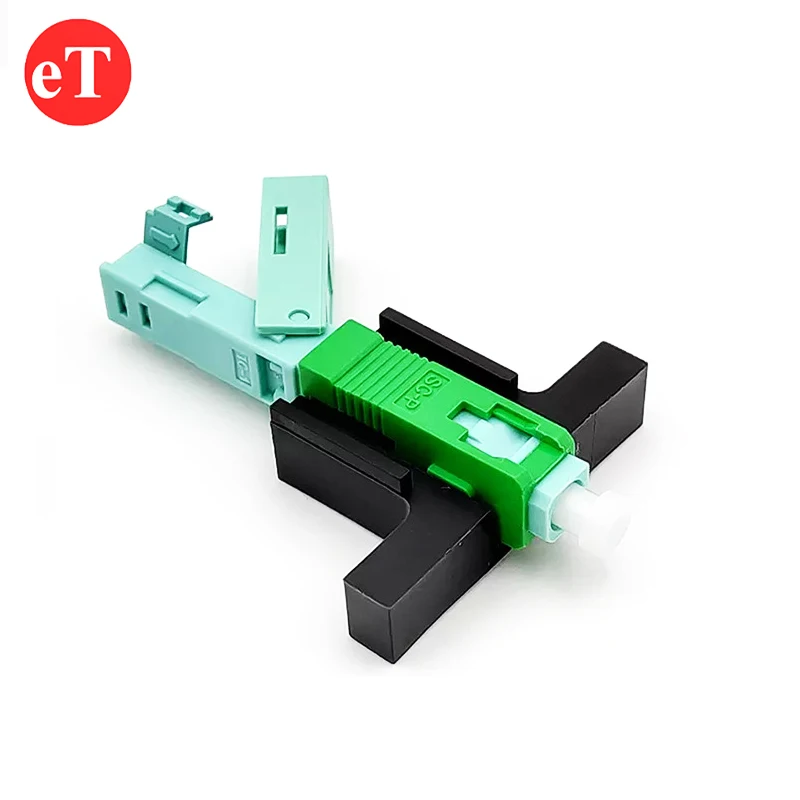

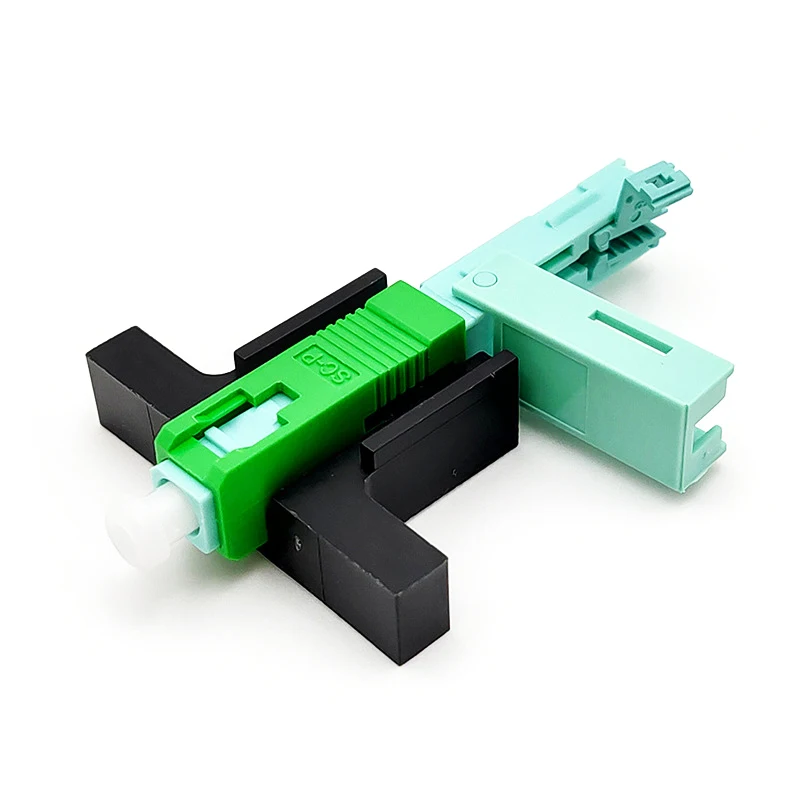

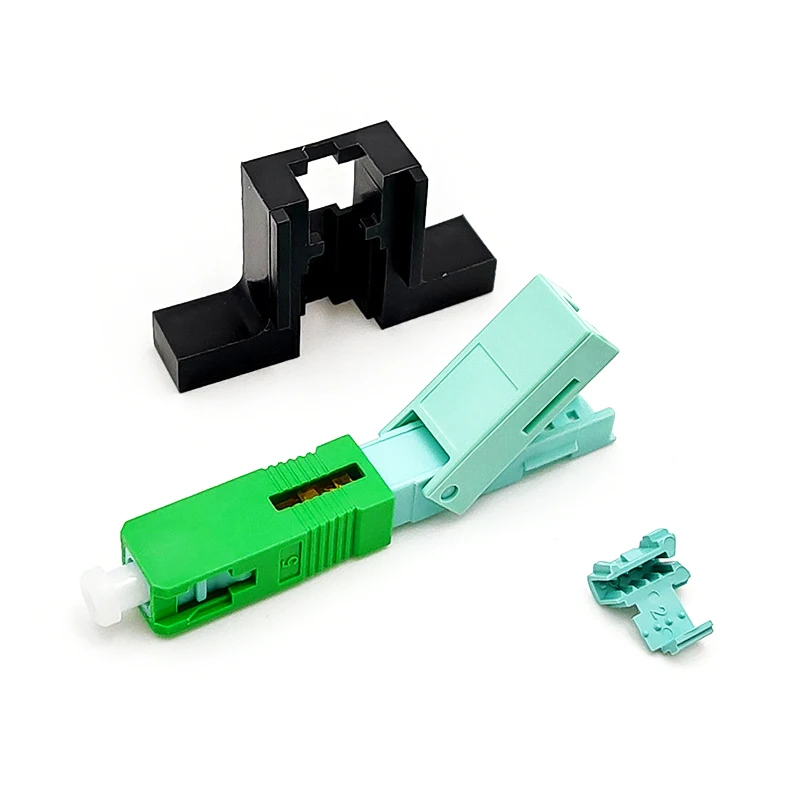

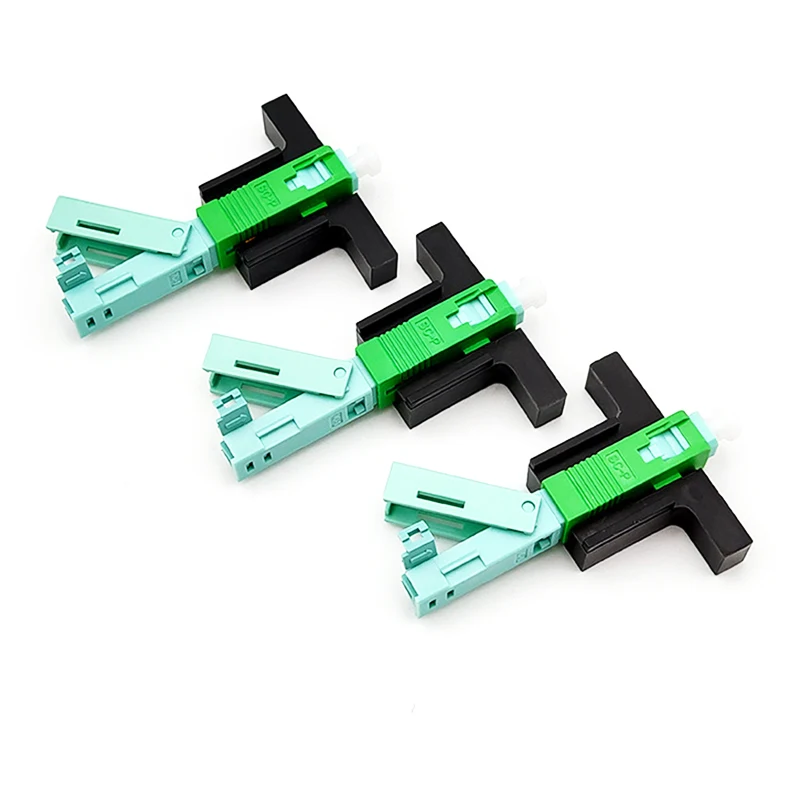

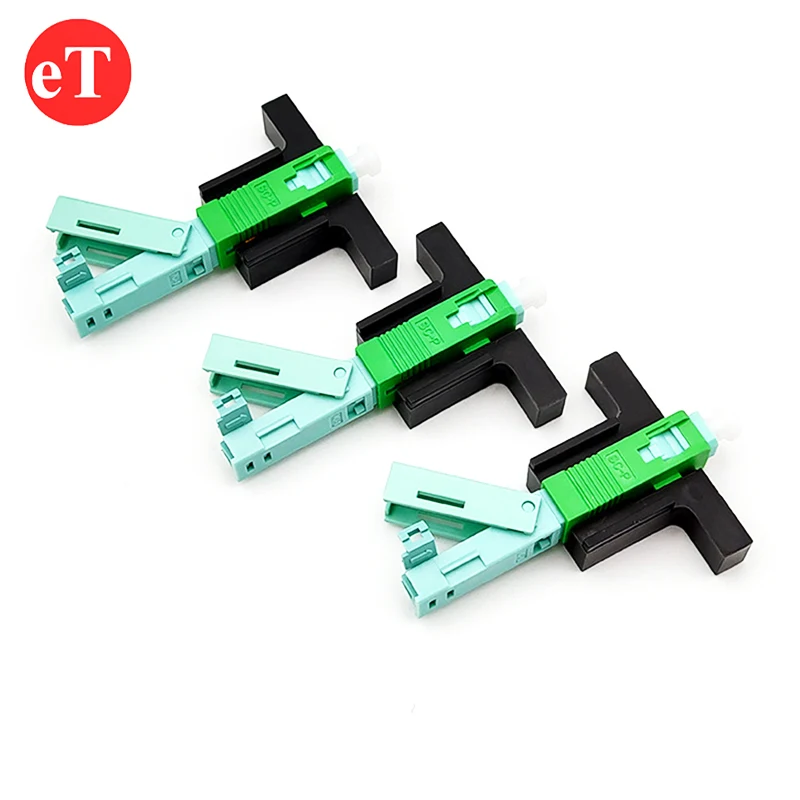

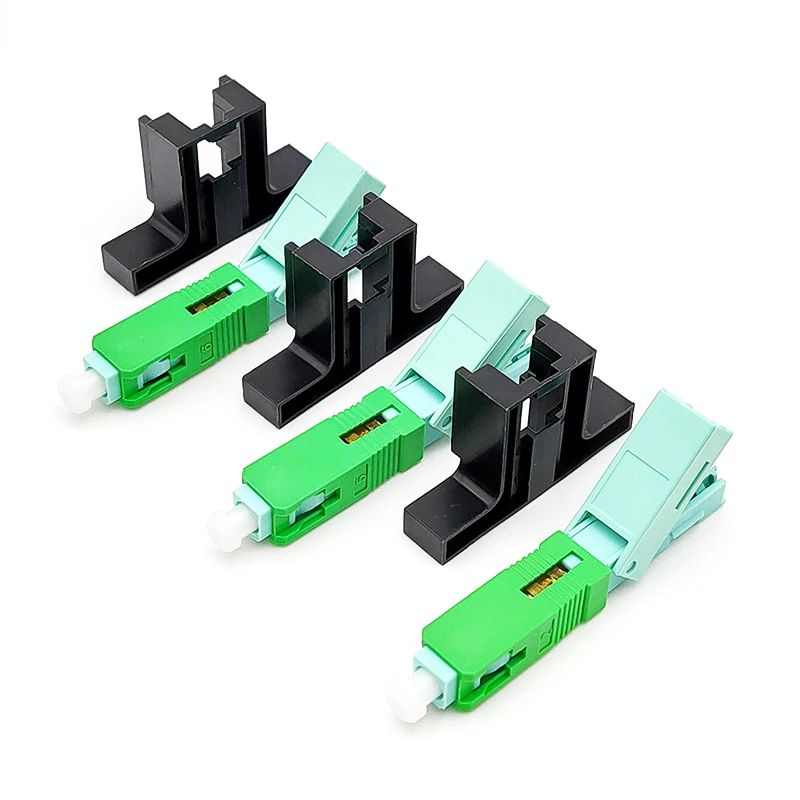

Fiber Optical Embedded Quick Assembly Fusion SC APC Fast Connector
- Category: >>>
- Supplier: Dongguan E Tech Fiber Optic Telecom Co. Ltd.
Share on (1600502422016):
Product Overview
Description
Product Description
This type of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without
polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable
connection in most of the network application. The SC type is available with 2.0mm x 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.
polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable
connection in most of the network application. The SC type is available with 2.0mm x 3.0mm jacket cable. The universal type connector is also available, which is suitable for all of the 250/900um, 2mm and 3mm, 2.0mm x 3.0mm cable diameter.
Features
* Linkage structure design, when docking with equipment and joints, the reserved micro bend remains unchanged;
* Double V-slot structure design, fiber optic docking is stable and reliable;
* The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
* Applicable optical cable: 2.0mm×3.0mm & 2.0mm×1.6mm butterfly cable;
* Easy to operate, fast construction, high installation success rate, long life cycle, easy maintenance in the later period.
* Linkage structure design, when docking with equipment and joints, the reserved micro bend remains unchanged;
* Double V-slot structure design, fiber optic docking is stable and reliable;
* The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
* Applicable optical cable: 2.0mm×3.0mm & 2.0mm×1.6mm butterfly cable;
* Easy to operate, fast construction, high installation success rate, long life cycle, easy maintenance in the later period.
Applications
* All fiber interconnection;
* Telecom Distribution and Local Area Networks;
* FTTH and FTTx;
* Passive optical networks [ATM, WDM, Ethernet];
* Broadband, Cable TV(CATV).
* All fiber interconnection;
* Telecom Distribution and Local Area Networks;
* FTTH and FTTx;
* Passive optical networks [ATM, WDM, Ethernet];
* Broadband, Cable TV(CATV).
Product Parameters
Item | Unit | UPC | APC | |
Insertion Loss | dB | ≤0.3 | ≤0.3 | |
Return Loss | dB | ≥50 | ≥55 | |
Tensile strength | N/2min | >30 | ||
Operating Temperature | ℃ | -40～+85 | ||
Reusable | Time | ≥10 | ||
Housing | Color | Blue | Green | |
Cable Applicable | mm | 2.0 x 3.0mm or 2.0 x 1.6mm Flat Cable | ||
Details Images

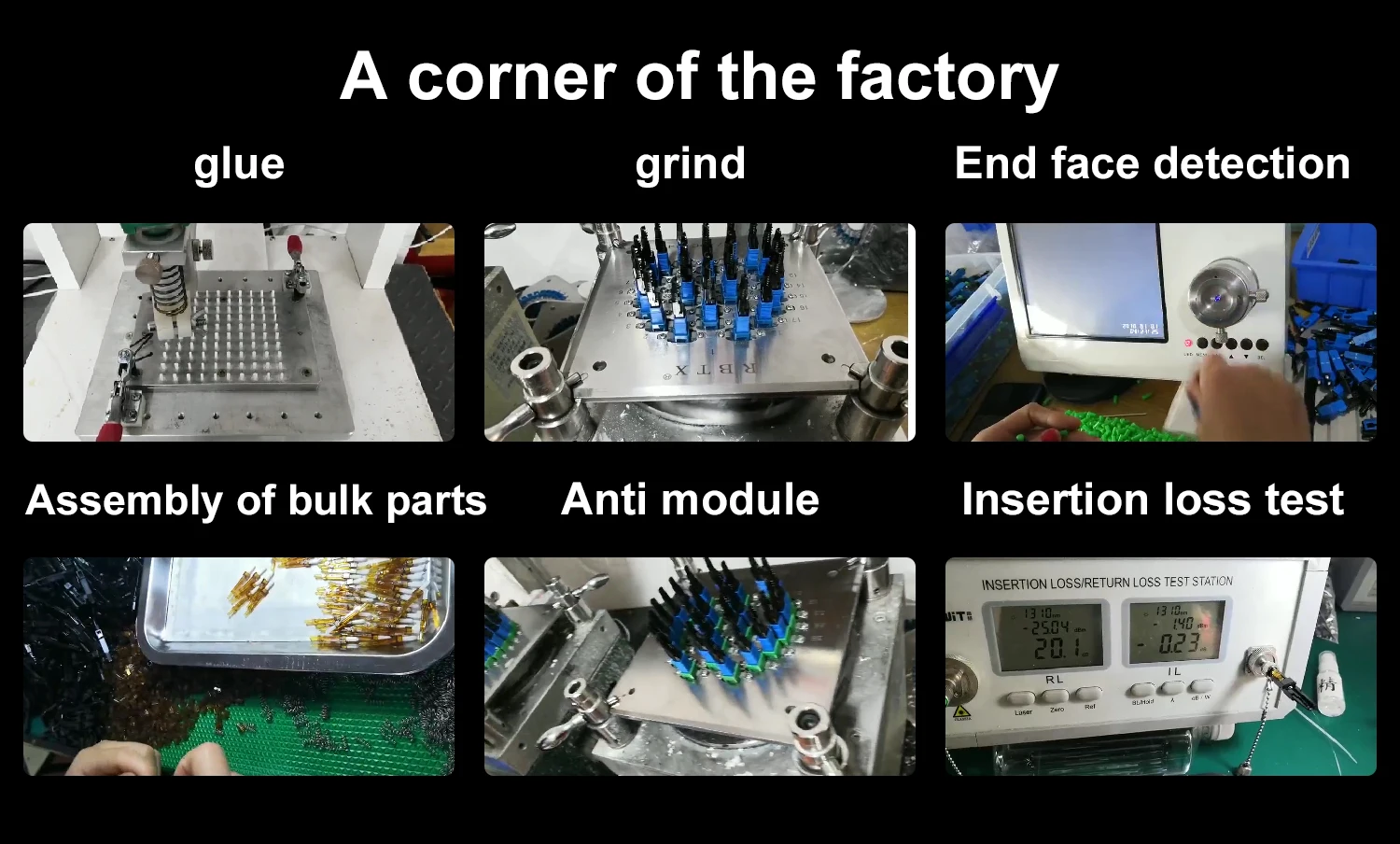

Manufacturing Technique
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time?
A: 1) Samples: within one week.
2) Goods: 15-20 days usually.
