China Gold Ore Mineral Agitator Column Flotation Cells Machine Floatation Tank
- Category: Mining Machinery >>>
- Supplier: Henan,Mecru,Heavy,Industry,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product description
Flotation machine, in the ore dressing, mainly used for separating copper, zinc, lead, nickel, gold and other Non-ferrous metal, can also be used for Ferrous, non-metallic crude and selected.
After mixing the crushed ore with water and flotation reagent, the ore is mixed into a slurry tank, which is filled with air to form a large number of air bubbles. Some mineral particles which are not easily wet by water attach to the air bubbles and float to the surface of the pulp together with the air bubbles The formation of mineralized bubble layer, some easy to be water wet, hydrophilic mineral particles not attached to the bubble, and stay in the pulp, will contain specific minerals mineralized bubble discharge, so as to achieve the goal of mineral processing.
After mixing the crushed ore with water and flotation reagent, the ore is mixed into a slurry tank, which is filled with air to form a large number of air bubbles. Some mineral particles which are not easily wet by water attach to the air bubbles and float to the surface of the pulp together with the air bubbles The formation of mineralized bubble layer, some easy to be water wet, hydrophilic mineral particles not attached to the bubble, and stay in the pulp, will contain specific minerals mineralized bubble discharge, so as to achieve the goal of mineral processing.
SF Square Flotation Cell | Volume(m³) | Capacity(m³/min) | Impeller Dia (mm) | Impeller Line Speed (r/min) | Scraper Speed (r/min) | Scraper Power (kw) | Mixing Power (kw) | Unit Cell Size(mm) |
SF-0.7 | 0.7 | 0.3-0.9 | 350 | 400 | 16 | 0.55 | 3 | 820*900*920 |
SF-4 | 4 | 2.0-4.0 | 650 | 220 | 16 | 1.5 | 15 | 1850*2050*1200 |
SF-10 | 10 | 5.0-10 | 760 | 191 | 16 | 1.5 | 30 | 2200*2900*1700 |
SF-20 | 20 | 5.0-20 | 760 | 191 | 16 | 1.5 | 30 | 2850*3800*2000 |
Features:
1. Advanced structural design;
2. Reliable operation;
3. Reduce energy consumption;
4. The flotation tank adopts U-shaped tank, hollow shaft inflatable suspension stator and new impeller. This is a conical impeller with inclined blades, which is similar to the impeller of high-speed centrifugal pump. It has large pulp capacity, small pressure head, low energy consumption and simple structure.
5. Good air dispersion effect. The impeller acts as a centrifugal pump to ensure good suspension of solid particles. Easy to operate and maintain.
6. large air absorption capacity
7. Low energy consumption
8. The pulp surface is equipped with automatic control device, which is easy to adjust.
9. The impeller has backward inclined upper and lower blades to generate the upper and lower circulation of pulp respectively.
10. High efficiency
11. High recovery
12. Excellent performance
13. CE SGS IOS certification
1. Advanced structural design;
2. Reliable operation;
3. Reduce energy consumption;
4. The flotation tank adopts U-shaped tank, hollow shaft inflatable suspension stator and new impeller. This is a conical impeller with inclined blades, which is similar to the impeller of high-speed centrifugal pump. It has large pulp capacity, small pressure head, low energy consumption and simple structure.
5. Good air dispersion effect. The impeller acts as a centrifugal pump to ensure good suspension of solid particles. Easy to operate and maintain.
6. large air absorption capacity
7. Low energy consumption
8. The pulp surface is equipped with automatic control device, which is easy to adjust.
9. The impeller has backward inclined upper and lower blades to generate the upper and lower circulation of pulp respectively.
10. High efficiency
11. High recovery
12. Excellent performance
13. CE SGS IOS certification
Product Features

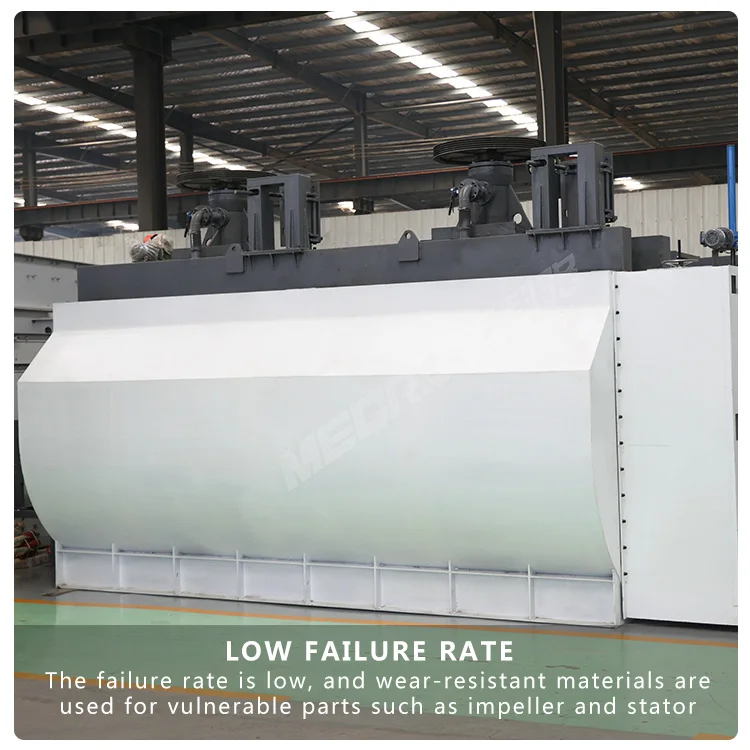

Low failure rate
The failure rate is low, and wear-resistant materials are
used for vulnerable parts such as impeller and stator
High sorting accuracy
The ash content of cleaned coal is 1-2% lower than that of conventional mechanical stirring flotation machine
Reduce energy
Compared with the traditional mechanical stirring flotation machine,
it saves electricity and energy.
Product Details
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Customer Case
Product Display
About Us
MECRU HEAVY INDUSTRY SCIENCE AND TECHNOLOGY CO.LTD
Henan MECRU heavy industry technology Co , LTD is a manufacturer and speciaized in research , production and sales of intelligent crushing and screening plant .
As a promoter of the sandand gravel aggregate processing and mineral materials processing industres MERU is making effors to provide customers with the best technology equipment and servicesare mainly engaged in mobie crushing and screening plant such as mobile jaw crushing plant , mobile cone crushing plant , mobile impact crushing plant mobile screening plant , conecrusher , jaw crusher , mpact crusher , vibrating screen , vibrating feeder and sand making machine .
Our crushing & screening plant and solutions for rock and mineral materials processing arewidely used in the field of sand production , quarries mines , mineral materials processing , demolition and construction waste recycling
As a promoter of the sandand gravel aggregate processing and mineral materials processing industres MERU is making effors to provide customers with the best technology equipment and servicesare mainly engaged in mobie crushing and screening plant such as mobile jaw crushing plant , mobile cone crushing plant , mobile impact crushing plant mobile screening plant , conecrusher , jaw crusher , mpact crusher , vibrating screen , vibrating feeder and sand making machine .
Our crushing & screening plant and solutions for rock and mineral materials processing arewidely used in the field of sand production , quarries mines , mineral materials processing , demolition and construction waste recycling
FAQ
1.Q：How about the quality of your products?
A：Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
2.Q：How about the price?
A：Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
2.Q：How about the price?
A：As a manufactory, we can give you lower price than trade companies. Besides, customers from Alibaba can get a discount.
3.Q：Do you provide after-sale service?
A：Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
4.Q：Do you provide equipment operation training?
A ：Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
5.Q：Can you test our samples?
A：Yes. You can send your samples to us for test and analysis.
6.Q：Can we visit your factory?
A Yes. You can visit our factory anytime you want.
