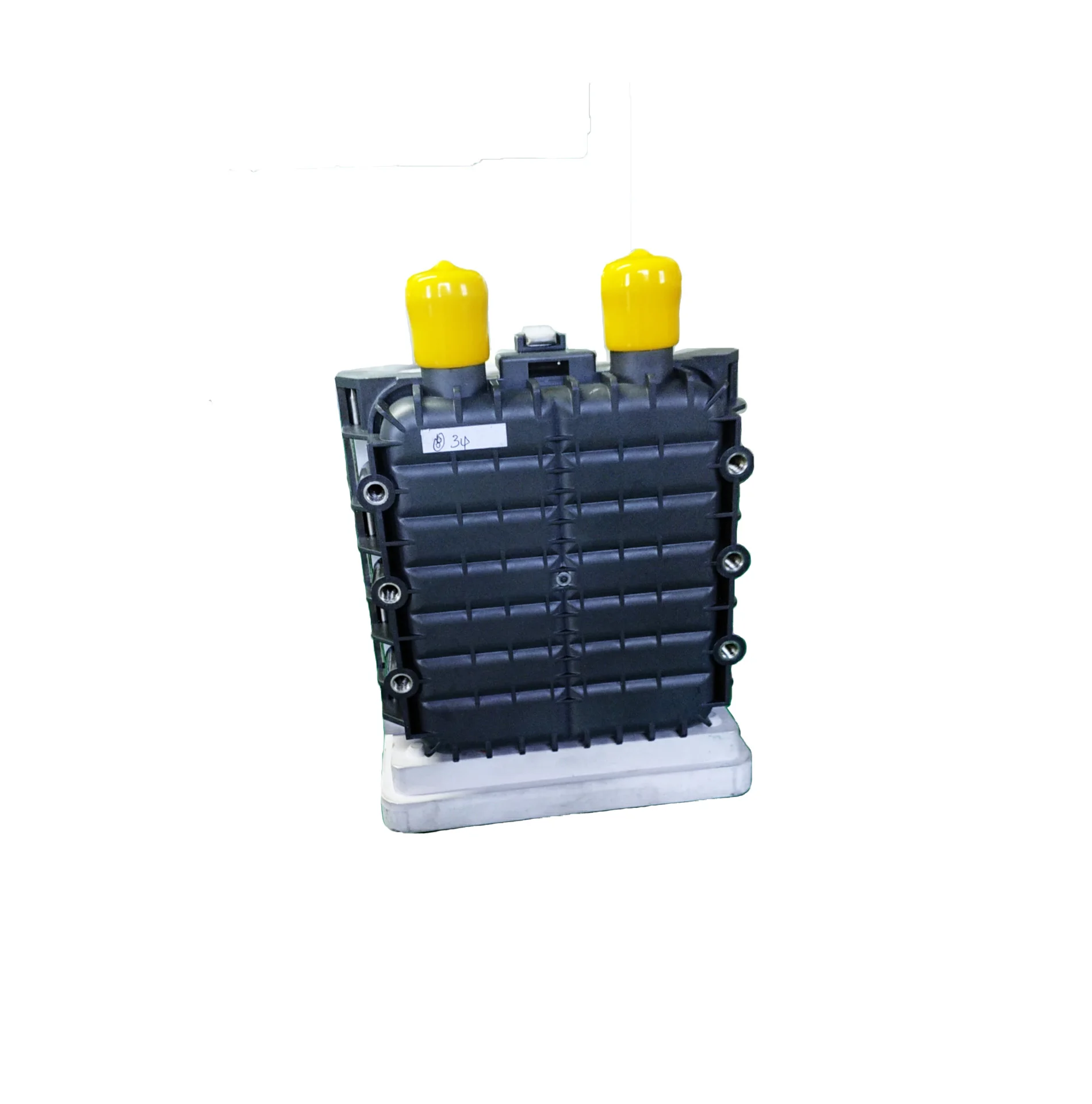

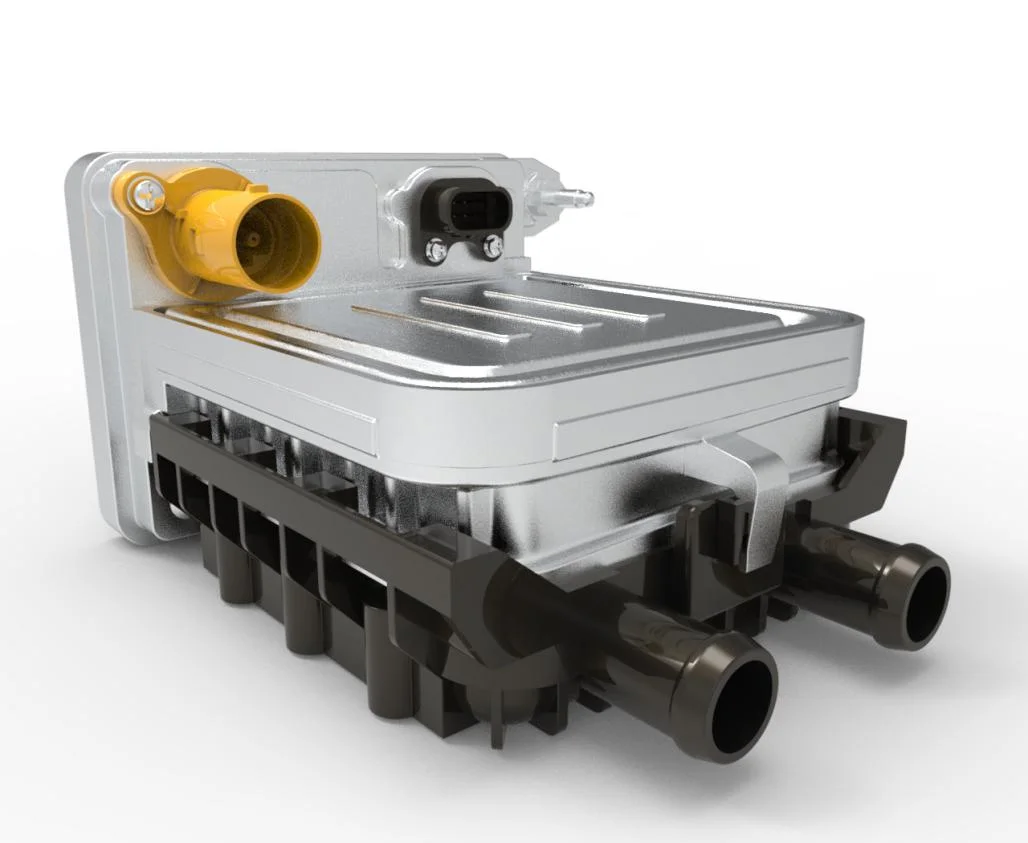

5 кВт PTC, электрический нагреватель, жидкий нагреватель для электромобиля
- Category: Automotive Parts & Accessories >>>
- Supplier: Beijing Golden Nanfeng International Trading Co. Ltd.
Share on (1600502791618):
Product Overview
Description
Product Description
5kw PTC electric heater liquid heater for electric vehicle
SH05
5kw PTC electric heater PTC coolant heater
This PTC electric heater is suitable for electric / hybrid / fuel cell vehicles and is mainly used as the main heat source for temperature regulation in the vehicle. The PTC electric heater is applicable to both vehicle driving mode and parking mode. In the heating process, electric energy is effectively converted into heat energy by PTC components. Therefore, this product has faster heating effect than internal combustion engine. At the same time, it can also be used for battery temperature regulation (heating to working temperature) and fuel cell starting load.
The PTC electric heater adopts PTC technology to meet the safety requirements of passenger cars for high voltage. In addition, it can also meet the relevant environmental requirements of components in the engine compartment.
The purpose of PTC electric heater in application is to replace the engine block as the main source of heat source. By supplying power to the PTC heating group, the PTC heating component is heated, and the medium in the circulating pipeline of the heating system is heated through heat exchange.
The PTC electric heater adopts PTC technology to meet the safety requirements of passenger cars for high voltage. In addition, it can also meet the relevant environmental requirements of components in the engine compartment.
The purpose of PTC electric heater in application is to replace the engine block as the main source of heat source. By supplying power to the PTC heating group, the PTC heating component is heated, and the medium in the circulating pipeline of the heating system is heated through heat exchange.
Specification
item | value |
Medium temperature | -40℃~90℃ |
Medium type | Water: ethylene glycol /50：50 |

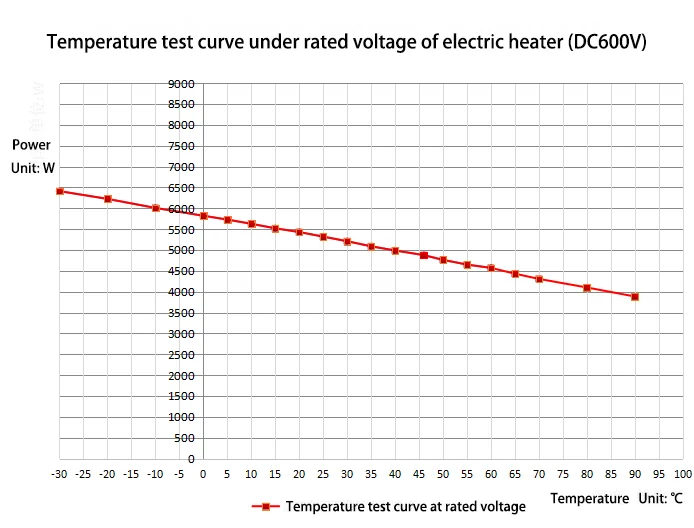

Power/kw | 5kw@60℃，10L/min |
Brust pressure | 5bar |
Insulation resistance MΩ | ≥50 @ DC1000V |
Communication protocol | CAN |
Connector IP ratng（nigh and low votage） | IP67 |
High voltage working voltage/V （DC） | 450-750 |
Low voltage operating voltage/V（DC） | 9-32 |
Low voltage quiescent current | < 0.1mA |
Working principle

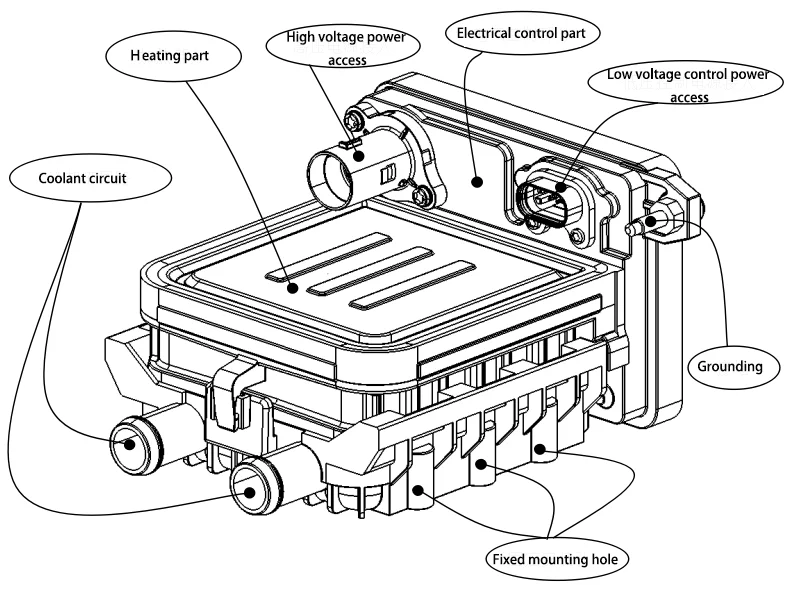

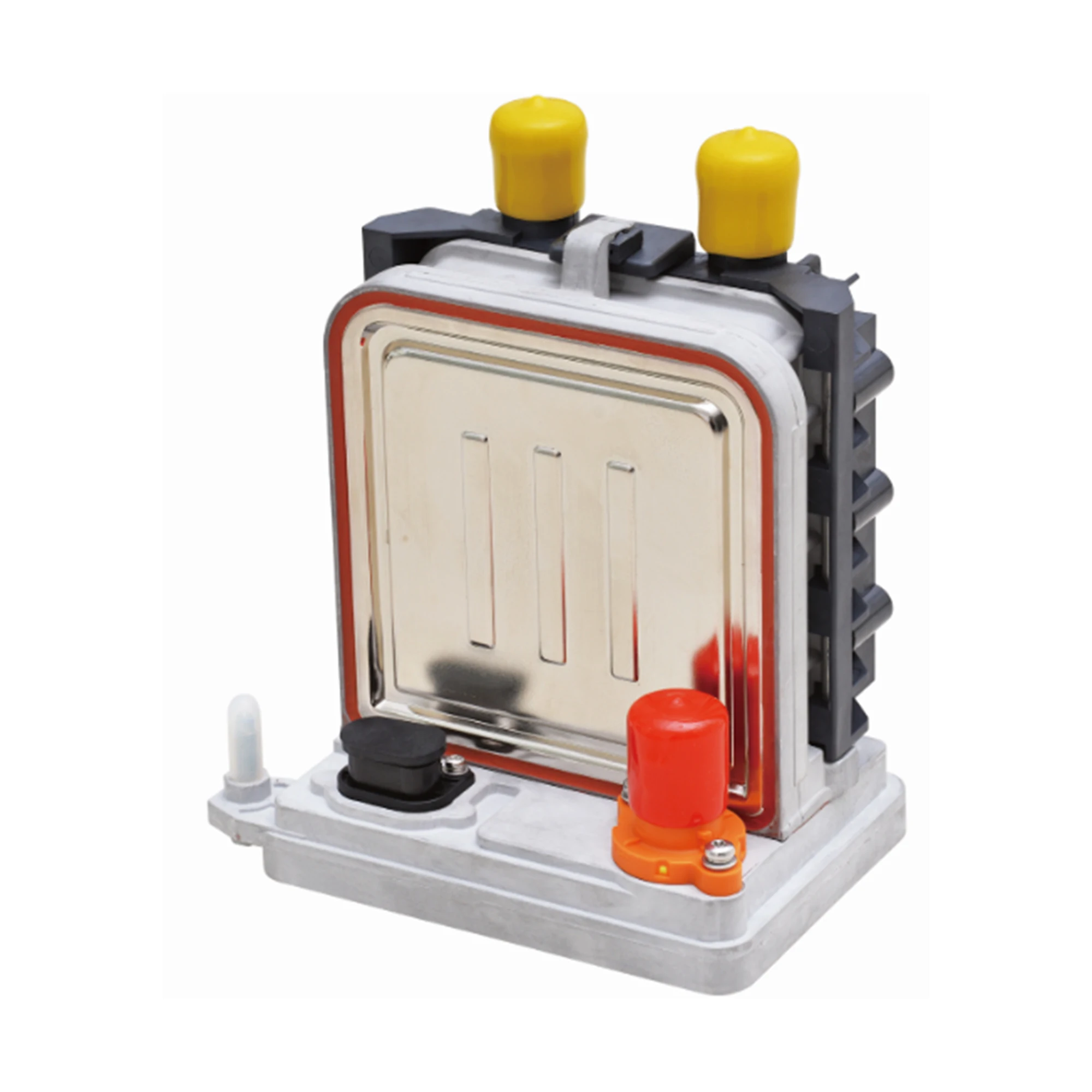

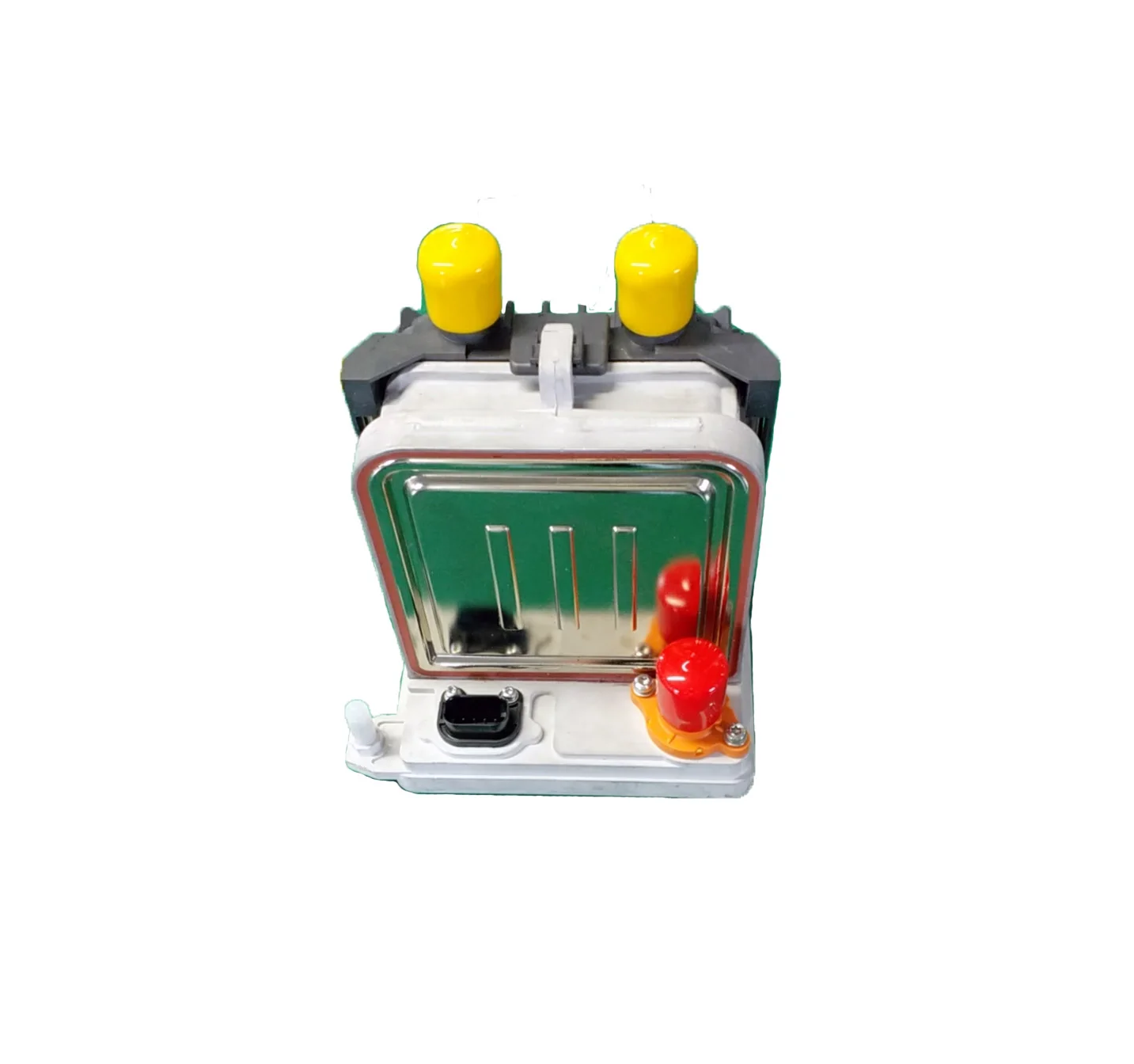

The PTC electric heater module consists of PTC heating components, controllers and internal pipelines. The heating component is installed in the aluminum die casting, the aluminum die casting and the plastic casing form a closed circulation pipeline, and the cooling liquid flows through the heating body in a meander structure. The electrical control part is an aluminum die-cast body covered with a metal casing. The controller circuit board is secured with screws and the connector is directly attached to the circuit board.
Advantages
Users of electric vehicles don't want to go without the comfort of heating that they are used to in combustion engine vehicles.That's why a suitable heating system is just as important as the battery conditioning, which helps to extend service life, reduce charging time and increase range.
This is where the third generation of NF high voltage PTC heater comes in, providing the benefits of battery conditioning and heating comfort for special series from body manufacturers and OEMs.
This is where the third generation of NF high voltage PTC heater comes in, providing the benefits of battery conditioning and heating comfort for special series from body manufacturers and OEMs.
