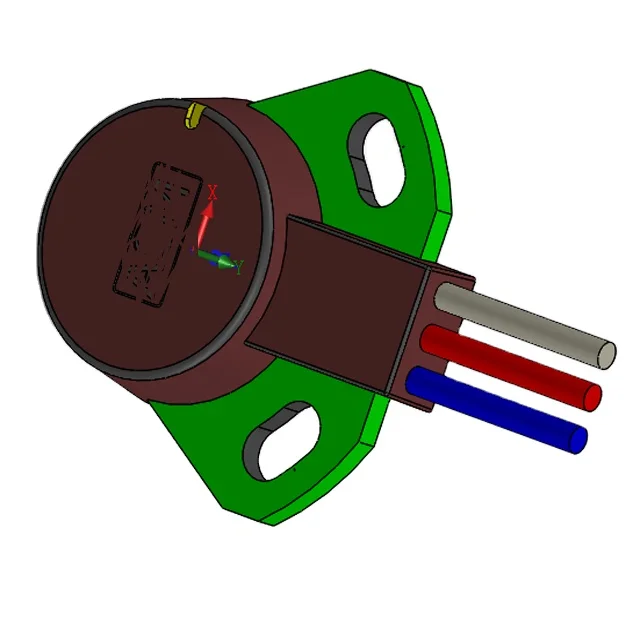

ASM Magnetic Angle Sensor PRAS21 PRMAG21
- Category: >>>
- Supplier: Shanghai Kara Instruments Co. Ltd.
Share on (1600502883006):
Product Overview
Description

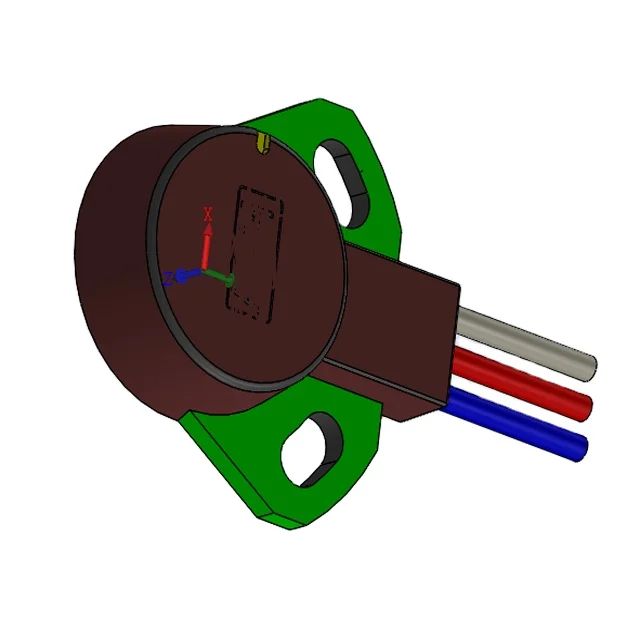

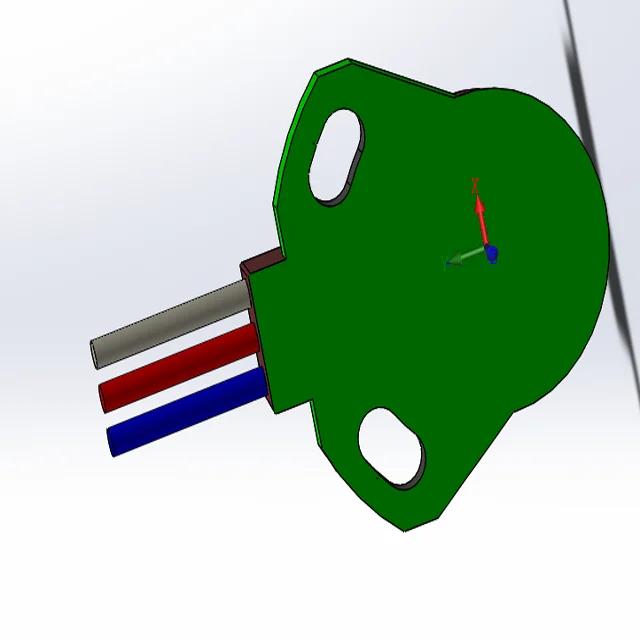

ASM-Magnetic Angle Sensor PRAS21 PRMAG21
Sensor features
* Measurement range 0 ... 360°
* Protection class IP60
* Analog output
* Compact, low profile housing
* Non-contact with external position magnet, no wear
* Housing: Epoxy glass fibre, thermoplastic
* Measurement range 0 ... 360°
* Protection class IP60
* Analog output
* Compact, low profile housing
* Non-contact with external position magnet, no wear
* Housing: Epoxy glass fibre, thermoplastic
Specifications
Output | Voltage 0.5 ... 4.5 V, ratiometric |
Measurement range | 0 ... 15° to 0 ... 360° (in 15° increments) |
Resolution | 0.03% (60 ... 360°); 0.1% (15 ... 45°) |
Repeatability | ±0.03% (60 ... 360°); ±0.1% (15 ... 45°) |
Linearity | ±0.5% f.s. (typical) |
Rated distance sensor / magnet | Depending on the position magnet |
Protection class | IP60 |
Housing material | Epoxy glass fibre, thermoplastic |
Mounting | Screws M3 |
Connection | Single wire ETFE 3 x 0.5 mm2 |
Temperature range | -40 ... +85°C |
Shock | DIN EN 60068-2-27:2010, 100 g/11 ms, 100 shocks |
