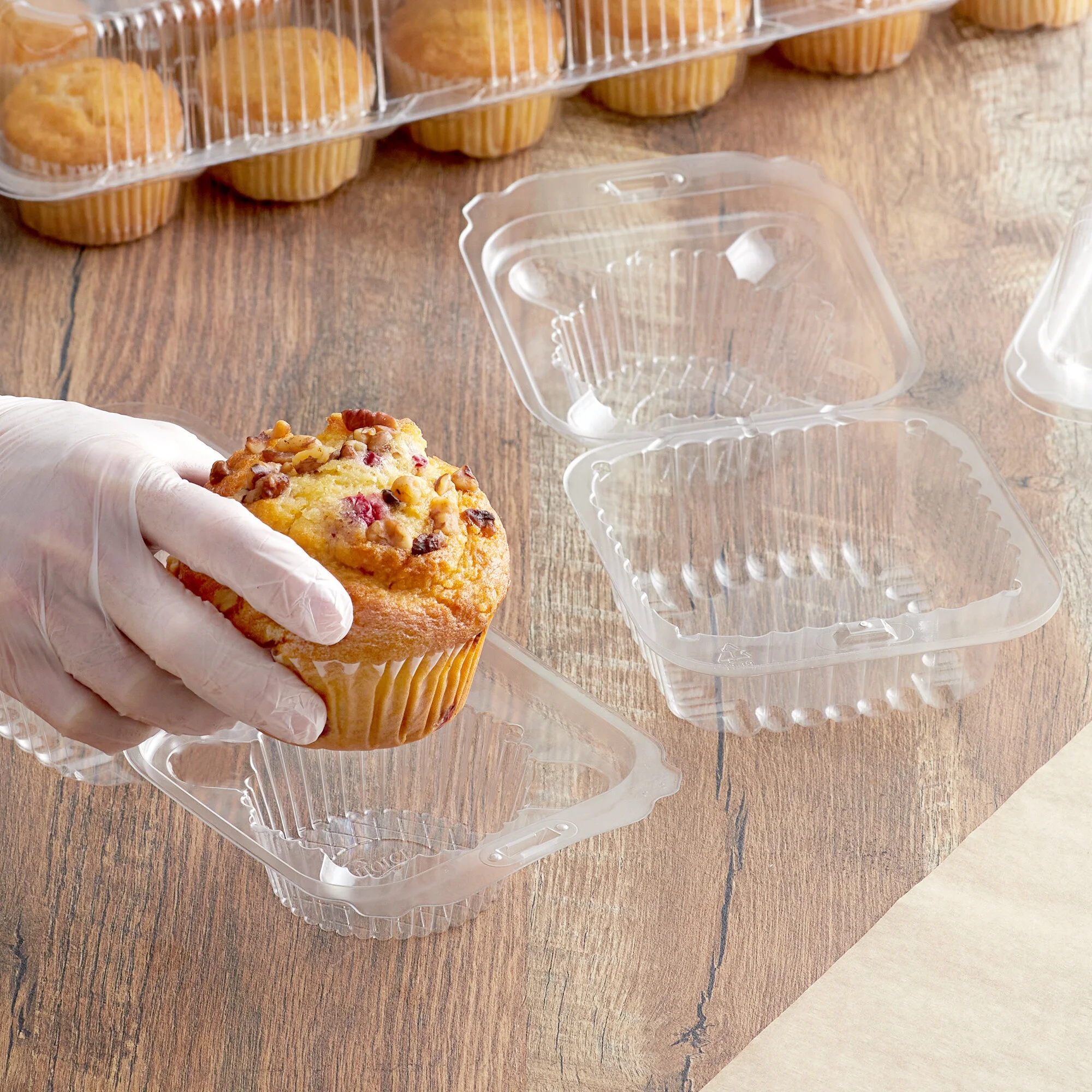

DB 54/76 Full automatic 1 Compartment Clear OPS Plastic Cupcake Container thermoforming machine
- Category: >>>
- Supplier: Wenzhou Daba Machinery Co. Ltd.
Share on (1600503086747):
Product Overview
Description
Products Description

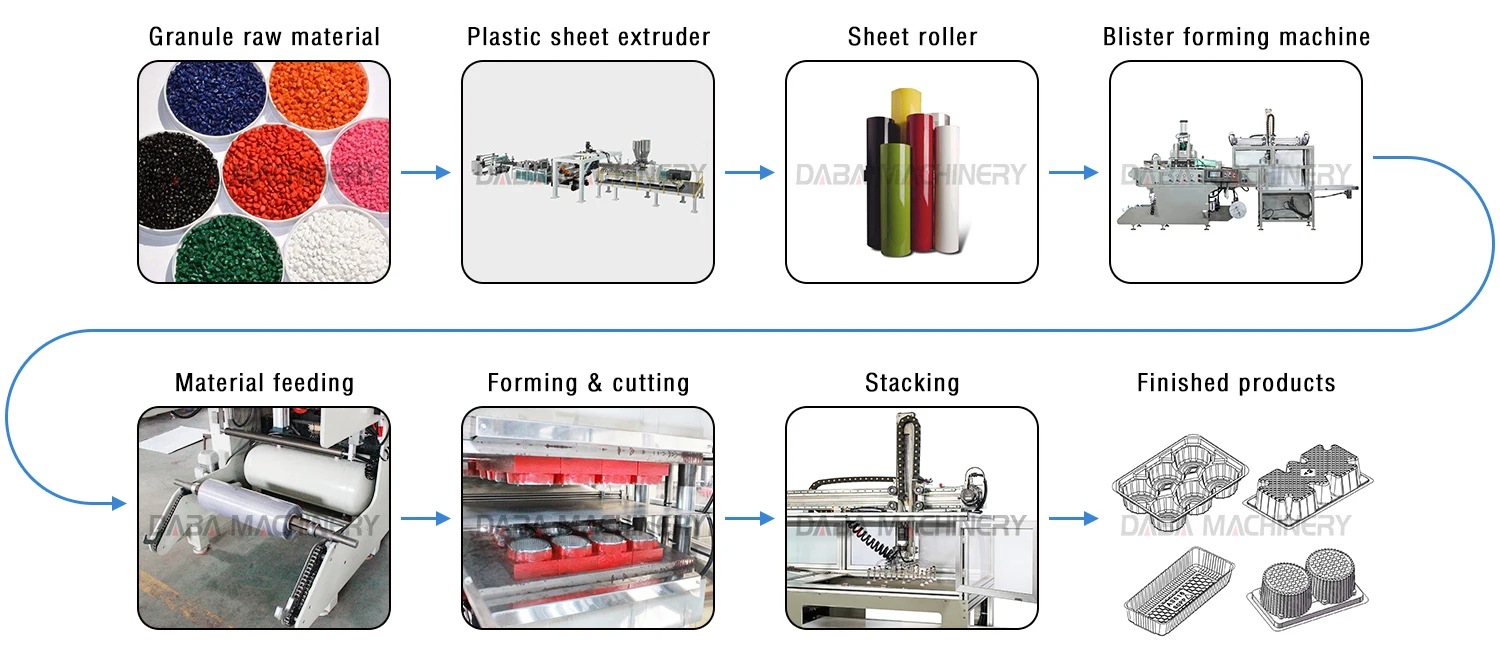

General process of the whole production line:
We also provide all the related equipment before and after thermoforming.
Application:
This machine is suitable for forming PP, HIPS, PS, BOPS, PVC, PET sheets. It can produces boxes, trays, fast food boxes, dishes, lids, cookies tray, mobile phone tray & other blister tray.

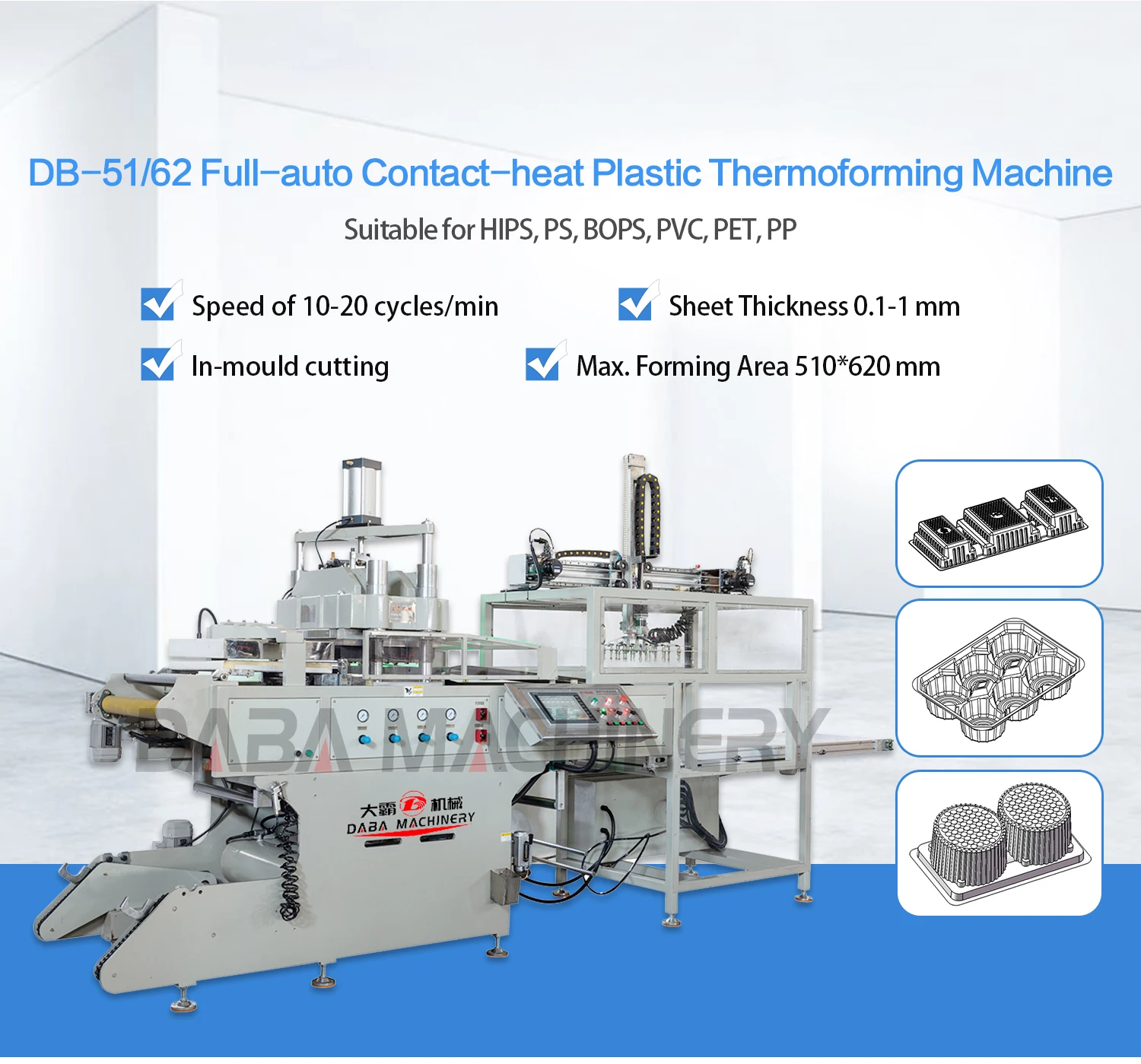

DB-51/62 plastic thermoforming machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components, and the whole machine is controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting into one process.
DB-51/62 plastic thermoforming machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components, and the whole machine is controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting into one process.
Highlights of this kind of contact-heat thermoforming machine:
1. Small size, small floor area
2. Low power consumption and fast speed
3. Large forming area 510*620mm, 540*760mm optional
4. Material saving and high degree of automation

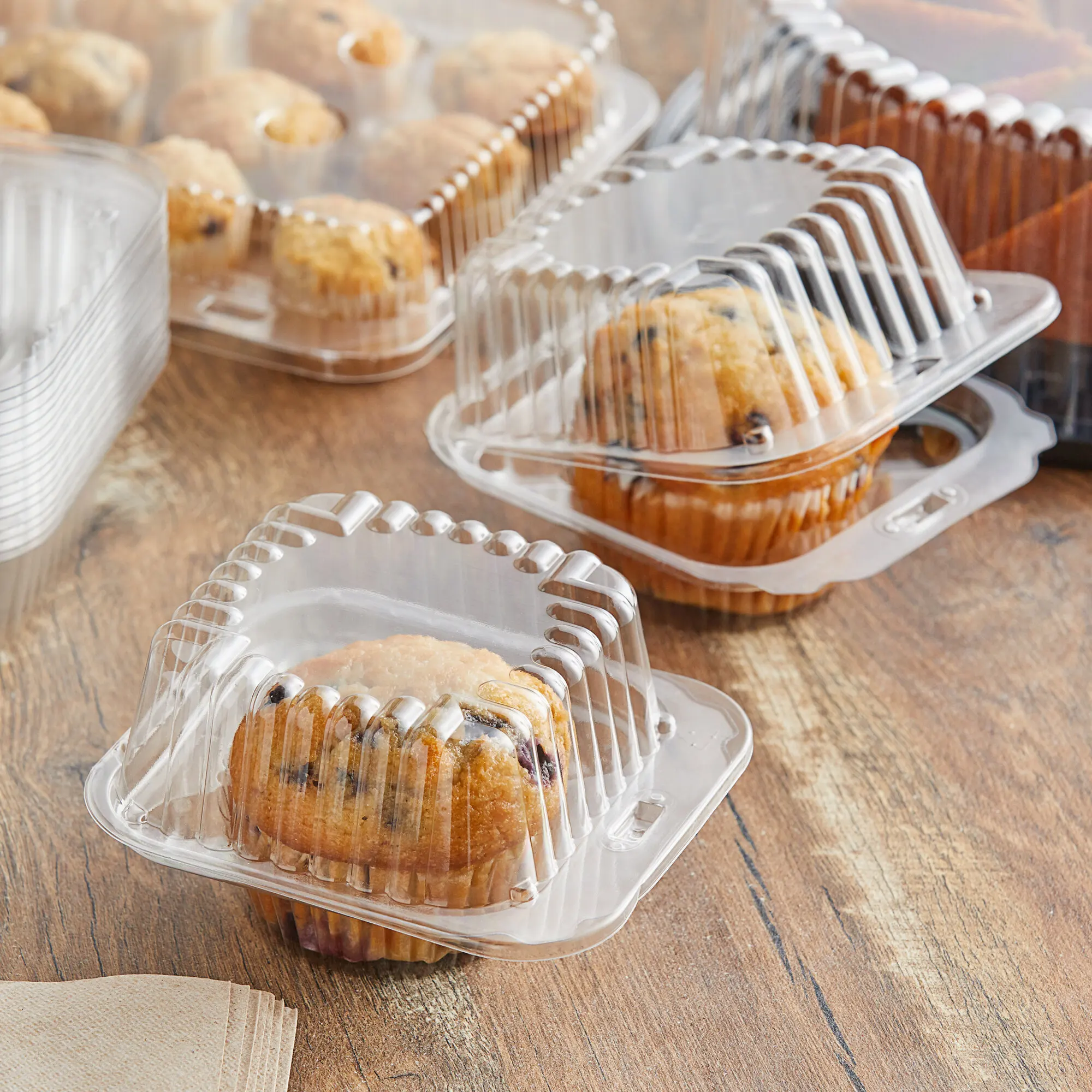

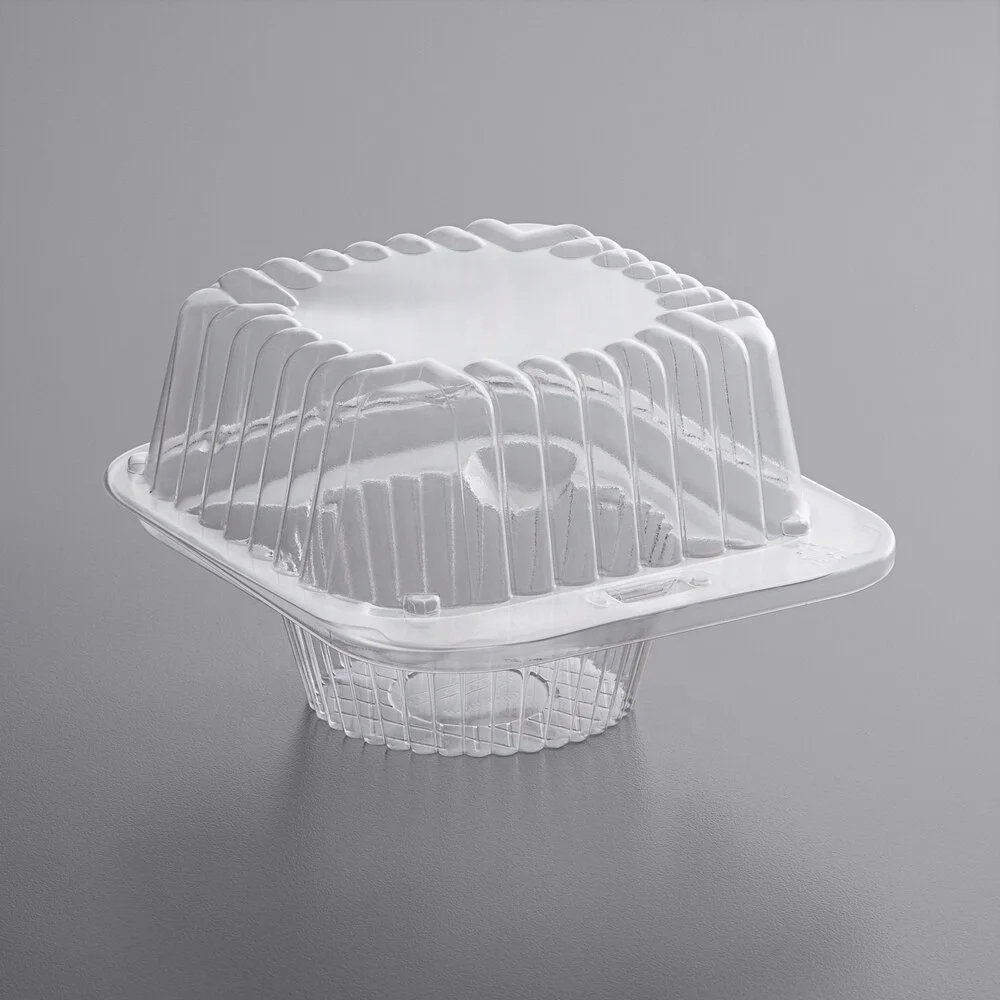

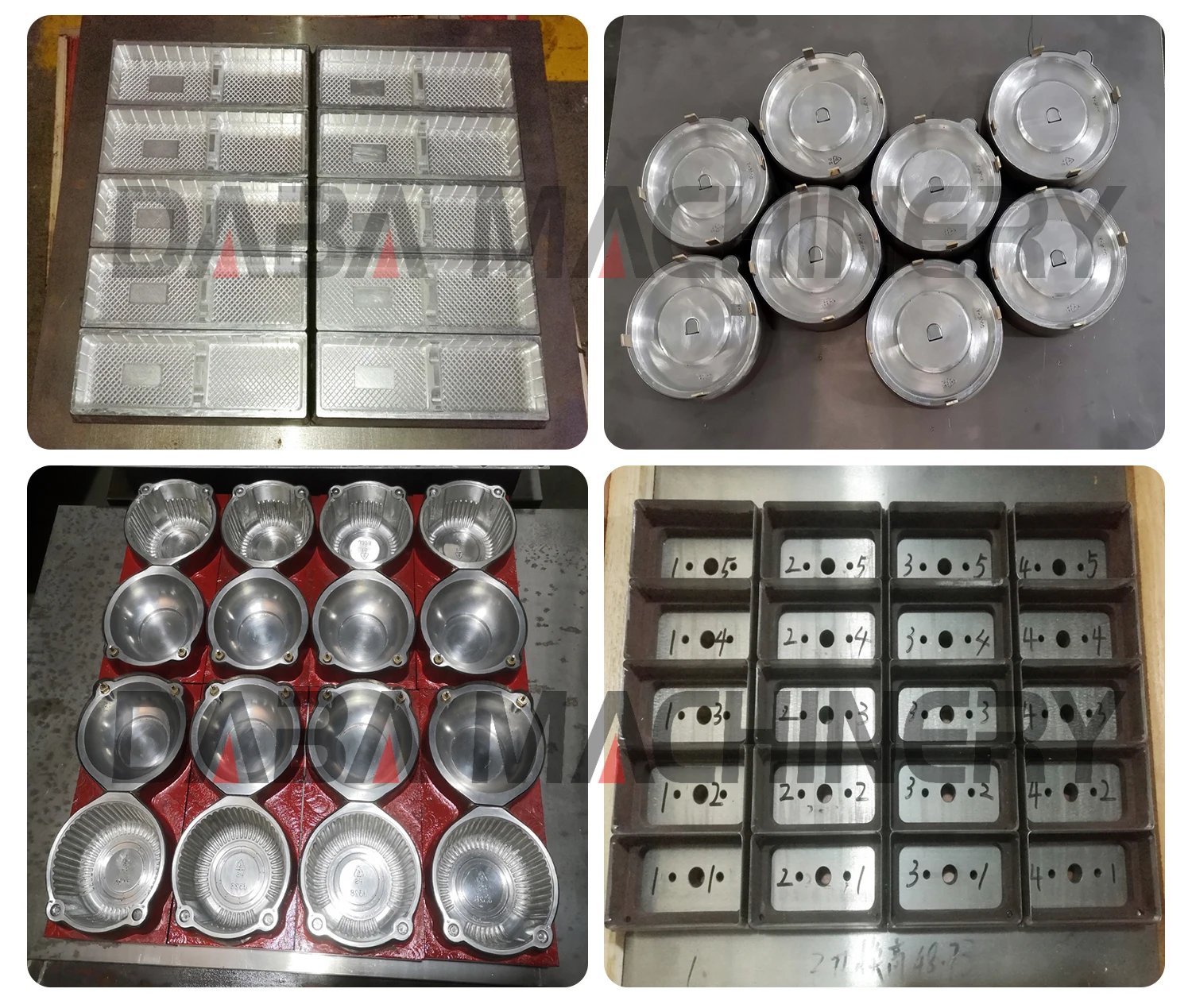

Samples for reference:
The machine is suitable for making different products by changing moulds.

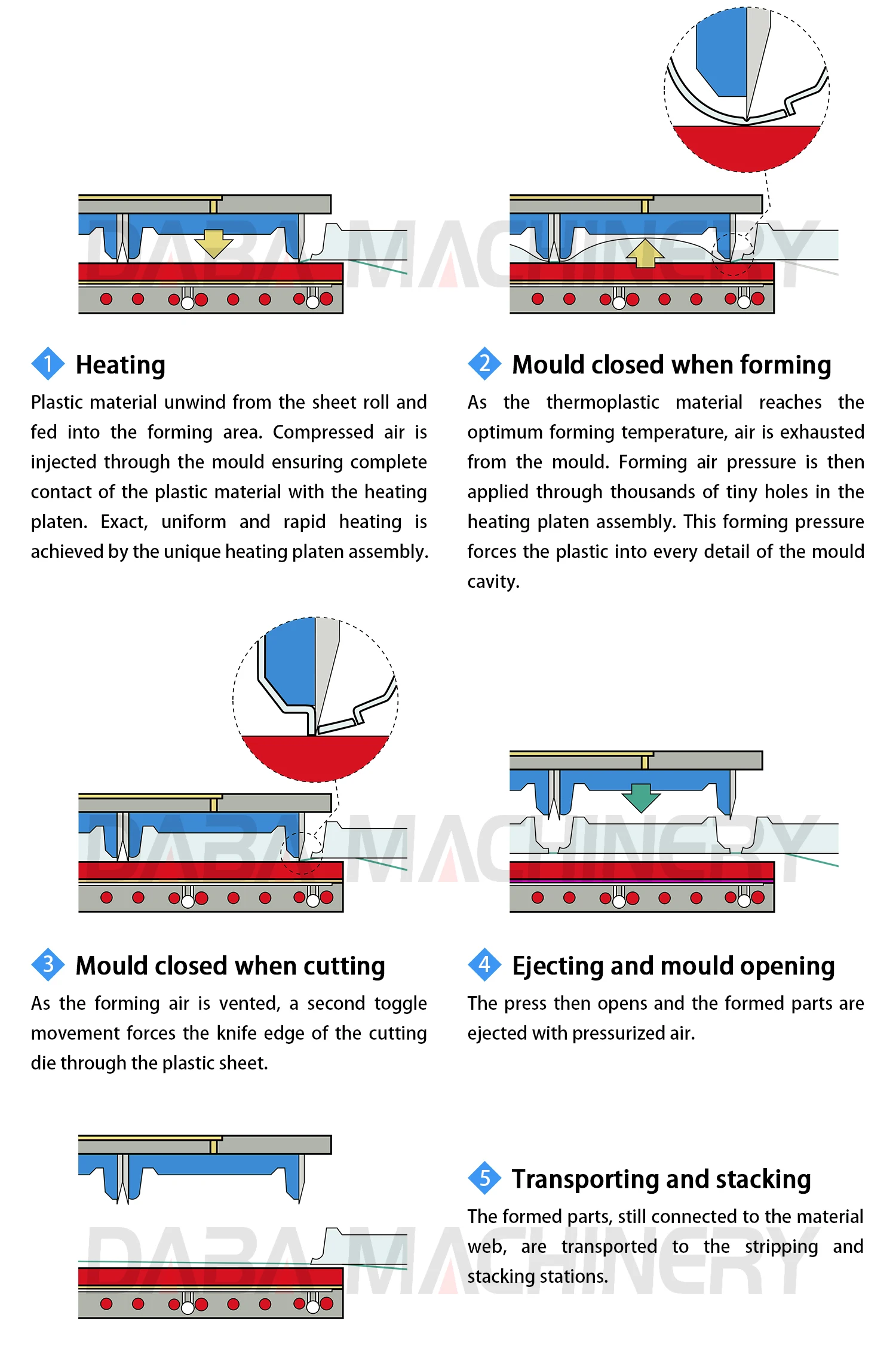

Manufacturing Technique
The machine adopts single station to finish heating, forming and cutting in one process.
Product Paramenters
Features:
1. Use for forming PP/BOPS/HIPS/PS/PVC/PET plastic sheets into various of boxes, dishes, trays, bowls and lids.
2. Combination of mechanical, electrical and pneumatic components, and it combines the material sending, heating, forming and cutting into one process. The final products already cut one by one.
3. The whole system is controlled a micro PLC, which can be operated in man-interface. And it is capability reliable, safe and jarless, less error.
4. Has three operation models: manual, semi-automatic and full-automatic.
5. Servo motor drives the sheet transport system.
6. Has quickly production capacity, highly utilization ratios of plastic sheet, Low air consumption and maintenance,beautiful final products, so it is a new generation ideal package equipment.
7. Telecommuting and memory reserve functions.
2. Combination of mechanical, electrical and pneumatic components, and it combines the material sending, heating, forming and cutting into one process. The final products already cut one by one.
3. The whole system is controlled a micro PLC, which can be operated in man-interface. And it is capability reliable, safe and jarless, less error.
4. Has three operation models: manual, semi-automatic and full-automatic.
5. Servo motor drives the sheet transport system.
6. Has quickly production capacity, highly utilization ratios of plastic sheet, Low air consumption and maintenance,beautiful final products, so it is a new generation ideal package equipment.
7. Telecommuting and memory reserve functions.
Specification:
No | Item | Data |
1 | Forming area | 510×620mm |
2 | Forming depth | 100mm |
3 | Sheet thickness range | 0.10-1mm |
4 | Sheet roller diameter | 710mm |
5 | Air pressure | 0.7Mpa |
6 | Water consumption | 10 Liters/min(15-20℃) |
7 | Air consumption | 2200 Liters/min |
8 | Production Speed | 600-1200 recycles/hr. |
9 | Voltage | AC380V±15V, 50HZ |
10 | Preheating power | 4kw |
11 | Mould plate heating power | 6kw |
12 | Heating plate power | 15kw |
13 | Weight | 2500kg |

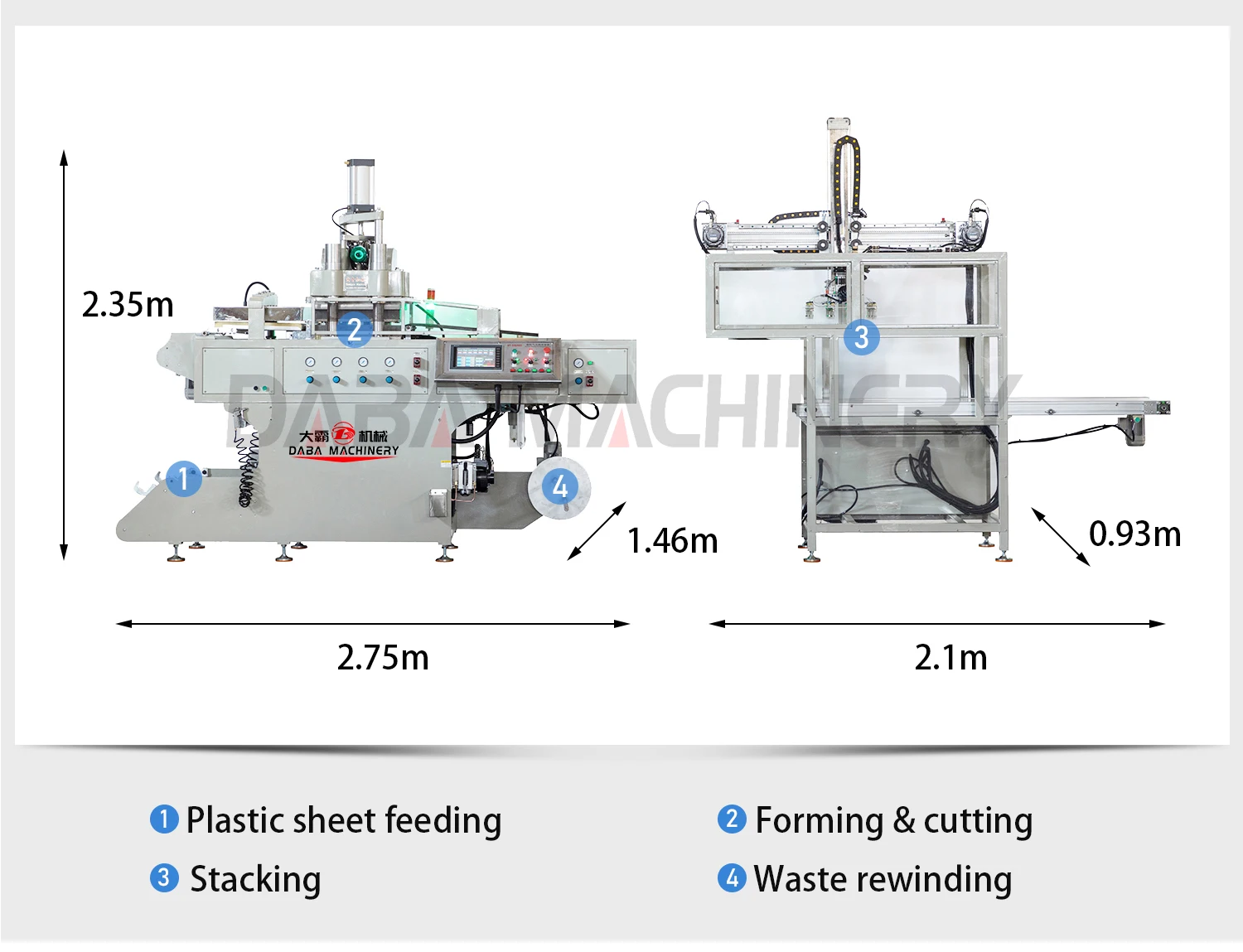

14 | Dimension(Forming part) | 2750*1460*2350 mm |
15 | Dimension(Stacking part) | 2100×930×2350 mm |
Details Images

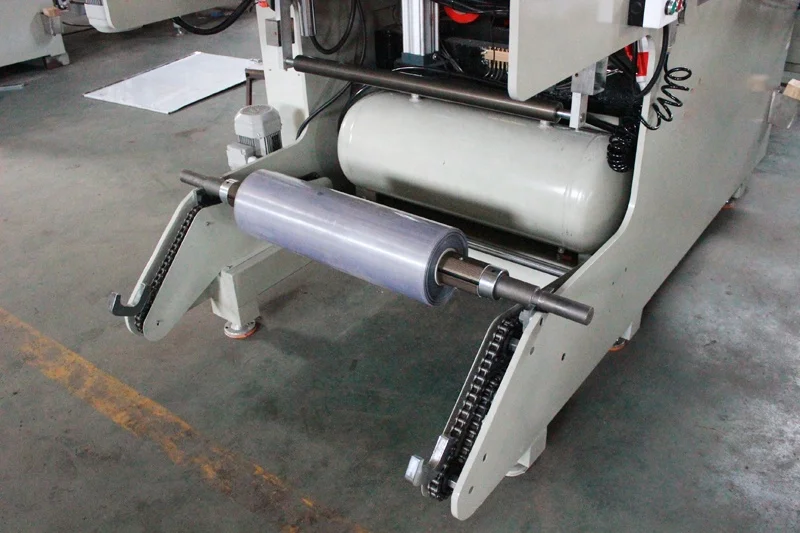

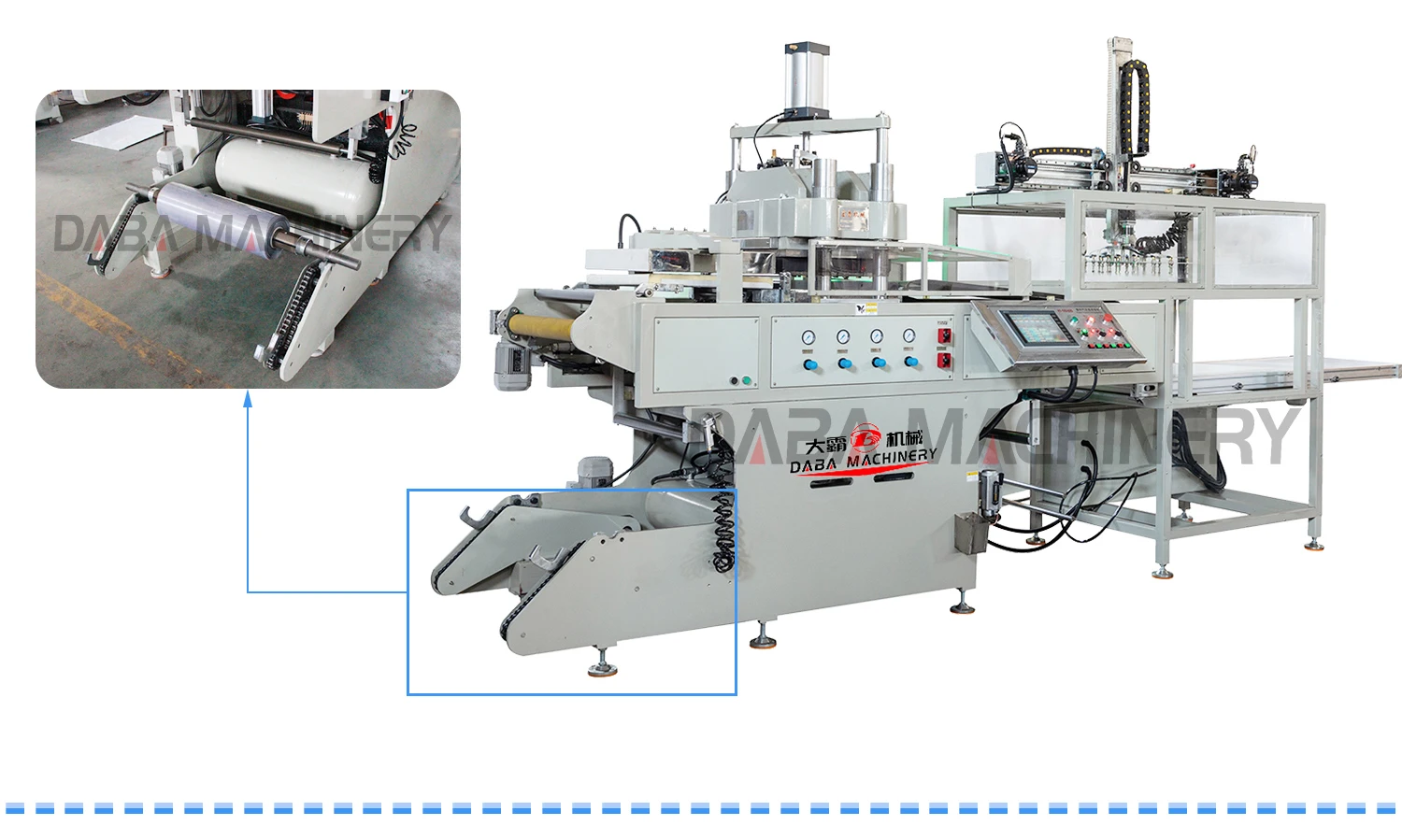

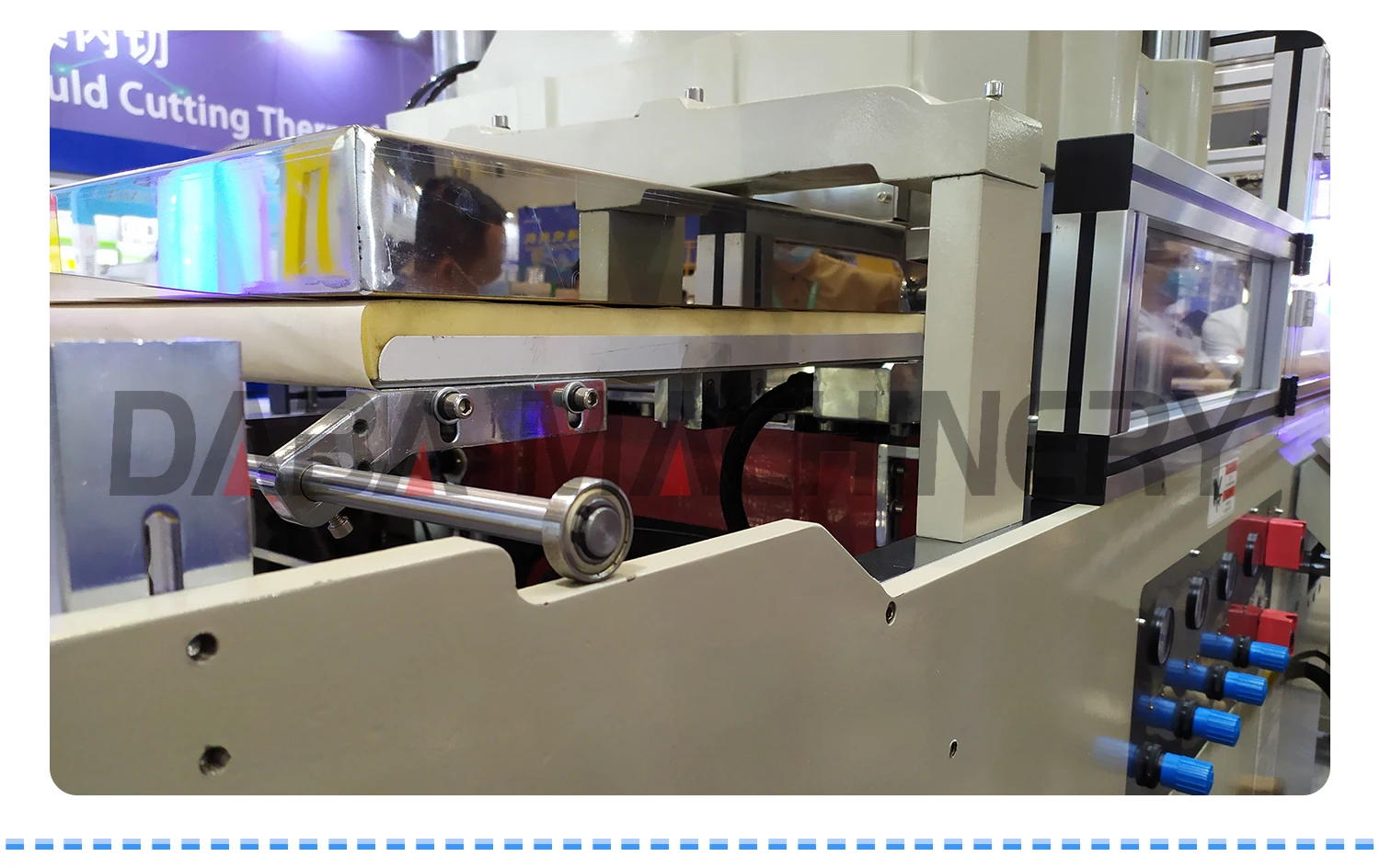

Feeding Part:
The feeding part of the machine is integrated with the machine, which makes the feeding process more stable and can bear larger material roll. The left and right of the feeding frame are respectively controlled by a cylinder to ensure the stability of feeding process.
Pre-heating Part:
Heating with electric heating rod can directly heat the sheet, improve the working speed of the machine and enhance the transparency of the sheet. The surface of the new preheating version is treated with Teflon coating, which is not easy to scratch the material.

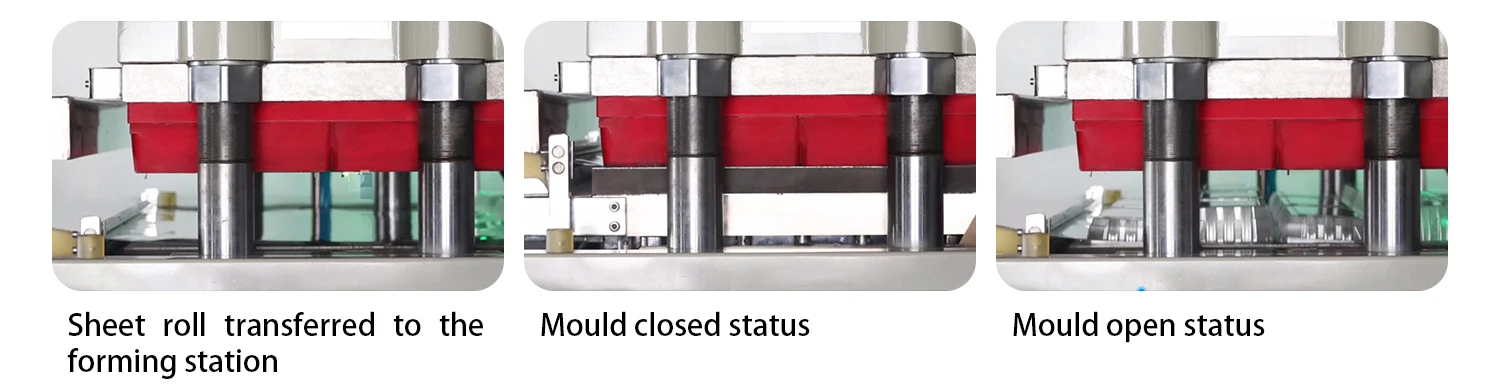

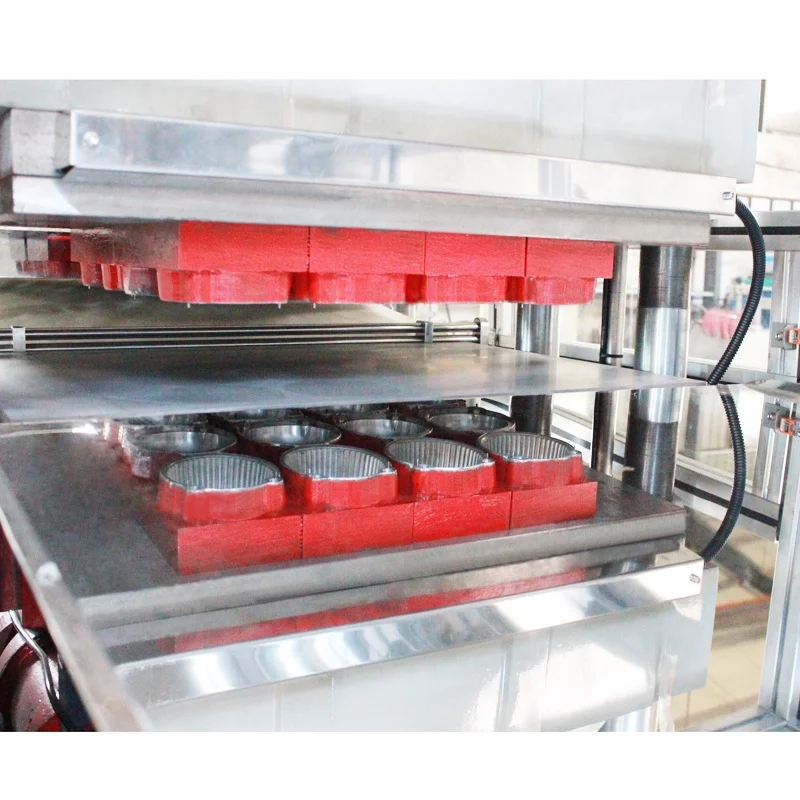

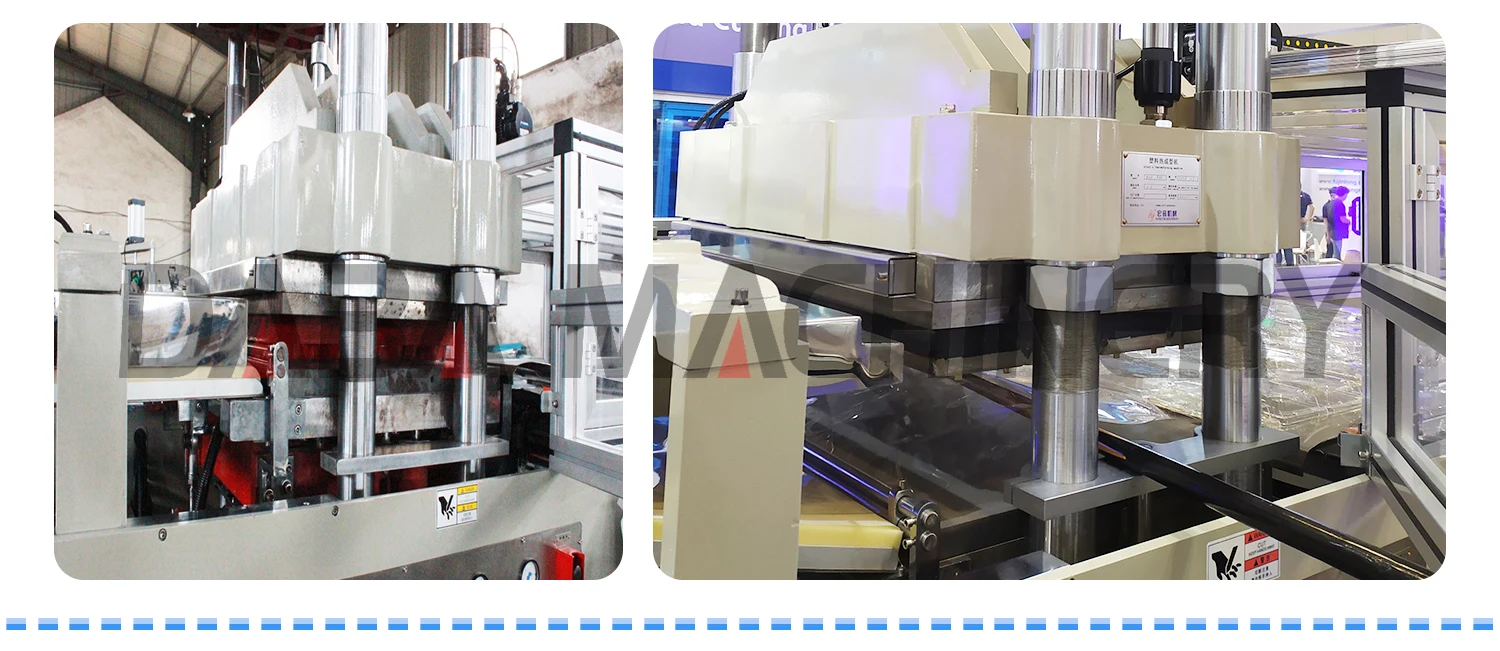

Heating - Forming - Cutting Part:
The machine could finish plastic sheet's heating, in-mould forming, cutting and stacking in one process. The direct contact heating, forming and cutting method makes the final products good shaping and accurate cut. Cutting is a way of sharing blades, it makes material utilization rate high. Servo motor control make the machine with low power consumption and easy maintenance.

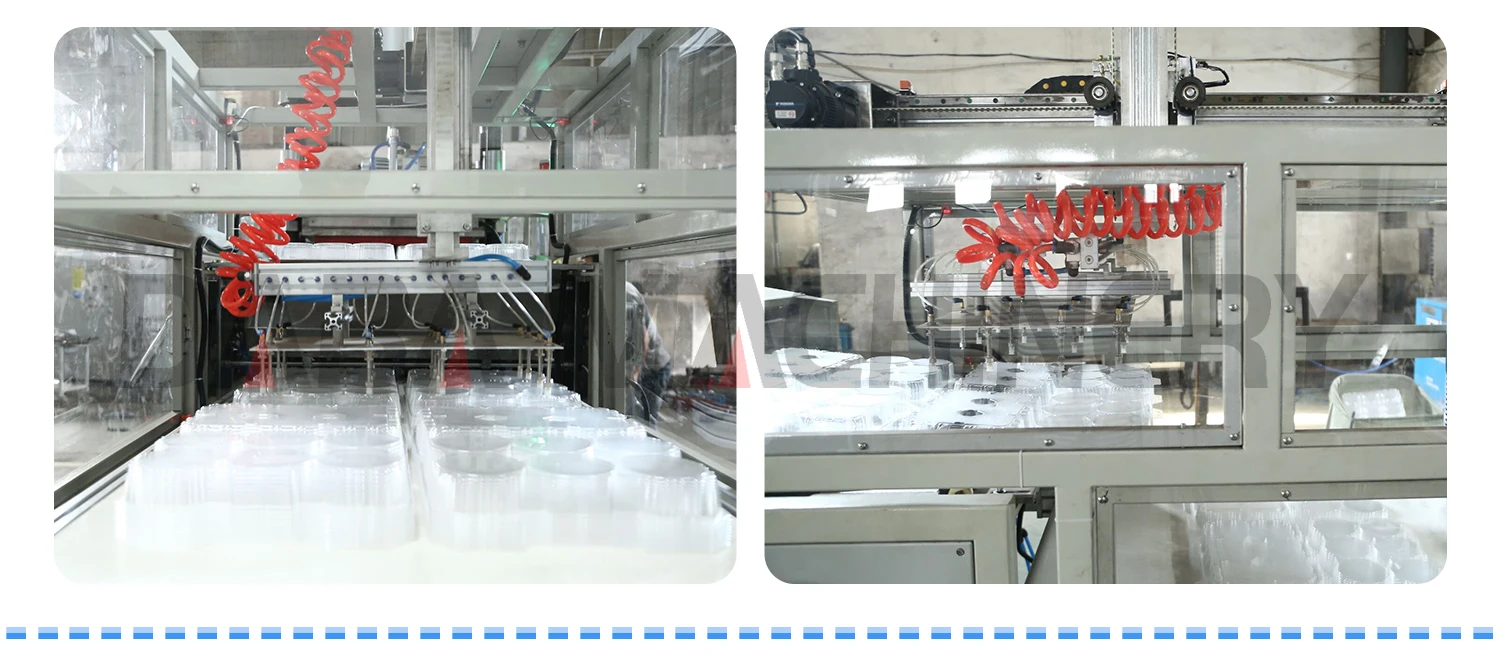

Stacking Part:

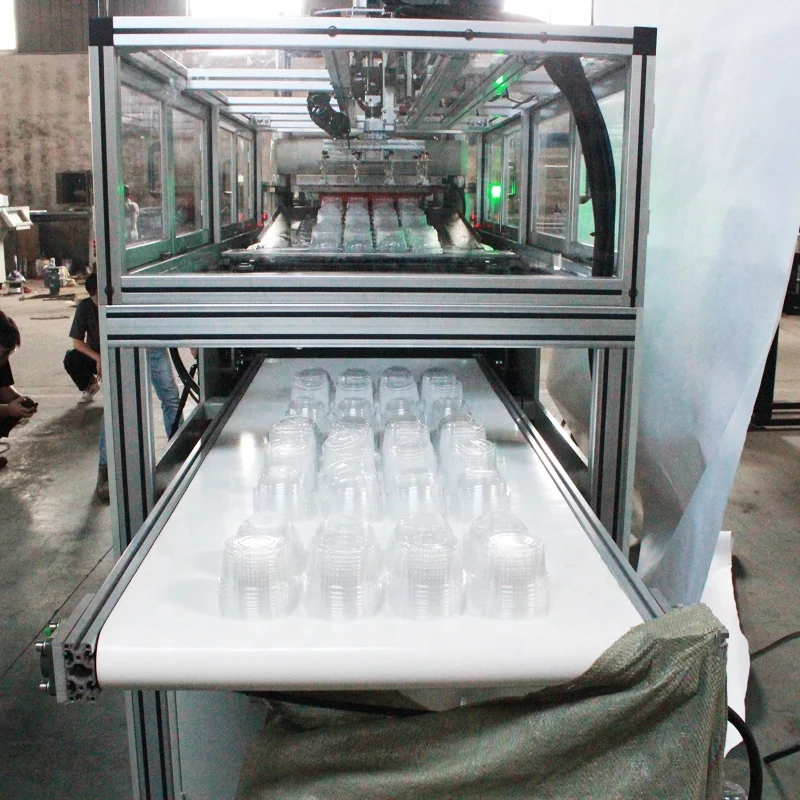

After products finished, they are grasped and stacked by the manipulator automatically.
The guide rail for stacking is imported from Japan and controlled by servo motor to ensure the stability of grabbing and stacking.
The guide rail for stacking is imported from Japan and controlled by servo motor to ensure the stability of grabbing and stacking.

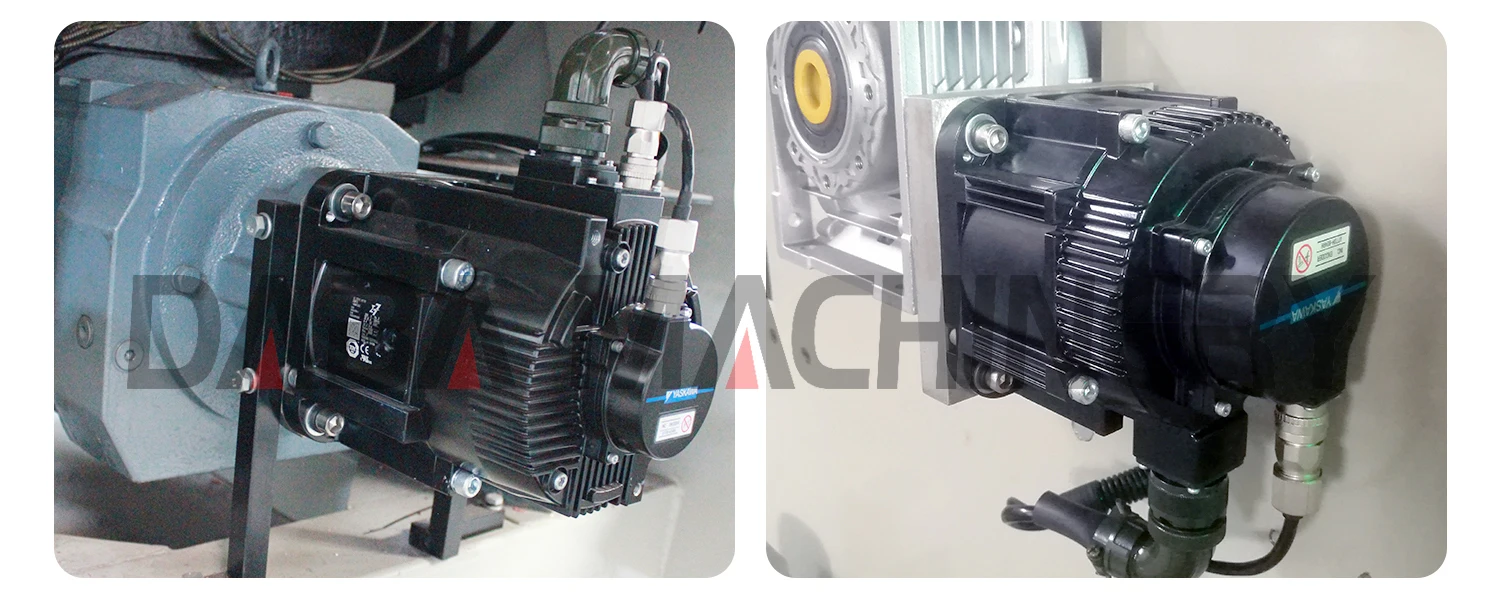

Machine driver:
The machine adopts full servo motor control together with reducer. It makes the machine running with small noise, lower consumption, more energy saving and easy maintenance.

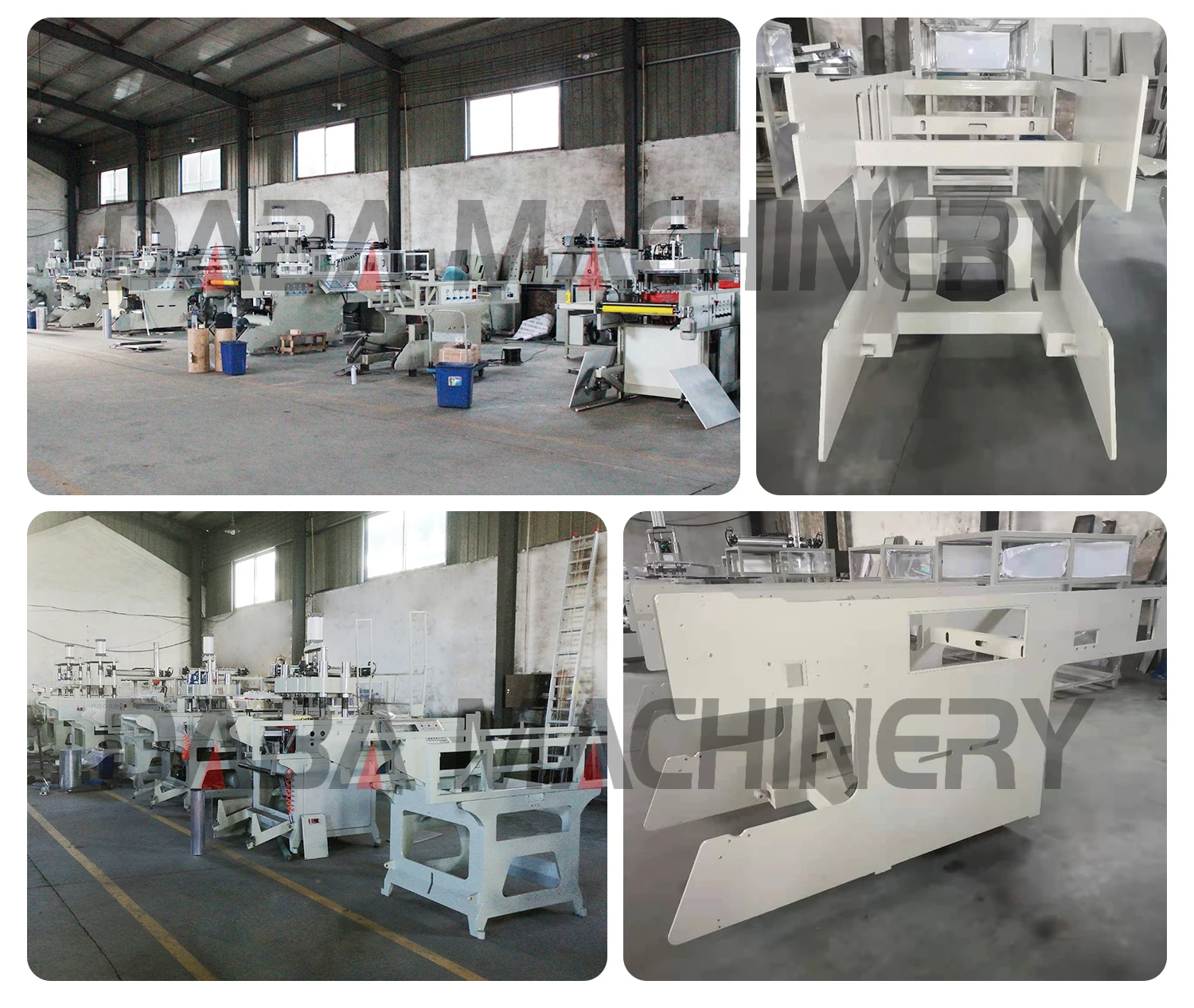

Production Introduction
We have a complete production line and professional engineers, combined with advanced technology and mature experience, to produce high-quality machines.

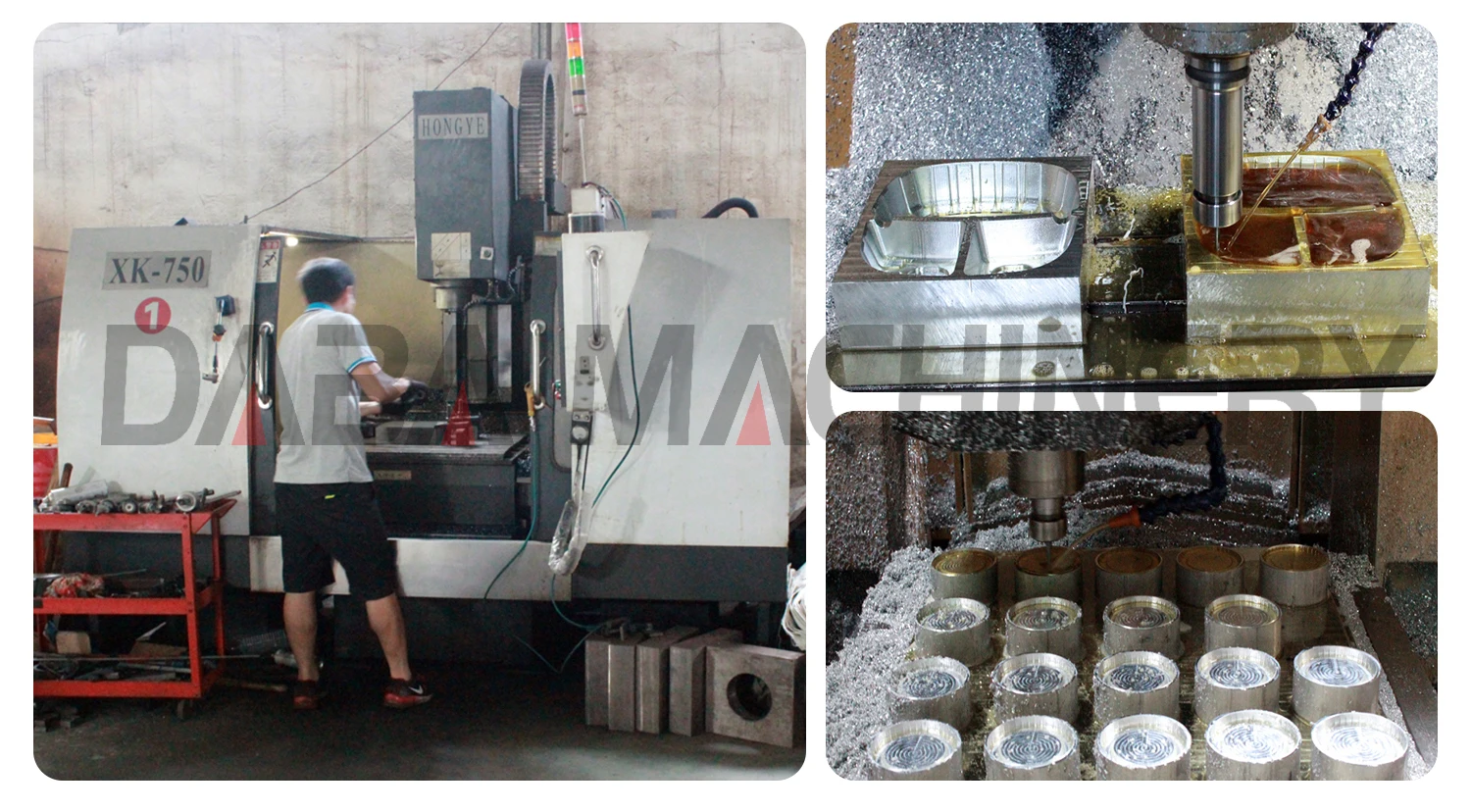

There are three CNC equipments for manufacturing machine's mainly part, mold etc. Mould production capacity of 5-10 sets per month.
Auxiliary Equipments

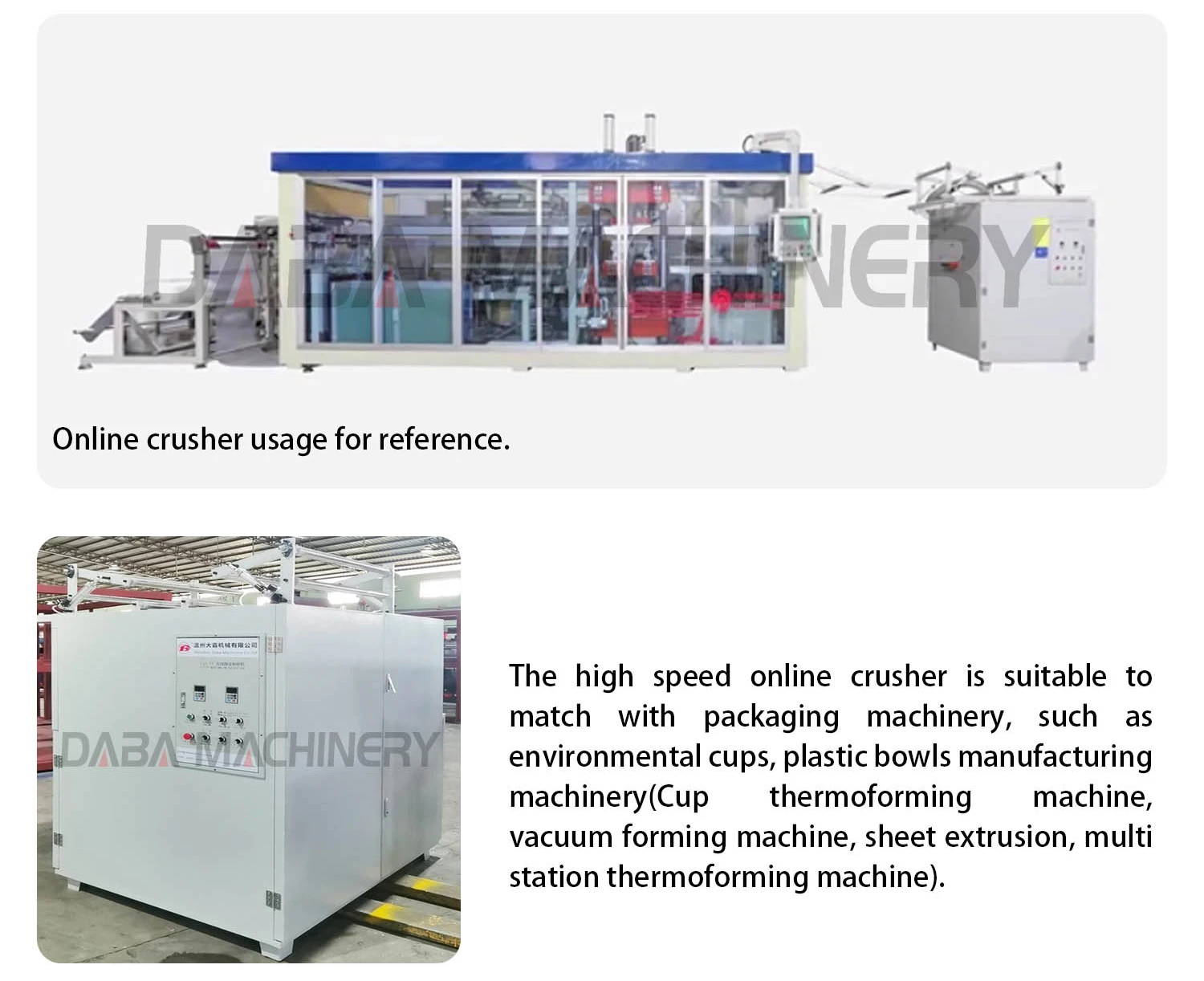

1. Online crusher.

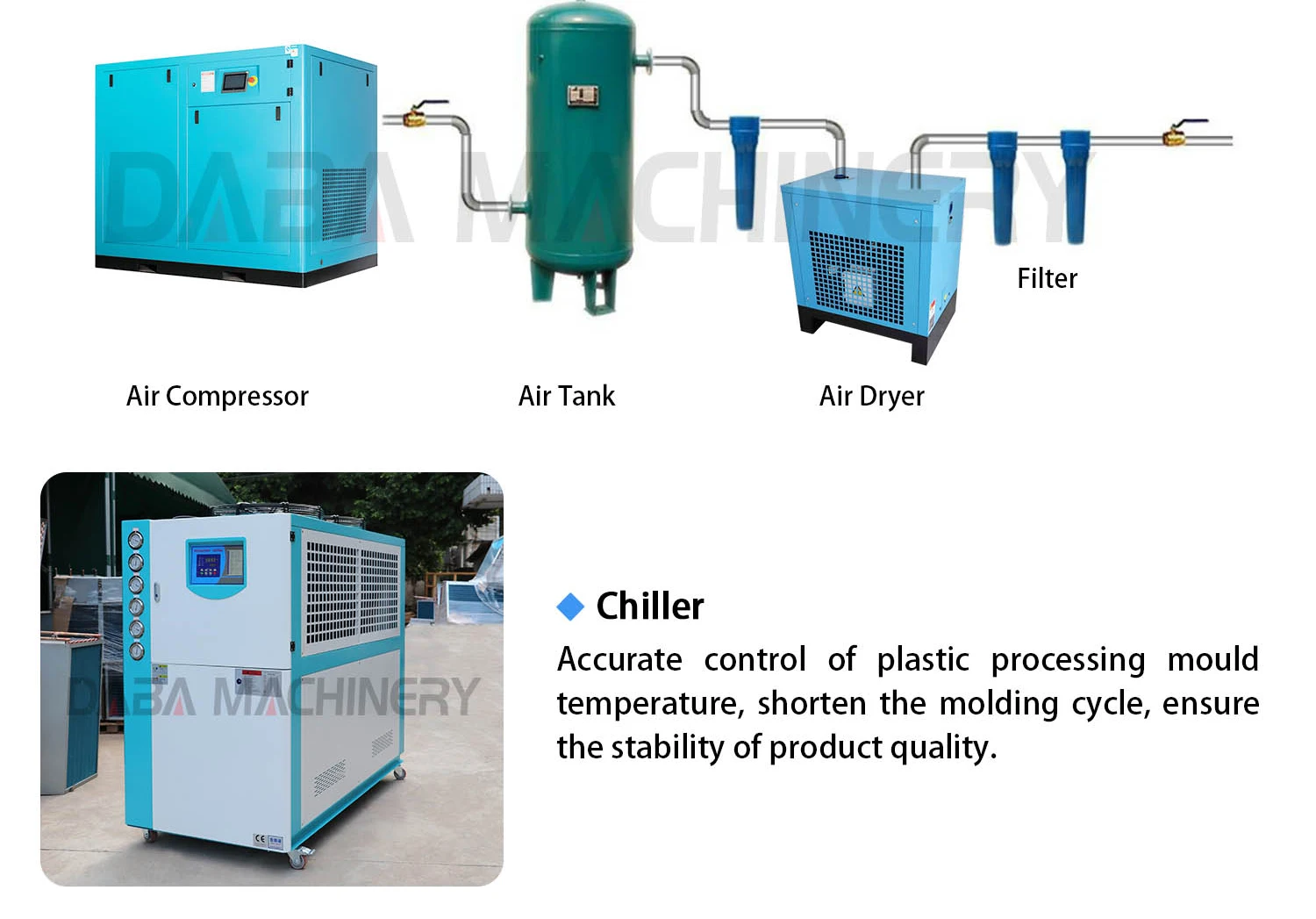

2. Air and water supply system.

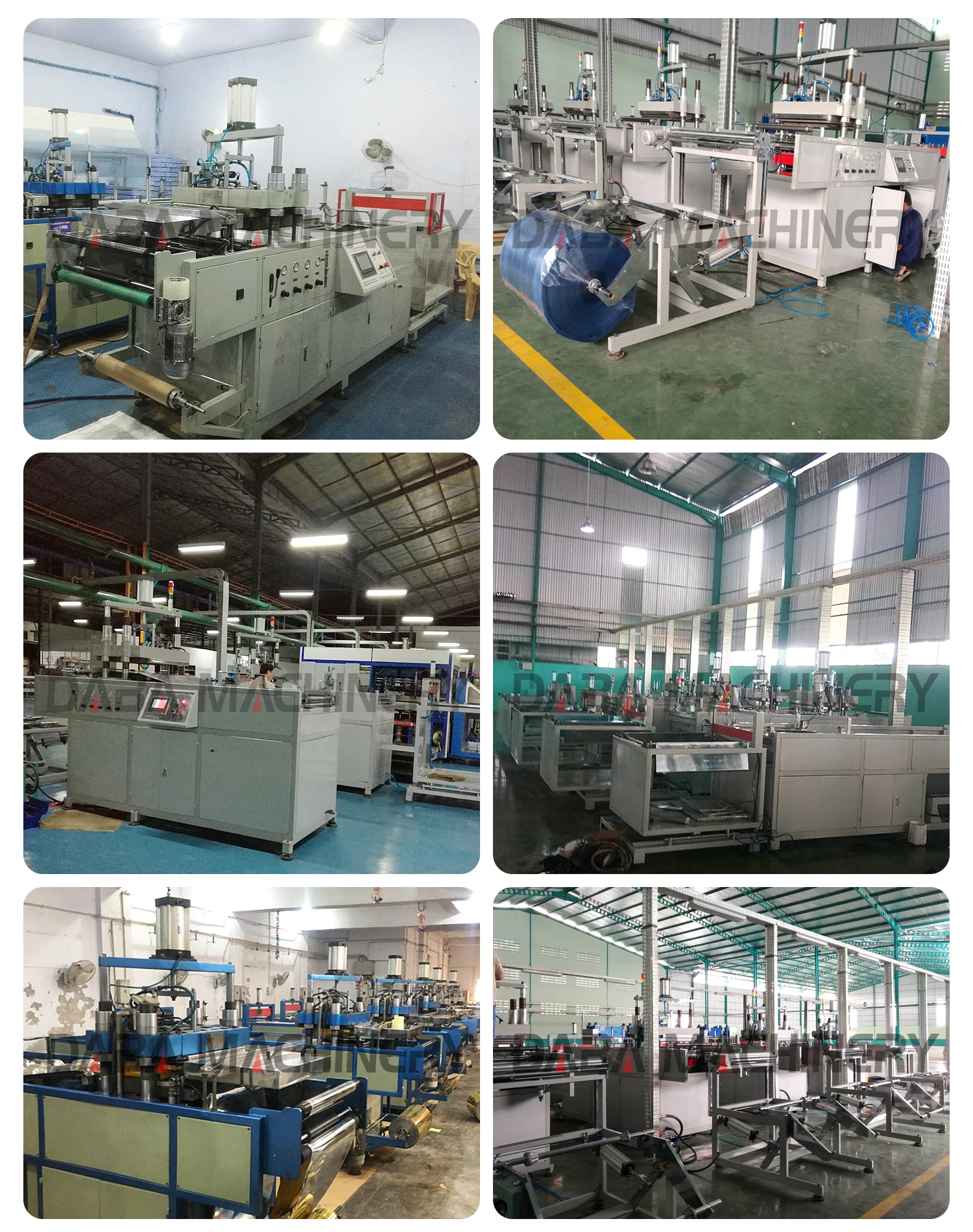

Customer Photos
