Product Overview
Description
Product Description

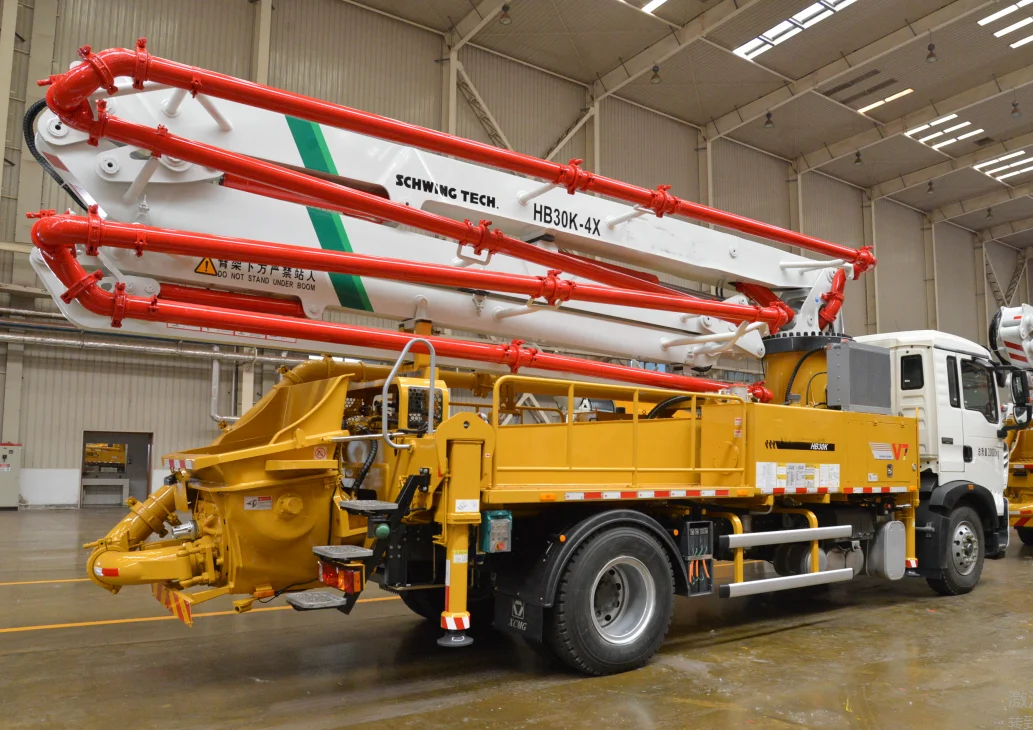

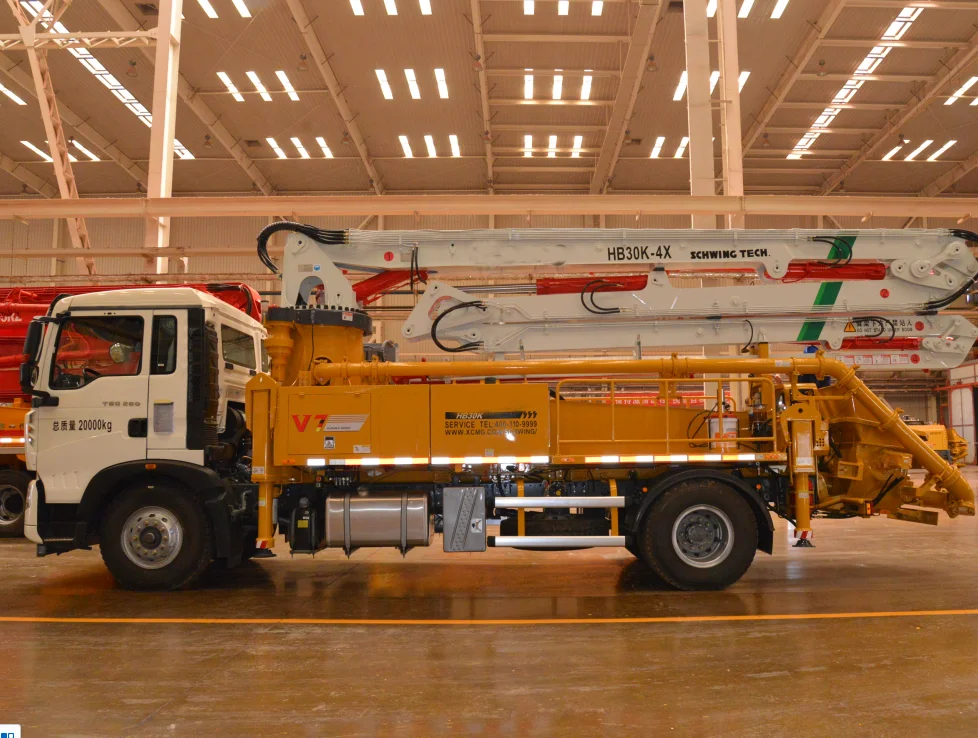

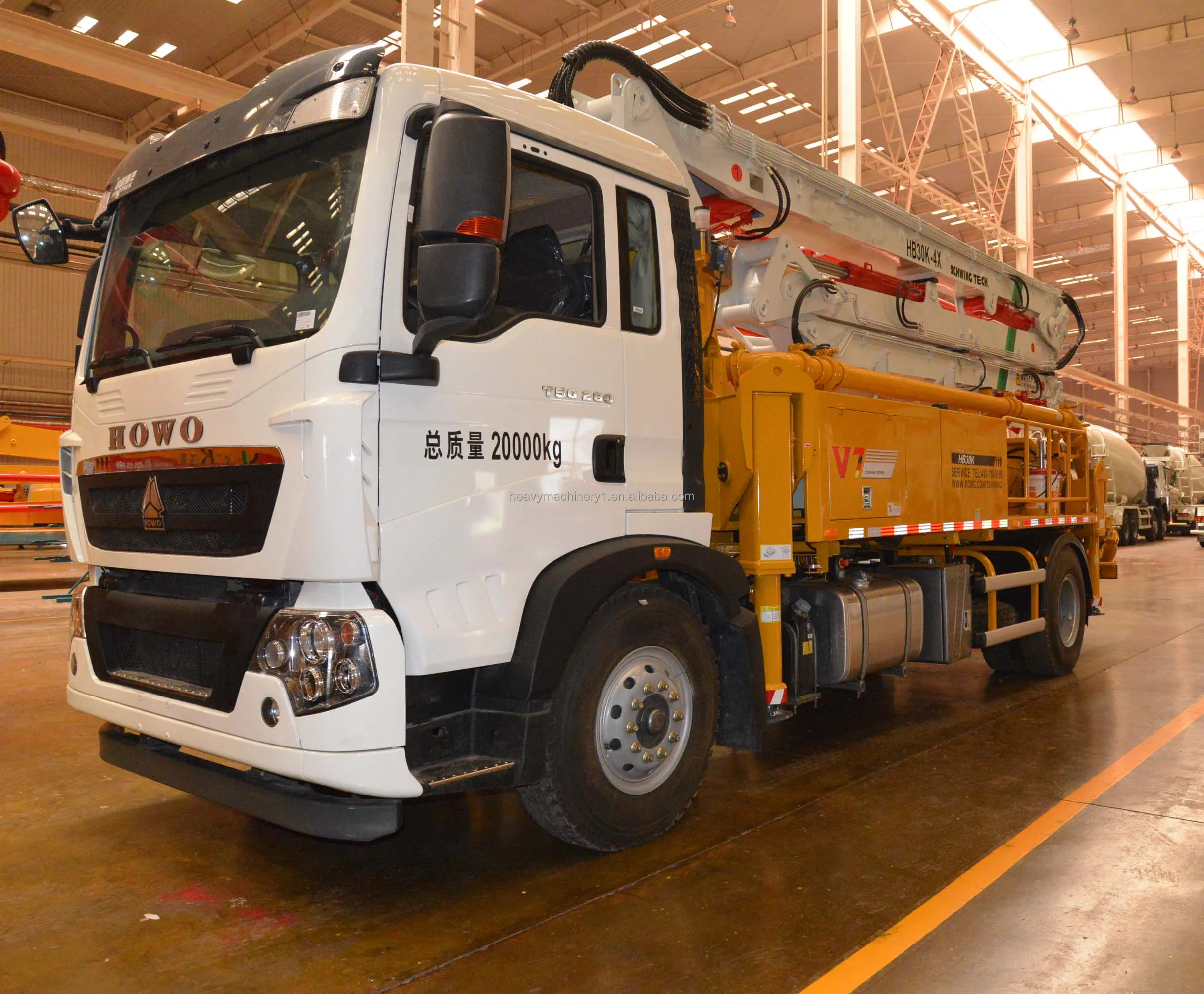

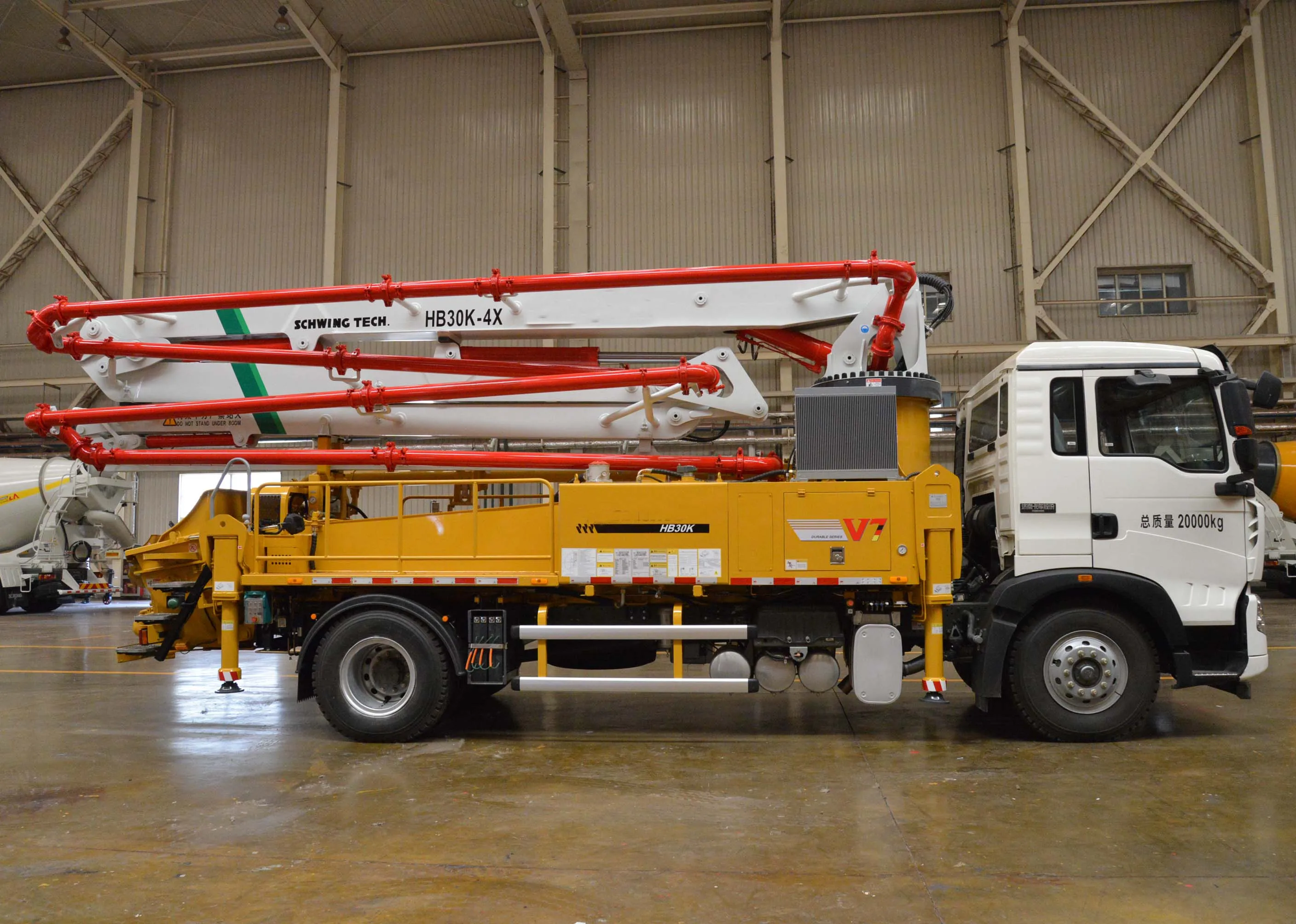

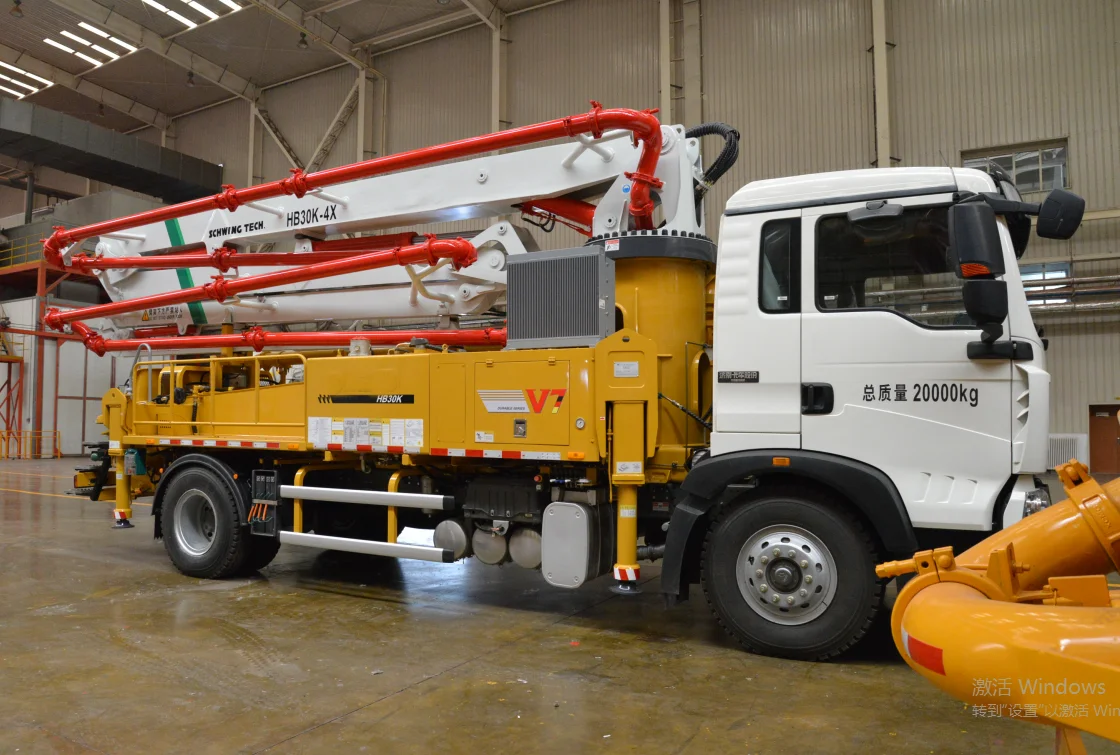

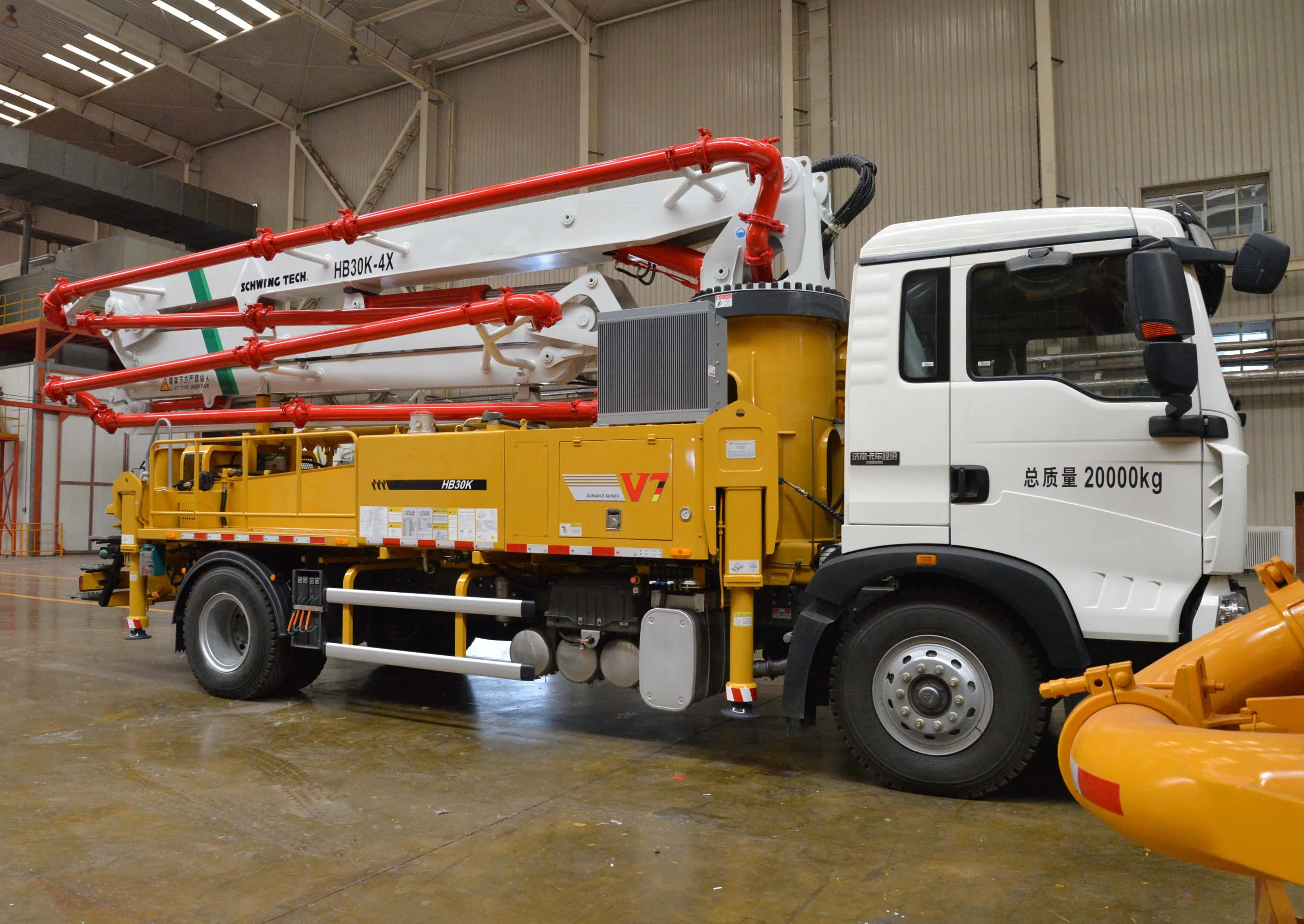

V7 series truck mounted concrete pump is a new generation equipment which is developed by SCHWING Germany technology.
2,It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock
valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable
fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control
system.
* Large diameter (230 mm) Φ, large displacement (100 / hour) pumping systems. * Material absorption can reach more than 85%. *
Effectively reduce emissions with the reversing, vulnerability of longer life. * The pumping system adopts electric control
reversing, reversing faster and the system impact smaller. * The actual pumping efficiency is more than 5% higher than the
conventional hydraulic control reversing system.
2,It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock
valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable
fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control
system.
* Large diameter (230 mm) Φ, large displacement (100 / hour) pumping systems. * Material absorption can reach more than 85%. *
Effectively reduce emissions with the reversing, vulnerability of longer life. * The pumping system adopts electric control
reversing, reversing faster and the system impact smaller. * The actual pumping efficiency is more than 5% higher than the
conventional hydraulic control reversing system.
Specification
Description | Unit | Parameter value |
Outline dimension | mm | 10190×2500×3700 |
Overall weight | kg | 20000 |
Model | ZZ5207M521GC1 | |
Manufacturer | China Sinotruk Group Co., Ltd. | |
Max. speed | km/h | 90 |
Max. grade-ability | % | 35 |
Wheelbase | mm | 5200 |
Tire | 11.00R20 | |
Model | kW | MC07.28-30 |
Max. power | N·m/(r/min) | 203 |
Max. torque | L | 1100/1200-1800 |
Displacement | 6.87 | |
Emission standard | Eruo III | |
Theoretical output | m³/h | 100 |
Concrete pumping pressure | MPa | 8 |
Theoretical pumping times | Time/min | 25 |
Delivery cylinder diameter ×stroke | mm | φ230×1600 |
Max. diameter of pumping concrete | mm | 40 |
Filling height | mm | 1550 |
Concrete slump range | cm | 8~23 |
Reach height | m | 29.6 |
Reach depth | m | 18 |
Slewingradius | m | 25.7 |
Slewing angle | ° | ±270 |
Unfolding angle of the 1st section | ° | 90 |
Unfolding angle of the 2nd section | ° | 180 |
Unfolding angle of the 3rd section | ° | 250 |
Unfolding angle of the 4th section | ° | 235 |
Unfolding angle of the 5th section | ° | |
Longitudinal span of stabilizer | mm | 6100 |
Transverse span of front stabilizer | mm | 5555 |
Transverse span of rear stabilizer | mm | 4810 |
Transfer tube | Rock valve | |
Lubrication method | Automatic lubrication | |
Control method | Manual/remote control | |
Volume of water box | L | 400 |
