Product Overview

Description



Product Description

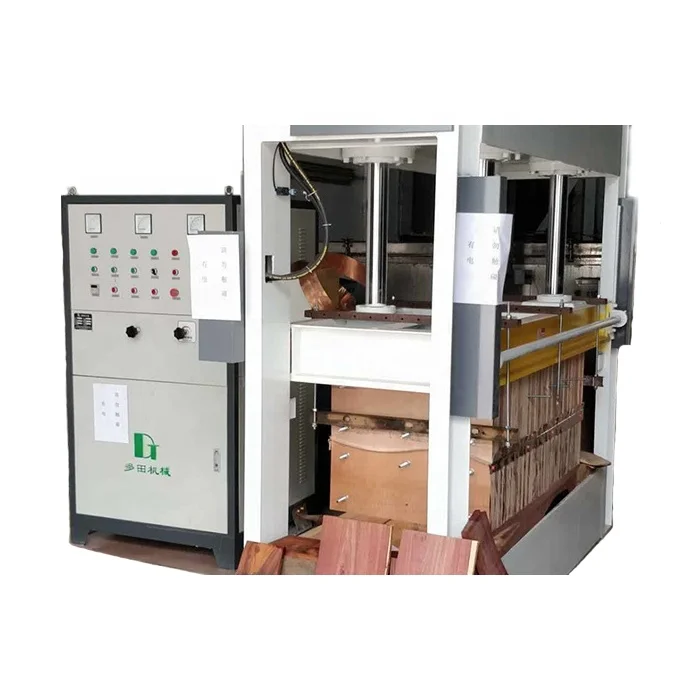

High frequency bent plywood chair production press machine can be used for bending all kinds of plywood, MDF, HDF boards, such as office chair, desk, sofa arm, bed slats, panel furniture,
bed heads, cabinet door face, musical instruments as well as other plywood elements.
For solid wood bending is only suitable for big radius of curvature products, such as chair banks, chair legs, bed heads or
musical instrument pieces.


Features
High frequency dielectric heating fast & uniform, curing glue in 2 to 3 minutes;
Wooden molds saving costs, less heat loss, easy operation and changing;
After bending, stable shape and keep shape;


2 sets of presses shift to work. While one is working, the other one is ready to loading. High efficiency;
Environmental friendly, no pollution;
12 years of production experience, multiple safeties & protections.


Specification


1 way high frequency bent plywood chair press machine
Model
GYJ-60-DT
GYJ-80-DT
GYJ-120-DT
GYJ-150-DT
HF Frequency
6.78MHz
HF Power
20kw
20kw
30kw
50kw
Worktable
1200x600mm
1600x800mm
2000x1000mm
2500x1250mm
Pressure
60T
80T
120T
150T
HF Outputs
2 outputs shift to work
Protection
Filament 2 grades warming up, over current, air pressure, over heating, door switch protections


Company Profile


1. Located in Shijiazhuang, Hebei which has a long history about the HF dielectric heating equipment
2. Applied for different industries, such as furniture, wood-based panels, flooring instruments, textile, etc.
3. Main products, High Frequency Generator, Vacuum Wood Drying Machine, HF Board Jointing Machine, HF Precision Frame Assembly Machine, HF Corner Jointer, HF Wood Bending press, etc.
