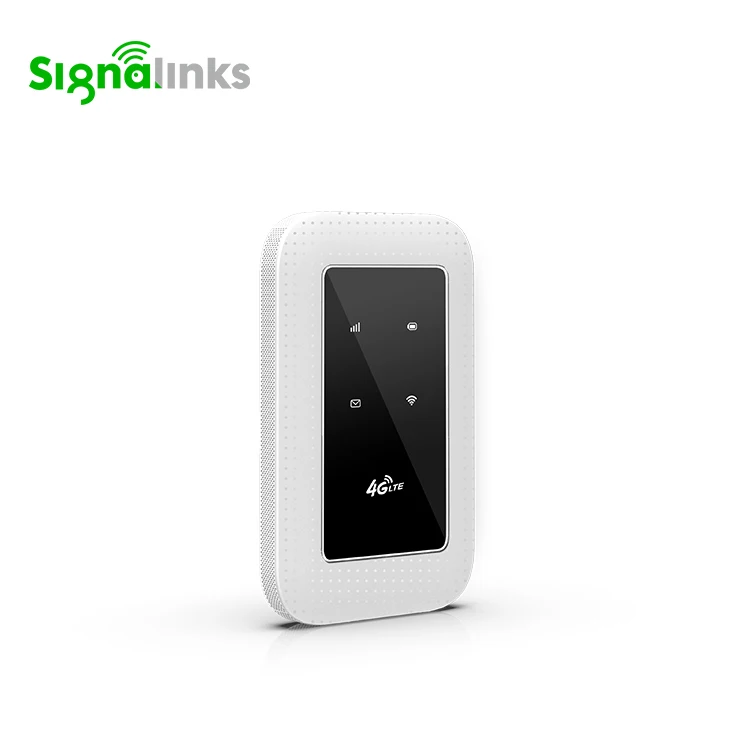

CPE manufacturer high quality mini wifi router wifi pocket router 4g lte portable router can connect 10 devices
- Category: >>>
- Supplier: Signalinks Communication Technology Co. Ltd
Share on (1600503156271):
Product Overview
Description
Welcome to signalinks!!!
All the above MIFIs models are IN STOCK! Send out in 24 hours, click "Start Order" and pay directly!
Frequency bands is B1/3/8/20/28A/38/40/41, suitable for Africa/South Africa/Asia/Europe, support all the telecom operators and all sim.
(Input quantity, choose your country, then you can see the total price, if cannot display, please contact us!!! For Africa and
South Africa),if you have forwarder in China, please contact us to revise the order amount.
Your Name, Address, Zipcpde and Phone number for delivery!
All the above MIFIs models are IN STOCK! Send out in 24 hours, click "Start Order" and pay directly!
Frequency bands is B1/3/8/20/28A/38/40/41, suitable for Africa/South Africa/Asia/Europe, support all the telecom operators and all sim.
(Input quantity, choose your country, then you can see the total price, if cannot display, please contact us!!! For Africa and
South Africa),if you have forwarder in China, please contact us to revise the order amount.
Your Name, Address, Zipcpde and Phone number for delivery!
Category | Spec item | Description | Remarks |
Basic Info | Model Name | 603D | |
type | MIFI | ||
Dimension | 14.4mmX93.3mmX5mm | ||
Weight | 105g | ||
Color | White/Black | ||
Launch time(PP) | July.2020 | ||
Air Interface | Technical Standard | Compatible with WCDMA, FDD-LTE，TDD-LTE Default 802.11b/g/n | |
Frequency | LTE：1/2/3/4/5/6/7/8/9/12/13/ 17/19/20/25/26/28A/28B/38/39/40/41 WCDMA：B1/2/5/8 | LTE:B1/3/5/7/8/20/38/40/41 WCDMA:B1/5/8 | |
WIFI | 2.4G, WIFI 2*2 MIMO，802.11 b/g/n | ||
Performance | Maximum Data Throughput | LTE CAT 4 FDD-LTE(DL/UL): 150Mbps/50Mbps HSPA+ (DL/UL) : 21/5.76Mbps WiFi : Max 300Mbps | Theoretical peak rates |
Hardware | Receive Diversity | Support Receive Diversity | |
BB Chipset | ZX297520V3 | ||
WiFi Chipset | RTL8192ES | ||
WiFi Users | 16 | ||
power consumption | <10W | ||
Power Voltage | DC12V/1A | ||
USIM/SIM | support 2FF/3FF/4FF SIM card optional support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card; push-push SIM slot | ||
Display | LED indicators | ||
Antenna | 2 X2 MiMo antenna for WiFi ;2X2 MiMo antenna for 4G LTE; 2 external LTE antenna（optional） | ||
Buttons | Reset,WPS，Power | ||
Ethernet | 3* RJ45, 10BaseT/100Base/ automatic adaptive port | ||
RJ11 | N/A | ||
Reset | Pin-hole | ||
ESD | Contact±8KV、Air±10KV | ||
Battery | N/A | ||
Software | SW Update | TR069 & FOTA(customized) & Local | |
WIFI Mode | AP/STATION mode | ||
WIFI Security | OPEN & WPA-PSK& WPA2-PSK | ||
SMS & Phone Book | YES | ||
UPnP | support customization | ||
Voice | N/A | ||
IPv4 | Support | ||
IPv6 | Support | ||
Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | ||
Data Statistics | Support | ||
SIM Lock | Support | ||
HTTP | Support | ||
DMZ | Support | ||
Environment | Operating Temperature | Normal:-10°C to +65°C; | |
Storage Temperature | -20° C to +85° C | ||
Humidity | 5%~ 95% |
Packing list
1 x USB Cable
1 x Pocket Router
1 x User Manual
Package Carton
60pcs into 1 carton
Carton size:50.5*33.5*30.5CM
G.W:9.8g
