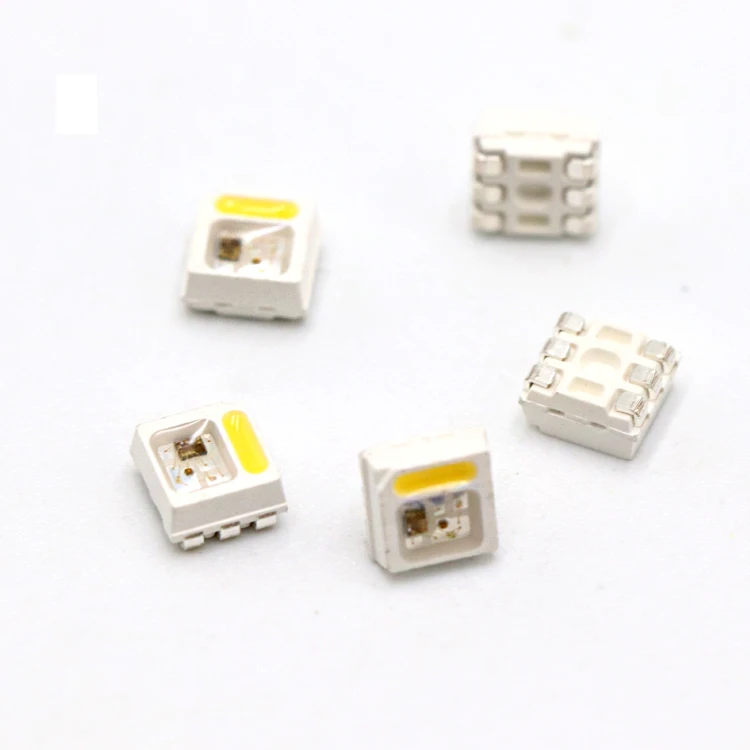

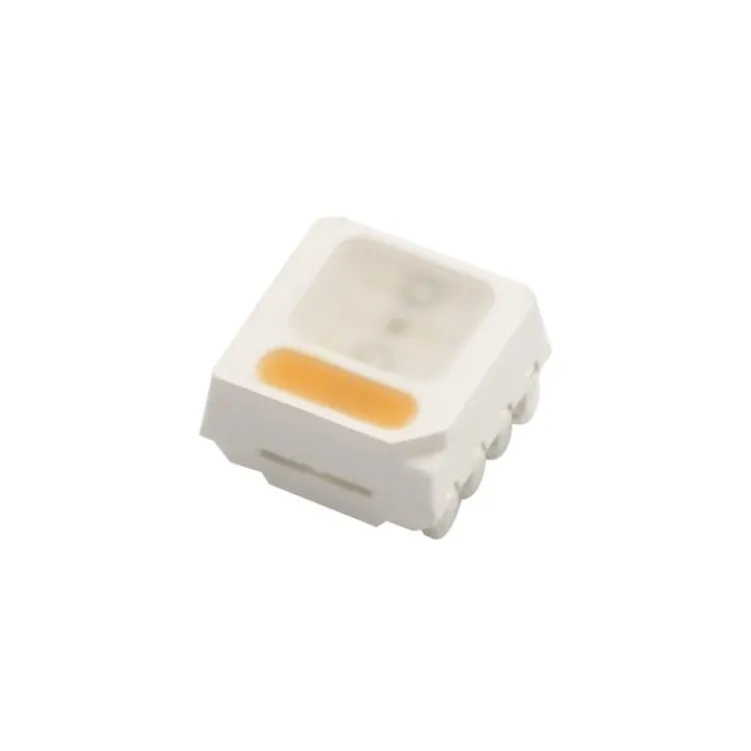

Hot Sale High Bright Rgbww 3535 Led Chips Smd 3535 RGB LED Chips
- Category: >>>
- Supplier: Shenzhen Hongying Technology Co. Ltd.
Share on (1600503159246):
Product Overview
Description
Hot Sale High Bright Rgbww 3535 Led Chips Smd 3535 RGB LED Chips
Applications
1, Amusement
2, Indoor lighting
3, Architecture lighting
4, Decorative lighting
Maximum Rating (Ta=25℃)
Parameter | Symbol | Value | Unit | |||
DC forward current | IF | 30 | mA | |||
Pulse forward current | IPF*3 | 70 | mA | |||
Reverse voltage | VR | 5 | V | |||
Junction temperature | TJ | 110 | ℃ | |||
Operating temperature range | TOP | -40~85 | ℃ | |||
Storage temperature range | TSTG | -40~100 | ℃ | |||
Soldering temperature | TSD*2 | 260 | ℃ | |||
Notes: 1, There is no maximun or typical voltage parameter. 2, For other ambient, limited setting of current will be depended on de-rating curves. 3, Duty 1/10, pulse width 0.1ms. 4, The maximum of soldering time is 5 seconds in TSD | ||||||
Typical Product Characteristics (Ta=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition | ||||||||
Forward Voltage | VF | Red | 1.8 | - | 2.6 | V | IF= 20mA | |||||||
Green | 2.8 | - | 3.6 | |||||||||||
Blue | 2.8 | - | 3.6 | |||||||||||
Whiye | 2.8 | - | 3.6 | |||||||||||
Luminous Intensity | IV | Red | 500 | - | 1400 | mcd | IF= 20mA | |||||||
Green | 1400 | - | 4000 | |||||||||||
Blue | 290 | - | 850 | |||||||||||
White | 1400 | - | 4000 | |||||||||||
Dominant Wavelength | λd | Red | 618 | - | 628 | nm | IF= 20mA | |||||||
Green | 520 | - | 530 | IF= 60mA | ||||||||||
Blue | 460 | - | 475 | |||||||||||
Color Coordinate | RGB | x | - | 0.255 | - | IF= 20mA | ||||||||
y | - | 0.236 | - | |||||||||||
W | x | - | 0.3452 | - | ||||||||||
y | - | 0.3558 | - | |||||||||||
Reverse Current | IR | - | - | 10 | uA | VR=5V | ||||||||
View Angle | 2θ1/2 | - | 120 | - | Deg | IF= 20mA | ||||||||
Notes: 1, Tolerance: Forward Voltage: ±0.1V, Luminous Intensity: ±10%Iv, Dominant Wavelength: ±1.0nm 2, Electrical-optical characteristics (Ta= 25℃). 3, We will amend the Bin code to maintain Bin Code centralize. 4, And we get the Luminous Intensity is 1.3double per Bins and the Dominant Wavelength is 5/5/5nm of R/G/B per Bins and white balance. | ||||||||||||||

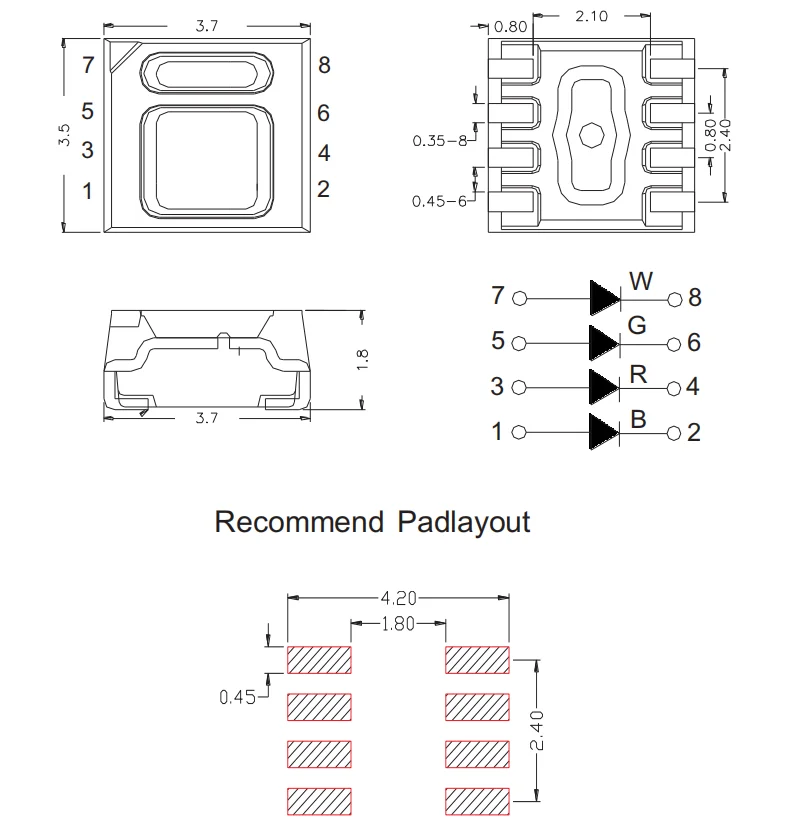

Dimensional Drawing
Notes:
1, All dimensions are in millimeters.
2, Tolerance is ±0.1mm unless otherwise noted.
3, Specifications are subject to change without notice.
Our Advantages
FAQ
Q:How about the quality of the leds?
A:Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide since the year 2010.
Q:Do you offer Custom-made ?
A:Yes , we offer this , but we will charge cost for the custom-made samples .
Q:Can I get free sample?
A:Yes, we can offer free sample for you to check before orderas long as you afford the express freight.
Q:What’s the lead time?
A:Samples delivery out in 3-7 working days.Lead time of mass production needs to negotiate, it depends on quantity.
Q:How about the payment terms?
A:Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment). Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
