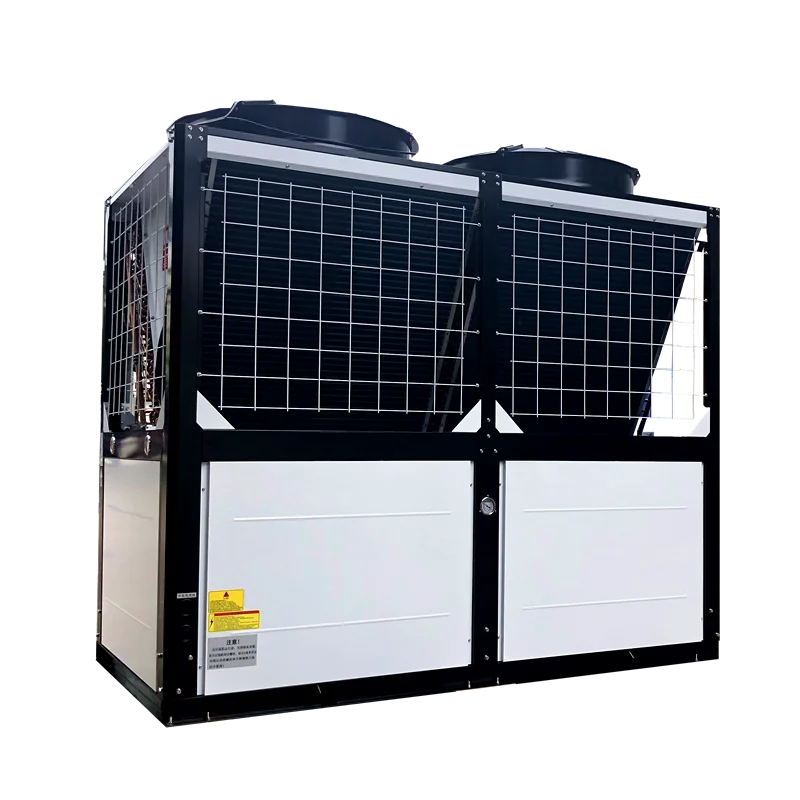

MACON high temperature evi dc inverter heat pump heat pump hot water heater circulation pump for heating

Share on (1600503238197):


Price:$3,900.00 - $4,000.00

Quantity:


Product Overview

Description





Product Description

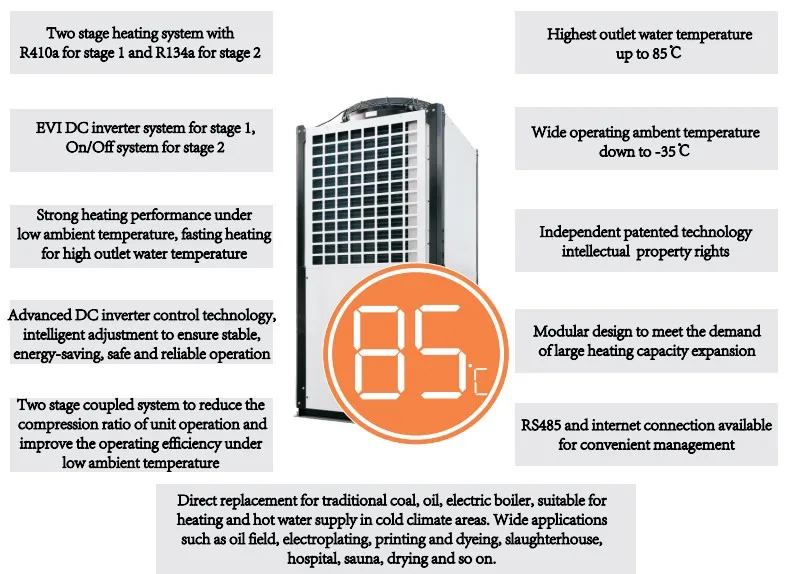

6 Advantages of Two Stage High Temperature Heat Pump

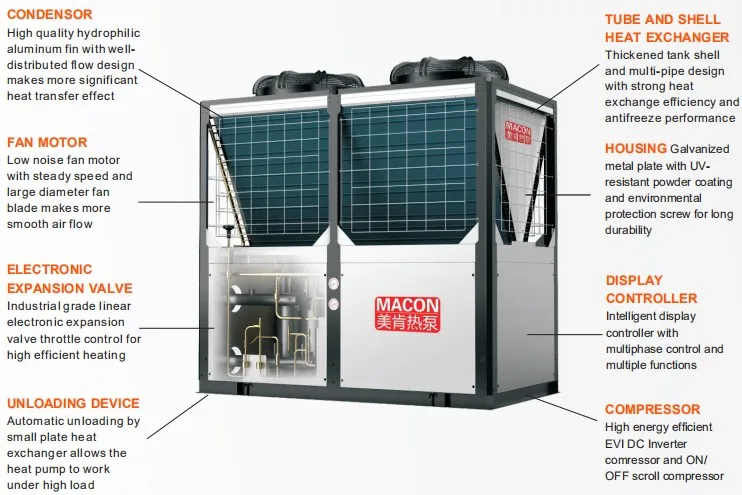

Key Components of Two Stage High Temperature Heat Pump

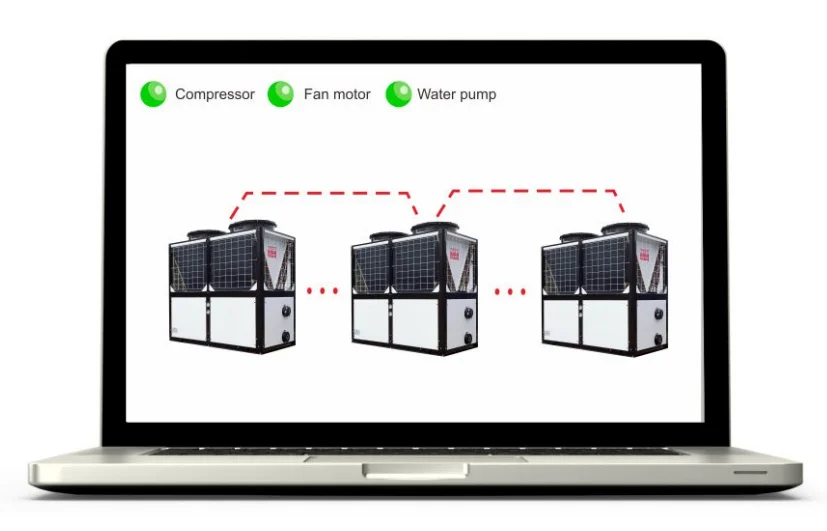

Centralized Control and Group Control

Heat pumps can be installed as a group controlling by a centralized wired controller. Multiple heat pumps of a residential central
heating project can be controlled by group control to achieve simple and convenient control effect.





Super Heating Performance Technology in Cold Climate

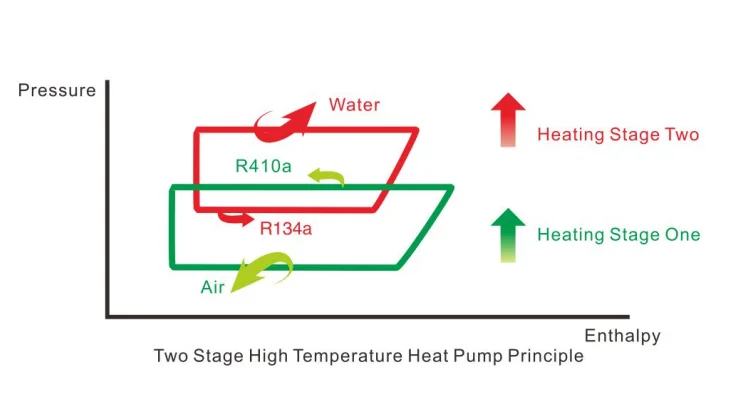

Working principle: Two stage coupled system with R410a in Stage 1 and R134a in Stage 2 to reduce the operating compression ratio
and thus improve the running efficiency under low ambient temperature.


Safe Operation Technology in All Working Conditions

Wide working ambient temperature range : -35℃~43℃. Safe and reliable operation for all seasons.

Strong Heat High Outlet Water Temperature

Unit is able to maintain 75℃ outlet water temperature even under ambient temperature down to -35℃ without auxiliary electric heater.




Application Range

Direct replacement for traditional coal, oil, and electric boiler. It is suitable for space heating and hot water supply in cold climate areas. It can be connected to radiators for space heating and applied in places that need high temperature hot water such as hospital, bathing pool, sauna, processing factory, slaughter house and so on.







Rapidly Heating Status


Automatic Antifreeze Protection in Standby Mode

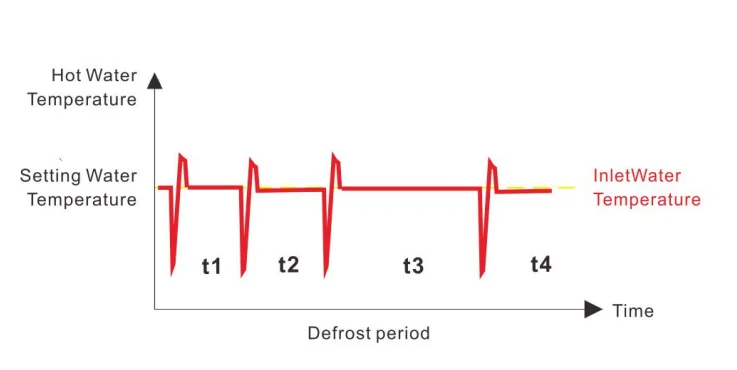

Intelligent Defrost Technology
Intelligent defrost technology with reduced defrost times to extend the heating time and with rapid defrost to shorten the defrost time and reheat the water temperature rapidly, which helps to improve the heating efficiency and comfort.

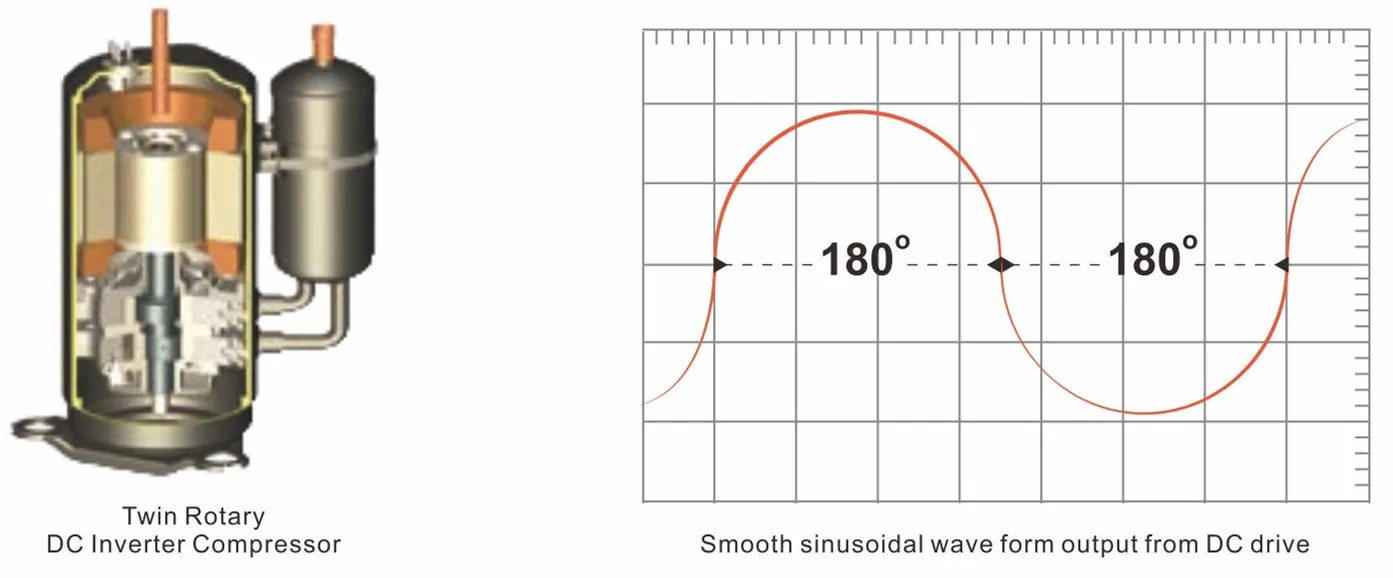

DC Inverter Technology
180° sine wave control with wide working frequency range: 20~120Hz, automatic adjustment on working frequency according to the changes of ambient and water temperature to reach energy saving, high efficient and intelligent use effect accord with humanized design.




Thermostat Remote Control Interface
Convenient control on the conversion of different heat sources which can be connected to the thermostats of terminal equipment such as fan coil, floor heating manifolds. Once any of the terminal equipment is turned on, heat pump will turn on automatically and when all terminal equipment are turned off, heat pump will turn off automatically.

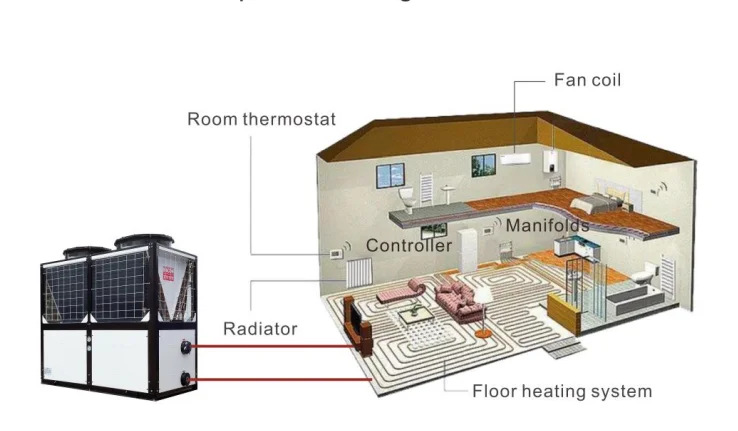

Adaptation to All Terminal Equipment

Available to equipped with all kinds of terminals such as radiator, floor heating pipe, fan coil, hot water tank and to meet both
demands for space heating and hot water.





Chassis Rapid Drainage and Antifreeze Control Technology
The chassis is equipped with stainless steel heating tape which turns on according to specified conditions. The chassis is designed with sloping drainage tray which can smoothly discharge the defrosting and condensate water to ensure no icing problem on the chassis.






24-Hour Timing Function

24 hour timing setting is available which allows users to set the unit ON/OFF time according to their own needs.

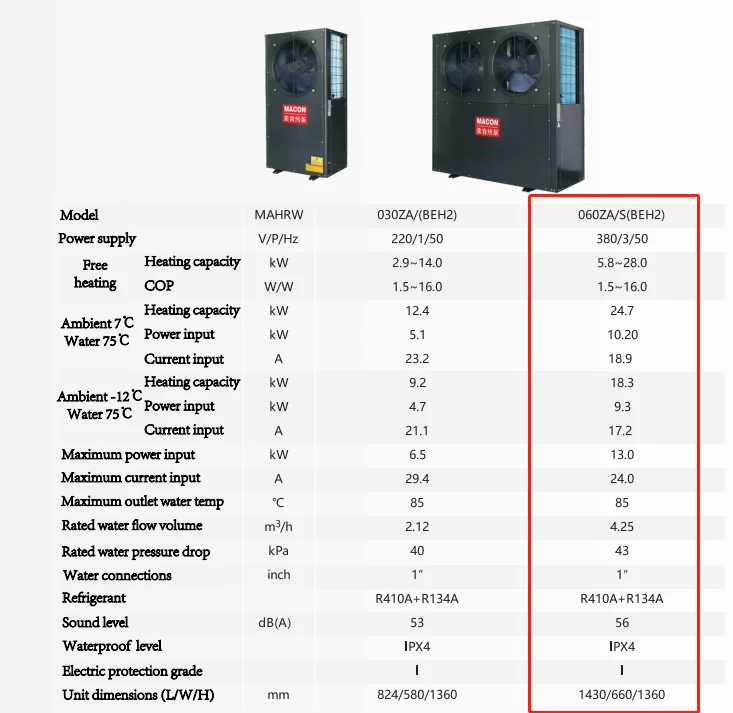

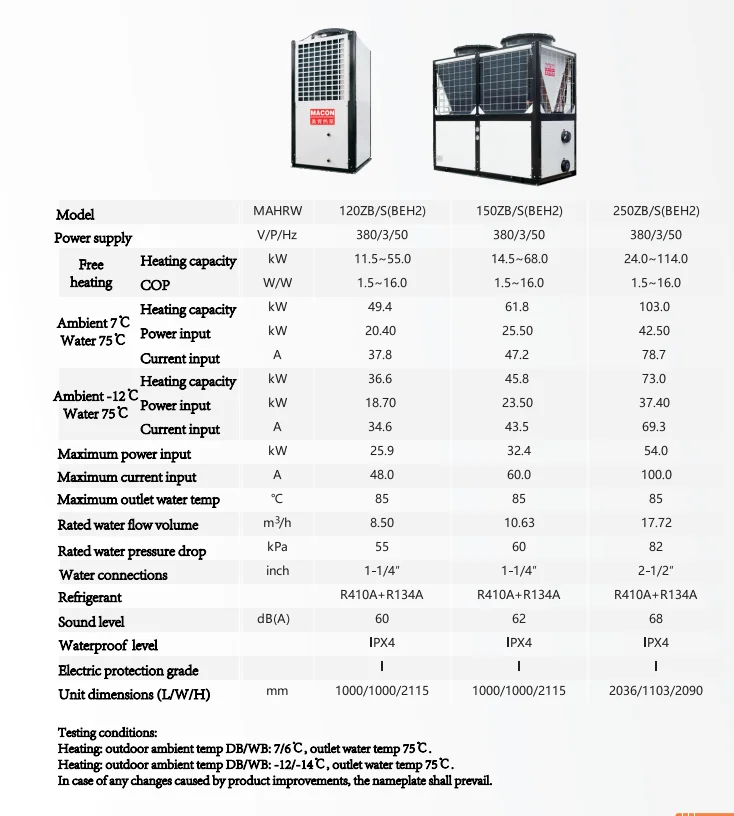

Specification


item
value
After-sales Service Provided
Free spare parts
Warranty
1 Year
Application
Outdoor, Hotel, Garage, Commercial, Household
Power Source
Electric
App-Controlled
NO
Private Mold
NO
Type
Air Source Heat Pump
Installation
Freestanding
Storage / Tankless
Storage
Housing Material
Stainless Steel
Use
Bathroom
Place of Origin
China
Guangdong
Brand Name
MACON, customizable
Model Number
MAHRW060ZA/S(BEH2)
Power supply
380/3/50
Heating capacty
5.8~28 KW
COP
1.5~16
Working Ambient Temperature
-35~43℃
Rated water flow volume
4.25 m3/h
Water connections
1"
Refrigerant
R410a + R134A
Sound level
56 dB(A)
Waterproof level
IPX4
Unit dimensions(L/W/H)
1430/660/1360 mm






Packing & Delivery




For LCL Order: Interior Plastic Films + Plywood Case
For Container Order: Interior Plastic Films + Cartons
