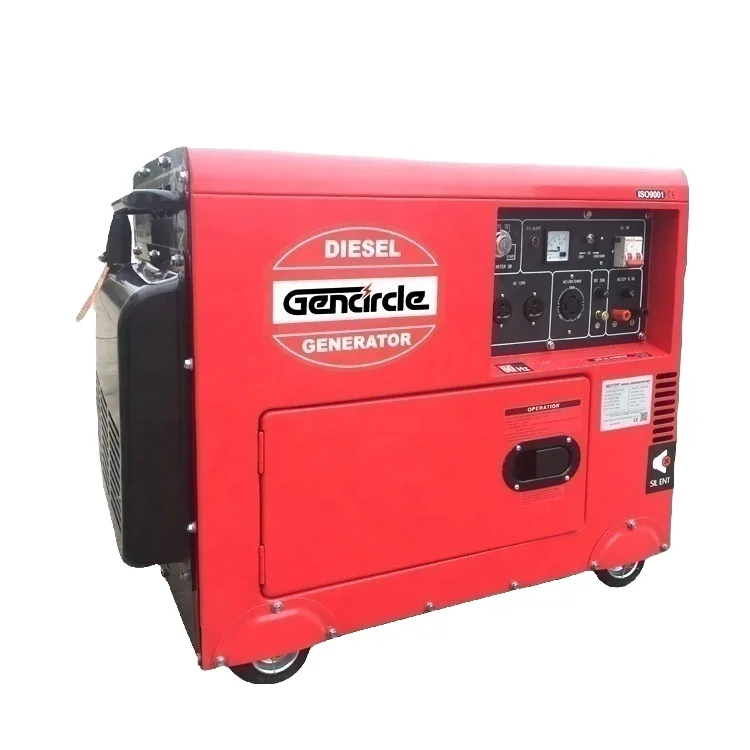

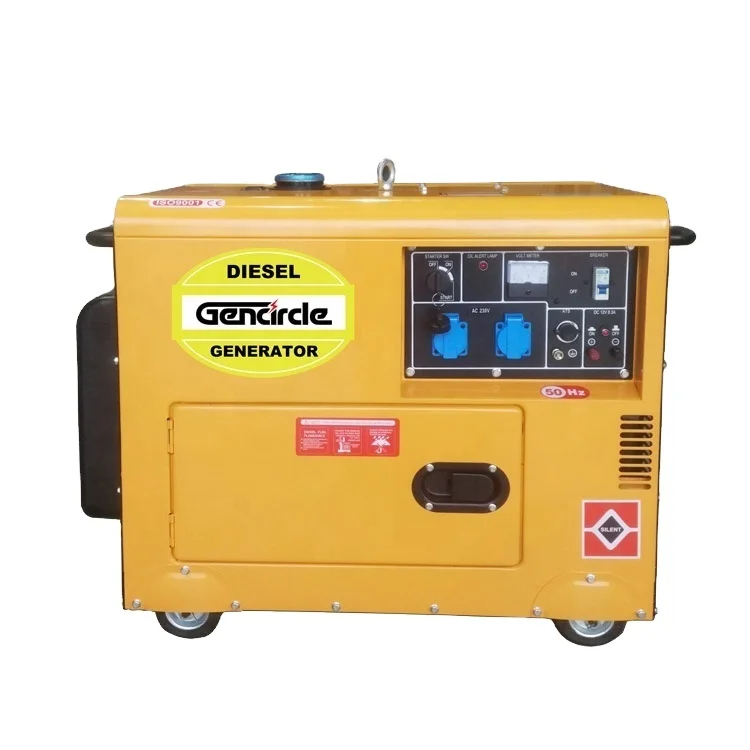

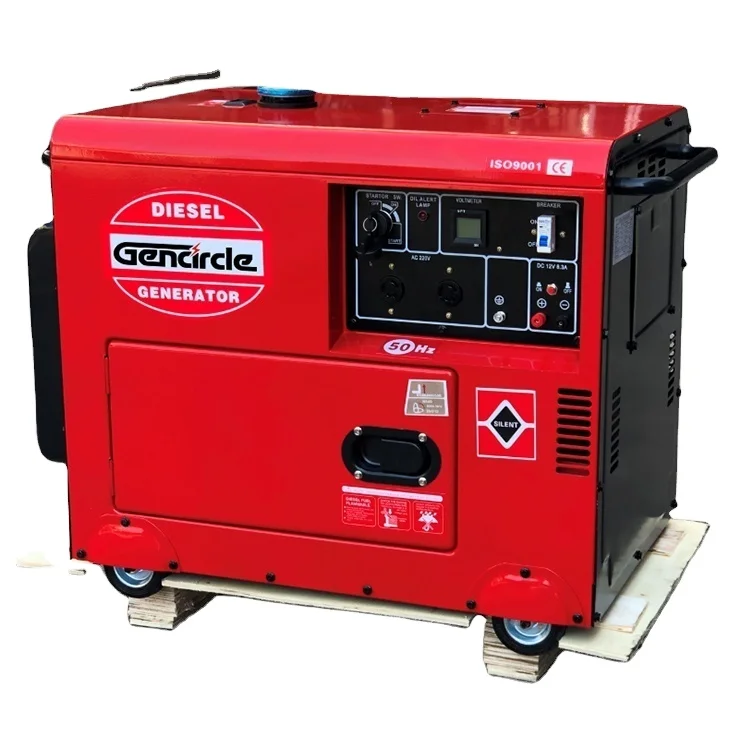

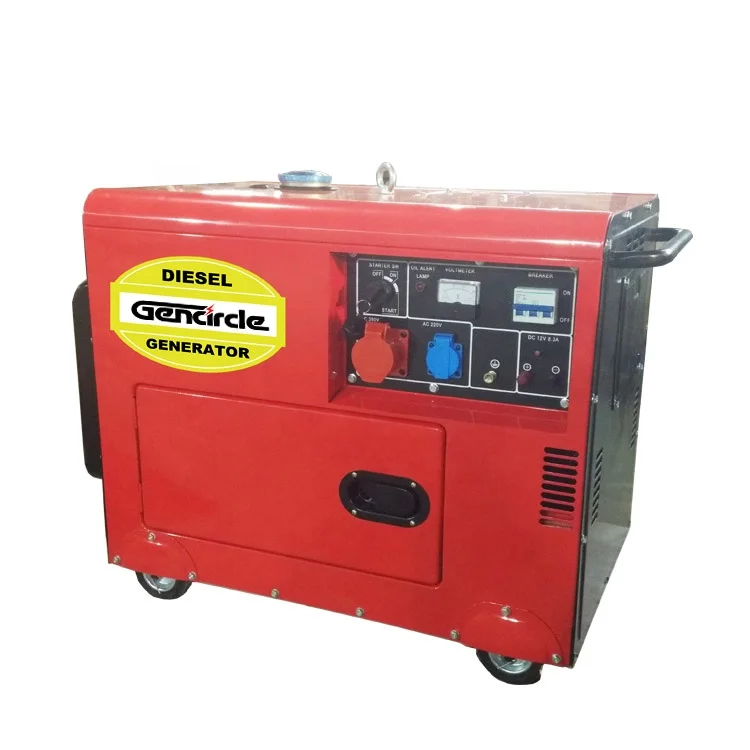

Power Plant 5KW 6KW 7KW Silent Type Generator Diesel Generator with Colorful Canopy for Home Use/
Power Plant 5KW 6KW 7KW Silent Type Generator Diesel Generator with Colorful Canopy for Home Use/
Power Plant 5KW 6KW 7KW Silent Type Generator Diesel Generator with Colorful Canopy for Home Use/
Power Plant 5KW 6KW 7KW Silent Type Generator Diesel Generator with Colorful Canopy for Home Use/
Power Plant 5KW 6KW 7KW Silent Type Generator Diesel Generator with Colorful Canopy for Home Use/
Power Plant 5KW 6KW 7KW Silent Type Generator Diesel Generator with Colorful Canopy for Home Use/
Power Plant 5KW 6KW 7KW Silent Type Generator Diesel Generator with Colorful Canopy for Home Use/

Power Plant 5KW 6KW 7KW Silent Type Generator Diesel Generator with Colorful Canopy for Home Use/

Share on (1600503298904):


Price:

Quantity:


Product Overview

Description



Product Description


Model
JDE3500SE
JDE6500SE
JDE7500SE
JDE8500SE
JDE9500SE
Rated frequency (Hz)
50 60
50 60
50 60
50 60
50 60
Rated output (kVA)
2.8 3.3
4.5 5.0
5.0 5.5
5.5 6.0
6.0 6.5
Max. output (kVA)
3.2 3.8
5.0 5.5
5.5 6.0
6.0 6.5
6.5 7.0
Rated Voltage (V)
230 120/240
230 120/240
230 120/240
230 120/240
230 120/240
Rated current (A)
12.2 27.5/13.8
19.6 41.7/20.8
21.7 45.8/22.9
23.9 50/25
26 54/27
Rated rotation speed
3000 / 3600 rpm
Phase NO.
Single phase
Single phase
Single phase
Single phase
Single phase
Excitation mode
Self-excitation & constant voltage (AVR)
Receptacle
Two receptacles
Two receptacles
Two receptacles
Two receptacles
Two receptacles
Noise level(7m)dB(A)
60
60
65
65
65
Structure type
Silent frame
Engine Model
KM178FG
KM186FAG
KM188FG
KM188FG
KM192FG
Engine Type
Single cylinder, vertical, four-stroke, direct injection,air-cooled
Rated power [KW/(r/min)]
3.68/3000 4.0/3600
5.7/3000 6.3/3600
7.5/3000 8.2/3600
7.5/3000 8.2/3600
8.0/3000 9.2/3600
Compression ratio
20:01
19:01
19:01
19:01
19:01
Lubrication system
Pressure splashed
Pressure splashed
Pressure splashed
Pressure splashed
Pressure splashed
Starting system
Electric Start
Fuel type
0#(summer)-10#(winter)-35#(chillness)diesel
Lube oil brand
CD grade or SAE10W-30,15W-40
Lube capacity (L)
1.1
1.65
1.65
1.65
1.65
Charging generator capacity (V-A)
12V 3A
12V 3A
12V 3A
12V 3A
12V 3A
Battery capacity (V-Ah)
12V 36Ah
12V 36Ah
12V 36Ah
12V 36Ah
12V 36Ah
Fuel tank capacity (L)
13.5
13.5
13.5
13.5
13.5
Continuous running time (hr)
8.5
5.5
5.5
5.5
5.5
Packing size MM
930×530×740
G.Weight
155
160
163
165
170
Loading quantity @ 20GP
72 pcs
72 pcs
72 pcs
72 pcs
72 pcs




Certifications








Warranty policy


Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator .
