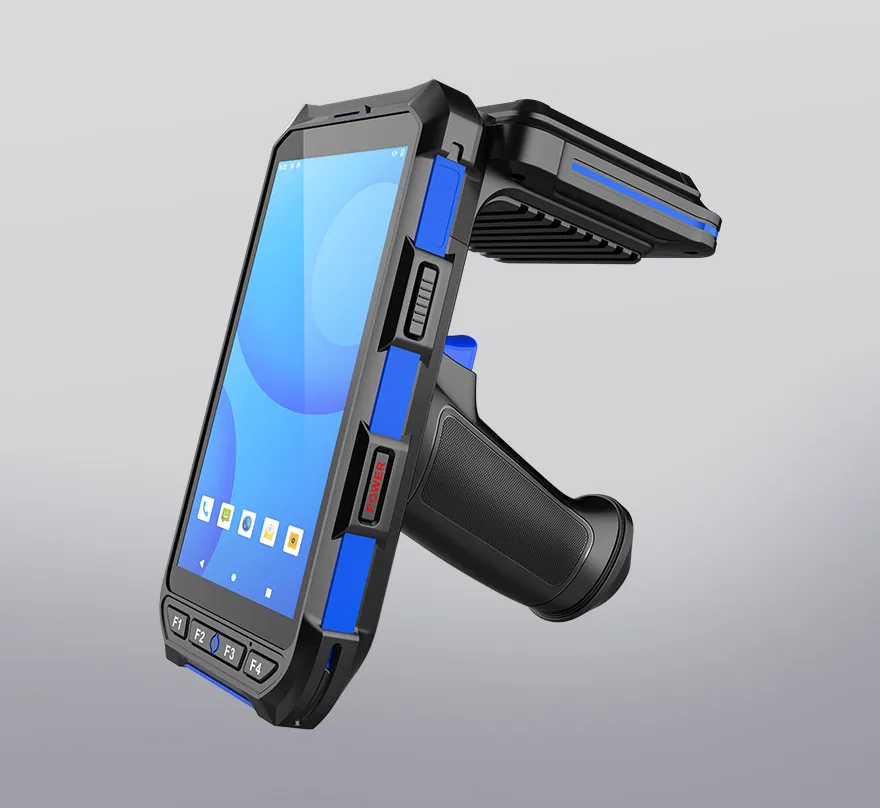

18 Meters Rugged Android 10.0 Long Range 5.5 Inch Barcode Scanner Portable Pda Data Terminal Inventory Uhf Rfid Handheld Reader
18 Meters Rugged Android 10.0 Long Range 5.5 Inch Barcode Scanner Portable Pda Data Terminal Inventory Uhf Rfid Handheld Reader
18 Meters Rugged Android 10.0 Long Range 5.5 Inch Barcode Scanner Portable Pda Data Terminal Inventory Uhf Rfid Handheld Reader
18 Meters Rugged Android 10.0 Long Range 5.5 Inch Barcode Scanner Portable Pda Data Terminal Inventory Uhf Rfid Handheld Reader
18 Meters Rugged Android 10.0 Long Range 5.5 Inch Barcode Scanner Portable Pda Data Terminal Inventory Uhf Rfid Handheld Reader
18 Meters Rugged Android 10.0 Long Range 5.5 Inch Barcode Scanner Portable Pda Data Terminal Inventory Uhf Rfid Handheld Reader
18 Meters Rugged Android 10.0 Long Range 5.5 Inch Barcode Scanner Portable Pda Data Terminal Inventory Uhf Rfid Handheld Reader

18 Meters Rugged Android 10.0 Long Range 5.5 Inch Barcode Scanner Portable Pda Data Terminal Inventory Uhf Rfid Handheld Reader

Share on (1600503369065):


Price:$299.00 - $468.00

Quantity:


Product Overview

Description





18 Meters Rugged Android 10.0 Long Range 5.5 Inch Barcode Scanner Portable Pda Data Terminal Inventory Uhf Rfid Handheld Reader




PRODUCT SPECIFICATIONS


Dear All, For device showed on page ,it is standard version :UHF R2000 +WIFI+Blue tooth+4G +(4G+64G)+Camera,it is no include 2D barcode , if need to add 2D barcode (Newland 2D engine ),need to add extra 35USD ,Pls inquiry us , we will draft order link for you accordingly, thanks!


Physical Characterstics
Model Name
C6100
Dimension
170mm(H)x80mm(W)x28mm(D)±2 mm(without the pistol grip and UHF shield)
Display
Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight
Backlight
LED backlight
Expansion Slot
2 PSAM, 2 SIM, 1 TF
Interfaces
Type-C data interface
Battery
Rechargeable li-ion polymer, 3.8V, 7200mAh
Performance Characterstics
CPU
Cortex-A73 Octa-core 2.0 GHz
RAM+ROM
4G+64G
Operating System
Android 10.0
Expansion
Supports up to 256 GB Micro SD card
RFID Functions
UHF
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC C1 GEN2 / ISO18000-6C
Antenna
circular polarization (4dBi)
Power
1 W (30 dBm, +5 dBm to +30 dBm adjustable)
Read range
20m (Ranges and rates depend on tags and environment)
NFC (Optional)
Frequency
13.56MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4cm
Data Communication
WLAN
2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
Blue tooth
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2
GPS
GPS(embedded A-GPS), accuracy of 5 m
WWAN
TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 5,7,8,12, 17, 20;
WCDMA(850/1900/2100MHz);
GSM/GPRS/Edge (850/900/1800/1900MHz);
User Environment
Operating Temp
-20℃ to 50℃
Storage Temp
-20℃ to 70℃
Humidity
5%~95% RH, non condensing
Drop Specs
Multiple 1.5m/5.0ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specs
1000 x 0.5m/6ft falls, still work normal, satisfy to IEC specification
ESD
±15kv air discharge, ±8kv direct discharge
Protection Level
Host IP65 per IEC sealing specification
Development Environment
SDK
TASEI Software Development Kit
Language
JAVA
Tool
Eclipse / Android Studio
Barcode Scanning (Optional )
2D barcode
2D Imager Scanner
Honeywell N6703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR
code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal,
Australian Postal, Japan Postal, Dutch Postal. etc.
Color Camera
Resolution
Rear 13 megapixel, front 5.0 megapixel(Optional)
Lens
Anto-Focus with LED Flash
Accessories
Standard
1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable
Optional
Cradle, Holster , etc.

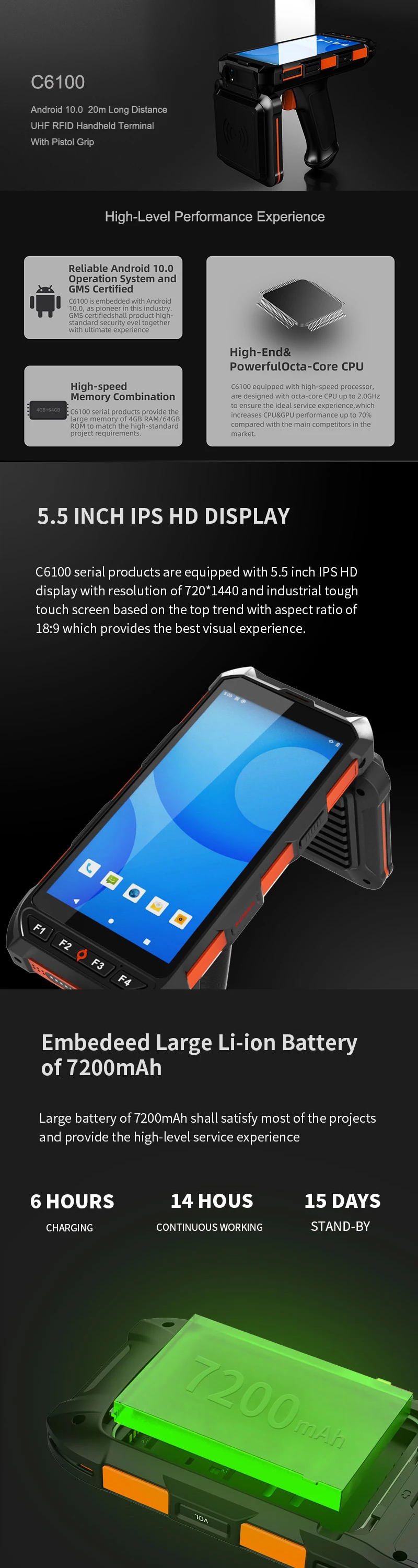

Product Details












Application


RFID portable terminal is already widely applied in warehouse management,inventory management ,Retailing management,logistic management,Animal Management etc fields

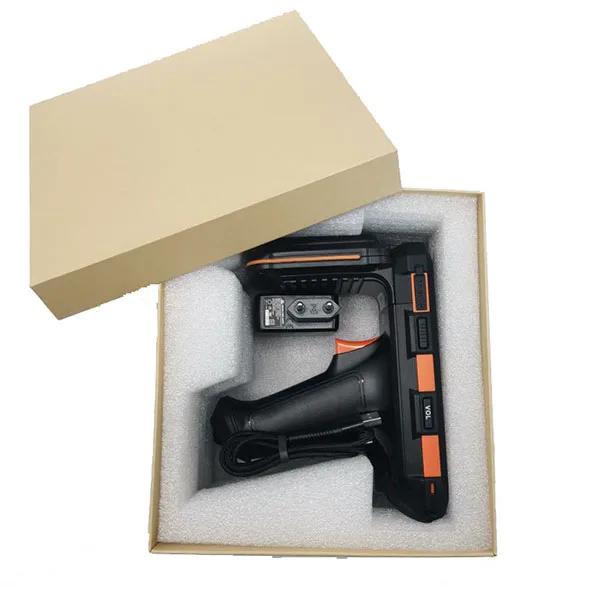

Packaging & Shipping


One set is with one package




Shipping mode mainly have three types:

1: by express : DHL , Fedex , TNT ,EMS ---3-5days

2: by air : 7-10 days

3: by sea : 20-25 days


About payment mode :

We recommend trade assurance for trading ,it support multi-payment mode , T/T ,Visa,Mastercard,E-checking ,we also accept paypal
,western union


Company Profile


TASEI RFID CO.LIMITED founded in 2007 , is a professional high-tech enterprises that engaged in RFID UHFreader,UHF handheld reader,UHF antenna,,UHF Module,UHF Speical metal tag etc RFID series products' research ,production ,Sales and Services.With more thanten years OEM experience.can customize different size,different sharp,different specifications RFID products acccording to customer's need

Tasei have perfect selling network and after-sale service system.Depending on "Honesty,innovations,outstanding"
enterprise spirit and flexible,sharp Market reflect mechanism,have created another wonder Hope that can work together with
different fields friends and to creat higher value
