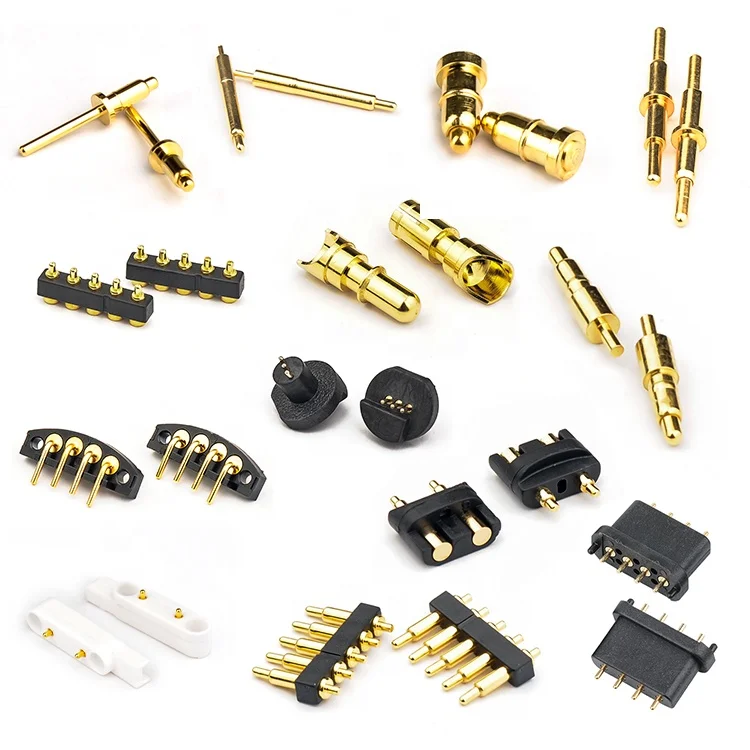

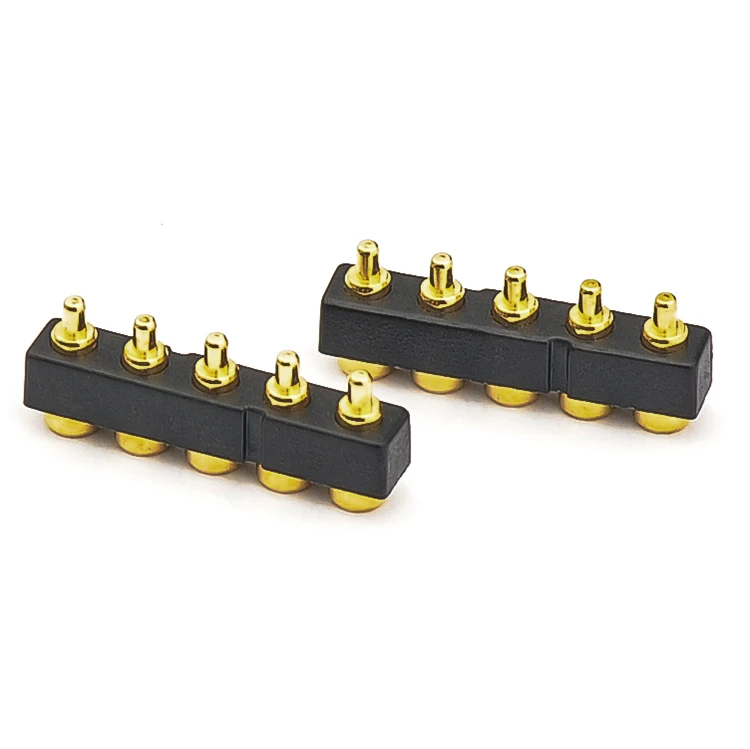

Hot Selling Pogo Pin Connector Battery Spring Loaded Contact SMD Needle PCB pogopin
- Category: >>>
- Supplier: Bestconn (Wuhan) Technology Co. Ltd.
Share on (1600503378699):
Product Overview
Description
Place of Origin | GUA |
Brand Name | BSC |
Model Number | SL-PG-M-250-106-093-550-G1R1 |
Type | Pogo Pin Connector |
Application | VGA, Car, Electric Board |
Gender | Female/Male |
Pin Length | 8.5mm to 15.0mm |
Pitch | 2.5mm |
Spring | SUS304 |
Spring Force | 70±20g or Customized |
Working Stroke | 1.4mm or Customized |
Mechanical Life | 100,000 cycles |
Rated current | 1~3A |
Voltage | 3-36V |
Contact Resistance | 30 mΩ Max |
Housing | PA46 |

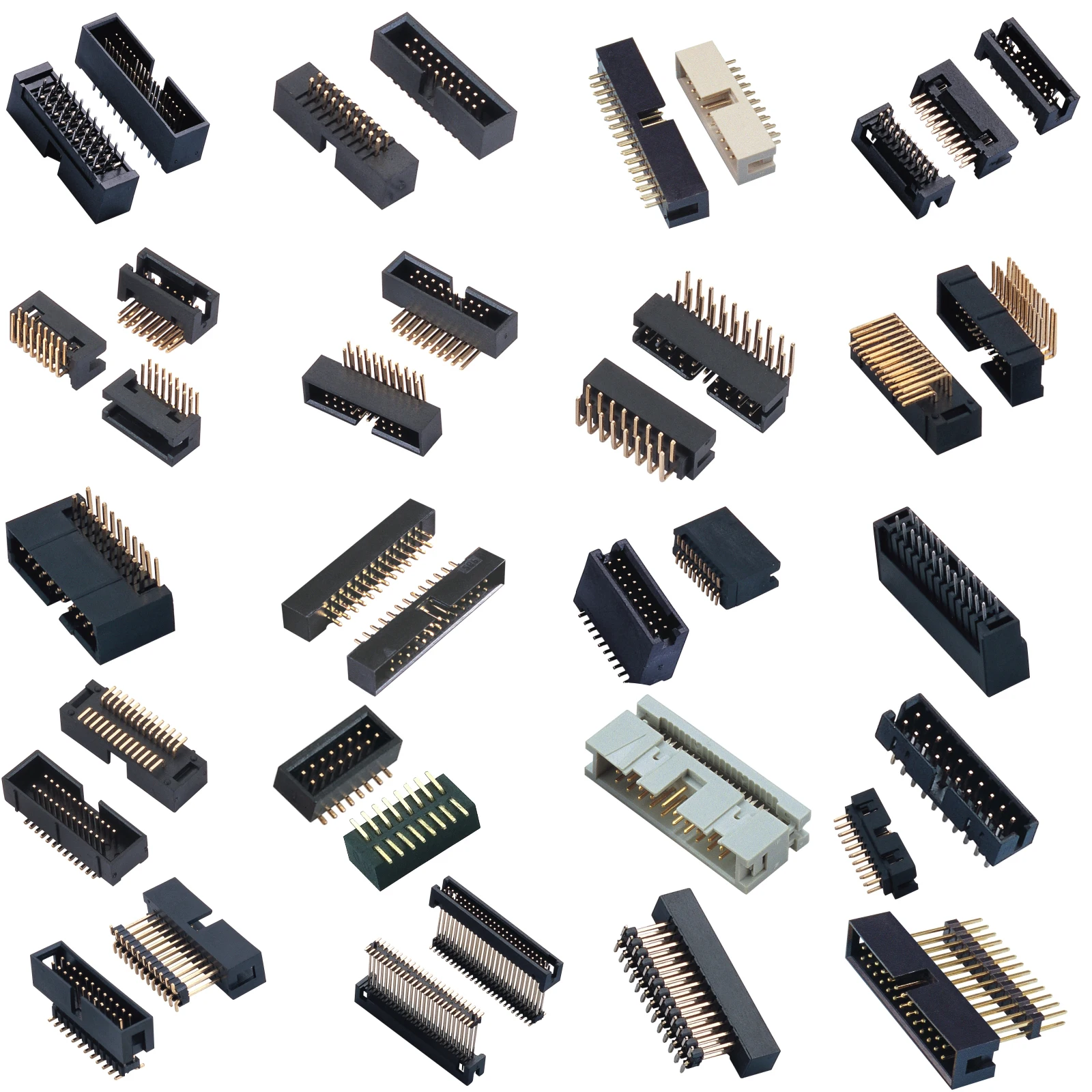

A box header connector is a male connector with exposed pins encompassed by side dividers which are molded onto a plastic base.
Box headers are manufactured with a minimum of two pins in either single or double rows. They are widely used for board-to-board or wire-to-board connections.
Box headers are manufactured with a minimum of two pins in either single or double rows. They are widely used for board-to-board or wire-to-board connections.
Features:
1. Box Header Connectors are available with through hole terminations in straight, right angle and SMT shape, with or without
alignment posts. 2. Environmental friendly and ROHS compliant. 3. It’s cost-effective and convenient to transport. 4. Box Header
Connectors are widely used in PCB circuit boards in electronics, electrical appliances etc. 5. A box header is easy to customize.
6. High and low-temperature resistance Can withstand changes in a temperature difference of 145℃.
alignment posts. 2. Environmental friendly and ROHS compliant. 3. It’s cost-effective and convenient to transport. 4. Box Header
Connectors are widely used in PCB circuit boards in electronics, electrical appliances etc. 5. A box header is easy to customize.
6. High and low-temperature resistance Can withstand changes in a temperature difference of 145℃.
Bestconn(Wuhan) Technology Co.,Ltd is a specialized provider of connector total solution, in developing and delivering reliable Bconnectors, cable, and wire harness that stand for quality, reliability, and convenience. Our products are widely used in electronic applications around the world including telecommunications, household appliances, electronic toys, automotive, medical equipment, and more. We can provide standard or custom products to your requirement. Creating superior products and the highest value for our customers is our ultimate goal. Welcome to join us and let’s link to the future together!
Products Range
PIN HEADERS/FEMALE HEADERS/EJECTOR HEADERS/BOX HEADERS/PLCC/IC SOCKET/IC ADAPTER/MACHINE FEMALE HEADER/MACHINE PIN HEADER/WAFER/DIP PLUG/IDC SOCKET/DIN41612/BOARD-TO-BOARD CONNECTOR/TERMINAL BLOCKS/MMICRO MATCH/CABLE ASSEMBLY
