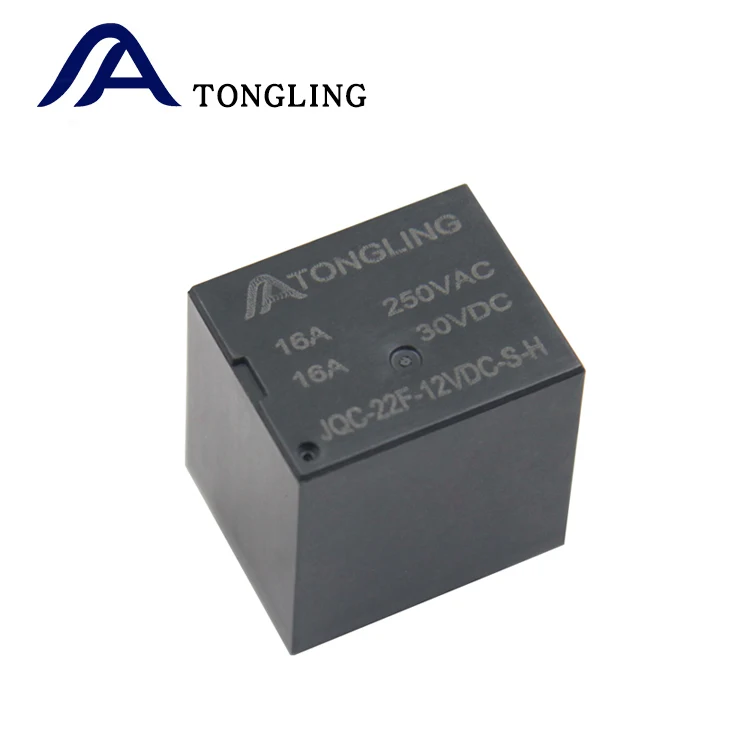

Product Overview
Description
Ordering Code
JQC-22F-12VDC-S-H
1 2 3 4
1.Relay module:JQC-22F
2.Coil Voltage:5V 6V 9V 12V 24V
3.S:Sealed
4.Contact Form:H Form A
The main specific sparameters | ||
Relay module | JQC-22F relay (SRU relay) | |
Coil voltage | DC: 5V 6V 9V 12V 18V 24V | |
Contact form | SPST-NO (1H Form A )-4 pins | |
Contact Material | Silver Alloy | |
Pin | 4 Pin | |
Contact rating | 16A 250VAC 16A 30VDC | |
Coil Power | 0.36W | |
Size | 20.3mm*16.6mm*20.2mm(L*W*H) | |
Coil Data(at 20℃）
Nominal Voltage(VDC | 5 | 6 | 9 | 12 | 24 | ||||||
Coil Resistance(Ω±10%） | 69 | 100 | 225 | 400 | 1600 | 0.36W | |||||
Rated Current(mA) | 71.4 | 60 | 40 | 30 | 15 | ||||||
Max Operate Voltage(VDC) | 3.75 | 4.5 | 6.75 | 9 | 18 | ||||||
Min Release Voltage(VDC) | 0.25 | 0.48 | 0.45 | 0.6 | 1.2 | ||||||
Coil Resistance(Ω±10%） | 56 | 80 | 180 | 320 | 1280 | 0.45W | |||||
Rated Current(mA) | 90 | 75 | 50 | 37.5 | 18.7 | ||||||
Max Operate Voltage(VDC) | 3.75 | 4.5 | 6.75 | 9 | 18 | ||||||
Min Release Voltage(VDC) | 0.25 | 0.3 | 0.45 | 0.6 | 1.2 | ||||||
Max Applicable Voltage | 130% of rated voltage at 70 ℃, 170% of rated voltage at 23 ℃ | ||||||||||
Contact Data
Contact Ratings | 16A 250VAC 16A 30VDC |
Minimum Load | 10mA 5VDC |
Max Switching Voltage | 250VAC/30VDC |
Max Switching Current | 16A |
Max Switching Power | 4000VA/480W |
Contact Resistance | 100mΩMax at 6VDC 1A |
Life Expectancy | Electrical:100,000 Operations(at 30 Operations/minute) |
Mechanical:10,000,000 Operations(at 30 Operations/minute) |
Characterinstics data
Insulation Resistance | 100MΩMin at 500VDC |
Dielectric Strength Between Open Contacts | 750VAC(50/60Hz for one minute) |
Between Contacts And Coil | 1500VAC(50/60Hz for one minute) |
Operate Time | 10ms |
Release Time | 5ms |
Temperature Range | -40℃ to +85℃ |
Shock Resistance | Operating Extremes:10G |
Damage Limits:100G | |
Vibration Resistance | 10-55Hz,1.5mm |
Max.switching frequency | Mechanical:18,000 operations/hr |
Electrical:1,800 operations/hr | |
Humidity | 40-85% |
Weight | Approx 13g |
Safety Standard | ROSH |
Engineering Data

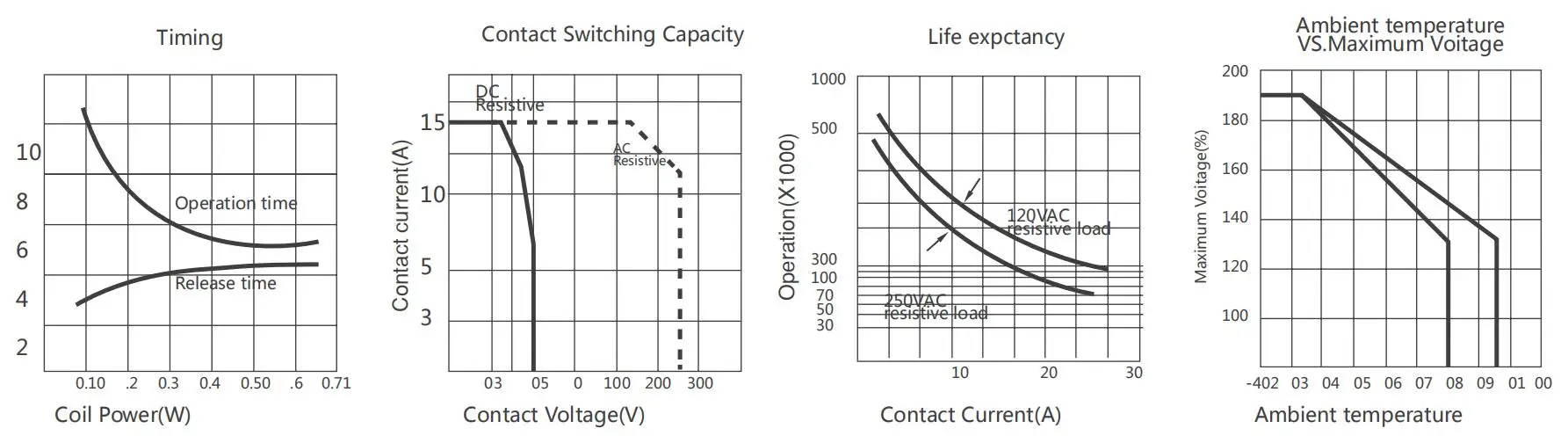

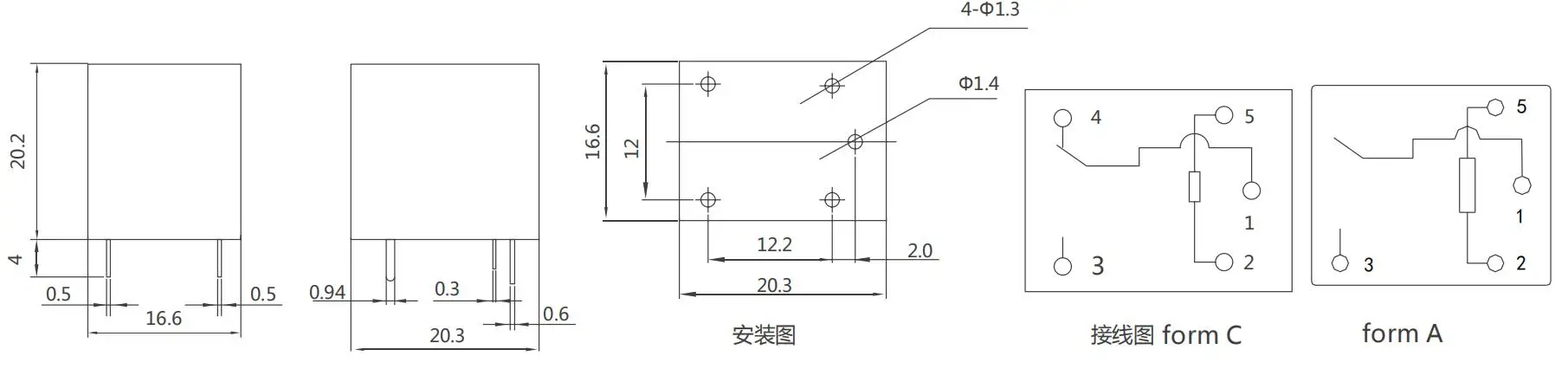

Overall And Mounting Dimensions

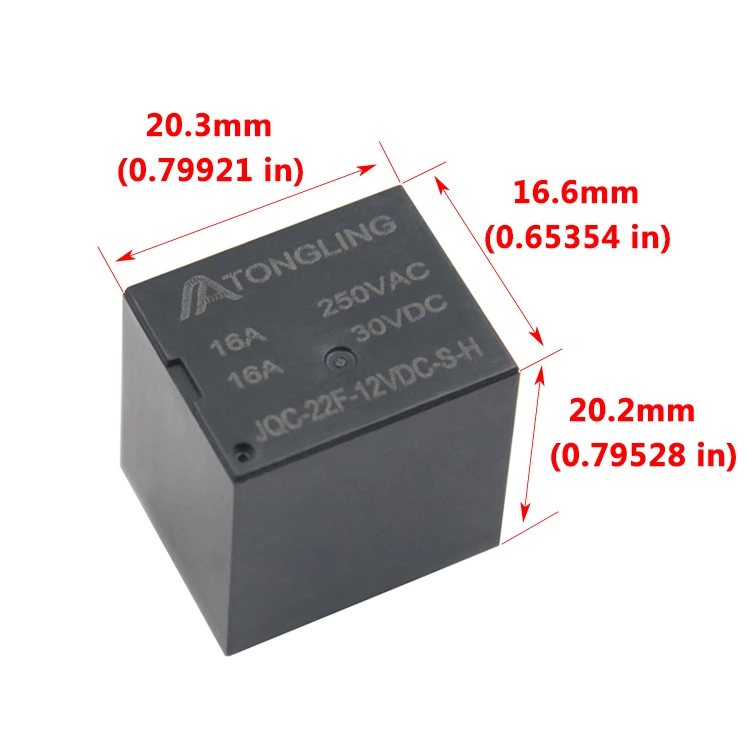

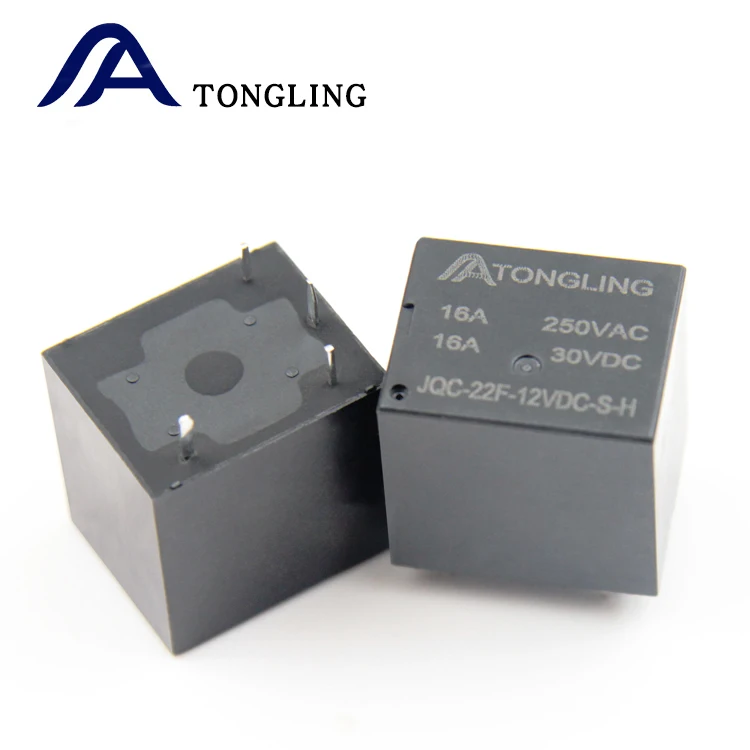

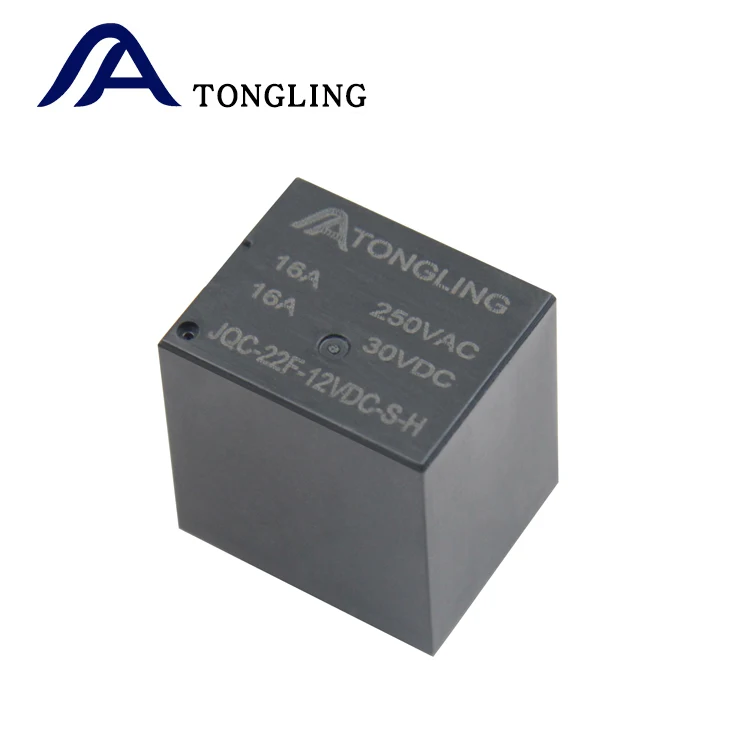

Size:20.3mm*16.6mm*20.2mm

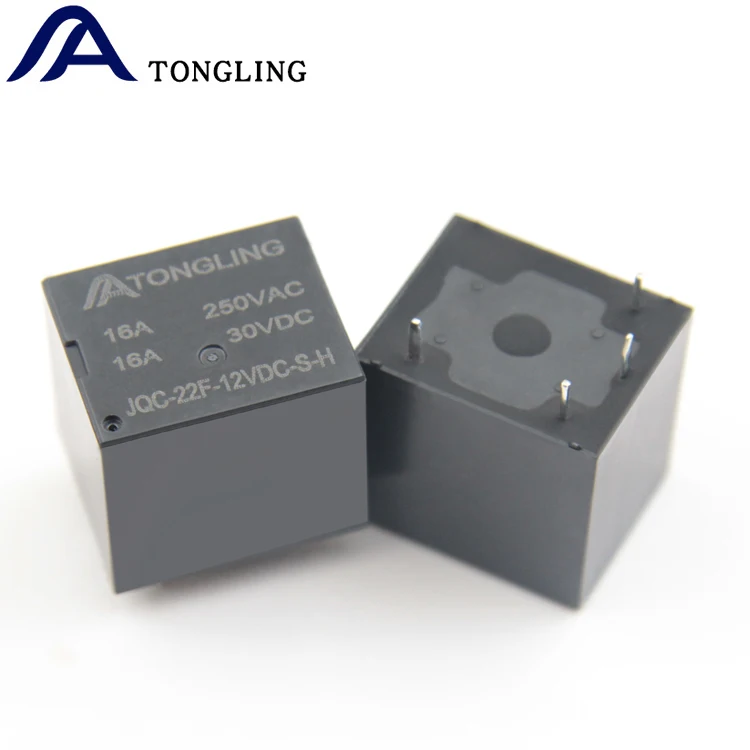

Compact size, PCB in-line welding
Beautiful welding effect
Universal relay
22F relay is widely used in household appliances and control products. The circuit board is directly welded, which is very beautiful after welding.
