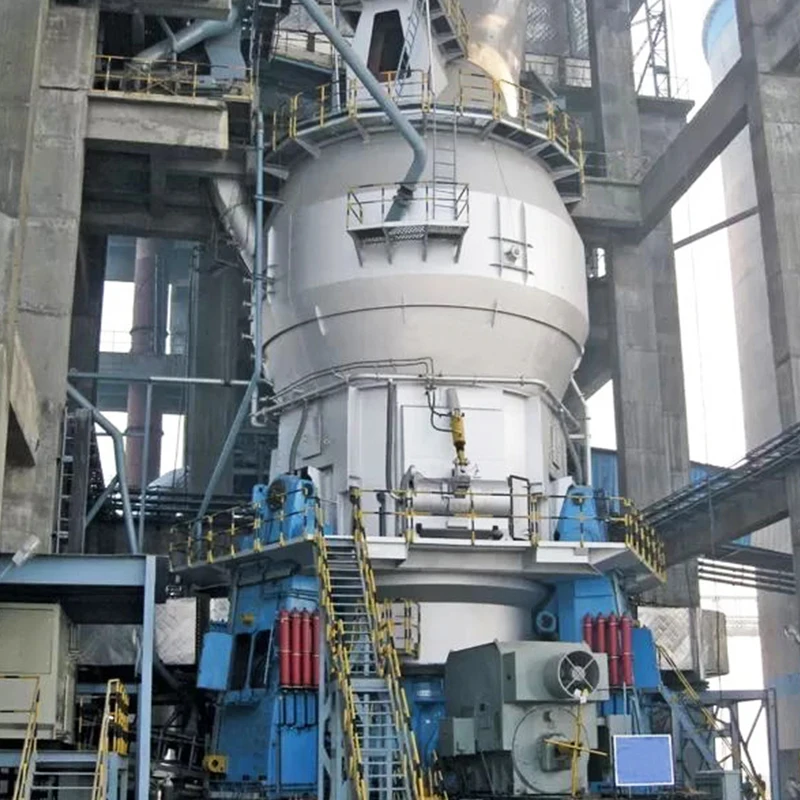

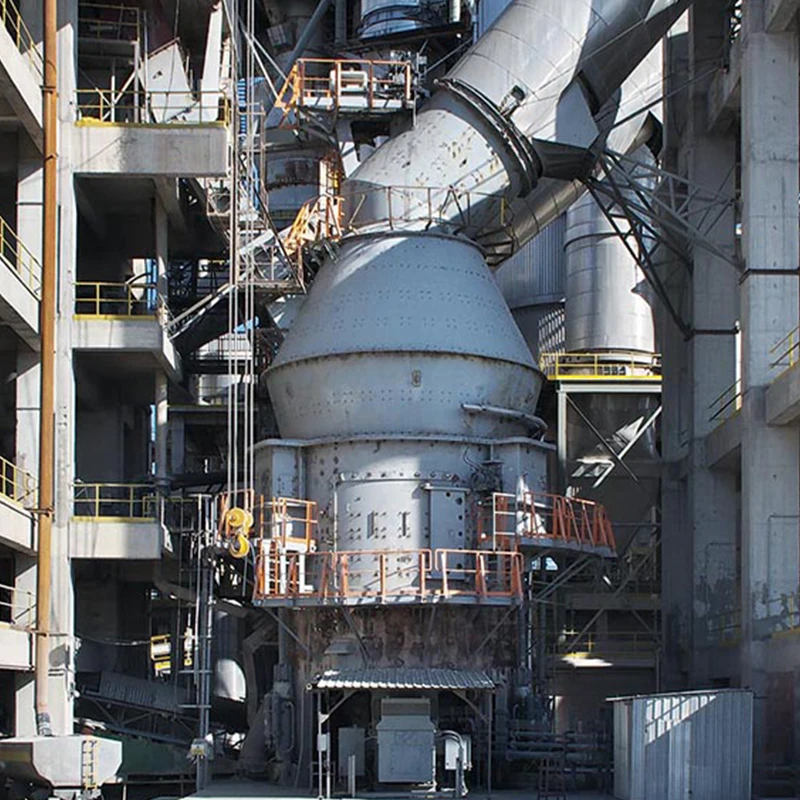

High Quality Vertical Slag Mill Vertical Grinding Mill Vertical Spindle Roller Mill Coal Vertical Nills for Sale
- Category: >>>
- Supplier: Henan Turui Machinery Co. Ltd.
Share on (1600503415751):
Product Overview
Description
Products Description
Coal Vertical Roller Mill is an air swept, medium-speed, vertical pulverizer with integral classifier. It pulverizes coal by applying hydraulically-loaded grinding pressure through three grinding roller onto a rotating bed of coal. Grinding pressure can be adjusted to account for variations in coal grindability and desired product fineness.

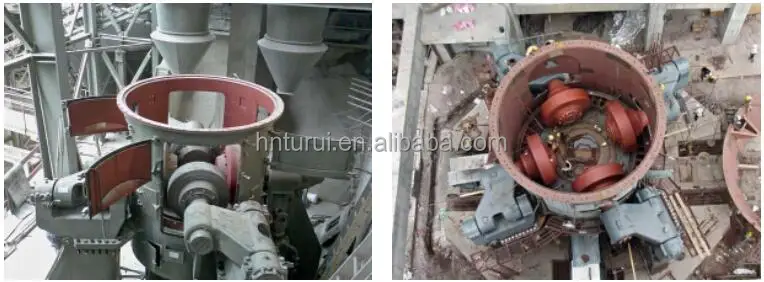

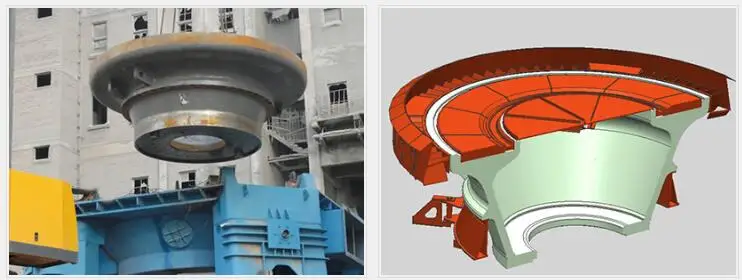

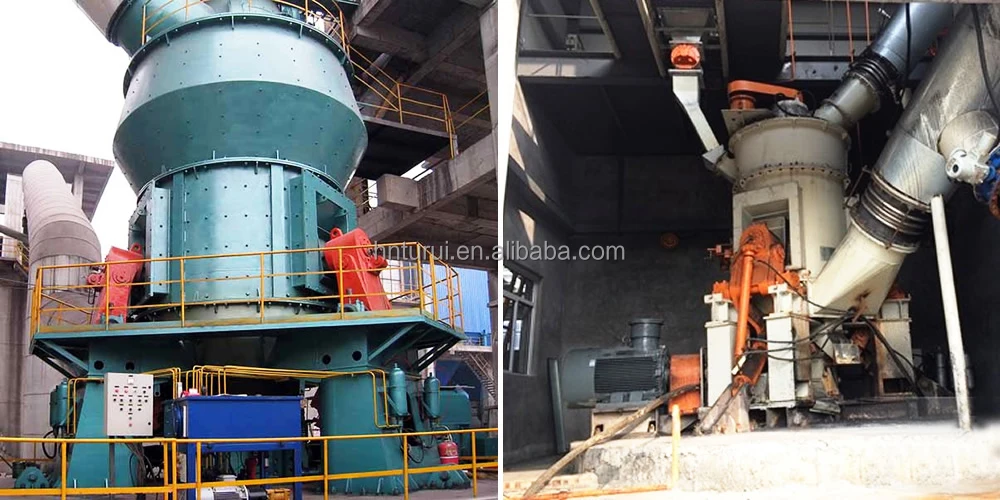

Details Images
More stable and reliable production and more excellent capacity

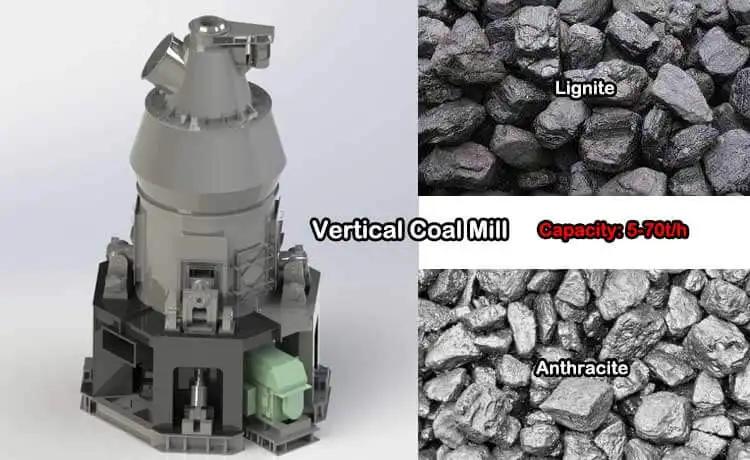

Vertical coal grinding mill is a professional coal grinding equipment for all kinds of coal. It can grind peat, lignite, bituminous coal, anthracite and other single raw coal, and can also grind a variety of mixed raw coal. Since the vertical coal mill is a combination of drying and milling functions, it can grind raw coal with different moisture content.
Working Flow
* Vertical coal grinding mill integrates crushing, drying, grinding, powder selection and conveying.
* It has simple system and compact structure. Vertical coal mill covers an floor area about 50% of the coal ball mill with the same specification.
* Coal vertical mills can work in open-air environments, greatly reducing the cost of investment.
* The design of the vertical coal mill system is simple and reasonable, saving unnecessary equipment investment and reducing the total investment of the equipment.
* It has simple system and compact structure. Vertical coal mill covers an floor area about 50% of the coal ball mill with the same specification.
* Coal vertical mills can work in open-air environments, greatly reducing the cost of investment.
* The design of the vertical coal mill system is simple and reasonable, saving unnecessary equipment investment and reducing the total investment of the equipment.

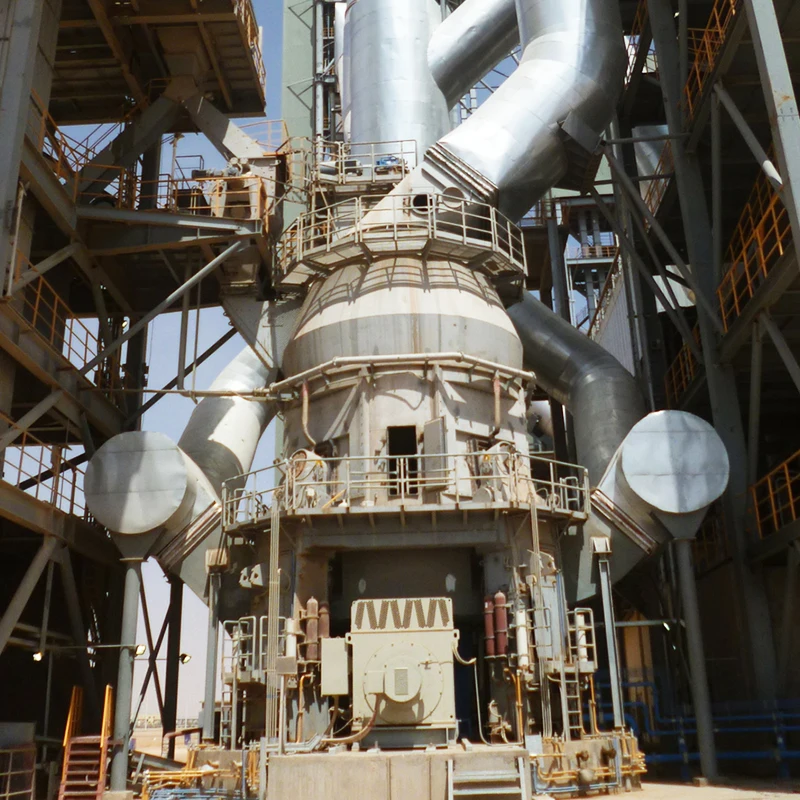

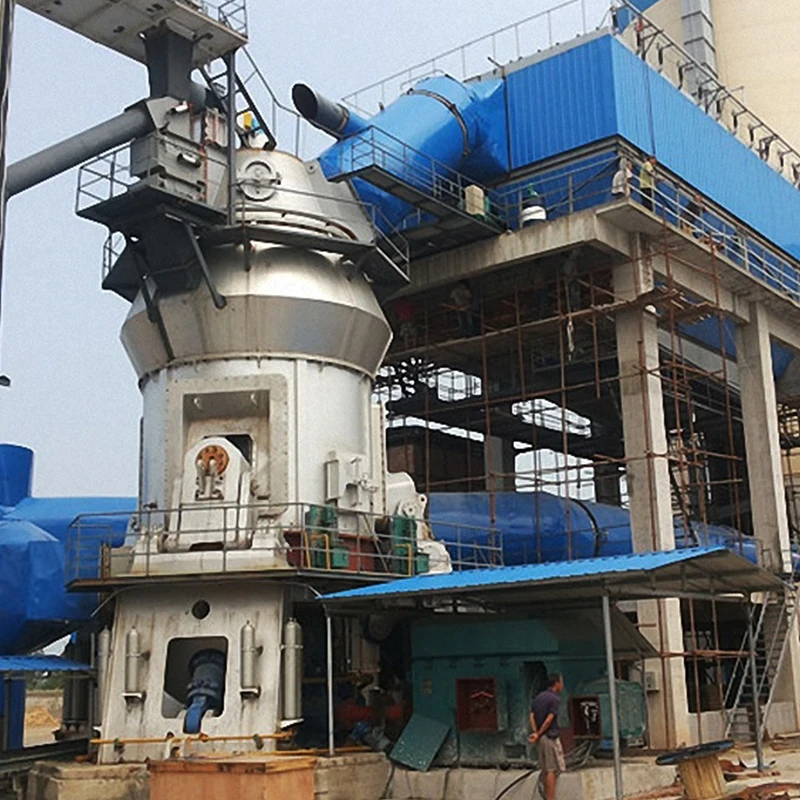

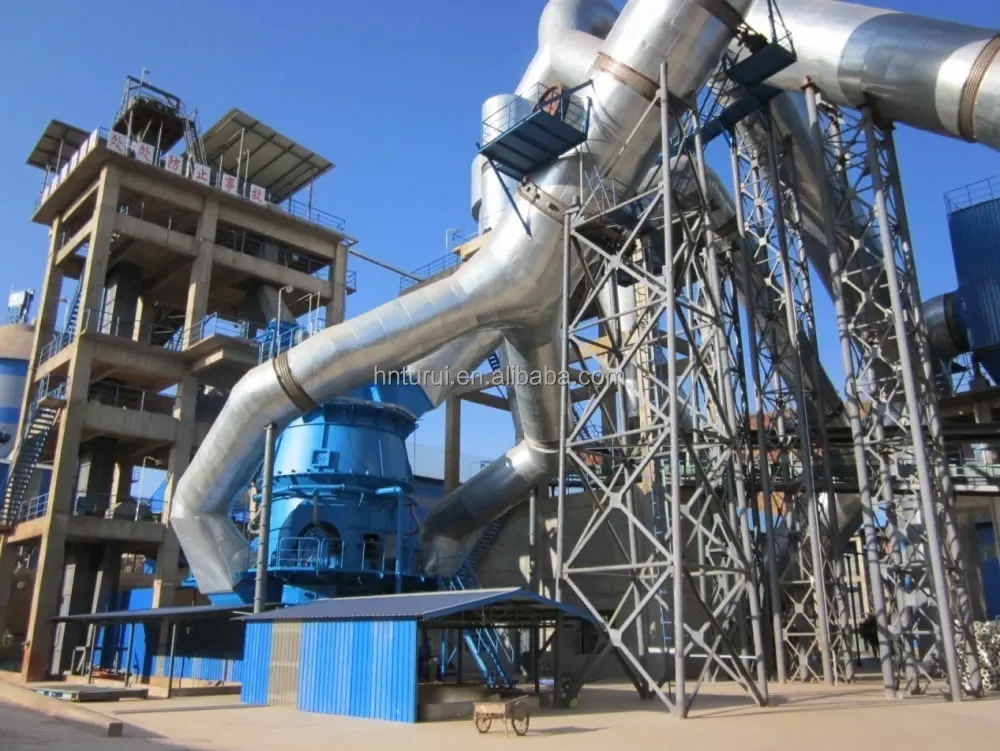

This is a vertical coal mill for pulverized coal project
Product Paramenters
Parameter | Unit | HRM800 | HRM1100 | HRM1250 | HRM1300 | PRM17 | PRM23 | PRM25 |
Capacity | T/H | 5-7 | 10-12 | 16-18 | 20-25 | 26-35 | 40-45 | 50-58 |
The size of grinding material | mm | 0-40 | 0-40 | 0-40 | 0-40 | 0-40 | 0-50 | 0-50 |
The moisture of grinding material | % | <10 | <10 | <10 | <10 | <10 | <10 | <10 |
Fineness R0.08 | % | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
The moisture of product | % | <1 | <1 | <1 | <1 | <1 | <1 | <1 |
Power | KW | 55 | 110 | 160 | 200 | 400 | 400 | 450 |
The wind temperature of input | ℃ | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 |
The wind temperature of outlet | ℃ | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 |
The air volume of outlet | m3/H | ≈10000 | ≈20000 | ≈30000 | ≈40000 | ≈80000 | ≈80000 | ≈100000 |
The weight of equipment | T | 16 | 22 | 32 | 40 | 96 | 135 | 167 |
Product Advanges
1. Complete function, perfect performance.
As a professional manufacturer with nearly 40 years manufacturing experience, Turui Machinery keeps proceeding optimization and upgrading products , integrates crushing, drying, grinding, grading, transportation and other functions into one system. The improved function of vertical coal mill reduces customers’ investment on related auxiliary equipments, but also enhances the systematicness.
2. High grinding efficiency, low operation cost
3. High quality final product.
4. Energy-saving, environment protection.
As a professional manufacturer with nearly 40 years manufacturing experience, Turui Machinery keeps proceeding optimization and upgrading products , integrates crushing, drying, grinding, grading, transportation and other functions into one system. The improved function of vertical coal mill reduces customers’ investment on related auxiliary equipments, but also enhances the systematicness.
2. High grinding efficiency, low operation cost
3. High quality final product.
4. Energy-saving, environment protection.

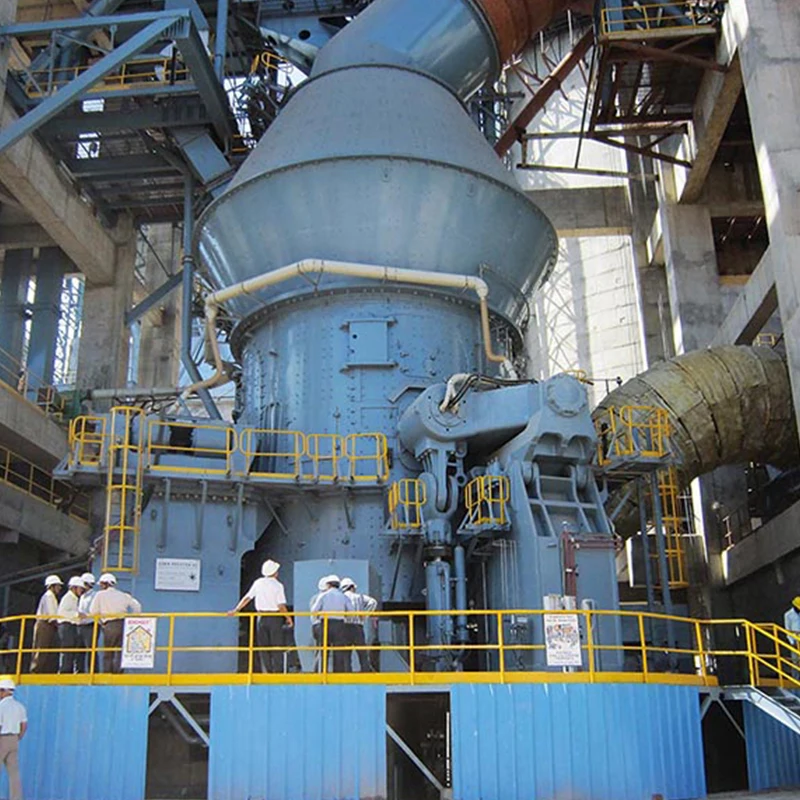

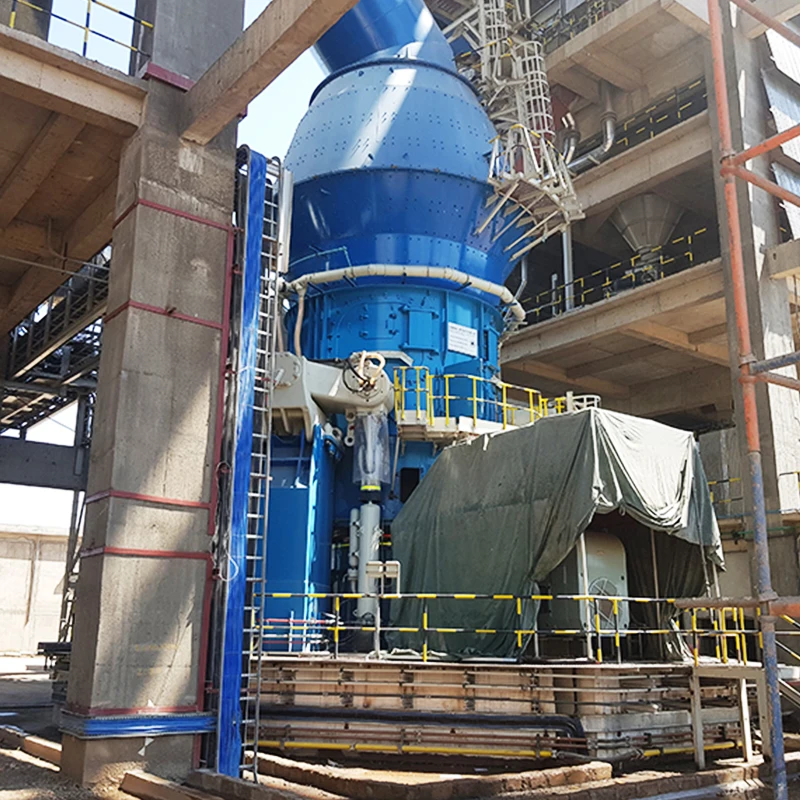

Project Cases
Linyi Aobote Thermal Power Pulverized Coal Preparation Station
Project Location: Shandong, China Project Name ： 20T pulverized coal preparation station
Main Equipment: 6tph vertical Coal Mill
Since 2015, the environmental protection department of Shandong Province has promoted pulverized coal as clea...
Since 2015, the environmental protection department of Shandong Province has promoted pulverized coal as clea...
Customer Evaluation:
The complete set of iron ore beneficiation plant are working hard and efficient, and the after-sale service is excellent and timely. All in all, it is a nice cooperation, so we will come to Turui to buy equipment next time.
Company Profile
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research,production, sales and installation together, guaranteeing the reliable and stable quality.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Now the company has more than one hundred employees, including 8 professional engineers. Seventy-five percent of the employees have participated the professional technical training, which makes sure high-efficient pre-sales and after-sale service.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Now the company has more than one hundred employees, including 8 professional engineers. Seventy-five percent of the employees have participated the professional technical training, which makes sure high-efficient pre-sales and after-sale service.
Why Choose Us
Choosing a reliable supplier is halfway to a robust cement grinding plant. And Turui Machinery is the right supplier you are looking for.
1. 1.Turui can provide a custom-design solution to cement manufacturing for every client.
2. 2.Turui can provide perfect after-sales service, which covers equipment installation, operation, production, and maintenance.
And we will send technicians for guidance and training until customers are satisfied.
3. 3.Turui can provide cement grinding plants at factory prices.
4. 4.Cement production starts up in three to six months.
5. 5.All types of cement are possible.
1. 1.Turui can provide a custom-design solution to cement manufacturing for every client.
2. 2.Turui can provide perfect after-sales service, which covers equipment installation, operation, production, and maintenance.
And we will send technicians for guidance and training until customers are satisfied.
3. 3.Turui can provide cement grinding plants at factory prices.
4. 4.Cement production starts up in three to six months.
5. 5.All types of cement are possible.
