Printer Date Expiry Date Printer Automatic Flatbed Printer Continuous Expiry Date TIJ 12.7mm Printing Machine Batch Coding
- Category: >>>
- Supplier: Guangzhou Aokdi Inkjet Equipment Co. Ltd.
Share on (1600503549435):
Product Overview
Description
Products Description
HM printer VS other brand machine | ||||
system | The software system is independently developed and directly controlled by Micro Control Unit（MCU）system. The stability is very good; the use time is long, the system operation speed is unchanged. | Most of them are developed based on Android, WINCE and other platforms, General stability, long-term use will slow down the system operation speed and freeze or even crash | ||
The software interface | designed with reasonable buttons and sizes according to the operator. | Most of the interface operations are too small and troublesome, which is very influential. | ||
Screen size | 7 inch HD color screen | 4.3 inch or 5 inch screen | ||
Printing speed | 30% increase in printing speed (increased efficiency) | Normal speed | ||
Printing information length | 8cm和11cm | 6cm | ||
Printed concave surface | 11mm(up 6mm compared with peers) | 5mm | ||
Control method | Manual button, foot switch, sensor | Foot switch, sensor | ||
Printing control mode | The software can be adjusted to ensure the first word of the printed information. | The software cannot be adjusted, and the first word of the printed information is printed. | ||
It won’t narrow | it may become narrow | |||
Barcode printing | can print variable barcodes and variable QR | only fixed barcodes and QR codes can be printed | ||
Anti-interference design | Yes | NO | ||
Ink volume display | Yes, and the number of inks that can be sprayed can be displayed at the same time. | NO | ||
The sliding device | is very stable and has a long service life | After a period of use, the motor will have carbon brush failure, and the service life is short. | ||
Comprehensive evaluation: | ||||
Focus on system stability, user friendly operation, and higher cost performance; hope that more users can experience and compare for the products of various manufacturers, choose the most suitable inkjet printer. Sincerely hope that the inkjet printer will realize the value for you! | ||||
Model | HM188 |
Nozzle | TIJ 12.7mm Thermal foaming nozzle |
Printing height | 12.7mm |
printing length: | 11cm |
Operating system | MCU system |
DPI | 300-600dpi |
Screen size | 7 inch HD color screen |

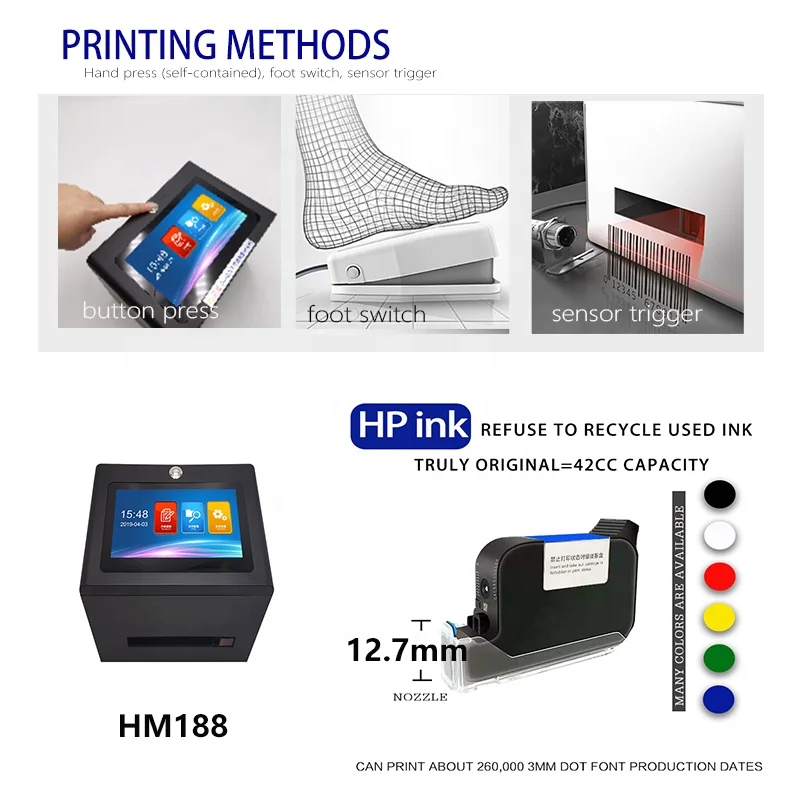

Printing mode | handpress / foot switch / sensor |
Motor | stepping motor |
Adjustable nozzle: | 5mm Before and after fine-tuning |
Language | English, Chinese |
Shape features | ABS integrated mold |
Storage files | 250 files |
Printing distance | 1-5mm (Conditions permit 1cm)(distance between nozzle and product surface) |

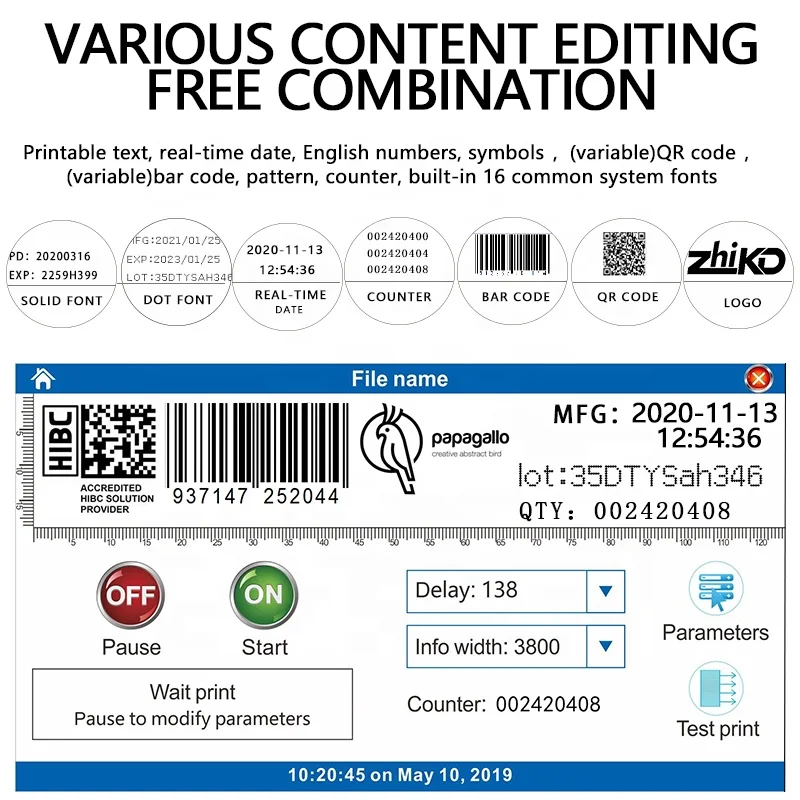

Print content | Text, time, batch number, serial number, logo, QR code, barcode |
Printing speed | 1s/product |
External interface | USB, Photoelectric interface, RS232 |
Power cord length | 3m |
Power consumption | 25 W |
Printing material | Board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil etc. |
printing content: | production date / batch number / serial number / QR code / barcode / logo |
Inkjet printing function: | count value of 9 digits can be changed / one item and one code can be changed / production date can be updated in real time（ Accurate to seconds） |
Dimension | 22*17*17cm |
packing size | 25*25*20cm |
Net weight | 2.2kg |
Package weight | 3.0kg |
Voltage | 100V-240V AC input, 16V/10A DC output |
Working environment | Temperature:0 - 45℃(best 20-30℃) |
Humidity: 40% - 60% Rh |
Optional color
