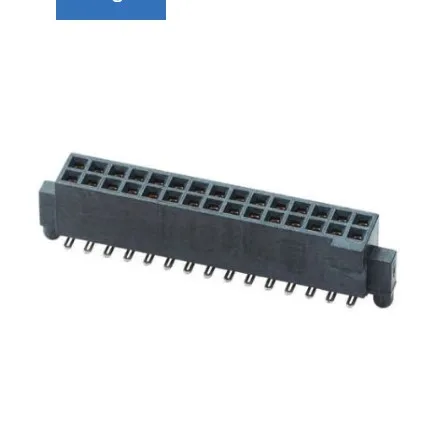

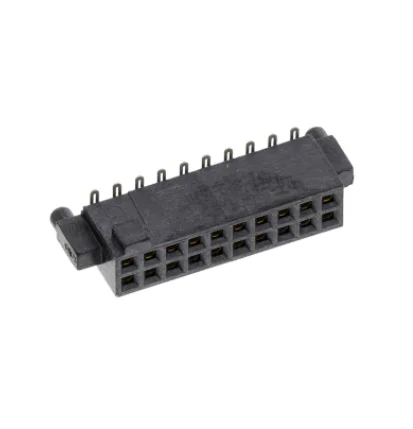

Samtec sfm series 1.27mm female socket connectors
Samtec sfm series 1.27mm female socket connectors
Samtec sfm series 1.27mm female socket connectors
Samtec sfm series 1.27mm female socket connectors

Samtec sfm series 1.27mm female socket connectors

Share on (1600503567202):


Price:$0.01

Quantity:


Product Overview

Description



Specification


Model Number
HFIDM44-T001-Model
Product name
1.27mm female header dual rows smt Samtec sfm connectors
Current Rating
3Amp
Insulation Resistance
1000M Ohm/Min
Dielectric Withstanding
600V AC
Contact Resistance
20m Ohms Max
Operating Temperature
-40℃to+105℃
Contact material
Phosphorous Bronze
Insulation Material
Polyester

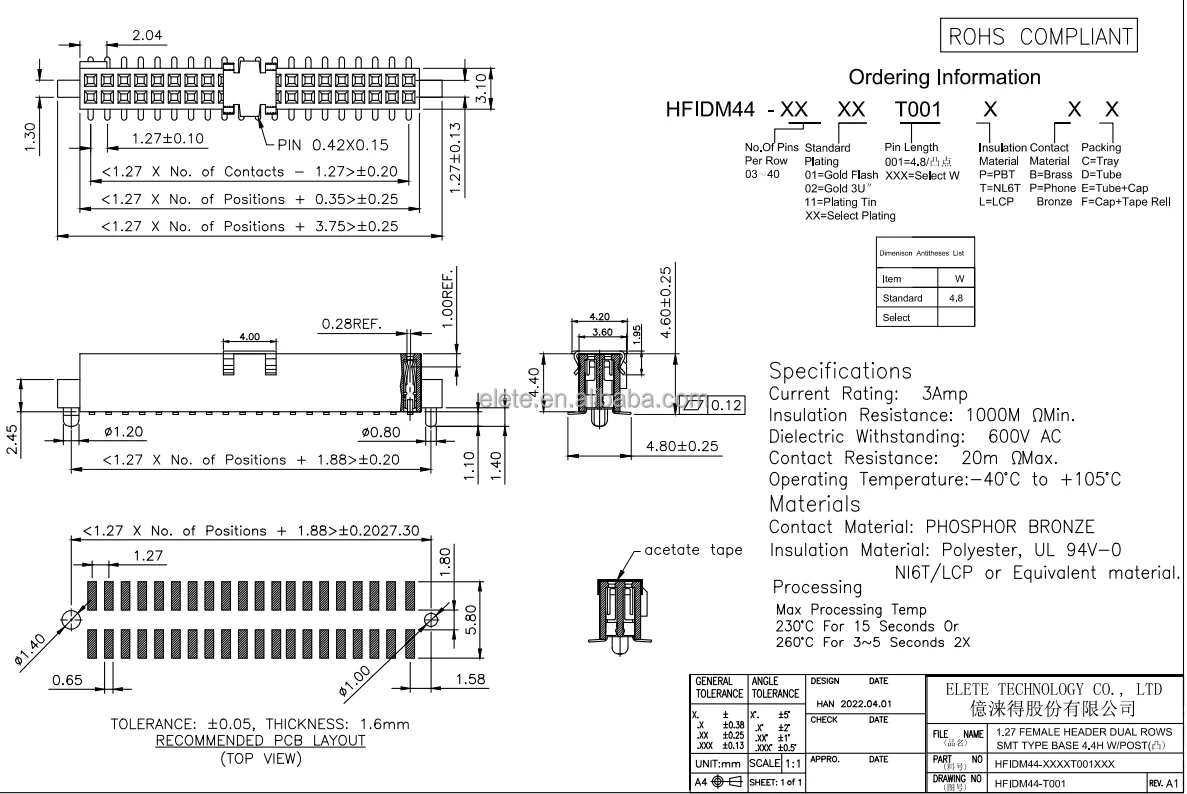

DRAWINGS




MORE PRODUCT










COMPANY INTRODUCTION




ELETE was established in 2006, we have connector factories in Chang'an, Dongguan and Ganzhou, Jiangxi, specializing in designing and manufacturing of precision connectors. Our group also has terminal, plating, stamping production lines.
We are servicing for Honeywell, Jabil, Amphenol FCI. Benchmark.
As alternative of Molex, TE, Samtec, JST, Hirose connectors.
Welcome OEM&ODM mold development and design.



FACTORIES


CERTIFICATION:






FACTORIES:




DEPARTMENTS:




OUR PARTNER:






EXHIBITION:





PAYMENT & DELIVERY:

*Payment : T/T,L/C,PayPal,Western Union,Escrow
*Delivery: Shipping, sea transportation, railway transportation, Other payment methods are also negotiable





WHY OURS


1. Quality:
ELETE was established in 2006, headquarter is in Hong Kong. We have connector factories in Chang'an, Dongguan, and Ganzhou, Jiangxi, specializing in designing and manufacturing precision connectors. Our group also has terminal, plating, stamping production lines, In connector factories, we have more than 100 technicians. The production capacity is 20KK per month. ELETE passed ISO9001:2015 certification. We provide interconnection products that meet UL, REACH, HF standards, and professional plastic and metal mold development. In 2016 ELETE began the exploration of transforming intelligent manufacturing. The full-automatic production line has greatly improved production efficiency and saved a lot of labor costs. From raw materials to product processing, next to full-automatic CCD inspection, and then fullautomatic cap and reel packaging, every processing can be monitored by the general control system of the production line. Our boutique line can meet the automobile standard, it can be controlled within 30PPM.

2. Service:
Our business strategy: quality first, the customer is Our business concept: integrity, gratitude, loyalty, and responsibility. ELETE believes that cooperation is not only about selling products, but also about making friends with customers. In the process of trading, we will try our best to solve any problems customers have about products and provide customers with reliable technical service support.



FAQ


Q1：How can we guarantee the quality?
A1：Always a pre-production sample before mass production;
Always final Inspection before shipment.

Q2: What's the delivery time?
A2: The delivery time will depend on the quantity you need, it's usually 7-14days.

Q3：When can we get the reply?
A3: Any inquiries will be replied to within 24 hours.

Q4：After-sale service
A4: If there is any problem with the product, please contact us. We will give you a satisfactory solution ASAP.
