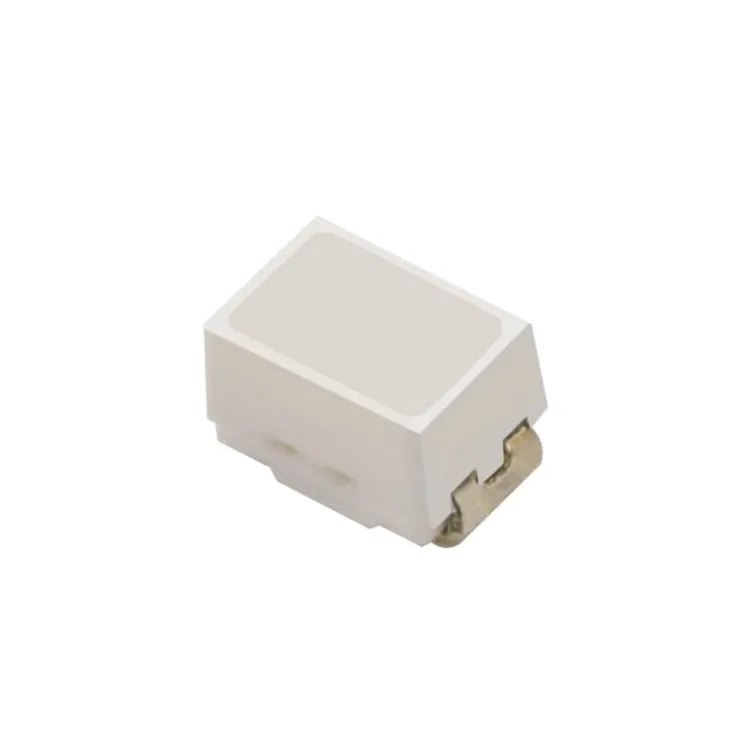

Factory Customized Smd Led Light White Light SMD LED for TV Backlight
Applications
1, Indoor lighting applications
2, Flat backlight for LCD. switch and symbol
3, Indicator and backlighting for all consumer electronics
4, Automotive electronics
Maximum Rating (Ta=25℃)
Parameter | Symbol | Typical | Unit | |||
DC forward current | IF | 30 | mA | |||
Pulse forward current | IPF*3 | 100 | mA | |||
Reverse voltage | VR | 5 | V | |||
Junction temperature | TJ | 125 | ℃ | |||
Operating temperature range | TOP | -40~105 | ℃ | |||
Storage temperature range | TSTG | -40~105 | ℃ | |||
Soldering temperature | TSD | 260 | ℃ | |||
Thermal resistance junction/ solder point | RTHJ-S | 130 | ℃/W | |||
Thermal Resistance Junction/ Ambient Point | RTHJ-A | 260 | ℃/W | |||
Electrostatic\u007FDischarge(HBM)\u007F | ESD\u007F | 6000 | V | |||
Notes: 1, There is no maximum or typical voltage parameter. 2, For other ambient, limited setting of current will be depended on de-rating curves. 3, Duty 1/10, pulse width 0.1ms. 4, The maximum of soldering time is 10 seconds in TSD | ||||||
Electrical-optical Characteristics (Ta=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition | ||||||
Forward Voltage | VF | 2.7 | - | 3.3 | V | IF= 20mA | ||||||
Luminous Intensity | Iv | 1850 | 2190 | - | mcd | IF= 20mA | ||||||
Color Coordinate | X | - | 0.296 | - | - | IF= 20mA | ||||||
Y | - | 0.288 | - | - | IF= 20mA | |||||||
Peak Wavelength | λp | - | 449 | - | nm | IF= 20mA | ||||||
Spectral Width 50% | ∆λ | - | 18 | - | nm | IF= 20mA | ||||||
Reverse Current | IR | - | - | 10 | uA | VR= 5V | ||||||
View Angle | 2θ1/2 | - | 120 | - | Deg | IF= 5mA | ||||||
Notes: 1, Luminous intensity measurement tolerance: ±10%Iv. 2, XY tolerance is ±0.005. 3, Forward voltage tolerance is ±0.1V 4, Viewing Angle (2θ1/2) ±5% | ||||||||||||

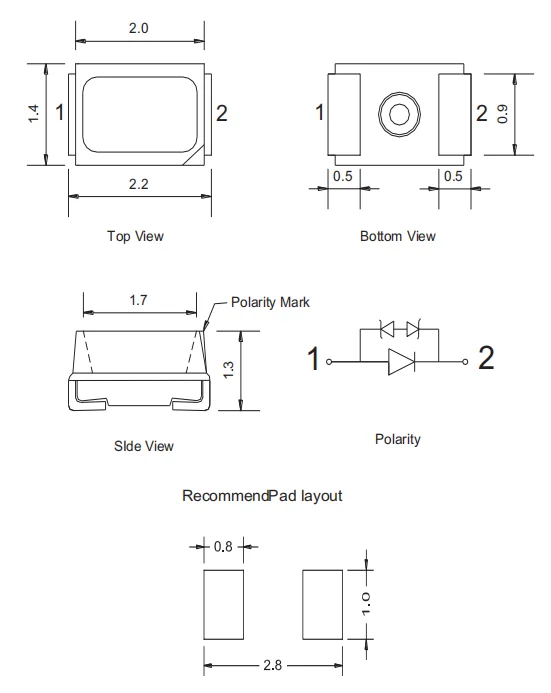

Dimensional Drawing
Notes:
1, All dimensions are in millimeters.
2, Tolerance is ±0.1mm unless otherwise noted.
3, Specifications are subject to change without notice.
