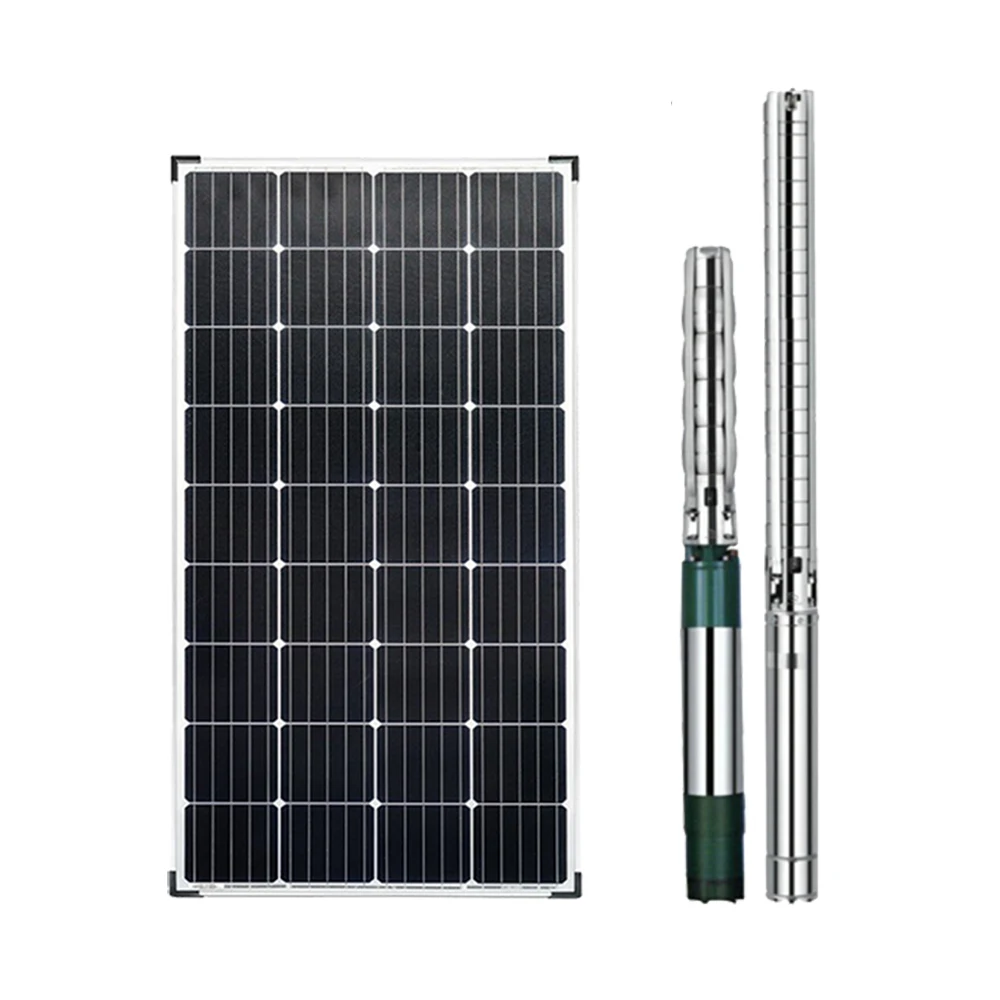

200M 300M 400M 500M High Lift Submersible AC Deep Well Solar Water Pump for Agriculture System
- Category: >>>
- Supplier: Goldbell Electric (shenzhen) Co. Ltd.
Share on (1600503799668):
Product Overview
Description
Product Description

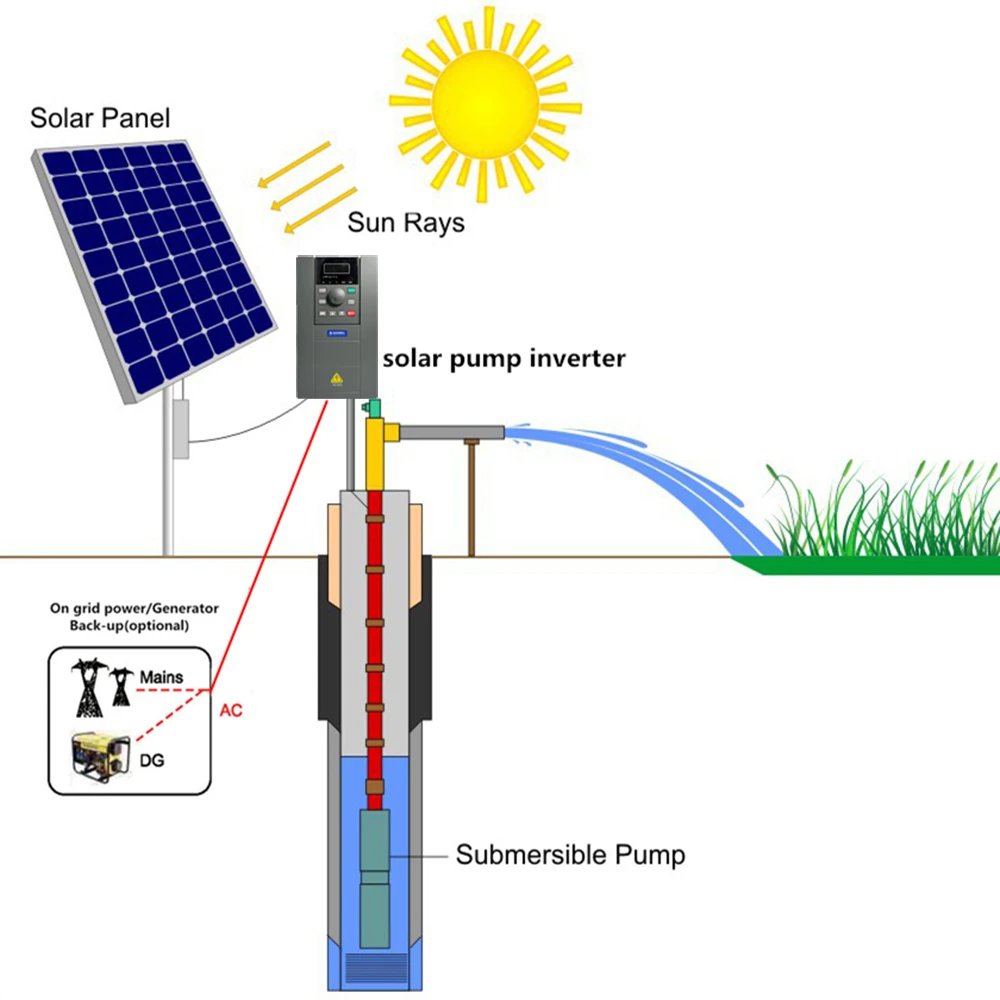

Solar Pump Irrigation System
System composition: The solar water pump system is mainly composed of solar panels, solar water pump inverters, water pumps, photovoltaic combiner boxes, mounting brackets, cables, water level sensors and other necessary accessories.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Extensive support: AC/DC, 50HZ-60HZ, 0.75KW-110KW, 3 inches to 10 inches, lift range: 10-680m, flow range: 1 m³/h-200 m³/h, meet all customer needs for solar pumps.
Multiple protection functions: dry running protection, reverse protection, overload protection, overcurrent protection, overvoltage protection, phase loss protection.
Multiple protection functions: dry running protection, reverse protection, overload protection, overcurrent protection, overvoltage protection, phase loss protection.

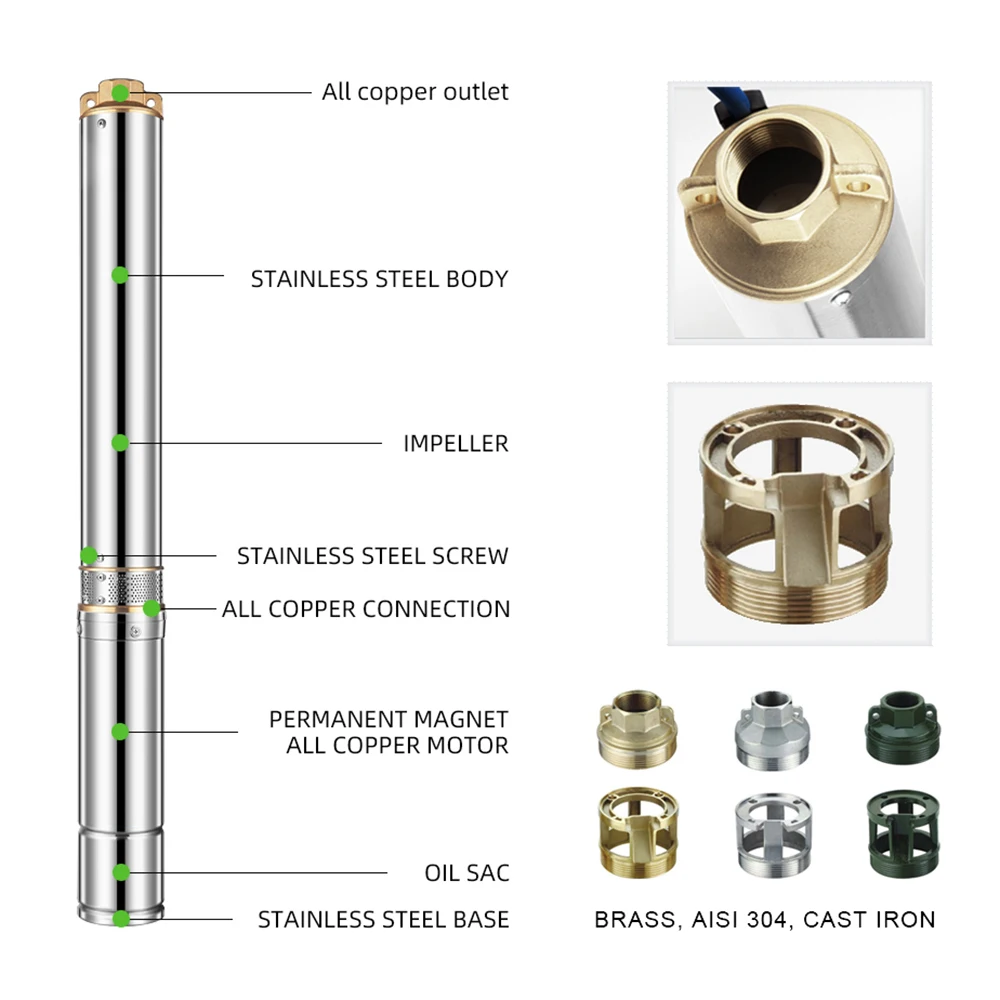

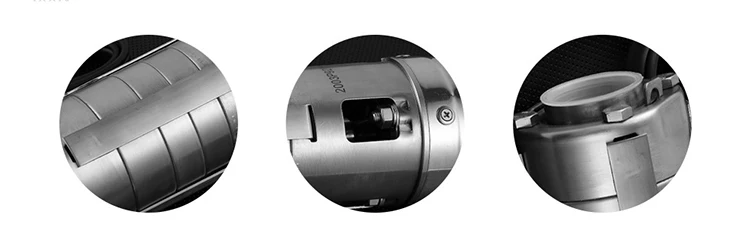

Water Pump Details
1. Adopt stainless steel 304 pump pipe, beautiful and corrosionresistant.
2. POM impeller. PPO diffuserhiah temperature resistancecorrosion resistancehiah mechanical strengthlong service life.
3. The design of multi-stage floating impeller can effectively reduce the requirement of starting torque,and it is not easily blocked because of small sand partical(strong ability to cross sand)longer servicelife ofthemotor.
4. Pump head material:options:copper alloystainless steel304/31castiron(anti-rust treatment).
2. POM impeller. PPO diffuserhiah temperature resistancecorrosion resistancehiah mechanical strengthlong service life.
3. The design of multi-stage floating impeller can effectively reduce the requirement of starting torque,and it is not easily blocked because of small sand partical(strong ability to cross sand)longer servicelife ofthemotor.
4. Pump head material:options:copper alloystainless steel304/31castiron(anti-rust treatment).
Specification
Product | AC DC Solar Submersible Deep Well Water Pump for Agriculture Irrigation |
Head Range | 10 m - 600 m |
Flow Range | 1 m³/h - 200 m³/h |
Frequency | 50Hz / 60Hz |
Voltage | 220V - 240V / 380V - 480V |
Power | 0.75KW-110KW (1HP-150HP) |
Pump Material | AISI 304 |
Motor Head | Brass / AISI 304 / Cast Iron |
Delivery Door | Brass / AISI 304 / Cast Iron |
Pump Impeller | Plastic / Stainless steel |
Pump Size | 3'', 3.5'', 4'', 5'', 6'', 8'', 10'' |
Pump Outlet Size | 1'', 1.25'', 1.5'', 2'', 2.5'', 3'', 4'', 5'', 6'' |
Name Rule
Model Selection

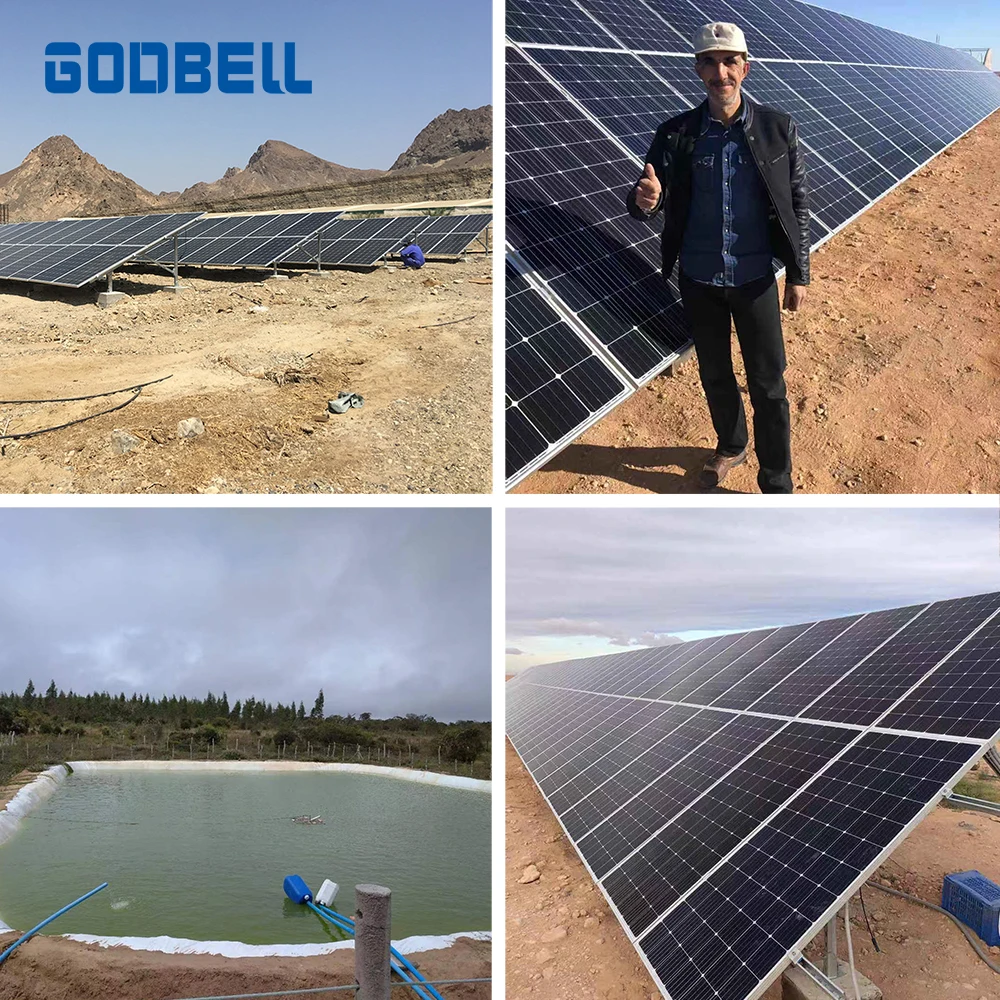

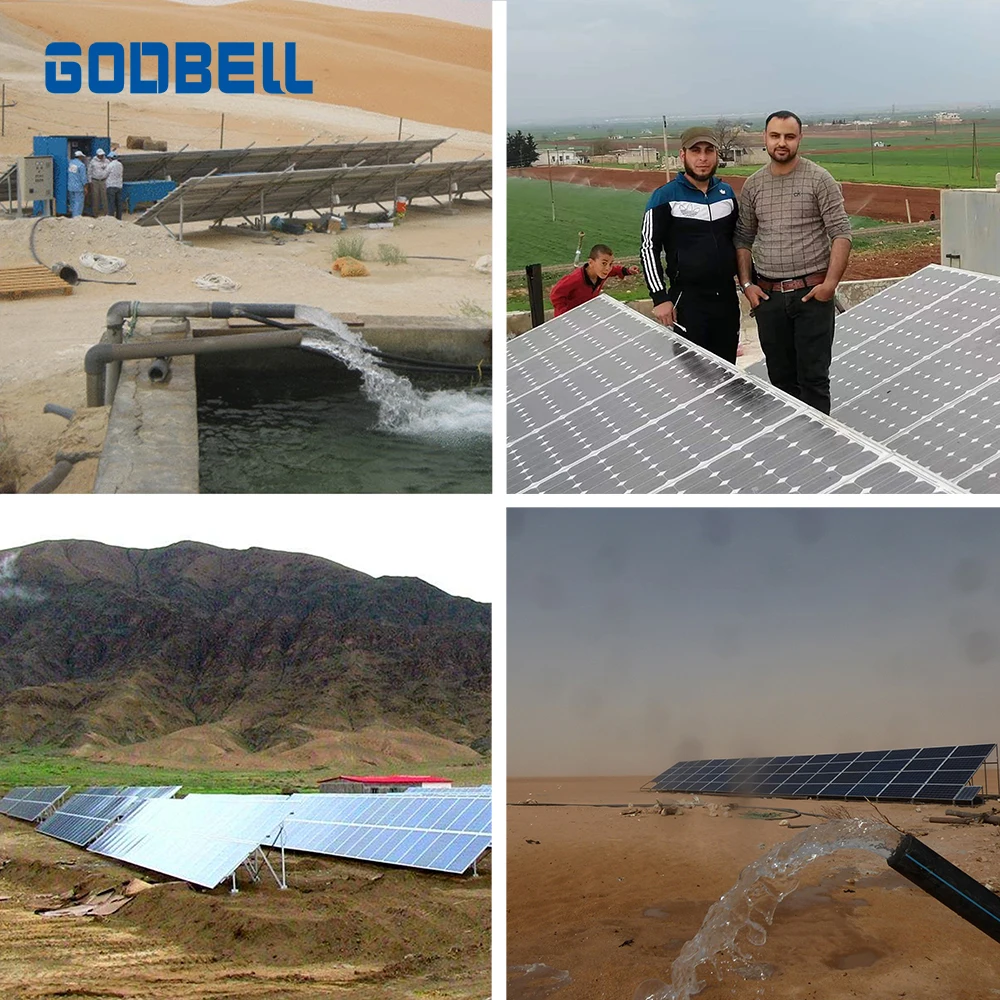

Cooperation Case
Project country | Khartoum,Sudan | ||
Installtion place | Desert for watermelon and fruit tree | ||
Solar pump system one-stop solution design | Water pump | 6SP46-17,26KW (35HP) 3PH 380V 50HZ,full AISI304 pump material Rate 48 m3/h water flow, rate 146 m lift head Pump life time: more than 5 years | |
Solar pump inverter | GS500-30G/37P-4TB, 30KW 60A 3PH 380V MPPT solar inverter for water pump Lift time: more than 3 years | ||
Solar panel | 37KW total power solar panel 90PCS 415W/pcs mono half cell solar panel Connection: 15PCS series * 6 strings parallel Life time: more than 25 years | ||

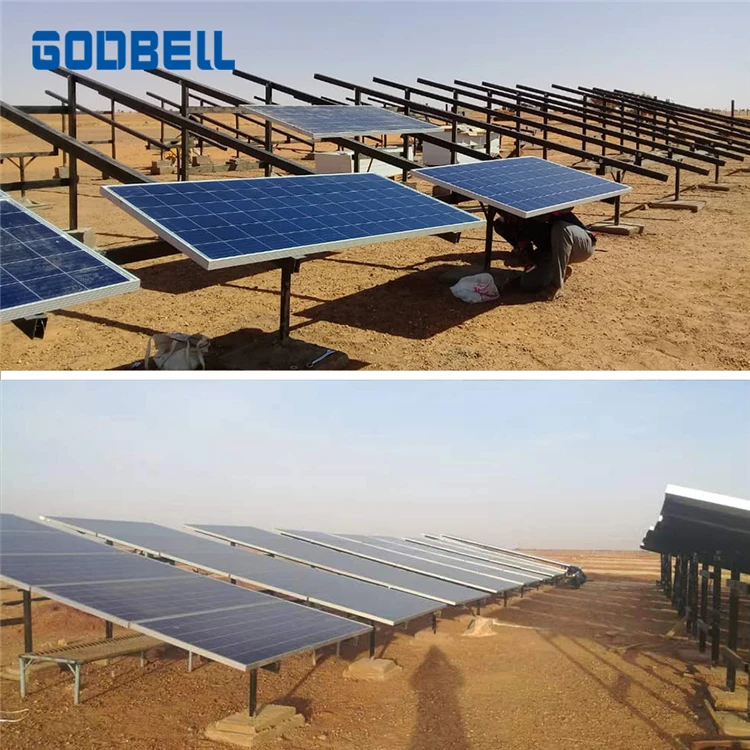

Mounting structure | Ground mounting bracket structure Material: Q235B hot-dip galvanized steel bracket | ||
Accessories | Cabinet for solar pump inverter, PV combiner box,PV cables, AC cables,AC output reactor,water level sensor,MC4 conenctor | ||

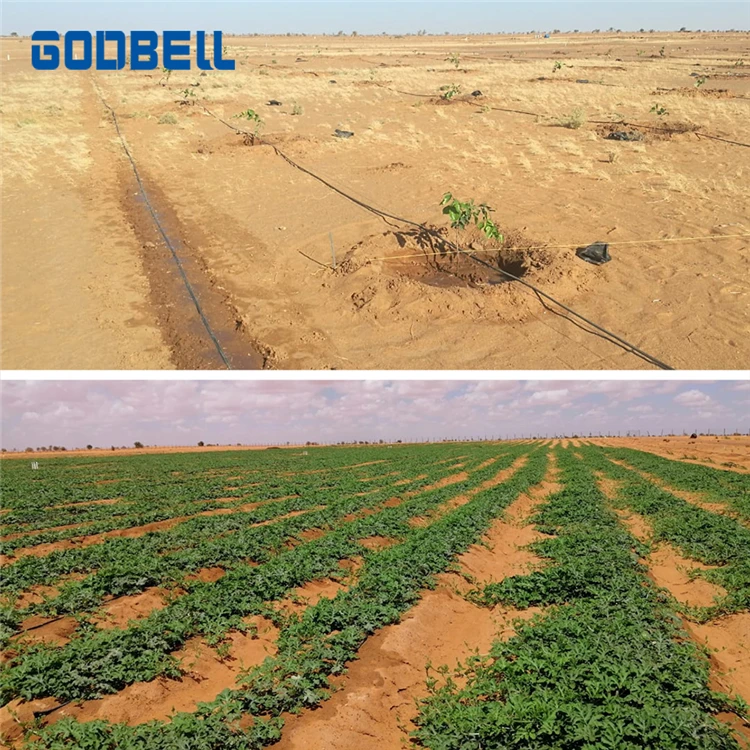

Benifits | In sudan, before many farmer only use diesel generator to pump water by generator. customer puchased 2 set 26KW solar water pump system to replace his generator.as the land only need water flow when at day, after installed the solar pumping system, it can do drip irrigation for watermelon and fruit tree in his desert land,and no human operation.around the villages,more than 10 family have choosed to change to be solar,all of them use GOLDBELL solar pump for agriculture irrigation. | ||
Company Profile

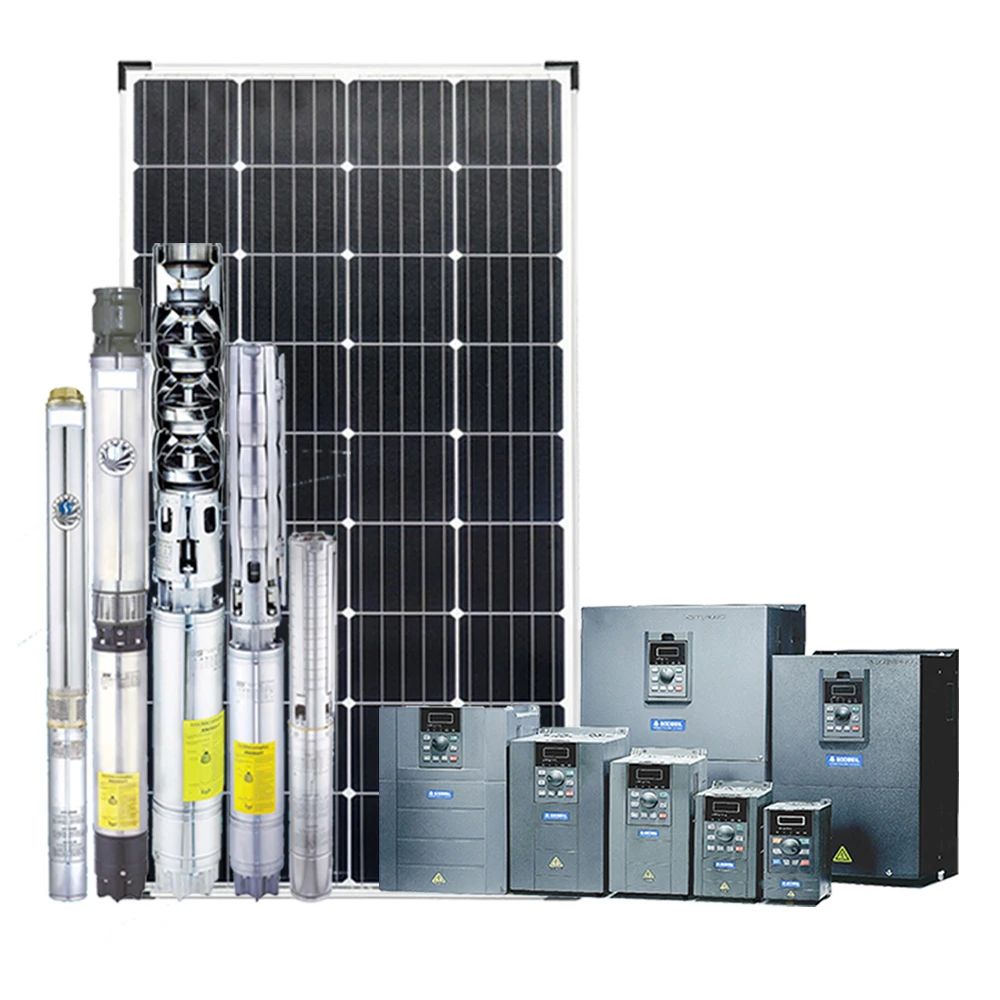

GOLDBELL ELECTRIC (SHENZHEN) CO., LTD. is located in Shenzhen City, Guangdong Province. It is a national high-tech enterprise focusing on industrial automation control and new energy fields. Its products include frequency inverter, solar pump inverter, solar water pump, solar pump system, etc. After 10 years of industry technology precipitation, it has excellent software and hardware design, development, production and sales capabilities, and can provide customers with one-stop overall solutions.
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
Packing & Delivery
Outer Packaging: high-quality strong export wooden box.
Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation.
Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation.
FAQ
How to choose a suitable solar pump based on actual demands?
1) Firstly to calculate the lift head, like below diagram to draw a draft.
H1: Deep well depth
H2: Vertical height from deep well pump location to ground
H3: Vertical Height from water level in deep well to ground D: Diameter of deep well
L1: Horizonal distance from deep well to hill
H4: Vertical height of hill
L2: Horizonal distance from hill to tank (or irrigation siteif no tank)
H5: Vertical height from tank to ground (if have tank)
Pump required lift head = (H2+H4+H5) + (L1+L2) * 3% ~ 5%
In summary, the lift head is from pump location "A" to pipe water outlet "B": vertical height "H" and horizonal distance "L". Lift
head = H + L*5% (L*5% means delivery pipe loss)
Note:
In summary, the lift head is from pump location "A" to pipe water outlet "B": vertical height "H" and horizonal distance "L". Lift
head = H + L*5% (L*5% means delivery pipe loss)
Note:
* Height From Pump location to bottom of well is better more than 5metersIn case of sandy or sludge into pump.
* Height fromwater level to pump local is better less than 50 metersin case of high pressure to damage pump.
* Pump body diameter must be less than well diameter,otherwise pump can not be put into wellif pump is 8inchbut the well diameter is 6inch,pump can not be put intowell.
* If no hill or no tank just calculate the lift head H+L*5%
2) To comfirm required water flow To check how many cubic meter(m’)or litres(L) water are required per hour or per day?
2) To comfirm required water flow To check how many cubic meter(m’)or litres(L) water are required per hour or per day?
if required 100 m’/day water, and there are 8-10 hours sunlights in the siteso the water flow is about 100/8=12.5 m’/h.
3) After known the required flow and lift head like 12.5m3/h and 45m lift headthen to check the Head & Flow performance curve of pump like below pictures.
So the model: 4SP14-10, 3kW motor and 4inch AlSI 304 pump bodythis can meet required flow and lift headso it is correct pump model. So no matter which fatory pump or any kind of pump to check the each model Flow & Head performance curve is the first important step. Only after known the pump powerinput current, input voltage, then can only decide the solar pump inevrter, solar panel and other required parts.
