30 кВт высокочастотный электромагнитный индукционный нагреватель igbt для металлонагрева
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Guangdong,Lihua,Induction,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

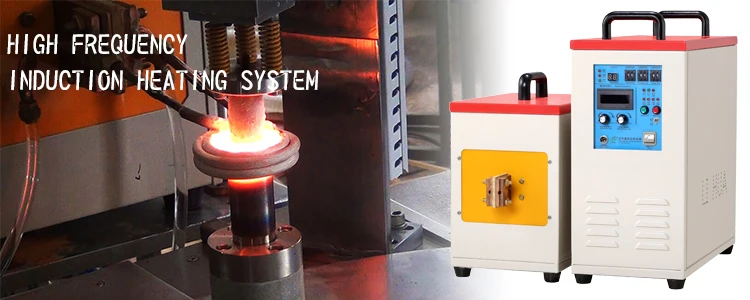

30KW high frequency igbt electromagnetic induction heater for metal heating
■ Adopted with MOSFET, IGBT power device and variable frequency control, LIHUA high frequency induction heaters enjoy high efficiency, energy saving and larger output power.
■ With constant current and constant power control function, the products can realize extremely optimized metal heating process,thus achieving high efficient, quick heating and greatly give play to the superiority of products.
■ Saving double electricity more than traditional high frequency induction heating device under the same conditions.
■ With 100% load design, it can work 24 hours constantly without a break. It can be equipped with infrared temperature measuring device to realize automatic control, promote heating quality and simplify artificial operation.
■ With three functional setting including heating-heat retaining-cooling, it can achieve required heating and incubation process to make itself suitable for repetitive and mass heating work.
■ The machine can display various states such as over current, over voltage, lacking of water, lacking of phase and light loading, thus providing higher reliability and durability.
■ With constant current and constant power control function, the products can realize extremely optimized metal heating process,thus achieving high efficient, quick heating and greatly give play to the superiority of products.
■ Saving double electricity more than traditional high frequency induction heating device under the same conditions.
■ With 100% load design, it can work 24 hours constantly without a break. It can be equipped with infrared temperature measuring device to realize automatic control, promote heating quality and simplify artificial operation.
■ With three functional setting including heating-heat retaining-cooling, it can achieve required heating and incubation process to make itself suitable for repetitive and mass heating work.
■ The machine can display various states such as over current, over voltage, lacking of water, lacking of phase and light loading, thus providing higher reliability and durability.
Details Images

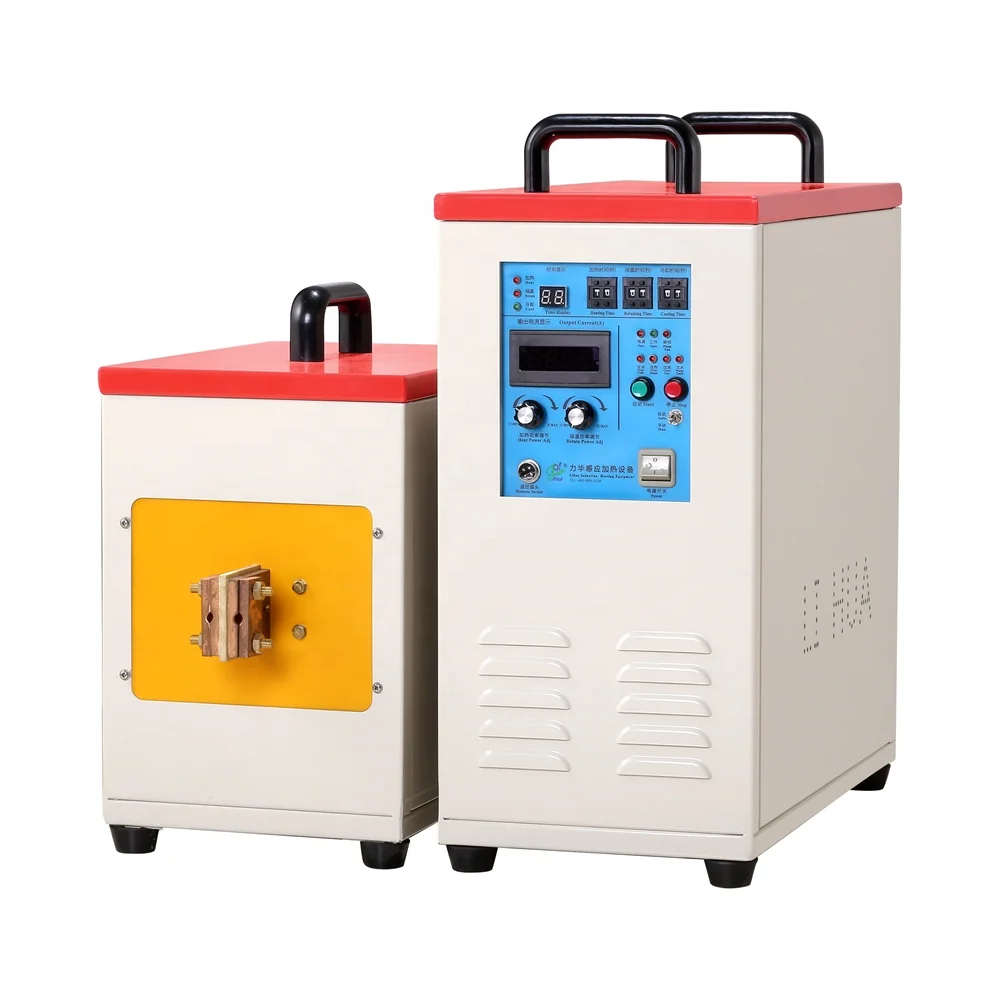

Front Side
Back Side
Germany IGBT
Circuit Board
Product Paramenters
High Frequency Induction Heating System | ||||||||||
Model | LH-15A | LH-15AB | LH-25A | LH-25AB | LH-30AB | |||||
Input voltage | 220V | 220V | 380V | 380V | 380V | |||||
Output power | 15kW | 15kW | 25kW | 25kW | 30kW | |||||
Frequency | 30-100KHz | 30-100KHz | 30-80KHz | 30-80KHz | 30-80KHz | |||||
Output current | 200-600A | 200-600A | 200-1200A | 200-1200A | 400-1500A | |||||
Timing | 1-99s | 1-99s | 1-99s | 1-99s | 1-99s | |||||
Cooling water | 0.06-0.12Mpa 7.5L/min | 0.06-0.12Mpa 7.5L/min | 0.06-0.12Mpa 7.5L/min | 0.08-0.12Mpa 7.5L/min | 0.08-0.16Mpa 7.5L/min | |||||
Alarm tempreture | 40°C | 40°C | 40°C | 40°C | 40°C | |||||
Generator weight | 25kg | 10kg | 30kg | 18.5kg | 35kg | |||||
Transformer weight | / | 15kg | / | 15kg | 10kg | |||||
Generator size (mm) | 535*245*550 | 505*235*520 | 535*245*550 | 560*235*520 | 595*275*580 | |||||
Transformer size (mm) | / | 340*235*405 | / | 425*235*420 | 485*275*440 | |||||
Model | LH-35AB | LH-40AB | LH-60AB | LH-80AB |
Input voltage | 380V | 380V | 380V | 380V |
Output power | 35kW | 40kW | 60kW | 80kW |
Frequency | 30-80KHz | 30-80KHz | 30-80KHz | 30-80KHz |
Output current | 400-1600A | 400-1800A | 400-2400A | 400-3200A |
Timing | 1-99s | 1-99s | 1-99s | 1-99s |
Cooling water | 0.08-0.16Mpa 7.6L/min | 0.08-0.16Mpa 7.6L/min | 0.08-0.16Mpa 7.6L/min | 0.08-0.16Mpa 9L/min |
Alarm tempreture | 40°C | 40°C | 40°C | 40°C |
Generator weight | 35kg | 35kg | 37kg | 54kg |
Transformer weight | 10kg | 10kg | 36kg | 47kg |
Generator size (mm) | 595*275*580 | 595*275*580 | 650*320*590 | 745*345*600 |
Transformer size (mm) | 485*275*450 | 485*275*450 | 485*275*450 | 790*425*580 |

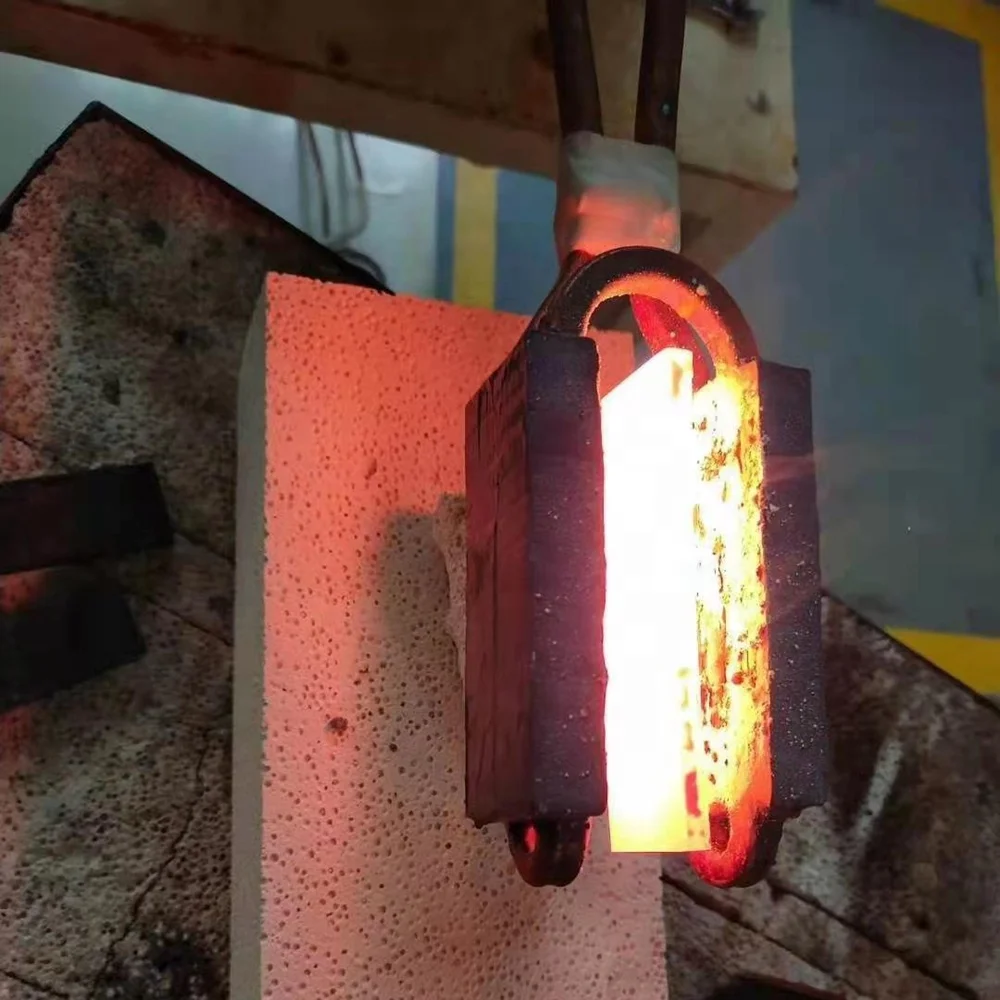

Application
Recommend Products
Production Process
Company Profile
LIHUA company has been committed to the development, production as well as the sales of induction heating equipment since 2005. Our own garden-style factory covers an area of 10,000 square meters. The company has undergone 8 times production process optimizations and 5 times production equipment updates. LIHUA obtained the honor of national high-tech enterprise and more than 60 patent certificates. We provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is LIHUA's goal!
FAQ
Q: Why use induction heating?
A: ★ Improved process efficiency ★ Localized, constant and precise heating ★ Temperature control ★ Energy saving ★ Possibility of integration into production lines ★ Best quality and yield/performance ★ Pollution free, fast and secure technology ★ Improved working environmentQ: How to choose a suitable induction heater?
A: Induction heaters have many different modles with different power and frequency.
1. The higher power, the faster of the heating speed. so if you want to heat fast then you'd better choose a high power induction heater.
2. The higher frequency, the lower of the heating layer. So for some surface hardening, we suggest use a higher frequency heater, for some entire heating (like forging and melting) we suggest to use low frequency heater.
3. If you are not sure of which model is suitable for your work, please ask our salesman for suggestion before you place an order.
Q: Does your equipment support a specific input voltage?
A: Yes, we can customize different imput voltages in response to different voltage levels in different countries.
A: Yes, we can customize different imput voltages in response to different voltage levels in different countries.
Q: Are you a factory or trading company?
A: We are a professional manufacturer of induction heating equipment since 2005. Welcome to visit our factory anytime.
Q: Do you have any equipment in stock?
A: Yes, we have some standard models in stock, and can deliver immediately after payment.
Q: How is your quality control?
A: We have a professional team responsible for product testing and packaging before delivery. You can buy without hesitation.
Q: If the machine get damaged, what can I do?
A: Some spare parts are free of charge during the 1-year warranty period. If you don't know how to repair, please take photos or record a video and send to us., our engineer will guide you to perform the repair. If still cannot solve the problem, we can send our engineers to your factory.
A: We are a professional manufacturer of induction heating equipment since 2005. Welcome to visit our factory anytime.
Q: Do you have any equipment in stock?
A: Yes, we have some standard models in stock, and can deliver immediately after payment.
Q: How is your quality control?
A: We have a professional team responsible for product testing and packaging before delivery. You can buy without hesitation.
Q: If the machine get damaged, what can I do?
A: Some spare parts are free of charge during the 1-year warranty period. If you don't know how to repair, please take photos or record a video and send to us., our engineer will guide you to perform the repair. If still cannot solve the problem, we can send our engineers to your factory.
